Club PRO HM6004M User manual

GB
PROGRAMMABLE
MAGNETIC BIKE
USER’S MANUAL

This quality products is designed, manufactured, tested and certified for enhanced
Fitness Training.
Dear Customer,
We want to thank you for having chosen a programmable MAGNETIC BIKE product and wish you a lot of
fun and success during training.
Please note and follow the enclosed safety and assembly instructions carefully.
If you have questions please do not hesitate to contact us.
Table of Content:
1. Safety Instructions .............................. P. 2
2. Hardware Package ............................. P. 3
3. Assembly Instructions ........................ P. 4
4. Computer Instructions.......................... P. 6
5. Training Instructions ............................ P.10

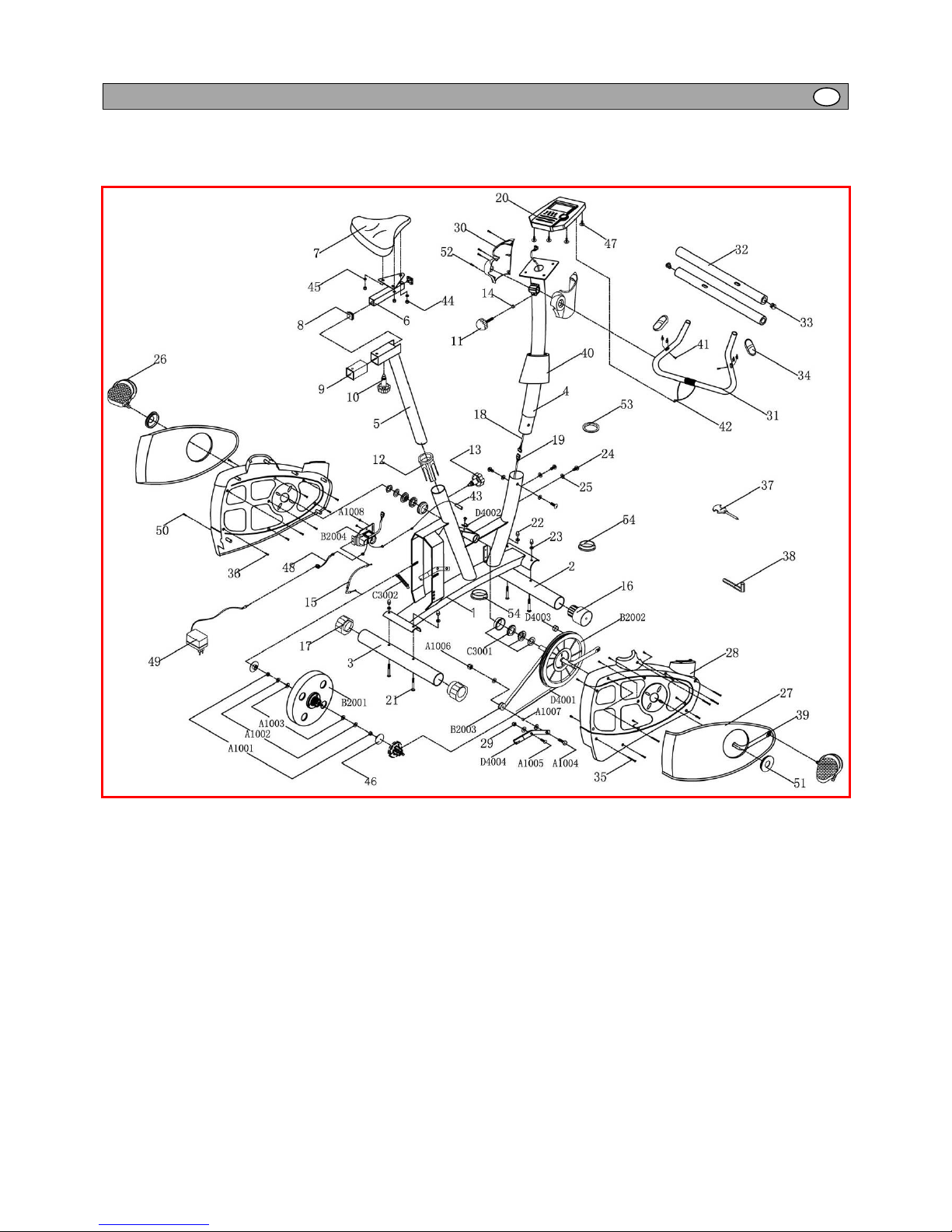

6. Exploded Drawing ............................... P.11
7. Parts List ............................................. P.12
8. Training pulse rate ............................... P.14
Safety Instructions
Before you start training on your home PROGRAMMAB
LE MAGNETIC BIKE, please read the instructions carefully.
Be sure to keep the instructions for information, in case of repair and for spare part delivery.
The HM-6004M is made for home use only and
tested up to a max. body weight of 100 kg.
Follow the steps of the assembly instructions
carefully.
Use only original parts as delivered.
For assembly use only suitable tools and ask for
assistance with assembly if necessary.
Place the bike on an even, non-slippery surface.
Because of possible corrosion, the usage of the
home exercise bikes in moist areas is not
recommended.
Check before the first training and every 1-2 months
that all connecting elements are tight fitting and are
in the correct condition.
Replace defective components immediately and/or
keep the equipment out of use until repair.
For repairs, use only original spare parts.
In case of repair please ask your dealer for advice
Avoid the use of aggressive detergents when
cleaning the home exerciser.
Ensure that training starts only after correct
assembly and inspection of the item.
For all adjustable parts be aware of the maximum
positions to which they can be adjusted/tightened
to.
The home exerciser is designed for adults. Please
ensure that children use it only under the
supervision of an adult.
Ensure that those present are aware of possible
hazards, e.g. movable parts during training.
Consult your physician before starting with any
exercise programme. He can advise on the kind of
training and which impact is suitable.
Warning: incorrect/excessive training can cause
health injuries.
Please follow the advice for correct training as
detailed in training instructions.
The load/work level can be adjusted by turning the
up/down knob on the computer.
GB
- 2 -

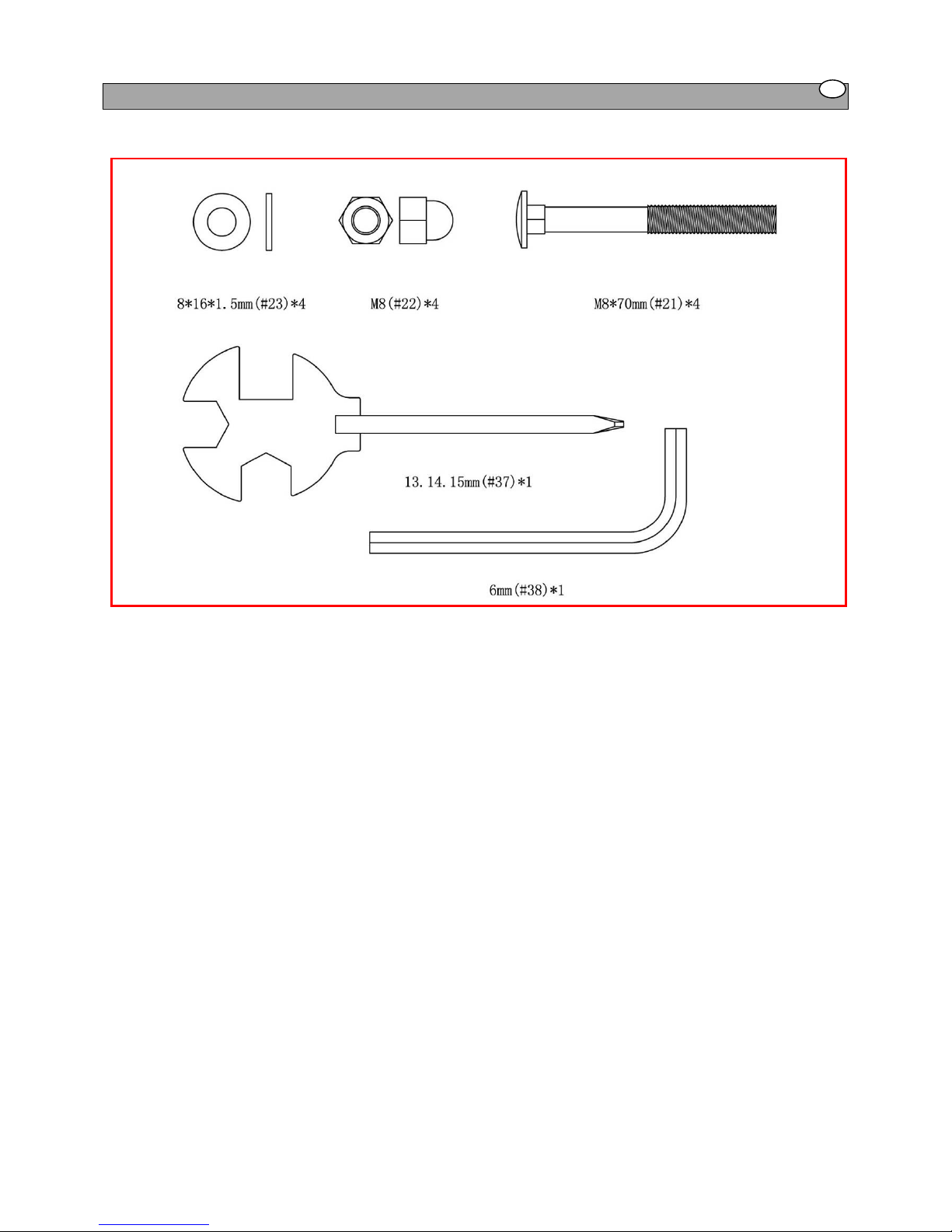

Hardware Package
GB
- 3 -

Assembly Instruction
Step 1
1. Fasten front stabilizer (2) and rear stabilizers (3) each
with 2 carriage bolts (21) from the underside of
stabilizers. Sesure with 2 washers (23) & domed
nuts (22) to main frame (1).
Step 2
2. Screw pedal (26) onto the crank arm set (39). The
pedals are marked with R and L at the screw. Tighten
the left pedal counter-clockwise, the right pedal
clockwise.
Step 3
1. Unscrew the pre-assembled 4 hex. Bolts (24) & 4
washers (25).
2. Connect the upper computer cable (18) with lower
computer cable (19) tightly.
3. Put the handlebar post (4) into the main frame (1).
Secure with 4 hex. Bolts (24) & 4 washers (25) tightly.
Step 4
1. Release round knob (11) and sleeve (14) from
fastener at handlebar post (4). Open up fastener and
place the handlebar (31) onto fastener.
2. Select the desired position for handlebar (31), fasten
the fastener by round knob (11) with sleeve (14)
securely.
GB
GB
GB
GB
GB
- 4 -

Step 5
1. Plug the upper computer cable (18) to jack at back of
computer (20). Slide computer (20) to the bracket at
the top of handlebar post (4), secure with 4
screw (47) firmly.
2. Plug the hand pulse sensor wire (42) to jack at back
of computer (20).
Step 6
1. Attach right and left plastic computer holder (30) to
handlebar post (4) (under handlebar (31)). Secure
with 4 bolts (52) firmly.
Step 7
1. Attach saddle adjustable post (6) to saddle (7),
secure with 3 x washer (45) and 3x locknut (44).
2. Release the knob (10) from saddle post (5). Put
saddle adjustable post (6) into saddle post (5). Select
the desired position and fasten with knob (10).
Step 8
1. Loosen & pull the saddle post knob (13). Insert the
saddle post (5) to the main frame (1), choose the
desired position and tighten the Saddle post knob (13)
again.
2. Attach adaptor (49) to DC wire (48) at back of main
frame (1).
3. Ensure that the knob is always tightened.
GB
GB
GB
GB
- 5 -

Computer Instructions
Programable Trainging Computer - SM3105-20
Initial operating process: (After the computer is power on with adaptor installed)
Step One You may use UP or DOWN to select training mode in MANUAL or PROGRAM (12 di erent
pro iles) or USER or TARGET HEART RATE control (4 di erent options or training). I you
select training with Target Heart Rate control mode, you need to input AGE data, and
switch to next procedure.
Step Two You may use UP or DOWN to adjust the training LOAD/DIFFICULTY level rom 1 to 16 under
MANUAL, PROGRAM and USER mode .(Exclude TARGET HEART RATE CONTROL mode)
Step Three You may use UP or DOWN to preset training unction datas, when each unction data has
been preset, press ENTER.
Available preset training unctions:
TIME: Preset area is rom 00:00 to 99:00, each increment is 1:00 (minute).
DISTANCE: Preset area is rom 0.00 to 99.90, each increment is 0.10 km or ml.
CALORIE:
Preset area is rom 0 to 990, each increment is 10 cal.
WATT: Preset area is rom 10 to 350, each increment is 10 watt.
(WATT can be preset under MANUAL mode only)
PULSE: Preset area is orm 30 to 240, each increment is 1 BPM.
(Exclude in TARGET H.R control mode)
Step Five Press START/STOP button to start training.
Training Mode Instruction:
To start your training :
As soon as you press START/STOP button without any presetting ( unctions and programs), the
computer starts working under Manual mode.
Training without preset Time:
I you do not preset TIME,each unit o the pro ile switches orth to another per 0.1 km or ml
in counting up (no preset DISTANCE) or counting down (has preset DISTANCE).
Training with preset Time:
I you have preset TIME,each unit o the pro iles switches orth to another per preset TIME
divided by 16.
Tension di iculty adjustment:
You may adjust the tension load rom 1 to 16 during training under Manual mode i you did
not preset Watt unction.
I you have preset WATT, tension load will be auto-adjusted depends on the current speed and
watt values you are working out.
There will be our di erent symbols showes up to help your training:
You need to slow down the training speed.
You need to speed up the training.
GB
- 6 -

------- This is to remind the current WATT is OVER SPEC, and you need to speed up or slow
down training speed accordingly.
** When the WATT is over spec, computer has Bi-Bi-Bi/second to remind you. I you
keep training under this mode or over 3 minutes,the computer has an ALARM with
6 beeps sounds or 30 seconds, and the computer system STOP automatically, at
this moment, LOAD is down to 1, and preset WATT data is zero. During the ALARM
period, you can stop ALARM by pressing any unction buttons.
Training with 12 pro iles - You can select rom P1 to P12 pro iles or training, also you can
adjust training levels any time during training.
Training with USER - You can preset your personal training pro iles under this mode. During
training, you can also adjust training levels any time.
Training in TARGET H.R. control - The tension di iculty will be auto-adjusted according to
the current heart rate igure. I your heart rate igure is under the target pulse, the tension
di iculty will be up-adjusted one level per 30 seconds, up to the maximum level 16. As
soon as your heart rate igure is achieved at the target pulse, tension di icult will be down
adjusted one level immediately, and keep down-adjusted one level per 15 seconds until
level 1. I your current heart rate is still over (or equal to) the target pulse or 30 seconds
when tension is level 1, the computer system will STOP and ALARM or 6 beeps to remind
you as the training protection.
You may select ixed preset target heart rate percentage or input your personal traning
target heart rate igures.
Target Pulse with di erent percentage selected -
You may use UP or DOWN to have the TARGET HEART RATE igure be zero, and
press ENTER button. At this moment, you may select the percentage o
the heart rate that you will achieve in the training. The computer provides 3
di erent percentage o the maximum heart rate which is calculated by the
CPU according to the AGE data you inputed.
Remark: 55%MAXH.R. - I you input age in 30, the igure will be 104, this igure
is 55% o the max. heart rate igure which is 190, the proper igure
calculated by the CPU compared the age o 30. The same ormula
can be used to have the result or 75%, and 90%.
Target Pulse igure input by yoursel -
You may preset your target pulse igure by pressing UP and DOWN buttons. As
soon as you have preset the target pulse igure, the level will be ixed on level
1, and you may only start training rom level 1. When your actual heart rate has
reached over the target, the computer starts to alarm to remind you, and it
stops when your heart rate comes under the target.
To stop your training:
Training with PRESET unction datas:
As soon as the preset unction datas counting down to zero,(pulse igures excluded)
the computer has 8 beep sounds and remind you. At this moment, the computer will
stop working. You may press START/STOP button to start the computer working and
counting up rom the previous datas.
- 7 -

Interupt training:
You may press START/STOP button to stop computer working during training any time.
To reset program:
You may press RESET button to reset the PROGRAM and select the training mode and
tension load or di iculties under STOP mode. I you hold on pressing the RESET button
or 2 seconds, all datas(including personal datas) will be total reset.
Buttons:
ST/STOP To start or stop training.
ENTER To select each unction o Time, Distance, Pulse, Watt or preseting.
ENCODER UP To up adjust datas.
ENCODER
DOWN To down adjust datas.
RESET 1. To reset each unction o Time, Distance, Pulse, Watt unction igures.
2. To reset program setting and back to initial selection mode with Manual, Program,
user, or Target Heart Rate all blinking display.
RECOVERY To have pulse recovery unction work.
Functions:
TIME Count Up - The computer starts counting up rom 00:00 up to 99:59 during training.
Count Down - The computer will count down rom the preset Time to 00:00.
SPEED Displays the current SPEED rom 0.0 to maximum 99.9 km or ml.
DISTANCE Count Up - The computer accumulates total workout distance rom 0.00 to the
max. 99.90 km or ml during training.
Count Down - The computer will count down rom the preset Distance to 0.00.
CALORIES Count Up- The computer accumulates the calories comsuption rom 0 to the max.
990 cal during training.
Count Down - The computer will count down rom the preset Calories to 0.
This data is a rough guide or comparison o di erent exercise sessions that can not
be used or medical treatment.
PULSE The monitor can detect your handpulse. You may preset target pulse between 30 to 240
bpm to assist the training. The options you may have are as the ollowing:
Alarm - I you preset the target pulse under training with Manual or other target
the computer will alarm to remind as soon as your current heart rate is
achieved at the preset igure.
Load tension adjustment - I you preset the target heart rate ( or select di erent
target heart rate percentage), the load resistance will be auto-adjusted
according to your actual heart rate igure compared with the preset
heart rate which is heart rate control program.
RECOVERY A ter exercising or a period o time, keep holding on grips and press " RECOVERY"
button, all unction display will stop except "Time". Time starts counging down
rom 00:60 - 00:59 - 00:58 - to 00:00. As soon as 00:00 is reached, the bottom area o
LCD will show your heart rate recovery status with the grade F1, F2,… F6. F1 is the
- 8 -

best, and F6 is the worst. You may keep exercising to improve the heart rate
recovery status day by day rom F6 up to F1.
** Press the RECOVERY button again to return the main display.
WATT A ter training or a while, the monitor will display current workout watt.
Note:
1. When there is no signal been trans erred into the computer or 4 minutes, the LCD display will
shutt o automatically, and all previous training datas will be stored. You may press any
button to have the computer restart working.
2. The monitor has the same result as abovementioned point 2 i you press and hold on RESET
button or 4 seconds.
3. I the LCD display is improper, please remove the power connection and connect it again.
4. The monitor can be power on with an AC adaptor input (500mA, 6V)
- 9 -

Training Instructions
To achieve a considerable improvement of your
physical resistance and your health, some aspects of
how to find the most efficient amount of training should
be followed:
If you have not been physically active for a longer period
of time and also to avoid health risks you should consult
your general physician before starting to exercise.
Intensity
To achieve maximum results the right intensity has to be
chosen.
The heart rate is used as guideline.
As a rule of thumb the following formula is commonly
used:
Maximum pulse rate = 220 - Age
While exercising the pulse rate should always be
between 60% - 85% of the maximum pulse rate.
For your personal training rates please see the attached
pulse rate chart on page 14.
When starting to exercise you should keep your rate at
60% of your maximum pulse rate in the first couple of
weeks.
With increasing improvement of fitness the pulse rate
should be slowly increased to 85% of your maximum
pulse rate.
Fat burning
The body starts to burn fat at approx. 60% of the
maximum pulse rate.
To reach an optimum at burning rate, it is advisable to
keep the pulse rate between 60% – 70% of the
maximum pulse rate.
The optimum training amount consists of three workouts
per week 30 minutes each.
Example:
You are 52 years of age and would like to start
exercising.
Maximum pulse rate = 220 - 52(age) = 168 pulse/min
Minimum pulse rate = 168 x 0.6 = 101 pulse/min
Highest pulse rate = 168 x 0.7 = 117 pulse/min
During the first weeks it is advisable to start with a pulse
rate of 101, afterwards increase it to 117.
With increasing improvement of fitness the training
intensity should be increased to 70% - 85% of your
maximum pulse rate.
This can be done by increasing the resistance, a higher
frequency or longer training periods.
Training Organization
Warm-up:
Before every your training you should warm-up for 5-10
minutes.
Here you can do some stretching and training with low
resistance.
Training session:
During the actual training a rate of 70% -85% of the
maximum pulse rate should be chosen.
The time-length of your training session can be
calculated with the following rule of thumb:
•daily training session: approx. 10 min. per unit
•2-3 x per week: approx. 30 min. per unit
•1-2 x per week: approx. 60 min. per unit
Cool down:
To introduce an effective cool-down of the muscles and
the metabolism the intensity should be drastically
decreased during the last 5 – 10 minutes.
Stretching is also helpful for the prevention of muscle
aches.
Success
Even after a short period of regular exercises you will
notice that you constantly have to increase the
resistance to reach your optimum pulse rate.
The units will be continuously easier and you will feel a
lot fitter during your normal day.
For this achievement you should motivate yourself to
exercise regularly.
Choose fixed hours for your training session and do not
start training too aggressively.
An old quote amongst sportsmen says:
“The most difficult thing about training is to start it.”
Wish you have a lot of fun and success with your
bike,
GB
- 10 -

Exploded drawing
GB
- 11 -

Parts List
NO.
Description Quantity
1 Main frame 1
2 Front stabilizer 1
3 Rear stabilizer 1
4 Handlebar post 1
5 Saddle post 1
6 Saddle adjustable post 1
7 Saddle 1
8 Cap (for saddle adjustable post) 2
9 Fastener (for saddle adjustable post) 2
10 Knob (for saddle adjustable post) 1
11 Knob (for handlebar post) 1
12 Fastener (for saddle post) 1
13 Saddle post knob 1
14 Sleeve (for handlebar) 1
15 Tension control cable 1
16 Front stabilizer cap 2
17 Rear stabilizer cap 2
18 Computer cable (upper) 1
19 Computer cable (lower) 1
19 Motor 1
20 Computer 1
21 Carriage bolt (for front & rear stabilizer) 4
22 Domed nut (for front & rear stabilizer) 4
23 Washer (for front & rear stabilizer ) 5
24 Hex. Bolt (for handlebar post) 4
25 Washer (for handlebar post) 4
26 Pedal (R & L) 1
27 Central chain cover(R & L) 1
28 Chain cover (R & L) 1
29 Nut (for idle wheel fixture) 1
30 Plastic computer holder (R & L) 1
31 Handlebar 1
32 Foam grips (pair) 1
33 End caps (pair) 1
34 Hand pulse sensor 2
35 Screw (for chain cover) 5
36 Screw (for chain cover) 14
37 Screw driver 1
38 Allen key wrench 1
39 Crank arm set 1
40 Protector (for handlebar post) 1
41 Screw (for handle pulse sensor ) 2
42 Hand pulse sensor wire 1
43 Sensor 1
44 Locknut (for saddle) 3
45 Washer (for saddle ) 3
GB
- 12 -

46 Protector (for flywheel) 2
47 Screw (for computer) 4
48 DC cable 1
49 Adaptor 1
50 Screw (for chain cover) 4
51 Protector (for crank) 2
52 Screw (for plastic computer holder) 4
53 Ring (for handlebar post) 1
54 End cap (for front & middle post) 2
A1001 Washer (for flywheel) 2
A1002 Washer (for flywheel) 2
A1003 Nut (for flywheel) 2
A1004 Bolt (for idle wheel fixture) 1
A1005 Bolt (for idle wheel fixture) 1
A1006 Nut (for idle wheel) 1
A1007 Steel sleeve 1
A1008 Screw (for motor) 2
B2001 Flywheel set 1
B2002 Belt wheel 1
B2003 Idle wheel 1
B2004 Motor 1
C3001 Ball bearing set 1
C3002 Spring 1
D4001 Poly-v belt 1
D4002 Sensor 1
D4003 Magnet 1
D4004 Idle wheel fixture. 1
- 13 -

Training Pulse Rate
The owner’s manual is only for the customer reference.
GB
- 14 -
