Life Gear XINGGUI 20040 User manual

XINGGUI
Magnetic Upright Bike
ITEM NO.: 20040
OWNER’S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner’s manual for future reference.
The specifications of this product may vary from this photo and are subject to change without
prior notice. 2016, March.

1
TABLE OF CONTENTS
WARRANTY ------------------------------------------------------------------------------- 2
IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3
PARTS LIST ------------------------------------------------------------------------------- 4
HARDWARE LIST ----------------------------------------------------------------------- 5
TOOLS -------------------------------------------------------------------------------------- 5
EXPLODED VIEW ----------------------------------------------------------------------- 6
ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 7
HOW TO MOVE THE UPRIGHT BIKE --------------------------------------------- 19
OPERATING THE COMPUTER ------------------------------------------------------ 20
ADJUSTMENTS -------------------------------------------------------------------------- 22
MAINTENANCE -------------------------------------------------------------------------- 23
TROUBLESHOOTING ------------------------------------------------------------------ 23
WARM UP AND COOL DOWN ROUTINE ----------------------------------------- 24

2
ONE YEAR LIMITED WARRANTY
LifeGear Inc. warrants to the original purchaser that this product is free from defects in
material and workmanship when used for the purpose intended, under the conditions that it
has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's
obligation under this warranty is limited to replacing or repairing free of charge, any parts
which may prove to be defective under normal home use. This warranty does not include
any damage caused by improper operation, misuse or commercial application.
From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.
This warranty is offered only to the original owner and is not transferable. Proof of
purchase is required.
When ordering replacement parts please have the following information ready:
1. Owner's Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase

3
IMPORTANT SAFETY INSTRUCTIONS
Basic precautions should always be followed, including the following important
safety instructions when using this equipment. Read all instructions before using
this equipment.
1. Read all instructions and follow it carefully before using this equipment. Make sure the
equipment is properly assembled and tightened before use.
2. Before exercise, in order to avoid injuring the muscle, warm-up exercises are
recommended.
3. Please make sure all parts are not damaged and fixed well before use. This
equipment should be placed on a flat surface when using. Using a mat or other
covering material on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not wear clothes
that may catch any part of the equipment; remember to tighten the pedaling straps.
5. Do not attempt any maintenance or adjustments other than those described in this
manual. Should any problems arise, discontinue use and consult your local dealer.
6. Do not use the equipment outdoors.
7. This equipment is for household use only. It is not a commercial model.
8. Only one person at a time should use this equipment.
9. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop
exercising immediately and consult your physician before continuing.
10. Care should be taken in mounting or dismounting the equipment.
11. Do not allow children to use or play on the equipment. Keep children and pets away
from the equipment while in use. This machine is designed for adults use only. The
minimum free space required for safe operation is not less than two meters.
12. The maximum weight capacity for this product is 110 kgs.
WARNING: Before beginning any exercise program consult your
physician. This is especially important for people who are over 35 years old or who
have pre-existing health problems. Read all instructions before using any fitness
equipment. Do not operate this exercise equipment without properly fitted guards,
as the moving parts can present a risk of serious injury if exposed.
CAUTION: Read all instructions carefully before operating this product.
Retain this Owner’s Manual for future reference.

4
PARTS LIST
No. Description Qty No. Description Qty
001 Main Frame 1 026 Seat Post Bushing 1
002 Handlebar Ø25 1 027 Seat Post Cover 1
003 Handlebar Post 1 028 Seat Cushion (DD-98-4T) 1
004 Seat Post 1 029 Washer Ø16xØ8x1.5T 3
005 Front Stabilizer Ø60x1.5Tx330 1 030 Nylon Nut M8 3
006 Rear Stabilizer Ø60x1.5Tx480 1 031 Flywheel 1
007 Idler Arm 1 032 Eyebolt M6x36 2
008 Handlebar Foam Grip
Ø30xØ24x490 2 033 Tension Bracket 31x30x1.0T 2
009 Handlebar End Cap Ø25 2 034 Spring Washer Ø6 2
010 Hand Pulse Sensor with Wire
L=750 mm 2 035 Nut M6 2
011 Cross Recessed Pan Head
Tapping Screw ST4.2x20 4 036 Nut M10x1.0xH6 2
012 Hexagon Socket Pan Head Cap
Bolt M8x15 6 037 Cross Recessed Pan Head Bolt M6x10 1
013 Curve Washer Ø16xØ8x1.5T 2 038 Washer Ø12xØ6x1.5T 1
014 Computer (XLG-505) 1 039 Bearing 6000-2Z 2
015 Extension Sensor Wire L=800 mm 1 040 Washer Ø14xØ10.2x1.0T 2
016 Cross Recessed Pan Head Bolt
M5x10 4 041 Hexagon Socket Round Head Cap Bolt M8x30 1
017 Tension Control Knob 1 042 Cover Cap Ø40xØ25x10 2
018 Tension Cable L=1150 mm 1 043 Plastic Screw Anchor Ø8x32 2
019 Big Washer Ø18xØ5x1.5T 1 044 Hexagon Nut 7/8" 2
020 Cross Recessed Pan Head Bolt
M5x25 1 045 Washer Ø23xØ34.5x2.5 1
021 Handlebar Post Cover 1 046 Bearing Nut II 7/8" 1
022 Big Curve Washer Ø20xØ8x2.0 6 047 Ball Bearing 2
023 Sensor with Wire L=750 mm 1 048 Bearing Cup 2
024 Washer Ø20xØ8x2.0T 2 049 Bearing Nut I 15/16" 1
025 Seat Post Knob M16x1.5 1 050 Washer Ø24xØ40x3.0 1

5
PARTS LIST

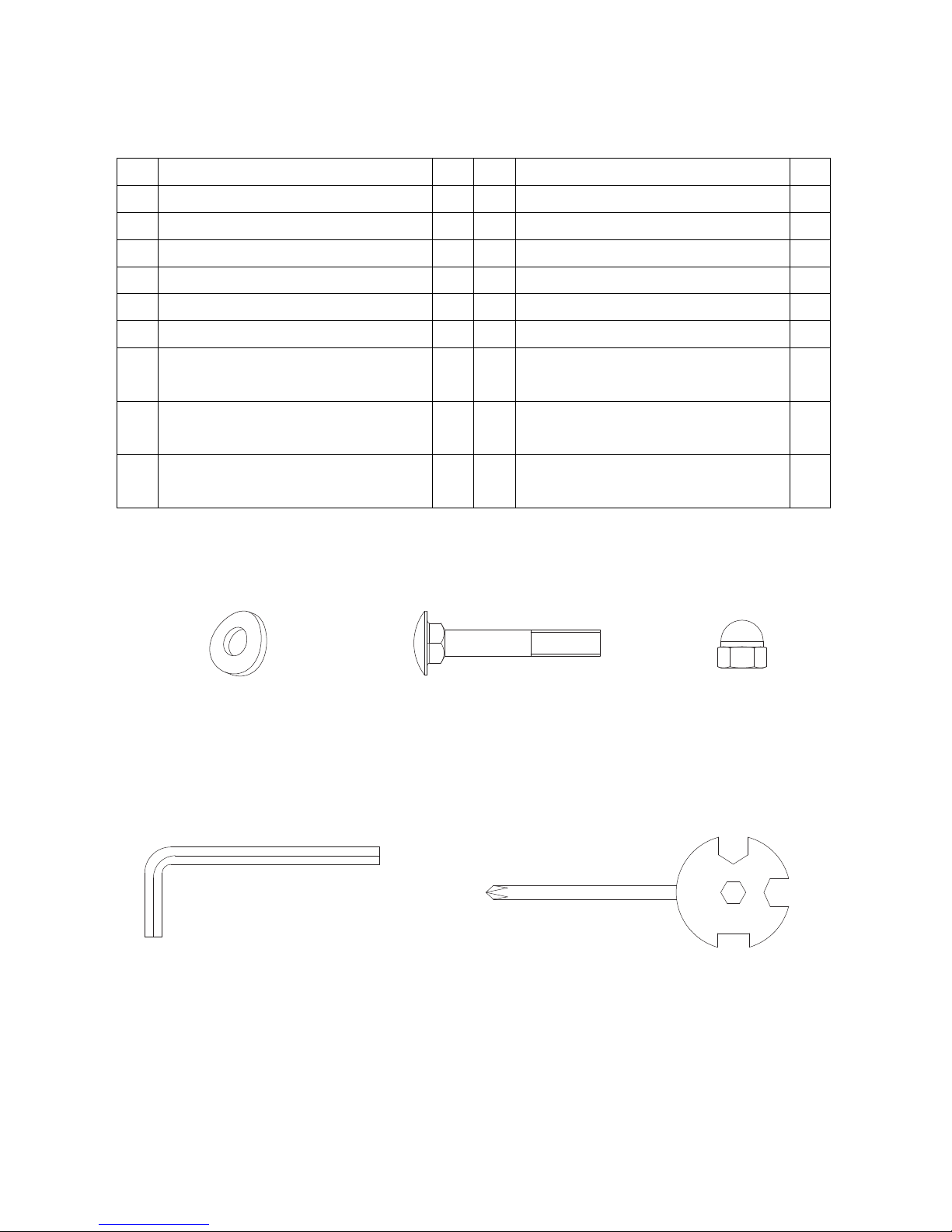

HARDWARE LIST
TOOLS
No. Description Qty No. Description Qty
051 Belt (380J) 1 060 Cap Nut M8 4
052 Crank with Belt Pulley 1 061 Rear Left Stabilizer End Cap 1
053 Left Foot Pedal (YH-30X) 1 062 Rear Right Stabilizer End Cap 1
054 Right Foot Pedal (YH-30X) 1 063 Nut M10 2
055 Left Cover 1 064 Adjustable Leveler M10 2
056 Right Cover 1 065 Screw ST4.2x20 4
057 Front Left Stabilizer End Cap 1 066 Cross Recessed Pan Head
Tapping Screw ST4.2x25 5
058 Front Right Stabilizer End Cap 1 067 Cross Recessed Pan Head
Tapping Screw ST2.9x10 2
059 Carriage Bolt M8x70 4 068 Hexagon Socket Pan Head Cap
Bolt M8x10 1
Allen Wrench
1 PC
Multi Hex Tool with Phillips Screwdriver
1 PC
(22) Big Curve Washer
4 PCS
(59) Carriage Bolt
4 PCS
(60) Cap Nut
4 PCS

6
45 46 47 48
48 47 49 50
53
51
52
54
8
4
1
68
41
37 38 39
40
67
23
35
34
33
35
34 33
32
31
32
36
36
7
42
55
56
42
65
65
65
25
23
15
15
18
20 19 17
3
10
11
99
810
11
13 12
14
2
26
66
43
43
44
5
6
11
22
60
59
57
59
22
60
58
61
62
63
64
63
64
28
29
30
22 12
12
24
12 24
22
12
16
11
66
21
27
18

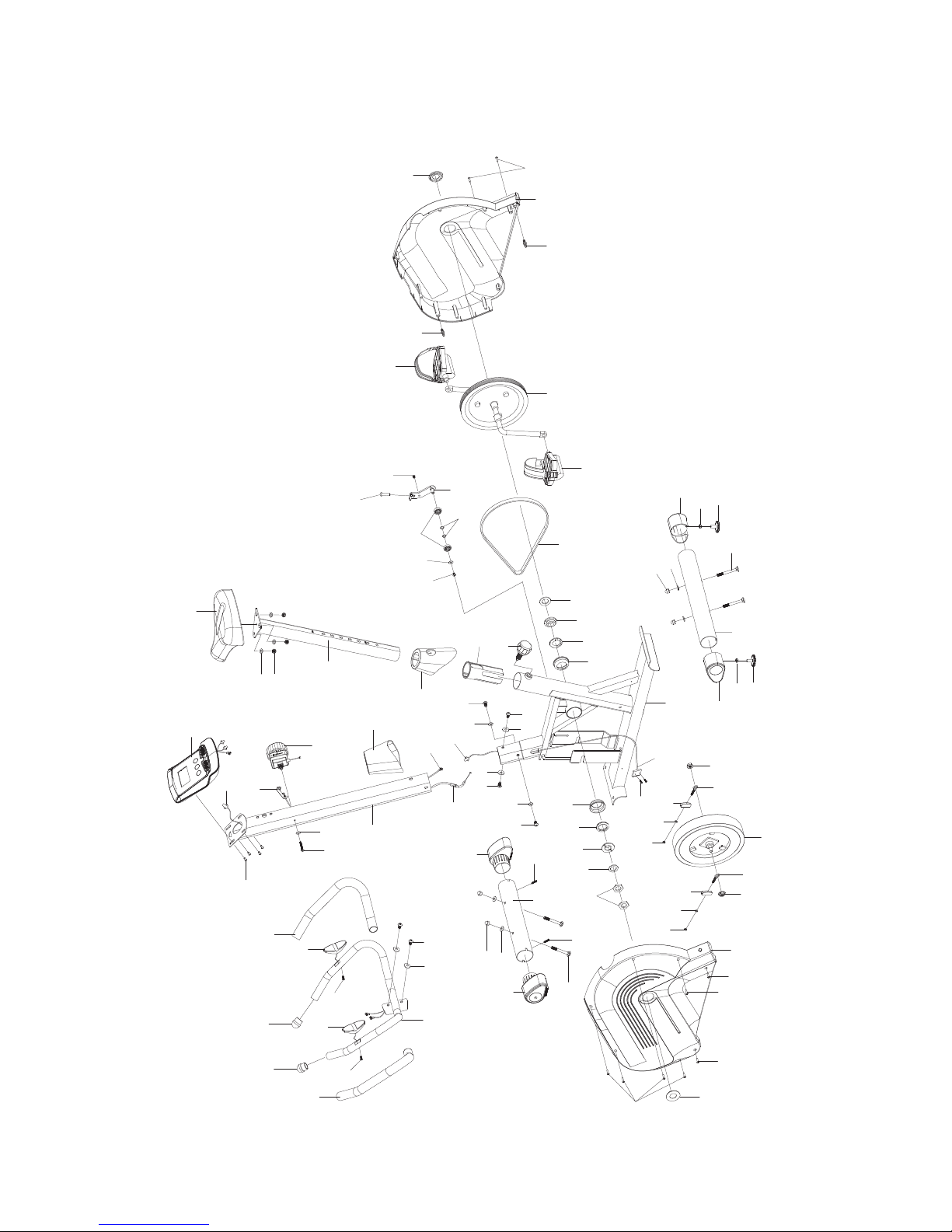

EXPLODED VIEW

7
ASSEMBLY INSTRUCTIONS
STEP 1
Position the Front Stabilizer (5) in front of the Main Frame (1) and align bolt holes.
Attach the Front Stabilizer (5) onto the front curve of the Main Frame (1) with two Carriage
Bolts (59), two Big Curve Washers (22), and two Cap Nuts (60). Tighten cap nuts with the
Multi Hex Tool with Phillips Screwdriver provided.
Hardware:
59
5
22
60
60
22
1
59
60
22
59
5
60
22
1
(22) Big Curve Washer
2 PCS
(59) Carriage Bolt
2 PCS
(60) Cap Nut
2 PCS

8
STEP 2

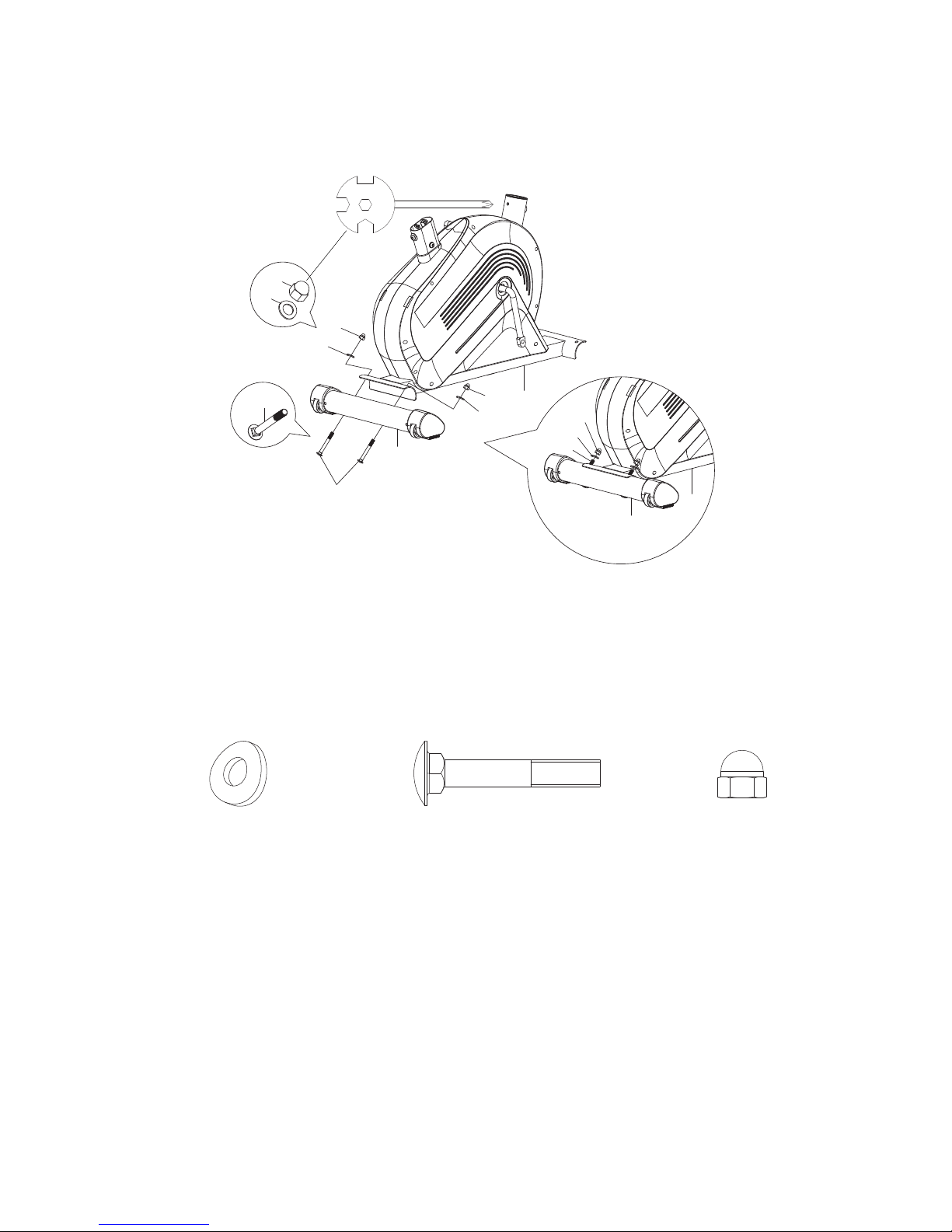

Install two Adjustable Levelers (64) with two Nuts (63) onto the Rear Stabilizer (6).
Position the Rear Stabilizer (6) behind the Main Frame (1) and align bolt holes.
Attach the Rear Stabilizer (6) onto the rear curve of the Main Frame (1) with two Carriage
Bolts (59), two Big Curve Washers (22), and two Cap Nuts (60). Tighten cap nuts with the
Multi Hex Tool with Phillips Screwdriver provided.
Hardware:
1
6
63
64
59
22
60
6
60
22
59
59
22
60
6
(22) Big Curve Washer
2 PCS
(59) Carriage Bolt
2 PCS
(60) Cap Nut
2 PCS

9
STEP 3

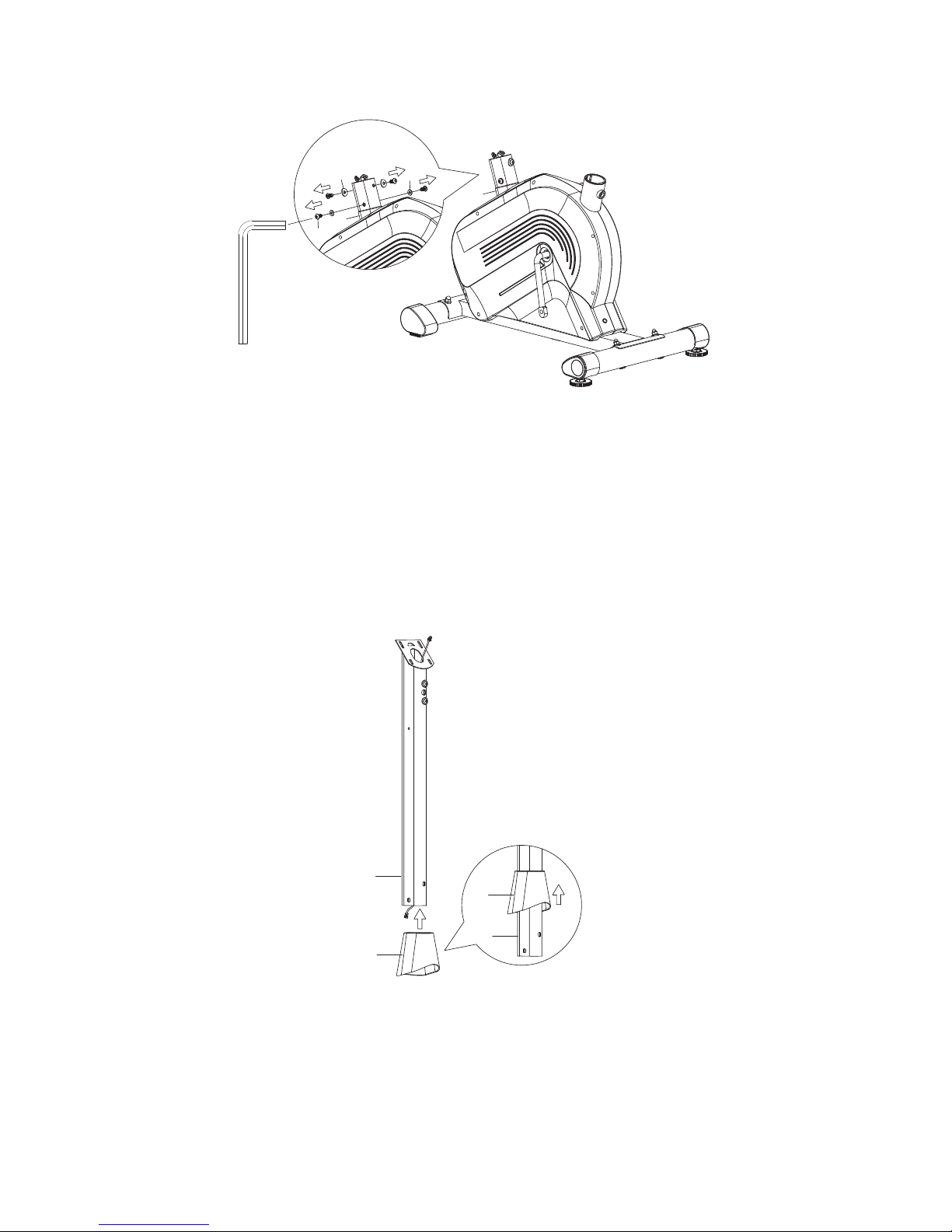

Remove four Hexagon Socket Pan Head Cap Bolts (12), two Big Curve Washers (22), and
two Washers (24) from the Main Frame (1). Remove bolts with the Allen Wrench provided.
STEP 4
Slide the Handlebar Post Cover (21) up to the Handlebar Post (3).
1
1
22
12
24
21
3
21
3

10
STEP 5
It is recommended to have a second person assist with this step. One person should hold
the Handlebar Post (3) in place while the other person to connect the wires.
Connect the Sensor Wire (23) from the Main Frame (1) to the Extension Sensor Wire (15)
from the Handlebar Post (3).
Insert the Tension Cable (18) through into the bottom hole of the Handlebar Post (3) and pull
it out from the square hole of the Handlebar Post (3).
21
3
23
15
18
1
23
15
1
3
18
1
18
3

11
STEP 6
Attach the Handlebar Post (3) to the Main Frame (1) with four Hexagon Socket Pan Head
Cap Bolts (12), two Big Curve Washers (22), and two Washers (24) that were removed.
Tighten bolts with the Allen Wrench provided.
Slide the Handlebar Post Cover (21) down to the Handlebar Post (3).
STEP 7
Remove one Big Washer (19) and one Cross Recessed Pan Head Bolt (20) from the
Tension Control Knob (17). Remove bolt with the Multi Hex Tool with Phillips Screwdriver
provided.
22 12 12
24
12 24
22
12
21
3
1
3
1
3
1
21
20
19
17

12
STEP 8
Put the cable end of resistance cable of Tension Control Knob (17) into the cable lock of
Tension Cable (18), see Figure A.
Pull the resistance cable of Tension Control Knob (17) up and force it into the slot of metal
bracket of Tension Cable (18), see Figure B.
Insert the metal fitting on the resistance cable of Tension Control Knob (17) into the hole at
the end of the slot in the metal bracket of Tension Cable (18), see Figure C.
Connect the resistance cable of Tension Control Knob (17) to Tension Cable (18) complete,
see Figure D.
Attach the Tension Control Knob (17) onto the Handlebar Post (3) with one Big Washer (19)
and one Cross Recessed Pan Head Bolt (20) that were removed. Tighten bolt with the
Multi Hex Tool with Phillips Screwdriver provided.
20 19
17
A
B
C
D
3
18
18
18
18
18
17
17
17
17
3
17

13
STEP 9
Remove three Nylon Nuts (30) and three Washers (29) from underside of the Seat Cushion
(28). Remove nylon nuts with the Multi Hex Tool with Phillips Screwdriver provided.
Guide bolts on underside of the Seat Cushion (28) through holes on top of the Seat Post (4),
attach with removed Nylon Nuts (30) and three Washers (29). Tighten nylon nuts with the
Multi Hex Tool with Phillips Screwdriver provided.
STEP 10
Slide the Seat Post Cover (27) up to the Seat Post (4).
4
27
4
27
28
29
30
4
28

14
STEP 11

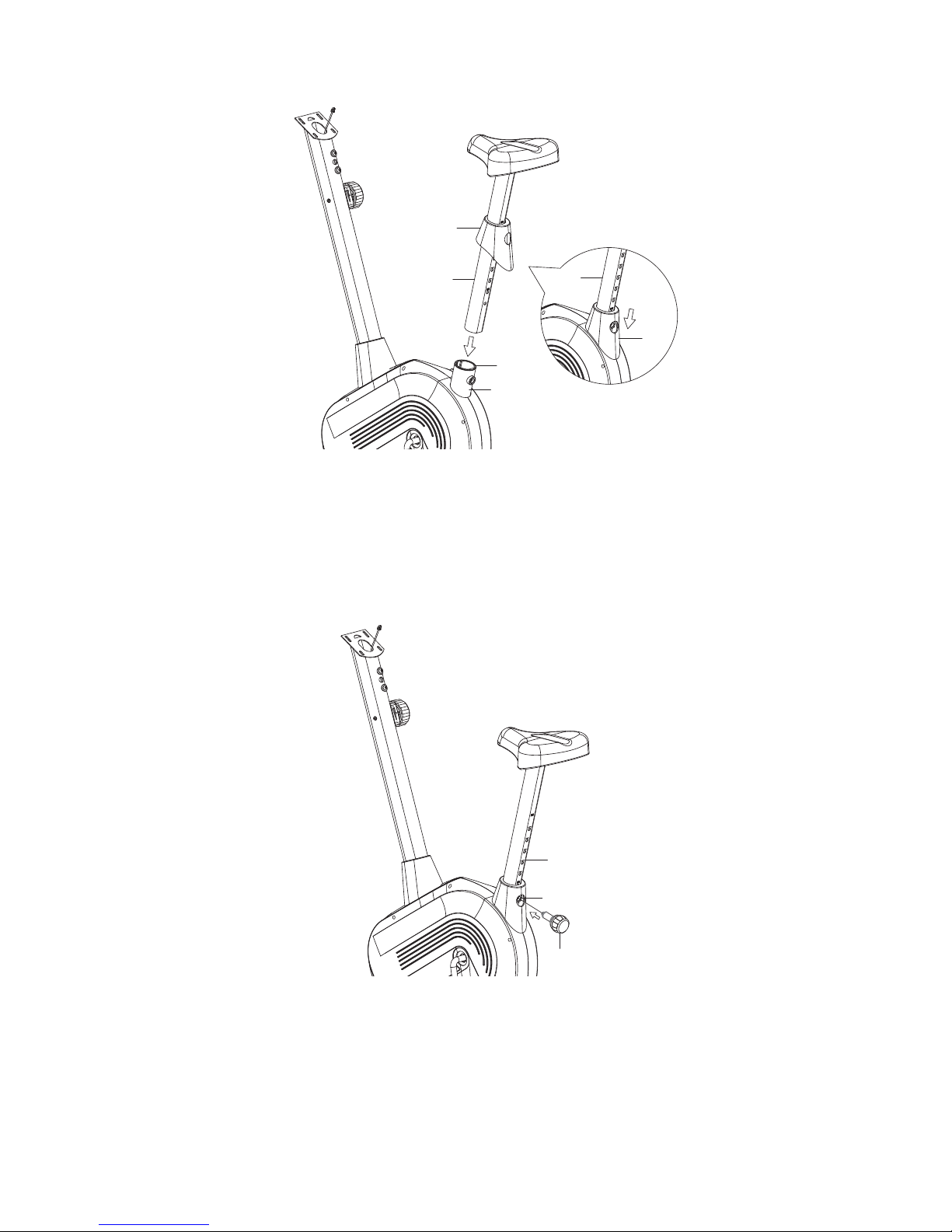

Insert the Seat Post (4) into the tube of the Main Frame (1) at the desired height.
Slide the Seat Post Cover (27) down to the tube of the Main Frame (1).
STEP 12
Attach the Seat Post Knob (25) onto the tube of the Main Frame (1) by turning it in a
clockwise direction to tighten the Seat Post (4) in the suitable position.
4
27
1
26
4
27
25
4
1

15
STEP 13
Remove two Hexagon Socket Pan Head Cap Bolts (12) and two Curve Washers (13) from
the Handlebar Post (3). Remove bolts with the Allen Wrench provided.
STEP 14
Insert the Hand Pulse Sensor Wires (10) from the Handlebar (2) into the hole on the
Handlebar Post (3) and then pull them out from the top end of the Handlebar Post (3).
3
3
13 12
10
3
10
3
2
2

16
STEP 15
Attach the Handlebar (2) onto the Handlebar Post (3) with two Hexagon Socket Pan Head
Cap Bolts (12) and two Curve Washers (13) that were removed. Tighten bolts with the
Allen Wrench provided.
STEP 16
Remove four Cross Recessed Pan Head Bolts (16) from the Computer (14). Remove bolts
with the Multi Hex Tool with Phillips Screwdriver provided.
3
2
13 12
3
2
14
16

17
STEP 17
It is recommended to have a second person assist with this step. One person should hold
the Computer (14) in place while the other person to connect the wires.
Connect the Hand Pulse Sensor Wires (10) and Extension Sensor Wire (15) to the wires that
come from the Computer (14).
STEP 18
Attach the Computer (14) onto the top end of the Handlebar Post (3) with four Cross
Recessed Pan Head Bolts (16) that were removed. Tighten bolts with the Multi Hex Tool
with Phillips Screwdriver provided.
14
10
15
3
14
10 15
3
16
14
3

18
STEP 19
The Foot Pedals and Pedal Straps are marked “R” for Right and “L” for Left.
Select the Right Foot Pedal Strap (54) which has R marked on the side of the strap. Snap
the three hole end of the strap onto the inside edge of the Right Foot Pedal (54). Snap the
other end of the strap onto the outside edge of the Right Foot Pedal (54). Select
adjustment holes which allow your foot to be easily removed from the foot pedal.
Use the same procedure to snap the Left Foot Pedal Strap (53) onto the Left Foot Pedal
(53).
STEP 20
Insert the pedal shaft of Left Foot Pedal (53) into threaded hole in the left Crank (52). Turn
the pedal shaft by hand in the counter-clockwise direction until snug.
Note: DO NOT turn the pedal shaft in the clockwise direction, doing so will strip the
threads.
Tighten the pedal shaft of Left Foot Pedal (53) with the Multi Hex Tool with Phillips
Screwdriver provided.
Insert pedal shaft of Right Foot Pedal (54) into threaded hole in right Crank (52). Turn
the pedal shaft by hand in the clockwise direction until snug. Tighten pedal shaft of Right
Foot Pedal (54) with the Multi Hex Tool with Phillips Screwdriver provided.
53 54
Left Foot Pedal Right Foot Pedal
53
54
52

19
HOW TO MOVE THE UPRIGHT BIKE
This upright bike has a pair of Transport Wheels built into the front stabilizer and can be
carefully tilted onto its Transport Wheels for easy moving and storage.
To move the upright bike, firmly grasp the Handlebar with both hands. Next, carefully push
the upright bike down until it rolls freely on the Transport Wheels.
CAUTION: It is suggested you always use the aid of a second person when moving
the upright bike.
Handlebar
Transport Wheel
