CM Promarks TM-1000 User manual

TM-1000
Vacuum Tumbling Machine
Operation Manual
PROMARKS INC.
8822 Flower Road, Suite #110 Rancho Cucamonga CA91730-4472 USA
TEL :( 909)481-3338
FAX :( 909)481-3335

2
INDEX
Ⅰ. Control Board----------------------------------------------------------------------------------------------3-4
Ⅱ. Operating instructions---------------------------------------------------------------------------------------5
III. Diagram-------------------------------------------------------------------------------------------------------6
IV. Parts list-----------------------------------------------------------------------------------------------------7-8

.ⅠCONTROL PANEL.
○

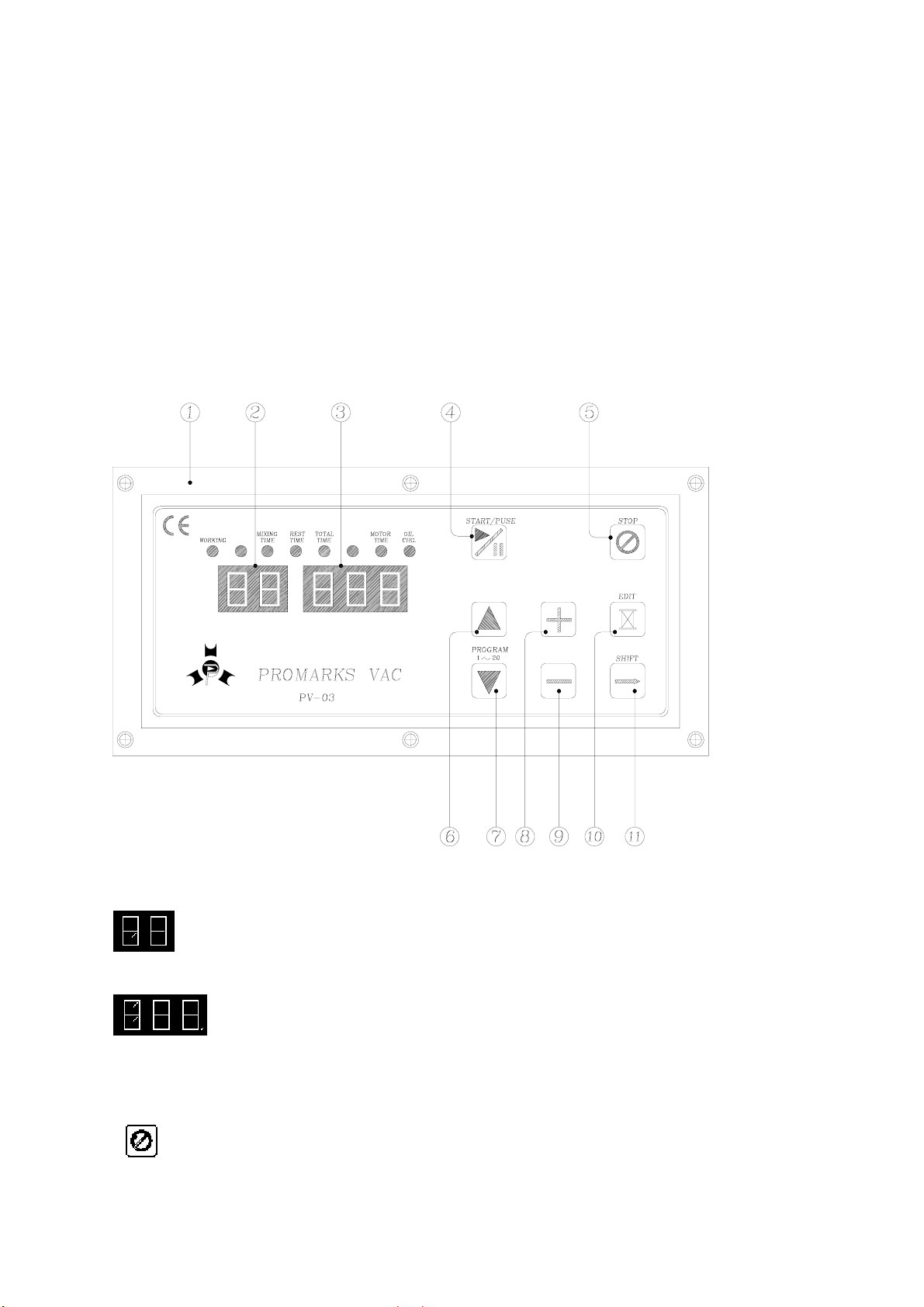

1 Control panel ○ 6 Program number up ○ 10 Edit
○
2 Program number ○ 7 Program number down ○ 11 Shift / Save value
○
3 Function value ○ 8 Increase value
○
4 Start/Pause
○
5 Stop
○
9 Decrease value
● 1st display ○ 2 : First display allows you to use up to 20 different programs as require .
You can store up to 20 programs with different value of mining, rest, total time.
● 2nd display ○ 3 : Second function allows you to adjust time for each given
function of mining, rest, total time, and other required parameter setting .
zStart/Pause○
4: To start / pause machine function by pressing Start / Pause button.
zStop ○ 5 : Ends current cycle in process and skip to ventilation.
3

zProgram number up ○
6 : Program number goes up by pressing button.
●Program number down○
7 : Program number goes down by pressing button.
●Increase value ○ 8 : Increase any value by pressing button.
●Decrease value ○ 9 : Decrease any value by pressing button.
●Shift ○ 11 : Shift to next function/selection and save the previous setting.
Note: When “oil change” lamp lighting, please press “STOP” button to clean it.
Description of each function:
Mixing Time: To adjust the Mixing Time first press shift button to Mixing Time then press or
to adjust the desire time, after adjusting press Shift again to save the value.
Rest Time: To adjust the Rest time first press shift button to Rest Time then press or to
adjust the desire Rest Time after adjusting press Shift again to save the value
Total Time : To adjust the total time first press shift button to total time then press or
to adjust the desire total time after adjusting press shift again to save the value
Parameter Setting : Important before changing any given function below please follow parameter
setting Before entering and after setting press SHIFT then follow setting B after every
function.
A. Enter parameter setting press EDIT & SHIFT button for 3 sec until get in parameter.
B. To exit from parameter setting to normal function press SKIP button for 3 sec
4

5
.ⅡOPERATION INSTRUCTION:
1. Power switch: this switch button controls the electrical supply of the machine. If the light is on,
the machine is ready. If the be light is not on, check the electrical supply.
2. In/Stop/Out switch: this is switch button for three choices.
(1) Turn the button to the middle to stop position. The barrel would not be rotating.
(2) Turn the button to the left to inlet position. The barrel would be rotating. This motion would
let material go deep into the barrel.
(3) Turn the button to the right to outlet position. The barrel would be rotating in reverse. This
motion could let the material out from the barrel.
Note:
Remain this button at stop position to start your program. If the button is not at the stop position,
the program would not be started.
3. Inhale: Press this button to add seasoning to your material; the machine would stop fixed
position. Connect the inhale pipe and put it into seasoning, and open the valve (on the side cover).
This would start to inhale your seasoning. When finishing, close the valve and take off the inhale
pipe, then press inhale button again. The machine would start again.
4. Start: Press this button to start working program.
5. Stop: Press this button to stop working program.
6. Light: When the machine is working mode, this light would be on. When the program finishes,
the light would be twinkled. When the machine breakdown or unusual, the light would be
twinkled quickly and the screen would display break down. When the problem solved, press
pause button for relieve and machine can continue on working mode.
7. Fixed position: Press this button the barrel would stop in fixed position. This allows opening the
cover easily.
Note:
This button works when machine in pause or stop situation.
8. Vacuum meter: display inside the barrels’ vacuum data.
9. Emergency stop: when you press this button machine would be stop immediately.

III. TM-1000 DIAGRAM
6

7
Pos. Specifications Stand Quantity
1 Mainframe SUS 304 1
2 Seat of bearing UCP212 1
3 M16 washer SUS 304 10
4 M16 spring washer SUS 304 6
5 M16 screw×L40 SUS 304 2
6 M12 screw×L20 SUS 304 2
7 Gear wheel B60×34T S35C 1
8 Motor 1
9 Gear wheel B60×16T S35C 1
10 M12 screw×X116 SUS 304 2
11 Chain RS 60 S35C 117
12 M16 Hexagonal head bolt SUS 304 4
13 M16 nut SUS 304 12
14 Barrel SUS 304 1
15 Silica gel line 1
16 Front cover SUS 304 1
17 C type buckle SUS 304 1
18 Vacuum pipe joint SUS 304 1
19 Bearing 6025 SS SUS 304 2
20 Buckle C52 SUS 304 1
21 Oil seal TV25×40×7 1
22 Joint A6061 1
23 SUS 304 Joint 1
24 3/4" pipe 7
25 SUS 304 Clip of pipe 4
26 Vacuum pipe 2
27 3/4" L type pipe 2
28 Fixed seat of pipe SUS 304 2
29 U type fixed buckle ψ20×6mm SUS 304 2
30 10" filter 1
31 O-ring 1
32 3/4" T type pipe 1
33 3/4" valve 2
34 M6 nut SUS 304 4
35 Electronic valve 1
36 3/4" against valve 1
37 Vacuum pump 1
38 M8 washer SUS 304 7

8
Pos. Specifications Stand Quantity
39 M8 spring washer SUS 304 7
40 M8 Hexagonal head bolt SUS 304 7
41 6mm oil filler Brass 2
42 M12 nut SUS 304 4
43 POM wheel shaft SUS 304 2
44 POM wheel POM 2
45 POM wheel cover SUS 304 2
46 M6 washer SUS 304 14
47 M6 spring washer SUS 304 14
48 M6 Hexagonal head bolt SUS 304 10
49 M20 adjustable legs 4
50 Electric box support SUS 304 1
51 M10 washer SUS 304 4
52 M10spring washer SUS 304 4
53 M10 Hexagonal head bolt SUS 304 4
54 Electric box SUS 304 1
55 Hinge AS-2510W SUS 304 2
56 M6 screw SUS 304 4
57 M6 nut SUS 304 4
58 Door SUS 304 1
59 Door locker PS-172703 SUS 304 2
60 O-ring G200 SUS 304 1
61 Barrel side cover POM 1
62 Side cover hand SUS 304 2
