1. Specifications
1.1. CMA-181VL
WATER CONSUMPTION
PER RACK 0.73 GAL. (2.76 L)
PER HOUR 12.4 GAL. (46.93 L)
OPERATING CYCLE
WASH TIME-SEC 96 96
RINSE TIME-SEC 14 14
DWELL TIME-SEC
VENT FAN -SEC 3 65 3 65
TOTAL CYCLE-SEC 178 178
OPERATING CAPACITY
RACKS PER HOUR 17.3 17.3
WASH TANK CAPACITY 2.5 GAL. (9.46 L)
PUMP CAPACITY 38 GPM (144 LPM)
WATER REQUIREMENTS
COLD WATER TEMP 41°F-65°F (5°-18°C)
WATER INLET ½” 1.27cm
DRAIN CONNECTION 1” 2.54cm
CYCLE TEMPERATURES
WASH-°F 150°F -160°F (65.5°C/71°C)
RINSE -°F 180°F -195°F (82°C/90°C)
FRAME DIMENSIONS
DEPTH 27” (68.6 cm)
WIDTH 24” (60.96 cm)
HEIGHT 33-3/4” (85.725)
MAX CLEARANCE FOR GLASSWARE 11-1/4” (28.6 cm)
ELECTRICAL RATING* 208 VOLTS
1 PH—60 Hz 230 VOLTS 1 PH—60 Hz
33 AMPS 35 AMPS
BOOSTER HEATER 5.3 kW 6.5 kW
WASH PUMP MOTOR 1 HP 1 HP
THIS SYSTEM REQUIRES THREE POWER WIRES, WHICH INCLUDES A
CURRENT CARRYING NEUTRAL. AN ADDITIONAL FOURTH WIRE MUST BE
PROVIDED FOR MACHINE GROUND.NO GFI BREAKER.
SHIPPING WEIGHT 234# (106 kg)
* For machines having "SAFE-T-TEMP" feature. ** For faster heat recovery.
Note: The required flowing water pressure to the dishwasher is 30-65 PSIG. If pressures are higher
than 65 PSIG, a pressure regulating valve must be installed in the water line to the dishmachine (by a
qualified person). If flow pressure is lower than 30 PSIG, improper operation may result.
METRIC
EQUIVALENT

1.2. CMA-181VL Operational Cycle
The C MA -181VL Operational Cycle (including water vapor evacuation) has a total cy cle time
of three (3) minutes (180 seco nd s). Th e Timing Diagram and the steps listed below detail the
individual fu nctions that are execut ed during ea ch Operational Cycle.
Se co nd s: 0 10 20 30 40 50 60 70 80 90 100 110 120
Instant
Start Re lay
Cam Ti mer
I
I '
Motor Ca m
Rins e Cy cl e
Cam
Wash Cy cl e I
'·
Cam
DrainPu mp
Cam
Safe-T-
Temp Cam
Se co nd s: 120 130 140 150 160 170 180
Cam Timer
F an Ca m
Fi ll Ca m ,
-- ,- -- , -- , -- 1 ··
-- .- -,
-- I --,
I I I I I I I I I
I I I I I I I I I
1. With the ma chine powered up, toggl in g the START switch begins a cycle.
a) Toggling the START sw itch en ergizes both the Cam Timer motor a nd the Instant Staii
Relay. Th e Instant S ta1i Relay latches ON the power to the Cam Tim er motor so that
the START sw itch can be released a moment after it has been toggled without the C am
Timermotor losing power.
b) After about 1. 5 seco nd s the C am Timer 's first cam- the C am TimerMotor Cam-
latches ON the power to the Ca m Tim er motor and drops out the Instant Staii Relay.
Th e C am Timer motor continues to nm for a total of 3 mi nu tes, at which time it
sw itches OFF- resetting the Cam Time r- and waits for the next START command.
2. Th e C am Timer 's third cam controls the Wash Pump. Th e Wash Pump comes ON about 3
seco nd s into the Operational Cy cle and conti nu es to nm fo r 96 seco nd s. This 96-second
period is the Wash Cycle.
MODE L CMA- 181VL INSTALLATI ON & OP E RA T IO N MA N UAL Rev . 1. 02
Page 3

MODEL CMA-181VL INSTALLATION & OPERATION MANUAL Rev. 1.02Page 4
3. The Cam Timer’s fourth cam powers ON the Drain Pump midway through the Rinse
Cycle and stays ON for 10 seconds, turning OFF 2 seconds after the Rinse Cycle has
completed. 3 seconds after the Wash Cycle has completed the Cam Timer’s second cam,
which controls the Rinse Cycle, turns ON—energizing the Water Solenoid—and stays ON
for 14 seconds. This 14-second period is the Rinse Cycle.
4. After the Rinse Cycle is completed Cam Timer’s sixth cam turns Fan for 60 seconds steam
evacuation.
5. The Cam Timer’s seventh cam controls the fill. The fill comes on 2 seconds after the fan
starts. Water fills into the booster until the fill pressure switch senses that the booster is
full and closes the water fill solenoid. The water fill solenoid will close before cam timer
times out.
6. When the Cam Timer assembly approaches the final rinse portion of the cycle, the “Safe-
T-Temp” fifth micro switch will pause the cam timer assembly if the booster heater has
not reached 180 degrees. The Dishmachine will remain in wash cycle mode until a
minimum 180-degree rinse temperature is reached, at which time the Cam Timer will
advance automatically into the rinse cycle and dispense 180 degree rinse water over the
glasses.

C M A
Getting Started
DI SH MA C HINE S

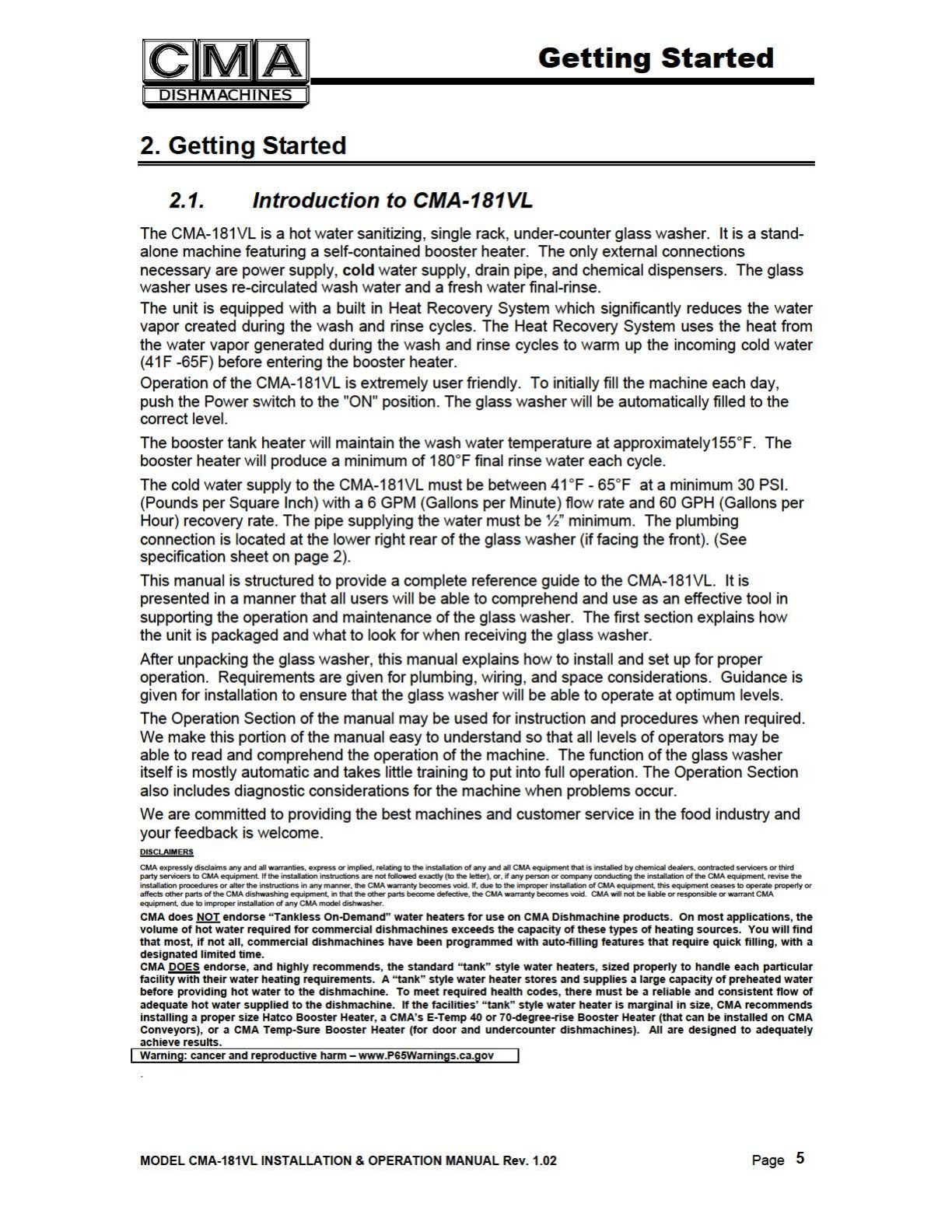

2. Getting Started
2.1 . Introduction to CMA-181VL
The CMA- 181 VL is a hotwatersanitizing, single rack, under-counter glasswashe r. It is a stand-
alone machine featuring a self-contained booster heater. The only external connections
necessary are po w er supply, cold water supply, drain pipe, and chemical dispensers. The glass
washer uses re-circulated wash waterand a fresh water final-rinse.
The unit is equipped with a built in Heat Recovery System whi ch significantly reduces the water
vapor created during the wash and rinse cycles. The Heat Recovery System uses the heat from
the water vapor generated during the wash and rinse cycl es to warm up the incoming cold water
(41 F -65F) before entering the booster heater.
Operation of the CMA-181VL is extremely userfriendly. To initially fill the machine each day,
push the Power switch to the "ON" position. The glass washer wi ll be automatically filled to the
correct level.
The boostertank heater wi ll maintain the wash water temperature at appr ox imate ly1 55° F. The
booster heater wi ll produce a minimum of 180°F final rinse water each cycle.
The co ld water supply to the CMA-181VL must be be tw een 41 °F -65°F at a minimum 30 PSI.
(Pounds per Square Inch) with a 6 GPM (Gallons per Minute) flow rate and 60 GPH (Gallons per
Hour) recovery rate. The pipe supplying the water must be½ " minimum. The plumbing
connection is located at the low er right rear of the glass washer (if facing the front). (See
specification sheet on page 2 ).
This manual is structured to provi de a complete reference gui de to the CMA-181VL. It is
presented in a manner that all users will be able to comprehend and use as an effective tool in
supporting the operati on and ma intenance of the glass washer. The first section explains ho w
the unit is packaged and what to lookfor when receiving the glass washer.
After unpacking the glass washer, this manual explai ns how to install and set up for proper
operation. Requirements are given for plumbing, wiring, and space considerations. Guidance is
given for insta ll ation to ensure that the glass washer wi ll be ab le to operate at optimum level s.
The Operation Section of the manual may be used for instruction and procedur es when required.
We make this porti on of the manual easy to understand so that all levels of operators may be
ab le to read and comprehend the operation of the machine. The function of the glasswasher
itself is mostly automatic and takes little training to put into fu ll operati on . The Operati on Section
also includes diagnostic considerations for the machine when probl ems occur.
We are committed to pr ov iding the best machines and customer service in the food industry and
your feedback is welcome.
DI SCLAIMERS
CMA expresslydi scla im s any and aO warranties, express or impl ied , re l ating 10 the instal ation of any and aO CMA equipmen t tha t is i nstal l ed by chem i c.al dealers , oootracted SEf"'llioers or t hird
party ser'llioers 10 CMA eq uip men t. If the i nsta ll ation i nstructions are not f ollowed exactty(to the letter). or . if any person or ~any conducting the i nsta l lation of the CMA equipmen t. re vise the
i nstal l ation prooedt...-eS or after the instn..actionsin any manner , the CMA warranty becomes void . If. due to the im pro per i nsta l lation of CMA eq ui pmen t. thi s eq~ ceases 10 operate pro pe rty or
affects other parts of the CMA di shwa sh i ng equipment in tha t the other parts become defective. the CMA warranty becomes void . CMA wi' I not be li able or respon si ble or warran t CMA
equipmen t. <be 10 im proper i nsta ll ation of any CMA model dishwashe r.
CMA does NOT endorse "Tankless On-Demand" water heaters for use on CMA Dishmachine products. On mostapplications, the
volume of hot water required for commercial dishmachines exceeds the capacity of these types of heating sources. You will find
that most, if n ot all, commercial dishmachines have been programmed wi th auto-filling features that requi re quick filling, with a
designated li mited ti me .
CMA .Q,Q,5§. endorse, and highly recommends, the standard "ta nk" style water heaters, sized properly to handle each pa rt icular
facil ity w it h their water heating requirements. A "ta n k" style water heater stores and supplies a large capacity of preheated water
before providing hot water to the dishmachine. To meet required health codes, there must be a reliable and consistent flow of
adequate hot water supp li ed to the dishmachi ne . If the facilities' "tank" style water heater is margi na l in size, CMA recommends
installing a proper size Hatco Booster Heater, a CMA 's E-Temp 40 or 70-degree-rise Booster Heater (that can be installed on CMA
Conveyors), or a CMA Temp-Sure Booster Heater (for door and undercounter dishmachines). Al l are designed to adequately
achieve results.
IWarning: cancer and reproductive harm - www .P65Wamings.ca. gov
MODEL CMA-181VL INSTALLATI ON & OPERAT IO N MANUAL R ev . 1. 02 Page 5

2.1.1. Plumbing Chart
Rin se
Pu mp
The building's co ld tap water (41F-65F) co nn ec ts to the stainless steel braided hose at the rear of
the glass w as h er .The co ld / ambient wat er travels from there through the condenserto the unit's
booster heater. Atthe end of operating cycle, hot/humidi fi ed air inside the wash chamber is
circulated past the condenser coils, raising the temperature of the incoming water fl owing through
those coils to approximately 130F to 140F degrees before entering the booster heater. The
booster heater, locat ed below th e wash chamber, wi ll raise the fi nal-rinse wat er temperature to
approximately 180F to 190F degrees ensuring a proper sanitizing final-rinse. The glasswash er
has a SAFE-T-TEMP feature which wi ll extend the wash cycle if the final rinse temperature in the
booster heater has not reached a minimum 180F. After an operating cycle is finished, which is
indicated by the "CYCLE" lightturning o ff , the fan circulating the air inside the wash chamber w il l
continue to run an extra 65 seconds. This a ll ows additional co ndensation remova l. Opening the
door anyti me after th e operating cycle is finished and before the fan has timed out, wi ll st op the
fan and a ll ow the start of a ne w cycle.
MODEL CMA-181VL INSTALLATI ON & OPERATION MANUAL Rev . 1. 02
Page 6

MODEL CMA-181VL INSTALLATION & OPERATION MANUAL Rev. 1.02Page 7
2.2. Receiving and Installation
The glass washer is shipped from the factory in a corrugated box on a wooden pallet. The
installation guidelines give a systematic procedure for setting up the glass washer.
Start by removing the packaging material. Unwrap the unit and check for the following
component parts:
The Wash Tank Scrap Screen is shipped inside the wash cavity. This screen MUST t be in place
during operation to strain the water circulating through the pump assembly and spray arms,
catching the broken glass or debris that could otherwise clog the pump impeller and plug the
spray arms.
Set the unit in place, and level from side-to-side and front-to-back to prevent door leaks.
Some water vapor generated from normal operation may escape from the door jambs. Wood,
laminates, veneers, etc. are unsuitable materials for use in areas exposed to this escaping water
vapor and detergents. Stainless steel or other moisture-resistant shields are recommended for
surfaces adjacent to sides and tops of under counter glass washers.
2.2.1. Electrical1
Prior to installation make sure the electrical supply is compatible with the specifications on the
glass washer data plate.
A single-phase 230 volt, 60 Hz dedicated circuit should be used to supply electrical energy to the
CMA-181VL glass washer (see specification sheet page 2). This system requires three power
wires, which include a current carrying neutral. An additional fourth wire must be provided for
ground. Approximately 4-feet of ¾” flexible conduit with power leads (L-1, L-2, Neutral and
Ground) extending out of the conduit are provided for easily connecting the power at installation.
The power connection must be located such that there is sufficient length of the flexible conduit
remaining to permit the unit to be moved for cleaning.
WARNING: Electrical and grounding connections must comply with the applicable portions of the
National Electrical Code and/or other local electrical codes.
Note: For supply connections, use copper wire only rated at 90 degree C minimum.
2.2.2. Plumbing2
Notice to Plumber: The plumber connecting this unit is responsible for making certain that the
water lines are THOROUGHLY FLUSHED OUT BEFORE connecting to the glass washer.
The unit is equipped with a 48” braided hose with ½” NPT connection located at the lower left-
hand corner (facing the back) of the unit. A cold water line should be plumbed to this point (see
specification sheet page 2). The water line used must be of sufficient length and flexibility to
permit the unit to be moved for cleaning.
The pipe supplying the water must be ½” minimum. The plumbing connection is located at the
back of the glass washer. (See specification sheet on page 2). Note: high iron levels in the water
supply can cause staining and may require an iron filter. High chlorine levels in the water supply
can cause pitting and may require a chloride removal system. If an inspection of the wash tank or
booster heater tank reveals lime buildup after the glass washer has been in service, water
treatment is recommended. If a water softener is already in place, ensure there is a sufficient
level of salt.
1,2All electrical and plumbing connections must be made by a qualified person and comply with all
available Federal, State, and Local Health, Electrical, Plumbing and Safety codes listed in Sec.17.1 of
UL921.

Warning:
CMA recommends utilizing a water softening system to maintain water hardness
measurements of 3.5 gpg (grains per gallon) or less. This will assure maximum results
and optimum operation of the dishmachine.
2.2.3. Detergent And Rinse Chemical Dispenser (Optional).1•
Optional bu ilt-in chemical dispenser Assembly (CMA P/N 14585.00) has easy access for
chemical settings behind the front kick pane
l. Bo th initial charge and recharge is factory pre-set.
Basic settings for both detergent and rinse speed are 50%. Operating fine-adjustment screws on
the dispenser can control the amount
of chemicals drawn into chemical lines.
■
I II
.
e
■
5 0o/o -
Undercounter machine wi th the optional dispenser must be ordered separately, as option at time
of order. Optional dispenser has to be pre-wired pri
or to shipment (see electrical diagram for
wiring options).
Note: Use only commercial-grade detergents and rinse aids recommended
by yourchemical
professiona
l. Do not use detergents and rinse ai ds formulated for resi de ntial dishwashers.
2.2.4. Safe -T-Temp Feature
The CMA "Safe-T-Temp" feature assures the fi nal rinse cycle is always at a consistent minimum
of 180 degrees.
How it works: the "Safe -T-temp" function operates offthe 5th cam (labeled "Safe -T-Temp") on
the timer assembl
y. When the cam timerassembly completes th e wash cycle, and approach es
the final rinse portion of the cycl e, the "Safe -T-Temp" micro switch wi ll drop into the cam sl ot and
pause the cam timer assembly
if the booster heater has not reached 180 degrees. The glass
washer wi
ll remain in wash cycle mode until 180 degree rinse temperature is met, and at this time
the cam timerw
il l advance automatica ll y into the rinse cycle and dispense 180 degrees rinse
water over the glasses.
1 All electrical and plumbing connections must be made
by a qualified person who will comply with
all available Federal, State, and Local Health, Electrical, Plumbing and Safety codes
MODEL CMA-181VL INSTA LLA TI ON & OPERATION MAN UA L Rev. 1.02
Page 8

MODEL CMA-181VL INSTALLATION & OPERATION MANUAL Rev. 1.02Page 9
2.2.5. Booster Heater Setup
1. Turn the Power switch to the "ON" position.
The glass washer will be automatically filled with water to the correct level.
2. Turn the Power switch to the "OFF" position.
2.2.6. Installer Checklist
Glasswasher checked for concealed damage
Cold water supply is 41°F - 65°F
Incoming water supply line is ½” — minimum
Incoming water supply is 30 PSI minimum.
Supply circuit breaker for glass washer that is properly sized (50 amp)
Service voltage and phase type are correct to unit’s data plate
Drain hose is installed with air gap (discharge 1” above drain)
Glasswasher is properly grounded
Glasswasher is properly leveled
Circuit breaker is labeled “GLASSWASHER”
Glass washer has been “hard-wired” with correctly sized wire

Operation
3. Operation
3. 1. Initial Setup
3.1.1. Rinse and Wash Temperatures
1. Turn the Po wer switch to the "ON" position.
2. Aft er the unit has warmed up, note the wash and rinse temperatures. The
wash temperature must be 150°F minimum. The rinse temperature must be
180°F minimum3. If necessary, adjust the temperatures by removing the
fr ont kick panel and tu rn ing the thermostat adjustment clockwise to increase,
counterclockwise to decrease. This adjustmentcontrols the wash and rinse
temperatures.
3.1.2. Post Instructions
1. Install wall chart and instructthe operator on proper cleaning and operation
of the CMA-181V L.
3.2. Startup Procedures
1. Open the door of the unit and check that the scrap screen is in place, and that the
spray arms and e nd plugs are secure.
2. Close the door and turn the Po wer switch to the "ON" position.
The glass washerwi ll be automatically filled with water to the correct level.
3. Once the water is fi ll ed to the proper level, pressthe rocker switch marked "START"
-the unit will automatica ll y begin i ts cycl e.
4. Check operating temperatures - Ad just if necessary. See section 3. 1.1 Rinse and
Wash Temperatures.
5. At the end of the wash period, dra in the glasswasher by pushing the rocker switch
marked "DRAIN ". Cl ean the wash tank screen and scrap tray screen. Remove and
cle an the spray arms. (See wall chart in structions ).
3 Rinse cycle temperature must be observed during a rinse cycle while the unit
is in operation ..
MODEL CMA-181VL INSTALLATION & OPERATION MANU AL Re v. 1.02 Page 10

3::
0
0
m
r
0
3::
~
...
~
<
r
z
~
r
E
0
z
Qo
0
-u
m
~
0
z
3::
~
C
)>
r
~
...
0
N
,,
Ill
(0
(I)
....
....
OPERATING INSTRUCTIONS FOR MODEL CMA-181VL
INSTRUCC/ONES DE OPERAC/ON DE MODELO CMA-181VL
1
Turn on power and machine will be
automatlcally filled tocorrect level.
Prenda la maqulna y auto·
maticame11te va a 1/enar
2
Start machine by pushing start butt o n.
Para empezar la maqui ,
ctene la puerta y
oprima el bot ,
de encen-''
atnivel correcto . ~~
n.
3
Dr a in machin e by pressing and holding
drain button .
Para vaciar la maqina: Oprima y mantenga
op,imido et bo toa de va c iado.
6
Inspect top and bottom spray arm j ets dally .
Use to o thpick and push debris Into sp r ay
arm. Remove end plugs and flush with wa ter.
Use un plcadlentes (pallllo) para abrlr los
orit icios. Destapar por las puntas,
removlen doel tapon y en/uage l os c on agua •
y
CMA PN : 06 265.30
4
Turn off p ower .
Apague La Maqulna
7
Ha nd r emove amt thoroughly
clean scrap basket under
fau cet or Pre-Rinse Hose
every shift.
Remuera et flltro de et
interior de el tanque de
desperdlcios. Lave el
filtro el cedazo con et
r ociador de agua c ada
turno.
150
0 I'FI rcAUTION: DO NOT START until
I w"sh temperatur e reads 150 .
__ empie ce el lavado hasta
W ASH TEM P1S0"-160' I -;.,,o ta temperatura sea 150 •.
5
If spray arms are clogged remove by tu r ning
bearings counter clockwise .
Si los br az os de rociado se tapan, es
necesarto sacartos desenroscandotos para
el /ado I zquierdo .
8 Rep l ace screen back into position .
----- ie '· I!
Reinstate
el filtro
apropiadmente.
~
._· ~ _ _. .) _.
- •i
--- . ~ ,i:JI
- :;;,- J,--' I
, ·~~ . ~i
II J 1~, --- .. r
1. ,..,....._ i.z_ J // ·'1 .•
l
i&• "-J :: ... ,?' ii M
q' I.:'.' -- { ~ I
li ~ - -- J/ i! I 7
1- 20 18
~
~
~
(I)
~
ct
:::s
(Q
Q)
:::s
Q.
0
ff)
Q)
:::s
s·
(Q
S-
CI)
~
s::::
(')
ct
0
:::s
Cl)
0
,::s
CD
Al
,.
-·
0
:::s

Operation
3.4. Preventive Maintenance Chart
PREVENTIVE MAINTENANCE
1
1
~ I
If rinse arm jets are clogged, remove rinse arm (by turning
bearing counter clockwise) and clean out rinse jets with paper
clip or small pointed object.
12 ~ ~
. I Inspect top and bottom spray arms daily. Use toothpick to
' , i. push debris into spray arm . Remove end plugs and flush
with water.
~---~------~
3
4
5
Remove and thoroughly clean scrap tray daily.
Confirm wash temperature is 155 ° F.
Check rinse temperature. Minimum 180°F. Notify supervisor
if rinse temperature is below 180°F .
,------~ :;;;;;-,,=.:;. -----,
6
Check chemical containers for product. Confirm correct product
line is in the bucket.
RED · Detergent
BLUE - Rinse Aid
7
Check machine for leaks.
11-2017
MODEL CMA-181VL I NSTALLAT ION & OPERATI ON MANUAL Rev . 1. 02
Page 12

Operation
3.5. Quick service guide
M OD EL CMA 181VL HG H TEM P UNIER CO LNTER
T ECHN IC AL ISS UE CAU SE SO LU TI ON
Mach i1 enot le ve l Ad ust mach i ne leas tol eve l
Door leaks
Wash arm end cap m is sina Reo ta ce end cap
Doo raasket Reo ta ce aasket
Loose wre atdi sp lay, bo ardor Secu reconnect ors
ltr ansformer
Temperatu re Di splay fa ilure F au tvterroerature sens i na wre Correct re aace
Fautv temperature sens i na unt
Reo ta ce un it
F au tvtransformer Reo ta ce t rans former
Rinse water ternperature l ow /h i:Jh
Sca l ed heat i nn ele me nt C le a, sca le from hea t er
Booste r hea te r' st her mostat not
Ad j.J stt her mos tat
pro pe rly set
Loose l ead connections Check and crirro connect ors
Wash pumpmotor not r unn i na
Fauly # 3mi cro swtch Rep ta ce mi cro swit ch
F au tvcontactor Reo ta ce cont ac t or
F au tv wash n 11mn moto r R= ta ce wash numn motor
Wash pumpmotor runs continuously F
au ty# 3mi cro swtch Rep ta ce mi cro swit ch
F au tvcontactor Reo ta ce cont ac t or
Low wash or ri nse wa t er terro.
Check t empe r ature set ti1 n<:
P oo rc le ani1g r esu l ts
Wash arm bea r i1a orcbmAd ie ts C le a, bear i na and arm iets
Ri1se arm bea r i1n orcbmod iA ts C le a, bear i nn and arm iets
Taik dischar~ screen dir tv
C le a, screen
Wash tank willnot drain
Dra in valve noto oe ratina Check oo....er to dra in valve
Dra in valve faul tv Reo ta ce dra invalve
Dra inpumpfauly Rep ta ce dra in pump
M OD EL C MA -18 1V L INSTALLAT IO N & O PERAT ION MANUA L Re v. 1. 02 Page 13

Operation
3.6. Troubleshooting
IPROBLEM ILIKELy CA USE ISOLUTION
Machine inoperative Power off at circuit breaker Reset circuit breaker
Defective power switch Replace po w er switch
Motor inoperative Door is open Close door
Control panel is pulled out Secure control panel
De fective reed switch Replace reed switch
Defective timer assembly Replace timer assembl
y*
De fective pump motor contactor Replace contact
or
Defective mo tor Replace motor
Motor runswith door open Defective reed switch Replace reed switch
De fective pump motor contactor Replace contact
or
Heater (no heat) High limitswitch opened
or
Reset or r ep lace switch
defective
De fective thermostat Replace thermostat
De fective heater contactor Replace heater contactor
De fective heater Replace heater
Water level too low in booster Add wat er to boostertank to
tank activate air pressure swi
tc h es
Heater (never turns off ) Defective thermostat Replace thermostat
De fective heater contactor Replace heater contactor
*The timer assembly motor or micro swi tc h es can be replaced independentl y.
MOD EL CMA-181VL I NS TAL LATION & OP E RAT I ON MANUAL Rev . 1.02 Page 14

Operation
IPROBLEM ILIKELy CA USE ISOLUTION
Low heatduring operation Thermostat out of adjustment Adjust thermostat
Defective heater Replace heater
Low rinse water flow Limed up rinse arm sp r ay nozzl es
De-lime rinse arm nozzles
No rinse water flow Defective rinse pump Replace rinse pump
Defective (Rinse Re l ay ) ice cube Replace ice cube relay
relay
Rinse water runs with door Defective reed switch Replace reed switch
open
With pow er on, activating Defective start switch (cycle light Replace startswitch
start switch does not begin wi
ll not light either)
cycle Defective timer assembly Replace timer assembl
y*
*The timer assembly motor or micro switches can be replaced independently.
Startswitch requir es > 1 Defective (Instant Start) ice cube Replace ice cube relay
second activation to run rel
ay
cycle
Fi ll won't shut off Defective water solenoid valve Replace water solenoid valve
Defective timer assembly Replace timer assembl
y*
Defective ice cube relay Replace ice cube rel
ay
Activating drain switch Drain hose is kinked Un-ki
nk drain hose
does not drain machine Defective drain switch Replace drain/fill switch
Defective drain valve Replace drain valve
Defective drain pump Replace drain pump
Cycle lightdoes not light Defective cycle light Replace cycle light (amber)
while cycle runs
Po wer light does not light Defective pow er light Replace po wer light (red)
but machine runs
Wash tank or final rinse Defective temperature display Replace temperature display
temperature does not
display
MOD EL CMA-181VL I NS TAL LATION & OP E RAT I ON MANUA L Rev . 1.02 Page 15

Operation
IPROBLEM ILIKELy CAUSE ISOLUTION
Both the wash tank Defective thermometer Replace thermometer
temperature and the final transformer transformer
rinse temperature do not
displ ay
Wash tank or final rinse Defective temperature display Replace temperature display
displayswrong
temperature Defective thermistor Replace thermistor
*The timer assembly motor or micro switches can be replaced independently.
MOD EL CMA-1 81V L I NSTALLA TIO N & O PE RA TION MANU AL Re v. 1.02 Page
16

DI SH MA C HINE S
4. Parts Kit
4. 1. Initial Parts Kit
P/N DESCRIPTION Qty
15504. 00 Motor Contactor, 2-Pole 20 Amp 1
15504.50 Heater Cont
ac tor, 2-Pole 35 Amp 1
00501.
00
2-Minute Ti me r Motor 1
00631.
00
Ice Cube Rel ay 120 V 1
410 15. 00 Soleno id Valve ¼" 120V 1
15523.
00 Rocker Switch Start Momentary 1
00421.
89
Rocker Switch Drain 1
15524.
00 Rocker Switch Pow er Maintained 1
00556.10 Reed Swi
tc h 1
03623.
00
1/2" Vacuum Breaker Repair Ki t- Watts 1
041 13. 00
L1X/L1-C Dra in Valve 120V 1
00206.
70
Pump Seal Kit 1
1
34 17. 89 HeaterThermostat 1
17523.
60 High Limit Swi tc h 200°F 1
004
11 . 00
Microswi tc h 1
03203.
01
Dual Temperature Display Kit 1
00738.15 Soleno
id Coil JE 11 5V /60Hz 1
00404.
82 Motor Mini Co ntactor 1
MODE L CMA -1 81V L IN STA L LAT ION & OP E RA T IO N MA NUAL Rev. 1. 02 P age 17

Parts Manual
5. Customer Notice
CMA-181VL Installation Guidelines
Improper installation of this product may void the warranty on this machine. Please follow
these guidelines for recommended installation and to ensure the warranty of this model is
authorized by CMA Dishmachines.
Glasswasher Installation Requirements
1. Un it .!!!.Y!! be level. Ad just leveli ng feet to accommodate uneven floor
surfaces.
2. Drain height shou ld not exceed maximum height of 16 ". If there is a floor
drain, it is highly recommended the pu mp drain be removed. Connect
supplied drain line to 3-way val ve on back of machine and gravity feed to
the floor drain.
3. Approximately 4-feet of ¾" flexible conduit wi th po wer leads ( L-1 , L-2 ,
Neutral and Ground) extendi ng out of the conduit are provided for easily
connecting the po wer at installati on. CMA recommends a min imum 50-
amp dedicat ed circuit, but you should consult your local bu i ld i ng code
req uirements for proper breaker si ze .
MODEL CMA- 181VL INSTALLATI ON & OPERATION MANUAL Rev . 1. 02
Page 18

Electrical Diagram
6. Electrical Diagram
6. 1. Control Panel
:Iii:
<(
V
z
<(
IL
IL
0 FLOAT
~
==-- :E
S WIT CH
lJ ,,. ....
0
I=
6
(") z z ~
0 0
(")
m
~ t I~ 0
~
0
...
CD <r> ~ N
I
::'!!E'.. -
~
v'
....
..
N T
rM
111 :1
od=-
M[
"'
8~
w
,..
l~
l:!OlOIN ll3Wll
~
0 N[ -
I=
..J ~1
dW31·Al.3:IVS
..I
~[
oc
ii: v
3S N1 ll
N
,,
1Vllln3N
oc ~ M
lVNOIS NOi!
00
I
HO!IMS ll:!Vl S
00
. =
♦ <h ♦ w r ;
t"
00
w<->
HO.LIMS NIVM9 w
o~ I
.. ~~
00
lJ . z z "'
HOllMS Al.3:IVS l!OOQ
(") 0 (") w
["".,
~ u "'
00
C> ~ t .. + _.
z
'/
v'
OION31 0S !!3.LVM -
~
"' -'
00
03H::>!I MS OV/1 0~ ~
. M
. I
00
.
OV/\0~~ : .
♦ <h ♦ w 1-- ; r
--- □ ,
.::
...
~
CIC)
-I -
..,
-
~
(") z z I- •'
Q)
0 (") Q(
I -
..,
-I J t
♦ ~
.. -0
<,) - • t,.) ,,.
-
~
., [
..,
L-
-
"""
B
..,
0 N [ '
(')
' :.~m-
··
..,
D ~
-[
Q(
N
= w I
"'
Ill -
..,
t:i
Q(
~
~o
~
..,
:l! f/)
111 Ir
0 z
It)
ffi;
w
f/)
-,
w
(,0
:i::
.a. .a. .a.
"'
...
::)
..,
..J
I-
<(
~
t,..
...
T T T
5 w
-,
IL
c
:Iii:
w
...
-
MODEL CMA-181VL INSTALLATION & OPERATI ON MANUAL Rev . 1. 02
Page 19
