CMA Dishmachines EAH User manual

MODEL EAH/EC
MODEL EAH / EC
Parts Manual
Revision 1.02
800-854-6417
FAX [phone]
CMA DISHMACHINES
12700 KNOTT AVENUE
GARDEN GROVE, CALIFORNIA 92841

Title Rev 1.02
Parts Manual
Model EAH / EC Dishwasher 02/12/08
Page 2
TABLE OF CONTENTS
PARTS MANUAL ....................................................................................................................................3
Initial Parts Kit (Part # 01100.85) .........................................................................................................................3
Exploded View Drawings......................................................................................................................................4
Cabinet Assembly..............................................................................................................................................4
Control Box.......................................................................................................................................................5
Plumbing System...............................................................................................................................................6
Pump Assembly.................................................................................................................................................7
Spray System Assembly....................................................................................................................................8
Sani Alarm System Assembly...........................................................................................................................9
Drain System Assembly ..................................................................................................................................10
Door Actuator Assembly (Straight).................................................................................................................11
Door Actuator Assembly (Corner)..................................................................................................................12
Peristaltic Pump Assembly..............................................................................................................................13

Title Rev 1.02
Parts Manual
Model EAH / EC Dishwasher 02/12/08
Page 3
PARTS MANUAL
Initial Parts Kit (Part # 01100.85)
PART NO. D E S C R I P T I O N QTY
00100.00 Drain Ball Solenoid 120V 1
00115.06 Drain Sump Screen (A/C) 1
00120.00 Thermometer (Bi Metal) 1
00121.00 Drain Ball 1
00200.10 Pump Assy 110/220V 60Hz (Open) 1
00206.00 Pump Seal Kit 1
00304.06 Spray Arm A & C 1
00308.50 Spray Arm End Plug SS 1
00341.20 Spray Arm Bearing (Welded) 1
00404.82 Motor Contactor 115V/60HZ 1
00411.00 Micro Switch 1
00415.00 Peristaltic Pump Assy 120V/60hz 1
00418.00 Peristaltic Pump Cover 1
00425.51 Chemical Tubing Blue 50
00425.53 Chemical Tubing Red 50
00425.54 Chemical Tubing White 50
00433.10 Master Switch (20 Amp) 1
00435.00 Squeeze Tube 8" Silicone 1
00500.00 Timer Motor 90 Sec 110V/60Hz 1
00562.00 Roller Door Switch 1
00602.00 Door Spring 1
00631.00 Ice Cube Relay 120V 1
00707.00 1/2 Water Solenoid Repair Kit JE 1
00738.10 Solenoid Coil JE 120V (3/4 &1/2) 1
00955.00 5/16-18 X 5/8 Thumbscrew 1
01550.00 Solenoid Stop 1
03470.01 Toggle Switch(Moment) .25 Flat Term 1
03623.00 1/2 Vac Breaker Repair Kit Watts 1

Title Rev 1.02
Parts Manual
Model EAH / EC Dishwasher 02/12/08
Page 4
Exploded View Drawings
Cabinet Assembly
Item Qty PartNo Description Item Qty PartNo Description
01 1 01540.40 Wrapper Panel EAH/EC 11 1 01558.10 Chem Tube Support Bracket eah
02 2 01506.31 Door EAH/EC (No Dimple) 11a 1 00427.00 Snap Bushing 375-4
03 2 01505.32 Tray Track Inline AH 12 31 00912.00 1/4-20 Nylon Lock Nut
03a 1 01505.04 Tray Track (C) 13 4 00906.00 1/4-20 X 1/2 Hexhead Bolt
04 1 01502.00 Stand/Pan w/sump EAH/EC 14 9 00924.00 1/4 SS Washer
05 1 01500.40 Wrapper EAH/EC 15 4 01310.20 Bullet Foot Plastic
06 4 01554.00 Door Guides 16 1 01577.10 Molded Scrap Trap Body - New
07 1 00124.60 Drain Ball Seat EAH/EC 17 1 01577.20 Molded Scrap Trap Drawer -New
08 1 00125.10 Drain Sump Gasket For E Dm 18 1 01577.30 Molded Scrap Trap Lid - SS
09 1 00101.10 Solenoid Bracket C RH 19 1 01577.50 Molded Scrap Trap-Mount Bracket
10 1 00101.20 Solenoid Bracket C LH

Title Rev 1.02
Parts Manual
Model EAH / EC Dishwasher 02/12/08
Page 5

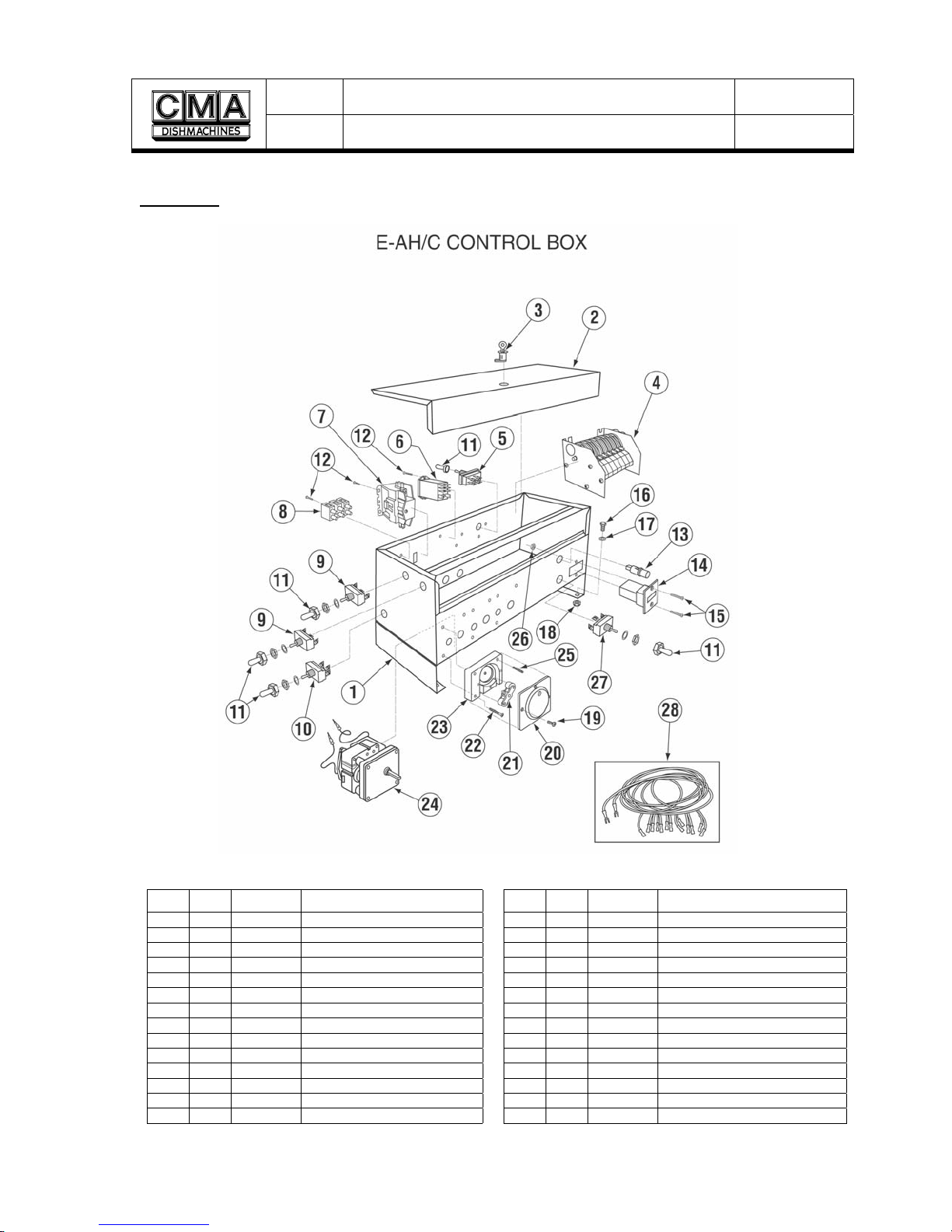

Control Box
Item Qty PartNo Description Item Qty PartNo Description
1 1 01503.09 Control Box Body EAH/EC 15 2 00907.00 6-32 X 1/2 SS Panhead Screw
2 1 01504.09 Control Box Lid EAH/EC 16 4 00906.00 1/4-20 X 1/2 Hexhead Bolt
3 1 00449.00 Lock And Key 17 4 00924.00 1/4 SS Washer
4 1 00407.80 Timer 90 Sec 8 Cam 120/60Hz 18 4 00912.00 1/4-20 Nylon Lock Nut
5 1 00475.00 Toggle Sw dpdt 5 amp/Delimer 19 12 00911.00 8-32 X 1/2 Panhead Screw
6 1 00631.00 Ice Cube Relay 120V 20 3 00418.00 Peristaltic Pump Cover
7 1 00404.82 Motor Contactor 115V/60HZ 21 3 00419.00 Peristaltic Pump Rotor Assy
8 1 00454.10 3 Pole Socket Terminal Block 22 6 00919.00 10-32 X 1 1/2 Panhead Bolt
9 2 03470.00 Toggle Sw Momentary ScTerm 23 3 00417.00 Peristaltic Pump Block
10 1 00471.10 Toggle switch DPST 20AMP 24 3 00416.00 Peristaltic Pump Motor 120/60
11 5 00470.10 Toggle Switch Rubber Boot 25 3 00918.00 10-32 X 1 1/2 Filister Bolt
12 4 00911.50 8-32 X 3/8 Pan Head Screw 26 4 00917.00 8-32 PM Nut
13 1 00406.00 Control Box Light .5" Dia Red 27 1 03470.01 Toggle Sw Moment 25 Flat Term
14 1 03408.50 Counter (Panel Mount) 120/60 28 1 00414.86 Wiring Harness - EAH / EC

Title Rev 1.02
Parts Manual
Model EAH / EC Dishwasher 02/12/08
Page 6
Plumbing System
Item Qty PartNo Description Item Qty PartNo Description
01 1 03603.10 ½ Water Sol Valve 120v/60hz 09 8 00924.00 1/4 SS Washer
02 1 00786.00 Water Sol Plunger G JE ¾ & ½ 10 4 00912.00 1/4-20 Nylon Lock Nut
03 1 03603.20 ½ Water Solenoid Bonnet 11 1 04306.00 Square Manifold Gasket
04 1 00738.10 Solenoid Coil JE 120V (¾ & ½) 12 1 00710.00 Air Gap
05 1 00706.10 ¾ Solenoid JE Spring Only 13 1 03614.00 Nipple, Brass 1/2” Close
06 1 00707.00 ½ Water Solenoid Repair Kit JE 14 1 03604.00 SS Water Solenoid Valve 1/2"
07 1 00760.00 5/8 Comp X 1/2 MIP Adapter 15 1 41062.00 1/2" Strainer Ball Valves
08 4 00914.10 1/4-20 X 5/8 Hexhead Bolt

Title Rev 1.02
Parts Manual
Model EAH / EC Dishwasher 02/12/08
Page 7

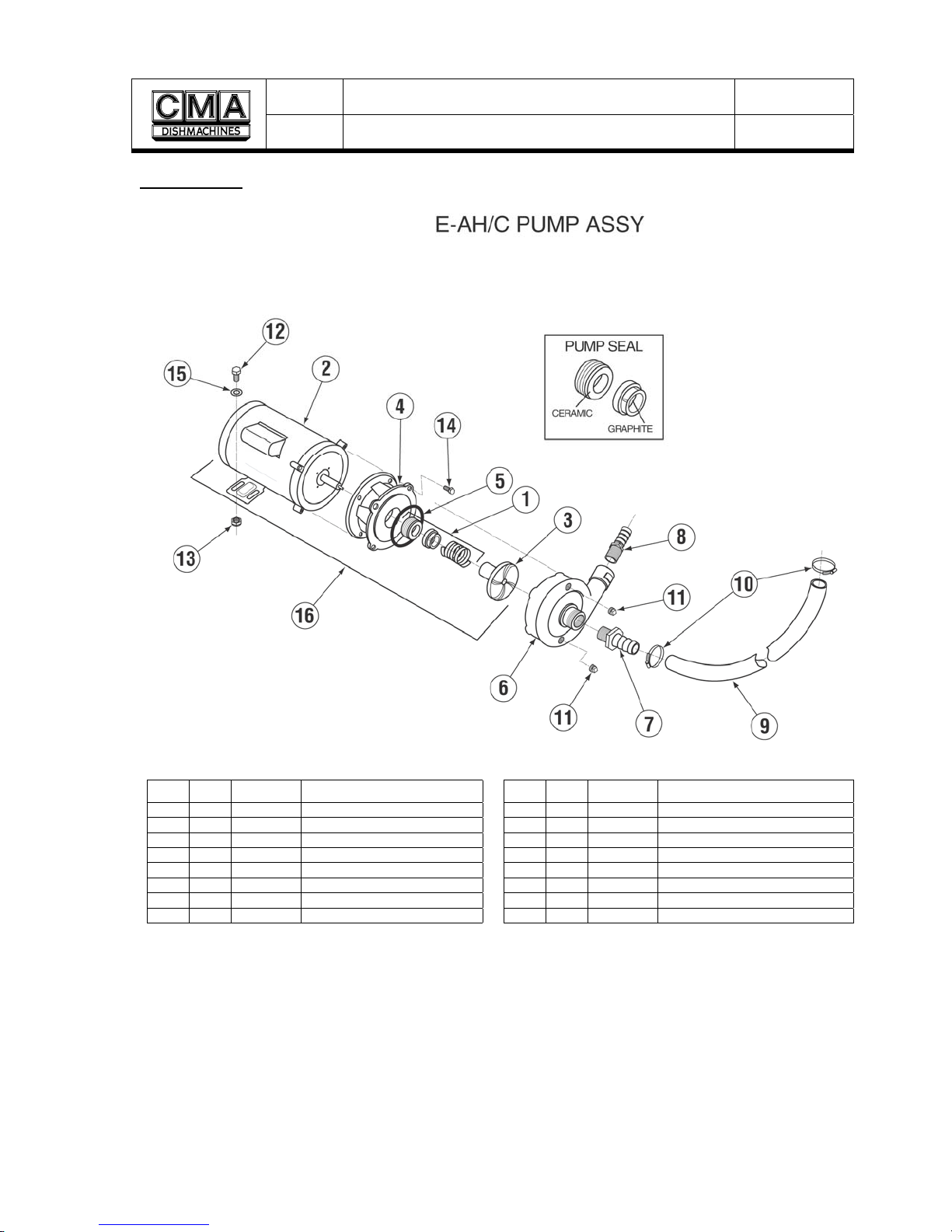

Pump Assembly
Item Qty PartNo Description Item Qty PartNo Description
01 1 00206.00 Pump Seal Kit 09 1 03108.11 Transfer Hose 19" EAH/C
02 1 00201.00 Pump Motor 1Hp 115/208-230V 10 2 03101.00 Hose Clamp # 16 1"
03 1 03222.05 Impeller (Universal) Open 11 2 00238.00 3/8 Male Plug
04 1 03224.00 Pump Base 12 1 00906.00 1/4-20 X 1/2 Hexhead Bolt
05 1 03226.00 Pump O Ring Gasket 13 1 00912.00 1/4-20 Nylon Lock Nut
06 1 04206.00 Pump Cover 14 4 00921.00 3/8-16 X 3/4 SS Hexhead Bolt
07 1 50302.40 1 ¼ MIP X 1" Barb Fitting 15 1 00924.00 1/4 SS Washer
08 1 50302.06 1" MPT X 1" Barb PVC Sch 80 16 1 00200.10 Pump Assy 110/220V 60Hz open

Title Rev 1.02
Parts Manual
Model EAH / EC Dishwasher 02/12/08
Page 8

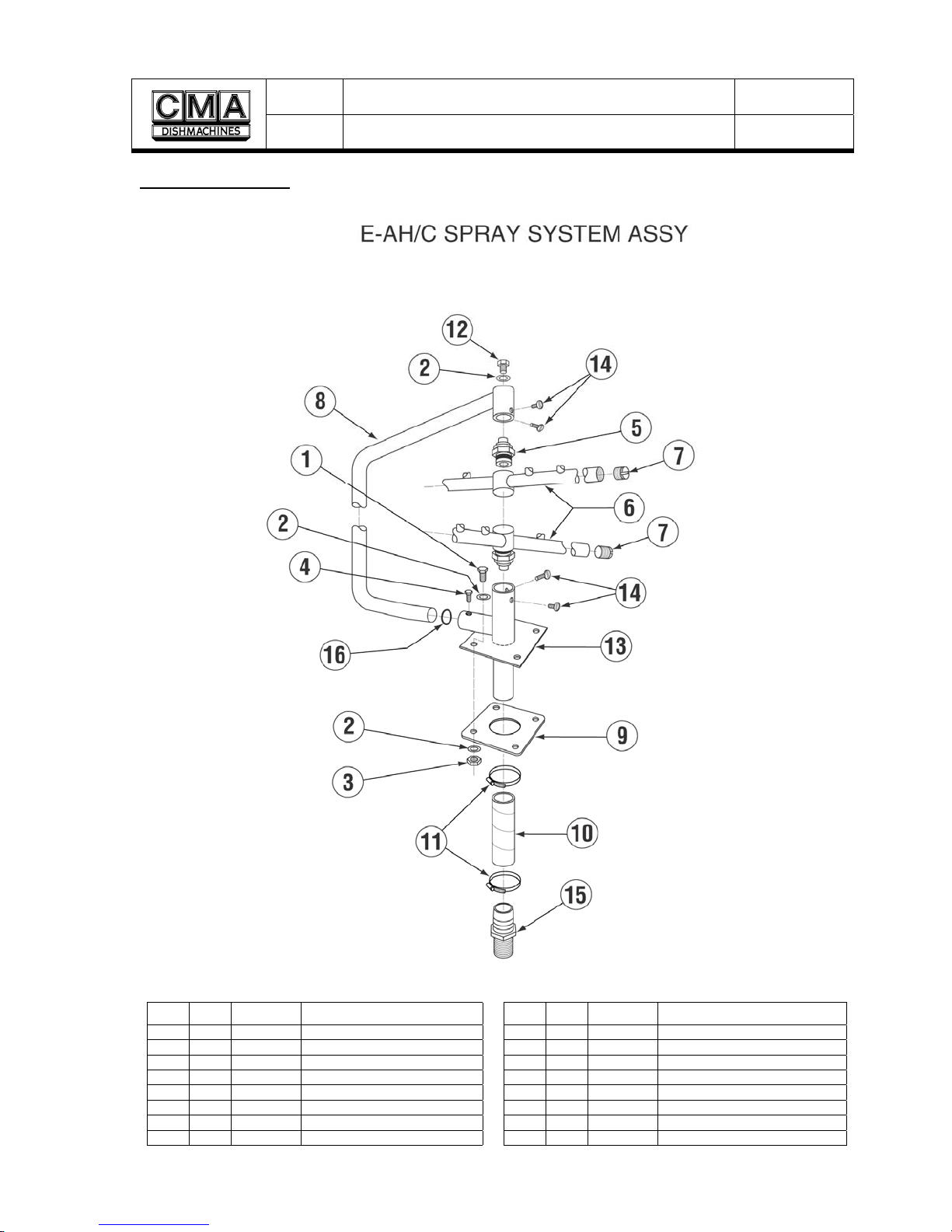

Spray System Assembly
Item Qty PartNo Description Item Qty PartNo Description
01 4 00914.00 1/4-20 X 3/4 Hexhead Bolt 09 1 04306.00 Square Manifold Gasket
02 9 00924.00 1/4 SS Washer 10 1 03108.10 Transfer Hose 10" EAH/C
03 4 00912.00 1/4-20 Nylon Lock Nut 11 2 03101.00 Hose Clamp # 16 1"
04 1 00966.10 10-32 X 1/4 Hexhead SS Bolt 12 1 00905.82 1/4-20 X 3/8 Truss Head Bolt
05 2 00341.20 Spray Arm Bearing (Welded) 13 1 00357.10 Lower Spray Base EAH
06 2 00304.06 Spray Arm A & C 14 4 00955.00 5/16-18 X 5/8 Thumbscrew
07 4 00308.50 Spray Arm End Plug SS 15 1 50302.06 1" MPT X 1" Barb PVC Sch 80
08 1 00305.03 Spray Manifold EAH 16 1 00302.84 Spray Base O ring E VA

Title Rev 1.02
Parts Manual
Model EAH / EC Dishwasher 02/12/08
Page 9
Sani Alarm System Assembly
Item Qty PartNo Description Item Qty PartNo Description
01 3 00400.00 Conduit 3/8 Sealtite 08 5 00931.00 Wire Tie Small
02 1 00401.00 St-3/8 Straight Connector 09 1 12510.00 Sanitizer Alarm Box
03 1 00402.00 St-90 Deg 3/8 Connector 10 1 12511.50 Sanitizer Low Level Vacuum Sw
04 1 00406.00 Control Box Light .5" Dia Red 11 1 12512.00 Sanitizer Alarm Buzzer 120V
05 1 00435.00 Squeeze Tube 8" Silicone 12 8 40126.10 #10 X 3/4 Sheet Metal Screw
06 1 00521.00 Wire 18 Gauge Orange 13 4 40127.00 Wall Anchors
07 1 00531.00 Wire 18 Gauge White 14 1 00426.00 Y Hose Connector 3/16 Single Rib

Title Rev 1.02
Parts Manual
Model EAH / EC Dishwasher 02/12/08
Page 10
Drain System Assembly
Item Qty PartNo Description Item Qty PartNo Description
01 1 00900.10 Cotter pin 1/8" X 1" 16 1 00120.00 Thermometer (Bi Metal)
02 2 00927.00 8-32 Nylon Lock Nut 17 4 00914.00 1/4-20 X 3/4 Hexhead Bolt
03 1 00110.07 Drain Ball Chain-12 Link 18 4 00915.00 1/4-20 SS Nut
04 1 00902.00 8-32 X 1 1/4 Panhead Bolt 19 1 01507.50 Solenoid Cover TM A/B/C
05 6 00922.00 1/4 Lock Star Washer 20 1 00122.00 Drain Solenoid Spring Assy
06 1 00121.20 Drain Ball Round for E Units 21 1 01551.00 Solenoid Link
07 1 00115.06 Drain Sump Screen (A/C) 22 1 00105.00 Solenoid Spring
08 1 03812.00 8-32 X 5/8 Panhead Screw 23 1 00100.00 Drain Ball Solenoid 120V
09 1 01313.20 2" Spg X Fip Adapter 24 1 01550.00 Solenoid Stop
10 3 01312.20 2" Vent ELL Hub X Hub 25 1 00464.07 3/8 SS Tubing(TM A/B Sol Wire)
11 1 41019.11 1/2 ID X 11/16 OD Hose 9"L 26 1 00102.00 Solenoid Base
12 1 00105.20 Drain Solenoid Linkage Washer 27 9 00906.00 1/4-20 X 1/2 Hexhead Bolt
13 1 05030.22 Tubing 2" X 3 3/4" 28 2 00103.00 Solenoid Bar
14 1 05030.24 Tubing 2" X 13 ¾" 29 2 00106.00 Slot Washer Large-SS
15 2 00936.00 312-250 Shorty Bushing
* Includes items 1,2, 8, 12, 21, 22, 24 and 29

Title Rev 1.02
Parts Manual
Model EAH / EC Dishwasher 02/12/08
Page 11
Door Actuator Assembly (Straight)
Item Qty PartNo Description Item Qty PartNo Description
01 1 00613.09 Door Handle EAH 11 4 00906.00 1/4-20 X 1/2 Hexhead Bolt
02 1 01556.50 RH Door Handle Support Brckt 12 6 00924.00 1/4 SS Washer
03 1 00603.07 Door Spring Extension Rod AB 13 8 00912.00 1/4-20 Nylon Lock Nut
04 1 00602.00 Door Spring 14 4 00610.00 Door Handle Spacer Small
05 2 01506.30 Door A B C M CMA-44 15 4 00611.00 Door Handle Spacer (Lg)
06 2 01553.00 Door Handle Link 16 2 00910.00 1/4-20 X1 1/2 SS Hexhead Bolt
07 1 00606.00 Eye Bolt 5/16-18 X 8 1/2 17 1 01555.50 LH Door Handle Support Brckt
08 1 00913.00 5/16-18 SS Nut 18 2 00903.00 1/4-20 X 1 3/4 SS Hexhead Bolt
09 1 00926.00 5/16 SS Washer 19 2 00607.04 Door Handle Cap 1"
10 1 00900.00 Cotter Pin 20 2 01552.00 Door Stop

Title Rev 1.02
Parts Manual
Model EAH / EC Dishwasher 02/12/08
Page 12
Door Actuator Assembly (Corner)
Item Qty PartNo Description Item Qty PartNo Description
01 1 00613.04 Door Handle (C) 11 2 01552.00 Door Stop
02 1 00619.34 Door Handle Mtg Plate-Long 12 6 00924.00 1/4 SS Washer
2A 1 00619.44 Door Handle Mtg Plate Short 13 4 00912.00 1/4-20 Nylon Lock Nut
03 1 00603.04 Door Spring Extension Rod (C) 14 4 00610.00 Door Handle Spacer Small
04 2 00602.00 Door Spring 15 4 00611.00 Door Handle Spacer (Lg)
05 2 01506.30 Door A B C M CMA-44 16 2 00903.00 1/4-20 X 1 3/4 SS Hexhead Bolt
06 2 01553.00 Door Handle Link 17 8 00926.00 5/16 SS Washer
07 1 00606.00 Eye Bolt 5/16-18 X 8 1/2 18 2 00910.00 1/4-20 X1 1/2 SS Hexhead Bolt
08 9 00913.00 5/16-18 SS Nut 19 2 00607.04 Door Handle Cap 1"
09 9 00926.00 5/16 SS Washer 20 8 00920.00 5/16-18 X 3/4 SS Hexhead Bolt
10 1 13805.00 5/16-18 Nylon Insert Lock Nut 21 1 00563.20 Roller Switch Bracket (C)

Title Rev 1.02
Parts Manual
Model EAH / EC Dishwasher 02/12/08
Page 13
Peristaltic Pump Assembly
Item Qty PartNo Description Item Qty PartNo Description
01 1 00416.00 Peristaltic Pump Motor 120v/60hz 10 2 00448.00 Male Barrel connector 14-16 gauge
02 1 00417.00 Peristaltic Pump Block 11 1 00425.51 Chemical Tubing Blue
03 2 00919.00 10-32 X 1 1/2 Panhead Bolt 11 1 00425.53 Chemical Tubing Red
04 1 00918.00 10-32 X 1 1/2 Filister Bolt 11 1 00425.54 Chemical Tubing White
05 1 00418.00 Peristaltic Pump Cover 12 1 00443.00 Tube Stiffener
06 1 03415.40 Liquid Tight Fitting 1/4" E 2 00423.00 Rotor Bearing
07 4 00911.00 8-32 X 1/2 Panhead Screw F 2 00422.00 Rotor Bearing Pin
08 1 00435.00 Squeeze Tube 8" Silicone G 1 00424.00 Rotor Bearing Carriage
09 1 00419.00 Peristaltic Pump Rotor Assy H 1 00935.00 1/4-20 X 1/4 Allen Screw
