ORIGINAL INSTRUCTION
SCARIFIERS
CM300 (with gasoline engine)
CM300D (with diesel engine)
INSTRUCTION AND MAINTENANCE HANDBOOK

MOD.76/1 REV.07 - 06/17/2014 p. 2 of 16
ORIGINAL INSTRUCTIONS
SCARIFIER MACHINES
CM300 / CM300D
CMC srl
Via Padre P. Meroni, 20 – 22031 Albavilla (Co) Italy
tel. [phone] – fax [phone]
e-mail: [email protected] - www.cmcmt.it

MOD.76/1 REV.07 - 06/17/2014 p. 3 of 16
ORIGINAL INSTRUCTIONS
This manual is a guide for the correct and safety use and maintenance of the machine.
The constant observance of the rules here indicated assures a long life of the machine and avoids
the most common causes of accidents, which can occur during the work or the maintenance opera-
tions.
For what concerns the safety, we recommend you to observe all general safety standards and to read
carefully all security warnings in this manual.
The owner has the responsibility to explain the instructions to staff that will use the machine.
IMPORTANT
Before starting the machine, repairing it or doing any maintenance, check the safe-
ty labels on the machine and observe them.
Every machine is provided at the delivery with a copy of this manual.
The descriptions and the images contained in this publication are not binding.
The CMC s.r.l. reserves the right to make any changes at any time, without notice.
For further details, please contact CMC S.r.l., which is at your disposal for any kind of information
you need.
IMPORTANT
In order to assure a proper usage of the machine, read carefully all SAFETY DIREC-
TIONS in the manual and instruct the staff in charge.
MANUAL PRESENTATION
The purpose of this handbook is to provide to user the rules for a proper use of the machine and to
facilitate the technical assistance. For requesting the original CMC spare parts, look at SPARE
PART LIST at the end of this handbook. The original spare parts maintain the machine efficiency
for a long time.

MOD.76/1 REV.07 - 06/17/2014 p. 4 of 16
ORIGINAL INSTRUCTIONS
TABLE OF CONTENTS
1) IDENTIFICATION OF THE MACHINE p. 05
2) MANUFACTURER p. 05
3) GENERAL DESCRIPTION p. 05
4) INTENDED USE OF THE MACHINE AND ABNORMAL USES p. 06
5) RESIDUAL RISKS p. 06
6) SET UP p. 07
7) INTERVENTION REQUEST AND TECHNICAL ASSISTANCE p. 07
8) SAFETY MEASURES p. 08
9) INSPECTION AT THE FIRST STARTING p. 09
10) REFUELLING p. 09
11) SET AT WORK p. 10
12) INSTRUCTIONS FOR SCARIFYING p. 13
13) END OF WORK p. 13
14) TRANSPORTING OF THE MACHINE BY TRUCK p. 13
15) PRECAUTIONARY MEASURES FOR MAINTENANCE p. 14
16) GENERAL MAINTENANCE p. 14
17) SET AT REST p. 14
18) GENERAL NOTES – WARRANTY p. 15

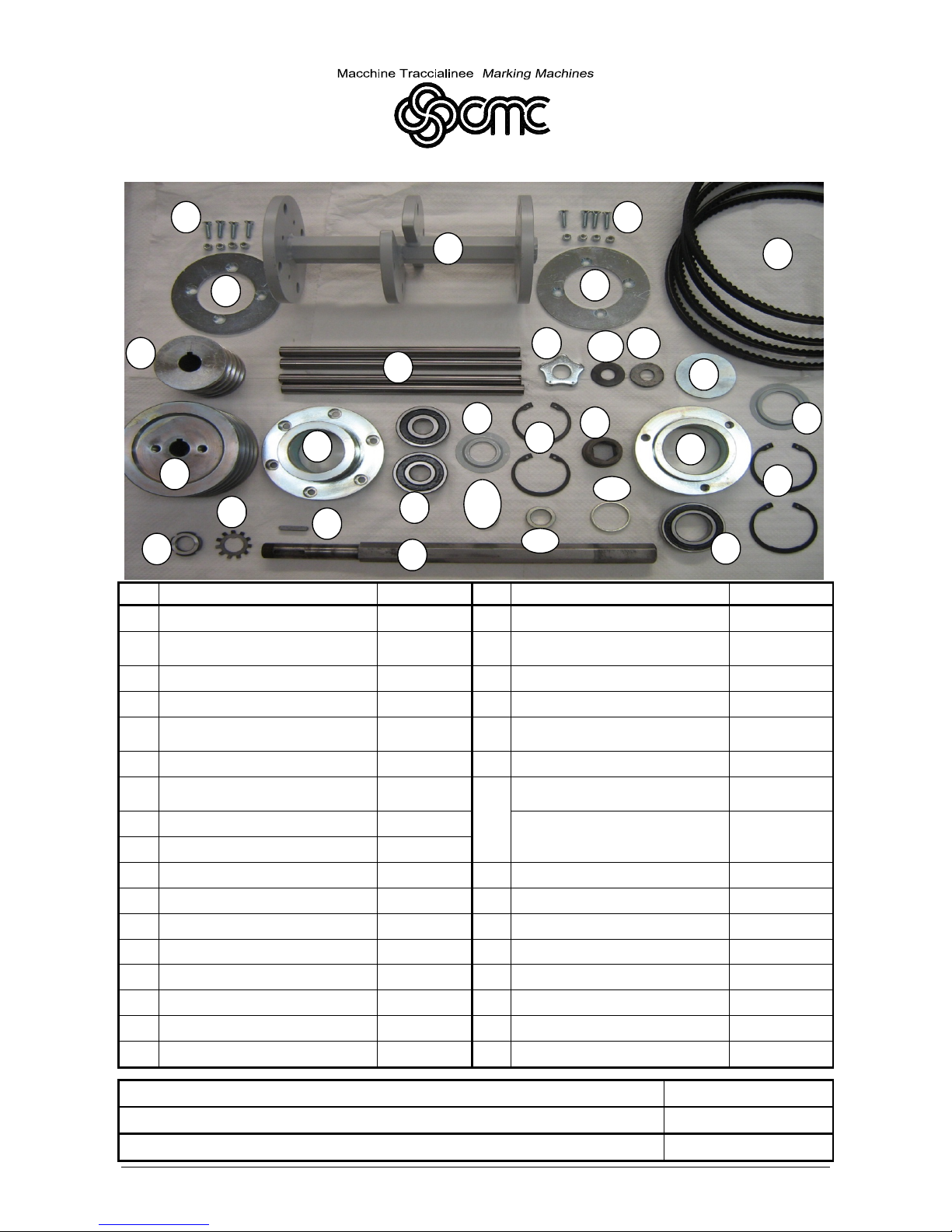

19) SPARE PARTS LIST OF SCARIFIERS CM300 / CM300D p. 16
ENCLOSURES
A. EC Declaration of conformity
B. warranty certificate
C. sketch of noise and vibrations
D. engine handbook
E. safety data sheet of engine oil

MOD.76/1 REV.07 - 06/17/2014 p. 5 of 16
ORIGINAL INSTRUCTIONS
1) IDENTIFICATION OF THE MACHINE
You can identify the model of the machine from the CE plate placed on it (see picture on page 2).
Note: The technical data printed on the plate must be always specified whenever you contact CMC
S.r.l. for information, spare parts requests or any other question you might need to clear up.
2) MANUFACTURER
The machine described in this manual is produced and commercialised by:
CMC srl
Via Padre P. Meroni, 20 – 22031 Albavilla (Co) Italy
tel. [phone] – fax [phone]
e-mail: [email protected] - www.cmcmt.it
3) GENERAL DESCRIPTION
Hand push scarifier to remove road line, equipped with: 6 HP (3600 RPM) GASOLINE ENGINE
(for CM300 machine) or 6,2 HP (3600 RPM) DIESEL ENGINE (for CM300D machine), air cool-
ing, oil bath filter, self-winding pull start. Through pulleys and belts, the engine drives a drum with
four axles each carrying cutters. The engine gives to cutters a rotary movement and, thanks to clear-
ance between axles and cutter hole, a beating movement. This double movement (rotary-beating)
allows to get a perfect scraping also for floors not perfectly flat.
Machine is endowed of a millimeter regulator to adjust the height of cutters from the ground and of
a drum lifting device to stop temporarily the scraping activity.
Maximum scraping width is 20 cm. Handlebar height is adjustable.
3 kinds of cutters are available: hardened cutters with tungsten carbide pins (model F300V), suita-
ble for removing cold paints; cutters with tungsten carbide plates (model F300VD) suitable for re-
moving cold plastic and thermo plastic; hardened cutters for “delicate” removal from concrete sur-
faces (model F300C).
Scraping speed, depending on material to remove, can be ranged from 20 mq/h to 40 mq/h.
Working position of operator is illustrated in PIC.6 N.3.

MOD.76/1 REV.07 - 06/17/2014 p. 6 of 16
ORIGINAL INSTRUCTIONS
4) INTENDED USE OF THE MACHINE AND ABNORMAL USES
This machine is designed in order to comply the general rules provided by Machinery Directive
2006/42/EC, 1
st
Annex. According to section 1.1.2 (c) of 1
st
Annex we specify that:
Machine has been built to be used just within a working-place and it is classified as a working ma-
chine. CMC S.r.l. declines all responsibilities for any different use.
Scarifier is thought, designed and built to remove the horizontal marking (paint or plastic) from
smooth surfaces (asphalt, cement, etc.).
Scarifier can’t run freely on the road, must be within the working yard. It isn’t designed for removal of
road paving (asphalt or other) or of building floor (concrete surface or other).
Scarifier musn’t be used for something different from what described in this manual and its en-
clousers.
Uses different from the ones indicated in this handbook cause the immediate loss of warranty and
decline any responsibility of the manufacturer for damages to the machine, third person and things.
Attention
At the end of its working life, the machine and its components must be disposed in compliance
with the regulations in force in the Country of installation
5) RESIDUAL RISKS
Remain risks of airborne noise emissions and inhalation of fumes.
Operator is informed about risks of noise and of inhalations of smokes by proper safety symbols.
Symbols are stuck on belt carter, to be well visible from working position.
Enclosed to this handbook there is a sketch of noise and vibrations in order to evaluate which pro-
tection devices to adopt.

MOD.76/1 REV.07 - 06/17/2014 p. 7 of 16
ORIGINAL INSTRUCTIONS
6) SET UP
If machine arrives to user by a forwarder, it is packed in carton pallets. Once at user’s, the parcels
must be handled with care and must be moved by proper lifting equipment depending on their
weight and size.
Attention
The manufacturer declines all responsibilities for damages to things or people caused by every sort
of careless behaviour or non-observance of the safety rules in force, concerning the lifting and the
handling of items within the user’s seat
Here following we suggest the different solutions of lifting equipment, which are normally used,
underlining that they will have to be chosen on the base of the parcel weight and size:
Overhead travelling crane; Self-propelled forklift; Manual forklift.
Machine weight is written in CE plate fac-simile on page 2.
To bring down the machine from the pallet, use a wedge of appropriate size for the axle base of ma-
chine wheels. Then push machine to the ground.
Alternatively lift machine by hand: see instructions in chapter 14) TRANSPORTING OF THE MA-
CHINE BY TRUCK.
7) INTERVENTION REQUEST AND TECHNICAL ASSISTANCE
Whenever your machine presents any breakdown, it is essential following what indicated
below:
•Read this handbook and take note of the safety recommendations evidenced along
the paragraphs
•Not attempt any further operation but please contact:
CMC srl
via Manzoni, 35 – 22030 Orsenigo (Co) Italy
tel. [phone] – fax [phone]
e-mail: [email protected] - www.cmcmt.it.
Attention
Handling and lifting operations must be carried out only by specialized and authorized staff

MOD.76/1 REV.07 - 06/17/2014 p. 8 of 16
ORIGINAL INSTRUCTIONS
By contacting the service point, please inform about all details necessary for machine
identification and for immediate understanding of the problem. Please keep within
your reach this manual.
Please provide to technical assistance staff all the data printed on the identification
plate affixed on the machine
ENGINE, it is guaranteed directly by its own manufacturer. In case of malfunctioning,
anomalies or other problems, contact directly the engine technical assistance (see list of ser-
vice points on the engine handbook enclosed or on the web).
8) SAFETY MEASURES
•Read carefully this manual and the engine handbook, before performing any operation
•Respect all safety and functioning instructions of machine before starting the machine
•During the working of the machine, do not allow to any person to get closer
•Do not use the machine after having drunk alcohol or taken any sort of medicine or drug, which
could alter your perception or reflexes. Even tiredness could be a factor of risk
•During work with machine, wear clothes not too large or ripped. Wear proper safety clothes in
accordance to laws and regulations
•Never permit anyone to operate the machine without training them to correct use of machine and
without delivering them this manual
•CMC declines all responsibility for damage to the machine or third parties due to negligence,
tampering or improper use of any kind
•Before any intervention that could modify parts or components of machine, contact the manu-
facturer in order to avoid the immediate warranty decay
• Do not tamper the safety device and the protections on the machine
Danger. Pay attention!
-Every operation must be carried out only when the engine is switched off
-Never touch the cutters while the drum is rotating
-Start the engine only when scraping unit is up

MOD.76/1 REV.07 - 06/17/2014 p. 9 of 16
ORIGINAL INSTRUCTIONS
9) INSPECTION AT THE FIRST STARTING
•Verify that the machine has not been damaged during the transport, check that the screws, the
nuts, the bolts etc. are all properly tight
•Check the level of the engine oil through the proper cap (see engine manual)
10) REFUELLING
Danger. Pay Attention!
Gasoline is extremely flammable and is explosive under certain conditions
To prevent fire and explosion hazard adopt the following precautions:
•Always turn off the engine before refueling
•Refuel in a well-ventilated area
•Do not smoke and do not use flames or sparks in the refueling area or where gasoline is stored
•Do not overfill the fuel tank
•After refueling, make sure the tank cap is closed properly and securely
•Gasoline vapour or spilled gasoline may ignite. If any fuel is spilled out, make sure the area is
dry before starting the engine

MOD.76/1 REV.07 - 06/17/2014 p. 10 of 16
ORIGINAL INSTRUCTIONS
11) SET AT WORK
Adjustament of handlebars height:
-Cut the straps that hold the wire of safety device
(PIC.1)
-Unscrew the screw for regulation of handlebar height
through spanner 17 (PIC.2 N.1)
-Adjust the height of handlebars
-Tighten strongly the screw of regulation of handlebar
height through spanner 17 (PIC.2 N.1)
-Reposition the safety device wire as in picture (PIC.1)
and fix it through straps
To avoid to start scraping with wrong cutter height, before starting the engine make sure that cutters
don’t touch the ground. Follow below instructions:

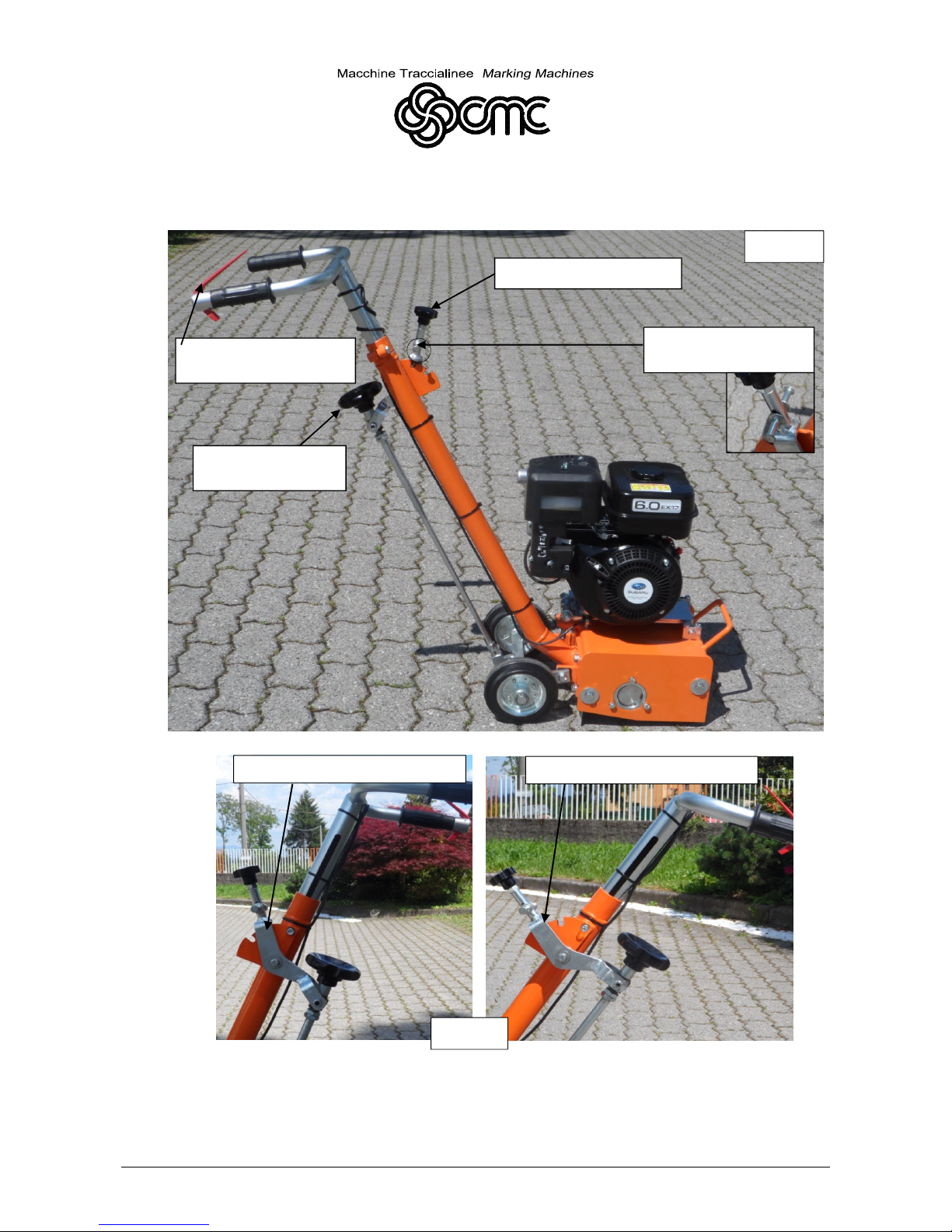

1. Lift lever (PIC.3 N.3) for unlocking the lifting device and push down the knob (PIC.3 N.2) for
lowering the cutters unit in working position (PIC.4 N.2)
2. Check that cutters do not touch the ground. If necessary, push forward the scarifier to make sure
3. If cutters touch the ground, turn anticlockwise the grip (PIC.3 N.1) till they are up from the
ground
Pay Attention!
The handlebar has a limit-switch
screw to avoid that the handle-
bar can accidentally slip off.
This screw (PIC.2 N.2) must
never be unscrewed. Before
starting work always check that
screw is well tightened.
wire of safety device
PIC.
1
PIC. 2 1-screw for regulation
of handlebar height
2-limit-switch
screw
