Cml Ftx zorro User manual

1

ENGLISH INSTRUCTIONS – PAGE 2

FRANÇAIS INSTRUCTIONS – PAGE 11

FTXTorroEPManual.indd 1FTXTorroEPManual.indd 1 30/04/2020 15:3530/04/2020 15:35

2

FTXTorroEPManual.indd 2FTXTorroEPManual.indd 2 30/04/2020 15:3530/04/2020 15:35

3

FRONT ASSEMBLY

STEERING ASSEMBLY

SERVO ASSEMBLY

CENTRAL TRANSMISSION

GEARBOX

ASSEMBLY

EXPLODED PARTS DIAGRAM

FTXTorroEPManual.indd 3FTXTorroEPManual.indd 3 30/04/2020 15:3530/04/2020 15:35

4

REAR ASSEMBLY

EXPLODED PARTS DIAGRAM

FTXTorroEPManual.indd 4FTXTorroEPManual.indd 4 30/04/2020 15:3530/04/2020 15:35

5

CHASSIS ASSEMBLY

EXPLODED PARTS DIAGRAM

FTXTorroEPManual.indd 5FTXTorroEPManual.indd 5 30/04/2020 15:3530/04/2020 15:35

6

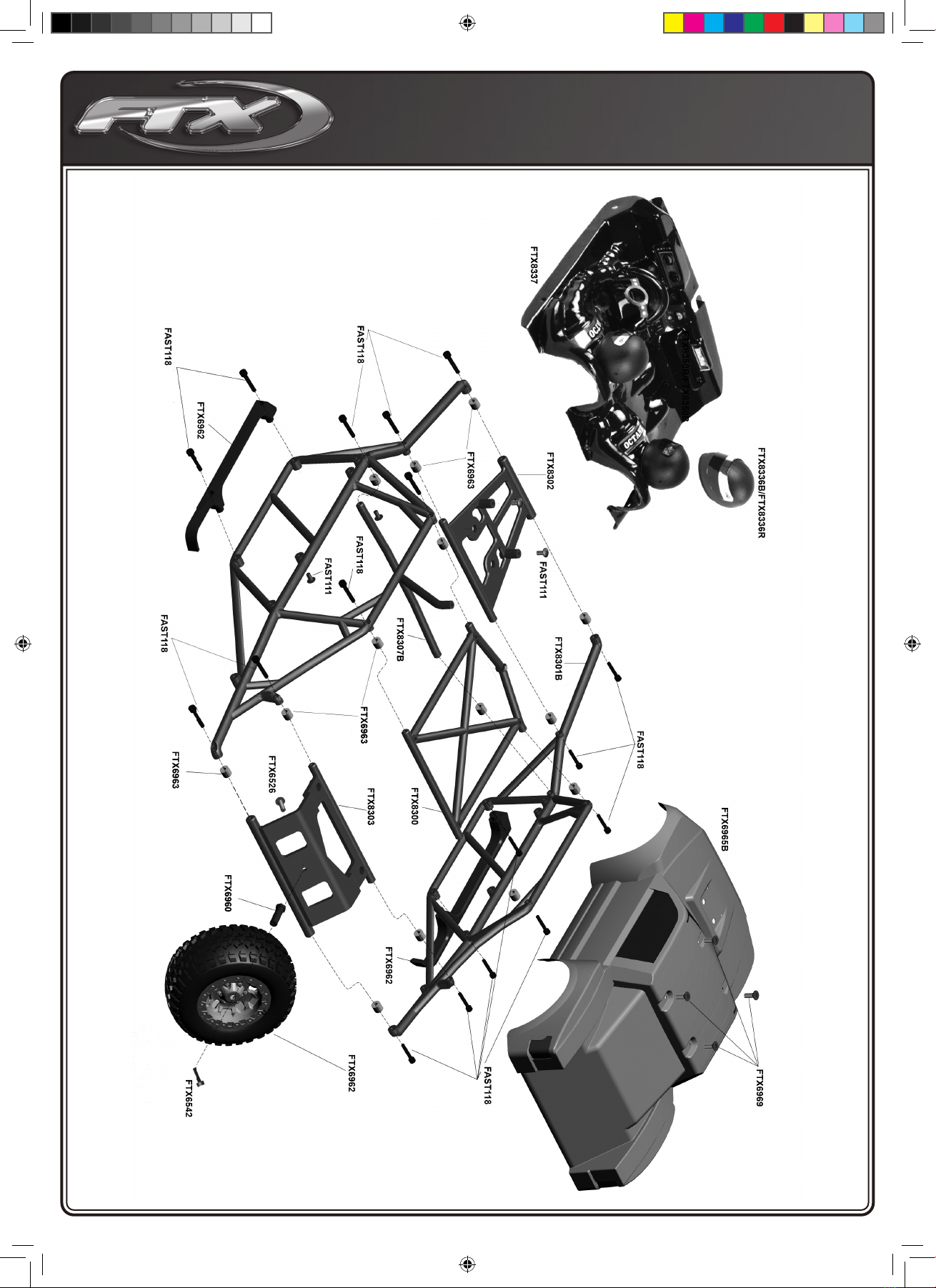

ROLL CAGE AND BODY ASSEMBLY

EXPLODED PARTS DIAGRAM

FTXTorroEPManual.indd 6FTXTorroEPManual.indd 6 30/04/2020 15:3530/04/2020 15:35

7

SPARE PARTS LISTING

FTXTorroEPManual.indd 7FTXTorroEPManual.indd 7 30/04/2020 15:3530/04/2020 15:35

8

SPARE PARTS LISTING

Shock Ball End (6pcs)

FTX6500

FTXTorroEPManual.indd 8FTXTorroEPManual.indd 8 30/04/2020 15:3530/04/2020 15:35

9

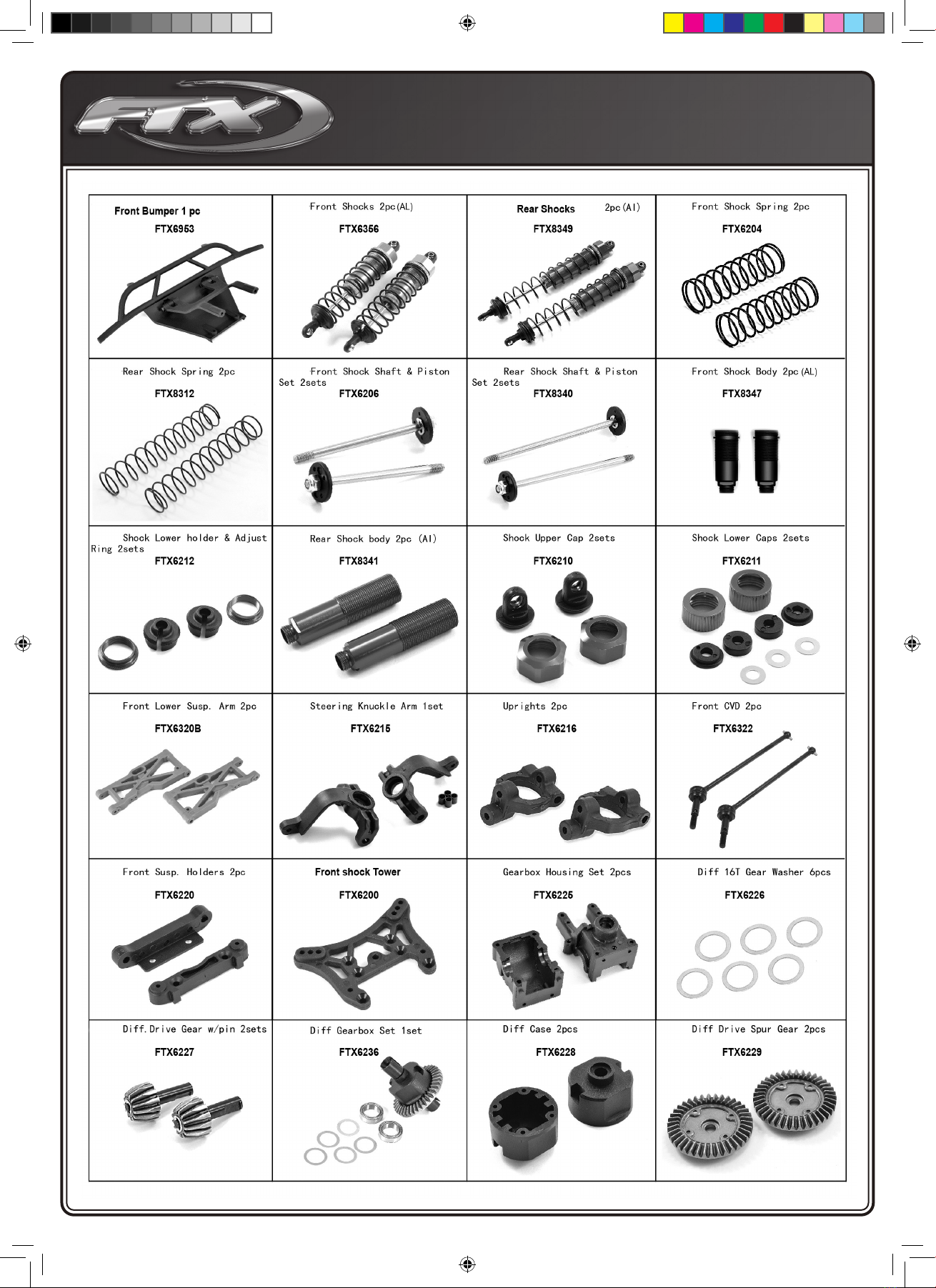

SPARE PARTS LISTING

FTXTorroEPManual.indd 9FTXTorroEPManual.indd 9 30/04/2020 15:3530/04/2020 15:35

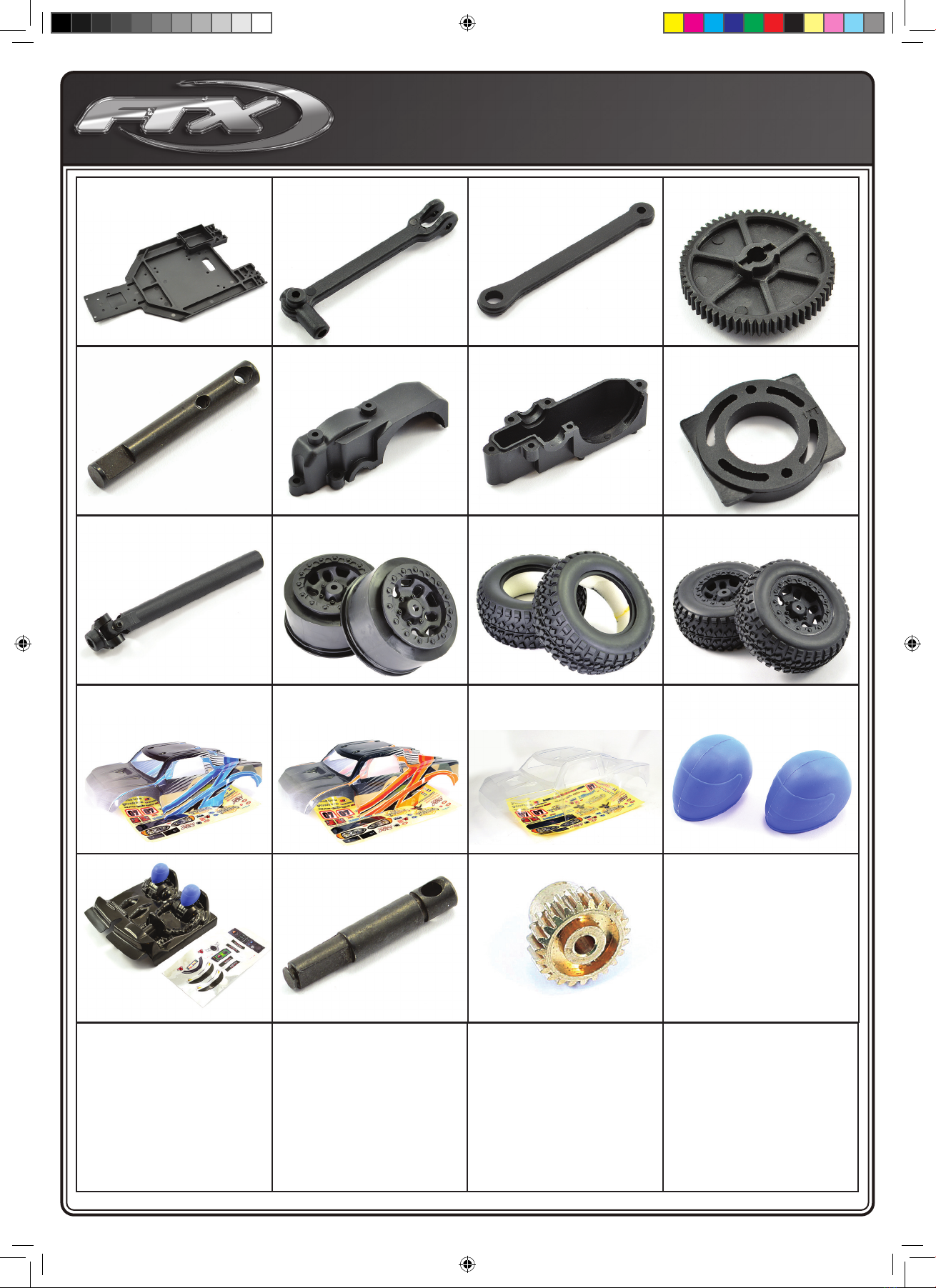

10

Main Chassis

FTX8324

Central Driveshaft

FTX8328

Rear Centre Driveshaft Front half

FTX8333

Printed Body Blue

FTX6965B

Driver Interior

FTX8337

Upper Sway Bar Link

FTX8325

Upper Transmission Cover

FTX8330

Wheels (pr)

FTX6950

Printed Body Orange

FTX6965O

Rear Di Shaft

FTX8338

Lower Sway Bar Link

FTX8326

Lower Transmission Cover

FTX8331

Tyres & Foam (pr)

FTX6951

Clear body

FTX6964

Pinion Gear 23T

FTX6278

Main Gear 62T

FTX8327

Motor Mount for 17T Pinion

FTX8329

Mounted Wheels & Tyres (pr)

FTX6952

Drive helmet

FTX8336B

FTX8336R

Ball Bearing 11x5x4mm

FTBB11

Ring Self Tapping Screw

2.5x3m (4pc)

FTX6534

SPARE PARTS LISTING

FTXTorroEPManual.indd 10FTXTorroEPManual.indd 10 30/04/2020 15:3530/04/2020 15:35

11

SPARE PARTS LISTING

8x5x0.2mm Washer (6pc)

FTX8345

FTXTorroEPManual.indd 11FTXTorroEPManual.indd 11 30/04/2020 15:3530/04/2020 15:35

12

SPARE PARTS LISTING

FTXTorroEPManual.indd 12FTXTorroEPManual.indd 12 30/04/2020 15:3530/04/2020 15:35

13

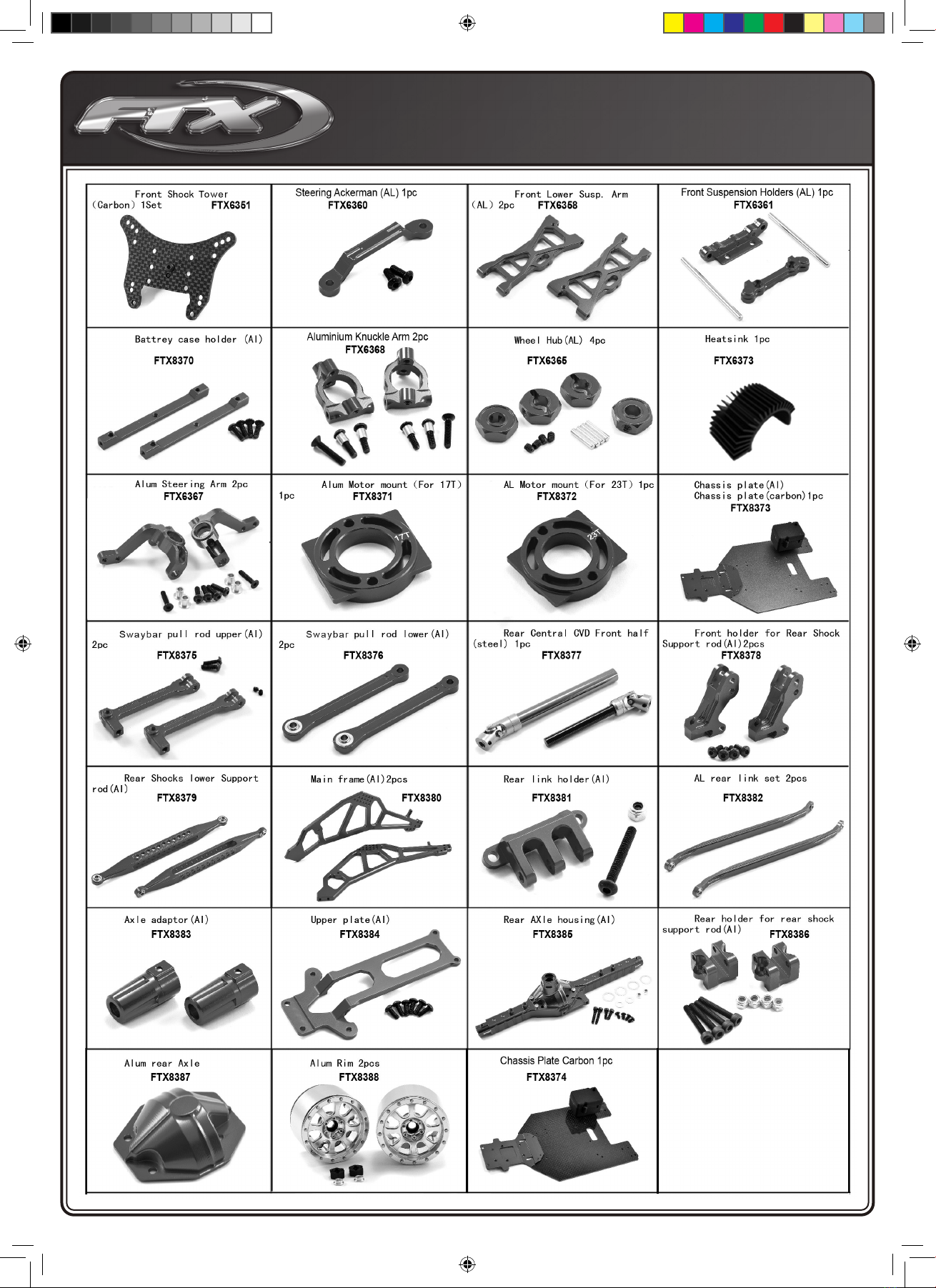

OPTION PARTS LISTING

FTXTorroEPManual.indd 13FTXTorroEPManual.indd 13 30/04/2020 15:3530/04/2020 15:35

14

Etronix 3ch

Radio Set

ET1106

1800mAh NIMH Battery

VZ0010

3kg Steering Servo

FTX6559W

Mains Wall Charger

ET0220 UK

ET0220E Euro

Etronix 3ch Receiver

ET1153

550 Brushed Motor

FTX6558

SPARE ELECTRONICS PARTS LISTING

40A Speed control

FTX6557W2

NOTES:

........................................................................................................................................................................................................................

FTXTorroEPManual.indd 14FTXTorroEPManual.indd 14 30/04/2020 15:3530/04/2020 15:35

15

FTXTorroEPManual.indd 15FTXTorroEPManual.indd 15 30/04/2020 15:3530/04/2020 15:35

16

FTXTorroEPManual.indd 16FTXTorroEPManual.indd 16 30/04/2020 15:3530/04/2020 15:35

CML FTX ZORRO User manual
