CNC4PC C34KLD User manual
USER’S
MANUAL
VER. 2
C34KLD BOARD
Rev. 3.6
MARCH 2018
User’s Manual Page i
USER'S MANUAL
TABLE OF CONTENTS
Page #
Contents
1.0 OVERVIEW.....................................................................................................................1
2.0 FEATURES.....................................................................................................................1
3.0 BOARD DESCRIPTION..................................................................................................1
4.0 JUMPER TO SELECT THE ENABLE.............................................................................2
5.0 WIRING SAMPLE...........................................................................................................3
6.0 PINOUT...........................................................................................................................4
7.0 DIMENSION....................................................................................................................5
User’s Manual Page 1
1.0 OVERVIEW
This board interface is used for the connection between C32 and KLD - Series Driver.
2.0 FEATURES
•RJ45 Driver Input Connector
•Select Jumper for Hard Enable or Soft Enable.
3.0 BOARD DESCRIPTION
User’s Manual Page 2
4.0 JUMPER TO SELECT THE ENABLE
Use Software Enable to keep the driver active only while the system is active.
Set of jumper as shown in the image
SOFT ENABLE
Use Hardware Enable to keep the driver enabled all the time.
Set of jumper as shown in the image
HARD ENABLE
User’s Manual Page 3
5.0 WIRING SAMPLE
Note: This wiring is just to illustrate a sample product application. Specific wiring may
vary from system to system. It is the user’s responsibility to implement it correctly.
User’s Manual Page 4
6.0 PINOUT
C34KLD CONNECTOR RJ45
RJ45 Pins
Function
8(5V)
EN+
7
NOT USED
6
DIR+
5
SOFT_EN
4
GND
3
NOT USED
2
PUL+
1
NOT USED
User’s Manual Page 5
7.0 DIMENSION
All dimensions are in Millimeters.
DISCLAIMER
Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC
nor Arturo Duncan are liable for any accidents resulting from the improper use of these
devices. This product is not a fail-safe device and it should not be used in life support
systems or in other devices where its failure or possible erratic operation could cause
property damage, bodily injury or loss of life.
Table of contents

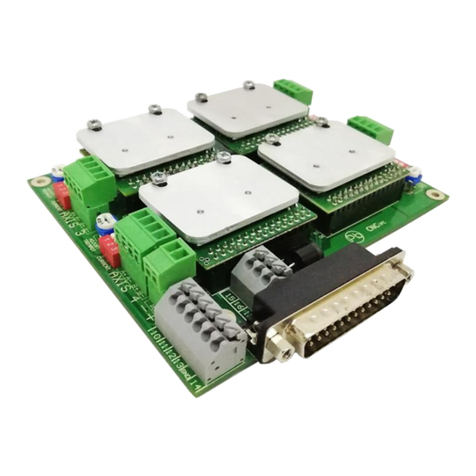

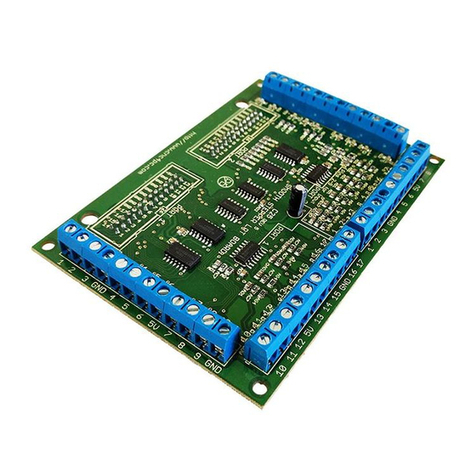

Other CNC4PC Motherboard manuals
