Coaster Gwendoline 306040Q User manual

ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
Fine Furniture for every stage of life
306040Q(B1&B2)

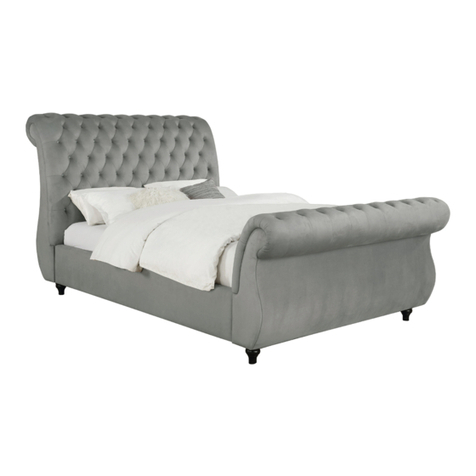

Queen Bed
COASTERFURNITURE.COM
REVISION 0 : 05/22/2023
PAGE 1 OF 4

PAGE 2 OF 4
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
WARNING!
1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2. This product is for home use only and not intended for commercial establishments.
ASSEMBLY TIME 30 MINUTES
PARTS IDENTIFICATION
A HEADBOARD
COASTERFURNITURE.COM
C BED RAIL
B FOOTBOARD
D CENTER RAIL
F CENTER RAIL SUPPORT
2PCS
1PC
3PCS
1PC E ROLL SLAT
(13PCS)
1SET
B1 (BOX1)
B2 (BOX2)
HARDWARE IDENTIFICATION
4 PAN HEAD SCREW
(M4 x 30mm - RBW)
8PCS
1 BOLT
(Ø5/16"x38mm - RBW)
8PCS 2 FLAT WASHER
(Ø5/16"- RBW)
3 LOCK WASHER
(Ø5/16" - RBW)
8PCS
8PCS
5 ALLEN WRENCH
(5mm - RBW)
1PC
Z-B2 (BOX2) - HARDWARE PACK IS LOCATED IN 306040(B2)
1PC
NOTE:
Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item.
WITH LEVELER
ASSEMBLY INSTRUCTIONS
ITEM: 306040Q(B1&B2)

PAGE 3 OF 4
ASSEMBLY INSTRUCTIONS
COASTERFURNITURE.COM
STEP 1
STEP 2
A
B
C
C
ITEM: 306040Q(B1&B2)
E
F
D
231
5

ASSEMBLY INSTRUCTIONS
COMPLETE
COASTERFURNITURE.COM
PAGE 4 OF 4
ITEM: 306040Q(B1&B2)
STEP 4
STEP 3
4

COASTERFURNITURE.COM
Note: Dimension tolerance ±5%
0.75"
95.75"66.25"
60.75"
12.75"
56.75"
Inner Size: 61.00"W X 81.25"D
8.25"
ITEM: 306040Q(B1&B2)
