*Cobra®recommends you always wear a helmet while riding. Please never operate your motorcycle while under
the influence of alcohol and/or drugs. Enjoy the new look of your motorcycle and please ride safely.
Items Supplied >
1 –INTAKE COVERW/ SCREEN / RING ASSEMBLY
1 –K&N® VENTURI AIR FILTER
1 –BILLET VELOCITY STACK
1 –MOUNTING PLATE
1 –SUPPORT BRACKET
2 –BOLT, M5 X 16mm, ALLEN
1 –BOLT, M5 X 30mm, ALLEN
7 –BOLT, 1/4”-20 X 1/2”, BUTTONHEAD
4 –WASHER, 1/4" INTERNAL TOOTH LOCK
1 –WASHER, M5 SPLIT LOCK
1 –O-RING, 1.25"I.D. X .125", BUNA-N (SMALL)
1 –O-RING, 3.25"I.D. X .125", BUNA-N (LARGE)
Application(s) >
YAMAHA V-STAR 950 2007 - 2017
Instruction Manual >
Read all instructions carefully and completely before installing your new POWRFLOTM Intake.
1. Remove the (4) bolts that hold on the stock air cleaner cover. Remove chrome cover and filter from air box.
2. Remove the air box by loosening the (3) allen bolts around the air inlet and the (1) M6 hex nut from the lower
portion of the air box. See Figure 1. Disconnect the hose from the backside of the air box.
3. Insert the supplied o-rings into the grooves of the supplied velocity stack. NOTE: Do not attempt to stretch o-rings
into grooves; position o-rings evenly around groove and use gentle force (No tools) to push them in.
4. Bolt the velocity stack to the throttle body using the (2) supplied M5 x 16mm allen bolts and the (1) supplied M5 x
30mm allen bolt w/ split lock washer. Fully tighten. See Figure 2.
5. Position the mounting plate over the velocity stack (with the welded tube toward inside) and secure using (3)
supplied 1/4"-20 x 1/2" buttonhead bolts and (3) internal tooth lock washers, finger tighten only. See Figure 3.
6. Remove the bracket which holds the bolt that secured the M6 hex nut in Step 2. Using the two allen bolts (just
removed), install the supplied support bracket. Then secure the support bracket to the mounting plate using the
(1) 1/4" buttonhead bolt and internal tooth lock washer. See Figure 3 & 4.
06-0225-01B / 02B / 03B / 04B
Page 1 of 2
DOCUMENT NO. 0017 REV. A
REMOVE (3)
ALLEN BOLTS
REMOVE HEX NUT
& BRACKET
(BEHIND AIR BOX)

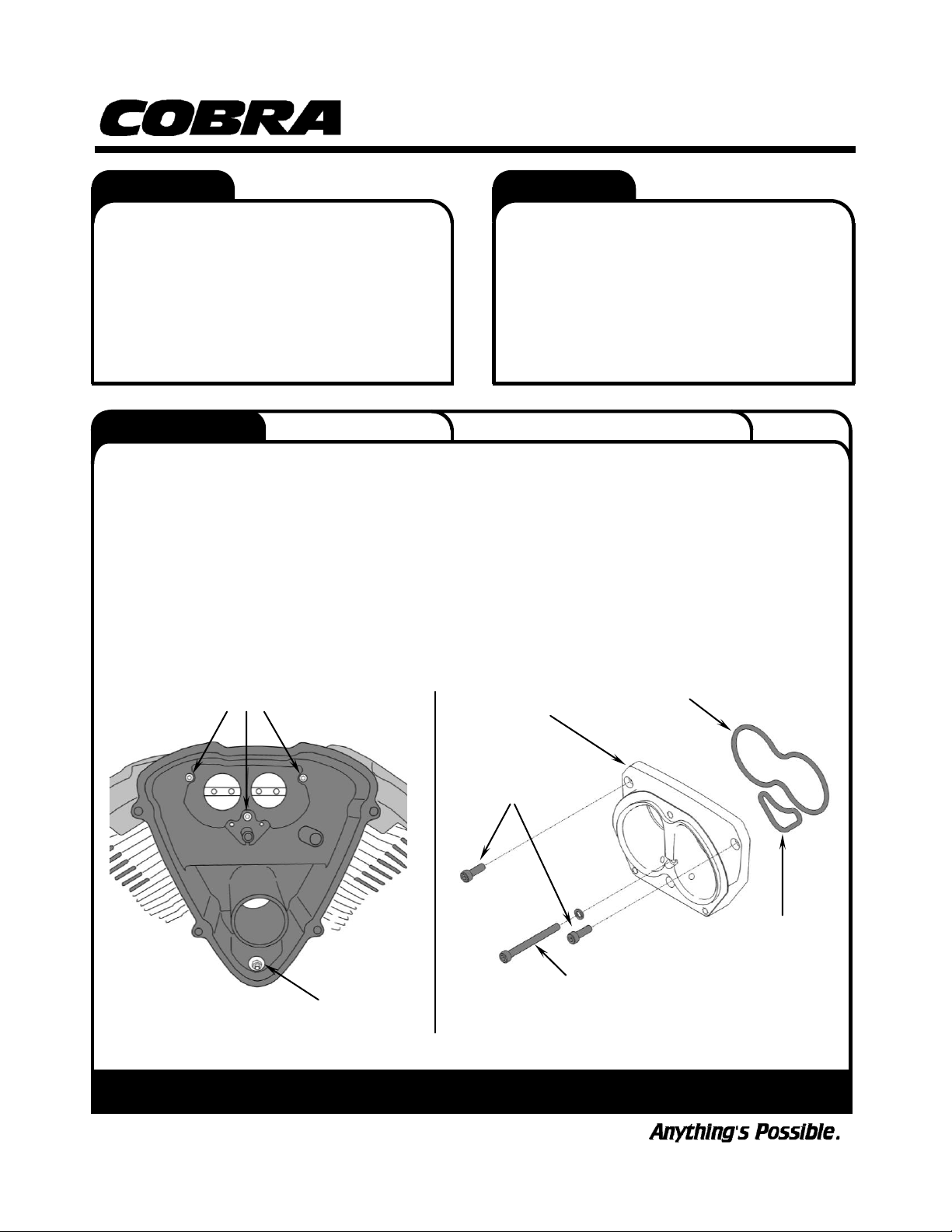

FIGURE 1
FIGURE 2
LARGE O-RING
(ACTUALLY ROUND)
VELOCITY
STACK
(2) SUPPLIED M5 X 16mm
ALLEN BOLTS
SMALL O-RING
(ACTUALLY ROUND)
SUPPLIED M5 X 30mm ALLEN BOLT
w/ SPLIT LOCK WASHER

® 23801 E. La Palma Ave., Yorba Linda, Ca 92887 Ph. 714.692.8180, Fax. [phone]
www.cobrausa.com
04/17 2®
Instruction Manual >
06-0225-01B / 02B / 03B / 04B
Page 2 of 2
7. Fully tighten the (4) 1/4"-20 buttonhead bolts (Steps 5 & 6) and the two stock allen bolts (Step 6).
8. Attach the hose and hose clamp that was disconnected in Step 2 to the tube on the mounting plate.
9. Insert the round intake screen into the black ring so the screen sits inside the edge of the ring. Place the ring and
screen between the legs of the naked black intake cover as shown in Figure 5.
10. Place the naked intake cover, ring and screen assembled in Step 9, over the air filter and align each leg to
the base mounting plate threaded holes. Be sure screen sits at a 45 ° angle to the bottom leg, and C/V
logo'd leg is at the upper left position. Insert the (3) supplied 1/4"-20 x 1/2” buttonhead bolts through the
intake cover and into the base mounting plate, see Figure 5. Double check all parts are aligned properly
and tightened securely.
DOCUMENT NO. 0018 REV. A
FIGURE 4
SUPPORT
BRACKET
INSTALLED
(2) STOCK
ALLEN BOLTS
FIGURE 3
VELOCITY
STACK
INSTALLED
SUPPORT
BRACKET
MOUNTING
PLATE
(4) 1/4”-20 X 1/2" BUTTONHEAD BOLTS
& INTERNAL TOOTH LOCK WASHERS
CALIFORNIA CUSTOMERS:
In California, aftermarket parts that have been identified specifically
as replacement parts or that have received an Air Resources
Board Executive Order may be used on street motorcycles.
All other emissions related aftermarket parts are for competition
use only. A list of replacement parts and EO parts, and
corresponding fitment is provided at: www.cobrausa.com
FIGURE 5
MOUNTING PLATE
ASSEMBLY
INTAKE SCREEN
(3) ¼”-20 X 1/2”
BUTTONHEAD
BOLTS
C / V LOGO'D LEG
POSITIONED HERE
K&N®VENTURI AIR FILTER
INTAKE RING
INTAKE COVER
(NOTE: DESIGN WILL
VARY BASED ON
PART NUMBER)
CLEANING INSTRUCTIONS:
To clean your black air intake system use a liquid
based soap detergent, such as dishwashing soap
applied with a soft cloth and rinse with clean water.
Note: Avoid abrasive cleaning methods such as
granular or dry cleansers, simple green, Scotch-Brite
or steel wool pads. Abrasives may breach the
coating and shorten life.
