Introduction
A1 English
Important Information •
Federal Laws Governing the Use of Radar Detectors
It is not against federal law to receive radar transmissions with your Cobra radar/
laser detector. The Communications Act of 1924 guarantees your right to receive
radio transmissions on any frequency. Local laws that contravene this Act, while
illegal, may be enforced by your local law enforcement officials until and unless
they are prohibited from doing so by federal court action.
Safety Alert
Use of this product is not intended to, and does not, ensure that motorists or
passengers will not be involved in traffic accidents. It is only intended to alert
the motorist that an emergency vehicle equipped with a Cobra Safety Alert
transmitter is within range as defined by that product. Please call local fire
and police departments to learn if coverage exists in your area.
Safe Driving
Motorists, as well as operators of emergency or service vehicles, are expected to
exercise all due caution while using this product, and to obey all applicable traffic laws.
Security of Your Vehicle
Before leaving your vehicle, always remember to conceal your radar detector
in order to reduce the possibility of break-in and theft.
Customer Assistance •
Should you encounter any problems with this product, or not understand its many features,
please refer to this owner’s manual. If you require further assistance after reading this
manual, Cobra Electronics offers the following customer assistance services:
For Assistance in the U.S.A.
Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone).
Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. CT
Mon. through Fri. (except holidays) 773-889-3087 (phone).
Questions English and Spanish. Faxes can be received at 773-622-2269 (fax).
Technical Assistance English only. www.cobra.com (on-line: Frequently Asked
Questions). English and Spanish. [email protected] (e-mail).
For Assistance Outside the U.S.A.
Contact Your Local Dealer ©2005 Cobra Electronics Corporation
6500 West Cortland Street
Chicago, Illinois 60707 USA
www.cobra.com
Customer Assistance
XRS 9330
12 BAND™
HIGH-PERFORMANCE
DIGITAL RADAR/LASER
DETECTOR WITH XTREME RANGE
SUPERHETERODYNE®TECHNOLOGY
Nothing Comes Close to a Cobra®English
Operating Instructions
Printed in China
Part No. 480-230-P
Version A
Nothing Comes Close to a Cobra®English
For more information or to
order any of our products,
please visit our website:
www.cobra.com
CB Radios
microTALK®Radios
Radar/Laser Detectors
Safety Alert®Traffic Warning Systems
Handheld GPS Receivers
Mobile GPS Navigation Systems
HighGear®Accessories
CobraMarineTM VHF Marine Radios
Power Inverters
Accessories
The Cobra line of quality products includes:

Order Form
Nothing Comes Close to a Cobra®25
Order Form •
Name
Address (No P.O. Boxes)
City State/Province Zip Country
Telephone
Credit Card Number Type: ❒Visa ❒MasterCard ❒Discover Exp. Date
Customer Signature
Item # Description U.S. Cost Each Qty Amount

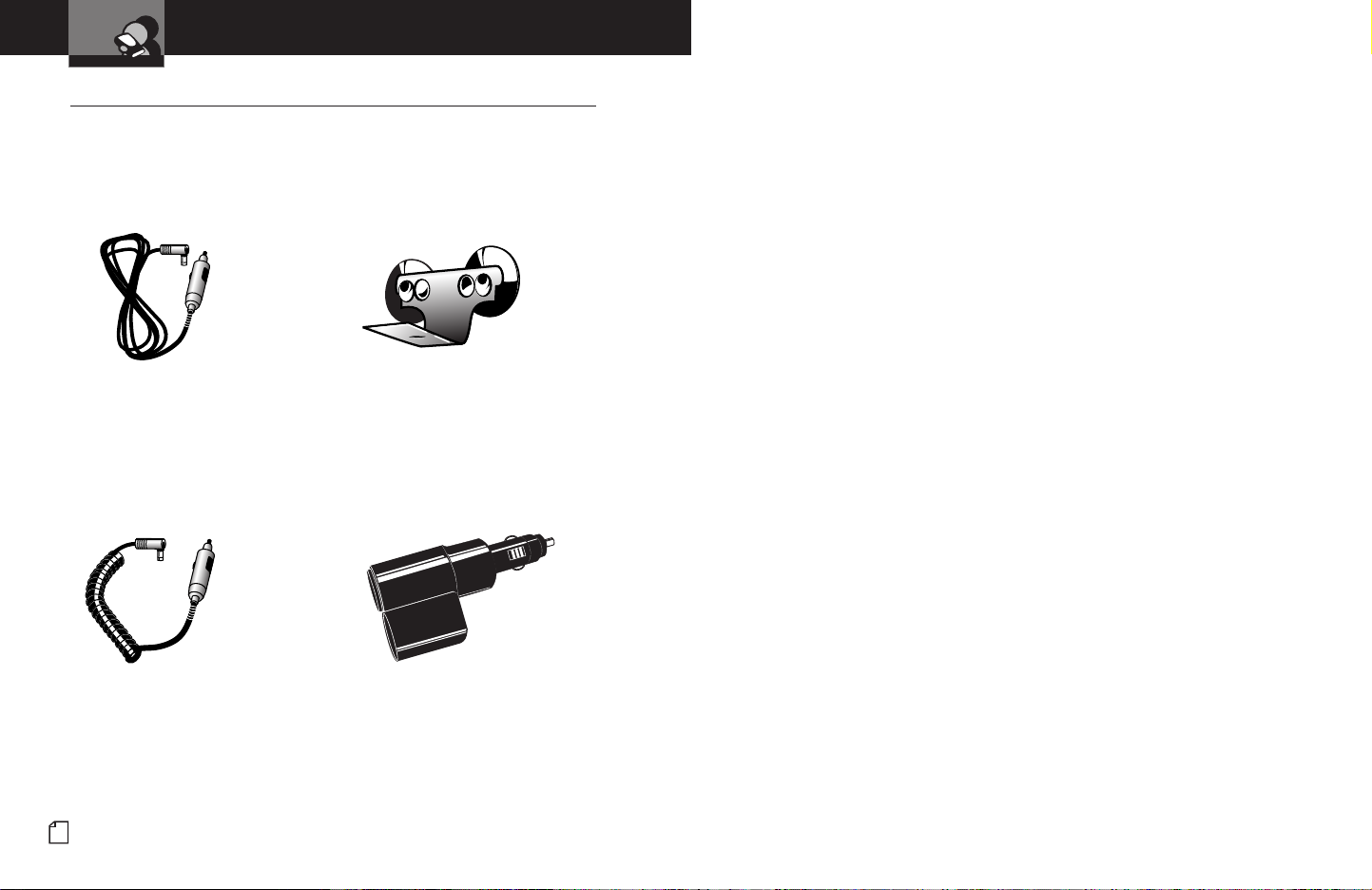

420-030-N-001 Straight 12V Power Cord
420-026-N-001 Coiled 12V Power Cord
545-139-N-001 Windshield Mounting Bracket
CLP-2B Dual Port Power Adapter
U.S. Subtotal
(Tax if Applicable)
Shipping/Handling
Total
Ordering From U.S.A.
Call 773-889-3087 for pricing or visit www.cobra.com.
For Credit Card Orders
Complete and return this order form to fax number 773-622-2269. Or call 773-889-3087
[Press one from the main menu] 8:00 a.m. to 6:00 p.m. CT, Monday through Friday.
Make Check or Money Order Payable To
Cobra Electronics, Attn: Accessories Dept.,
6500 West Cortland Street, Chicago, IL 60707 U.S.A.
To Order Online
Please visit our website: www.cobra.com
Amount Shipping/Handling*
$10.00 or less . . . . . $3.00
$10.01-$25.00 . . . . . $5.50
$25.01-$50.00 . . . . . $7.50
$50.01-$90.00 . . . . $10.50
$90.01-$130.00 . . . $13.50
$130.01-$200.00 . . $16.50
$200.01 plus . . . . . 10% of
purchase
Tax Table
Wisconsin add 5%
Indiana, Michigan,
Ohio add 6%
California add 7.25%
Illinois add 9%
*For AK, HI and PR add additional $26.95 for FedEx Next Day or
$10.95 for FedEx 2nd Day. Excludes weekends and holidays shipments.
Please allow two to three weeks for delivery in the U.S.A.
Prices subject to change without notice.
Customer Assistance
Display and Product Features
Introduction
Nothing Comes Close to a Cobra®A3
Xtreme Range
Superheterodyne Technology
With super-fast sweep circuitry,
XRS provides extra detection range
and the best possible advance warning
to even the fastest radar guns
Detection and Separate Alerts For:
Radar signals (X, K, Ka and Ku bands,
with signal strength indicated),
laser signals, Safety Alert signals,
Strobe Alert signals, VG-2 signals,
Spectre 1 signals
LaserEye
For 360°detection of laser and
strobe signals
Instant-On Ready
Detects radar guns with “instant-on”
(very fast) speed monitoring capabilities
Tone Alerts
With adjustable volume
UltraBright Data Display
Easy-to-read with adjustable brightness
City or Highway
Modes to reduce false alerts
Safety Alert
Traffic warning system distinguishes
important safety alerts from other
K band signals
Strobe Alert
Emergency vehicle warning system
Manual Mute or Auto Mute
A mute function of audio alerts
IntelliMute
A mute function which
automatically reduces false
alerts by sensing engine RPMs
Mounting
Mounts easily on windshield
or dashboard
Product Features •
Congratulations! You’ve made a smart choice by purchasing a high
performance radar/laser detector from Cobra. Just look at some of the
sophisticated features and capabilities your new unit includes:
Display •
This booklet describes the simple steps for mounting and setting up your detector.
It also provides helpful information about how radar and laser guns are used and
how you can interpret the alerts you receive.
Controls, Indicators
and Connections
Introduction
A2 English
Controls, Indicators and Connections •
12V DC
Power Jack
On-Off/ Volume Control
Allows you to adjust the
volume of the tone alerts.
Audio Jack
City Button
For City or Highway
modes to reduce
false alerts.
LaserEye
For 360° detection of
laser and strobe signals.
Windshield Bracket
Release Button
Speaker
* Press and hold for two seconds
to access these functions.
Windshield
Bracket Mount
WARNING
Modifications or parts substitutions not approved
by Cobra Electronics Corporation may violate
FCC Rules and void your authority to operate
this equipment.
IntelliMute
Indicator
Radar, VG-2,
Spectre 1,
Safety and
Strobe Indicators
X K Ka VS c
XKKa V S c
X K Ka VS c
X K Ka V S LNOTE: In This Manual
When steady,
the display will
be shown:
When blinking,
the display will
be shown:
X & K will light
simultaneously
when indicating
Ku detection:
Signal
Strength,
Laser and
City/Highway
Mode Indicators
Signal Strength
1 (weakest) to 5 (strongest)
Dim Button
Allows you to adjust the UltraBright
Data Display brightness for easy
reading. (Also turns VG-2 and
Spectre 1 alerts on and off.*)
IntelliMute Button
Engine RPM sensing mute function
which reduces false alerts. Button
turns IntelliMute on and off. (Also
enters IntelliMute setting mode.*)
Mute Button
For manual mute or
auto mute of audio alerts.
(Also turns Voice Alert
on and off.*)

Nothing Comes Close to a Cobra®1
Contents
Introduction
Introduction
Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1
Customer Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1
Controls, Indicators and Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . A2
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A3
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A3
Your Detector
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Highway/City Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
UltraBright Data Display Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Muting an Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Auto Mute Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
IntelliMute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
VG-2 and Spectre 1 Alert Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . 12
Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Signals Detected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Audio Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Visual Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Instant-On Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Responding to Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Understanding Radar and Laser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Warranty
Limited 1-Year Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Customer Assistance
Product Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Trademark Acknowledgement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Order Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Nothing Comes Close to a Cobra®
Installation
Your Detector
3
Installation
Your Detector
English
2
Installation •
Where to Mount Your Unit
You will get optimum performance from your detector if you Mount it at a
point approximately in the center of the vehicle, as low as possible on the
front windshield without obstructing the unit’s view of the road either to
the front or rear. Make sure unit is level with the road. You can also mount it
directly on the dashboard.
The unit’s lens must not be blocked and the LaserEye should have a clear view
out the back window to allow 360° detection.
Radar and laser signals pass through glass but not through other materials
and objects. Objects that can block or weaken incoming signals include:
■Windshield wiper blades
■Mirrored sun screens
■Dark tinting at the top of the windshield
■Heated windshields currently available on some vehicles
(Instaclear for Ford, Electriclear for GM.) Consult your dealer
to see if you have this option.
1. Attach the rubber
cups to the bracket.
2. Make sure the rubber cups and your windshield are clean.
3. Push the bracket firmly
onto the windshield.
4. Attach the detector to
the bracket. Check the
angle of the unit.
5. To adjust the angle if
necessary, gently push or
pull on the bracket to bend
it. DO NOT use the detector
to bend the bracket.
6. Plug the power cord
into the detector.
7. Plug the cigarette lighter
adapter on the power
cord into your vehicle’s
cigarette lighter.
8. You can temporarily remove the detector whenever you
wish by pressing the bracket release button and sliding
it off the bracket.
Windshield Mounting
The LaserEye Should Have a Clear View
Windshield Mounting Dashboard Mounting

To Turn On the Unit and Adjust the Audio Volume
Rotate the On-Off/
Volume control
clockwise (away
from you).
Tone Visual Display
Three beeps happears in the display
indicating that the power
is on.
Getting Started
Getting Started •
Your Detector
Nothing Comes Close to a Cobra®5
Installation
Your Detector
English
4
1. Place the detector on the dashboard to find a location
where the unit has a clear, level view of the road.
The angle can NOT be adjusted after mounting.
2. Remove the paper backing
from one side of the hook-
and-loop fastener.
3. Attach the pad to the
dashboard at your chosen
location and remove the
other paper backing.
4. Attach the detector to the
hook-and-loop fastener.
You can remove and
reattach the unit as
often as you like.
6. Plug the power cord
into the detector.
7. Plug the cigarette lighter
adapter on the power
cord into your vehicle’s
cigarette lighter.
Dashboard Mounting
Power On
X K Ka V S h
On-Off/
Volume Control
Rotate clockwise
(away from you)
NOTE
In some vehicles, power is supplied to the cigarette lighter
even while the ignition is off. If this is the case with your
vehicle, you should turn off or unplug your detector when
parking for lengthy periods.
Secondary Icons

Settings
Your Detector
Nothing Comes Close to a Cobra®7
UltraBright Data Display Brightness
You can choose from three settings for Brightness of the display.
You can cycle through the settings by repeatedly pushing the Dim button.
The factory setting is Bright.
Settings
Your Detector
English

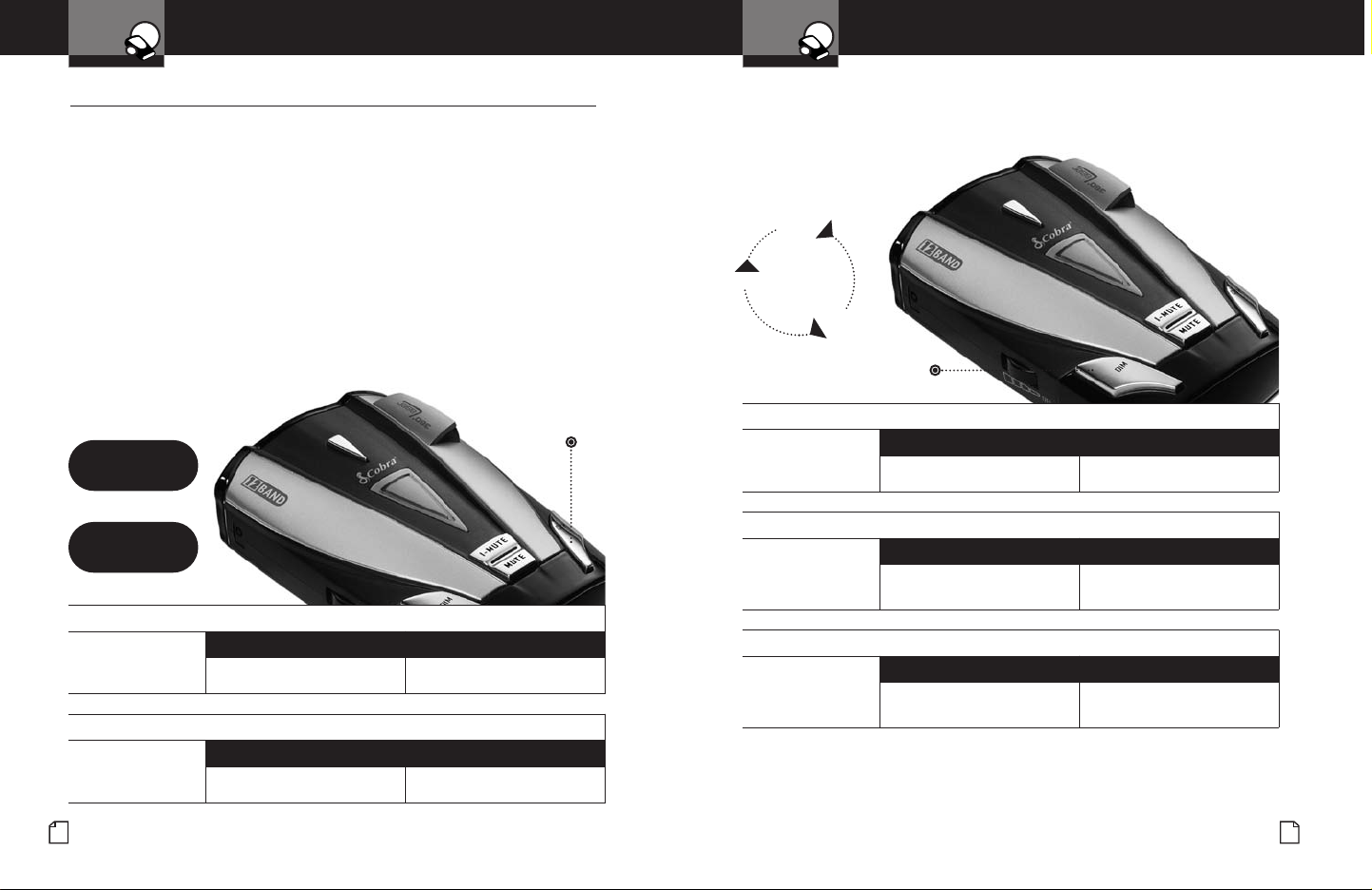

Settings •
When changing the Settings on your detector, please keep in mind:
■Buttons can have multiple functions.
■All settings will be stored in memory when the power is
turned off and recalled when the power is turned back on.
Highway/City Mode
Setting your detector to City mode delays all X band audio alerts until
the signal strength reaches Level 3. (A single beep will sound when the
signal is first detected.) This will reduce false alerts while you are driving
in, or near, urban areas where there are many sources for conflicting
X band signals such as microwave towers and automatic door openers.
To change settings, follow the procedure listed below, which indicates
what you will see and hear as you complete each step. The factory setting
is Highway mode.
6
Dim Button
Press and release
Bright
Dark
Dim
Press and
release Dim
button
City Button
Press and
release
City Mode
X K Ka V S
c
Highway Mode
X K Ka V S h
To Change From Highway Mode to City Mode
Press and release
the City button. Tone Visual Display
One beep
c
appears in the display
To Change From City Mode Back to Highway Mode
Press and release
the City button again. Tone Visual Display
Two beeps happears in the display
To Change the Brightness to Dim
Press and release
the Dim button
once.
Tone Visual Display
One beep Display dims
To Change the Brightness to Dark
Press and release
the Dim button
again.
Tone Visual Display
One beep Display remains dim
(no visual alerts will be seen)
To Change the Brightness to Bright
Press and release
the Dim button a
third time.
Tone Visual Display
Two beeps Display returns
to full brightness

Settings
Your Detector
Nothing Comes Close to a Cobra®9
Settings
Your Detector
English

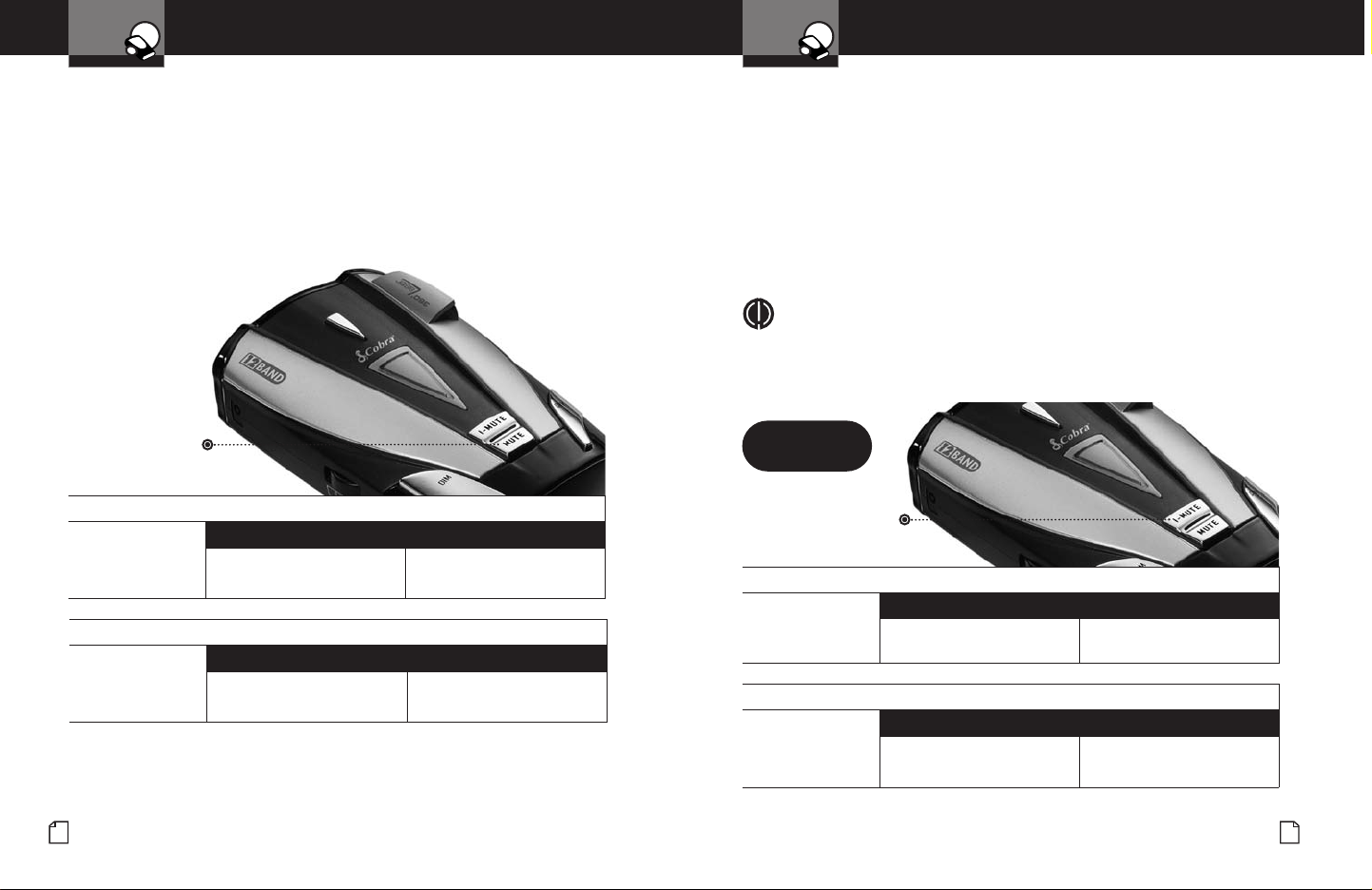

Muting an Alert
Your detector allows you to quickly turn off an audio Alert by momentarily
pressing the Mute button. If you press the Mute button a second time
during the Alert, the audio Alert will be turned back on.
Auto Mute Mode
Auto Mute will automatically reduce the audio volume of all alerts
after four seconds for as long as the signal is detected. The factory
setting for Auto Mute is on.
8
IntelliMute
IntelliMute is a unique new feature that allows you to avoid alerts you
don’t need to hear because you are stopped or moving slowly. By sensing
the “revs” (RPMs) of your engine, IntelliMute knows when you are at low
speed and automatically mutes alerts (except for strobe signals from
emergency vehicles).
Before IntelliMute will work, you must set an activation point for your engine’s
revs (see page 11). Whenever the revs are below that point, IntelliMute will
begin muting. The activation point will be stored in memory and recalled
each time the power is turned on. The factory setting is IntelliMute off.
NOTE
IntelliMute may not work with some vehicles because it cannot sense
the engine’s revs. In such cases, you can reduce unwanted audio alerts
by using Auto Mute and City mode when appropriate.
IntelliMute On
X K Ka V S c
Mute Button
Press and release
To Turn Auto Mute Off
Press and release
the Mute button
while no alert
is occurring.
Tone Visual Display
One beep None
To Turn Auto Mute On
Press and release
the Mute button
again while no
alert is occurring.
Tone Visual Display
Two beeps None
To Turn IntelliMute On
Press and release
the IntelliMute
button.
Tone Visual Display
Two beeps Dot appears next to the large
character on the right
To Turn IntelliMute Off
Press and release
the IntelliMute
button again.
Tone Visual Display
One beep None
IntelliMute Button
Press and release

Settings
Your Detector
Nothing Comes Close to a Cobra®11
Settings
Your Detector
English

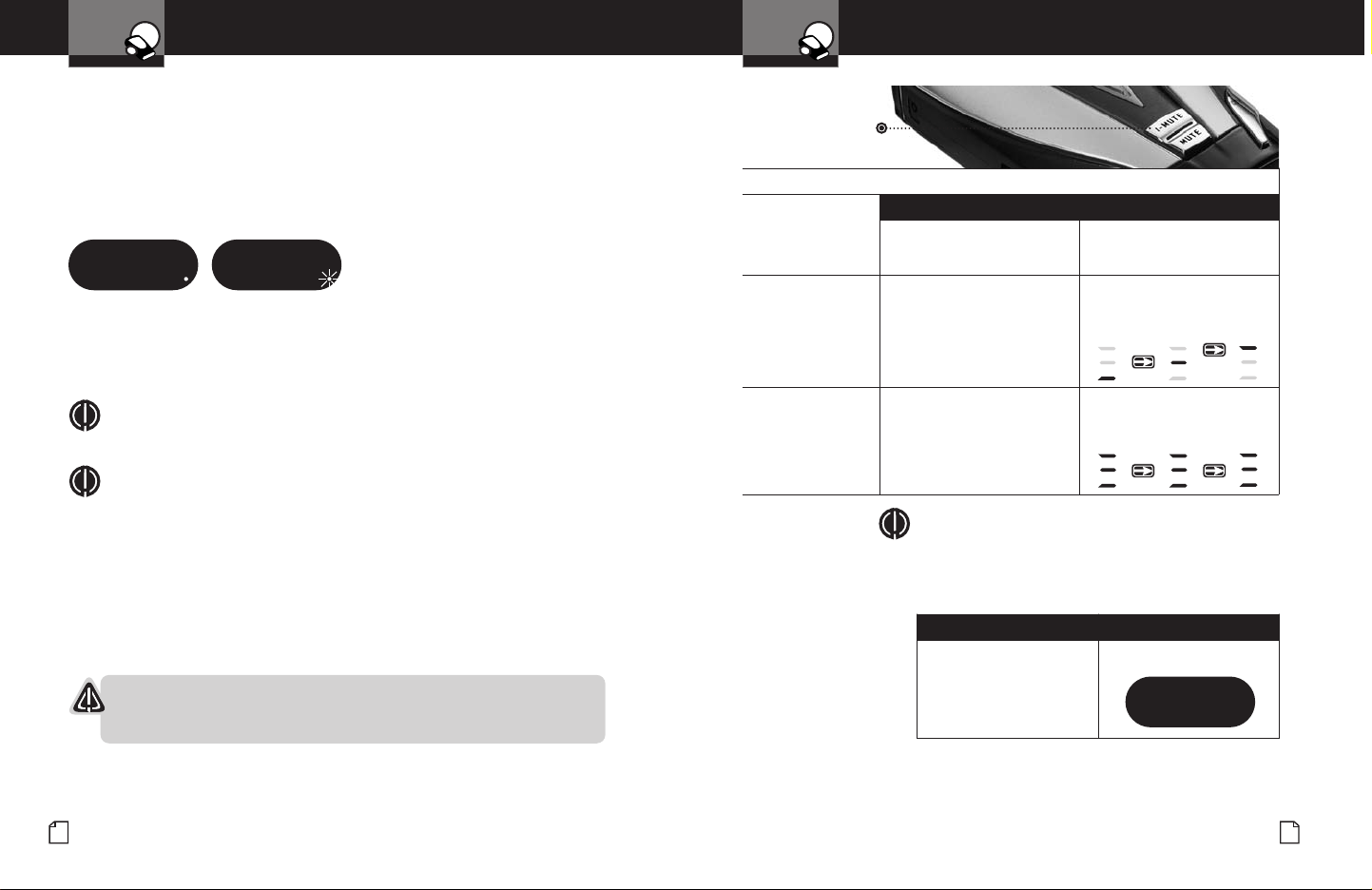

What to Remember While Using IntelliMute
IntelliMute works with both City and Auto Mute modes.
Whenever your engine revs are below the activation point,
the dot next to the large character on the right side of the display
will remain lit. Above the activation point, the dot will blink twice
every two seconds.
If, for any reason, the unit stops sensing your engine’s revs,
IntelliMute will indicate an error and automatically turn off.
The rev point you set will be stored in the unit’s memory when
power is turned off and recalled each time the power is turned on.
NOTE
The rev point must be reset if you use your detector in a different vehicle.
NOTE
When initially choosing your IntelliMute activation point, a setting
of approximately 300 to 600 RPMs above idle is recommended.
You can reset the activation point at any time to fit your individual
preferences and driving style.
Setting the IntelliMute Activation Point
Your detector must be installed in your vehicle.
CAUTION
Do not attempt to set the rev point while driving.
Your vehicle should be parked and idling.
IntelliMute must be turned on before setting the activation point.
You will hear a series of beeps as you follow the steps on page 11.
10
IntelliMute Button
Press and hold for
two seconds
Below Activation Point
X K Ka VS
c
Above Activation Point
X K Ka VS
c
To Set the IntelliMute Activation Point
Press and hold
the IntelliMute
button for two
seconds.
Tone Visual Display
Two beeps None
Rev your engine to
the level you wish
to set (recommend
slightly above idle)
and hold revs steady
for two seconds.
None Three bars will
flash in succession
At the desired
rev level, press
and release the
IntelliMute
button.
Three beeps All three bars flash
three times
Tone Visual Display
Four beeps Eappears
X K Ka V S E
123
123
NOTE
If the unit is unable to sense usable pulses within three
seconds or if you do not set a rev point within 20 seconds
of beginning these steps, IntelliMute will indicate an error
and automatically turn off.

Dim Button
Press and hold for two seconds
Detection
Your Detector
Nothing Comes Close to a Cobra®13
Detection •
Signals Detected
The tables on the following pages show you the types of Signals your
detector will detect, as well as the visual alerts it provides for each of them.
Audio Alerts
A distinctly different Alert tone is used for each type of signal detected
(including separate tones for each laser signal). For X, K, Ka and Ku band
radar signals, the tones will repeat faster as you approach the signal
source. The repeat rate of the tones gives you useful information about
the signal detected. (See responding to alerts on page 16.)
Visual Display
An indication of the type of signal detected will appear in the UltraBright
data Display. During X, K, Ka and Ku alerts, a number will also appear,
indicating the strength of the signal detected. (1 = weakest, 5 = strongest)
During laser alerts the letter Lwill appear, instead of the signal strength indication.
During VG-2 or Spectre 1 alerts, the letter Vwill appear. It will be steady
during VG-2 and blink during Spectre 1.
During Safety Alert and Strobe Alert the letter Swill appear. It will be
steady during a Safety Alert and will blink during a Strobe Alert.
Settings
Your Detector
English
VG-2 and Spectre 1 Alert Audio Settings
The detector is undetectable by police VG-2 and Spectre 1 radar detector
detectors and will alert you when such a device is in use near your vehicle.
During the alert, the unit continues to detect other signals. You can choose
whether or not you want your unit to show VG-2 and Spectre 1 alerts.
The factory setting is VG-2 and Spectre 1 alert on.
12
On/Off Indicator
X K Ka VS c
X Signal Detected
XK Ka V S 2X KKa V S 3X K Ka V S 5X K Ka V S 4
Laser Signal Detected
X K Ka V S L
VG-2 Alert Signal Detected
X K Ka VS
c
K Signal Detected Ka Signal Detected Ku Signal Detected
Safety Alert Signal Detected
X K Ka V S c
Strobe Alert Signal Detected
X K Ka V S c
Spectre 1 Alert Signal Detected
X K Ka VS
c
To Turn VG-2 and Spectre 1 Alerts Off
While no signal
is being detected,
press and hold
the Dim button for
two seconds.
Tone Visual Display
One beep Vwill blink once
in the display
To Turn VG-2 and Spectre 1 Alerts On
While no signal is
being detected,
press and hold
the Dim button
for two seconds
again.
Tone Visual Display
Two beeps Vwill blink twice
in the display
To Turn Ku Band On and Off
While no signal
is being detected,
press and hold
the Dim button
for two seconds
again.
Tone Visual Display
Ku On = Two beeps Vwill blink twice
in the display
Ku Off = One beep

Detection
Your Detector
Nothing Comes Close to a Cobra®15
Detection
Your Detector
English
14
Radar Signals and Visual Displays
Type of Signal Visual Display
X Band Radar Xand Signal Strength
Ku Band Radar X K and Signal Strength
K Band Radar Kand Signal Strength
Ka Band Radar Ka and Signal Strength
Laser Signal Detected
X K Ka V S L
Laser Signals and Visual Displays
Type of Signal Visual Display
LTI 20-20* Lis Steady
LTI Ultra-Lyte* Lis Steady
Kustom Signals ProLaser* Lis Steady
Kustom Signals ProLaser III* Lis Steady
* Your detector provides 360˚ detection of these signals.
Safety Alert Signals and Visual Displays
Type of Signal Visual Display
Emergency Vehicles Sis Steady
Road Hazards Sis Steady
Trains Sis Steady
Strobe Alert Signal Detected
X K Ka V S
c
Strobe Alert Signals and Visual Displays
Type of Signal Visual Display
3M Opticom or Tomar* SBlinks
* Your detector provides 360˚ detection of this signal.
Safety Alert Signal Detected
X K Ka V S
c
VG-2 and Spectre 1 Alert Signals and Visual Displays
Type of Signal Visual Display
Interceptor VG-2 Vis Steady
Spectre 1 VBlinks
VG-2 Alert Signal Detected
X K Ka VS
c
Spectre 1 Alert Signal Detected
X K Ka VS
c
NOTE
Beep rate changes with different laser alerts.
NOTE
There are different tones for each Safety Alert.
NOTE
There are different tones for each alert.
X Signal Detected
XK Ka V S 2X KKa V S 3X K Ka V S 5XKKa V S 4
K Signal Detected Ka Signal Detected Ku Signal Detected
