Cochlear Nucleus 7 User manual

Nucleus®7
SoundProcessor
User Guide
CP1000

ii NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Symbols used in this guide
NOTE
Important information or advice.
TIP
Time saving hint.
CAUTION (no harm)
Special care to be taken to ensure safety and effectiveness.
Could cause damage to equipment.
WARNING (harmful)
Potential safety hazards and serious adverse reactions.
Could cause harm to person.
This guide is intended for Cochlear implant recipients and their
carers using the Cochlear™Nucleus®7 Sound Processor (model
number: CP1000). The processor works with your implant to
transfer sound to your ear, and is made up of a processing unit,
earhook, coil and cable, magnet and a battery module.
You can power your processor with disposable or rechargeable
batteries.
You can control your processor by pressing its button, or by using
your Cochlear Remote Control or the Nucleus Smart App.
People with certain types of hearing loss can wear the processor
in Hybrid™mode by adding an acoustic component which sends
amplified acoustic sound into the ear canal.
A number of tools and accessories are supplied with your
processor.
NOTES
• Refer to the relevant sections for cautions and warnings
relating to the use of the Nucleus 7 Sound Processor,
batteries and components.
• Please also refer to your Patient Information document for
essential advice that applies to Cochlear implant systems.

1NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Nucleus 7 Sound Processor
ABOUT
Microphones Cochlear
Magnet
Indicator
light Coil
cable
Control
button
Processing
unit
Serial
number
Cochlear
Earhook
Battery module
Cochlear
Slimline
Coil

2NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Contents
Power
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Battery life . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Lock the battery module to the processor . . . . . . . .6
Lock the disposable battery module cover . . . . . . . . 7
Replace the battery module . . . . . . . . . . . . . . . . 8
Change disposable batteries . . . . . . . . . . . . . . . 10
Charge rechargeable batteries . . . . . . . . . . . . . . 12
Use
Made for iPhone . . . . . . . . . . . . . . . . . . . . . . 18
Pair with remote devices . . . . . . . . . . . . . . . . . 18
Control options . . . . . . . . . . . . . . . . . . . . . . 19
Lock the control button. . . . . . . . . . . . . . . . . . 19
Turn on and off . . . . . . . . . . . . . . . . . . . . . . 20
Change program . . . . . . . . . . . . . . . . . . . . . 22
Change volume and sensitivity. . . . . . . . . . . . . . 22
Telecoil . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Wireless accessories. . . . . . . . . . . . . . . . . . . . 24
Use monitor earphones . . . . . . . . . . . . . . . . . 26
Wear
Wear your processor . . . . . . . . . . . . . . . . . . . 28
For users with two implants . . . . . . . . . . . . . . . 29
Change earhooks . . . . . . . . . . . . . . . . . . . . . 30
Retention accessories . . . . . . . . . . . . . . . . . . . 31
Sport and exercise . . . . . . . . . . . . . . . . . . . . 35
Travel . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Flight mode . . . . . . . . . . . . . . . . . . . . . . . . 37

3NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Care
Regular care . . . . . . . . . . . . . . . . . . . . . . . . 38
Battery charger care . . . . . . . . . . . . . . . . . . . 40
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Water, sand and dirt . . . . . . . . . . . . . . . . . . . 42
Change microphone cover . . . . . . . . . . . . . . . . 44
Change the coil . . . . . . . . . . . . . . . . . . . . . . 46
Change the coil magnet . . . . . . . . . . . . . . . . . 47
Lights and Beeps . . . . . . . . . . . . . 48
Troubleshoot . . . . . . . . . . . . . . . . 54
Cautions . . . . . . . . . . . . . . . . . . . . .61
Warnings
For parents and carers. . . . . . . . . . . . . . . . . . . 62
Processors and parts . . . . . . . . . . . . . . . . . . . 64
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Medical treatments . . . . . . . . . . . . . . . . . . . . 69
Other information . . . . . . . . . . . .72

4NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Batteries
You have a choice of three battery types for the Nucleus 7
Sound Processor:
The disposable battery module
consists of:
• Cochlear Battery Cover
• Cochlear Battery Holder
It uses two disposable batteries and
has a tamper-resistant lock.
The Cochlear Standard Rechargeable
Battery Module
The Cochlear Compact Rechargeable
Battery Module

5NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Battery life
Batteries should be replaced as needed just as you would
with any other electronic device. Battery life varies
according to the programs used each day, your implant
type, the thickness of skin covering your implant, and the
size and type of battery.
The rechargeable battery’s lifespan is at least 400 charge
cycles. A completely empty rechargeable battery will take
approximately four hours to recharge.
Rechargeable batteries may take longer to fully recharge
with age. To get the longest life from the rechargeable
batteries, always recharge before use.
To help you get the longest life from the batteries, your
clinician can set your sound processor to turn off two
minutes after you take it off your implant.
POWER

6NUCLEUS 7 SOUND PROCESSOR USER GUIDE

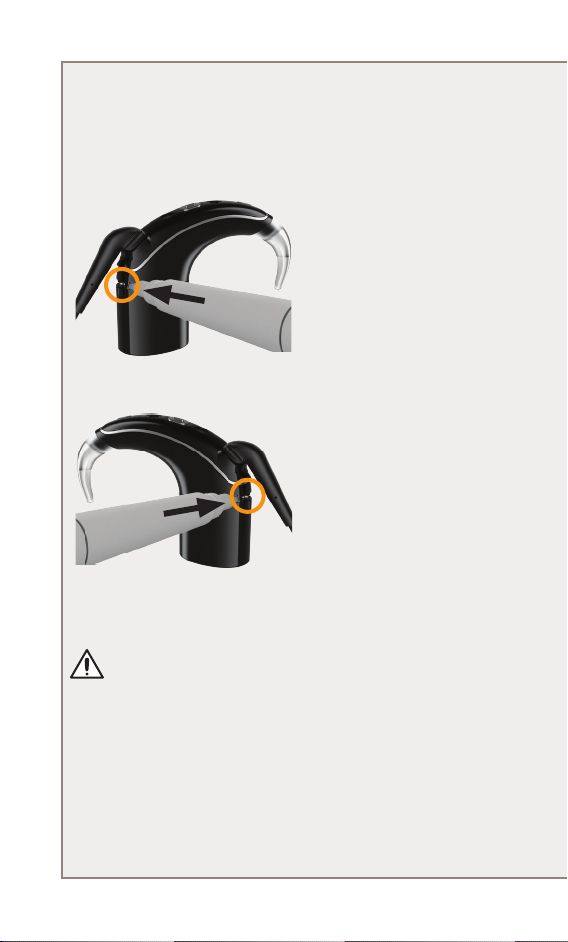

Lock the battery module to the
processor
To increase tamper resistance, the battery module can be
locked to the sound processor.
1. Push the lock to the
far left to lock the
battery module.
2. Push the lock to the
far right to unlock the
battery module.
CAUTION
Always check this lock is unlocked before attaching or
removing the battery module.

7NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Lock the disposable battery
module cover
The disposable battery module has a tamper-resistant
lock to help prevent children opening the battery cover.

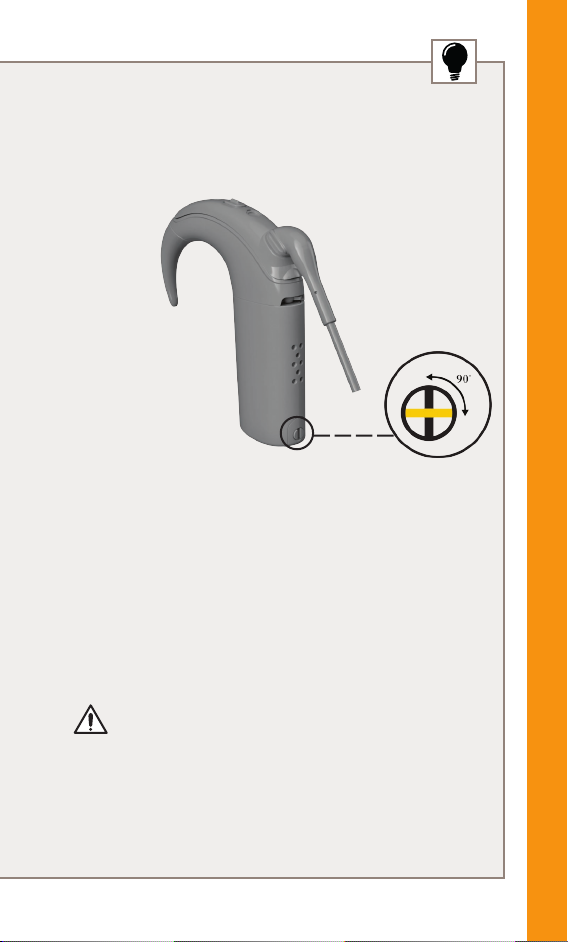

LOCK Turn the locking screw clockwise with the
battery cover locking tool until it is in a
horizontal position.
UNLOCK Turn the locking screw anticlockwise until
it is in a vertical position.
CAUTION
Always check the locking screw is unlocked before attaching
or removing the battery cover.
POWER

8NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Replace the battery module
Remove the battery module

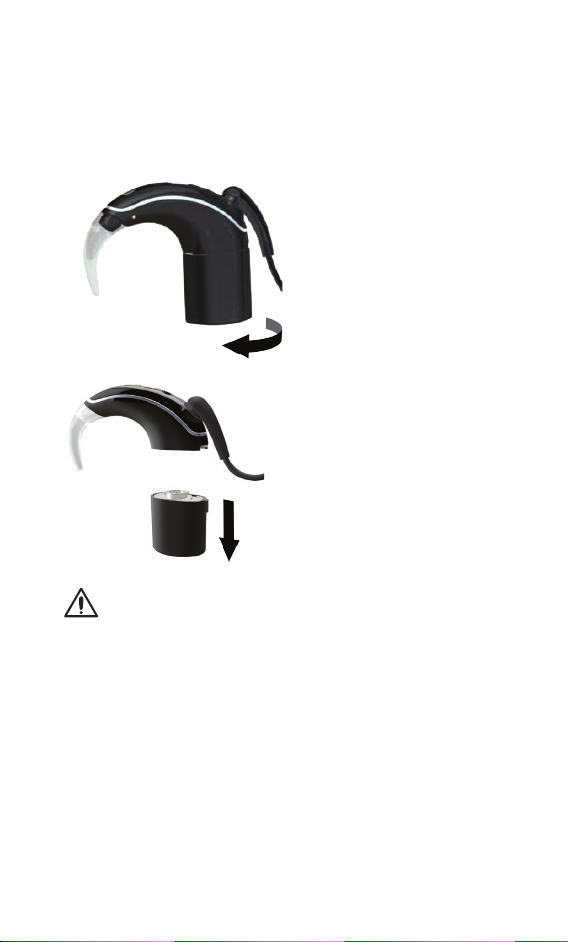

1. Twist the battery
module as shown to
release it from the
processing unit.
2. Pull the battery
module from the
processing unit.
CAUTION
Always check the tamper-resistant lock is unlocked before
removing the battery module (see page 6).

9NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Attach the battery module
1. Fit the parts together with the battery module at a slight
angle to the processor socket.
Rechargeable battery module:
align raised marker and arrow on
battery module towards back of
processing unit
Disposable battery module:
align indents and lock on battery
module towards back of
processing unit
2. Twist the battery module
as shown to attach the
parts.
Your processor will turn on
automatically.
NOTE
If you do not put your processor on your implant, it will turn off
automatically after two minutes, if enabled by your clinician.
POWER

10 NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Change disposable batteries
The disposable battery module uses two high power zinc
air batteries. Cochlear recommends 675 (PR44) zinc air
batteries designed for cochlear implant use. Do not use
silver oxide or alkaline batteries.
1. Press and hold the
button for 5 seconds,
then release to turn off
your processor.
2. Pull the unlocked battery
cover away from the
battery holder.
3. Remove the batteries
from the battery holder.

11NUCLEUS 7 SOUND PROCESSOR USER GUIDE
POWER
4. Remove the new batteries
from the packet, and let
them stand for a few
seconds.
5. Insert the batteries into
the battery holder with
the flat side (positive
terminal) facing up.
6. Replace the battery cover
by sliding it up towards
the processing unit.
Lock the cover if required.
Your processor will
automatically turn on.
NOTE
If you do not put your processor on your implant, it will turn
off automatically after two minutes, if enabled by your
clinician.

12 NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Charge rechargeable batteries
There are two chargers that can be used with the
rechargeable battery modules:
• Cochlear Y Battery Charger (see page 14)
• Cochlear USB Battery Charger (see page 16).
Before you start
Your rechargeable battery module has built-in safety and
monitoring features. Read this section before using your
battery charger.
NEW BATTERIES
You need to charge new batteries before first use.
WHAT DO I DO?
• Before using a new battery module, you need to connect it to a
charger until it is fully charged.
CHARGING TEMPERATURE
The battery chargers have a built-in temperature sensor. Batteries
must be charged at 0° C – +40° C (+32° F – +104° F). If battery
module temperature is outside this range, the LED will flash orange
(error).
WHAT DO I DO?
• Charge rechargeable battery modules at a room temperature of
0° C – +40° C (+32° F – +104° F).
BATTERY HEALTH CHECK
Rechargeable battery modules have a built-in “health check”. If a
charged battery detects a problem, it will turn the sound processor
off. If the problem is fixed, it will turn back on again.
WHAT DO I DO?
• If a battery turns off, disconnect and reconnect it to your
processor. If this does not restore power, contact your clinician.

13NUCLEUS 7 SOUND PROCESSOR USER GUIDE
POWER
COMPLETELY FLAT BATTERIES
After many uses or being stored too long, some batteries may be
too flat to allow recharging.
WHAT DO I DO?
• If a rechargeable battery module is too flat to charge, the LED
will flash orange (error). Replace the battery module.
STORING BATTERIES
Your rechargeable battery module will lose some power if you do
not use it for a period of time.
WHAT DO I DO?
• Charge your battery module before storing it.
CONNECTING TO ACCESSORIES
Some accessories (e.g. monitor earphone adaptor, Roger 20
receiver) fit between the rechargeable battery module and your
processing unit.
If you leave them attached after use, this will drain the battery.
WHAT DO I DO?
• Don’t leave your battery module attached to an accessory after
use.
• Don’t attach an accessory with a rechargeable battery module
attached to the battery charger. This will cause an error.

14 NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Use the Y Battery Charger
The Y Battery Charger can charge two rechargeable battery
modules at once.
It uses the supplied USB cable to plug into:
• a wall power outlet using the Cochlear USB Power
Adaptor, or
• a USB port (e.g. computer).*
1
3
3
2
2
1 USB cable
2 Rechargeable battery module connector
3 LED indicator
* USB ports must be high power USB 1.0 or higher. If you
use a USB hub to connect more than one USB device to a
port, we recommend you use a powered hub.

15NUCLEUS 7 SOUND PROCESSOR USER GUIDE
POWER
1. Fit the rechargeable
battery module to the
charger at a slight angle.
Twist to connect.
2. Plug the USB cable into a power outlet or USB port.
The LED flashes green while charging.
NOTE
If you use a power outlet, plug the USB cable into the
power adaptor first, then plug the adaptor into the power
outlet.
USB
3. The LED changes to
steady green when the
module is fully charged.

16 NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Use the USB Battery Charger
The USB Battery Charger can charge one rechargeable
battery module at a time.
It uses a USB connector to plug into:
• a wall power outlet using the Cochlear USB Power
Adaptor, or
• a USB port (e.g. computer).*
1
32

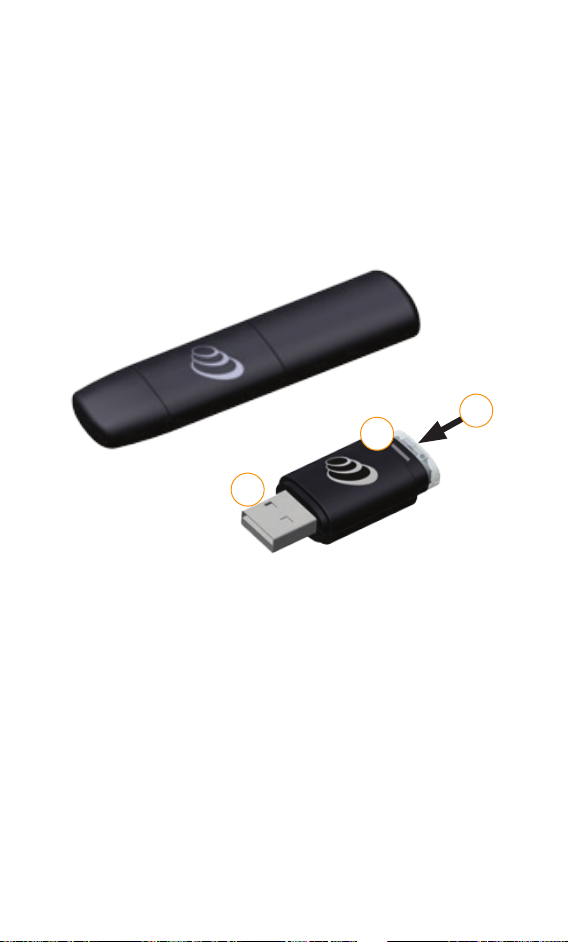

1 USB connector
2 Rechargeable battery module connector
3 LED indicator
* USB ports must be high power USB 1.0 or higher. If you
use a USB hub to connect more than one USB device to a
port, we recommend you use a powered hub.

17NUCLEUS 7 SOUND PROCESSOR USER GUIDE
POWER
1. Remove the covers from the charger.
2. Fit the rechargeable
battery module to
the charger at a
slight angle.
Twist to connect.
3. Plug the charger into a power outlet or USB port.
The LED flashes green while charging.
NOTE
If you use a power outlet, plug the USB cable into the
power adaptor first, then plug the adaptor into the power
outlet.
USB
4. The LED changes to
steady green when
the module is fully
charged.

18 NUCLEUS 7 SOUND PROCESSOR USER GUIDE
Made for iPhone
Your Nucleus 7 Sound Processor is a Made for iPhone®/
iPod®/ iPad®hearing device. This allows you to use the
control and audio streaming functions of compatible
Apple®devices.
If you wear a sound processor on one ear and a compatible
MFi hearing aid on the other, you may be able to
simultaneously control them and stream audio using a
compatible iOS device. Your clinician can check
compatibility and set this up for you.
WARNING
Consider security when connecting your sound processor to
devices such as smartphones or tablets. Only connect to
devices that are protected, e.g. password or PIN access control.
Do not connect to devices that have had their operating
system altered.
Pair with remote devices
You need to pair your sound processor to your Cochlear
Remote Control or a compatible Apple device to use their
control and monitoring functions.
Please see their user guides for details.
NOTE
Pairing your sound processor with your Apple device does not
enable the functionality of the Nucleus Smart App. If you want
to use the app, you need to download it from the App Store®.
