Cocoon BT42740 User manual

Model Number: BT42740
INSTRUCTION MANUAL
MOTORCYCLE HELMET
BLUETOOTH KIT

2
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
WARRANTY DETAILS/SUPPORT
This product is warranted against defects for a period of one year if
the product is faulty, Winplus will repair or replace the product (at its
discretion) at no cost to you provided the product has been used in
accordance with instructions provided. The benets under our Warranty
are in addition to other rights and remedies under consumer law in
relation to these goods. Our goods come with guarantees that cannot
be excluded under the Australian. Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
For additional support including helpful guides and videos, visit the
Cocoon support website at www.winplus.com.au/cocoon.html
Telephone: [phone]
Email: customercar[email protected]
Website: www.winplus.com.au
Address: Winplus Australasia Pty Ltd, PO Box 537
Bayswater Business Centre Vic 3153

3
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
CONTENTS
Warranty Details / Support
Contents
General Safety Instrutions
Parts List / Technical Specications
Product Features
Instructions
Fitting the Bluetooth Receiver to Your Helmet
Charging the Bluetooth Receiver
Powering On and O
Pairing to Your Bluetooth Enabled Mobile Phone
To Answer an Incoming Mobile Phone Call
Ending a Mobile Phone Call
Rejecting a Mobile Phone Call
Redial the Last Number
Pairing One Motorcycle Bluetooth to Another Motorcycle
Bluetooth to Use as an Intercom
To Start a Conversation via Intercom
To End a Conversation via Intercom
To Play Music via Bluetooth MP3 Player
To Answer a Call While Listening To Music
Troubleshooting

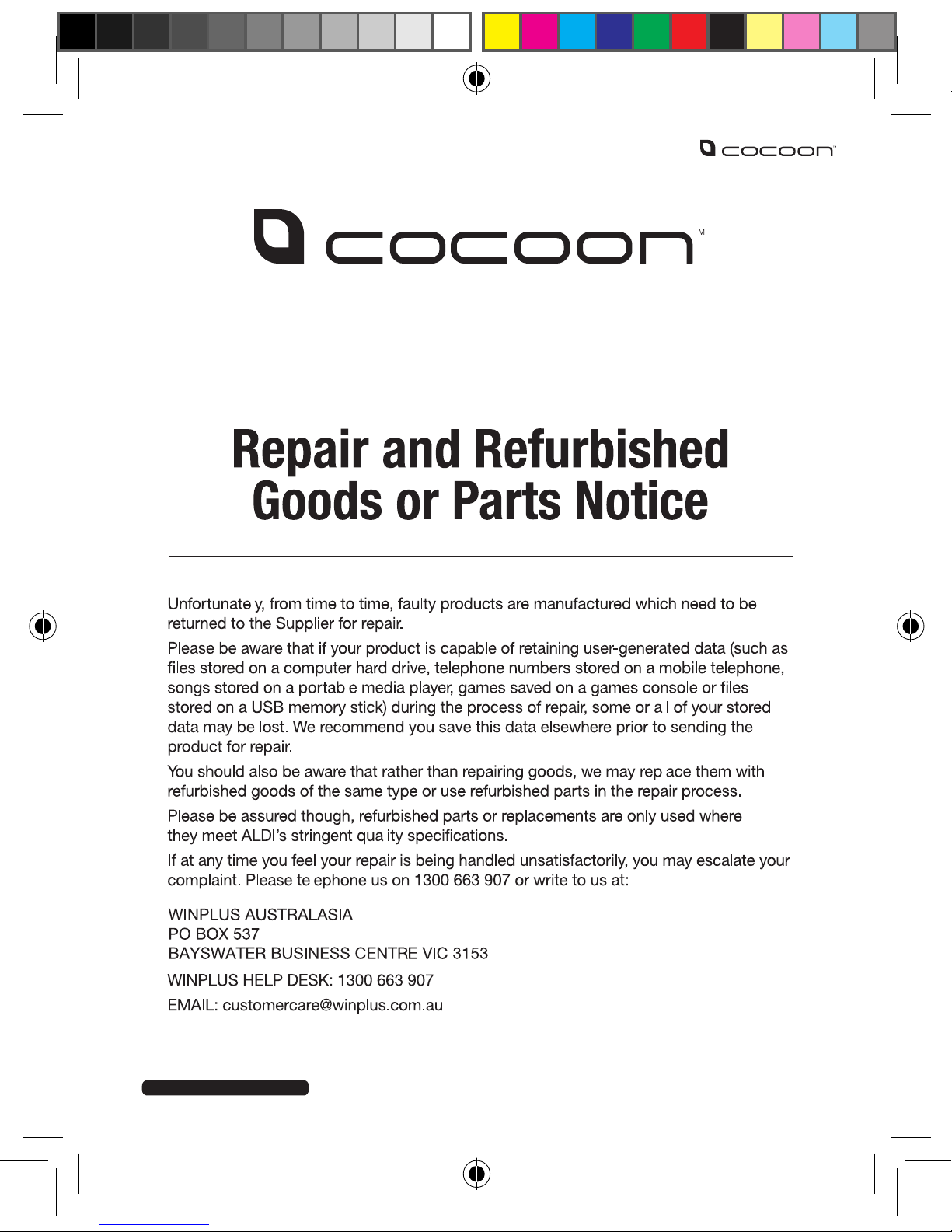

Repair & Refurbished Notice
2
3
4
5
6
7-13
7
9
9
10
10
11
11
11
11
12
12
12
13
14
15

4
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
GENERAL SAFETY INSTRUCTIONS
Read this manual thoroughly before rst use and keep it in a safe place
for future reference, along with the warranty card, purchase receipt
and carton. The safety precautions enclosed herein reduce the risk
of re, electric shock and injury when correctly adhered to. Follow all
instructions and take notice of all warnings to reduce the risk of re or
electric shock.
•Do not remove the cover or the back of this product. There are
no user-serviceable parts inside this product.
•Do not repair the unit yourself. Only have it serviced by qualied
personnel. Supervise young children to ensure they do not play
with the product.
•Do not submerge the product in liquids.
•Do not place the product near other items that may damage it,
such as naked ame sources (lit candles) or excessive heat
(bar radiator).
WARNING: Using headphones while operating a motorcycle, motor
vehicle, watercraft or bicycle can be dangerous. Use caution while
using your Motorcycle Helmet Bluetooth kit when you are engaging
in any activity that requires your full attention.

5
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
PARTS LIST
• 1 x Motorcycle Bluetooth Headset & Microphone
• 1 x USB Charging Cable
• 1 x 240V Power Adaptor
• 1 x Helmet Mount Clip
• 2 x Hook & Loop Pad Earphone Mounts
• 1 x Instruction Manual
• 1 x Warranty Card
• 2 x Warranty Stickers
TECHNICAL SPECIFICATIONS
Bluetooth Version: 2.1
Frequency: 2.4GHz
Supports: A2DP and AVRCP
Supported Bluetooth Proles: Bluetooth Headset and Hands free
Proles with Automatic Detection
Operating Range: Up to 10m for cell phones: up to 500m
for intercom function.
Weight: 45grams (excluding accessories)
Size: 83mm(L) x 54mm(W) x 30mm(H)
Battery type: Rechargeable Lithium Polymer 300mAh
Stand by: Up to 300 hours
Talk Time
- Phone: Up to 10 hours
- Intercom: Up to 5 hours
Charging Time: 4 hours
Headset: High Power ultra slim speaker with
integrated boom
Power Adaptor: DC 5V 500mA

6
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
PRODUCT FEATURES
Complete system for all your communication needs while riding your
motorbike.
The Bluetooth® function will keep you connected to your mobile
phone, play music and connect with Bluetooth GPS systems.
The intercom means you can communicate with your pillion or other
riders within 500m while you ride. With simple set up and clear sound
quality you will always be in touch
Motorcycle Bluetooth®

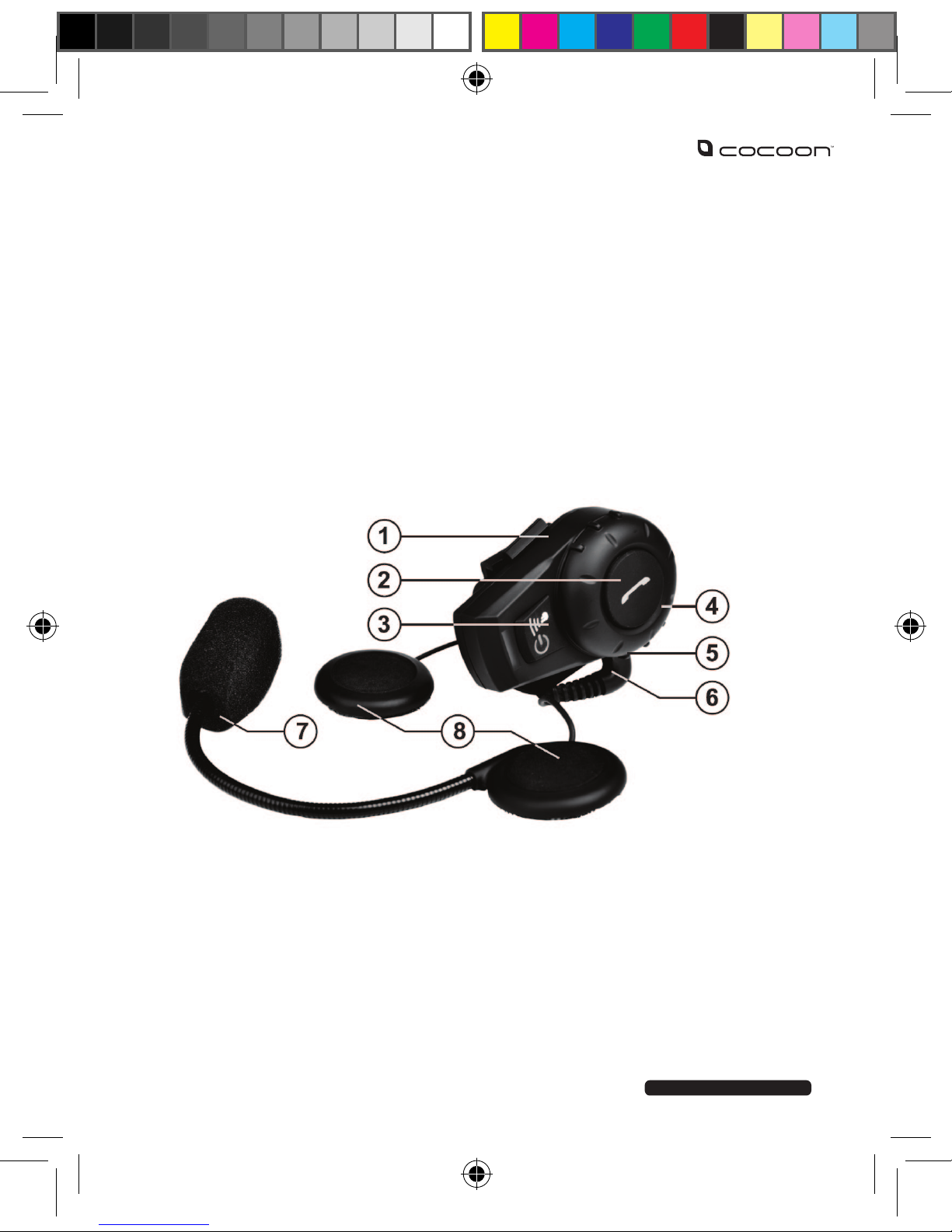

1. Bluetooth Receiver
2. Multi-function Button (MFB)

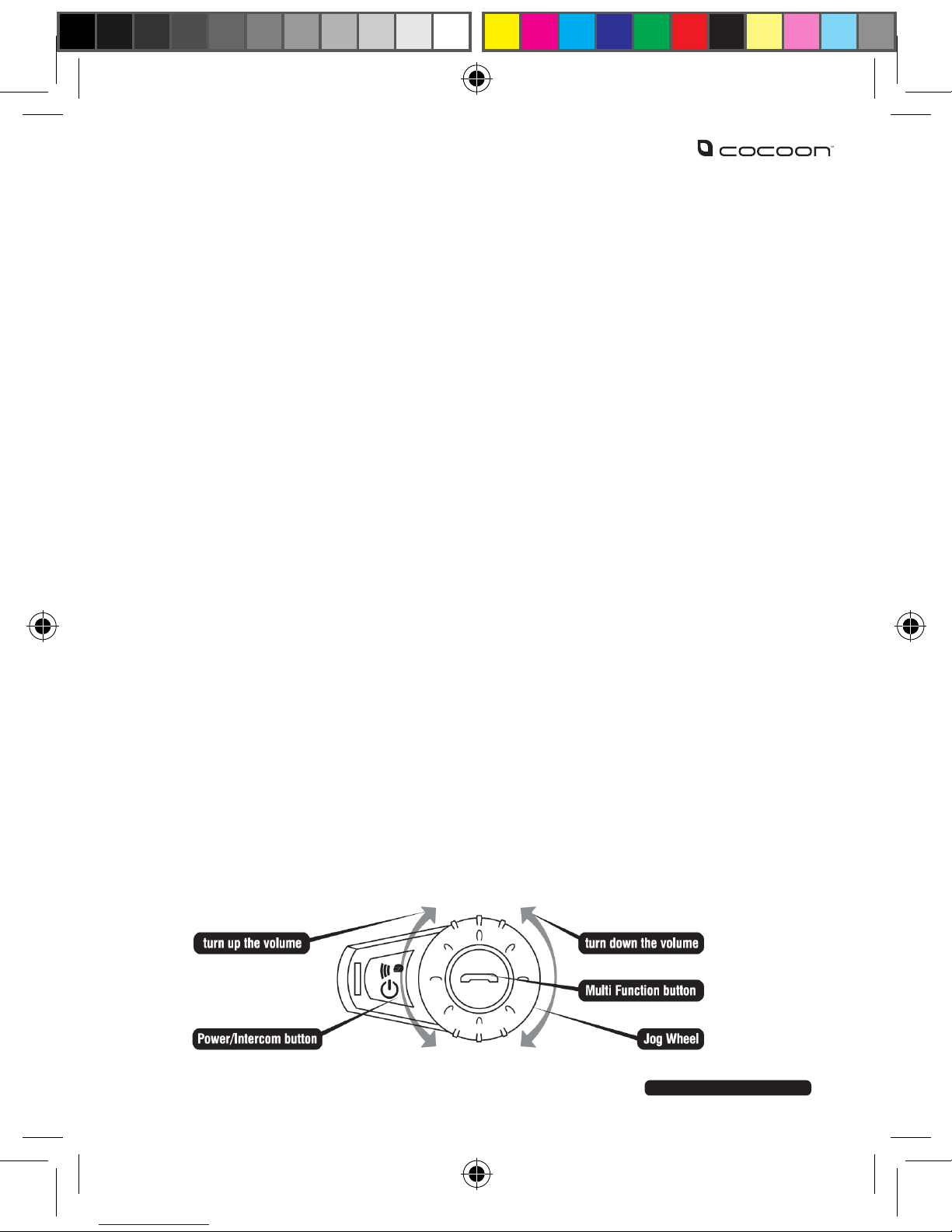

3. Power/Intercom Button
4. Jog Wheel
5. Charger & Headset Socket
6. Headset Plug
7. Microphone
8. Ear Speaker

7
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
INSTRUCTIONS
Fitting the Bluetooth Receiver to Your Helmet

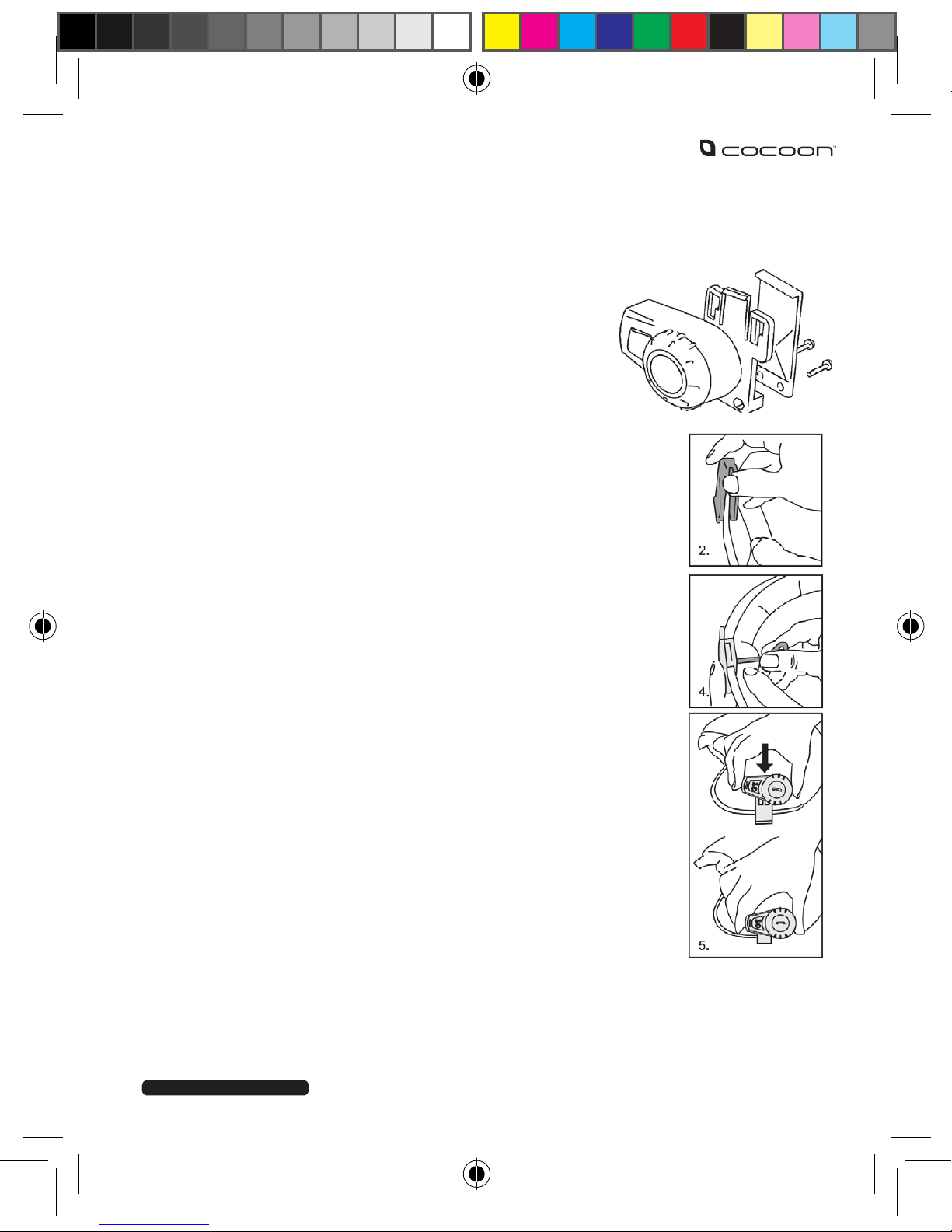

1. Using the provided screw driver, loosen the
Headset Clip screws.
2. Slide the Headset Clip onto the left side of the helmet
(when on your head). Take care to place the inside of
the Headset Clip under the helmet padding.
3. Adjust the clip until you nd the best location for your
helmet. Ensure that the slots in the Headset Clip mount
are facing away from the helmet.
4. Tighten the screws to hold the clip rmly in place.
WARNING: Excessive tightening may damage the clips.
5. Slide the Bluetooth receiver down into the slots on
the Headset Clip mount. Make sure that it is locked
in securely.
6. To attach the ear speaker & microphone headset,
test which part of the helmet will be the best location
by putting your helmet on and locating the place
closest to your ears. You will need to put the helmet on
a few times to nd the optimum position to apply
the pad. When the correct position is found, remove
the adhesive protective strip and apply the felted
earphone pad.

8
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au

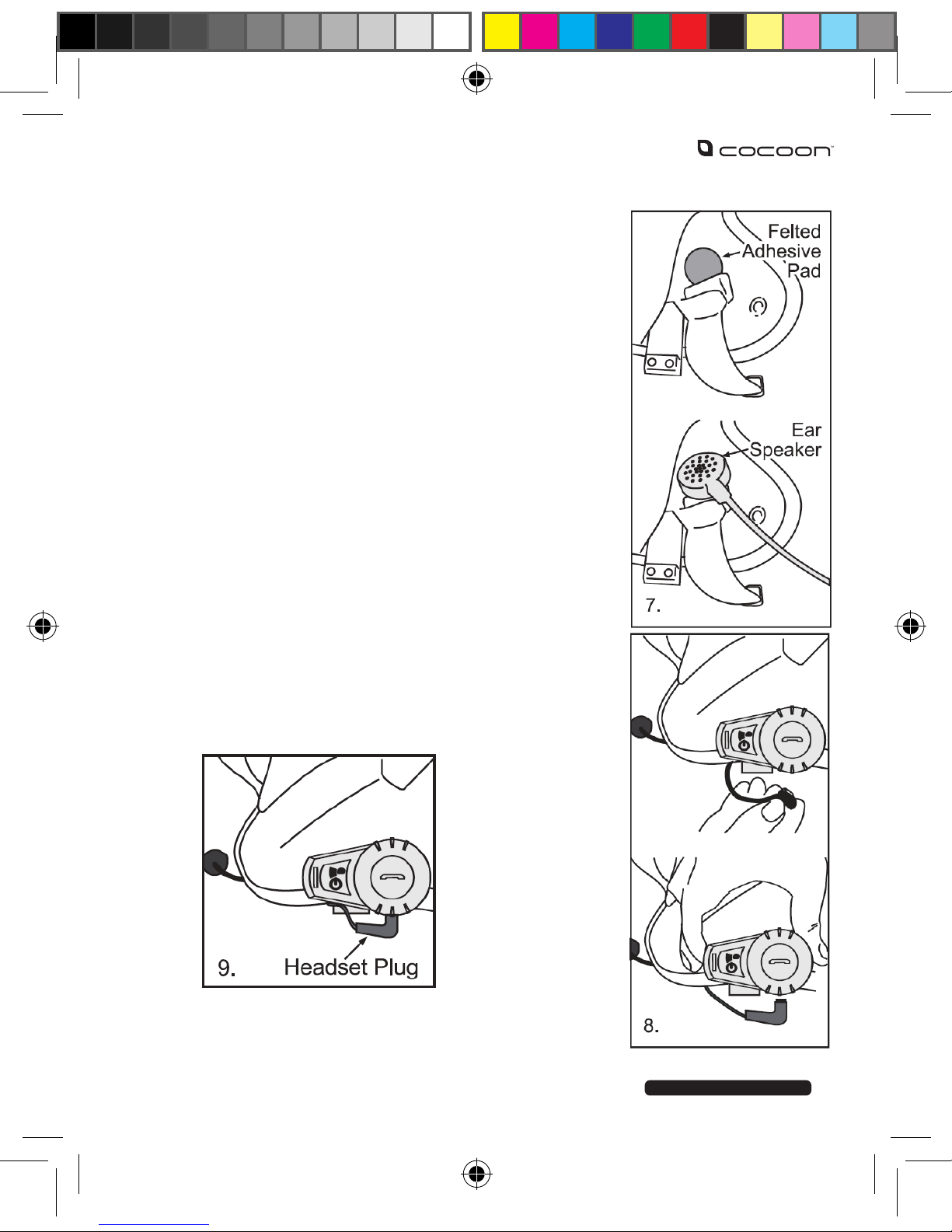

7. Attach ear speaker to the felted pad. Run
the Microphone Arm along the inside wall
of the helmet, to where your mouth will be.
The Microphone Arm is exible and should
be adjusted so it sits in the best position
in front of your mouth. Some helmets
have removable padding; if yours does,
it is recommended to run the speaker and
microphone under the padding.
8. Connect the headset to the Bluetooth
receiver. The plug can only be inserted in
one orientation
WARNING: Inserting the plug backwards will
cause damage to the Bluetooth Receiver. Use
caution when assembling.
9. Secure the cord of the Headset Plug inside
the helmet. Tuck any extra wire into the
helmet. Ensure that only a few centimetres of
the cord comes out.
You have successfully mounted the Motorcycle
Helmet Bluetooth.

9
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
Charging the Bluetooth Receiver
Before using this device, fully charge the Bluetooth Receiver. This should
take around 4 hours.
1. Insert the USB plug of the charging cable into the small USB jack
on the headset. Insert the other end of the charging cable into the
Power Adaptor or your computer’s USB port.
2. While charging, the red LED on the Bluetooth receiver will
illuminate, when the charging is nished, the red LED will
switch o.
Tip: To maintain long life from the internal lithium battery, charge
your device at least once a month.
Powering On and Off
1. To turn the device on, press the power/intercom button for 3
seconds until you hear a beep. A blue light will ash quickly 3
times and then continue short ashes at regular intervals.
2. To turn the device o, press the power/intercom button for 5
seconds until you hear a beep. The Bluetooth receiver and LED
lights will turn o.

10
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
Pairing to Your Bluetooth Enabled Mobile Phone
1. Place your Bluetooth enabled phone and the Bluetooth receiver
near each other. Within 1m is recommended.
2. Make sure the Bluetooth receiver is turned on.
3. Press and hold down the power/intercom button for approximately
8 seconds until the receiver beeps twice. The red and blue LEDs will
ash alternately. The receiver is now actively searching for Bluetooth
devices.
4. Activate Bluetooth on your mobile phone and search for the device.
Refer to your phones instructions if you are unclear on how to
search for Bluetooth devices.
5. Choose the Bluetooth device named FDC-01 and choose to pair this
device. If you are asked for a password, enter 0000.
6. The red & blue LEDs will then change to display blue only and the
headset will beep once to conrm pairing was successful.
To Answer an Incoming Mobile Phone Call
1. Press the Multi Function button on the receiver while the phone is
ringing
2. Use the jog wheel to increase or decrease the headset volume.
Tip: The incoming call will answer automatically once the phone
has rung for 8 seconds.

11
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
Ending a Mobile Phone Call
1. Press the Multi Function button to end the call
Rejecting a Mobile Phone Call
1. When you hear the phone ringing, immediately press and hold the
Multi Function button on the headset until you hear a beep.
Redial the Last Number
1. Press and hold the Multi Function button for 2 seconds or until it
beeps, it will then dial your last number called
Pairing One Motorcycle Bluetooth to Another Motorcycle
Bluetooth to Use as an Intercom
1. Place both receivers near each other (within 1m)
2. Make sure both receivers are turned o
3. Press and hold down the power/intercom button on both units at
the same time for approximately 8 seconds, until the receivers
beep twice. The red & blue lights will ash alternately.
4. Quickly press the power/intercom button on one of the receivers.
This will now search for the other receiver so they can be paired.
5. When they have successfully paired, the red & blue lights will then
change to blue only (ashing) and the receiver will beep once.

12
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
To Start a Conversation via Intercom
1. Once the two headsets are paired with each other, press the
power/ intercom button on either receiver to begin.
2. Use the jog wheel to increase or decrease the headset volume.
Tip: You only need to press the power/intercom button once to
establish a connection; conversation between the two paired
headsets can now be carried out handsfree.
To End a Conversation via Intercom
1. Press the power/intercom button on either of the receivers
Tip: If the intercom headset is also paired with a mobile phone,
the intercom conversation will be automatically disconnected to
answer the phone when there is an incoming call. The intercom
function will resume once the call has ended.
To Play Music via Bluetooth MP3 Player
If you are using a dedicated MP3 player, the player must be a Bluetooth
enabled device and be paired your Motorcycle Bluetooth receiver.

13
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
1. Select music to play directly from your music device
(check your MP3 player or phone instructions for how to do this)
2. Play music through the headset press the Multi Function button once
3. Pause music press the Multi Function button again
4. Skip songs forward by quickly icking the Jog Wheel in a
clockwise direction
5. Rewind songs backwards by quickly icking the Jog Wheel in a
anti¬clockwise direction
6. Volume Up by turning the jog anti wheel clockwise and holding
until the volume is at the right level
7. Volume Down by the jog wheel clockwise and holding until the
volume is at the right level. You will hear a long beep if the volume
is at the highest or lowest level.
Tip: To improve the performance of your headset, make sure the
volume is set to the highest level on your music device.
To Answer a Call While Listening to Music
Calls will automatically come through the headset while music is playing.
1. To reject a call hold the Multi Function button down until you hear
a beep.
2. Music will hold over the call duration and resume automatically once
the call has ended.

14
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
TROUBLESHOOTING
Problem Solution
The Bluetooth
Receiver has no
power.
The Headset must be charged for at least
4 hours prior to rst use. Refer to Charging
the Bluetooth Device on page 7 for further
details.
My helmet is
uncomfortable to
wear after tting
the speakers.
The placement of the speakers within the
helmet may require repositioning. Two
additional Felted Adhesive Earphone Pads
are supplied for this purpose. Note: Some
helmets have removable padding; if yours
does, it is recommended to run the speaker
and microphone under the padding.
My Phone wont
pair with the
Bluetooth Receiver
Activate the Bluetooth function on your
mobile phone and search for the device,
which will show up as FDC-01 on the “Device
List”. Refer to your phones instructions to
do this. Refer to Pairing to your Bluetooth
Enabled Mobile Phone on page 7 for further
details.
The audio
reception breaks
down
Bluetooth enabled devices are susceptible to
occasional interference from other common
devices such as GPS units, laptops, alarms
and Wi-Fi routers etc. Move away from
potential sources of interference if you are
experiencing problems.
I can’t hear my
music /incoming
calls
Check the volume on the attached device.
Setting your phone or MP3 player to the
maximum volume usually resolves this issue

15
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
Motorcycle Helmet Bluetooth Kit
