Coemar ProSpot LX User manual

1^ edizione, dicembre 2000
1st edition, december 2000
manuale
di istruzioni
instruction
manual

ProSpot LX
numero di serie/serial number
data di acquisto/date of purchase
fornitore/retailer
indirizzo/address
cap/città/suburb
provincia/capital city
stato/state
tel./fax/
Prendete nota, nello spazio apposito, dei dati relativi al modello e al rivenditore del vostro ProSpot
LX: in caso di richiesta di informazioni, pezzi di ricambio, servizi di riparazione o altro ci permetteran-
no di assistervi con la massima rapidità e precisione.
Please note in the space provided above the relative service information of the model and the retailer
from whom you purchased your ProSpot LX: This information will assist us in providing spare parts,
repairs or in answering any technical enquiries with the utmost speed and accuracy.
ATTENZIONE: la sicurezza dell’apparecchio è garantita solo con l’uso appropriato delle presenti
istruzioni, pertanto è necessario conservarle.
WARNING: the security of the fixture is granted only if these instructions are strictly followed; the-
refore it is absolutely necessary to keep this manual.

English
Index
1.Packaging
2.Transportation
3.Important safety information
4.Lamp: installation and replacement
5.Operating voltage and frequency
6. Mounting the unit
7. Mains connection
8. Signal connection
9.Powering up
10.DMX addressing

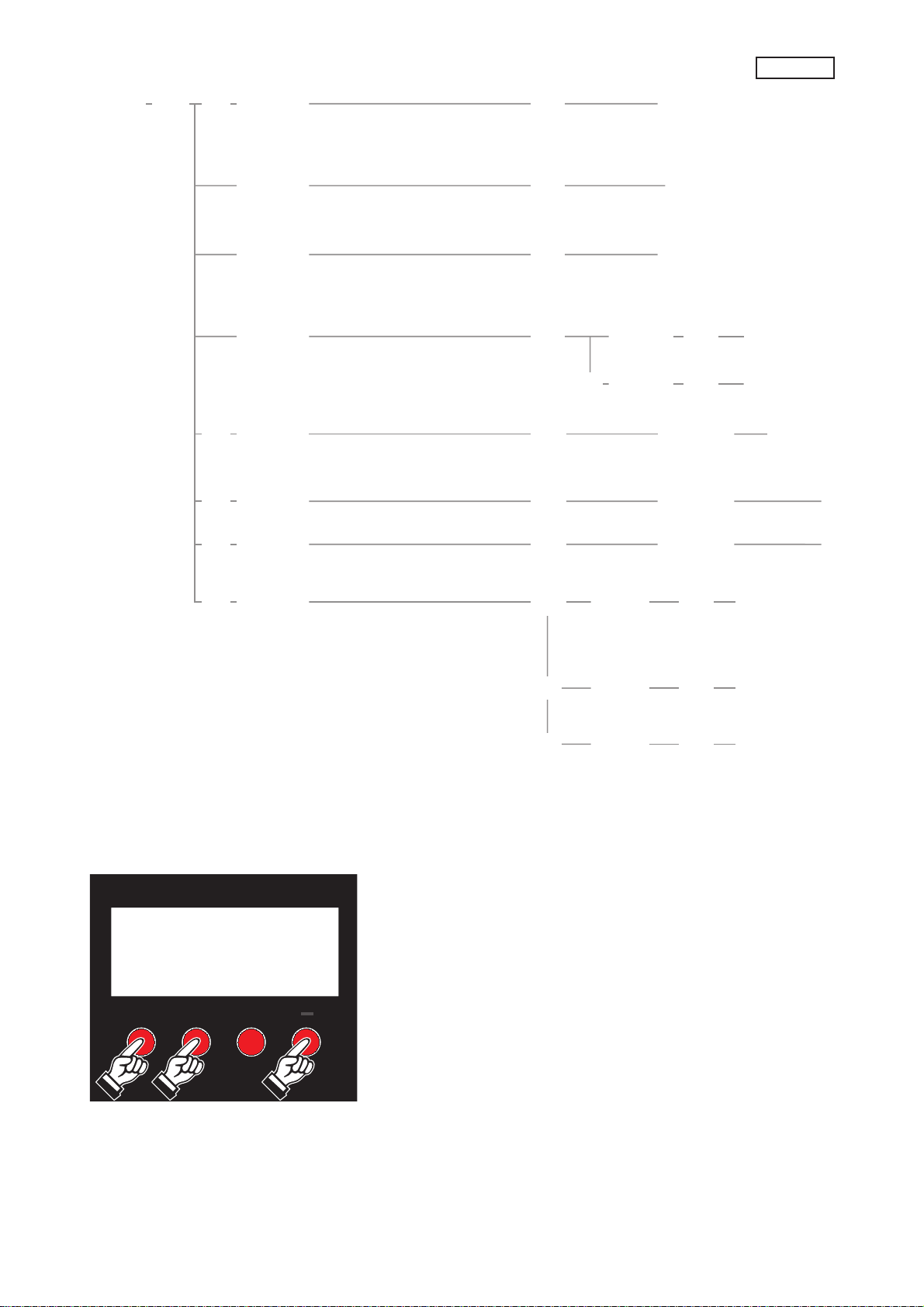

11.Display panel functions
11.1. Turning on the ProSpot LX without articulated movement
11.2. Resetting the electronic lamp life counter
11.3. test
12.DMX 512 channel functions
13.Aligning the lamp in the optical path
14.Automatic repositioning features
15.Gobo replacement
16.Altering the operating voltage and frequency
(Reserved for technical staff only)
16.1 Selecting the voltage on the autotransformer
16.2 Selecting the frequency on the power supply of the ProSpot LX
17.Maintenance
18.Electronic alignment of motors
19.Error messages
21.Spare parts

English
Congratulations on having purchased a coemar product. You have assured yourself of a fixture of the highest quality, both
in componentry and in the technology used. We renew our invitation to you to complete the service information on the
previous page, to expedite any request for service information or spares (in case of problems encountered either during, or
subsequent to, installation). This information will assist in providing prompt and accurate advice from your coemar service
centre.
Following the instructions and procedures outlined in this manual will ensure the maximum efficiency of this product for
years to come.
Open the packaging and ensure that no part of the equipment has suffered damage in transit. In case of damage to the
equipment, contact your carrier immediately by telephone or fax, following this with formal notification in writing.
packing list
Ensure the packaging contains:
1 ProSpot LX
1 instruction manual
1 T 8A fuse
The ProSpot LX should be transported in its original packaging or in a coemar approved flight case.
We recommend the use of a suitable flight case, which will stop the articulated movement of the ProSpot LX during tran-
sportation.
2. Transportation
1. Packaging

English
Fire prevention:
1. ProSpot LX utilises a Philips MSD 250W/2. The use of any other lamp is not recommended and will null and void the
fixture’s warranty.
2. Never locate the fixture on any flammable surface.
3. The minimum distance from flammable materials: 0,5 m.
4. The minimum distance from the closest illuminable surface: 2 m.
5. Replace any blown or damaged fuses only with those of identical values. Refer to the schematic diagram if there is any
doubt.
6. Connect the projector to main power via a thermal magnetic circuit breaker.
Prevention of electric shock:
1. High voltage is present in the internals of the unit. Isolate the projector from mains supply prior to performing any func-
tion, which involves touching the internals of the unit, including lamp replacement.
2. For mains connection, adhere strictly to the guidelines outlined in section 7 of this manual.
3. The level of technology inherent in the ProSpot LX, requires the use of specialised personnel for all service applications;
refer all work to your authorised coemar service centre.
4. A good earth connection is essential for proper functioning of the projector.
Never operate the unit without proper earth connection.
5. The fixture should never be located in an exposed position, or in areas of extreme humidity. A steady supply of circulating
air is essential.
Protection against ultraviolet radiation:
1. Never turn on the lamp if any of the lenses, filters, or the housing is damaged, their respective functions will only operate
efficiently if they are in perfect working order.
2. Never look directly into the lamp when it is operating.
Safety:
1. The projector should always be installed with bolts, clamps, and other fixings, which are suitably rated to support the
weight of the unit.
2. Always use a secondary safety chain of a suitable rating to sustain the weight of the unit in case of the failure of the pri-
mary fixing point.
3. The external surfaces of the unit at various points may exceed 80°C. Never handle the unit until at least 10 minutes have
elapsed since the lamp was turned off.
4. Always replace the lamp if any physical damage is evident.
5. Never install the fixture in an enclosed area lacking sufficient airflow; the ambient temperature should not exceed 45°C.
6. A hot lamp may explode. Always wait for at least 10 minutes to elapse after the unit has been turned off prior to attemp-
ting to replace the lamp.
Always wear suitable hand protection when handling lamps.
3. Important safety information

English
ProSpot LX utilises a Philips MSD 250W/2 or equivalent.
The lamp is available from your authorised coemar sales agent:
coemar cod. 105214/1
power 250 w
luminous flux 18.000 lm
colour temperature 8.500° K
lamp base GY 9,5
approximate life 2000 hours
The fixture’s internal temperature can reach 150° C after 5 minutes with a maximum peak of 350° C; ensure that the lamp is
cold prior to attempting removal. The fixture should be allowed to stand and cool for 10 minutes prior to its removal.
The lamps are part of the mercury vapour family of discharge lamps and must be handled with great care. The lamps opera-
te at high pressure, and the slight risk of explosion exists if operated over their recommended lamp life.
We recommend, therefore, that the lamp be replaced within the manufacturer’s specified lamp life.
installing the lamp

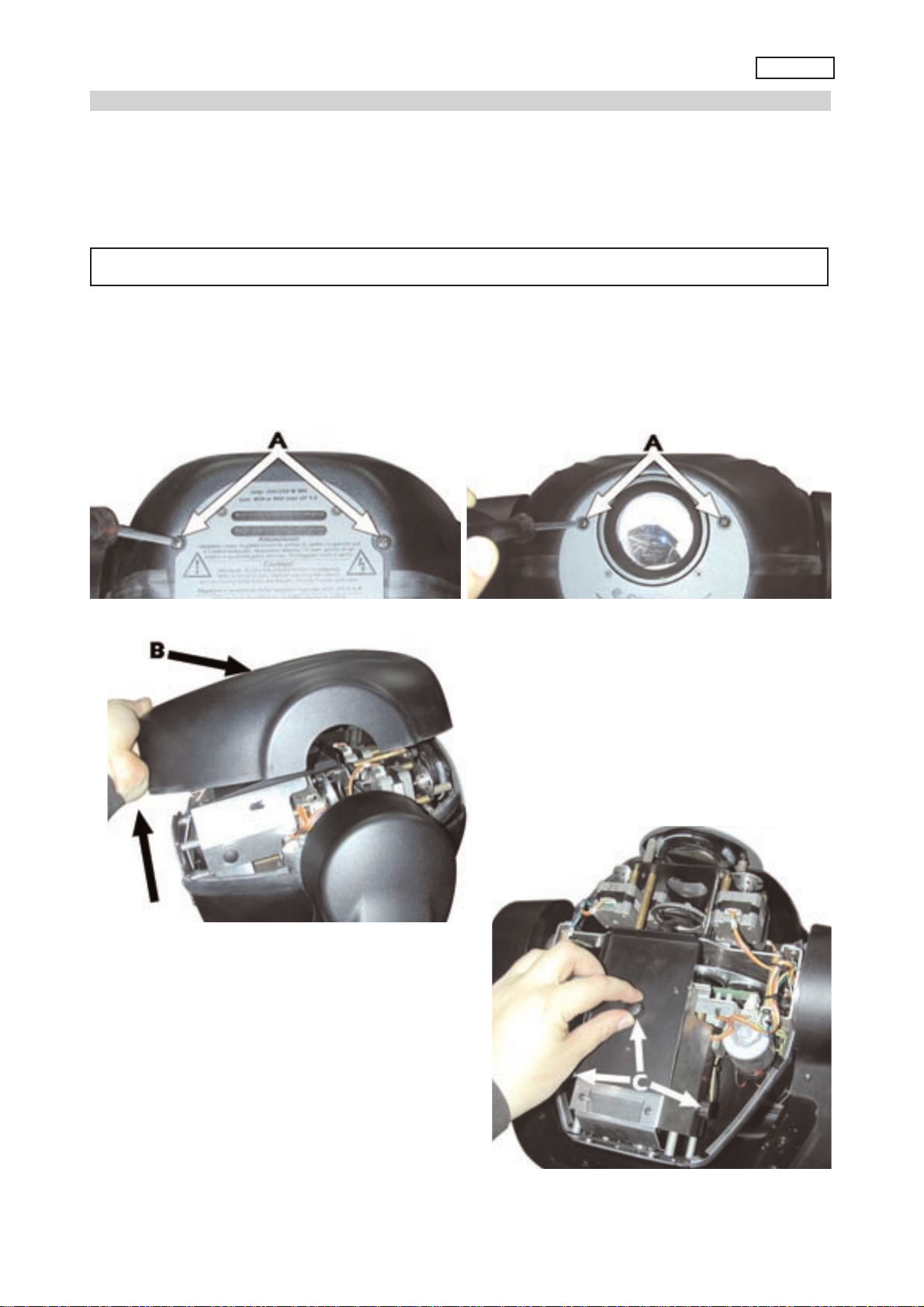

1) Using a Philips head screwdriver, remove the 4 screws Alocated at the front and rear of the projector, which affix the top
cover B, as shown in the diagram below.
2) Remove the housing B.
3) Remove the three thumbscrews C, which hold the lamp-
cover in place, and remove the cover.
Attention
Disconnect mains prior to opening up the unit
4. Lamp: Installation and replacement

English

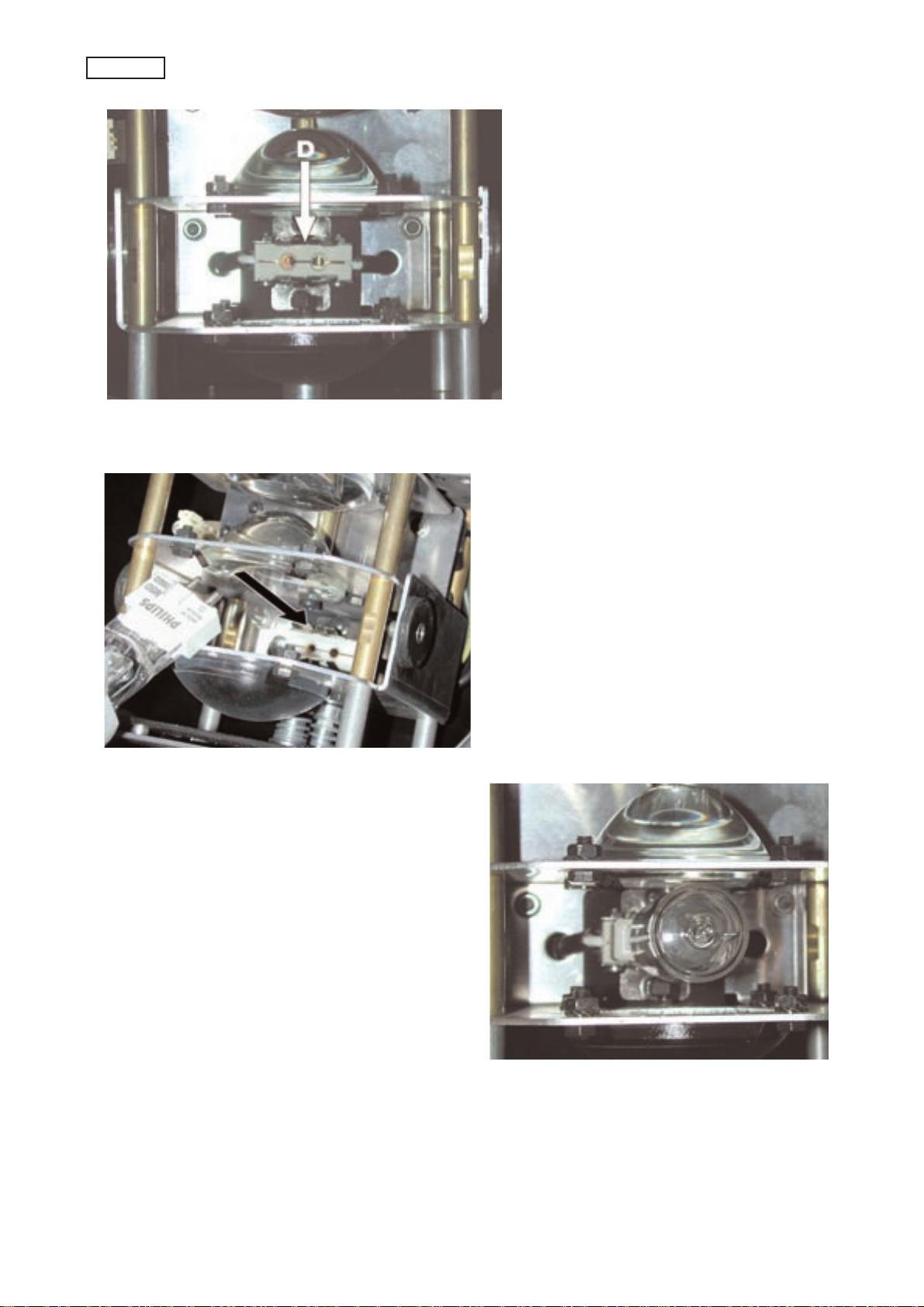

4) Locate the lampholder D
5) Insert the lamp. The lamp is manufactured from quartz glass and should be handled with care; always adhere to the instruc-
tions supplied in the lamp’s packaging. Never touch the glass directly; use the tissue provided in the lamp’s packaging. The GY
9,5 lampholder is asymmetrical in construction, with one lamp pin larger than the other is. DO NOT USE UNDUE FORCE. In
case of difficulty, inspect for physical damage and then repeat the installation procedure.
6) The optimal gap between the lamp and the parabolic
reflector is around 2 to 3 mm. If this is not the case, rota-
te the two adjusting thumbscrews located at the rear of
the projector as indicated in the section of this manual
entitled “Aligning the lamp in the optical path”.
The lamp must under no circumstances come into
contact with the reflector or other components of
the optical system.
7) Reposition the lamp cover and replace the three screws Cpreviously removed. Replace the housing Band refasten the
four screws Aas per the original condition of the ProSpot LX.
Prior to switching on the projector with the new lamp installed, reset the lamp life counter as described in section 11
“Display panel functions”.
We recommend that replacement lamps be realigned in the optical path of the lamp so as to avoid any accidental
overheating of the internal components of the fixture. This procedure is described in the section of this manual entitled
“Aligning the lamp in the optical path”.

English
The projector may operate at 100-115-208, 230 or 245V .at 50 or 60 Hz; coemar presets (barring specific requests), an
operating voltage of 230V and a frequency of 50Hz. The operating voltage and frequency of the projector is noted on the
base of the unit.
If this preset does not correspond with the conditions in your particular country of operation, follow the instructions in the
appropriate section of this manual.
Incorrect frequency and voltage selection will detrimentally affect the operation of the projector.
factory set
main at: 100V
115V
208V
230V
245V
50Hz
60Hz
5. Operating voltage and frequency

English
mounting
ProSpot LX can operate in any mounting position.
The structure from which the unit is hung should be of sufficient
rating to hold the weight of the unit, as should any clamps used to
hang the unit. The structure should also be sufficiently rigid so as to
not move or shake whilst the ProSpot LX moves during its opera-
tion.
The two mounting holes Ø13 mm (A) on the base of the ProSpot
LX allows the projector to have hook clamps fitted for the purpose
of hanging.
safety chains
The use of a safety chain fixed to the ProSpot LX and to the pri-
mary suspension structure is highly recommended to protect against
the accidental failure, however unlikely, of the primary suspension
point.
If using an aftermarket safety chain not manufactured by coemar,
ensure that it is of a sufficient rating to hold the weight of the unit.
The safety chain is attached by means of the two holes Blocated in
the base of the unit as shown in the diagram.
movement
The projector has an articulated movement of 530° in the base and 284° through its yoke; DO NOT obstruct the articula-
ted movement in any way.
protection against liquids
The projector contains electric and electronic components that must not come into contact with water, oil, or any liquid.
risk of fire
Each fixture produces heat and must be installed in a well-ventilated position. The minimum recommended distance from
flammable material is 0.5m. Minimum distance from the object being illuminated is 2m.
forced ventilation
You will note that the projector’s housing contains several air entry points and fan outlets, positioned both on the head and
the base of the unit; under no circumstances should any of these points be obstructed!
Obstruction of any of these points will result in the over-heating of the unit, detrimentally and seriously affecting the proper
operation of the ProSpot LX.
On this point, refer to section 18 “Electronic motor alignment”, subsection temperature (temp).
6. Installing the unit

English
cable preparation
The mains cable provided is thermally resistant, complying with the most recent international standards.
NB: In case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable
3x1,5 ø external 8 mm, rated 300/500V, tested to 2KV, operating temperature -40° +180°).
mains connection
ProSpot LX can operate at voltages from 208V-230V-240V at 50 or 60Hz (operating voltage and frequency can be selec-
ted as described in section 5 and 16 of this manual). Prior to connecting the unit to your mains supply, ensure that the
model in your possession correctly matches the mains supply available to you.
For connection purposes, ensure your plug is of a suitable rating: 2,1 amps at 245, 230v, 208V and 4,7 at 100 and 115V.

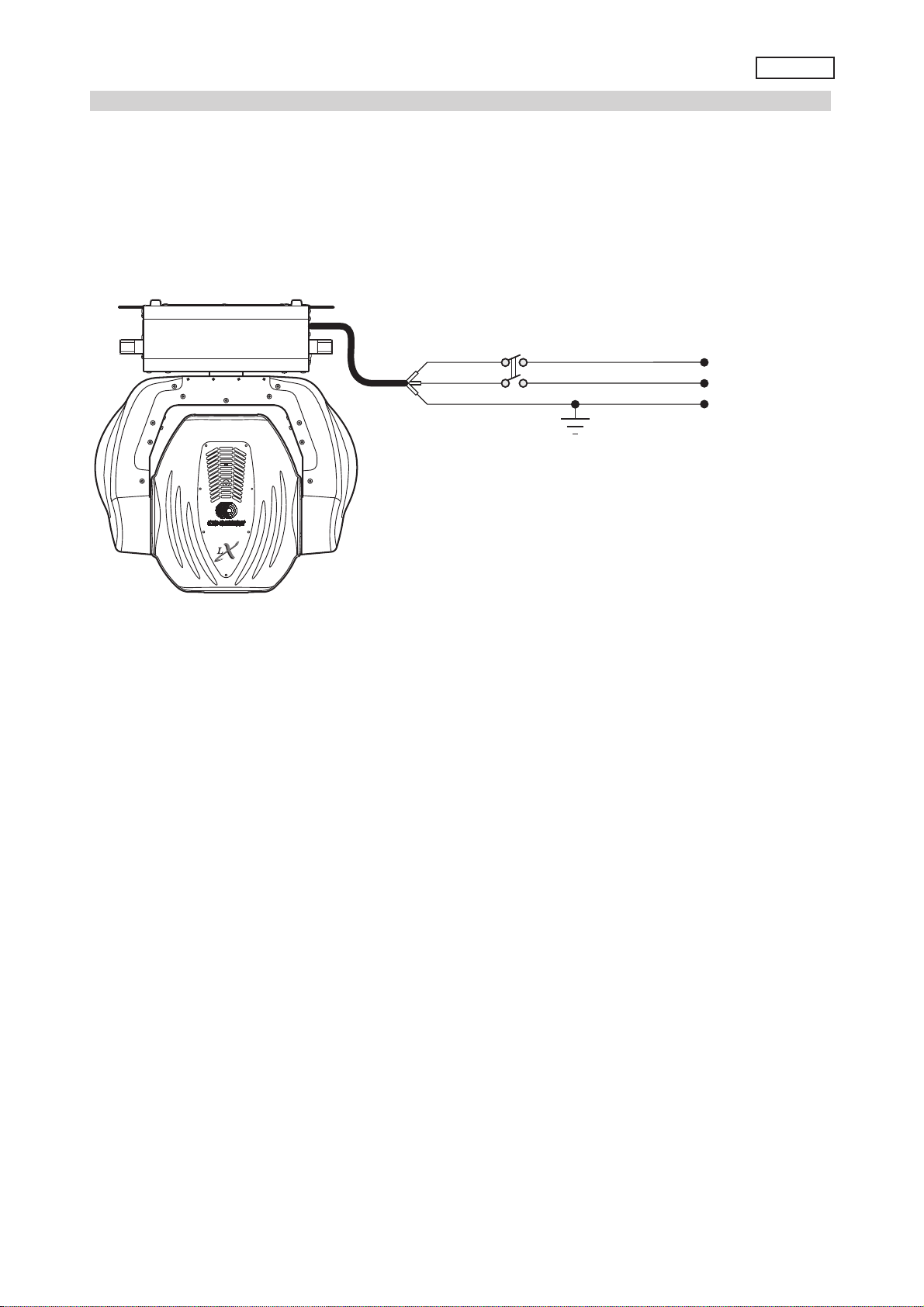

Locate the mains cable, which exits the base of the unit and connect as shown below:
protection
The use of a thermal magnetic circuit breaker is recommended for each ProSpot LX.
A good earth connection is essential for the correct operation of the fixture. Strict adherence to regulatory norms is strongly
recommended.
ProSpot
massa/ground
neutro/neutral
fase/live
marrone - brown
blu - blue
giallo/verde - yellow/green alimentazione
main
7. Mains connection

English
Control signal is digital and is transmitted via two pair screened ø 0,5cable.
Signal type is DMX 512, conforming to international standard; in order to reduce production costs and to allow easy
worldwide availability of parts, coemar utilises XLR 3 plugs and sockets for signal connection. Pin connection conforms to
international standards:
pin 1= screening 0 V
pin 2= data –
pin 3= data +
Controller
Standard
DMX 512
OUT
3
2
1
3 pin XLR 3/F
3 pin XLR 3/M
Ad altri Prospot LX
Connect to other Prospot LX
out
in
out
in
8. Signal connection

English
Should your DMX 512 controller utilise only XLR 5 sockets, the polarity of pins 1, 2 and 3 must be preserved as shown in the dia-
gram. Do not connect pins 4 and 5.
pin 1= screening 0 volt pin 4= not connected
pin 2= data – pin 5= not connected
pin 3= data +
Ensure that all data conductors are isolated from one another and the metal housing of the connector.
Note: the housing of the cannon XLR 3 must be isolated.
3
2
1
Controller
Standard
DMX 512
OUT
Ad altri Prospot LX
Connect to other Prospot LX
out
in
out
in

English
After having followed the preceding steps, turn on the DMX 512 controller which will be used to control the ProSpot LX;
following this, turn on the power to the unit and turn on the unit’s power switch. The projector will perform a reset func-
tion on all the internal and external motors. This will last some few seconds, after which it will be subject to the external
signal from the controller.

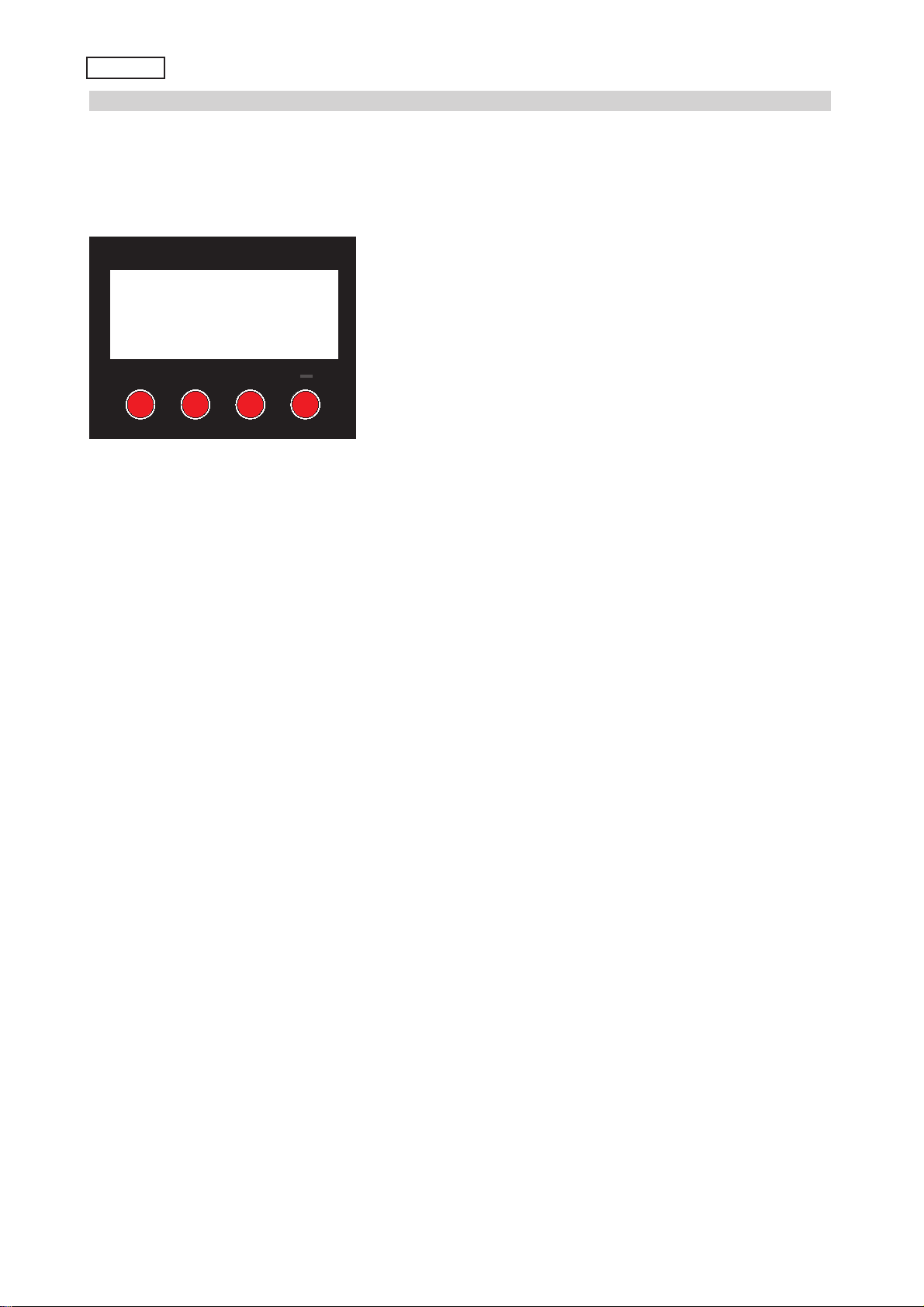

DMX reception
The display will be static on to indicate that DMX 512 signal is being correctly received.
If the display flashes, the projector is not receiving signal. Check your cabling and the controller for correct functioning.
Software versions
Two software systems operate within the projector, one in the display system “D”and one in the master system “M”. Upon
startup, the projector’s multifunction display panel will momentarily show readout of the software versions installed in your
projector.
For example, in the ProSpot LX you may see:
D3.30(display software “D”version 3.30).
M1.22(master software “M”version 1.22.)
A00I
function display
menu enter +
9. Powering up

English
Each ProSpot LX utilises16 channels of DMX 512 signal for complete control.
DMX addresses
To ensure that each projector accesses the correct signal, it is necessary to correctly address each fixture. Any number
between 1 and 497 can be generated via the multifunction panel of the ProSpot LX.
This procedure must be carried out on every ProSpot LX being used.
When initially powered up, each projector will show A001 indicating DMX address 1. A projector thus addressed will
respond to channels 1to 16 from the DMX 512 controller; a second unit should be addressed as 17, a third as 33 and
so on until the final ProSpot LX, has been addressed.
altering the dmx setting
1) Press the + or – buttons until the desired DMX address is displayed. The display will flash to indicate the selected address is not
stored in memory
2) Press the enter button to confirm your selection; the display will stop flashing and the projector will now respond to the
new DMX 512 setting.
3) To better understand the function of each channel, we refer you to 12 “DMX 512 channel functions”.
Important Note: Keeping the + or – buttons pressed will cause the display to alter at increased speed, allowing a faster selec-
tion to be effected.
AOO1 A013DMX 13 address
selection of new DMX 512 address that,
if not confirmed, it flashes for 6 seconds
before going back to default (to the
address previously recorded)
☞
+o–A013
The unit reacts to new
DMX 512 address
☞
enter
10. DMX addressing

English
The display panel on the base of the ProSpot LX is used to display and set function information and various parameters
and can enhance the operation of the projector to suit your particular application.
Altering the coemar factory settings may vary the functioning of the projector, causing to not respond to external DMX 512
signal. Please read and familiarise yourself with the following information very carefully before altering any selections.
NOTE: the ☞symbol is used throughout the following table to indicate the action of pressing the particular button referred
to in the accompanying text.
A
OO1 PDIRpan movement inversion
To reverse horizontal movement direction of the beam on
DMX level variation
TDIRtilt movement inversion
To reverse vertical movement direction of the beam on
DMX level variation
OPTOoptic sensor deactivation
Return in position of the unit if accidentaly knocked out of
place and ability to deactivate the function. Mechanical
reset of the unit (opto OFF).
LAMPlamp control
Lamp on/off control by DMX signal or lamp always on
FANSfans control
Fans always on (on) or fans function controlled
through PCB (Stud).
DISPreverse display
Reverse reading display (base downwards or base
upwards)
LED display control
To disable display visualisation
DMX DMX chart
To select function mode on DMX data reception
CW
clockwise
CCW
counter-clockwise
STRD
lamp control by DMX 52
ON
lamp amways on
CW
clockwise
CCW
counter-clockwise
ON
sensors activation
OFF
sensors deactivation
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
enter
☞
enter
☞
enter
☞
enter
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
menu
ON
fans always on
STUD
automatic control
☞
+o–☞
enter ☞
+o–
☞
+o–
☞
+o–☞
enter ☞
+o–
☞
+o–
☞
+o–☞
enter ☞
+o–
AA
base downwards
reversed, base upwards
AA
☞
enter
☞
enter
☞
enter
☞
enter
☞
enter
☞
enter
☞
enter
☞
enter
☞
enter
☞
enter
☞
enter
☞
enter
☞
enter
OFF
to switch off the display (☞
any keys to switch it on)
☞
+o–STRD
standard 16 channel
(see diagram)
EMUL
emulation ProSpot (not
LX version - see diagram)
☞
enter
☞
enter
☞
+o–
☞
enter
☞
+o–
11. Display panel functions

English
11.1. Turning on the ProSpot LX without articulated movement
This function may be useful should you need to turn on the ProSpot LX, whilst it is still in its flight case or located in cram-
ped conditions in order to alter its dmx address setting or adjust some other parameter.
1) Turn on the projector whilst simultaneously holding down the menu, enter and – buttons.
The projector will undertake a reset of all motors except those, which govern pan and tilt movement.
2) You may alter the dmx address or any other parameter at this point without any movement occurring.
3) To reactivate the normal functioning of the ProSpot LX, you need simply to turn the projector off and then on again via
its power button, or simply perform a reset.
IIII
function display
menu enter +
AOO1 DEMOdemo program
short demo of unit's function
TEMPtemperature
To measure the internal temperature in C°
Give information in case of anomalies
VOLTmains voltage
To measure DC mains voltage in volts.
The value is measured at rectifier bridge output.
Values lower than 26V and higher than 36V are
to be considered anomalous.
DMIN DMX value on each channel
reading of DMX value (0/255), received on each
of the 16 channelson DMX 512 line
DFSE default setting
put all the functions at original setvalues but for
the alignments
RESEreset
reset of all motors
RATEDMX rate
reading of DMX 512 signal value, called rate
HOURworking time
working time (in hours)
☞
menu
10
reading of
numeric value
589
reading of
numeric value
1230
reading of
numeric value
24.S0
numeric value reading
-– -– -– -–
reset
N.B.: reset the LIFE value on each lamp
changing
58C
temperature measurement
☞
+o–
☞
+o–
☞
enter
CH01
channel 1
CH16
to channel 16 ☞
enter
to confirm
DEMO
flashing, it runs the demo (☞any key to stop it)
N.B.: lamp status depends on lamp ON/OFF
function
30.0V
mains voltage measurement
10
DMX value reading
255
DMX value reading
SURE
flashing
☞
enter
☞
enter
☞
enter
☞
enter
☞
+o–
☞
enter
☞
enter
☞
+o–☞
enter
☞
+o–☞
enter
☞
+o–LIFE
lamp life after last
reset
LIFS
life of all lamps
used on the unit
UNIT
units life
☞
+o–
☞
enter
☞
enter
☞
enter
☞
enter
☞
+o–

English
11.2. Resetting the electronic lamp life counter
The electronic lamp life counter should be reset to zero at every lamp change in order to provide accurate lamp life information.
1) Turn off the projector.
2) Power up the ProSpot LX whilst simultaneously holding down the + and –buttons.
The projector will have performed a reset of the LIFEcounter.
To check that this has occurred you may complete the following steps:
1) Press the menu button.
2) Press the +or -buttons until HOURis displayed.
3) Press the +or -buttons until LIFE(for lamp life) is displayed.
4) Press the enter button; the display will show 0000confirming that a reset of the counter has occurred.
N.B. You may also confirm if you choose that the LIFSUNITand UNITcounters remain unaltered.
11.3. test
This function generates a test signal for each motor so that they can be tested in the absence of any external DMX source.
1) Press the menu button.
2) Press the +or -buttons until TEST(for test) is displayed.
3) Press the enter button to confirm your selection; the display will show PAN (for testing the pan movement), press the +or
– subsequent tests, from PANto COLR.
AOO1 TESTtest
Functions test
☞
+o–☞
enter
☞
enter
☞
enter
☞
enter
☞
enter
☞
enter
☞
enter
☞
enter
☞
enter
☞
enter
☞
enter PAN
pan movement test
TILT
tilt movement test
DIMM
dimmer test
SHUT
test dell'otturatore
FOCU
focusing test
GOBO
gobos test
G.RO
gobo rotation test
PRIS
prisms test
PRR0
prisms rotation test
COLR
colors test
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
+o–
0128
0128
0128
0128
0128
0128
0128
0128
0128
0128
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
+o–
☞
+o–
The unit performs
the motors test.
To speed up the
test procedure and
to reach directly the
255, press first the
+ key together
with – key while to
reach the value 0
press first the –key
together + key
A00I
function display
menu enter +

English
If all the procedures have been carried out correctly to this point, your DMX 512 controller will have control over all the
functions of the ProSpot LX as shown in the table below.
channel function type of control effect decimal
1 Base (pan) coarse proportional coarse control of the base movement 0-255
2 Base (pan) fine proportional fine control of the base movement 0-255
3 Yoke (tilt) coarse proportional coarse control of the Yoke movement 0-255
4 Yoke (tilt) fine proportional fine control of the Yoke movement 0-255
5 movement speed step standard (fast) 0-10
step Ultra fast movement (best for programming position) 11-25
proportional vector mode from fast to slow 26-127
proportional Tracking mode (fast to slow)
128-247
step Tracking mode (slow)
248-255
6 dimmer step closed 0-7
proportional
Gradual adjustment of the dimmer intensity from 0 to 100% 8-255
7
Shutter, Strobe step Shutter closed 0-9
proportional Synchro strobe-effect from slow to fast (max. 10 flashes/second) 10-66
step Shutter open 67-68
proportional
Pulse-effect in sequences, close slow, open fast (adjustement from slow
to fast)
69-125
step Shutter open
126-127
proportional
Pulse-effect in sequences, close fast, open slow (adjustement from fast
to slow)
128-184
step Shutter open
185-187
proportional Random strobe-effect from slow to fast
188-244
step Shutter open
245-255
8 focus proportional proportional focus control 0-255
9
Rotating gobos,
selection
step Open 0-10
step Rot. gobo 1 11-30
step Rot. gobo 2 31-50
step Rot. gobo 3 51-70
step Rot. gobo 4 71-90
step Rot. gobo 5 91-110
step Rot. gobo 6
111-127
proportional From no gobo to gobo 6, 360° gobo positioning
128-192
proportional Gobo wheel rotation from slow to fast
193-255
10
gobo 360° positioning step no effect 0-10
proportional proportional indexable gobo positioning 360° 11-255
NOTE: when channel 10 is between 0 and10, channel 11 stop the rotation without indexing the gobo
11
gobo rotation step no effect 0-10
proportional
continuos gobo rotation clockwise with proportional speed from fast
to slow
11-131
step
gobo stop
132-134
proportional
continuos gobo rotation counter-clockwise with proportional speed
from slow to fast
135-255
12
3 facet prism & rotation step no prism 0-10
step 3 facet prism 11-20
proportional
continuos prism rotation clockwise with proportional speed from fast
to slow
21-136
step
prism stop
137- 139
proportional
continuos prism rotation counterclockwise with proportional speed
from slow to fast
140-255
12. DMX 512 channel functions

English
channel function type of control effect decimal
13 colours step Open/white 0
step colour 1 5-9
step colour 2 10-14
step colour 3 15-19
step colour 4 20-24
step colour 5 25-29
step colour 6 30-34
step colour 7 35-39
step colour 8 40-44
step colour 9 45-49
step colour 10 50-54
step colour 11 55-59
proportional From white to colour 11, 360° color positioning 60-127
proportional Forwards rainbow effect from fast to slow
128-190
step No rotation
191-192
proportional Backwards rainbow effect from slow to fast
193-255
14
gobo shake and black-
out effect
step No effect 0-9
proportional gobo shake slow to fast 10-249
step Black-out while PAN,TILT moving, color or gobo changes
250-255
15 gobo shake amplitude step gobo shake maximum size 0-23
step gobo shake size 2 24-47
step gobo shake size 3 48-71
step gobo shake size 4 72-95
step gobo shake size 5 96-119
step gobo shake size 6
120-143
step gobo shake size 7
144-167
step gobo shake size 8
168-191
step gobo shake size 9
192-215
step gobo shake size 10
216-239
step gobo shake minimum size
240-255
16
Lamp ON, motor Reset step lamp off 0-19
step no effects (idle) 20-100
step effects reset (only once), pan/tilt does not move
101-170
step all motor reset (only once)
171-200
step silent fans (if external temperature allowed)
201-240
step Lamp ON
241-255
Back panel can modify function channel (16) (inhibit lamp off)
note 1: function channel (16) has a delay time of 6 second to prevent accidental activation.
note 2 :on/off lamp mode is not affected unless an opposite value is received

English
ProSpot emulation setting
ProSpot LX may operate using a different channel configuration to the standard set up. This function may be useful in situa-
tions where you may be using other ProSpot projector which are not in the LX series or when using various controllers with
inflexible channel assignment features. To utilise this altered configuration as shown in the table, which follows, you should:
Following is the ProSpot emulation table.
channel function type of control effect decimal
1 Base (pan) coarse proporzionale coarse control of the base movement 0-255
2 Yoke (tilt) coarse proporzionale coarse control of the Yoke movement 0-255
3 Base (pan) fine proporzionale fine control of the base movement 0-255
4 Yoke (tilt) fine proporzionale fine control of the Yoke movement 0-255
5
Speed pan/tilt
movement
livello unico Max speed (tracking mode) 0
proporzionale Max speed from max. to min. vector mode) 1-249
livello unico
Max. speed, black-out while PAN,TILT moving or color changes
(tracking mode)
250-255
6
lamp on/off, reset,
fans speed control
livello unico open, max. speed of fan 0
proporzionale
open, min. speed of fan (silent operation) from 0 to 127
decreasing speed of fan
1-127
livello unico Lamp ON, reset, open position 128-139
livello unico No function 140-229
livello unico Lamp Off after 3 sec. 230-239
livello unico No function 240-255
7 colours proporzionale Open/white 0
proporzionale colour 1 10
proporzionale colour 2 21
proporzionale colour 3 32
proporzionale colour 4 42
proporzionale colour 5 53
proporzionale colour 6 64
proporzionale colour 7 74
proporzionale colour 8 85
proporzionale colour 9 96
proporzionale colour 10 106
proporzionale colour 11 117
proporzionale Forwards rainbow effect from fast to slow 128-189
livello unico No rotation 190-193
proporzionale Backwards rainbow effect from slow to fast 194-255
8 no function livello unico No function 0-255
9 effect-wheel livello unico Open position (hole) 0-95
livello unico 3 - facet rotating prism 96-159
livello unico Prism/Gobo macros 160-255
livello unico Macro 1 160-167
livello unico Macro 2 168-175
livello unico Macro 3 176-183
livello unico Macro 4 184-191
livello unico Macro 5 192-199
livello unico Macro 6 200-207
livello unico Macro 7 208-215
livello unico Macro 8 216-223
livello unico Macro 9 224-231
livello unico Macro 10 232-239
livello unico Macro 11 240-247
livello unico Macro 12 248-255
AOO1 DMX DMX chart
To select function mode on DMX data reception
☞
+o–☞
enter ☞
+o–
☞
+o–
☞
menu
☞
enter
☞
enter
STRD
standard 16 channel
(see diagram)
EMUL
emulation ProSpot (not
LX version - see dia
g
ram
)
