Coffee Queen Fast Mash New User manual

User Guide
FAST MASH NEW
Rev. 120127
U / EN
Your Dealer
...............................................................................
...............................................................................

1. Contents Fast Mash New
1. Contents page 2
2. General 3
3. Component overview, front 4
3. Component overview, inside 5
3. Component overview, programming electronics 6.
3. Component overview, function buttons 7
4. SERVICE: Installation and Start-up
Position machine 8
Hook up water to machine 8
Start the mash machine 8
Fill ingredients in container 9
5. OPERATION
Portion preparation 10
6. CLEANING Every day
Rinsing the blender system: 11
Rinsing the blender system 11
Remove blender system 12
Wash parts 12
Re-install blender system 12
7. Error message 13
8. PROGRAMMING
Use code, adjust the recipe value 14- 18
9. Reset the cup counter 19
10. Storage and transportation 20
11. Dimension sketch 21
12. Cleaning and care 22
2.

2. General Fast Mash New
Thank you for choosing a Fast Mash mash machine. We hope you enjoy it!
- The machine must be connected correctly for your own safety.
Read the user guide before using the machine.
- The guide contains important instructions for proper and safe use of the machine.
- Always keep the guide close at hand.
Fast Mash is the mash machine that makes it possible for you to quickly
and easily serve freshly made mash in portions.
- 2 selection of portion (see chart, recipe)
- 1 ingredients container
- Electronic temperature control
- Cleaning function
- Rinsing function on outside
Facts;
Height 536 mm
Width 211 mm
Depth 446 mm
Power supply 230V/2200W
Cold water hook-up ½" external thread for fitting factory-supplied tube
3.

3. Component view, front. Fast Mash New
4.
Tap for
mash
Holder for mash scoop
Drip tray
insert
Drip tray
Connection of
power cord
Service plug
Emptying of water tank
Water hook-up
Selection buttons for mash

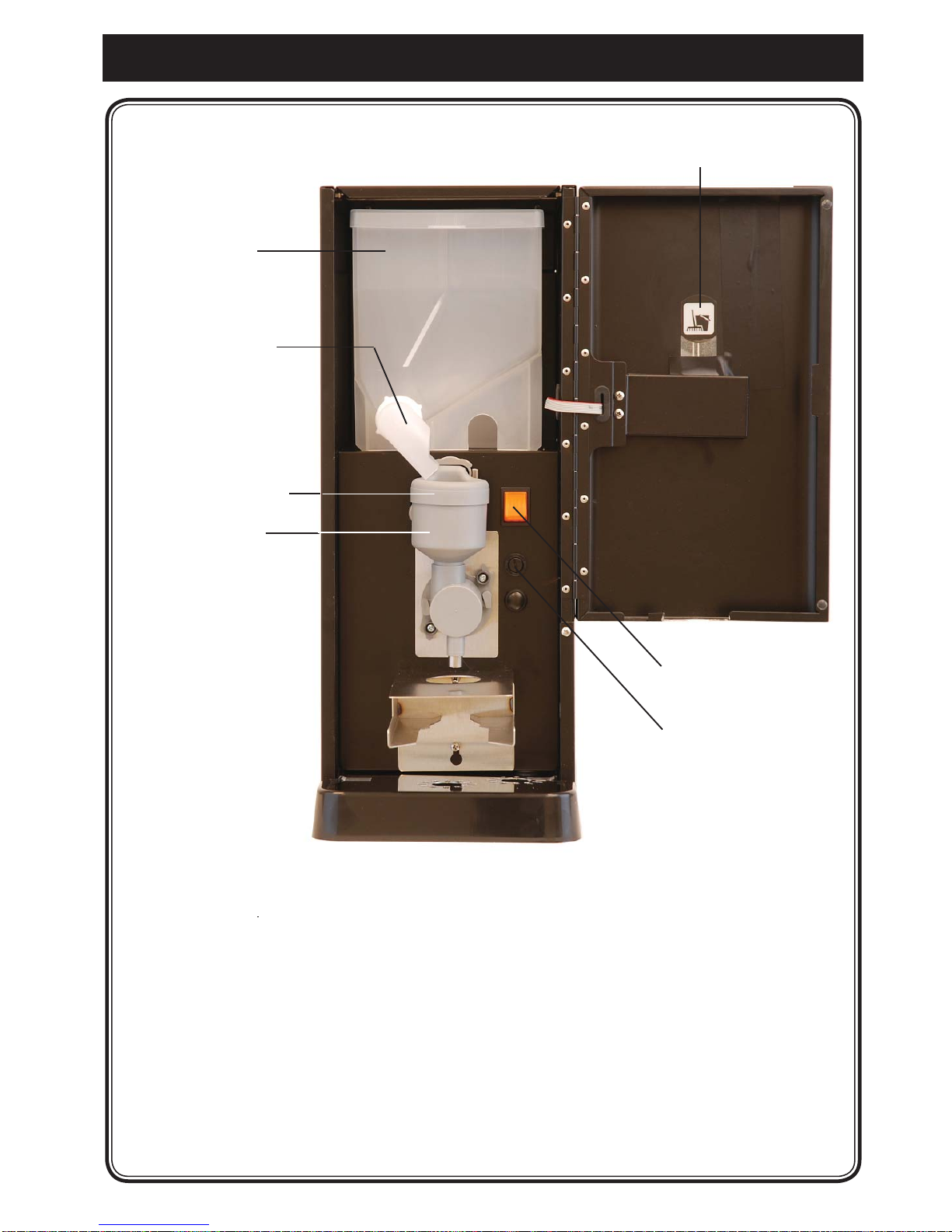

3. Component view, inside Fast Mash New
5.
Concentrator
Concentrate
container for
mash
ON/OFF
switch
4 Amp fuse
Cleaning button
Condensation trap
Blender cups

3. Component overview, electronics Fast Mash New
6.

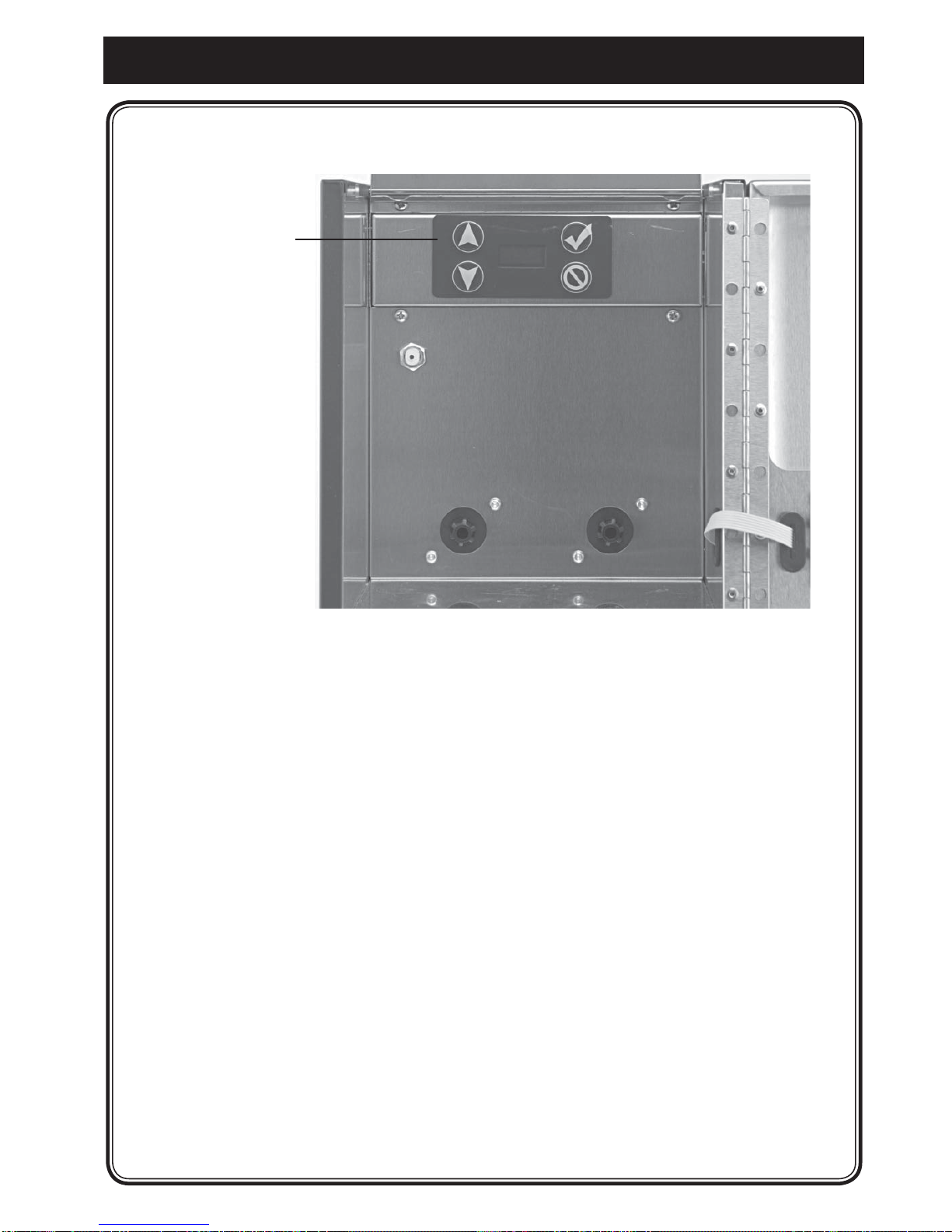

Programming
electronics
The programming electronics is placed behind the concentrate container.

3. Component overview, function. Fast Mash New
7.
Function buttons
1. Large mash.
2. Small mash.
3. Rinsing. (Use the rinse function regularly)
4. Clean blender system.
5. Ready lamp
- The lamp stops blinking when the machine is ready.
- The lamp blinks when a drink is being dispensed.
1
2
3
5
4

4. Service. Installation and start-up Fast Mash New
1. Place the machine on a flat Connect the plug to an
waterproof surface. earthed 230V 10A wall outlet.
Note: Make sure air is able to circulate freely
behind the machine.
2. Connect the factory-supplied tube to the cold water feed using a ½” R- connection
piece. Make sure no folding or sharp bending occurs when you push the machine
back in place.
If the water pipeline is new, flush the system with water first to remove
copper shavings. These can damage the inlet valve.
3. Open the water tap.
4. Hit the ON/OFF switch inside the panel.
The water tank will fill automatically with
1.8 litres of water.
The element will not be powered until the water
reaches the level indicator.
the temperature is set to 85º Celsius.
5. Shut the panel door. The mash machine is ready
to be used within approx. 10 minutes.
8.
ON/OFF
switch

9.
(A).
4. Service. Installation and start-up Fast Mash New

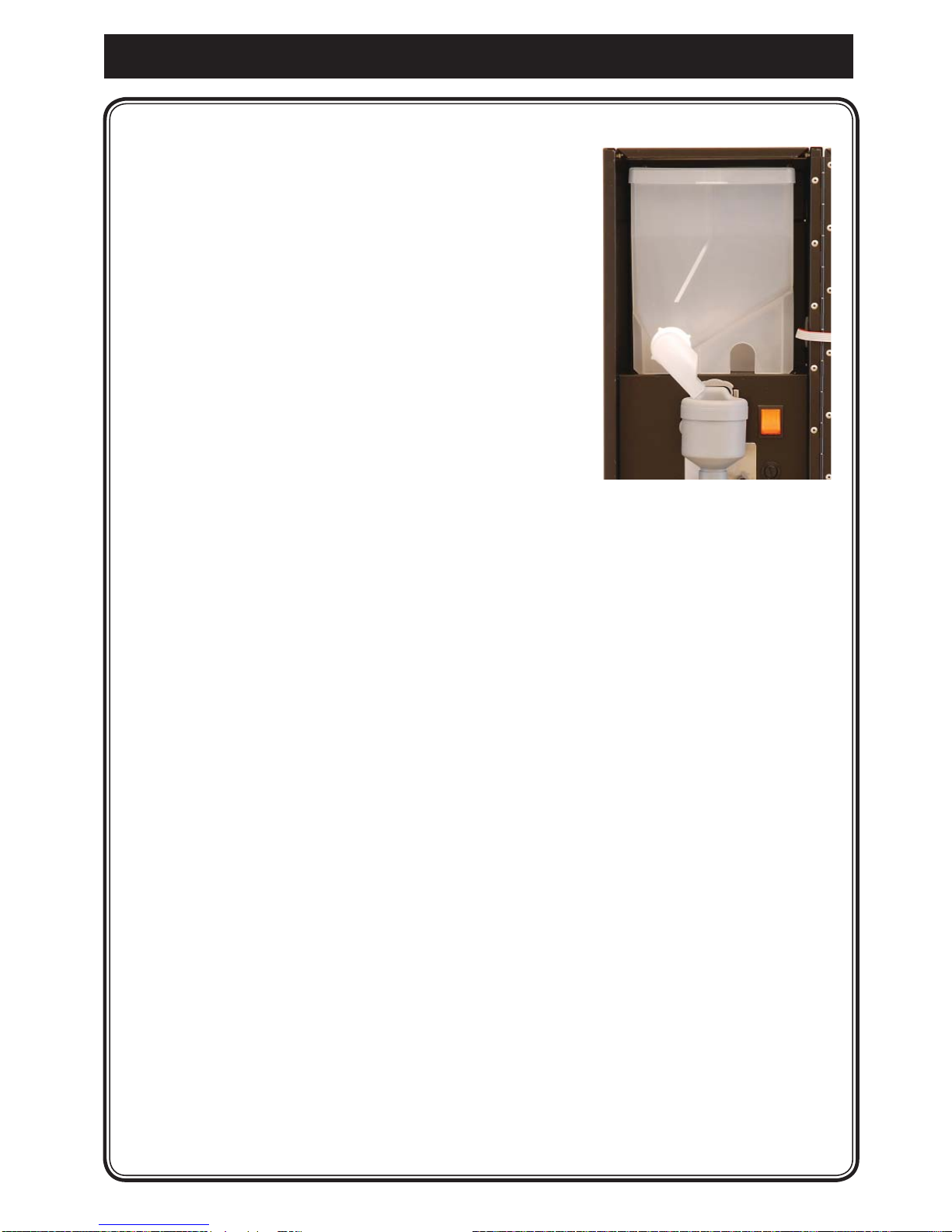

6. Fill ingredients in container
Remove the concentrate container to avoid
spilling the concentrate in the machine) and fill
with ingredients.
1. Twist the concentrate tube up out of the
blender cup.
2. Lift the front edge of the concentrate
container and pull out.
3. Lift the lid and fill with concentrate.
7. When placing the concentrate container
Make sure the concentrate tube is close to
the condensation traps (A), as illustrated.

10.
5. OPERATION; Portion preparation. Fast Mash New
Portion preparation:
1.Place the mash scoop in the holder (A).
2. PRESS the button Large or Small Mash once.
The potato mash machine will make one portion of potato mash of the
size set.
3. Wait until the light stops flashing before removing the mash scoop.
B
A

6. CLEANING: Cleaning every day. Fast Mash New
Rinsing the blender system: Cleaning of valves and blender system.
The blender cup can be cleaned easily using the cleaning button.
We recommend you clean/rinse the entire blender system at least once a day.
11.
1. Loosen and remove the holder for the mash scoop.
2. Centre a large cup on the drip tray.
3. Open the door. Press the cleaning button (1)
4. The machine starts by tapping valves
and then rinsing the mixer and blender cup.
Rinsing:
When the button marked "Rinsing" is depressed water at the temperature that
the thermostat is set to rinse through the blender cup and whisk housing.
Preferably place the scoop in the container to collect the water.
This function must be used before preparation starts if the machine has not been used
within the last hour.
We recommend running the rinse function at least every five portions.
Please make a habit of regularly use the rinsing function.
1

12.
Cleaning every day. Disassemble blender system.
6. CLEANING: Cleaning every day.
5. Wash disassembled parts and ensure that they are completely dry before
refitting them and before the mash machine is used again.

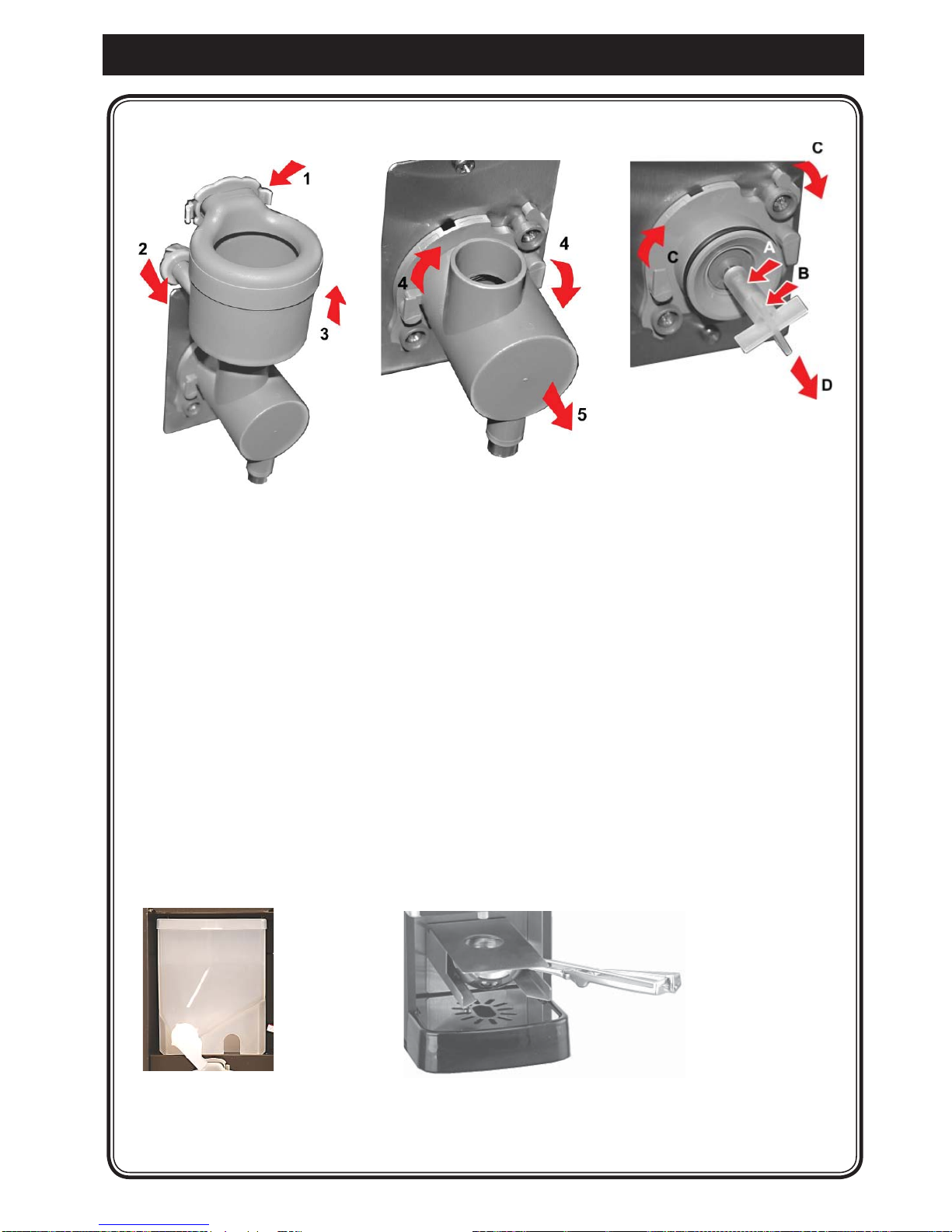

Blender cup - Condensation trap - Whisk - Whisk housing - Fitting plate
1. Begin by loosening
the condensation trap and the
blender cup following image
steps 1, 2, 3
2. Loosen the whisk housing
following image steps 4 and
5.
3. Loosen the wish, pull
straight out D.
4. Loosen the fitting plate, turn
clockwise following image C.
Reassemble the blender system.
6. Reassemble the blender system in the reverse order.
IMPORTANT! When refitting the wish, the plane sideA of the whisk motor shaft must correspond
with marking B on the whisk.
Wash these parts and refit them.
Concentrate container
Concentrator
Holder for
mash scoop
mash scoop
Drip tray
Note: The container for the potato mash powder must be washed in warm water using detergent
once a week.

13.
Error message
If the mash machine is maintained and cleaned as recommended, it will
work faultlessly.
If problems occur despite this:
• No potato mash comes after pressing the button
"Large mash" or "Small mash"
- open the door and ensure that potato mash has not stuck in the blender cup
and caused a stop.
If so is the case, disassemble the whisk housing etc and clean.
• The mash machine sounds odd (the whisk is running hard): Disassemble the
fitting plate and ensure that potato mash has not dried in behind this.
If so, clean, refit the parts and try again.
If this does not help - contact the servicing company stated.
• Water dripping from the whisk housing. This is a sign that the valve
that controls the amount of water for each portion is worn.
This must be rectified by a servicing company certified by Crem International AB.
7. Error message.

8. Programming. Fast Mash New
14.
1. Press button
2. Press button until the display shows.
3. Press button to enter the menu. The display reads PIN CODE IIII.
4. Press button once and the marker moves to the next digit.
5. Press button and the second digit shows 0.
6. Confirm by pressing button .
Service mode:
Recipes
PIN code= IIII
PIN code= IIII
PIN code= I0II
PROGRAMMING use code, adjust the recipe value
To open the menu, follow the instructions below. The pin code is 1000.
Remember to always confirm your selection by pressing button

8. Programming. Fast Mash New
15.
PROGRAMMING use code.
7. Press button and the second digit shows 0.
8. Confirm by pressing button .
9. Press button and the second digit shows 0.
10. Confirm by pressing button .
11. The display reads PIN ok.
12. Display shows select drink = 1
PIN code= I00I
PIN code= I000
PIN code= I000
PIN ok
Select drink = 1

8. Programming. Fast Mash New
16.
PROGRAMMING: adjust the recipe value
13. Select drink by pressing button or button
Select drink 1
Select drink 2
Select drink 3
Select drink 4
14. Confirm the selected drink to be adjusted by pressing button
Set and adjust the recipe value, see chart on pages 17 and 18.
In order to adjust the recipe value for drink 1
15. Press button to enter the menu. The display shows
16. To adjust, press button the display shows.
17. Press button or to adjust a new value.
18. Confirm the new settings by pressing the .
19. Press button or to go to the different values.
Repeat steps 16-18 to change.
20. Press button to go back one level in the menu.
21. To return to the operating level, press button again.
22. Select a new drink to adjust the recipe value.
Select drink = 1
Drink 1
start V1 Water 1
Drink 1
start V1 W 1 =
0,0

8. Programming. Chart Fast Mash New
17.
PROGRAMMING: adjust the recipe value
Serving portion
Basic setting.
Large Mash 1 Start 1 Stop 1 Start 2 Stop 2
240 gr 180 ml
V1 0,0 6,5 8,3 8,7
V2
Ingred 1 0,2 6,0
Ingred 2
Mixer 1 0,1 8,4
Mixer 2
Small mash 2 Start 1 Stop 1 Start 2 Stop 2
140 gr, 120 ml
V1 0,0 4,0 6,0 6,4
V2
Ingred 1 0,2 3,8
Ingred 2
Mixer 1 0,1 6,2
Mixer 2

8. Programming. Chart recipe Fast Mash New
18.
PROGRAMMING:
RINSING
Button 4 Start 1 Stop 1 Start 2Stop 2
V1 0,2 3,5 4,5 5,0
V2
Ingred 1
Ingred 2
Blender 1 0,5 4,0
Blender 2

9. Reset the cup counter. Fast Mash New
Reset the cup counter:
1. Remove the concentrate container. The display shows number of cups.
2. To reset the counter: Press button to position Reset Counters.
3. Press button to reset the counter.
4. Confirm the new setting by pressing button .
Cup counter:
The machine has a built-in Cup Counter that can be reset.
13
2
4
000
5
19.

20.
10. Storage / Transportation. Fast Mash New
Long-term storage and transportation
1. Switch off the machine, unplug it and close the water tap.
2. The machine must not be stored in freezing temperatures, and all water must
removed before long-term storage.
Emptying the water tank.
1. Shut off the machine. Switch of the water tap for the machine.
Note: Remember that the water in the tank is very hot.

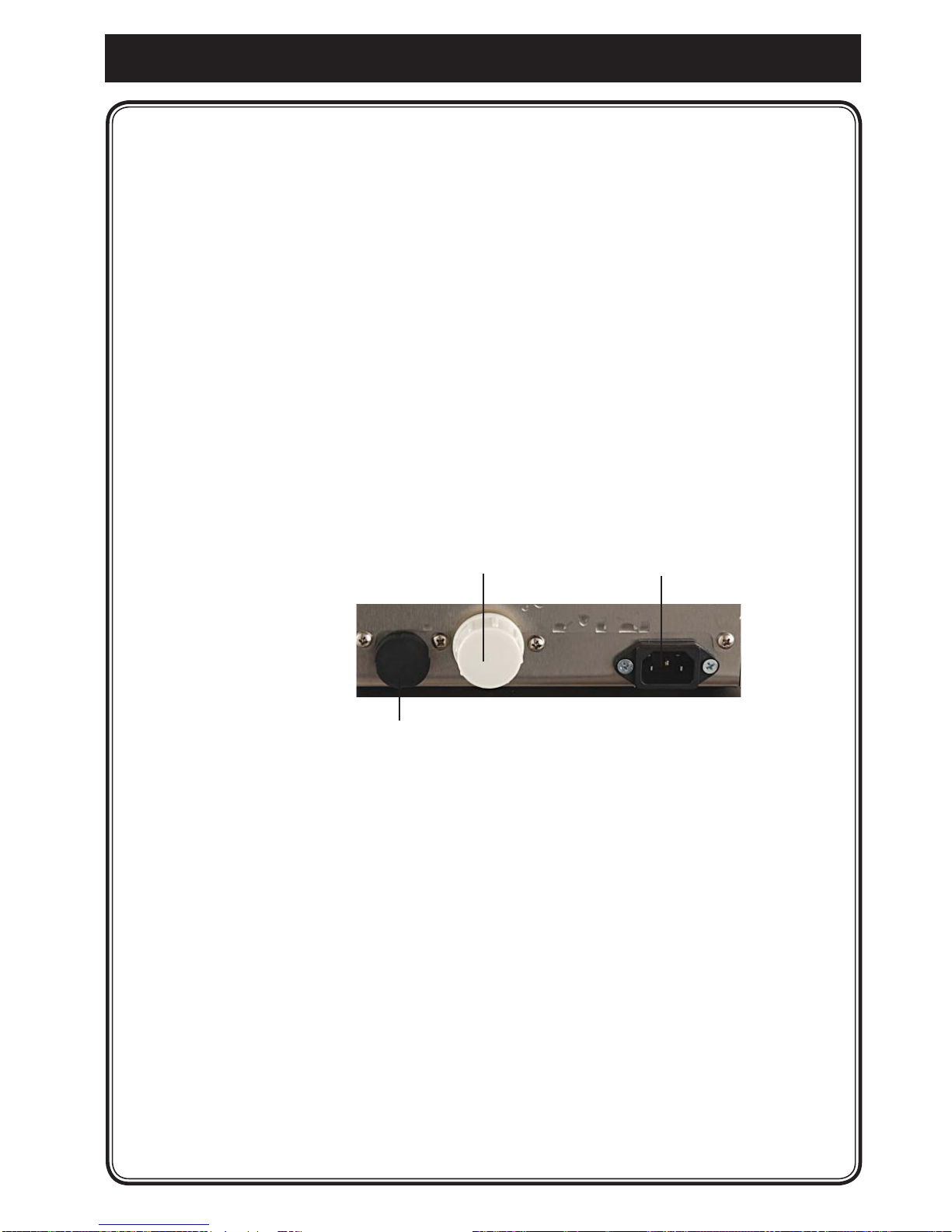

2. Loosen the water hook-up (1) and unplug the power cord (2).
3. Next pull out the service plug (3) located on the back of the machine.
Water hook-up (1) Power connection (2)
Service plug (3)
Emptying of water tank
