Cognex DataMan 8072 DL User manual

DataMan®8072 DL
Quick Reference Guide
2019 October 08
Revision: 6.1.6SR1.5

Precautions
To reduce the risk of injury or equipment damage, observe the following precautions
when you install the Cognex product:
lRoute cables and wires away from high-current wiring or high-voltage
power sources to reduce the risk of damage or malfunction from the
following causes: over-voltage, line noise, electrostatic discharge (ESD),
power surges, or other irregularities in the power supply.
lChanges or modifications not expressly approved by the party responsible
for regulatory compliance could void the user’s authority to operate the
equipment.
lEnsure that the cable bend radius begins at least six inches from the
connector. Cable shielding can be degraded or cables can be damaged or
wear out faster if a service loop or bend radius is tighter than 10X the cable
diameter.
lThis device should be used in accordance with the instructions in this
manual.
lAll specifications are for reference purposes only and can change without
notice.
2

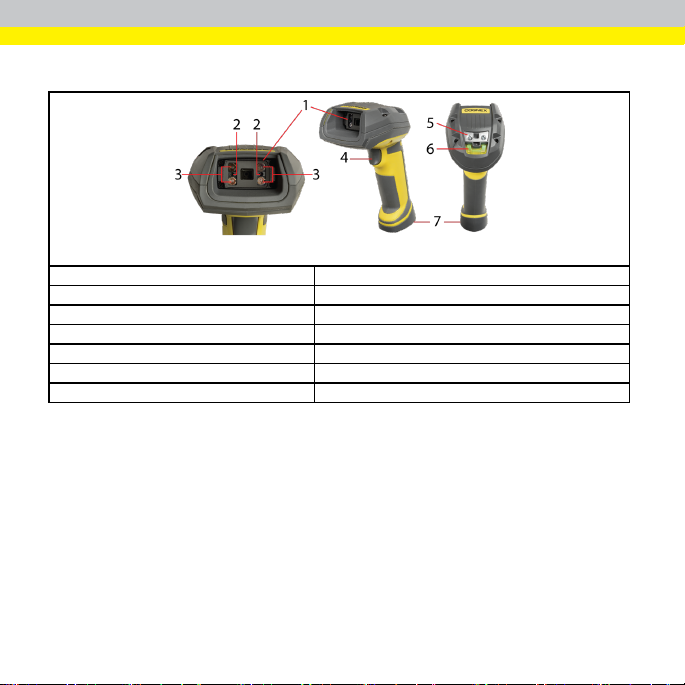

Product Overview
1 Illumination module
2 LEDaimers
3 Illumination LEDs
4 Trigger (press and hold to read)
5 Lanyard hook
6 Indicator light
7 Communication module insertion point
3

Base Station Overview
1 Base station status indicators
2 PAIR sticker - Reading the code pairs the base station
with the device
3Connection point to the reader:
lpairing reader and base station
lnon-wireless communication
lcharging
4 RS-232
5 USB
6 Power plug (24V, max. 15W)
7 Alternative power supply connector (24V, max. 15W,
polarity marked on the plastic part near the connector).
Recommended wire diameter is 14- 18 AWG
8 Ethernet
4

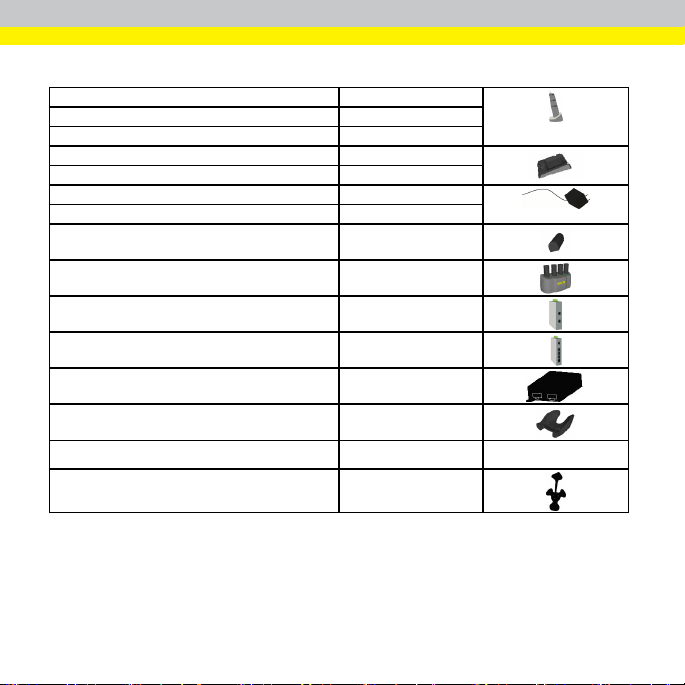

DataMan 8072 DL Accessories
Serial/USB slide-in DMCM-SERIALM-00
Ethernet slide-in DMCM-ENETM-00
Bluetooth slide-in DMCM-BTM-00
Charging base station DMA-CBASE-01
Intelligent Bluetooth base station DMA-IBASE-BT-02
Power Supply for base station DMA-24VPWR-xx*
Power Supply for reader DM100-PWR-000
Battery for the wireless reader DMA-HHBATTERY-01
Multi-battery charger DMA-MBC-xx*
POE adapter CPS-24V-POE1
POE adapter CPS-24V-POE4
POE adapter CPS-AC-POE1A-xx*
Wall mount DMA-WALL-8000-00
Wall mount for base station DMA-IBASE-WALL-00
Stand DM-STAND-00
*xx can be US, EN, UK, or JP.
5

Cables
Coiled RS-232 cable for reader, 2.5 m DM8000-RS232-02
Industrial RS-232 cable for reader, 2.5 m DM8000-RS232IND-02
Coiled RS-232 cable for reader, 4 m DM8000-RS232-05
Coiled USB cable, 2.5 m DM8500-USBC-02
Ethernet cable, 2.5 m DM8000-ECABLE-02
Ethernet cable, 30 m DM8000-ECABLE-30
Ethernet cable, 5 m DM8000-ECABLE-05
USB cable, 2.5 m DM8500-USB-00
Coiled Ethernet cable, 5m DM8000-ECABLEC-05**
RJ25 (RJ12) to DSUB9 cable for base station, 5 m DMA-RS232RJ-05
** Collimated cable length including DM8000-ECABLE-X should not exceed 50 m.
lUSB cable for base station: Use any standard USB-A to USB-B 2.0 cable up to 3 meters.
lEthernet cable for base station: Use any standard CAT5/5e, SF/FTP or S/FTP cable.
lDMA-USB-00: Straight 10ft USB cable.
6

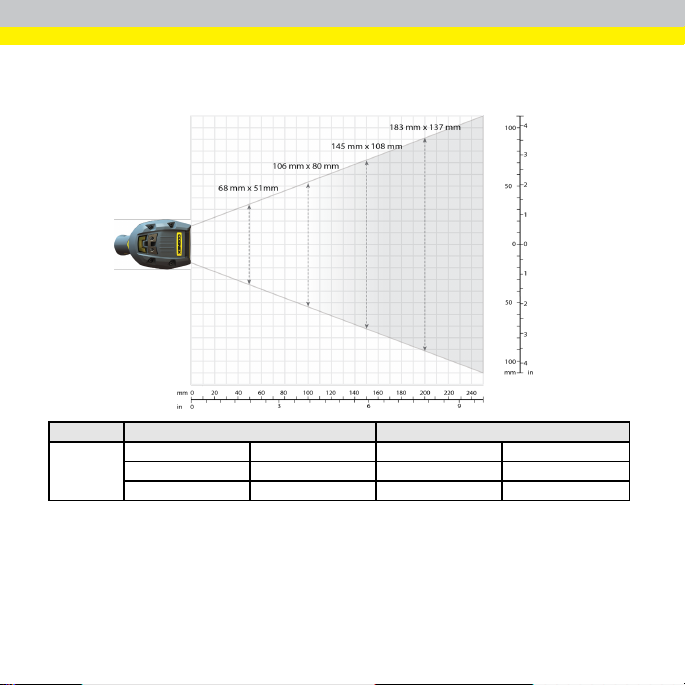

Field of View and Reading Distances
DataMan 8072 DL with a 6.2 mm Lens (Standard Range, Focused to 75 mm)
Device Distances in mm/1D min. code Distances in mm/2D min. code
DM8072 20-170 6 MIL 0-200 10 MIL
0-200 10 MIL 0-260 15 MIL
0-260 15 MIL 0-300 20 MIL
7

Connecting the Reader
Bluetooth Readers
1. Connect the slide-in to the reader and tighten the screws to lock the slide-in.
2. Insert the battery.
3. Insert the plug.
Corded Readers
1. Connect the slide-in to the reader and tighten the screws to lock the slide-in.
2. Insert the plug. Slide the cable lock up to the reader and twist the cable lock
in place.
Note: Disconnect the DataMan 8072 from power or remove the battery before inserting/removing the
communication modules.
8

Installation
Installation procedures and specifications are presented in detail in the DataMan
8072 DL Reference Manual, which is installed with the DataMan Setup Tool. From
the Windows Start menu, select the following to access the manual: All Programs >
Cognex > DataMan Software vx.x.x > Documentation.
Note:
lCables are sold separately.
lIf a standard component is missing or damaged, immediately contact
your Cognex Authorized Service Provider (ASP) or Cognex
Technical Support.
CAUTION:All cable connectors are "keyed" to fit the connectors on the
DataMan system; do not force the connectors or damage may occur.
Install Software and Documentation and
Connect the Reader
To configure a DataMan 8072 DL reader, the DataMan Setup Tool software must
be installed on a networked PC. The DataMan Setup Tool is available from the
DataMan support site: http://www.cognex.com/support/dataman.
1. After installing the software, connect the DataMan 8072 DL to your PC.
2. Launch the DataMan Setup Tool and click Refresh.
3. Select your DataMan 8072 DL reader from the list and click Connect.
9

DataMan 8072 Specifications
Weight 254 g (without slide-in)
Operating Temperature 0ºC — 40ºC (32ºF — 104ºF)
Storage Temperature -10ºC — 60ºC (14ºF — 140ºF)
Maximum Humidity < 95% (non-condensing)
Environemntal IP65
Codes 1-D barcodes: Codabar, Code 39, Code 128, and Code 93, Interleaved 2 of 5,
Pharma, GS1 DataBar, Postal, UPC/EAN/JAN, DataBar
2-D barcodes: Data MatrixT M ; QR Code and microQR Code, RSS/CS, PDF 417,
MicroPDF 417, MaxiCode, Aztec Code
Power Supply Requirements USB: external 5.0 W maximum LPS or NEC class 2 power supply: +5V - +6V DC
RS232 external 5.0W max LPS or NEC class 2 power supply
+6.0V 1A DC (5.0m RS-232 cable)
+6.0V 1A DC (2.5m RS-232 cable)
ETH: Class 2 PoE supply IEEE 802.3af (connect only to PoE networks without
routing to the outside plant)
Inrush current peak 5A maximum
Duration: approx. 30μs
Electrical charge: 60μAs at 6V
Battery life for wireless
reader (typical use case)
ca. 4100 triggers can be operated within a 13 hour working shift
Ethernet 10/100 Base-T FULL/HALF DUPLEX, IEEE 802.3
Bluetooth Bluetooth™ 2.1, 2.4 GHz
DataMan 8072 Imager Specifications
Specification DataMan 8072 Imager
Image Sensor 1/3 inch CMOS
Image Sensor Properties 3.75 μm square pixels
Image Resolution (Pixels) 1280 x 960
Lens Type 6.2 mm F:10 lens
10

DataMan Base Station Specifications
DMA-IBASE-BT-02
Weight 300 g
Operating Temperature 0ºC — 45ºC (32ºF — 113ºF)
Storage Temperature -40ºC — 60ºC (-40ºF — 140ºF)
Maximum Humidity 95% (non-condensing)
Power Supply
Requirements
24V +-10%, 15 W maximum LPS or NEC class 2 power supply
Recommended wire diameter is 14-18 AWG
LED Wavelengths
The following table shows LED types and the related wavelengths:
LED λ [nm]
RED 660
11

Regulations/Conformity
The DataMan 8072 has Regulatory Model R00049, and meets or exceeds the
requirements of all applicable standards organizations for safe operation. However,
as with any electrical equipment, the best way to ensure safe operation is to operate
them according to the agency guidelines that follow. Please read these guidelines
carefully before using your device.
Note: For the most current CE declaration and regulatory conformity
information, see the Cognex support site: cognex.com/support.
Regulator Specification
USA FCC Part 15B, Class A
Canada ICES-003, Class A
European Community CE, Class A
EN55032
EN55024
Japan VCCI-3/2015.04 CISPR 22 Class A
Korea KN32/KN35
Safety and Regulatory
Manufacturer Cognex Corporation
One Vision Drive
Natick, MA 01760 USA
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take immediate measures. This
equipment complies with the essential requirements of the EU Directive 2014/30/EU.
Declarations are available from your local representative.
12

Safety and Regulatory
FCC FCC Part 15, Class A
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Canadian Compliance This Class A digital apparatus complies with Canadian ICES-003. Cet appareil
numérique de la classe A est conforme à la norme NMB-003 du Canada.
LED Safety Statement
For European Community Users
Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT
AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment
(WEEE).
This product has required the extraction and use of natural resources for its
production. It may contain hazardous substances that could impact health and the
environment, if not properly disposed.
In order to avoid the dissemination of those substances in our environment and to
diminish the pressure on the natural resources, we encourage you to use the
appropriate take-back systems for product disposal. Those systems will reuse or
recycle most of the materials of the product you are disposing in a sound way.
13

The crossed out wheeled bin symbol informs you that the product should not
be disposed of along with municipal waste and invites you to use the appropriate
separate take-back systems for product disposal.
If you need more information on the collection, reuse, and recycling systems, please
contact your local or regional waste administration.
You may also contact your supplier for more information on the environmental
performance of this product.
14

Compliance Statements: DataMan Base Station
The DataMan Base Stations have the following Regulatory models respectively:
DMA-IBASE-BT-XX has 1AAG, DMA-CBASE-01 has R00046, and they meet or
exceed the requirements of all applicable standards organizations for safe
operation. However, as with any electrical equipment, the best way to ensure safe
operation is to operate them according to the agency guidelines that follow.
Note: For the most current CE declaration and regulatory conformity
information, see the Cognex support site: cognex.com/support.
Please read these guidelines carefully before using your device.
Safety and Regulatory
Manufacturer Cognex Corporation
One Vision Drive
Natick, MA 01760 USA
European Compliance This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take immediate measures. This
equipment complies with the essential requirements of the EU Directive 2014/30/EU.
Declarations are available from your local representative. DMA-IBASE-BT-XX: This
equipment complies with the essential requirements of EU Directives 2014/30/EU and
2014/53/EU as applicable. Declarations are available from your local representative.
DMA-IBASE-01 and DMA-CBASE-01: This equipment complies with the essential
requirements of EU Directives 2014/30/EU and 2014/53/EU as applicable. Declarations
are available from your local representative.
15

Safety and Regulatory
FCC Class A
Compliance Statement
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry
Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications made to this equipment not expressly approved by Cognex
may void the FCC authorization to operate this equipment.
Canadian Compliance This Class A digital apparatus complies with Canadian ICES-003. Cet appareil
numérique de la classe A est conforme à la norme NMB-003 du Canada.
UL and cUL Statement UL and cUL listed: UL60950-1 2nd ed. and CSA C22.2 No.60950-1 2nd ed.
Mexican Compliance DMA-IBASE-BT-XX: RCPCO1A15-0073
DMA-IBASE-01: RCPCODM12-0655
Chinese Compliance DMA-IBASE-BT-XX: CMIIT ID: 2015DJ0237
DMA-IBASE-01: CMIIT ID: 2012DJ2857
For European Community Users
Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT
AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment
(WEEE).
This product has required the extraction and use of natural resources for its
production. It may contain hazardous substances that could impact health and the
environment, if not properly disposed.
16

In order to avoid the dissemination of those substances in our environment and to
diminish the pressure on the natural resources, we encourage you to use the
appropriate take-back systems for product disposal. Those systems will reuse or
recycle most of the materials of the product you are disposing in a sound way.
The crossed out wheeled bin symbol informs you that the product should not
be disposed of along with municipal waste and invites you to use the appropriate
separate take-back systems for product disposal.
If you need more information on the collection, reuse, and recycling systems, please
contact your local or regional waste administration.
You may also contact your supplier for more information on the environmental
performance of this product.
17

中国大陆RoHS (Information for China RoHS
Compliance)
根据中国大陆《电子信息产品污染控制管理办法》(也称为中国大陆RoHS)，
以下部份列出了本产品中可能包含的有 毒有害物质或元素的名称和含量。
Table of toxic and hazardous substances/elements and their content, as required by
China’s management methods for controlling pollution by electronic information
products.
Hazardous Substances 有害物质
Part Name
部件名称 Lead (Pb) 铅Mercury
(Hg)
汞
Cadmium
(Cd)
镉
Hexavalent
Chromium
(Cr (VI))
六价铬
Polybrominated
biphenyls
(PBB)
多溴联苯
Polybrominated
diphenyl ethers
(PBDE)
多溴二苯醚
Regulatory Model R00049
Regulatory Model 1AAJ
Regulatory Model 1AAG
Regulatory Model R00046
X O O O O O
This table is prepared in accordance with the provisions of SJ/T 11364.
这个标签是根据SJ / T 11364 的规定准备的。
O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the
limit requirement of GB / T26572 - 2011.
表示本部件所有均质材料中含有的有害物质低于GB / T26572 - 2011 的限量要求。
X: Indicates that said hazardous substance contained in at least one of the homogeneous materials used for this
part is above the limit requirement of GB / T26572 - 2011.
表示用于本部件的至少一种均质材料中所含的危害物质超过GB / T26572 - 2011 的限制要求。
18

Copyright © 2019
Cognex Corporation. All Rights Reserved.
