DataMan®8072 Verifier
Quick Reference Guide
2022 August 04
Revision: 6.3.2.3

Precautions
WARNING: LASER LIGHT, DO NOT STARE INTO BEAM: CLASS 2
LASER PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS
MAY CAUSE SERIOUS INJURY.
To reduce the risk of injury or equipment damage, observe the following precautions
when you install the Cognex product:
lThis product is intended for industrial use in automated manufacturing or
similar applications.
lThe safety of any system incorporating this product is the responsibility of
the assembler of the system.
lThis product does not contain user-serviceable parts. Do not make
electrical or mechanical modifications to product components.
Unauthorized modifications can void your warranty.
lRoute cables and wires away from high-current wiring or high-voltage
power sources to reduce the risk of damage or malfunction from the
following causes: over-voltage, line noise, electrostatic discharge (ESD),
power surges, or other irregularities in the power supply.
lChanges or modifications not expressly approved by the party responsible
for regulatory compliance could void the user’s authority to operate the
equipment.
lEnsure that the cable bend radius begins at least six inches from the
connector. Cable shielding can be degraded or cables can be damaged or
wear out faster if a service loop or bend radius is tighter than 10X the cable
diameter.
2

lThis device should be used in accordance with the instructions in this
manual.
lAll specifications are for reference purposes only and can change without
notice.
lThis product is intended for industrial use in automated manufacturing or
similar applications.
lThe safety of any system incorporating this product is the responsibility of
the assembler of the system.
lThis product does not contain user-serviceable parts. Do not make
electrical or mechanical modifications to product components.
Unauthorized modifications can void your warranty.
3

Symbols
The following symbols indicate safety precautions and supplemental information:
WARNING:This symbol indicates a hazard that could cause death, serious personal injury or electrical
shock.
CAUTION:This symbol indicates a hazard that could result in property damage.
Note: This symbol indicates additional information about a subject.
Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.
4

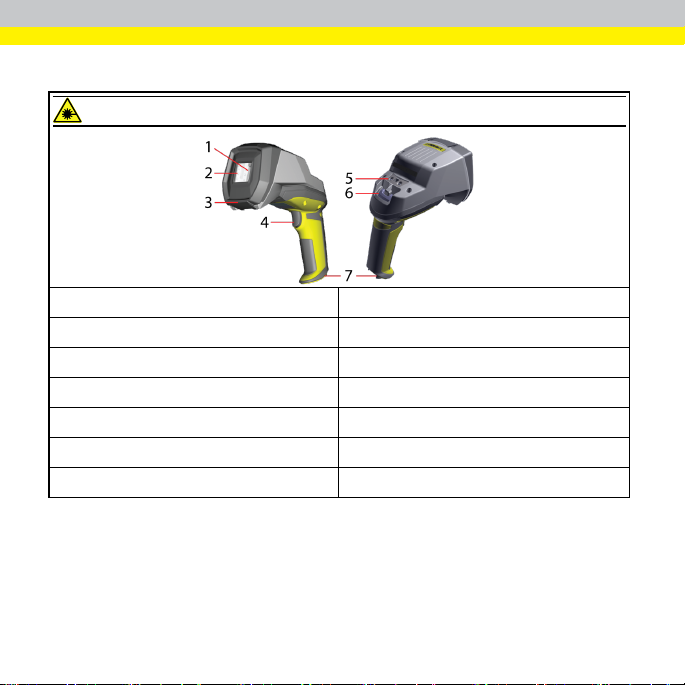

Product Overview
WARNING:LASER LIGHT, DO NOT STARE INTO BEAM
1 Imager and Lens Optical System
2 Illumination
3 Removable Standoff
4 Trigger (press and release)
5 Lanyard hook
6 Indicator light
7 Communication module insertion point
5

Status indicators:
lCommunication:
oGREEN = good verification
oRED = bad verification
6

DataMan 8072 Verifier Kits
The DataMan 8072 Verifier is available in the following kits:
Model number Description
DMV-8072V-S-0200U (USA power adapter)
DMV-8072V-S-0200E (EU power adapter) DataMan 8072 Verifier Ethernet Kit with Stand:
lDataMan 8072 Verifier
lStandoff
lEthernet Slide-In
lEthernet Cable Attachment
lStandard Ethernet Cable
lPOE Injector
lBasic Calibration Card
lStand Accessory
DMV-8072V-S-0100 DataMan 8072 Verifier USB Kit with Stand:
lDataMan 8072 Verifier
lStandoff
lUSB Slide-In
lUSB Cable
lPower Supply
lBasic Calibration Card
lStand Accessory
7

DMV-8072V-0200 (USA power adapter)
DMV-8072V-0200-EU (EU power adapter) DataMan 8072 Verifier Ethernet Kit:
lDataMan 8072 Verifier
lStandoff
lEthernet Slide-In
lEthernet Cable Attachment
lPOE Injector
lBasic Calibration Card
DMV-8072V-0100 DataMan 8072 Verifier USB Kit
lDataMan 8072 Verifier
lStandoff
lUSB Slide-In
lUSB Cable
lPower Supply
lBasic Calibration Card
DMV-8072V-0000 DataMan 8072 Verifier Kit No Slide-In
lDataMan 8072 Verifier
lStandoff
lBasic Calibration Card
8

DMV-8072VHD-0100 DataMan 8072 Verifier Kit No Slide-In
lDataMan 8072 Verifier-HD
lStandoff
lUSB Slide-in
lUSB Cable
lPower Supply
lBasic Calibration Card
lStand Accessory
DMV-8072VHD-02 (USA power adapter)
DMV-8072VHD-02EU (EU power adapter) DataMan 8072 Verifier-HD Ethernet Kit:
lDataMan 8072 Verifier-HD
lStandoff
lEthernet Slide-in
lEthernet Cable Attachment
lPOE Injector
lBasic Calibration Card
DMV-8072VHD-S-01 DataMan 8072 Verifier-HD USB Kit with Stand:
lDataMan 8072 Verifier-HD S-model
lStandoff
lUSB Slide-in
lUSB Cable
lPower Supply
lBasic Calibration Card
lStand Accessory
9

DMV-8072VHD-02U (USA power adapter)
DMV-8072VHD-02E (EU power adapter) DataMan 8072 Verifier-HD Verifier Ethernet Kit with
Stand:
lDataMan 8072 Verifier-HD S-model
lStandoff
lEthernet Slide-in
lEthernet Cable Attachment
lStandard Ethernet Cable
lPOE Injector
lBasic Calibration Card
lStand Accessory

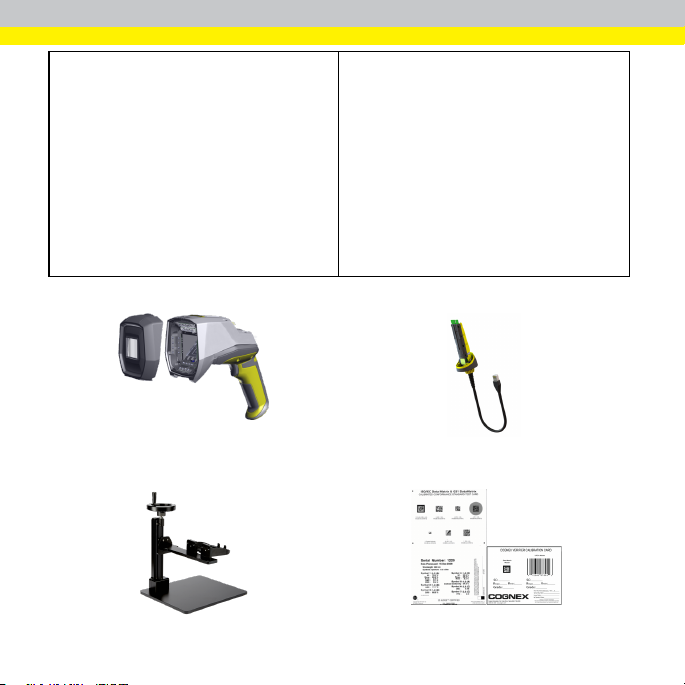

DataMan 8072V Verifier and stand-off Ethernet or USB slide-in
Stand accessory Calibration Cards
10

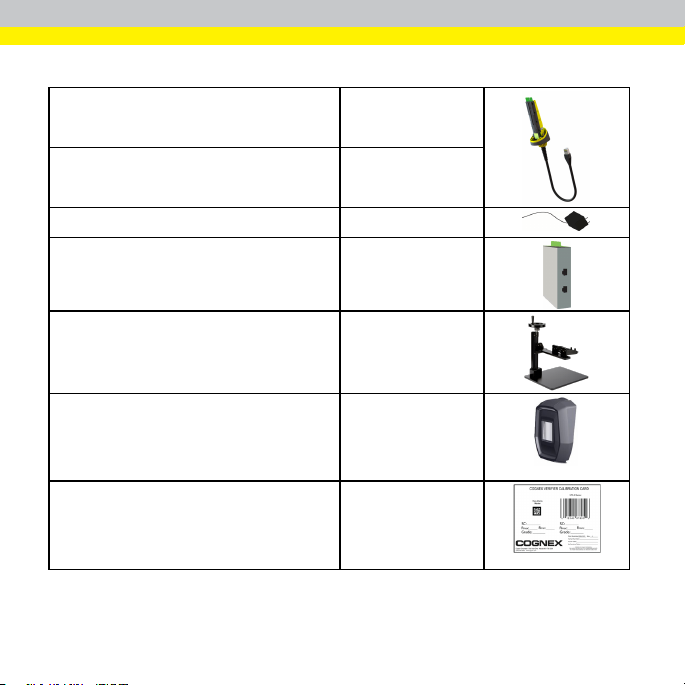

DataMan 8072 Verifier Accessories
Ethernet Slide-In DMCM-ENETM-00
Serial/USB 2.0 Slide-In DMCM-USB2EN-00
Power Supply for USB 2.0 Slide-In DM100-PWR-000
POE hub CPS-AC-POE1A-US
Stand Accessory DMV-8072V-STAND
Stand-off/Nose Cone for 8072V/HD DMV-8072V-SO-0200
Cognex Basic Calibration Card DMV-CCC
11

Applied Image Conformance Calibration Card DMV-DMCC
Validation Protocol DM8072V DMV-VP-8072V
Cables
USB Cable for USB 2.0 Slide-In, 2.5 m DM8500-USBC-02
Ethernet Cable for Ethernet Slide-In, 5 m DM8000-ECABLEC-05
Standard Ethernet Cable CBL-C10E
12

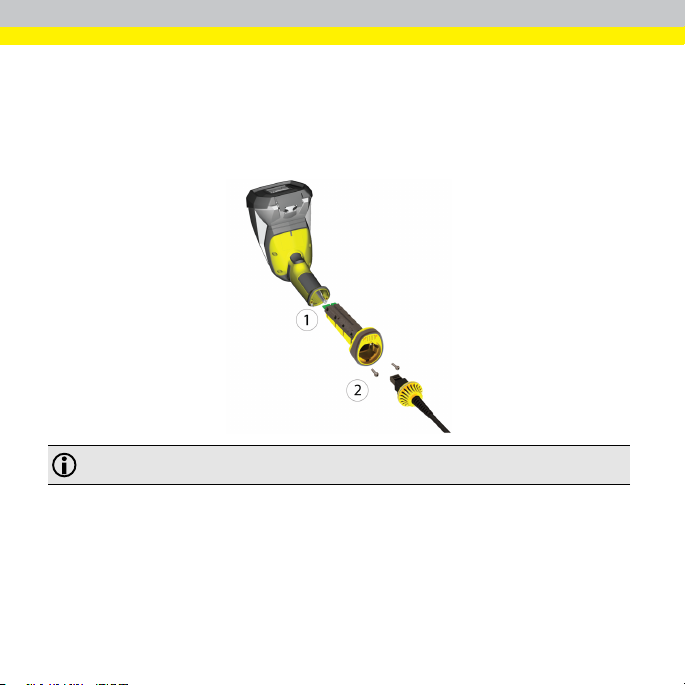

Connecting the Verifier
1. Connect the slide-in to the verifier, and tighten the screws to lock the slide-
in.
2. Insert the plug. Slide the cable lock up to the verifier, and twist the cable lock
in place.
Note: Disconnect the DataMan 8072 Verifier from power or remove the battery before inserting/removing
the communication modules.
13

Installation
Installation procedures are detailed in the DataMan 8072 Verifier Reference
Manual, which is installed with the DataMan Setup Tool. The DataMan Setup Tool is
available from the DataMan support site: http://www.cognex.com/support/dataman.
To access documentation, open the Windows Start menu, select All Programs >
Cognex > DataMan Software vx.x.x > Documentation.
Note:
lCables are sold separately.
lIf a standard component is missing or damaged, immediately contact
your Cognex Authorized Service Provider (ASP) or Cognex
Technical Support.
CAUTION:All cable connectors are "keyed" to fit the connectors on the
DataMan system; do not force the connectors or damage may occur.
1. After installing the software, connect the DataMan 8072 Verifier to your PC.
2. Launch the DataMan Setup Tool and click Refresh.
3. Select your DataMan 8072 Verifier Series verifier from the list and click
Connect.
14

DataMan 8072 Verifier Specifications
Weight 400 g (including grip assembly with battery)
Operating Temperature 0ºC — 45ºC (32ºF — 113ºF)
Storage Temperature 0ºC — 60ºC (32ºF — 140ºF)
Maximum Humidity 95% (non-condensing)
Environemntal IP65
Codes 2-D barcodes: Data MatrixTM (IDMax and IDQuick: ECC200), QR Code
Power Supply
Requirements
USB: bus powered (optionally: external 6W max LPS or NEC class 2 power supply +5V
- +6V DC)
ETH: Class 2 PoE supply IEEE 802.3af (connect only to PoE networks without routing to
the outside plant)
Inrush current peak 5A maximum
Duration: approx. 30μs
Ethernet 10/100 Base-T FULL/HALF DUPLEX, IEEE 802.3
DataMan 8072 Verifier Imager Specifications
Specification DataMan 8072 Verifier Imager
Image Sensor 1/3 inch CMOS global shutter
Image Sensor Properties 3.75 μm square pixels
Image Resolution (Pixels) 1280 x 966
Lens Type 12 mm F:4 S-mount lens
15

LED Wavelengths for DataMan 8072 Verifier
Note: The data below refer to the LED Illumination accessory of the reader,
not to the LEDindicators.
The following table shows LED types and the related wavelengths:
LED λ [nm]
RED 660
16

Regulations and Conformity
The DataMan 8072 Verifier has Regulatory Model R00071, and meets or exceeds
the requirements of all applicable standards organizations for safe operation.
However, as with any electrical equipment, the best way to ensure safe operation is
to operate them according to the agency guidelines that follow. Please read these
guidelines carefully before using your device.
Note: For the most current CE declaration and regulatory conformity
information, see the Cognex support site: cognex.com/support.
Regulator Specification
USA FCC Part 15B, Class A
Canada ICES-003, Class A
European Community CE, Class A
EN55032
EN55024
Japan VCCI-3/2015.04 CISPR 22 Class A
Korea KN32/KN35
The following table shows Safety and Regulatory Information for corded verifiers:
Safety and Regulatory
Manufacturer Cognex Corporation
One Vision Drive
Natick, MA 01760 USA
17

Safety and Regulatory
This is a class A product. In a domestic environment this
product may cause radio interference in which case the user
may be required to take immediate measures. This equipment
complies with the essential requirements of the EU Directive
2014/30/EU. Declarations are available from your local
representative.
EU RoHS Compliant to the most recent applicable directive.
FCC FCC Part 15, Class A
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Canadian Compliance This Class A digital apparatus complies with Canadian ICES-
003. Cet appareil numérique de la classe A est conforme à la
norme NMB-003 du Canada.
TÜV DataMan 8072V: Regulatory Model R00071
NRTL:TÜV SÜD SCC/NRTL OSHA Scheme for UL/CAN
61010-1.
CB report available upon request.TÜV SÜD, IEC/EN 61010-1.
The following table shows Safety and Regulatory Information for wireless verifiers:
18

LED Safety Statement
CAUTION:Illumination and Lens assembly: This device has been tested in
accordance with IEC 62471-1:2008 and has been certified to the limits of Risk
Group 2. Possibly hazardous optical radiation emitted from this product. Do
not stare at the operating lamp. May be harmful to the eyes.

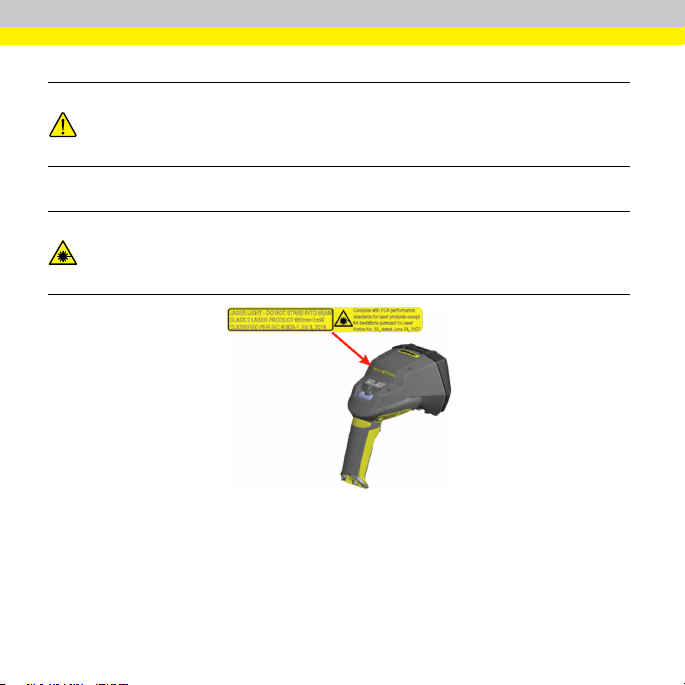

Laser Safety Statement
WARNING:Complies with FDA performance standards for laser products
except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
This device has been tested in accordance with IEC60825-1 3rd ed., and has
been certified to be under the limits of a Class 2 Laser device.
19

中国大陆RoHS (Information for China RoHS
Compliance)
根据中国大陆《电子信息产品污染控制管理办法》(也称为中国大陆RoHS)，
以下部份列出了本产品中可能包含的有 毒有害物质或元素的名称和含量。
Table of toxic and hazardous substances/elements and their content, as required by
China’s management methods for controlling pollution by electronic information
products.
Hazardous Substances 有害物质
Part Name
部件名称 Lead (Pb) 铅Mercury
(Hg)
汞
Cadmium
(Cd)
镉
Hexavalent
Chromium
(Cr (VI))
六价铬
Polybrominated
biphenyls
(PBB)
多溴联苯
Polybrominated
diphenyl ethers
(PBDE)
多溴二苯醚
Regulatory Model R00071 X O O O O O
This table is prepared in accordance with the provisions of SJ/T 11364.
这个标签是根据SJ / T 11364 的规定准备的。
O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the
limit requirement of GB / T26572 - 2011.
表示本部件所有均质材料中含有的有害物质低于GB / T26572 - 2011 的限量要求。
X: Indicates that said hazardous substance contained in at least one of the homogeneous materials used for this
part is above the limit requirement of GB / T26572 - 2011.
表示用于本部件的至少一种均质材料中所含的危害物质超过GB / T26572 - 2011 的限制要求。
20
