Colasit CRDV 200-315 User manual

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 1
OPERATION MANUAL CRDV 200 - 315
Pipe- / Roof plastic industrial fan
Agent :
For use in Ex zones
Not for use in Ex zones
COLASIT Deutschland GmbH
Oelgartenstraße 18
D-53757 Sankt Augustin
Tel.: [phone]
Fax: [phone]
[email protected]
www.colasit.de

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 2
Preface
This operating manual is the driver's license for operation of this COLASIT fan. It is the main source of
information and also the safety guideline. It deserves your full attention - please read it carefully.
The contents of this operating manual are subject to change without notice in order to take technical
progress into account.
The manual contains icons that appear in the margin and indicate special dangers and important
instructions.
Very important note
Universally applicable warnings which concern your personal safety.
Indicates electrical dangers.
Indicates process control dangers.
The entire operating manual consists of 3 parts:
Part 1: General
Part 2: Components
Part 3: Certificates

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 3
Table of contents
Part 1: General ...........................................................................................................................................................4
1General................................................................................................................................................................4
1.1 Definition........................................................................................................................................................4
1.2 Production of COLASIT-fans.........................................................................................................................4
1.3 Warranty ........................................................................................................................................................4
1.4 Safety review.................................................................................................................................................5
1.5 Personnel qualifications.................................................................................................................................5
1.6 Possible emergencies....................................................................................................................................5
1.7 Safety officer (SO).........................................................................................................................................5
1.8 General risk matrix.........................................................................................................................................6
1.9 EU conformity of the COLASIT fan................................................................................................................7
1.10 Restrictions when commissioning .................................................................................................................7
1.11 General operation conditions.........................................................................................................................7
2Explosion protection............................................................................................................................................7
2.1 Fan Ex marking..............................................................................................................................................8
2.2 Correct installation of ATEX fan ....................................................................................................................9
3Shipping, unpacking, inspection, storage............................................................................................................9
4Installation, configuration.....................................................................................................................................9
5Commissioning, initial startup, test run..............................................................................................................10
5.1 Inspection of the installation and settings....................................................................................................10
5.2 Drive.............................................................................................................................................................10
5.3 Electrical installations ..................................................................................................................................11
6Operation...........................................................................................................................................................11
6.1 Safety instructions .......................................................................................................................................11
6.2 Putting out of operation ...............................................................................................................................11
7Maintenance, repair, cleaning ...........................................................................................................................12
7.1 Preparation ..................................................................................................................................................12
7.2 Performance ................................................................................................................................................12
8Spare parts........................................................................................................................................................13
9Operating instructions .......................................................................................................................................13
10 Logbook........................................................................................................................................................13
11 Disposal........................................................................................................................................................14
12 Troubleshooting............................................................................................................................................14
13 Retrofittable original accessories..................................................................................................................15
14 Fan identification...........................................................................................................................................15
Part 2: Units..............................................................................................................................................................15
15 Design and function of the CRDV 200-315 ..................................................................................................15
16 Dimensional drawings...................................................................................................................................16
16.1 Dimensions of the CRDV 200-315 ..............................................................................................................16
16.2 Dimensions of the CRDV 200-315 ..............................................................................................................17

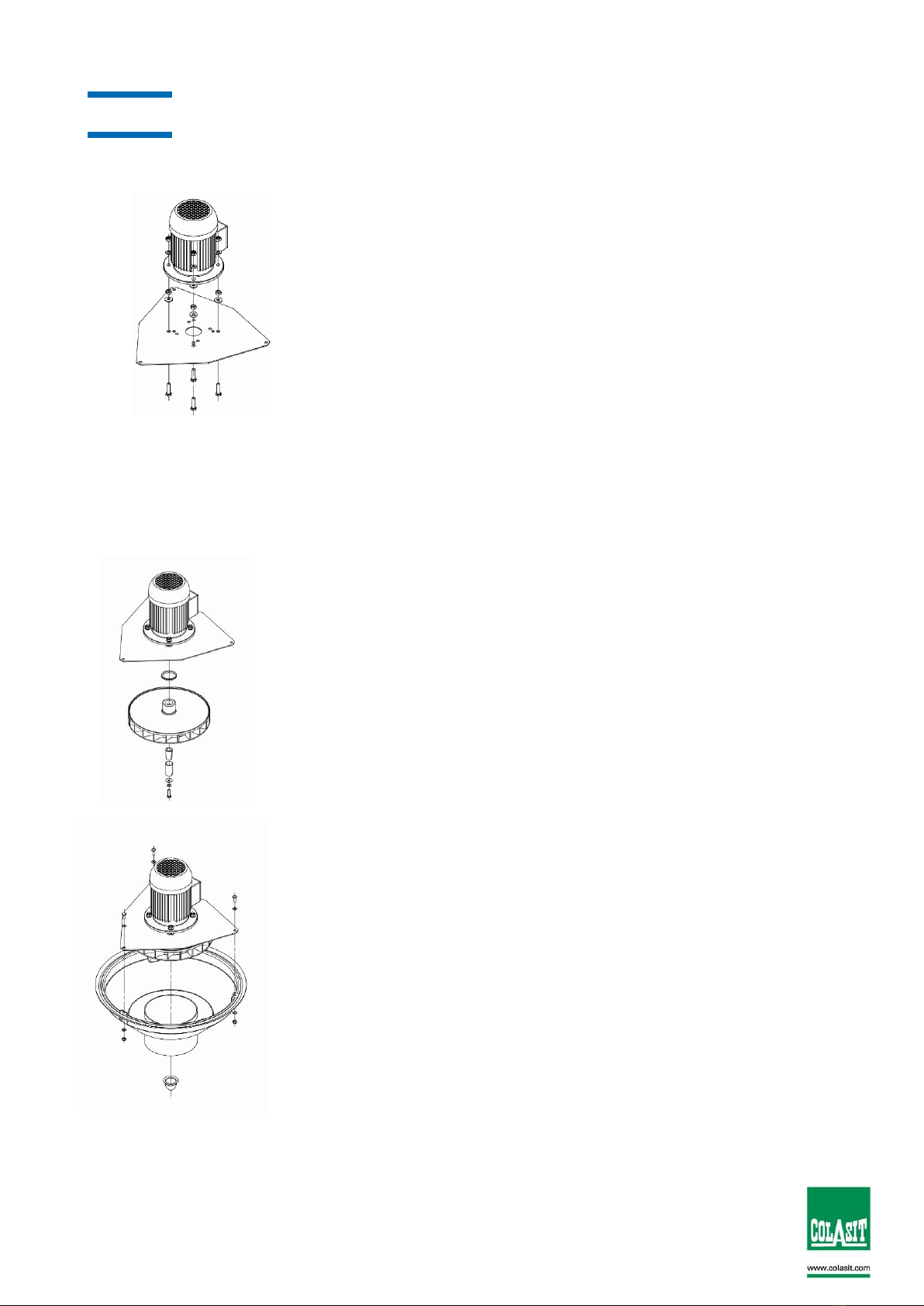

17 Assembly instructions...................................................................................................................................18
17.1 Assembly instructions CRDV 200-315 ........................................................................................................18
18 Spare parts lists............................................................................................................................................20
18.1 Spare parts list for CRDV 200-315 with direct drive....................................................................................20
Part 3: Certification ...................................................................................................................................................21
19 Certifications.................................................................................................................................................21
19.1 EU declaration of conformity .......................................................................................................................21
19.2 ATEX-Declaration of Conformity .................................................................................................................22
19.3 Further certificates.......................................................................................................................................24
20 Form fort he correct assembly ATEX-fans ...................................................................................................25

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 4
Part 1: General
1 General
OBLIGATIONS
Prior to any work done on or with the fan, we place you under an obligation to read this
operating manual and any further contractors’ operating instructions carefully and
through to the end.
Should anything not be clear, please get in touch with us immediately. Do not put the
fan into operation as long as uncertainties exist.
As soon as you start up the fan you confirm that you have read and understood the
operating manual.
After acquainting yourself with the fan and its operational performance together with your
production processes, we recommend that you make a note of the different modes of
operation in a “process instruction”.
Together with this operating manual, any acceptance documents, works acceptance certificates and the EU
Declaration of Conformity, the process instruction forms part of the complete system documentation.
For the fan, a separate risk analysis was conducted as a prerequisite for writing this operating
manual. Risks were evaluated and any remaining residual risks are pointed out in this operating
manual.
When extracting aggressive gases, it is imperative to review the suitability of the materials:
▪Once the principal or the operator has notified us of the gas mix and the maximum
operating temperature, the suitability and any applicable restrictions will be confirmed in
the data sheet of COLASIT AG.
▪In the absence of a written notification with regard to the extracted medium by
the principal, the operator is responsible without limitation for assessing the
suitability for the operation of the ventilator.
1.1 Definition
The term "COLASIT fan" stands for a Swiss high-quality product and contains all the components and
individual parts as specified in the purchase order or in the material parts list, which, when assembled, form
a functional unit.
1.2 Production of COLASIT-fans
The fan was manufactured using modern production methods and was extensively tested both during
manufacture and as a finished product by the COLASIT quality assurance system. The methods and
processes used in production and monitoring correspond to the state of the art. The personnel entrusted
with production of the fan have the appropriate skills and possess valid qualifications.
All fans with engine are subjected to a successful test run at the manufacturer’s production facilities.
1.3 Warranty
Warranty ends on the date stated in the general terms of sale and delivery. Warranty is limited to the
delivery of spare parts or the repair of defective parts at the manufacturer’s factory. Any further claims or the
replacement of non-repairable or wear parts are excluded.
We guarantee the availability of spare parts identical in construction to the original over a period of 10 years
effective from the date of delivery.
COLASIT only guarantees the durability of materials on condition that technological data was available
before production.

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 5
Any change in the conditions of use is only permissible after approval by COLASIT; otherwise this will entail
loss of warranty.
Any changes or repair work during the warranty period may only be made by our fitters or with our written
consent.
We refer to the limitation of warranty noted in the “Motor“-section in the case where a frequency converter
supplied by a third party is fitted.
The fan must be deployed and used in accordance with the conditions mentioned in this
operating manual. Only in this way can its function be guaranteed and dangers to persons
and material be excluded during operation. We accept no liability nor guarantee any claims
for damages arising from nonobservance of this manual or from inappropriate operation.
1.4 Safety review
After installing the fan, we recommend the operator conducts a review of the entire operational environment.
In this way it can be guaranteed that neither the fan will suffer damage nor that the fan will cause any
damage.
1.5 Personnel qualifications
The fan may only be put into operation, handled, operated, maintained and cleaned by trained personnel
who are authorised (and competent) to carry out such work.
The personnel must possess the appropriate skills needed to operate the fan and be familiar with the effects
of the reactions caused by the fan.
The personnel qualified to operate the fan must be able to react adequately and correctly in case of a fault or
an emergency.
1.6 Possible emergencies
An emergency may result from the bursting or melting of plastic components as a result of mechanical
damage or chemical and thermal influences. In this case, parts may fly off or vapour may be produced that
may be hot, corrosive, poisonous, irritating or inflammable (e.g. hydrochloric acid vapour occurring from
burning PVC).
There may be a danger of fire under certain circumstances.
For the choice of the correct fire-extinguishing devices and the positioning of the firefighting equipment,
please follow the recommendations of your local fire station.
1.7 Safety officer (SO)
The function of the safety officer or his representative is defined in the operating company’s organisational
chart. The name of the person must be known to all personnel who are responsible for the fan.
The operating company defines his competencies and his area of responsibility.
The safety officer approves the fan for operation.

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 6
1.8 General risk matrix
Operation
The safety regulations prevailing at the operator’s location are mandatory and must be
observed at all times. Before making an intervention, the process must be stopped, i.e.
all mechanical movement must be stopped and it must be ensured that no automatic
motion can occur.
Missing safety devices
If the fan is equipped with safety devices, they may neither be modified nor removed.
Further safety devices of suitable design must be fitted by the operator and are subject
to his control.
Disregard of safety precautions
Please implement all safety measures so that the fan, together with its associated
equipment, can operate properly and any danger to persons, materials and products can
be excluded.
Putting the fan out of operation
In the case of damage to or failure of safety devices, the fan must be stopped and put
out of operation. It may only be put into operation again when the safety devices are fully
functional again.
Electricity
When any work is carried out on the fan, the electric motor must be deenergised and
secured to prevent it from switching on. The main power switch must be secured against
operation by third parties using a lockable device (e.g. padlock) by the persons working
on the fan. Full disconnection of the motor is only permissible in case of complete
removal!
The safety regulations for work on electrical equipment prevailing at the place of
operation must be observed at all times and be available for reference at the place of
operation.
Electrostatic charge
Media flowing through the plastic components may cause the buildup of electrostatic
charge. These are harmless to persons who do not react to electrical impulses in the
body
Unsuitable materials
Through the use of inappropriate materials, the fan and/or parts may be damaged or
become non-functional. Please always use original spare parts and contact the
manufacturer in any case of doubt.
Dangerous media
Depending on the mode of operation, fan parts may come in contact with dangerous
media.
Work on the fan or carrying out maintenance work is not allowed during operation.
Before carrying out any work, any dangerous media must be removed from the system
and, when required, must be neutralized and secured in such a way that an inflow of
dangerous media is prevented.

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 7
1.9 EU conformity of the COLASIT fan
The fan was designed, built and tested to Directive 2006/42/EC.
In addition to this EU Directive and EN standards which have the equivalent status of a Swiss standard,
Swiss safety and accident-prevention regulations have also been taken into account.
An EU Declaration of Conformity in terms of the guidelines 2006/42/EC on machines will be issued
along with the fan.
1.10 Restrictions when commissioning
We stipulate that putting into operation is prohibited as long as the fan, including all parts
belonging to it or equipment connected to it, has not been installed and checked out and
until the operating manual has been read completely before commissioning.
We stipulate that the fan may only be put into operation when the safety inspector has given
his approval. He is obliged to record this approval in a protocol.
The disregard of these stipulations constitutes negligence.
1.11 General operation conditions
The permissible operating conditions are indicated on the manufacturer‘s plate.
The fan is not suitable for the transport of solids in the air flow. This operating mode will
lead to the destruction of the fan.
The ducts on the intake and delivery sides must always be open. A closed duct will lead to a rise in
temperature which could cause the destruction of the fan.
The minimum air speed through the fan is 3 meters per second.
If exhaust air with a temperature > 5°C flows through the fan, it can be used up to an ambient temperature of
-20°C.
The standard motors are designed for normal operating conditions (ambient temperature -20 to +40°C,
altitude below 1000 m above sea level, air pressure up to 1050 hPa). In case of any divergence from
these conditions, please contact COLASIT.
Compliance with these operating conditions is the responsibility of the operator.
2 Explosion protection
COLASIT plastic fans are suitable for the conveyance of gases in Zone 1 or 2 (Equipment Category 2 or 3)
depending on the model. COLASIT plastic fans are not suitable for the conveyance of gases in Zone 0
(Equipment Category 1).
The zone classification of the conveyed medium and the site of installation must be made known by the fan
operator so that COLASIT can take the necessary measures to prevent the risk of ignition.

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 8
The explosion-proof COLASIT fans are not suitable for the conveyance of explosive dusts.
No modifications may be made to ATEX-certified fans. All work on the fan may only be
carried out by ATEX-trained skilled personnel.
Otherwise the ATEX Certificate will lose its validity.
On ATEX certified fans, the external grounding terminal of the motor and fan must be
connected to a potential equalization system.
Motors with protection type "eb" are standard for using in the explosion-proof design of our fans. The
standard version of the motors used complies with temperature class T3 (maximum surface temperature
200ºC).
As special-purpose design, motors with protection type "db (or db eb)" or motors with temperature class T4
(maximum surface temperature 135°C) are also available.
The user must define a suitable temperature class for his application that does not reach
the ignition temperature of his conveyed medium.
Please also observe the specifications in the operating instructions of the motor
manufacturer.
The thermal motor protection must be connected in compliance with the manufacturer's
specifications (operating instructions).
If a frequency converter is fitted, you have to use pressure-proof enclosed motors. In
addition, a certified PTC resistor releasing device must be fitted.
The following specifications must be included on the motor rating plate: min and max
frequencies, min and max speeds, min and max torque or output, limit temperature PTC
and PTC release time.
2.1 Fan Ex marking
The Ex marking is located on the rating plate of each ATEX fan. On a fan of Equipment Category 2
(Zone 1), it looks like this
II 2/3G Ex h IIB+H2T3 Gb/Gc
CE-marking
Marking denoting prevention of explosions
II Equipment Category II, for all Ex applications which do not
fall in Class I (mines and surface workings).
2/3G Equipment Category inside/outside the fan
Equipment Category 2 is the equivalent of Zone 1 and
Equipment Category 3 is the equivalent of Zone 2
“G“ fan for the conveyance of explosive gases
Ex h Protection type „design safety“
IIB+H2Equipment Category (gases)
T3 Temperature class T3: Max. surface temp. 200 °C
T4: Max. surface temp. 135 °C
Gb/Gc Equipment Protection Level (EPL)

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 9
2.2 Correct installation of ATEX fan
The fan must be installed properly to guarantee trouble-free operation. To document proper installation, you
will find a form on the last pages of this operating manual. The fitter must confirm the proper installation item
for item on this form.
The signed form must be kept by the safety officer or operating company.
COLASIT also offers a comprehensive installation service for fans.
3 Shipping, unpacking, inspection, storage
The fan is completely assembled and can be delivered in a closed film wrapping.
Please make sure the delivery corresponds to the shipping documents.
Please examine the packaging for external damage and report any damage immediately to
the transport company, the supervisor and the manufacturer.
Please handle the fan with care. During transportation, only apply strain on the steel parts. Plastic is
sensitive to impact and knocks, especially in the temperature range under +5°C.
When the film is removed, the intake and pressure nozzles are open and unprotected
against the intrusion of foreign objects. Therefore, please do not remove the protective film
until shortly before final installation.
Storage
If the fans are not put into operation immediately, store them in a clean dry place where
they are protected from impacts, vibrations, and temperature fluctuations and where the air
humidity is under 90%.
If these storage conditions are not available, switch the fans on at regular intervals to
exclude the risk of condensate forming. Before switching on, unscrew the condensate drain
plugs each time and replace them afterwards.
Store the fan in a dry, weather-protected place and cover with a tarpaulin to protect it from dust and soiling.
If stored for over one year, test whether the fan bearings rotate freely before putting into operation.
4 Installation, configuration
Before installation, check whether all the locking screws (including the motor screws)
are tightened properly.
Check the electrical connections if wired at the factory.
Before installation, check that there are no foreign bodies in the coil or in the intake and
pressure connections.
The fan must be installed at a location provided and prepared by the customer and must be secured and
connected in such a way that any possible vibration occurring can be absorbed by the vibration dampers
supplied by COLASIT.
If no ducting is foreseen on the intake side, the intake connection should be protected by a sturdy protective
grating (10mm mesh) to be provided by the customer. If small particles can be sucked in which could cause
damage to the fan, a protective grating with a correspondingly small mesh must be fitted.
Connection ducting on the pressure side must be routed to prevent the backflow of foreign bodies, rainwater
or condensate into the fan. To ensure this, please use the COLASIT condensate drain nozzles.

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 10
Due to the possibility of noise nuisance, we recommend that the fan should not be installed in the immediate
vicinity of workplaces.
5 Commissioning, initial startup, test run
The fan should only be put into operation after inspection and approval by the safety officer.
5.1 Inspection of the installation and settings
Check list:
Prior to commissioning and initial start-up, it must be guaranteed that
the fan is installed vibration-free and mechanically secured,
all components are cleaned both on the inside and the outside and are free from foreign bodies,
all intake and pressure ducts connections are leak-proofed
all rotating parts are protected against unintentional contact,
the electrical connections are installed and their function tested,
a lockable revision switch is available to which the fan is connected
the equipment is functionally tested,
the safety inspector has made sure that safety equipment exists,
the operating personnel is familiar with the operating manual,
the safety inspector has given his approval for the operation of the installation and that no external
persons are present in the plant area
If envisaged by procedural regulations provided by the operator, minutes have to be taken on the
commissioning work, including the observance of the check list.
5.2 Drive
The fan is driven by an electric motor which is connected to the impeller shaft either directly or via a V-belt.
The motor electrical specifications are indicated on the motor’s rating plate or in the motor manufacturer’s
data sheet.
When speed is controlled by means of a frequency converter, the maximum speed is limited by COLASIT to
the value indicated on the manufacturer’s rating plate.
If the frequency converter is not supplied by COLASIT, the operator is responsible for
compliance with the maximum speed limitation. In this case, COLASIT will not assume any
liability for damage that may be attributed to exceeding the maximum speed.
In order not to overload the fan mechanically, acceleration and braking times of at least 15sec. must be
observed for < 1.5kW rated motor power and 30sec. for > 1.5kW rated motor power.
Depending on the maximum available starting current of the frequency inverter, a longer acceleration time
may be necessary to avoid an error message.

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 11
5.3 Electrical installations
The electrical installations may only be carried out by an authorised electrician in accordance with the
regulations prevailing at the site at which the fan is installed.
To interrupt the power supply, a revision switch must be provided. It is advisable to mount this switch in the
vicinity of the emergency exit.
Please request confirmation from an in-house electrician that the electrical installations were carried out and
tested in accordance with regulations, that all functions were tested (or simulated) and that the rotational
direction is correct.
Warning
Do not turn power on or off without prior warning to persons in the area where the fan is
operating. Switching operations must be co-ordinated with other functions in the working
area of the fan.
6 Operation
6.1 Safety instructions
The fan must be operated according to this manual. This will avoid the occurrence of any
damage.
Supervision
The fan must not be operated unattended as long as it conveys substances whose
reactions are unknown or if unexpected reactions are anticipated.
If supervision must be withdrawn for operational reasons, this must be reported to the
safety officer and the system must be secured in such a way that no unauthorized
intervention can be carried out. The safety officer must decide on issues regarding
supervision.
6.2 Putting out of operation
An internal process instruction must regulate the work to be carried out as well as the preparatory work for
putting back into operation (e.g. cleaning).

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 12
7 Maintenance, repair, cleaning
7.1 Preparation
Before any work is carried out on the fan, the fan must be set to its "safety position".
The „safety position“ is defined as follows:
- The drive must be currentless and the revision switch secured against switching on,
-The fan impeller can be manually rotated,
- Fan must be flushed with fresh air and be condensate-free,
- Fan must be at room temperature,
- Personal protective equipment must be available and it must be worn. (Use of protective gloves
because of sharp edges, ear protectors if necessary).
- A sign, e.g. „Under-repair“, must be attached to the system,
- The safety devices may be removed,
- The work to be carried out must not be done under time pressure,
- The general and specific regulations on accident prevention as well as the EKAS guidelines
(Switzerland) must be observed,
- The safety officer must be informed about the nature and course of the work,
If the intake and delivery ducts of the fan are dismounted for a longer period of time, the openings must be
closed off.
7.2 Performance
The fan must be maintained in accordance with the Maintenance Plan below. The maintenance work carried
out must be noted down in the logbook (see the section on Logbook).
Every week
Every month
Every year
•Make a visual inspection of
fan for damage, leaks,
corrosion and attachment.
•Check the smooth running of
the fan and electric motor.
•Check the impeller and casing
for deposits and clean if
necessary.
•Remove any dust deposits on
the fan and motor.
•Check the flexible transitions
from fan to duct system for
leaks and state.
•Check the function of the
condensate nozzle.
•Check the state of the vibration
dampers.
•Check the state of the hub
gasket (if fitted).
•Carry out a thorough cleaning
of the entire fan (including
impeller).
•Check the parts in contact with
the conveyed medium for
corrosion.
•Check the minimum clearance
between the impeller and
casing (minimum 1% of intake
diameter, maximum 20mm).
•Measure the vibrations at
bearings (KA) or motor (DA).
Alarm according to ISO 14694:
≤3.7 kW, categorie BV-2: 14.0
mm/s (r.m.s.) or ≤300 kW,
categorie BV-3: 11.8 mm/s
(r.m.s.).
•Check the stands for damage
and stability.
•Check all screw unions for firm
seating.

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 13
Components which are not intended for repair by the operator must be sent to the manufacturer or agent for
repair or replacement (e.g. damaged impeller).
Your agent or COLASIT
also offers customer services
Manufacturer
COLASIT AG
Faulenbachweg 63
CH 3700 Spiez / Switzerland
Tel.:
0041 (0)33 655 61 61
Fax.:
0041 (0)33 654 81 61
e-mail
[e-mail]
Agent
see front page
8 Spare parts
Please identify components by means of the position and drawing numbers as well as the order number and
type designation.
Use only original spare parts. Our warranty becomes null and void if other or unapproved components are
used.
Please address your spare parts order to our customer service department.
9 Operating instructions
To operate the fan, we recommend the production of process instructions. These documents are intended to
simplify repetitive workflows, reduce the risk of incorrect operation and are a valuable aid for training and
when personnel changes occur.
If the fan must be qualified, process instructions are an absolute prerequisite.
You will find important instructions on how to produce process instructions in various chapters of this
operating manual.
To help ensure the safe operation of the fan, COLASIT offers the service of reviewing
process instructions prepared by the operator.
10 Logbook
For your own safety and as an aid to personal responsibility, we recommend the keeping of a logbook for the
entire period during which the fan is in service.
All events should be recorded in the logbook.
In case of damage and also in case of an accident, this document is the first source of information.
For example, enter the date and your signature:
- Start and end of a work cycle
- Special events, even if they do not concern the fan itself (e.g. power failure, alarm)
- Change of supervision staff (e.g. in case of shift operation),
- Repairs carried out and spare parts installed,
- Putting out of operation,
- Special instructions,
- etc.

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 14
11 Disposal
Before disposing of plastics and other components (complete or as broken parts), please clean them as
necessary to avoid any danger to the environment.
Dispose of the components properly. Instruct a waste disposal company to do this or return them to us for
disposal.
12 Troubleshooting
If faults occur, we recommend you identify and clear them using the following table.
If the fault cannot be cleared, please contact our customer service department.
Fault
Possible causes
Remedy
Fan not running smoothly
Impeller imbalance
Rebalance by specialist company
Impeller caked up
Clean carefully rebalance if
necessary
Material corrosion on impeller due
to aggressive conveyed medium.
Consult the manufacturer
Impeller deformed due to high
temperature.
Consult the manufacturer.
Install new impeller.
Check bearings
Leak at shaft bushing
Seal not suitable for application
Consult the manufacturer
Leak on sleeves
Sleeves defective
Replace sleeves
Tensioning straps not tight
enough
Retighten tensioning straps
Fan output too low
Incorrect rotation direction of
impeller
Change rotation direction
Pressure losses in ducts too high
Change duct arrangement
Restrictors not or only partly open
Check opening on site
Intake or pressure duct blocked
Remove blockage
Fan fails to reach its rated speed
Electrical switching mechanisms
incorrectly adjusted
Check motor protection setting and
reset if necessary
Motor winding defective
Please consult the manufacturer
Drive motor drive not correctly
designed
Please consult manufacturer to
verify starting torque
Grinding noises when fan is
running or starting
Intake duct fitted under tension
Remove intake duct an realign

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 15
13 Retrofittable original accessories
If not already a part of our scope of supply, these original parts are available ex stock when ordered.
- Frequency converters
- Roof-mounting plinth
- Insulated roof-mounting plinth
- Roof-mounting flange
- Fixing for wall-mounting
- Fixing for ceiling / floor-mounting
- Self-acting flap in intake
- Elastic sleeves
- Condensate drains
- Protective grating for intake-and outtake flap
14 Fan identification
The following rating plate is affixed to each COLASIT fan:
1Manufacturer
2Field for CE marking and applicable standards
3ATEX-identification, for details see the section on Explosion Protection
4Fan specifications: fan type, casing design, material of casing and impeller, order number and date of
manufacture.
5 Technical specifications
Part 2: Units
15 Design and function of the CRDV 200-315
All impellers in this series are balanced to better than G 6.3 according to ISO 21940.
The casing with its thermoplastic rear panel is screwed onto the support base and can be easily dismantled
for inspection or cleaning purposes.
The fans are available in 2 standard designs
•As a roof ventilator mounted on a roof-mounting plinth or on a chimney-pipe supplied by the customer
•As an in-line fan mounted directly in ducting
As a basic principle, plastic fans are to be installed on the intake side in order to avoid leaks.

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 16
16 Dimensional drawings
16.1 Dimensions of the CRDV 200-315
Ventilator
Typ CRDV
Measurements
NWØ
A
B
C
ØD
L
200R
200
117
558
125
575
800
250R
250
162
572
170
635
904
315R
315
212
598
220
705
1030

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 17
16.2 Dimensions of the CRDV 200-315
Ventilator
Typ CRDV
Measurements
NWØ
A
B
C
ØD
H
200D
200
495
400
100
575
575
250D
250
535
435
144
635
590
315D
315
625
520
194
705
615

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 18
17 Assembly instructions
17.1 Assembly instructions CRDV 200-315
1. Attach motor to the motor plate
2. Mount impeller and V-ring seal
3. Screw motor-plate, lower part of housing and intake
together, adjust impeller (5mm minimum clearance to
casing), tighten impeller and put on hub cap

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 19
4. Mount round seal an upper part of housing on the
lower part, fasten both housing halves together
using the retaining ring
Dismantle in the same way but in reverse order

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone [phone] Fax [phone]
TD-000 675-E
Edition 05/2021, Subject to alteration
Copyright by COLASIT AG Spiez
Page 20
18 Spare parts lists
18.1 Spare parts list for CRDV 200-315 with direct drive
1 Hood complete 8 Clamp adapter set
2 Bottom part 9 Hub cap
4 Motor plate 10 Clamp ring
5 V-seal 11 Round gasket
6 Impeller 12 Profiled seal
7 Motor
