BLAUBERG Ventilatoren VENTO Ergo A50-1 Pro1 User manual

OPERATION MANUAL
SINGLE-ROOM REVERSIBLE ENERGY
REGENERATION VENTILATOR
EN
VENTO Ergo A50 Pro1
VENTO Ergo A50-1 Pro1
VENTO Ergo A50 S Pro1
VENTO Ergo A50-1 S Pro1
VENTO Ergo A85 Pro1
VENTO Ergo A85-1 Pro1
VENTO Ergo A85 S Pro1
VENTO Ergo A85-1 S Pro1

2
www.blaubergventilatoren.de
VENTO Ergo A50/85(-1)( S) Pro1
Read the user’s manual carefully prior to installing and operating the unit.
Fulfil the user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical and technical norms and
standards.
The warnings contained in the user’s manual must be considered most seriously since they contain vital personal safety information.
Failure to follow the rules and safety precautions noted in this user’s manual may result in an injury or unit damage.
After a careful reading of the manual, keep it for the entire service life of the unit.
While transferring the unit control the User’s manual must be turned over to the receiving operator.
Symbol legend:
WARNING!
DO NOT!
The user’s manual consisting of the technical details, operating instructions and technical specification applies to the installation and mounting of the
single-room energy regeneration reversible ventilator VENTO Ergo A50/85 Pro1, (hereinafter „the unit“ as mentioned in the „Safety Requirements“ and
„Manufacturer’s Warranty“ sections as well as in warnings and information blocks).
• Disconnect the unit from power mains prior to
any installation operations. • Unpack the unit with care.
• Do not lay the power cable of the unit in close
proximity to heating equipment.
• While installing the unit follow the safety
regulations specific to the use of electric tools.
Safety requirements ..................................................................................................................................2
Purpose...............................................................................................................................................................4
Delivery set.......................................................................................................................................................4
Designation key.............................................................................................................................................4
Main technical parameters.....................................................................................................................5
Design and operating logic ...................................................................................................................6
Mounting and set-up.................................................................................................................................8
Unit connection .........................................................................................................................................10
Control..............................................................................................................................................................13
Maintenance.................................................................................................................................................15
Troubleshooting.........................................................................................................................................16
Storage and transportation regulations ....................................................................................17
Manufacturer’s warranty.......................................................................................................................17
Acceptance certificate ...........................................................................................................................18
Seller information......................................................................................................................................18
Installation certificate..............................................................................................................................18
Warranty card...............................................................................................................................................18
CONTENTS

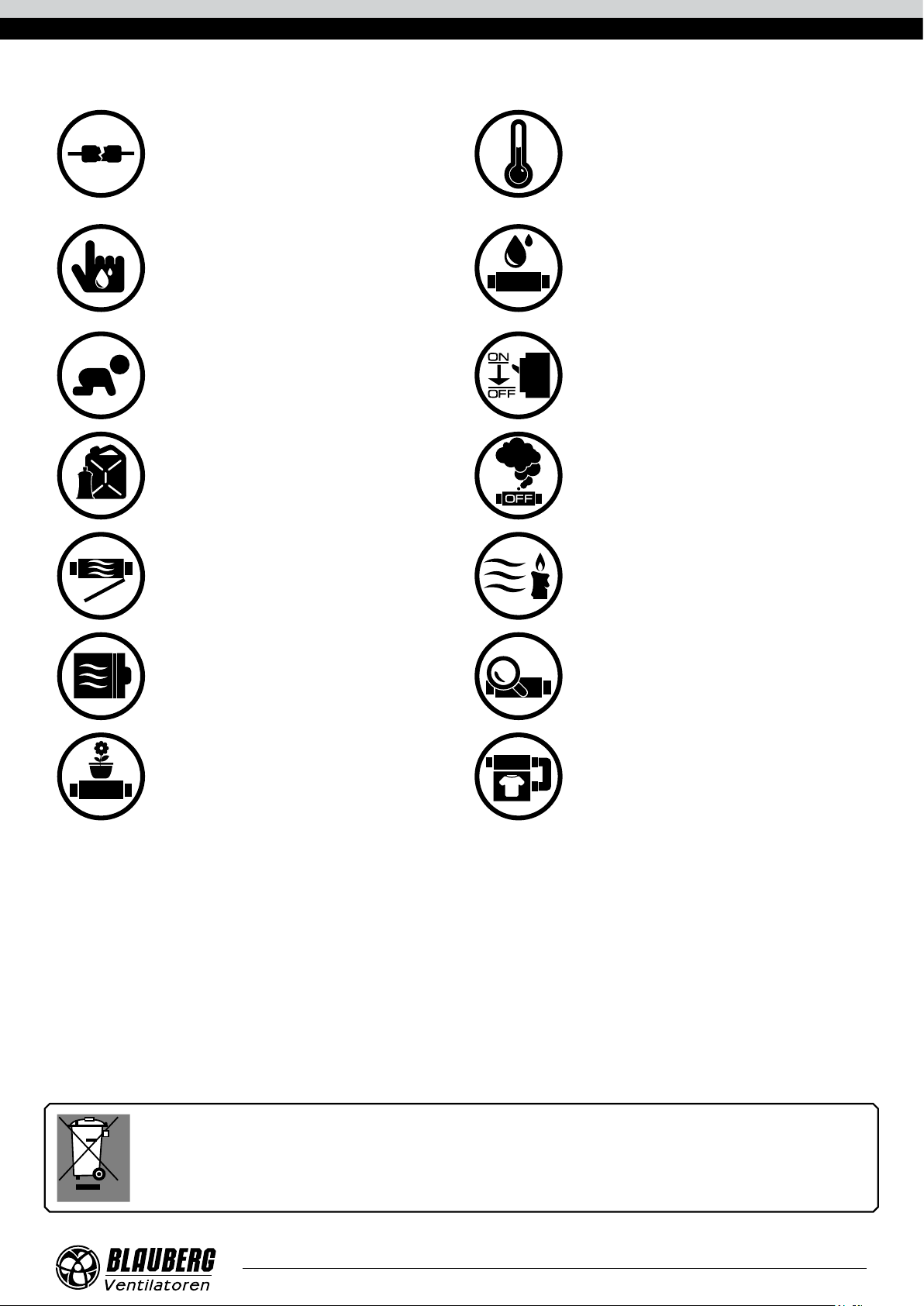

SAFETY REQUIREMENTS
UNIT MOUNTING AND OPERATION SAFETY PRECAUTIONS

3
www.blaubergventilatoren.de VENTO Ergo A50/85(-1)( S) Pro1
• Do not use damaged equipment or cables
when connecting the unit to power mains.
• Do not operate the unit outside the
temperature range stated in the user’s manual.
• Do not operate the unit in aggressive or
explosive environments.
• Do not touch the unit controls with wet hands.
• Do not carry out the installation and
maintenance operations with wet hands.
• Do not wash the unit with water.
• Protect the electric parts of the unit against
ingress of water.
• Do not allow children to operate the unit. • Disconnect the unit from power mains prior to
any technical maintenance.
• Do not store any explosive or highly flammable
substances in close proximity to the unit.
• When the unit generates unusual sounds, odour
or emits smoke disconnect it from power supply
and contact the Seller.
• Do not open the unit during operation. • Do not direct the air flow produced by the unit
towards open flame or ignition sources.
• Do not block the air duct when the unit is
switched on.
• In case of continuous operation of the unit
periodically check the security of mounting.
• Do not sit on the unit and avoid placing foreign
objects on it. • Use the unit only for its intended purpose.
RECYCLE AT THE END OF THE SERVICE LIFE.
DO NOT DISPOSE THE PRODUCT WITH UNSORTED MUNICIPAL TRASH.

4
www.blaubergventilatoren.de
VENTO Ergo A50/85(-1)( S) Pro1
The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls and other utility and public spaces.
The ventilator is equipped with a ceramic regenerator that enables supply of fresh filtered air heated by means of extract air heat energy regeneration.
The ventilator is designed for through-the-wall mounting.
The telescopic ventilator design enables its installation in the walls with various thickness, see the table below:
Model Wall thickness
VENTO Ergo A50/85 Pro1
VENTO Ergo AA50/85-1 Pro1 240 mm–425 mm (9
7
/
16
’’ – 16
9
/
16
”)
VENTO Ergo A50/85 S Pro1
VENTO Ergo A50/85-1 S Pro1 120 mm–300 mm (4
3
/
4
’’ – 11
13
/
16
’’)
The unit is rated for continuous operation.
Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, coarse dust, soot
and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic germs).
Name Quantity
Ventilator 1 item
Mounting kit 1 item
Cardboard template 1 item
Remote control 1 item
Mounting hood installation instruction 1 item
User's manual for the ventilator 1 item
Packing box 1 item
PURPOSE
DELIVERY SET
THE UNIT MAY NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL, MENTAL
OR SENSORY CAPACITIES, OR LACKING THE APPROPRIATE TRAINING.
THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED PERSONNEL
AFTER THE APPROPRIATE BRIEFING.
THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORIZED ACCESS BY
UNATTENDED CHILDREN.

5
www.blaubergventilatoren.de VENTO Ergo A50/85(-1)( S) Pro1
The ventilator is rated for indoor application with the ambient temperature ranging from -20 ˚C (-4 ˚F) up to +50 ˚C (+122 ˚F) and relative
humidity up to 80 %.
The ventilator is rated as a class I electric appliance.
Ingress Protection (IP) rating from solid objects and liquids IP24.
The ventilator design is regularly improved, so some models may slightly differ from those ones described in this manual.

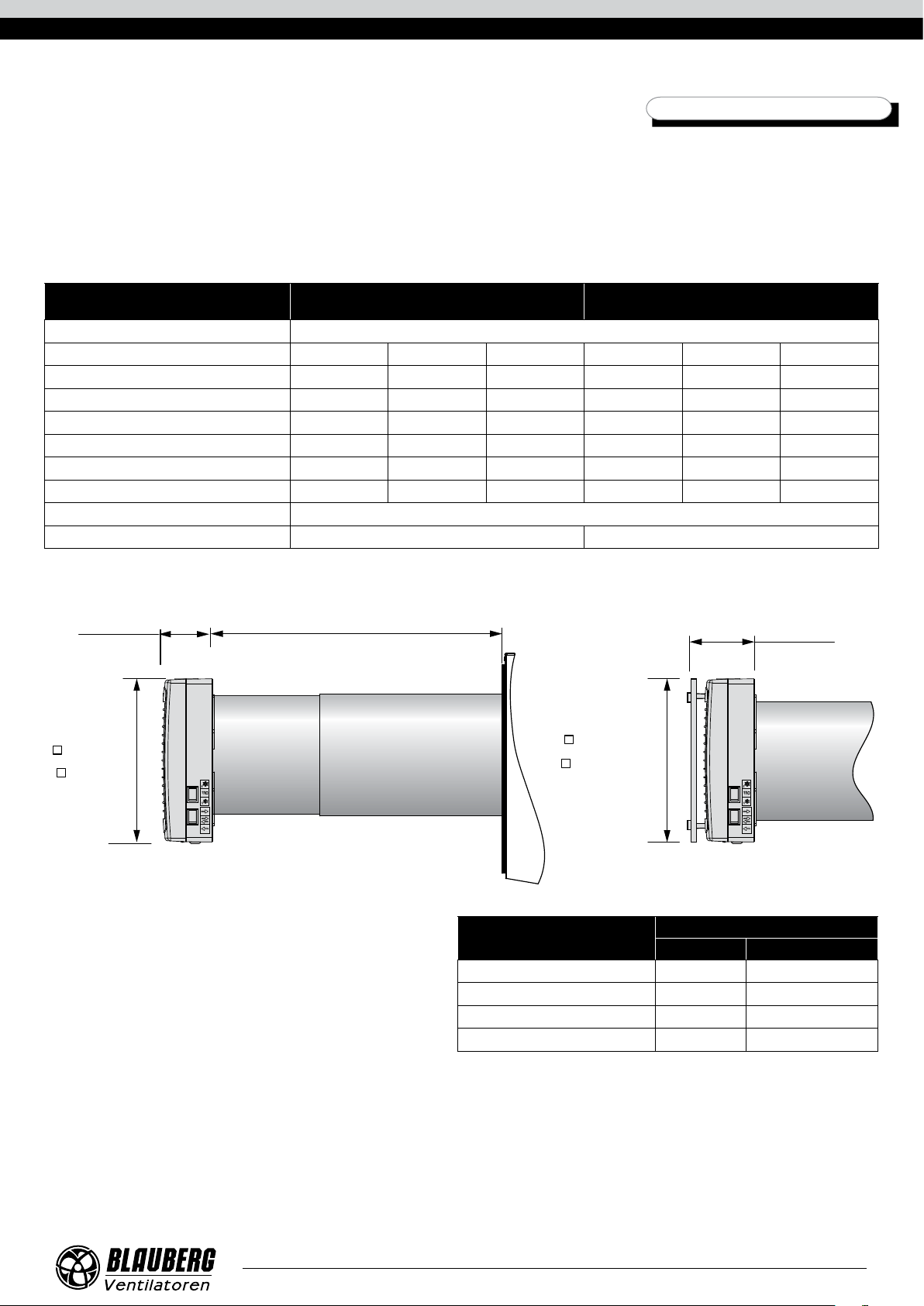

TECHNICAL DATA
Parameters VENTO Ergo A50 Pro1 / VENTO Ergo A50-1 Pro1
VENTO Ergo A50 S Pro1 / VENTO Ergo A50-1 S Pro1
VENTO Ergo A85 Pro1 / VENTO Ergo A85-1 Pro1
VENTO Ergo A85 S Pro1 / VENTO Ergo A85-1 S Pro1
Supply Voltage, 50 (60) Hz [V] 1~100–240
Speed I II III I II III
Power consumption [W] 4,50 5,00 7,00 4,74 6,56 9,65
Total current consumption [A] 0,024 0,026 0,039 0,034 0,050 0,071
Air capacity [m3/h] (CFM) 21 (12) 32 (19) 50 (29) 36 (21) 59 (35) 85 (50)
RPM [min-1] 610 800 1450 1000 1500 2045
Noise level, 1 m [dB(A)] (Sones) 22 (0,4) 29 (0,7) 32 (1,0) 29 (0,8) 35 (1,5) 44 (3,5)
Noise level, 3 m [dB(A)] (Sones) 13 (0,2) 20 (0,4) 23 (0,5) 19 (0,4) 25 (0,7) 34 (1,4)
Noise level attenuation [dB(A)] (Sones) 40 (2,1)
Heat recovery efficiency [%] ≤ 88 ≤ 90
Model Distance A
mm inch
VENTO Ergo A50/85 Pro1 240–425 9 7/16’’ – 16 3/4”
VENTO Ergo A50/85-1 Pro1 240–425 9 7/16’’ – 16 3/4”
VENTO Ergo A50/85 S Pro1 120–300 4 3/4’’ – 11 13/16’’
VENTO Ergo A50/85-1 S Pro1 120–300 4 3/4’’ – 11 13/16’’
213
( 8 3⁄8")
240
( 9 7⁄16"")
57
(2 ¼")
A80
(3 ⁄")
ø157
(ø6 3⁄16")
ø153
(ø6")
VENTILATOR OVERALL DIMENSIONS MM INCHES
TECHNICAL DATA

6
www.blaubergventilatoren.de
VENTO Ergo A50/85(-1)( S) Pro1
The ventilator consists of a telescopic air duct with adjustable length (inner part and outer part), a ventilation unit and an outer ventilation hood.
The inner telescopic part contains two air filters and a ceramic regenerator.
The air filters are designed to purify supply air and prevent foreign object ingress into the regenerator and the fan.
The ceramic regenerator utilises extract air heat energy to warm up supply air flow.
The regenerator is equipped with a pull cord inside to facilitate its withdrawal from the ventilator.
The regenerator has a special heat insulation.
The ventilation unit must be installed on inner side of the wall.
The outer ventilation hood is used for guided air discharge and prevention of direct ingress of water and other big objects to the ventilator.

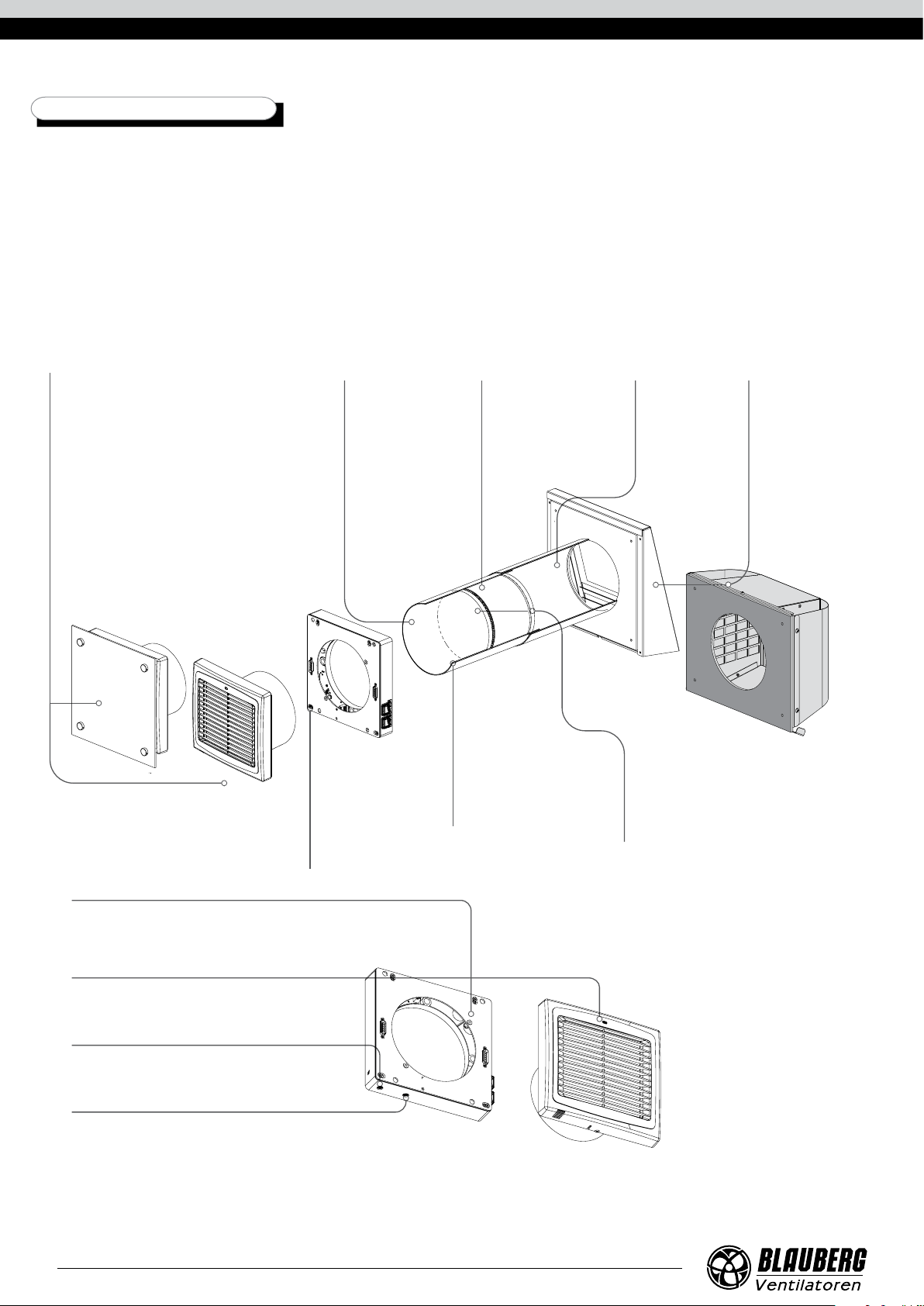

VENTILATOR DESIGN
Mounting plate
A mounting box for
installation the ventilation
unit on the wall and
connecting the ventilator
to power supply.
Openings for humidity sensor
Provide contact of the humidity sensor with the indoor air
for monitoring indoor humidity level.
Ventilator power indicator
Shows operating status of the ventilator.
Filter replacement indicator.
Indicates the need to replace the lter.
Infra-red receiver and light sensor
Responds to signals from the remote control and detects
illumination level to activate/deactivate the night mode.
Outer ventilation
hood
Outer part of the
telescopic air duct.
Outer ventilation hood
Prevents direct ingress
of water and foreign
objects into the venti-
lator.
Filter
Cleans the air owing through the ventila-
tor of dust and foreign objects and prevents
contamination of the regenerator.
Ceramic regenerator
Utilises extract air heat
energy to warm up supply
air ow.
Ventilation unit
Generates air ow by means of the fan
rotation. The ventilation unit is covered
with a ventilation grille on inner wall
side to prevent ingress of foreign objects
into the fan. The ventilation unit is
equipped with automatic shutters to
back draft prevention. The air shutters
open during the ventilator activation
and close during its shutdown.
Inner air duct
Inner part of the
telescopic air duct.
Air ow rectier
Prevents air turbulences in
the ventilator.
DESIGN AND OPERATING LOGIC

7
www.blaubergventilatoren.de VENTO Ergo A50/85(-1)( S) Pro1
OPERATING LOGIC OF THE AUTOMATIC SHUTTERS
VENTILATOR OPERATION MODES
The ventilator has four ventilation modes:
• Natural Air Supply. The automatic shutters are opened, the fan is idle.
• Air supply. The ventilator supplies fresh air to the premise.
• Ventilation. The ventilator operates in permanent supply or extract mode at set speed depending on CN7 jumper position.
• Regeneration. The ventilator operates in reversible mode with heat and humidity recovery.
In Regeneration mode the ventilator operates in two cycles, 70 seconds each.
Cycle I. Warm stale air is extracted from the room. As it ows through the regenerator, it heats and moisturizes the regenerator, transferring up to
90 % heat energy. In 70 seconds as the ceramic regenerator gets warmed the ventilator is switched to supply mode.
Cycle II. Fresh intake air from outside ows through the ceramic regenerator and absorbs accumulated moisture and heat up to the room
temperature. In 70 seconds as the ceramic regenerator gets cooled down, the ventilator is switched into extract mode and the cycle is renewed.
CYCLE I
CYCLE II
-10 °С
-10 °С
+20 °С
+20 °С
+17 °С
+17 °С
-7 °С
-7 °С
7
0
s
e
c
.
7
0
s
e
c
.
A
I
R
E
X
T
R
A
C
T
A
I
R
S
U
P
P
L
Y

8
www.blaubergventilatoren.de
VENTO Ergo A50/85(-1)( S) Pro1
1. Prepare a round thorough hole in the outer wall.The hole size in the wall is shown in the figure below. While preparing a core hole make preparations
for layout of the power cable and other required cables.
Ø 180
Ø 7 1/16"
min 500
min 19 11/16"
min 500
min 19 11/16"
min 500
min 19 11/16"
A
A
A-A
2. Insert the air duct in the wall using the supplied polystyrene wedges and fix it with mounting foam.
The telescopic air duct end protruding part must enable installation of the outer ventilation hood. For details, refer to the installation instruction for
the ventilation hood.
min 3 mm
39 mm (1 9/16") A
Fill the gaps between the wall
and the opening with
a mounting foam.
Polystyrene wedge Install the air duct in the wall in such a way so it protrudes from the inner
wall surface for maximum 39 mm (1 9/16’’).
Install the air duct with the minimum slope 3 mm downwards.
On the outer wall side the protruding part of the air duct must enable
installation of the outer ventilation hood.
Distance Ais stated in the installation instruction for the ventilation hood.
MOUNTING AND SETUP
READ THE USER’S MANUAL PRIOR TO MOUNTING THE VENTILATOR.
ATTENTION!
DO NOT BLOCK THE AIR DUCT OF THE INSTALLED VENTILATOR WITH DUST ACCUMULATING
MATERIALS, SUCH AS CURTAINS, CLOTH SHUTTERS, ETC. AS IT PREVENTS AIR CIRCULATION IN THE
ROOM.

9
www.blaubergventilatoren.de VENTO Ergo A50/85(-1)( S) Pro1
3. Remove the mounting plate to enable access to the control board and connection of the ventilator to power supply and connection of other
ventilators as stated in Unit connection, page 10.
To enable access to the control board in the mounting plate remove the four fixing screws. Then disconnect the mounting plate from its frame
with care and push it aside to enable access to the control board. While doing that avoid abrupt movements not to damage the connecting cables
between the control board and the mounting plate. Disconnect the mounting plate from the ventilation unit by disconnecting the two connectors.
Re-assemble the mounting plate in the reverse order. Install the cables with care.
4. Install the mounting plate unit using the supplied mounting template and expansion anchors.
Lean the mounting plate unit
against the wall and screw it
to the wall.
Drill the holes and insert the
expansion anchors.
Lean the mounting template
against the wall and mark four
holes for expansion anchors
as well as holes for routing the
cable.
5. Install the air flow rectifier, the filter, the ceramic regenerator, one more filter and one more air flow rectifier inside the telescopic air duct.
Ventilation unit
Filter
Air ow rectier
Air ow rectier
Ceramic regenerator
Filter

10
www.blaubergventilatoren.de
VENTO Ergo A50/85(-1)( S) Pro1
The ventilator is rated for connection to single-phase ac 100–240 V/ 50 (60) Hz power mains.
Connect the ventilator to power mains via a thermal magnetic circuit breaker, integrated into a house cabling system.
Jumpers for set-up of
the Ventilation mode.
1~100-240 V/50 (60) Hz
L
N
to the ground
terminal L
INPUT
G
D
N
Ground terminals
Route the ground cable between the
two washers and fix it with a screw.
Air supply
Air extract
Setting the Ventilation mode.
Air direction in the Ventilation mode is determined by position of the jumper on the control board.
The control board of the ventilator is located inside of the ventilation unit.
CONNECTION TO POWER MAINS
DISCONNECTTHE UNITFROM POWERSUPPLY PRIORTOANYELECTRIC INSTALLATION OPERATIONS.
INSTALLATION SHALL ONLY BE PERFORMED BY A PROFESSIONAL ELECTRICIAN QUALIFIED FOR
UNASSISTED OPERATIONS WITH ELECTRICAL INSTALLATIONS UP TO 1000 V AFTER CAREFUL
STUDY OF THE PRESENT USER’S MANUAL.
THE RATED ELECTRICAL PARAMETERS ARE STATED ON THE RATING PLATE. ANY TAMPERING WITH
THE INTERNAL CONNECTIONS IS PROHIBITED AND WILL VOID THE WARRANTY.

11
www.blaubergventilatoren.de VENTO Ergo A50/85(-1)( S) Pro1

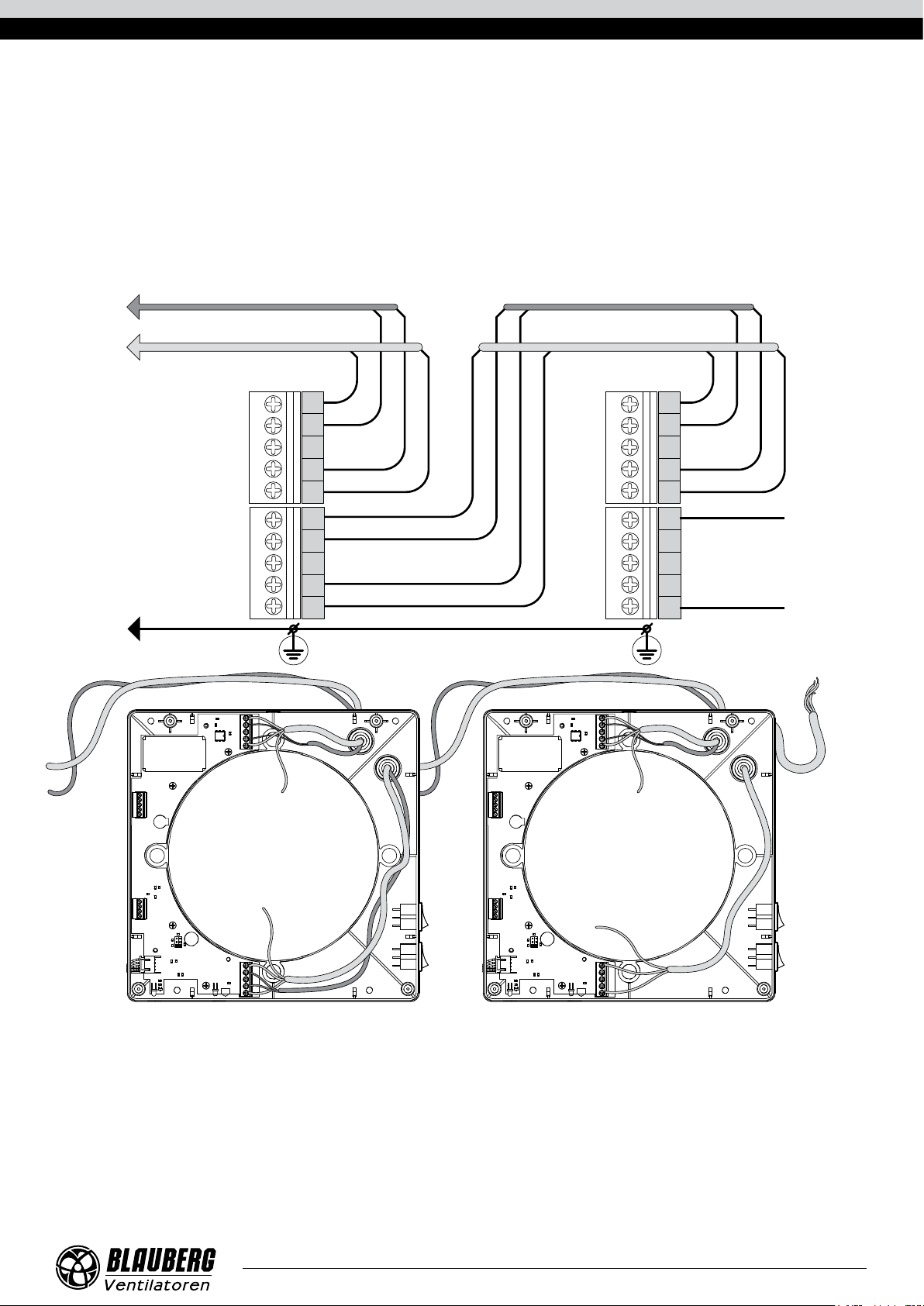

CONNECTION OF SEVERAL VENTILATORS IN SERIES
Connection of the ventilators in series enables controlling all the connected ventilators by the first ventilator and the common remote control. For
connection of several in series follow the diagram below. Connect the second ventilator with the third ventilator in the same way, etc. Maximum
10 ventilators may be connected in series.
For electric installations use a power cable with the minimum wire cross section 0.5 mm2and a control cable with the minimum wire cross section
0.25 mm2. The cables are not included in the delivery set.
The cable must be rated for operation in an alternating current power supply with the country-specific mains voltage.
Disconnect the power cord while connecting the second, third, etc. ventilator in series.
INPUT
OUTPUT
L
G
D
N
L
G
D
N
INPUT
OUTPUT
L
G
D
N
L
G
D
N
1~100-240 V/50 (60) Hz
1~100-240 V/50 (60) Hz
Power cableto the next ventilator
Control cableto the next ventilator
to the ground terminal
to the ground terminal
to the ground terminal
to the ground terminal

12
www.blaubergventilatoren.de
VENTO Ergo A50/85(-1)( S) Pro1
In case of connection above 10 ventilators the ventilator 11 is energized not though the previous ventilator but from power mains (L and N terminals).
The control signals G and D from the 10th ventilator are transmitted through the cable 2xAWG23 (2 x 0.25 mm2.)
Connect the ventilators no. 12…20 to the ventilator no. 11 in the same way as the ventilators no. 1…10.
All the connected ventilators are controlled with the ventilator no. 1.
CONNECTION OF MORE THAN 10 VENTILATORS IN SERIES
INPUT
OUTPUT
L
G
D
N
L
G
D
N
INPUT
OUTPUT
L
G
D
N
L
G
D
N
INPUT
OUTPUT
L
G
D
N
L
G
D
N
1~100-240 V
50 (60) Hz
1~100-240 V /
50 (60) Hz
Power cable
Control cable
to the next ventilator
№1№10№11
Control cable
ALL THE CONNECTED IN SERIES VENTILATORS MUST BE GROUNDED!

13
www.blaubergventilatoren.de VENTO Ergo A50/85(-1)( S) Pro1
The ventilator is operated with a remote controller or the buttons on the ventilator casing, see the figure below.
The operation buttons on the ventilator casing have limited functionality including activating the second and third speed and setting three of four
ventilation modes. The remote controller has wider control capabilities.
The guaranteed minimum reach distance of the remote control is 3 m.
In case of power failure the ventilator reverts to the previous operation mode after power supply resumption.
Speed switch
Ventilation
mode switch
Third speed
Ventilation mode
The ventilator operate either in extract or supply mode with no reference to the CN7 jumper position.
The fan is o
The ventilator does not operate. The shutters are closed.
Regeneration mode
In this mode the ventilator switches between supply and extract mode each 70 seconds with heat
regeneration.
Second speed
Supply mode.
All the connected in series ventilators operate in supply mode with no reference to the CN7 jumper
position.
1 – operation of all the connected in series ventilators is determined by position of the jumper on the control board.
Setting of the operation mode „Ventilation“ is described in page 10.
Turning ventilator
ON/OFF
Speed changeover
Natural air supply
The shutters are open,
the fan does not run.
Night mode
The ventilator switches to the first
speed in the darkness.
Air supply
The ventilator continually supplies fresh
air to the room no matter of CN7
jumper position).
Regeneration
The ventilator switches between supply
and extract mode each 70 seconds
with heat regeneration.
Ventilation1
The ventilator operates either in extract
or supply mode at selected speed
depending on CN7 jumper position.
Humidity set point setting
REMOTE CONTROL
VENTILATOR CONTROL

14
www.blaubergventilatoren.de
VENTO Ergo A50/85(-1)( S) Pro1
REMOTE CONTROL
Set the speed switch to position and the operation mode switch to position to enable remote control of the ventilation unit.
1. Turning ventilator ON/OFF.
ON/OFF
2. Night mode.
ON/OFF
If Night mode is activated, the ventilator switches to the first speed in the night, when the light is turned off. Activation of the night mode is
confirmed by a long sound signal. Exiting the night mode is confirmed by a short sound signal.
3. Speed setting
First speed.
Second speed.
Third speed.
4. Operation modes.
Natural air supply mode. During the fan standby the room is ventilated in the natural way.
Air supply mode. Air is supplied to the room at a set speed. All connected in series ventilators operate in air supply mode no matter
of CN7 jumper position.
Ventilation mode. Air is extracted (factory setting) or supplied at a selected speed. All the ventilators connected in series ventilators
operate depending on position of CN7 jumper.
Regeneration mode. The ventilator operates 70 seconds in Supply mode and then 70 seconds in Extract mode with heat regeneration.
5. Humidity control.
The humidity control may be activated in Regeneration mode only by pressing one of the humidity control buttons.
In Humidity Control mode the ventilator monitors the extract air humidity and controls the fan speed depending on difference between set humidity
point and actual indoor humidity.
If indoor humidity is about the set range or has slight deviations, the ventilator operates with the second speed.
If indoor humidity is above the set humidity point, the ventilator changes to the third speed.
If indoor humidity is below the set humidity point, the ventilator changes to the first speed.
Setting humidity threshold – 45 %
Setting humidity threshold – 55 %
Setting humidity threshold – 65 %
HUMIDITY CONTROL FUNCTION MAY BE ACTIVATED WITH THE REMOTE CONTROL ONLY!

15
www.blaubergventilatoren.de VENTO Ergo A50/85(-1)( S) Pro1
Maintenance of the ventilator means regular cleaning of the ventilator surfaces of dust and cleaning or replacement of the filters.
VENTILATOR MAINTENANCE
1. Fan maintenance (once per year).
Take off the ventilation unit and clean the fan blades.
Remove dust using a soft brush, cloth or a vacuum
cleaner.
Do not use water, abrasive detergents, solvents, sharp
objects for cleaning.
The impeller blades must be cleaned once in year.
2. Regenerator and lter maintenance (3-4 times per year).
1. Remove the air flow rectifier.
2. Remove the filter in front of the regenerator.
3. Pull the regenerator cord to remove the regenerator
from the air duct.
4. Be careful while pulling the regenerator to avoid
its damage.
5. Remove the filter behind the regenerator.
Filter
Air flow rectifier
Air flow rectifier
Ceramic regenerator
Filter
Clean the filters as often as required, but at least 3 times
a year.
• After completion of the period set for the motor
hour meter (factory setting 90 days) the filter
replacement indicator in the bottom of the
mounting plate glows to indicate the need of the
filter cleaning of replacement.
• Wash the filters, let those dry out and install the
dry filters inside the air duct.
• Vacuum cleaning is allowed.
• The filter rated service life is 3 years.
• Contact the Seller for spare filters.
DISCONNECT THE UNIT FROM POWER SUPPLY
BEFORE ANY MAINTENANCE OPERATIONS!
MAINTENANCE

16
www.blaubergventilatoren.de
VENTO Ergo A50/85(-1)( S) Pro1

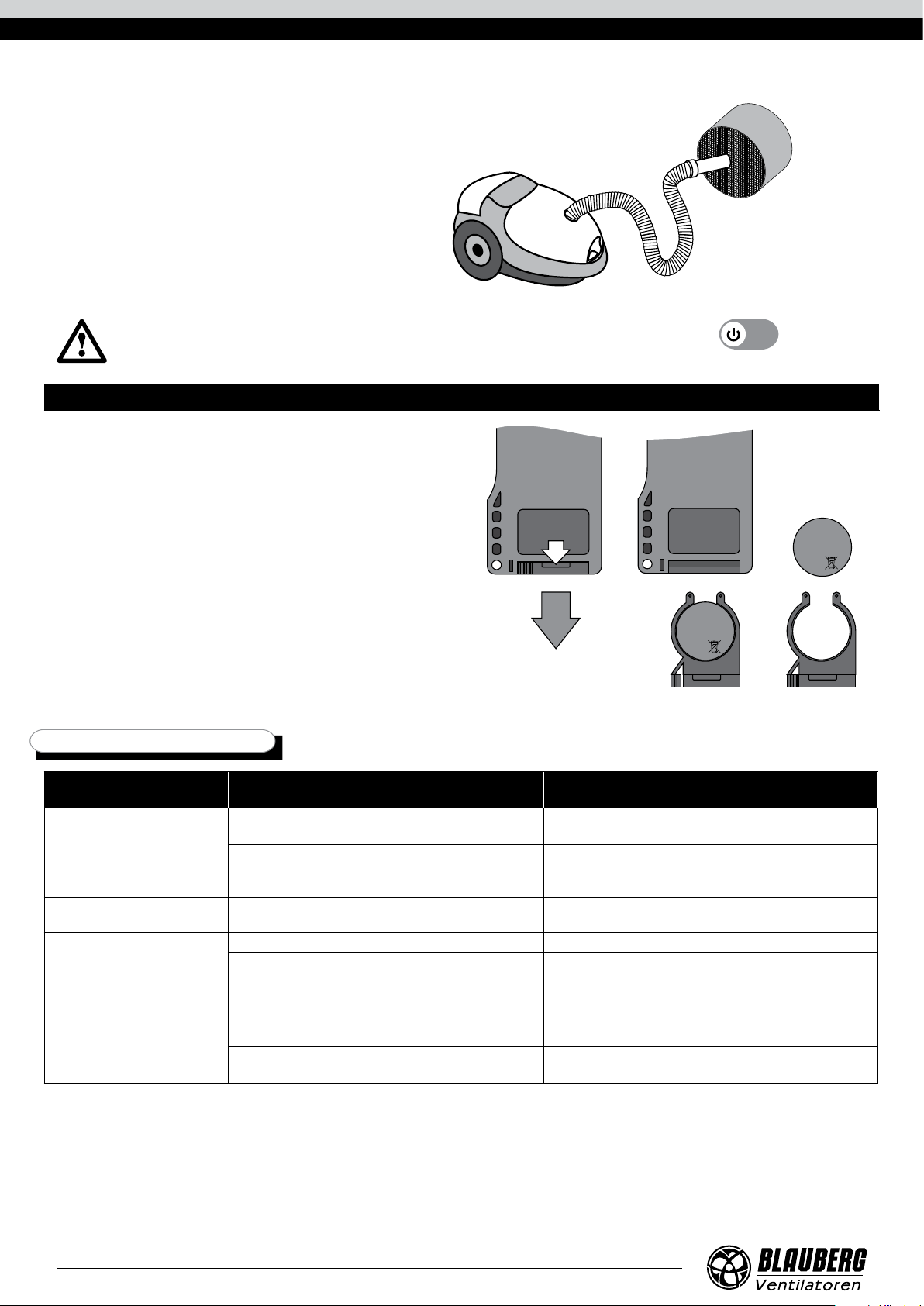

Even regular technical maintenance may not completely
prevent dirt accumulation on the regenerator.
• Clean the regenerator regularly to ensure its high
heat recovery efficiency.
• Clean the regenerator with a vacuum cleaner at
least once a year.
To reset the motor meter install the filters and the regenerator into the ventilator and then press and hold the button for 10 sec. till a
long sound signal. The red filter replacement indicator goes down.
3. Battery replacement in the remote control (as required).
In case of a long operation of the remote control the battery must be
replaced.
No response of the ventilator for pressing the remote control buttons
indicates the need to replace the battery.
The battery type is CR2025.
Remove the holder with the battery from the lower part of the remote
control.
Then replace the battery and re-install the holder with a new battery in
site.
+
CR2025
3V
+
CR2025
3V
Fault Possible reasons Remedy
The fan does not start
running during start-up of the
ventilator.
No power supply. Make sure that the ventilator is properly connected to
power mains and make any corrections, if required.
Motor is jammed, the impeller blades are clogged.
Turn the ventilator off. Troubleshoot the motor jam and
the impeller clogging. Clean the blades. Restart the
ventilator.
Circuit breaker tripping during
the ventilator start-up.
Overcurrent as a result of short circuit in the electric
circuit.
Turn the ventilator off. Contact the Seller for further
information.
Low air flow.
Low set fan speed. Set higher speed.
The filters, the fan or the regenerator is soiled. Clean or replace the filter. Clean the fan and the
regenerator. Refer to section„Maintenance“, Clause 1, 2.
High noise, vibration.
The impeller is soiled. Clean the impeller.
Loose screw connection of the ventilator casing or the
outer ventilation hood.
Tighten the screws of the ventilator or the outer
ventilation hood.
TROUBLESHOOTING

17
www.blaubergventilatoren.de VENTO Ergo A50/85(-1)( S) Pro1
The warranty period is 24 months after the retail sale date provided the user’s observance of the transportation, storage, mounting and operation regulations.
Should any malfunctions occur in the course of the unit operation through the Manufacturer’s fault during the guaranteed period of operation the user is
entitled to elimination of faults by the manufacturer by means of warranty repair at the factory free of charge.
The warranty repair shall include work specific to elimination of faults in the unit operation to ensure its intended use by the user within the guaranteed
period of operation.
The faults are eliminated by means of replacement or repair of the unit components or a specific part of such unit component.
The warranty repair does not include:
• Routine technical maintenance;
• Unit installation / dismantling;
• Unit setup.
To benefit from warranty repair the user must provide the unit, the user’s manual with the purchase date stamp and the payment document certifying the
purchase.
The unit model must comply with the one stated in the user’s manual.
Contact the Seller for warranty service.
The manufacturer’s warranty does not apply to the following cases:
• User’s failure to submit the unit with the entire delivery package as stated in the user’s manual including submission with missing component parts
previously dismounted by the user.
• Mismatch of the unit model and the brand name with the information stated on the unit packing and in the user’s manual.
• User’s failure to ensure timely technical maintenance of the unit.
• External damage to the unit casing (excluding external modifications as required for installation) and internal components caused by the user.
• Redesign or engineering changes to the unit.
• Replacement and use of any assemblies, parts and components not approved by the manufacturer.
• Unit misuse.
• User’s violation of the unit installation regulations.
• User’s violation of the unit control regulations.
• Unit connection to the power mains with a voltage different from the one stated in the user’s manual.
• Unit breakdown due to voltage surges in the power mains.
• Discretionary repair of the unit by the user.
• Unit repair by any persons without the manufacturer’s authorization.
• Expiration of the unit warranty period.
• User’s violation of the unit transportation regulations.
• User’s violation of the unit storage regulations.
• Wrongful actions against the unit committed by third parties.
• Unit breakdown due to circumstances of insuperable force (fire, flood, earthquake, war, hostilities of any kind, blockades).
• Missing seals if provided by the user’s manual.
• Failure to submit the user’s manual with the unit purchase date stamp.
• Missing payment document certifying the unit purchase.
Store the unit in the manufacturer’s original packing box in a dry ventilated premise at ambient temperatures from +5 ˚C ( +41 ˚F) up to +40 ˚C (104 ˚F).
Storage environment must not contain aggressive vapours and chemical mixtures provoking corrosion, insulation and sealing deformation.
Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
Follow the handling requirements applicable for the particular type of cargo.
The unit can be carried in the original packing by any mode of transport provided proper protection against precipitation and mechanical damage.
Avoid sharp blows, scratches or rough handling during loading and unloading.
STORAGE AND TRANSPORTATION REGULATIONS
MANUFACTURER’S WARRANTY
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE
A LONG AND TROUBLEFREE OPERATION OF THE UNIT.
USERS’WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY
UPON PRESENTATION OF THE UNIT, THE PAYMENT DOCUMENT
AND THE USER’S MANUAL WITH THE PURCHASE DATE STAMP.

18
www.blaubergventilatoren.de
VENTO Ergo A50/85(-1)( S) Pro1
CERTIFICATE OF ACCEPTANCE
Unit Type Single-room reversible energy regeneration ventilator
Model
Serial Number
Manufacture Date
Quality Inspector’s
Stamp
SELLER INFORMATION
Seller
Seller’s Stamp
Address
Phone Number
E-mail
Purchase Date
This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are
acknowledged and accepted.
Customer’s Signature
INSTALLATION CERTIFICATE
The __________________________________________________unit is installed pursuant to the
requirements stated in the present user's manual.
Installation Stamp
Company name
Address
Phone Number
Installation
Technician’s Full Name
Installation Date: Signature:
The unit has been installed in accordance with the provisions of all the applicable local and national construction,
electrical and technical codes and standards. The unit operates normally as intended by the manufacturer.
Signature:
WARRANTY CARD
Unit Type Single-room reversible energy regeneration ventilator
Seller’s Stamp
Model
Serial Number
Manufacture Date
Purchase Date
Warranty Period
Seller

19
www.blaubergventilatoren.de VENTO Ergo A50/85(-1)( S) Pro1

www.blaubergventilatoren.de
VENTO Ergo A50/85-1 Pro1 ENv1(3)
