Cole Hersee 24505 User manual

IF-153 Rev. B
Lockout Lever Kit for
Master Disconnect Switch
24505 for 5/16” shackle locks
24505-01 for 7mm shackle locks
This kit may be used with all Cole Hersee
metal lever-activated master Disconnect
Switches with a 3/ diameter mounting stem.
Use this kit to secure the switch in the
Off position with a padlock. Such
lockout procedures may be re uired by
regulations, particularly in situations
where moving machinery might be
accidentally turned on causing risk of
injury.
In Package
• Locking Lever
• Bracket
• 10-32x3/8” Screws (2)
Installation
1. Make sure that the switch is in the off position
2. Warning — Disconnect all battery cables from
the battery before attempting to install this
product
3. Remove the lever from the switch. Retain the
existing screw and lock washer as these are
required to attach the locking handle
. Remove the hex nut and lock washer from the
mounting stem
5. Place the bracket over the stem
6. Replace hex nut on mounting stem and tighten
only finger tight
7. Put The locking handle on the switch and
replace lock washer and screw from original
lever. Tighten finger tight
8. Rotate bracket until the hole in handle lines up
with the hole in the bracket.
9. Mark the center of the mounting screw holes
10. Remove the handle with screw and lock washer

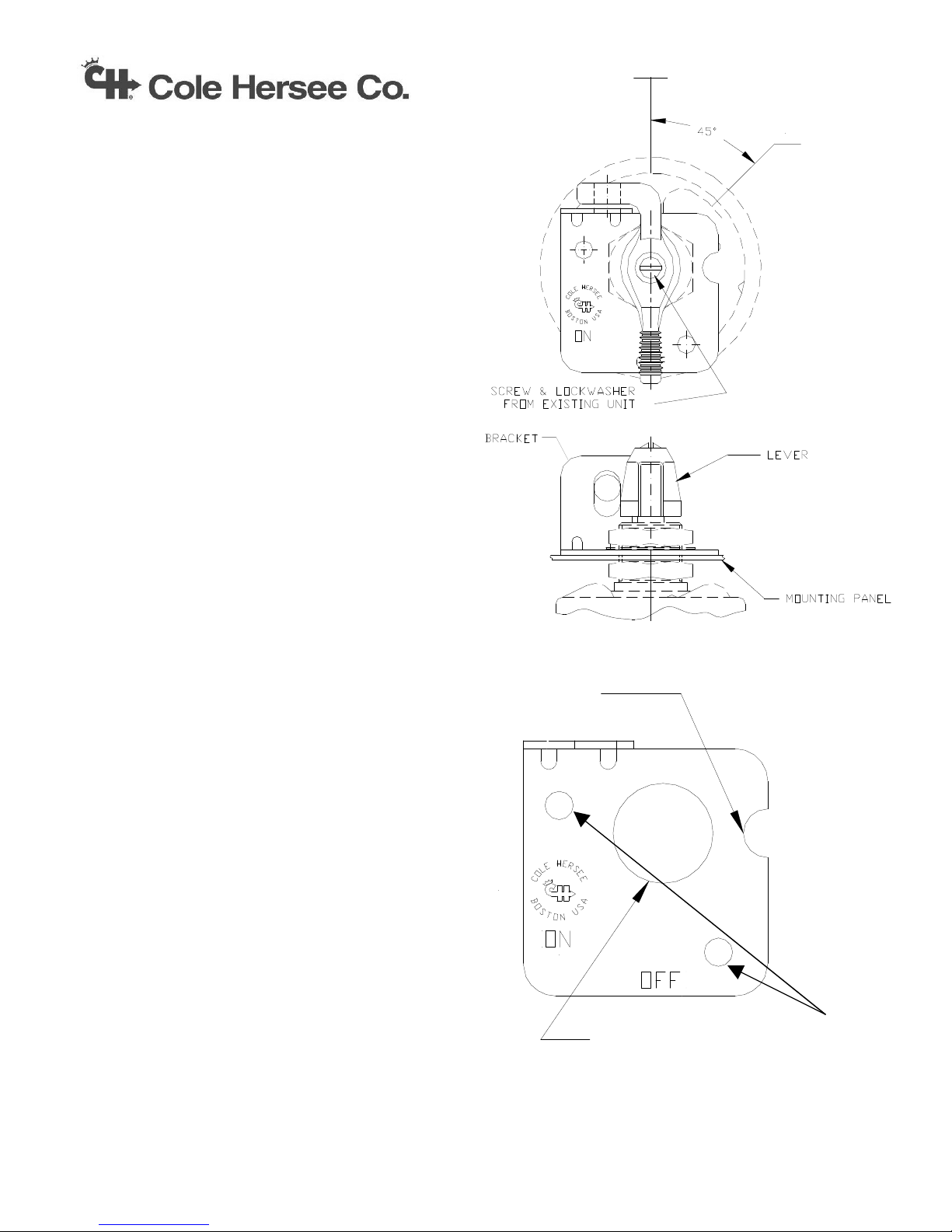

OFF
ON
Notch for
Anti-Rotation
Stud
Hole for Switch
Mounting Stem
Mounting Screw
Holes
Notch for
Indexing Pin

IF-153 Rev. B
4.00 [102]
4.50 [114]
2.10 [53]
HEX NUT,
1/4-20, TYP
Load
Termi al
Battery
Termi al
Ø0.28 [Ø7]
4.27 [109]
CONNECTOR TO ACCEPT
DEUTSCH DT06-4S CONNECTOR
Pin 1 - Ground
Pin 2 - Manual
Over Ride
Pin 3 - LED/Alarm
(Warning)
Pin - Ignition
Override
11. Remove the Mounting nut and lock washer
from the stem
12. Remove the switch from the panel
13. Drill two 5/32” holes at the marks from the
bracket
1 . Attach the bracket with the two screws
provided
15. Place the switch through the hole in the bracket
16. Replace the lock wash and nut on the stem of
the switch and tighten finger tight.
17. Replace the locking handle on the switch using
the screw and lock washer from the original
lever.
18. Rotate the switch until the hole on the top of
the bracket lines up with the hole on the
locking handle.
19. Tighten the hex nuts to a maximum torque of
20 ft-lbs.
Standard Master Disconnect Mounting Pattern
Direct Questions to [email protected]
Please consult the factory if you need further assistance
617-268-2100
8am — 4:30 PM Eastern Time
www.colehersee.com
