Important Safety Instructions
Preparing for Your New Portable Spa
Planning the Best Location ..............3
Preparing a Good Foundation ............4
240 Volt Electrical Installation ...........5
240V GFCI and Wiring Requirements...5
High Power 60 Hz Conguration ......6
Testing the GFCI Breaker ............6
GFCI Wiring Diagram ...............7
Filling and Powering Up Your Portable Spa 8
Priming the Pump ....................10
Operating Your Spa
Electronic Control Operation ...........11
Diagnostic Messages ..................15
Jets................................17
Diverter Knobs.......................17
Hydro Streamer Waterfall..............17
Clear Water Plan
The Key to Clear Water ................18
Testing and Adjusting Spa Water ........19
Sanitation...........................20
Filter Cleaning .......................22
Bather Load . . . . . . . . . . . . . . . . . . . . . . . . . 22
Starting the Spa with Fresh Water .......23
Maintenance Schedule ................24
Troubleshooting Water Clarity Problems ..25
Cleaning and Maintenance
Spa Cover...........................26
Draining Your Portable Spa ............26
Cleaning and Replacing the Filter........26
Winterizing (Cold Climate Draining) .....27
Vacation Care........................27
Cleaning Your Spa ....................28
Removing and Reseating the Pillows .....28
Jet Removal and Replacement ..........29
iPod™ Docking Station ................30
Entertainment System
Appendix
Replacement Parts ...................32
Troubleshooting .....................36
Limited Warranty.....................39
Warranty Registration.................42

Read This First!
1
Coleman logo (white)
<----------
Coleman®Spas (online sales)
LTR50001135, Rev. A
Important Safety Instructions
READ AND FOLLOW ALL INSTRUCTIONS.
WARNING:
To reduce the risk of injury, do not permit children to
use this product unless they are closely supervised
at all times.
DANGER -- Risk of accidental drowning:
Do not allow children to be in or around a spa unless
a responsible adult supervises them. Keep the spa
cover on and locked when not in use. See instructions
enclosed with your cover for locking procedures.
DANGER -- Risk of injury:
The suction  ttings in this spa are sized to match
the speci c water fl ow created by the pump. Should
the need arise to replace the suction  ttings, or the
pump, be sure the fl ow rates are compatible.
Never operate the spa if the suction  tting or  lter
baskets are broken or missing. Never replace a
suction  tting with one that is rated less than the fl ow
rate marked on the original suction  tting.
DANGER -- Risk of electric shock:
Install the spa at least 5 feet (1.5 meters) from all
metal surfaces. As an alternative, a spa may be
installed within 5 feet of metal surfaces if each metal
surface is permanently bonded by a minimum #8
AWG solid copper conductor to the outside of the
spa’s control box.
DANGER -- Risk of electric shock:
Do not permit any external electrical appliances,
such as lights, telephones, radios, televisions, and
etc., within  ve feet (1.5 meters) of the spa. Never
attempt to operate any electrical device from inside
the spa.
HYPERTHERMIA DANGER:
Prolonged exposure to hot air or water can induce
hyperthermia. Hyperthermia occurs when the internal
temperature of the body reaches a level 3˚F to 6˚F
above the normal body temperature of 98.6˚F (or
2˚C to 4˚C above 37˚C). While hyperthermia has
many health bene ts, it is important not to allow
your body’s core temperature to rise above 103˚F
(39.5˚C).
Symptoms of excessive hyperthermia include
dizziness, lethargy, drowsiness and fainting. The
effects of excessive hyperthermia may include:
Failure to perceive heat•
Failure to recognize the need to exit spa or hot•
tub
Unawareness of impending hazard•
Fetal damage in pregnant women•
Physical inability to exit the spa•
Unconsciousness•
WARNING: The use of alcohol, drugs, or medication
can greatly increase the risk of fatal hyperthermia.
WARNING -- To reduce the risk of injury:
The spa water should never exceed 104˚F (40˚C).
Water temperatures between 100˚F (38˚C) and
104˚F (40˚C) are considered safe for a healthy
adult. Lower water temperatures are recommended
for young children and when spa use exceeds 10
minutes.
High water temperatures have a high potential for
causing fetal damage during pregnancy. Women who
are pregnant, or who think they are pregnant, should
always check with their physician prior to spa usage.
The use of alcohol, drugs or medication before or
during spa use may lead to unconsciousness, with
the possibility of drowning.
Persons suffering from obesity, a medical history of
heart disease, low or high blood pressure, circulatory
system problems or diabetes should consult a
physician before using the spa.
Persons using medications should consult a physician
before using the spa since some medications may
induce drowsiness while others may affect heart rate,
blood pressure and circulation.

Read This First!
2
Coleman®Spas (online sales)
LTR50001135, Rev. A
Coleman logo (white)
<----------
DANGER -- Risk of electric shock:
Replace a damaged power cord immediately.•
Do not bury the power cord.•
Connect to a grounded, grounding-type receptacle only.•
SAVE THESE INSTRUCTIONS.
WARNING: People with infectious diseases should not use a spa or hot tub.
WARNING: To avoid injury, exercise care when entering or exiting the spa or hot tub.
WARNING: Do not use drugs or alcohol before or during the use of a spa or hot tub to avoid unconsciousness
and possible drowning.
WARNING: Do not use a spa or hot tub immediately following strenuous exercise.
WARNING: Prolonged immersion in a spa or hot tub may be injurious to your health.
CAUTION: Maintain water chemistry in accordance with manufacturer’s instructions.

Preparing forYour New Portable Spa
3
Coleman logo (white)
<----------
Coleman®Spas (online sales)
LTR50001135, Rev. A
Most cities and counties require permits for exterior construction and electrical circuits. In addition, some
communities have codes requiring residential barriers such as fencing and/or self-closing gates on property to
prevent unsupervised access to the property by children. Your dealer can provide information on which permits
may be required and how to obtain them prior to the delivery of your spa.
Before Delivery
Plan your delivery route
Choose a suitable location for the spa
Lay a 5 - 8 cm concrete slab
Install dedicated electrical supply
After Delivery
Place spa on slab
Connect electrical components
Preparing for Your New Portable Spa
Planning the Best Location
Safety First
Do not place your spa within 10 feet (3 m) of
overhead power lines.
Consider How You Will Use Your Spa
How you intend to use your spa will help you
determine where you should position it. For example,
will you use your spa for recreational or therapeutic
purposes? If your spa is mainly used for family
recreation, be sure to leave plenty of room around
it for activity. If you will use it for relaxation and
therapy, you will probably want to create a speci c
mood around it.
Plan for Your Environment
If you live in a region where it snows in the winter or
rains frequently, place the spa near a house entry. By
doing this, you will have a place to change clothes
and not be uncomfortable.
Consider Your Privacy
In a cold-weather climate, bare trees won’t provide
much privacy. Think of your spa’s surroundings during
all seasons to determine your best privacy options.
Consider the view of your neighbors as well when
you plan the location of your spa.
Provide a View with Your Spa
Think about the direction you will be facing when
sitting in your spa. Do you have a special landscaped
area in your yard that you  nd enjoyable? Perhaps
there is an area that catches a soothing breeze during
the day or a lovely sunset in the evening.
Keep Your Spa Clean
In planning your spa’s location, consider a location
where the path to and from the house can be kept
clean and free of debris.
Prevent dirt and contaminants from being tracked
into your spa by placing a foot mat at the spa’s
entrance where the bathers can clean their feet
before entering your spa.
Allow for Service Access
Make sure the spa is positioned so that access to the
equipment compartment and all side panels will not
be blocked.
Many people choose to install a decorative structure
around their spa. If you are installing your spa with
any type of structure on the outside, such as a
gazebo, remember to allow access for service. It is
always best to design special installations so that the
spa can still be moved, or lifted off the ground.

Preparing forYour New Portable Spa
4
Coleman®Spas (online sales)
LTR50001135, Rev. A
Coleman logo (white)
<----------

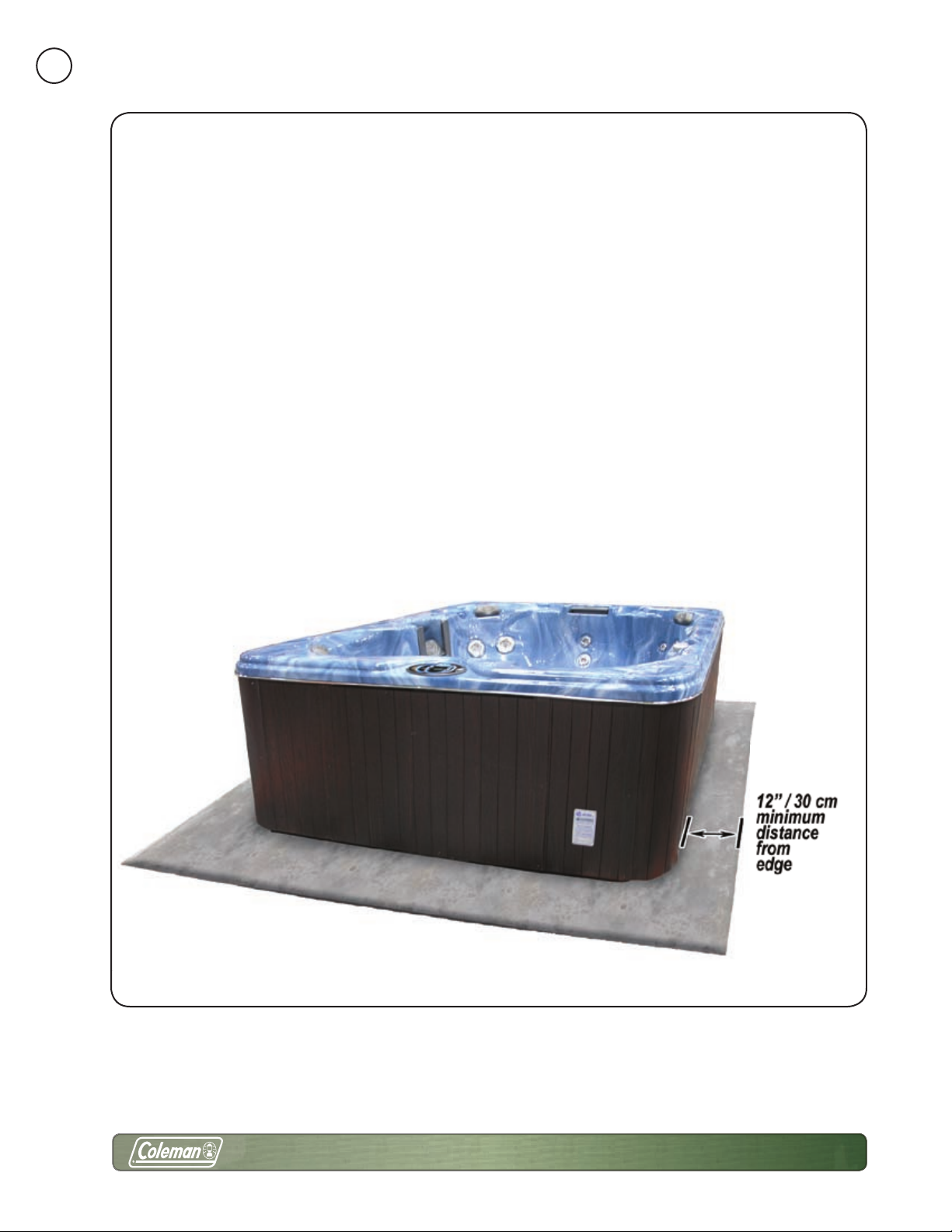

Preparing a Good Foundation
Your spa needs a solid and level foundation. The
area that it sits on must be able to support the weight
of the spa, with water and the occupants who use it.
If the foundation is inadequate, it may shift or settle
after the spa is in place, causing stress that could
DAMAGE YOUR SPA SHELL AND FINISH.
Damage caused by inadequate or improper
foundation support is not covered by the
warranty. It is the responsibility of the spa
owner to provide a proper foundation for
the spa.
Place the spa on an elevated 3 to 4” / 30 cm concrete
slab. Pavers, gravel, brick, sand, timbers or dirt
foundations are not adequate to support the spa.
We strongly recommend that a quali ed, licensed
contractor prepare the foundation for your spa.
If you are installing the spa indoors, pay close
attention to the fl ooring beneath it. Choose fl ooring
that will not be damaged or stained.
If you are installing your spa on an elevated wood
deck or other structure, it is highly recommended
that you consult a structural engineer or contractor
to ensure the structure will support the weight of 150
pounds per square foot (732 kg / m2).
To properly identify the weight of your new spa when
full, remember water weighs 8.33 lbs. per gallon, or 1
kg per liter. For example, an average 8’ spa spa holds
approximately 500 gallons, or 1892 liters, of water.
Using this formula, you will fi nd that the weight of the
water alone is 4,165 lbs, or 1892 kg. Combined with
the dry weight of the spa you will note that this spa
will weigh approximately 5,000 lbs, or 2267 kg, when
full of water.

Preparing forYour New Portable Spa
5
Coleman logo (white)
<----------
Coleman®Spas (online sales)
LTR50001135, Rev. A

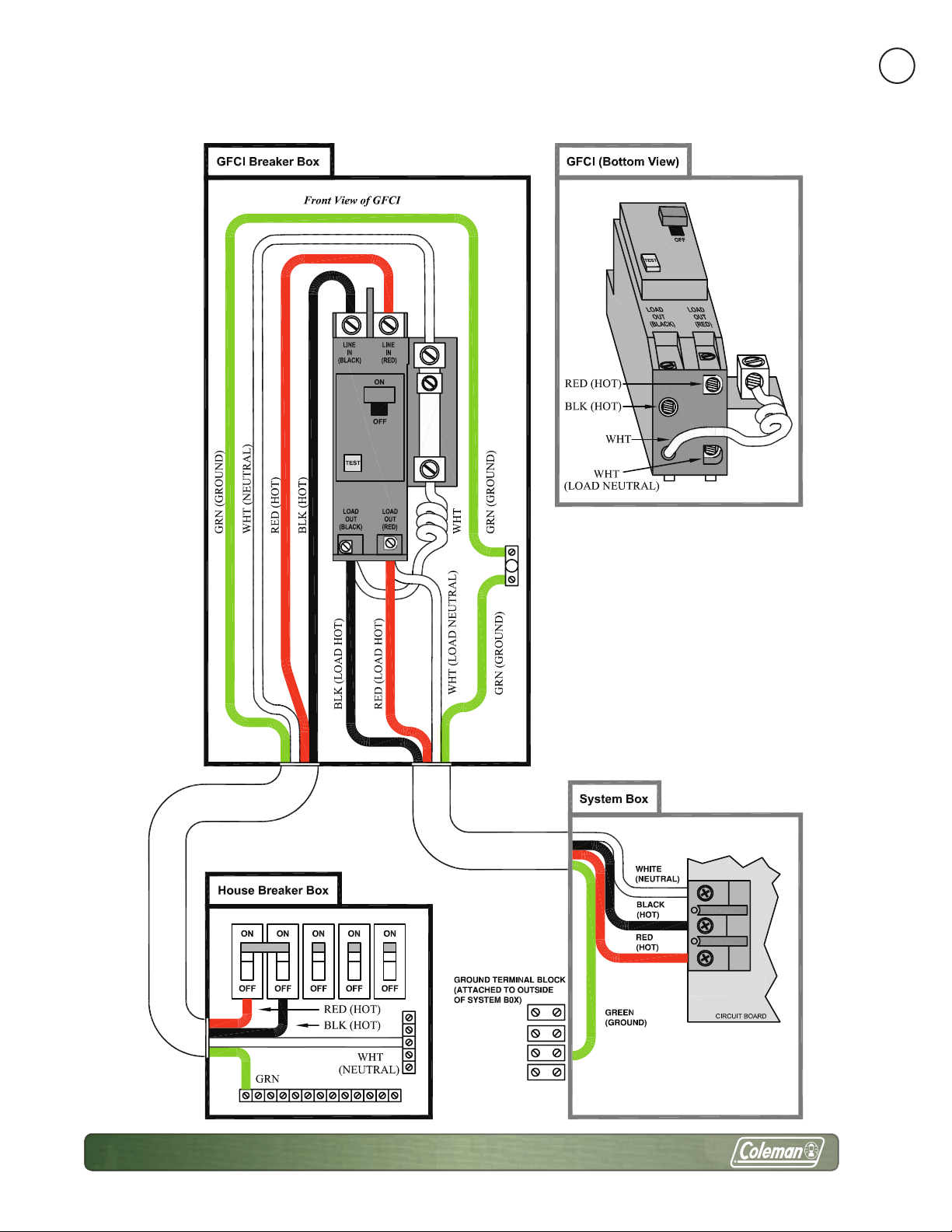

All 240V spas must be permanently connected
(hardwired) to the power supply. See the wiring
diagram on page 7.
These instructions describe the only acceptable
electrical wiring procedure. Spas wired in any
other way will void your warranty and may
result in serious injury.
When installed in the United States, the electrical
wiring of this spa must meet the requirements of
NEC 70 and any applicable local, state, and federal
codes.
The electrical circuit must be installed by an
electrical contractor and approved by a local
building or electrical inspector.
Failure to comply with state and local codes
may result in  re or personal injury and will be
the sole responsibility of the spa owner.
The power supplied to the spa must be on a dedicated
GFCI protected circuit as required by NEC 70 with no
other appliances or lights sharing the power.
Use copper wire with THHN insulation. Do not use
aluminum wire.
Use the table below to determine your GFCI and
wiring requirements.
Wire runs over 85 feet must increase wire gauge
to the next lower number. For example: A normal
50 amp GFCI with four #8 AWG copper wires run
over 85 feet would require you to go to four #6 AWG
copper wires.
240 Volt Electrical Installation
240V GFCI and Wiring Requirements
All VS500 control systems are set at the factory to run on the low power setting for low amperage operation.
This is the default setting. Spa owners can have their installer change this setting so the spa will run on high
power for 50 or 60 amp operation.
Warning: Never set a spa to run on high power without installing a properly rated GFCI.
Spa Model Power Setting GFCI Required Wires Required
CO534L-A VS-300 systems One 40 amp GFCI Four #8 AWG
copper wires
CO-628T-A
CO-637L-A
CO-756B-A
CO-756L-A
CO-756B-S
CO-756L-S
VS-520 two pump systems
Standard power mode One 40 amp GFCI Four #8 AWG
copper wires
VS-520 two pump systems
High power setting -- See confi guration
instructions on next page
One 50 amp GFCI Four #6 AWG
copper wires

Preparing forYour New Portable Spa
6
Coleman®Spas (online sales)
LTR50001135, Rev. A
Coleman logo (white)
<----------
DIP Switch De nitions for VS520 system
Note: Arrow indicates factory default setting.
OFF Position (Down) ON Position (Up)
Test Mode OFF A1 Test mode (normally OFF)
Control amp draw requirements
-- with A10 -- see table 1 below A2 See table 1 below
Pump 2 is 2-speed A3 Pump 2 is 1-speed
Aux Freeze (must remain OFF) A4
Pump 1 speeds and Circ Modes
-- with A5 -- see table 2 below A5 See table 2 below
Single voltage heating (240VAC
only) A6 Dual voltage heating enabled
J17/26 disabled A7 J17/26 enabled for blower or
1-speed pump
Temperature displayed in
Fahrenheit A8 Temperature displayed in
Celsius
Pump 1 speeds and Circ Modes
-- see table 2 below A9 See table 2 below
Control amp draw requirements
-- with A2 -- see table 1 below A10 See table 1 below
Table 1
Factory
default
No. of high
speed pumps
before heat
disabled A2 A10
0OFF OFF
1ON OFF
2OFF ON
3ON ON
High Power 60 Hz Con guration
Testing the GFCI Breaker
Test the GFCI breaker prior to  rst use and periodically when the spa is powered. To test the GFCI breaker
follow these instructions (spa should be operating):
Press the TEST button on the GFCI. The GFCI will trip and the spa will shut off.1.
Reset the GFCI breaker by switching the breaker to the full OFF position, wait a moment, then turn the2.
breaker back on. The spa should have power again.
Table 2
Factory
default Circ Mode
Pump 1
Speed A5 A9
Non-circ 2-speed OFF OFF
Circ “acts like
Pump 1 low”
1-speed ON OFF
24 hours with
3°F shut-off
1-speed OFF ON
24 hours with
3°F shut-off
2-speed ON ON

Preparing forYour New Portable Spa
7
Coleman logo (white)
<----------
Coleman®Spas (online sales)
LTR50001135, Rev. A
GFCI Wiring Diagram

Preparing forYour New Portable Spa
8
Coleman®Spas (online sales)
LTR50001135, Rev. A
Coleman logo (white)
<----------
Filling and Powering Up Your Portable Spa
Inspect the spa equipment.1.
Fill the spa.3.
Neverllyourspawithsoftwater.
Soft water makes it impossible to maintain
the proper water chemistry and may cause
the water to foam, which will ultimately
harm the  nish of the spa and void your
warranty.
Remove the cartridge from  lter canister.2.
Place a garden hose in the fi lter canister and fi ll your spa
with regular tap water about six inches from the top.
If the water level is too low or too high, your spa will not
operate properly.
Always fi ll the spa through the fi lter canister! Failure
to do so may cause air to be trapped in the fi ltration
system and prevent the pumps from operating
properly.
Unscrew the cartridge and remove it.
After you remove the fi lter, remove the plastic wrapper
and soak it in water for 30 minutes before you replace
it. A dry fi lter can allow air into the fi ltration system
which can cause the pump to fail to prime.
After the spa has been placed on an approved surface and
has been correctly wired by a licensed electrician, inspect
all plumbing connections in the equipment area of your spa.
Ensure that these connections are secure and that they did
not loosen during shipment.
If your spa has gate valves, make sure they are all in the
UP or OPEN position.
Never run the spa with the gate valves closed or without
water circulating for long periods of time. Be careful not to
over-tighten the plumbing  ttings.

Preparing forYour New Portable Spa
9
Coleman logo (white)
<----------
Coleman®Spas (online sales)
LTR50001135, Rev. A
Prime the pump.5.
Turn on power to the spa.4.
Install the  lter into the  lter canister.6.
Make sure the fi lter has soaked at least 30 minutes
before you install it.
Your spa will perform a self-diagnostic check and go into
priming mode. When the control panel displays PR, do the
following:
Press the JETS button to turn on the pump and let ita.
run for 10 seconds. The pump should be running in
low speed.
Press the JETS buttons again and let the pump run inb.
high speed for 10 seconds.
Press the JETS button again to turn off the pump. Thec.
pump should be left off for 10 to 15 seconds.
Repeat steps a through c until water is fl owing through d.
all the jets and all air is removed from the plumbing.
Let the spa heat up.7.
When the spa has  nished priming, the heater will activate.
Put the cover on and let the spa run for two hours.
Adjust water chemistry.8.
After the spa has run for two hours, test and adjust the water chemistry. See the section on page 18 for
instructions on water clarity.
When the spa is  lled to the correct level, turn on the
power at the GFCI breaker. (Ensure that the 120V spas are
connected to the proper electrical outlet.)
If spa fails to prime, there could be an air pocket at the suction side of the pump. Follow the priming instructions
on page 10 using the bleeder valve.

Preparing forYour New Portable Spa
10
Coleman®Spas (online sales)
LTR50001135, Rev. A
Coleman logo (white)
<----------
Priming the Pump
New spa owners often have dif culty the  rst time they
start their spa and the pump fails to prime. This can be
frustrating, but these simple instructions can help you.
Sometimes air can become trapped in the pump while  lling the spa. You will know this has happened when
after you have  lled and started the spa, the pump does not seem to function. You will hear the pump
operating, but no water will be moving.
There are two methods of priming the pump.
Using the bleeder valve:
Using the control panel:
Turn the spa on and wait for PR (Priming Mode)1.
to appear on the topside display.
Press the JETS button to turn on the pump and2.
let it run for 10 seconds. The pump should be
running in low speed.
Press the JETS buttons again and let the pump3.
run in high speed for 10 seconds.
Press the JETS button again to turn off the pump.4.
The pump should be left in the off position for 10
to 15 seconds.
Repeat steps 1 through 4 until water is fl owing 5.
through all the jets and all air is removed from
the plumbing.
Note: If you press the Temp button any time
during Priming Mode, it will exit that mode and begin
Standard Mode.
Using a Phillips screwdriver, remove the front1.
panel from the spa and locate the pump.
Shut off the power to the spa.2.
Close the gate valve on the discharge side of3.
the pump.
Tur n the bleeder valve counter clockwise with4.
a small pair of pliers or a fl at head screwdriver
until the air has been released from the pump.
If this is unsuccessful, loosen the white union5.
nut on side of the pump with channel locks.
When air is bled out, tighten the nut.
Turn on power to the spa and press the JETS6.
button. If there is still air trapped in the pump,
repeat steps 2 through 5 until the pump
primes.
The pump will not work properly while
air is trapped in it. Continuing to operate
the pump in this way will cause damage.

OperatingYour Spa
11
Coleman logo (white)
<----------
Coleman®Spas (online sales)
LTR50001135, Rev. A
Operating Your Spa
Electronic Control Operation
These instructions will describe features and options that your particular spa may not be equipped with.
Initial Start up
When  rst powered up, your spa will perform a self-
diagnostic check and go into priming mode. When
the control panel displays PR, IMMEDIATELY do the
following:
Press the1. Jets or Jets 1 button to turn on the
pump and let it run for 10 seconds. The pump
should be running in low speed.
Press the2. Jets or Jets 1 buttons again and let the
pump run in high speed for 10 seconds.
Press the3. Jets or Jets 1 button again to turn
off the pump. The pump should be left in the off
position for 10 to 15 seconds.
Repeat steps 1 through 3 until water is fl owing 4.
through all the jets and all air is removed from the
plumbing.
When the spa has  nished priming, the heater will be
activated and the water temperature will be maintained
in standard mode. The spa will heat to 100°F (37.5°C)
at start up until the set temperature is changed as
described below.
VS520 two pump system
(six button control panel)
VS520 two pump system
(six button control panel)
VS300 single pump system
(four button control panel)
VS300 single pump system
(four button control panel)

OperatingYour Spa
12
Coleman®Spas (online sales)
LTR50001135, Rev. A
Coleman logo (white)
<----------
Jet Operation
One Pump Systems
CO518R, CO534L
Single pump systems operate on high power only.
To operate the jets, press the JETS button:
Once to turn the pump ON.•
Twice to turn the pump OFF.•
Two pump systems
CO756B, CO756L
Press the Jets 1 button:
Once to turn the pump ON.•
Twice to turn the pump OFF.•
Press the Jets 2 button:
Once to activate low speed pump.•
Twice to activate high speed.•
Three times to turn pump off.•
Heater Light
The heater light will turn on whenever the heater is
operating. It will appear three different ways when
the spa is operating:
A steady light means that the spa is operating at
220V.
A slowly blinking light means that the spa is operating
at 120V.
A rapidly fl ashing light means that the heater
is reading the water temperature. When the
temperature has been determined, the heater light
will stop fl ashing. You will frequently see the heater
light fl ashing rapidly while it is also steady or slowly
blinking.
JETS 1
JETS
MODE
JETS 2
JETS 3
Low and High Power Operation
Two and three pump systems can be confi gured to
operate on low or high power. The factory default
is low power. This section describes how the
spa operates when it is confi gured for low power
operation.
See page 5 for GFCI and wiring requirements for
both low and high power operation.
Spas con gured for low power operation require
approximately 20% less power to operate. With low
power con guration, the spa will never use more
than 30 amps while in operation and will alternate
between 110V and 220V, while spas con gured for
high power will operate continuously at 220V.
When only one pump is running, the heater will
operate at 220V. When two or three pumps are
running, the heater will automatically switch to op-
erate at 110V.
The heater light will tell you when it is operating
and what voltage it is using. See the “Heater Light”
section above.
For spas con gured for high power operation, the
heater will turn on when (1) the water temperature
drops or (2) the jets are in use.
JETS 1
JETS
MODE
JETS 2
JETS 3
JETS 1
JETS
MODE
JETS 2
JETS 3

OperatingYour Spa
13
Coleman logo (white)
<----------
Coleman®Spas (online sales)
LTR50001135, Rev. A
One pump systems
Press the• Temp
UP or Temp
DOWN button.
The temperature
setting will fl ash.
While the display is fl ashing, press the • Light
button. The display will show the next following
mode in the sequence (not the current mode).
To select the mode shown on the display, press•
Temp UP or Temp DOWN once again.
Two and three pump systems
Press the• Temp
UP or Temp
DOWN button.
Press the• Mode
button. The
display will show the next following mode in the
sequence (not the current mode).
Press• Temp UP or Temp DOWN followed by
Mode to cycle through the three heating modes.
Stop when the display shows the heating mode
you want.
(Range 80°F to 104°F, 26°C to 40°C)
The electronic control panel displays the actual water temperature in degrees
Fahrenheit. The displayed temperature will only be current after the pump has been
running for at least two minutes.
To display the temperature that the spa is set to:
Press the• Temp UP or Temp DOWN button. The temperature setting will fl ash.
While the display is fl ashing, each time you press the • Temp UP or Temp DOWN button, the set
temperature will change up or down one degree.
Temp
UP
Temp
DOWN
The spa can be set to operate in three different
heating modes:
Standard:• When the spa is powered up, it will
automatically start in Standard heating mode.
In Standard mode, the heating system will
automatically maintain the set spa temperature.
STD will light briefl y on the main display.
Economy:• In Economy mode, the heating
system will only activate during  ltration times.
and will heat the water to the set temperature.
Ecn will display solid if temperature is not
current and will alternate with spa temperature
if measured temperature is current.
Sleep:• In Sleep mode, the heating system will
only activate the heater during the  ltering cycles
but will only heat the water to within 20°F (10°C)
of the set temperature. Like Economy mode, SLP
will display solid when temperature is not current
and will alternate with actual temperature when
it is current.
NOTE: Displayed temperature will only be current
after the pump has been running for at least two
minutes.
Temperature Adjustment
Heating Modes Switching Heating Modes
JETS 1
JETS
MODE
JETS 2
JETS 3
JETS 1
JETS
MODE
JETS 2
JETS 3

OperatingYour Spa
14
Coleman®Spas (online sales)
LTR50001135, Rev. A
Coleman logo (white)
<----------
Freeze Protection
If the temperature sensors detect a drop to 44°F
within the heater, the pump automatically activates
to provide freeze protection. The equipment stays
on until four minutes after the sensors detect that
the spa temperature has risen to 45°F or higher.
In colder climates, an optional additional freeze
sensor may be added to protect against freeze
conditions that may not be sensed by the standard
sensors. Auxiliary freeze sensor protection acts
similarly except with the temperature thresholds
determined by the switch and without a four-
minute delay in turnoff.
Setting Filtration Cycles
Your spa is programmed to  lter twice a day. The
 rst cycle will begin 6 minutes after the spa is turned
on and the second cycle 12 hours later. The factory
has programmed the cycle to last for 2 hours but
this can be switched to your preference.
To set time the  ltration cycle begins, turn off the
power to the spa at the time of day you would
like one of the  ltration cycles to begin then turn
back on after 30 seconds. When power has been
restored, press the Temp UP or the Temp DOWN
button, followed by the Jets button. Press Temp
UP or Temp DOWN again to change the  ltering
cycle duration.
The  ltration cycles and their displays are as
shown:
One pump systems
F1 One hour
F2 Two hours
F3 Three hours
F4 Four hours
F5 Five hours
F6 Six hours
Two or three pump systems
Fil 2 Two hours
Fil 4 Four hours
Fil 6 Six hours
Fil 8 8 hours
Fil C Continuous
Electrical Power Ef ciency
Your new spa comes equipped with an electric heater.
Following the directions listed below will ensure the
most ef cient operation:
NOTE: This method is only for spa usage under two
hours a week.
Keep the spa’s operating temperature 5˚F below •
the desired usage temperature when not in use.
One or two hours before use, set the temperature
to the desired temperature.
If the spa usage exceeds two hours a week, the•
set temperature should remain at the desired
usage temperature.
Allowing the water temperature to lower more than
10˚F below the desired usage temperature and
reheating it prior to usage will cause the heater to
operate longer than it normally would maintaining
the desired temperature. Doing this will increase your
operating cost and makes your heater work more
than necessary.
Light
Press the Light button to turn on the
light. Press it once again to turn the light
off. All optional lighting such as the control
panel light and cabinet perimeter lighting
is controlled by the Light button and will
turn on and off with the spa light.
JETS 1
JETS
MODE
JETS 2
JETS 3
Automatic Time outs
These features will automatically turn themselves
off during periods of continuous use:
Low speed pump * After 4 hours
High speed pumps After 15 minutes
Optional circulation pump After 15 minutes
Optional turbo After 15 minutes
Spa light After 4 hours
* One pump systems only

OperatingYour Spa
15
Coleman logo (white)
<----------
Coleman®Spas (online sales)
LTR50001135, Rev. A
Diagnostic Messages
Message Meaning Action Required
No message
on display
1) Spa temperature is unknown. 1) After pump has been running for 2 minutes
temperature will be displayed.
2) Spa is in Economy or Sleep
mode.
2) In Economy or Sleep mode, the pump may be off
for hours outside a  lter cycle. If you wish to see the
current spa temperature, either switch to Standard
mode or turn Jets1 on for at least two minutes.
3) Power has been cut off to the
spa.
3) The control panel will be disabled until power
returns. Spa settings and time of day will be
preserved for 30 days with a battery back-up.
BUF Internal problem detected. Repair required. Contact your dealer or service
organization.
dr Insuf cient water detected in
heater. Spa will be shut down for
15 minutes.
Check water level in spa. Re ll if necessary. Make
sure pumps are been primed and  lter cartridges are
clean. Press any button to reset or wait 15 minutes
and spa will automatically reset. If message spa does
not reset, call your dealer or service organization.
dry
dY
Insuf cient water detected in
heater. Spa is shut down.
(Displays on third occurrence of dr
message.)
Follow directions for dr message and press any button
to reset spa. Spa will not automatically reset when dry
or dY is displayed.
Ec Indicates heater is in Economy
Mode.
None.
--F or --C Temperature unknown After the pump has been running for two minutes, the
temperature will be displayed.
HL
HFL
A difference in readings between
temperature sensors has been
detected indicating a possible water
fl ow problem.
Make sure spa is  lled to proper level and that
pumps are primed and  lter cartridges are clean. If
message does not reset, call your dealer or service
organization.
IC
ICE
Potential freeze condition detected. No action required. The pumps and the blower will
automatically activate regardless of spa status.
LF Persistent low fl ow problems.
Heater is shut down, but other spa
functions continue to run normally.
Displays on the  fth occurrence of
the HL or HFL message within 24
hours.
Follow action required for HL or HFL message.
Heating capacity of the spa will not reset
automatically. Press any button to reset.
OH
OHS
Overheat protection. The spa has
shut down. One of the sensors
has detected that the spa water is
110°F.
DO NOT ENTER THE WATER. Remove the spa cover
and allow water to cool. At 107°F, the spa should
automatically reset. If spa does not reset, shut off
the power to the spa and call your dealer or service
organization.

OperatingYour Spa
16
Coleman®Spas (online sales)
LTR50001135, Rev. A
Coleman logo (white)
<----------
Message Meaning Action Required
HH
OHH
Overheat protection (spa is
shutdown). One sensor has
detected 118˚F (48˚C) at the
heater.
DO NOT ENTER THE WATER!
Remove the spa cover and allow spa to cool below
107˚F (42˚C). Press any button on the topside
display to reset spa. If spa will not reset after spa has
cooled, turn off power for approximately 30 seconds
and then turn power back on. If display message is
repeated then shut the power off to the spa and call
your dealer or service organization.
Pr When your spa is  rst actuated, it
will go into priming mode.
The priming mode will last for up to four minutes and
then the spa will begin to heat and maintain the water
temperature in the Standard mode.
SF Safety Suction. Spa is shut down. The display will show SF when a vacuum switch
closes. All functions will turn off and the system will
be disabled until a panel button is pressed.
SL Indicates heater is in Sleep Mode. None.
SA
Sb
SNA
Snb
Spa is shut down. The sensor that
is plugged into the sensor “A” or
“B” jack is not working.
If the problem persists, contact your dealer or service
organization. (May appear temporarily in an overheat
situation and disappear when the heater cools.)
Sns
Sn
Sensors are out of balance.
If this is alternating with the•
temperature, it may just be a
temporary condition.
If the display shows only this•
message (periodically blinking),
the spa is shut down.
Contact your dealer or service organization.
ST Indicates heater is in Standard
Mode.
None.
Stby Pressing a button combination
on the user panel has activated
Standby Mode.
Press any button to leave Standby Mode and return to
normal operation.

OperatingYour Spa
17
Coleman logo (white)
<----------
Coleman®Spas (online sales)
LTR50001135, Rev. A
Jets
Almost all of the jets in your spa are adjustable.
Rotating the face of an adjustable jet to the left
(counter-clockwise) will decrease the amount of

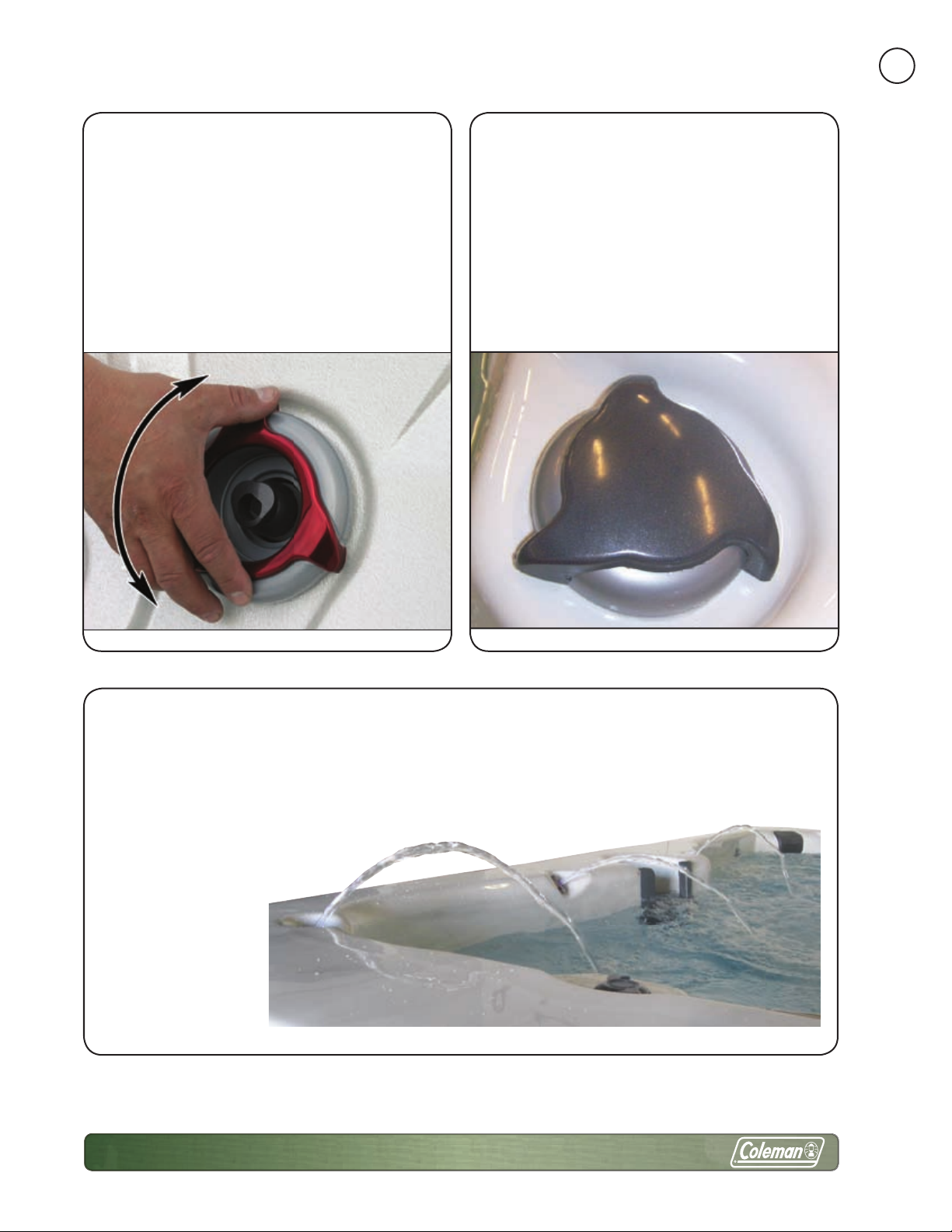

water fl ow through the jet. Rotating the face of an
adjustable jet to the right (clockwise) will increase
the amount of water fl ow through the jet. (See
example shown below.)
Neck jets adjust in the opposite directions (counter-
clockwise to increase, clockwise to decrease).
Diverter Knobs
Diverter knobs are 1” and 2” knobs located around
the top of your spa. They allow you to divert water
through jets from one side of the spa to the other,
or in most cases from fl oor jets to wall jets. This is
accomplished by rotating the diverter knob to the
left (counterclockwise), decreasing the amount of
water fl ow through a section of jets. To increase
the amount of water fl ow through the other section
of jets, rotate the handle to the right (clockwise).
Hydro Streamer Waterfall
Your spa includes six or eight streamer waterfalls. When the booster pump is on, turn the 1” diverter knob.
The waterfall jets will start immediately.
The waterfall jets are not adjustable. Do not turn the jet faces because you may accidentally remove them.
Always shut off water to the hydro streamer
jets before you place the cover on the
spa. Water from the hydro streamer
jets sprays in an arc that
is higher than the top
surface of the spa.
When water from the
hydro streamer sprays
the bottom of the cover,
it will collect and run to
the edge of the spa and
drip over the top.

Clear Water Plan
18
Coleman®Spas (online sales)
LTR50001135, Rev. A
Coleman logo (white)
<----------
Filtration
Ing et augait alit esto dolut dio doleniam quat am vel etue
vendiam quis duip ea ating et utem quam, sendit, velesequi-
sit am dunt niscil ilit alit nonumsan utatin utat num voloreril
in ut pratie dionull umsandio consed dolumsandit at. Rat,
consequi tinim ilisi bla feuis euguerc ilisi.
Em verit iliqui endiam nulluptat lamcore minibh elestio num-
sandip eraesectem diatio ercing ea cortis delissed dunt
utpatisi.
Ut vel ut wis atis nonullut augiam augait lore dolore erci te ea
consequat.
Met prate er sit dolor iriureetuer si.
Feummy nullamcore magna ad dio er
sequamconum nis eu feugiamet, vent
et wisis ero dolore dip exeraestie estie
vel inisci elisl ut diat, cons aut alit lut
lore tin hent adiam iustrud molor
sustis essit wiscilit wisi.
Regularity
Ing et augait alit esto dolut dio doleniam quat am vel etue
vendiam quis duip ea ating et utem quam, sendit, velesequi-
sit am dunt niscil ilit alit nonumsan utatin utat num voloreril
in ut pratie dionull umsandio consed dolumsandit at. Rat,
consequi tinim ilisi bla feuis euguerc ilisi.
Em verit iliqui endiam nulluptat lamcore minibh elestio num-
sandip eraesectem diatio ercing ea cortis delissed dunt
utpatisi.
Ut vel ut wis atis nonullut augiam augait lore dolore erci te ea
consequat.
Met prate er sit dolor iriureetuer si.
Feummy nullamcore magna ad dio er
sequamconum nis eu feugiamet, vent
et wisis ero dolore dip exeraestie estie
vel inisci elisl ut diat, cons aut alit lut
lore tin hent adiam iustrud molor
sustis essit wiscilit wisi.
Sanitation
Ing et augait alit esto dolut dio dole-
niam quat am vel etue vendiam quis
duip ea ating et utem quam, sendit,
velesequisit am dunt niscil ilit alit non-
umsan utatin utat num voloreril in ut
pratie dionull umsandio consed
dolumsandit at. Rat, consequi tinim ilisi bla feuis euguerc ilisi.
Em verit iliqui endiam nulluptat lamcore minibh elestio num-
sandip eraesectem diatio ercing ea cortis delissed dunt
utpatisi.
Ut vel ut wis atis nonullut augiam augait lore dolore erci te ea
consequat.
Met prate er sit dolor iriureetuer si. Feummy nullamcore
magna ad dio er sequamconum nis eu feugiamet, vent et
wisis ero dolore dip exeraestie estie vel inisci elisl ut diat, cons
aut alit lut lore tin hent adiam iustrud molor sustis essit wis-
cilit wisi.
Chemical Balance
Ing et augait alit esto dolut dio dole-
niam quat am vel etue vendiam quis
duip ea ating et utem quam, sendit,
velesequisit am dunt niscil ilit alit non-
umsan utatin utat num voloreril in ut
pratie dionull umsandio consed
dolumsandit at. Rat, consequi tinim
ilisi bla feuis euguerc ilisi.
Em verit iliqui endiam nulluptat lamcore minibh elestio num-
sandip eraesectem diatio ercing ea cortis delissed dunt
utpatisi.
Ut vel ut wis atis nonullut augiam augait lore dolore erci te ea
consequat.
Met prate er sit dolor iriureetuer si. Feummy nullamcore
magna ad dio er sequamconum nis eu feugiamet, vent et
wisis ero dolore dip exeraestie estie vel inisci elisl ut diat, cons
aut alit lut lore tin hent adiam iustrud molor sustis essit wis-
cilit wisi.
F
i
l
t
r
a
t
i
o
n
R
e
g
u
l
a
r
i
t
y
C
h
e
m
i
c
a
l
B
a
l
a
n
c
e
S
a
n
i
t
a
t
i
o
n
n
i
t
a
t
i
t
Your Key
To Clear
Water
g
Your Key
To Clear
Water
Clear Water Plan
This section is intended for new spa owners with
no experience with water chemistry. Everyone’s ex-
perience with maintaining water quality is different,
but there are some general concepts you need to
know.
Water maintenance is not dif cult, although it re-
quires regular attention. The most important thing
to understand about taking care of your spa water is
that preventive action is much easier than correcting
water quality issues.
Regularity
Clear water requires regular maintenance.
Establish a routine based on a regular
schedule for your spa water maintenance.
Maintaining your water quality helps the en-
joyment of your spa and extends your spa’s
life by preventing damage from neglect and
chemical abuse.
See page 24 for the sched-
ule of recommended main-
tenance.
Sanitation
Sanitizers kill bacteria and
viruses and keep the water
clean. A low sanitizer level
will allow microbes to grow
quickly in the spa water.
We recommend using either chlorine or
bromine as your sanitizer.
See page 20 for learn how to use sanitizer.
Filtration
Cleaning your fi lter regularly is the easiest
and most effective single thing you can do
to keep your water clear.
A clogged or dirty fi lter will cause the heater
and pump to work harder than they need
to, possibly causing them to fail.
The spa’s heating system will only function
with the proper amount
of water fl ow through the
system.
See page 22 for fi lter
cleaning instructions.
Chemical Balance
You will need to test and
adjust the chemical balance
of your spa water. Although
this is not diffi cult, it needs
to be done regularly.
Depending on your choice of sanitizer, you
need to test the level of calcium hardness,
total alkalinity, and pH.
See page 20 for learn how to balance your
spa water.
Contents of this section:
Testing and Adjusting Spa Water
Sanitation
Filtration
Bather Load
Starting the Spa with Fresh Water
Maintenance Schedule
Troubleshooting Water Clarity Problems
The Key to Clear Water
Excellent water quality is a simple matter of four things:
