M-Spa J-211 User manual

J-211/J-213 Luxury Exotic
J-132/J-152 Birkin
DO NOT RETURN MERCHANDISE DIRECTLY TO YOUR ORIGINAL SELLING STORE.
CALL MSPA AFTER SALES SERVICE CENTER FOR ANY PRODUCT QUESTIONS.
CONTACT US AT [email protected]
Hydrotherapy Owner′s Manual /
Guide de l’utilisateur d’hydrothérapie
®
Where Luxury Is Affordable / Où le Luxe est abordable
NE PAS RETOURNER LA MARCHANDISE DIRECTEMENT AU MAGASIN DE VENTE INITIAL.
APPELER LE SERVICE APRÈS VENTE MSPA POUR TOUTE QUESTION SUR LE PRODUIT.
NOUS CONTACTER AU [email protected]

WARNING
For your own safety and that of your equipment, make sure to take the following precautions. Failure to
follow warning notices and instructions may result in property damage, serious injury or death. Improper
installation or operation will void the warranty
When install or use this equipment, basic safety precautious must be followed, including the following:
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
WARNING: RISK OF ELECTRIC SHOCK. Insert the plug only to a properly grounded socket.
WARNING: The spa must be supplied by an isolating transformer or supplied through a ground-fault circuit
interrupter (GFCI) having a rated residual operating current not exceeding 30mA.
WARNING: GFCI must be tested before each use.
WARNING: If the supply cord is damaged, it must be replaced immediately by the manufacturer, its service agent or
similarly qualified person in order to avoid a hazard.
WARNING: To reduce the risk of electric shock, do not use extension cord to connect unit to electric supply; provide
a properly located receptacle.
WARNING: No part of the appliance is to be located above the bath during use.
WARNING: Parts containing live parts, except parts supplied with safety extra-low voltage not exceeding 12V,
must be inaccessible to a person in spa pool; Earthed appliance must be connected to the fixed
receptacle which is permanently connected to fixed wiring. Parts incorporating electrical components,
except remote control devices, must be located or fixed so that they cannot fall into the spa pool.
WARNING: The plug of spa shall be more than 3.5m away from the pool.
WARNING: Spray head must not be used.
WARNING: The outlet of Spa must not be connected to any tap or fitting other than those specified.
WARNING: Electric installations should fulfill the requirements of local standards.
WARNING: TO AVOID THE ELECTRIC SHOCK, DO NOT USE THE SPA WHEN IT IS RAINING.
WARNING: To reduce the risk of injury, do not permit children to use this product unless they are closely supervised
at all times.
A wire connector is provided on this unit to connect a minimum 6 AWG solid copper conductor between this unit
and any metal equipment, metal enclosures of electrical equipment, metal water pipe, or conduit within 5 feet (1.5 m)
of the unit.
WARNING: Water attracts children. Always have the Spa locked with its cover after each use.
WARNING: Do not bury cord. Locate cord to minimize abuse from lawn mowers, hedge trimmers, and other
equipment.
WARNING: Do not overexert press down or uplift the control panel device. Do not put any heavy on control panel
device after installation.
WARNING: Pets should be kept away from spa to avoid damage.
WARNING: When the bubble function is going to be in function, make sure the cover of Spa must be opened first.
WARNING: Do not switch on if there is any possibility that the water in the spa is frozen.
WARNING: Use only approved accessories. Use of non-approved accessories could void the warranty.
DANGER: Risk of accidental drowning. Extreme caution must be exercised to prevent unauthorized access by
children. To avoid accidents, ensure that children can not use this spa unless they are supervised at all
times.
WARNING: RISK OF ELECTRIC SHOCK. Install at least 1.5m from all metal surfaces.
WARNING: RISK OF ELECTRIC SHOCK. Never operate any electrical appliance when in your spa or when your
body is wet. Never place any electric appliance, such as a light, telephone, radio, or television, within
1.5m of spa.
WARNING: During pregnancy, soaking in hot water may cause damage to the fetus. Limit use to 10 minutes at a
time.
ʽ
2

WARNING: Do not expose spa under direct sunshine.
WARNING – This product is provided with a ground-fault circuit-interrupter in the plug. The
GFCI must be tested before each use. With the product operating, open the service door.
When the product stops operating, this merely indicates that the door is equipped with an
electrical interlock. Next, push the test button on the GFCI and close the service door. The
product should not operate. Now open the service door, push the reset button on the GFCI
and close the service door. The product should now operate normally. When the product
fails to operate in this manner, there is a ground current flowing indicating the possibility of
an electric shock. Disconnect the power until the fault has been identified and corrected.
DANGER – Risk of injury.
a) Replace damaged cord immediately.
b) Do not bury cord.
c) Connect to a grounded, grounding type receptacle only.
DANGER – Risk of Accidental Drowning. Extreme caution must be exercised to prevent
unauthorized access by children. To avoid accidents, ensure that children cannot use this
spa unless they are supervised at all times.
DANGER – Risk of Injury. The suction fittings in this spa are sized to match the specific water flow created by the
pump. Should the need arise to replace the suction fittings or the pump, be sure that the flow rates are compatible.
Never operate spa if the suction fittings are broken or missing. Never replace a suction fitting with one rated less than
the flow rate marked on the original suction fitting.
DANGER – Risk of Electric Shock. Install at least 5 feet (1.5 m) from all metal surfaces. As
an alternative, a spa may be installed within 5 feet of metal surfaces if each metal surface is
permanently connected by a minimum 6 AWG solid copper conductor to the wire connector
on the terminal box that is provided for this purpose.
DANGER – Risk of Electric Shock. Do not permit any electric appliance, such as a light,
telephone, radio, or television, within 5 feet (1.5 m) of a spa.
WARNING: TO REDUCE THE RISK OF INJURY:
A. The water in a spa should never exceed 40°C(104°F). Water temperature between 38°C(100°F) and 40°C(104°F)
are considered safe for a healthy adult. Lower water temperature is recommended for young children and when
spa use exceeds 10 minutes.
B. Since excessive water temperatures have a high potential for causing fetal damage during the early months of
pregnancy, pregnant or possibly pregnant women should limit spa water temperature to 38°C(100°F).
C. Before entering a spa, the user should measure the water temperature with an accurate thermometer since the
tolerance of water temperature regulating devices varies.
D. The use of alcohol, drugs, or medication before or during spa use may lead to unconsciousness with the possibility
of drowning.
E. Obese person and person with a history of heart disease, low or high blood pressure, circulatory system problems,
or diabetes should consult a physician before use a spa...
F. Person using medication should consult a physician before using a spa since some medication may induce
drowsiness while other medication may affect heart rate, blood pressure, and circulation.
3

A green coloured terminal or a terminal marked G, GR, Ground, Grounding, or the symbol*
is located inside the supply terminal box or compartment. To reduce the risk of electric
shock, this terminal must be connected to the grounding means provided in the electric
supply service panel with a continuous copper wire equivalent in size to the circuit
conductors supplying this equipment.
* IEC Publication 417, Symbol 5019.
At least two lugs marked "BONDING LUGS" are provided on the external surface or on
the inside of the supply terminal box or compartment. To reduce the risk of electric shock,
connect the local common bonding grid in the area of the hot tub or spa to these terminals
with an insulated or bare copper conductor not smaller than No. 6 AWG.
All field—installed metal components such as rails, ladders, drains or other similar hardware
within 3 m of the spa or hot tub shall be bonded to the equipment grounding bus with
copper conductors not smaller than No. 6 AWG.
SAVE THIS INSTRUCTIONS
WARNING: CHILDREN SHOULD NOT USE SPAS OR HOT TUBS WITHOUT ADULT
SUPERVISION
WARNING: DO NOT USE SPAS OR HOT TUBS UNLESS ALL SUCTION GUARDS ARE
INSTALLED TO PREVENT BODY AND HAIR ENTRAPMENT
WARNING: PEOPLE USING MEDICATIONS AND/OR HAVING AN ADVERSE MEDICAL
HISTORY SHOULD CONSULT A PHYSICIAN BEFORE USING A SPA OR HOT TUB
WARNING: PEOPLE WITH INFECTIOUS DISEASES SHOULD NOT USE A SPA OR HOT TUB
WARNING: TO AVOID INJURY EXERCISE CARE WHEN ENTERING OR EXITING THE SPA OR
HOT TUB
WARNING: DO NOT USE DRUGS OR ALCOHOL BEFORE OR DURING THE USE OF A SPA
OR HOT TUB TO AVOID UNCONSCIOUSNESS AND POSSIBLE DROWNING
WARNING: PREGNANT OR POSSIBLY PREGNANT WOMEN SHOULD CONSULT A
PHYSICIAN BEFORE USING A SPA OR HOT TUB
WARNING: WATER TEMPERATURE IN EXCESS OF 38°C MAY BE INJURIOUS TO YOUR
HEALTH
WARNING: BEFORE ENTERING THE SPA OR HOT TUB MEASURE THE WATER
TEMPERATURE WITH AN ACCURATE THERMOMETER
WARNING: DO NOT USE A SPA OR HOT TUB IMMEDIATELY FOLLOWING STRENUOUS
EXERCISE
WARNING: PROLONGED IMMERSION IN A SPA OR HOT TUB MAY BE INJURIOUS TO YOUR
HEALTH
WARNING: DO NOT PERMIT ELECTRIC APPLIANCES (SUCH AS A LIGHT, TELEPHONE,
RADIO, OR TELEVISION) WITHIN 1.5 M OF THIS SPA OR HOT TUB
CAUTION: MAINTAIN WATER CHEMISTRY IN ACCORDANCE WITH MANUFACTURER' S
INSTRUCTION
Hyperthermia occurs when the internal temperature of the body reaches a level several
degrees above the normal body temperature of 37°C(98°F). The symptoms of hyperthermia
include drowsiness, lethargy, and an increase in the internal temperature of the body.
4

The effects of hyperthermia include
(a) unawareness of impending hazard;
(b) failure to perceive heat;
(c) failure to recognize the need to exit spa;
(d) physical inability to exit spa;
(e) fetal damage in pregnant women; and
(f) unconsciousness and danger of drowning.
WARNING: THE USE OF ALCOHOL OR DRUGS CAN GREATLY INCREASE THE RISK OF
FATAL HYPERTHERMIA IN HOT TUBS AND SPAS
WARNING: TO REDUCE THE RISK OF INJURY: Never pour water which higher than 40°C(104°F) into the spa pool
directly.
WARNING: The use of alcohol, drugs, or medication can greatly increase the risk of fatal hyperthermia.
Hyperthermia occurs when the internal temperature of the body reaches a level several degrees above the normal
body temperature of 37°C(98.6°F). The symptoms of hyperthermia include an increase in the internal temperature
of the body, dizziness, lethargy, drowsiness, and fainting, The effects of hyperthermia include failure to perceive
heat; failure to recognize the need to exit spa; unawareness of impending hazard; fetal damage in pregnant women;
physical inability to exit the spa; and unconsciousness resulting in the danger of drowning.
CONSULT YOUR PHYSICIAN FOR RECOMMENDATIONS.
CAUTION: The spa should not be setup or left out in temperature lower than 4°C (40°F):
CAUTION: Do not use the spa alone.
CAUTION: People with infectious diseases should not use a spa.
CAUTION: Do not use the spa immediately following strenuous exercise.
CAUTION: Always enter and exit the spa slowly and cautiously. Wet surfaces are slippery.
CAUTION: To avoid damage to the pump, the spa must never be operated unless the spa is filled with water.
CAUTION: Immediately leave spa if uncomfortable or sleepy.
CAUTION: Never add water to chemicals. Always add chemicals to water to avoid strong fumes or violent reactions
that may result in hazardous chemical spray.
CAUTION: Place only on surface that can withstand the floor loading requirement of your Spa.
NOTE: Please examine equipment before use. Notify after service center listed on this manual for any damaged
uoytahtsledomehttneserperstnenopmoctnempiuqeehttahtyfireV.esahcrupfoemitehttastrapgnissimro
had intended to purchase.
PRODCUT SPECIFICATIONS
Seating capacity
Water capacity
Outer
Inner
Height
Number of air jet
Power rated
Heater
Jet
Filter
Pool and top lid
Mspa-Hydrotherapy
4 adults
700 Ltr/ 184 gal.
1.80 m/ 71”
1.40 m/55”
0.7 m/28”
5 powerful massaging jets
110~120V, 60Hz
675W x 2
580W
24V/50W
Synthetic leather with foil inside the cover.
Inflatable bladder,material is same except for
color of the spa pools.
6 adults
930 Ltr/ 317 gal.
2.04 m/ 80”
1.60 m/63”
0.7 m/28”
8 powerful massaging jets
110~120V, 60Hz
675W x 2
580W
24V/50W
Synthetic leather with foil inside the cover.
Inflatable bladder, material is same
except for color of the spa pools.
Style No.
312-J251-J112-J231-J
5

INSTALLATION INSTRUCTIONS

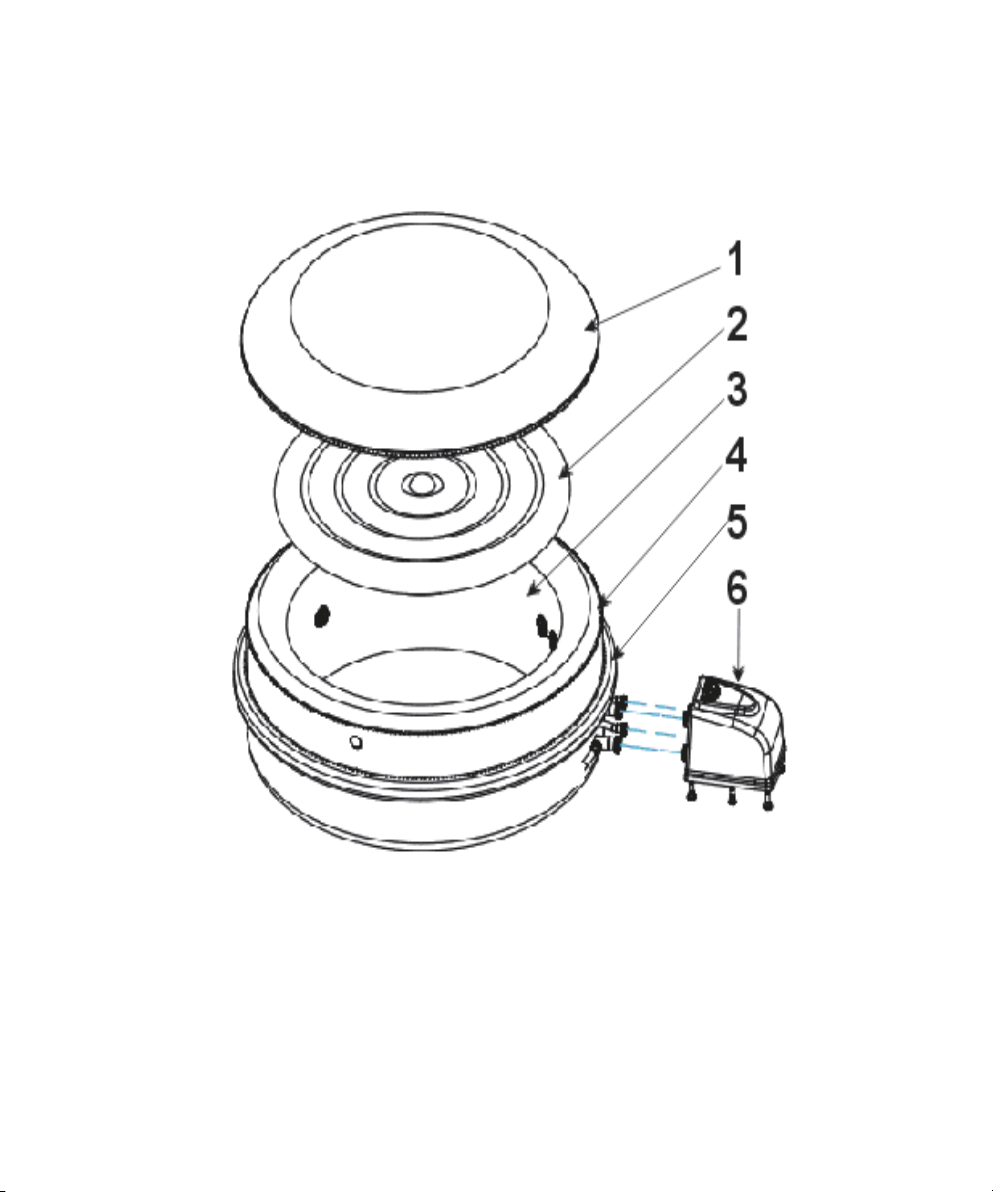

PRODUCT COMPONENTS
1. Aluminum foil top lid with zipper, digital lock included
2. Inflatable bladder
3. Spa pool-the inner inflatable tub
4. Leather cover of the spa pool
5. Leather cover of jet pipes
6. Control box
NOTE: Drawings for illustration purpose only in this manual. Actual product may vary. Not to scale.
6

CONTENTS OF CARTON
NOTE: Ensure to check all parts are present.
Packaging Exposure
Part A: Part B:
No. Item Qty Figure No. Item Qty Figure
1 Foam mat 9pcs/set 1 Control box 1pc
2
Aluminum foil top
lid with zipper 1pc
   
3Inflatable
bladder 1pc

7

ItemNo.
1
1
22
3
3
4
5
Qty
1pc
1pc
2pcs
Figure
Part C:
Item
No.
6
7
8
9
10
11
Qty
1set
1set
1set
1pc
Figure
No.1 Jet Pipe
No.2 Jet Pipe
No.3 Jet Pipe
Filter Cartridge
Electric Pump
attached
with Manometer
Repair Kit
Spare O-rings
Digital Lock
1pcRemote Control
3pcs for
J-213
2pcs for
J-211
Drainage hose
adapter 1pc
1pc
(2 sizes available)
ItemNo.
1
metIerugiFytQ erugiFytQ.oN
Part D:
Spa pool
leather covers
included
2tes1
Golden Leather
Cover Trim For
the Jet Pipes
(3-way pipe
connector included)
1set
8

A. Site Selection Requirements
WARNING: The site to place the spa must be capable of supporting the expected load.
WARNING: An adequate drainage system has to be provided to manage overflow water.
IMPORTANT: Because of the combined weight of the spa, water and users, it is extremely important that the base
where the spa is installed is smooth, flat, level and capable of uniformly supporting the weight for the entire time the
spa is installed. If the spa is placed on a surface which does not meet these requirements, any damage caused by
improper support will void the warranty. It is the responsibility of the spa owner to ensure the integrity of the site at all
times.
Be aware of special requirements if you install the spa indoors.
1. The floor must be able to withstand the capacity of the spa.
2. The floor should be a non-slip, level surface.
3. Proper drainage is essential for indoor spa installation.
4. When building a new room for the spa it is recommended that a floor drain be installed.
5. Humidity is naturally present with the spa installation; determine the effects of airborne moisture on exposed wood,
paper, etc. in the proposed location.
6. To minimize these effects it is best to provide plenty of ventilation to the selected area. An architect can help
determine if more ventilation is needed.
NOTE: Do not install the spa on carpet or other material that can be damaged by moisture.
B. GFCI Test
WARNING: RISK OF ELECTRIC SHOCK. The GFCI plug must be tested before each use.
WARNING: Insert the GFCI plug into a residual current device (GFCI) protected power receptacle only.
WARNING: Before inserting the plug into a power receptacle, make sure the current rate of the power receptacle
and the fixed wiring are suitable for the Spa. Contact a qualified electrician if you cannot verify.
1. Insert the plug into the power receptacle. (1)
2. Press the “RESET” button. The indicator light should turn red. (2)
3. Then press the “TEST” button. The indicator light should disappear. (3)
WARNING: Do not use if above test fails.
4. Finally, press the “RESET” button again. The indicator light should turn red. The spa is ready for use. (4)
C. ASSEMBLY
a) Unfold the Spa pool from the packaging box. Take out the spa pool body, cover
and heat preservation mat. Make sure the spa and cover top are right side up.
Connect each piece of foam mat to make a square mat, then place it underneath
the spa tub.
It is possible to install and leave the spa tub outside at a temperature below 4°C,
but only if the water temperature inside the pool is higher than 4°C and water in
pipe is not frozen. The spa tub can be operated in cold weather with temperature
down to maximum -10°C if the unit is properly set up and no frozen water inside the control box, pipes or spa pool.
It’s helpful to put temp barrier mat in between the spa pool and the ground. Similar mat which is made of foam
material or other materials with temp barrier function can also be used.
9

b) Take the #.1-3jet pipes, connect all the pipes together around the spa pool outer wall according assembly picture
shows below:
Note: Please make sure O-rings are assembled on the pipes as shown in the above picture. It’s important
to keep the O-ring in order to avoid water leakage. If O-ring is missing, use the spare ones included in
the package.
c) After connecting the jet pipes, zip the leather cover of jet pipes to make a complete and neat appearance.
d) Unscrew the top part of the air valve on the spa pool (1). Screw the other end of electric pump’s inflation hose onto
Manometer, and then put into the air valve. (2). Inflate the spa pool by turning on the electric pump (3).
Note: Ensure the electric pump is unplugged before connecting the spa.
Note: Unscrew the stopper for deflating the spa pool.
1# 1#
1#
1#
1#
2# 2#
3# 3#
J-132/J-211 J-152/J-213
O-ring of jet pipe
Valve
Unscrew
1󰷅(2) 3
10
e) Check and test the air pressure reaches the appropriate level by using the following steps:
Note: The top white section on the floating-point bar of the manometer only appears
when not in use
During inflation, if the yellow section of the manometer is pushed out, the spa
inflation is completed. You can fill the spa with water at this point.
yellow
green
red To avoid over inflation caused by warm weather or sunshine when leaving
mspa for weeks inflated and filled with water in temperature higher than 20°C,
please reduce the air pressure until yellow part just appears on manometer's
floating-point bar.
After water filling is completed, check the air pressure once again to ensure the
manometer reaches green section. When you need to inflate the spa again during
use, always ensure it points to the green section range.

f) Screw the cover to the valve once the air pressure inside the pool is tested and
appropriate.
g) Inflate the top bladder by turning on the electric pump. Stop inflating when it is
going to be full with no wrinkles on surface
h) Connect the control box to the spa, and screw the hoses tight.
i) Fill the water into the spa. Use a garden hose to fill in the water until it reaches
the area between the Maximum and Minimum water lines printed inside the spa
wall.
WARNING:
1. Fill in water carefully especially for the first time of use. Water level must
reach the minimum water line but not exceed the maximum water line,
otherwise it may cause pump failure.
2. Please avoid water spillage which will cause damage to the electric parts.
3. After filling in water, please check air pressure again and make sure the pin reads in the Green Sector. When
needs to inflate more air during use, please make sure the pin must always reads in the Green Sector at all times.
4. Please reduce the air pressure to the yellow sector of manometer, to avoid over inflation due to warm weather or
sunshine etc. after leaving the spa inflated or with water for weeks.
Warning: to avoid function failure or damage to the control system, do NOT operate any functions until the spa is
filled with water with appropriate water level.
j) Put the inflatable bladder onto the spa pool first, and then close the spa with zipper cover. Close the spa
completely, lock the cover to the spa pool body by using the digital lock in the standard accessory pack.
Note:
Remember to test and adjust the air pressure inside the spa pool before each time of use.
Apply wax to the zipper regularly to make it smooth for operation and to avoid splits.
How to change the combination of digital lock:
Original combination is set as 000
1) Push the release button(a) in the direction of the arrow shown and
the lock will be released.
2) Set your desired combination by move the number wheel(b).
Please do not forget to press your new combination.
3) Insert back the steel cable(c) to its end in the direction of the arrow.
The new combination is ready for use.
WARNING: Do not move the number wheels while the digital lock
is open. Or you will change the combination you just set. This
will unable the digital lock.
WARNING: The cover is not a substitute for adult supervision; Children must be supervised at all times around the
spa tub.
WARNING: Water attracts children; Always attach the spa cover and lock it after each use.
(a)
(b)
(c)
(1) )3()2(
11
If the red section of the manometer appears, the spa is over inflated. Press the
black button on the manometer, have the air release until you see it points the green
section. Recheck the air pressure and make sure it only appears the green section
in any term.
DO NOT OVER INFLATE. OVER INFLATION MAY CAUSE SPA POOL LEAKAGE
AND VOID THE MAN UFACTURER WARRANTY.

POWER PACK OPERATION
Warning: to avoid any function failure or damage, do NOT operate the spa until it is filled with water to the
minimum water mark.
It is the owner’s responsibility to ensure the installation conditions are applied, all safety & warning requirements are
met. Any failure and damages that is result from dry-run, water spillage, excessive humidity, or structural loading will
void the warranty.
Control Panel:
LED Display: Once switched on, the LED panel displays
the current water temperature automatically.
1. “ON/OFF” Button: Turns in red after plug in the spa. Press to
activate power pack only when remote control is not used.
2. “TEMPERATURE” Button: To set the temperature.
3. “JET” Button: To start jetting system. The system has an auto
feature that every 30-minute operation will shut down for 1 minute. JET functions needs to be started every
30-minute manually.
4. “FILTER” Button: To activate filtration system. The light of “FILTER” button displays in green when the filtration
system is working.
5. “HEATER” Button: To activate heating and filtration system at the same time.
NOTE: The set temperature defaults to 100°Fwhen first plugged in.
NOTE: Temperature can be set from 96°F to 104°Fby every 4°Fas a circulation 100=>104=>96=>100
The control panel displays set temperature when press “TEMPERATURE” button once, and then displays current
water temperature after 1 second. When pressing “TEMPERATURE” for 3 seconds, LED starts to flash and then you
can set your desired temperature. After temperature is set, you may press the temperature button again or leave it
for 10 seconds and then it’ll display current water temperature.
Remote Control:
1. “ON/OFF” Button: To activate both remote control and control box.
The display window of control box will show the same information
as what show in remote control’s display window.
2. “°C/°F” Button: To select a temperature display Celsius display is
used to operate European standard control box, Fahrenheit display
is used to operate North American standard control box.
3. “TEMPERATURE▲” Button: Increase temperature
4. “TEMPERATURE▼” Button: Lower temperature
5. “HEATER ON” Button: To activate heating and filtration system at
the same time.
6. “HEATER OFF” Button: To stop heating system
7. “FILTER ON” Button: To activate filtration system
8. “FILTER OFF” Button: To stop filtration system
9. “JET ON” Button: To activate jetting system
10. “JET OFF” Button: To stop jetting system
Remote control does not have any user serviceable parts. Opening the case, except for the battery cover, may cause
permanent damage to your remote control. Keep the remote control dry and do not break it by force.
Installing Batteries
The remote control requires installing two (2) new AAA batteries (excluded).
1. Pull back the remote control’s battery cover and remove it.
2. Insert the two (2) supplied AAA batteries according to the + and - marks in the battery case.
3. Push the battery cover back into place.
4. Test the unit by pressing the power key.
Display Window
12

NOTE: When batteries need replacement, the remote control will stop operating. Replace the old batteries within 15
minutes and the unit will be restored to its full func¬tionality.
JET Button: Use this button to activate the massage jet system. After
(1) Alter the jet nozzles in the direction to suit your needs and for best effect.
(2) Screw the jet control knob clockwise or anticlockwise to change the power
of the massage. The maximum power is air & water combo jet, the
minimum power is water jet only. There are 3 jet control knobs on the side
of the pool for J-132/J-211, and 4 jet control knobs for J-152/J-213. Every
jet control knob is to adjust the jet(s)’ power of same position.
The light of the “HEATER” button displays red when the heating system is activated.
NOTE: It’s normal that filtration system cannot be turned off individually when it is working.
NOTE: Filtration function can only be turned off by pressing “HEATER” button but not “FILTER” button.
The heater will be stopping heating until the current water temperature reaches the set temperature. After the set
temperature is reached, the “FILTER” button will be off and “HEATER” button shows green. After the current water
temperature drops 2°C below the set temperature, the heating system will restart and light turns into red. The “FILTER”
button will be activated automatically at the same time. The heat increase rate is maximally 1-3°F per hour.
Please note that the following conditions will lead to slow heating without heating phenomenon:
1. Environmental temperature lower than50°F
2. Outdoor wind force above Gentle breeze/F3
3. Environmental temperature lower than50°F and wind power above Gentle breeze/F3
4. Activate bubbling system when heating
5. Spa lid is not covered or improperly covered when heating
It is recommended to fill spa tub with luke warm water for quick heating and energy saving.
Spa Water Maintenance Poor water quality can be extremely hazardous to your health.
The following recommendation is helpful to keep spa water crystal clean:
A: Use filter cartridge regularly.
Screw the filter onto the water inlet (as shown in right picture)
on the spa wall by turning it clockwise.
Note: Prepare two filter cartridges for switch using, if one is in use,
you can clean and dry the spare one.
Note: Do not use filter cartridge when heating water. To avoid the filter
cartridge get damaged,
do NOT use the filter when there are children or more than two bathers in the spa. After finish using, replace the filter
cartridge.
B: Clean your filter cartridge at least one time after it continuously working for 72~120 hours. Filter cartridge should
be replaced at least once a month during peak using season.
Please make sure to unplug the power pack from the electrical receptacle before the following actions.
1. Unscrew the filter cartridge by turning it counter-clockwise.
2. The filter cartridge can be rinsed off with a garden hose and reused. However, if the filter cartridge remains soiled
and discolored, the filter should be replaced.
The MSpa filter cartridge has a lifetime of approx. 6 weeks even it’s well maintained. If the paper wall in the filter still
looks new, it means the filter can be used for a few more weeks. We suggest preparing more than one filter so you
can switch between the two filters when one of them is being cleaned. Make sure the filter must be totally dry up
before use again. If dusts in the water looks obvious, change the filter frequently.
(1) (2)
open close
13

C: Change water every few days or use appropriate pool chemicals. All spas require the use of pool chemicals.
Please consult your local pool supply retailer for more information about chemical maintenance. Pay close attention
to the chemical manufacturer’s instructions. Spa damage resulting from misuse of chemicals and mismanagement of
spa water is not covered by the warranty.
a. Water Balance: we recommend maintain your water pH between 7.2 and 7.8, total alkalinity between 80 and 120
ppm and free chlorine between 3 to 5ppm. Use test strip to test your water chemistry before each use of the spa,
no less than once per week. Low pH will damage to the spa and pump. Damaged resulting from chemical
imbalance is not covered by the warranty.
b. Water Sanitation: Water Sanitation is the responsibility of the spa owner, achieved through the regular and periodic
(daily, if necessary) addition of an approved sanitizer. The sanitizer will chemically control the bacteria and viruses
present in the water or introduced during use of the spa.
Note:
1. Leftover chemical from any sources should not be used in the spa tub.
2. Use chlorine powder not tablets to clean the water. Dissolve the powder before pour into water.
3. Do not mix the water with any bath oil or bath salt.
4. Only use clean water to fill the spa tub. Salted water could damage the pump and filter.
Special Notice on Water Treatment
Please read about water quality and filter usage in user manual. Always shower before entering the spa.
Use test strip to test the water chemistry before each use of the spa. Apply testing at least once every week. The pH
level must be between 7.2 and 7.8, total alkalinity between 80 and 120 ppm and free chlorine between 3 to 5ppm.
Too low of a pH level will result in excessive wrinkles and damage to the spa pool as well as corrosion in the motor
unit. Too high of a pH level(hard water) will result in scale incrustation, e.g. sheets of white coagulations inside the
filter pump, which will lead to block and non-working of the filter pump.
If you have any questions regarding chemicals, please contact your local spa and pool water treatment specialist
stores.
It is the responsibility of the owner to properly maintain the chemical balance and sanitation of the water. Mspa is not
responsible for any damages that result from improperly maintained water. Improper water maintenance may result
in voiding the warranty.
Spa Cleaning
Detergent residues or dissolved solids from bathing suits and chemicals will gradually accumulated in the water. If
any dirt is visible in the water, change the water and clean the pool. Use a mild cleaner to wash the inner vinyl of the
spa tub and rinse with clean luke warm water.
NOTE: Do not use hard brushes or abrasive cleaners to clean the spa.
14
Drainage
1. Turn off all the functions on the control panel.
2. Connect the drainage hose adapter onto the drainage structure and
make sure it is well connected.
3. Find your garden hose and connect onto the drainage hose adapter
in the other end.
4. Screw off the cover of the drainage structure inside of the spa pool, let the
water flow out of the drainage hose.
5. Wait till the spa has no water flow out of the drainage hose, empty the
the rest of water manually and completely.

DO NOT leave your MSpa full of water if you will be away for awhile or no one can take care of the pool.
Drain the water before you leave and deflate the spa pool body a bit.
Spa Pool Repair
If the spa pool body is damaged, use the repair patch provided in the package. Clean and dry the damaged area
in order to prevent dust or dirt from getting on the tacky glue. Apply glue to the PVC of the repair patch and quickly
attach it onto the damaged surface. Smooth the surface to remove any air bubbles and allow it dry for roughly 3-10
minutes. A secure and unnoticeable can usually be made.
Spa Storage
After the spa is drained, unscrew the complete part of the air valve on the spa pool and the spa will be deflated.
Make sure all water is drained from the spa tub and the control box. This is essential to extend the life of the spa.
You could also use a vacuum or hair blower to suck up or blow out the water from the pipe and pump lines. Filter
cartridge also needs to be removed. It is recommended to store the spa tub in the original packaging box. Store the
tub in a warm and dry place.
NOTE: All components must be completely dry and clean before packaging and storage. Store the spa safely in a
warm and dry condition. Exposure to sunshine is not recommended. Plastic can becomes brittle and susceptible to
breakage when exposed to a sub-zero temperature environment. Icy weather or store below sub-zero temperature
can severely damage the spa tub. Improper winterization of your MSpa may void your warranty.
Spa checklist before unpack the unit and re-use for the new season:
In order to have your MSpa runs smoothly and easily for the new season, follow the check steps below:
1. Check if there is water in the air pipe. If any water is found, dry the air pipe before operating the spa tub.
2. Connect control panel correctly, turn on the spa tub, check if LED displays correctly and if the signal
cable is connected properly.
3. Press ON / OFF button on the control panel, open jet function, check if it operates properly.
After doing the above steps, your MSpa should be ready for use. Enjoy it!
Note: Any damage caused by improper storage or failure to do the checklist of reuse will void your warranty.
TROUBLESHOOTING
Mspa® strives to provide the most trouble-free spas on the market. If you experience any product related problems,
do not hesitate to contact us or your local after sales service center.
Here are some helpful tips to help you to diagnose and rectify some common sources of trouble.
* For any spare parts you need for replacement, please refer to the warranty policy for replacing details.
* For any other unknown failures out of the list, please contact your national or regional MSpa service center.
15

snoituloSsesuaCelbaborPsmelborP
Control panel/display
panel attends black
without any power at all
1. Power failure
2. "ON/OFF" button on control panel
isn't turned on.
1. Check if power supply is normal and well
connected to your MSpa.
2. Press "ON/OFF" button
The spa pool is in a
strange shape
Extra air pressure by strong sunshine Check the air pressure. The bath tub can get an
abnormal shape if the pressure is too high due to
strong hot sunshine. Normally this happens only if
the air pressure has been too high due to direct
sunshine.
Smart investment is to buy a spa cover at your
local MSpa dealer. This will protect the spa from
UV or pollution.
1. Air valve looses
1. Drain out all the water from the spa if necessary
and possible. Try to use some Vaseline or similar
thing to grease the rubber gaskets in the air valve
and in the part to open to fit the black tube into the
panel. Fill up the spa with air.
The spa is loosing air
pressure
2. Holes or pin splits on spa pool
2. Use a spray bottle with a mild detergent to be
able to see the air leak when itÿs coming some
small soap bubbles. Try to find the air leak on both
sides on the spa body part. Any holes or splits
within size of 10cm and not in welding seam part
can be repaired by PVC swatch and glue that is
provided in repair kit.
Water Leakage
1. Water is leaking between the Jet
pipes, pipes connecting the control
box and spa pool, or inlet and outlet.
2. Water is leaking from the drainage
valve
1. If there is water leakage like tear drops, it is
ok for use. Please screw the pipes tightly
and correctly.
2. Check the O-ring and replace it if it is
missing, again screw the pipes tightly and
correctly
DISPOSAL
1.The marking indicates that this product shall not be disposed with the general household waste. Please
contact your local community about collection points or ask your dealer.
2.This product contains valuable materials that can be recycled and contributed to a sustainable environment.
3.For recovery, recycling and dismantling information for this product, please visit us at www. the-mspa. com.
16

MSpa® products are designed with reliability and simplicity in mind. In addition, our internal Quality
Assurance Team carefully inspects each unit thoroughly before it leaves our facility. Oriental Recreational
Products (Shanghai) Co., Ltd. (ORPC) is pleased to extend this limited warranty coverage to the original
purchaser of an MSpa® Product. This warranty is not transferable. The warranty period commences on the
original purchase date through 6-12 months accordingly.
The Limited Warranty
This warranty is subject to the obligations, limitations and exclusion listed below:
1. Spa pool – six (6) months from original date of purchase.
2. Electric Parts (Control Box) – twelve (12) months from original date of purchase.
* Report damage after this time will be subject to rejection.
Repair/replacement parts purchased by the consumer from ORPC after the original coverage has expired on the
unit will carry a 90 day warranty, valid with a receipt only. Any item shown to be defective will be repaired at our
discretion. No labor coverage is included within these parts.
Shipping Policy: Consumers are responsible for the shipping/freight when return the defect parts to MSpa authorized
service center or ORPC. All subsidized labour costs of removal and reinstallation of parts might be subject to dealer
service charges.
Conditions:
This warranty applies to the original purchaser and terminates upon any transfer of ownership. ORPC’s obligation
under this warranty is only limited to replacing or repairing at ORPC’s option once any part or parts of this unit which
in our judgment show evidence of such defect.
All repairs for which warranty claims are made must be pre-authorized by ORPC through an accredited distributor or
agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.
All the Mspa authorized selling dealer is responsible for all in-field service work carried out on your MSpa® product.
ORPC will not be liable for results or cost of workmanship from unauthorized service persons or dealers.
Warranty Registration is required. Warranty Registration Card can be only filled out by mail. All claims must be
submitted to ORPC by authorized selling dealers. It is essential that all submitted claims provide all of the necessary
information including customer name, purchase date, serial #, product model, problem, and part or parts requested,
without this information the warranty will be invalid.
Warranty Cards must be completed and mailed to ORPC by authorized dealer within thirty (30) days from the original
purchase date.
Limitations on Warranties
This warranty is a limited warranty. It does not extend to any product or damage to a product caused by or
attributable to freight damage, abuse, misuse, or abnormal usage, or repairs not provided by ORPC authorized
service personnel, to products used for commercial or rental purpose, or to products used as store
display models.
®
17

Damages caused by or attributable to the following incidents are specially excluded:
a. Any damage caused by the operation of the spa with water temperatures outside the range of 0°C-42°C/32°F-
107.6°F (Europe/Australia) or 0°C-40°C/32°F-104°F (USA)
b. Any damage caused by clogged, dirty or calcified filters
c. Any damage that are purely aesthetic and do not hinder the function of the MSpa
d. Any damage to the exterior resulting from improper maintenance or any damage to the exterior attribut able to f
reight mishandling
e. Overfilling
f. Damage resulting from improper winterization
g. Damage to the spa liner resulting from improper chemical treatment, damage to the spa resulting from exposure to
extreme temperatures.
h. Damage to the spa resulting from exposure to direct sunlight and ultraviolet rays while the spa is empty
i. Damage to the pump, motor, plumbing and components due to improper maintenance, chemical treatment, or
exposure
j. Damage resulting from failure to properly follow user’s manual installation, operating, or maintenance instructions.
Spa accessories (optional) are excluded from the warranty, including but not restricted to the following:
* Comfort set (headrests, cup holder)
* Filter cartridge
* Heat preservation foam mat
* Seat cushion
* Test trip
* Bubble spa overall cover
* Ice box
* Foot bath
* Led light
* Plastic wood step
* Electric pump
* Remote control
Any alterations to the spa will void this warranty. Alterations include but are not limited to: any component or plumbing
change, electrical conversion, or addition of alternate sanitation or heating systems.
ORPC authorizes no other warranty beyond that specifically set forth above. ORPC is not responsible or liable for
indirect, special or consequential damages arising out or in connection with the use or performance of the product or
damages with respect to any economic loss, loss of or damage to property including water damage, loss of revenue,
loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature.
No agent, dealer, distributor or Service Company or other party is authorized to change or modify or extend the terms
of this warranty.
Legal Rights
This warranty gives you specific legal rights and you may have other rights, which vary from country to country.
For warranty service contact, see the MSpa After Service Center Contact List in the User Manual.
Manufactured By:
Oriental Recreational Products (Shanghai) Co., Ltd.
1699 Daye Road, Wuqiao, Fengxian, Shanghai, China
18

USA
Country Address/Tel./Fax/E-mail Country Address/Tel./Fax/E-mail
Canada
E-mail: [email protected]
909-212-5555
Go Hot Tubs
Ottawa, ON
Canada
Phone: [phone]
E-mail: [email protected]
web: www.gohottubs.com
