7. Stretch corners and sides of tent until floor is taut then hammer
stakes through loops to secure. (Fig. 3B)
STITCH LINE
ELITE SUNDOME®6 TENT MODEL 2000001585
Fig. 2
To Set Up Tent
1. Unfold tent and spread out on a clean, level surface with the door
facing the desired direction. (Fig. 1)
2. Assemble two main tent poles by interlocking the longer, black
shock-corded, poles.
3. Insert both, long, black poles through sleeves in top of tent as
shown. (Fig. 1)
Fig. 3
To Attach Rainfly
1. Assemble longer interlocking shock-corded rainfly pole.
2. Unfold rainfly. Locate the sleeve, along front edge, and the hook &
loop fasteners on the underside of Rainfly.
3. Drape Rainfly over tent. Make sure the sleeve is centered over the
door and the hook & loop fasteners, on the seams on underside of
the Rainfly, are
positioned over
the black main
poles.
4. Slide rainfly pole
through sleeve at
front of the Rainfly.
(Fig. 10)
Fig. 1
Door
Long, Black,
Shock-corded
Main Poles
3A 3B
Pole Descriptions
Pole Pole Pole
Description Qty. Dia. Repair Kit Replacement Kit
Main Poles, long, black 2 11mm 5010000539 5010000549
Rainfly Pole, black
w/metal tips 1 11mm 5010000539 5010000549
Vertical Door Pole, black,
short w/rubber tips 1 6.3mm 501000543 501000545
Door Pole, black,
long w/rubber tips 1 6.3mm 501000543 501000545
Self-Rolling Window Spring Descriptions
Color Code Description Qty. Length Replacement Part No.
Green 1 550mm 5010000626
Orange 1 670mm 5010000628
CAUTION: “Springs” may have sharp edges. Handle with care to avoid
injury. Keep out of reach of children.
Hinged, Rigid Door
1. Assemble Vertical Door Pole (shorter black pole with plastic tips);
then insert through zippered vertical pole sleeve on hinged side of
door. (Fig. 4)
2. Insert end of Vertical Door Pole into bottom hinge plate, apply
pressure to form a slight bow, then insert other tip of pole into top
hinge. Zip up vertical pole sleeve. (Fig. 5 & 6)
3. Assemble Door Pole (longer black pole with plastic cap tips); then
insert into zippered pole sleeve at top of door. (Fig. 7)
4. Insert end of Door Pole into top hinge plate, apply pressure to form
a bow, then insert other tip of pole into the bottom hinge. (Fig. 8)
5. Zip up pole sleeve to enclose Door Pole. (Fig. 9)
Fig. 4 Fig. 5 Fig. 6
Fig. 7 Fig. 8
Fig. 9
Vertical Pole
Sleeve
Door Hinge
Pole
Sleeve
Top
Door
Hinge Pole
Sleeve
Top
Door
Hinge
Before you begin
Read all instructions before set up.
• Select a level site clear of rocks, branches, and other hard or sharp
objects, to install your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees because of potential lightning strikes
or falling tree limbs in inclement weather.
• Secure with all stakes and guylines provided to prevent property damage
or personal injury.
• For best results in windy conditions, position narrow end of tent into
the wind.
• Enlist the help of at least one other person to assist you when it is time
to assemble the tent.
Front of Tent
4. Insert one end of each black
pole into pins in front corners of
tent. (Fig. 2)
5. Go to opposite end of each pole and gradually apply pressure to the
pole forming an arch. Insert the pin into the pole end at the corners
of tent. (Fig. 3)
6. Attach frame clips along edges of tent to black main poles.
(Fig. 3A)
(continued on
other side)
Fig. 10
Rainfly
Sleeve
Rainfly
Pole
Door
Door

STITCH LINE

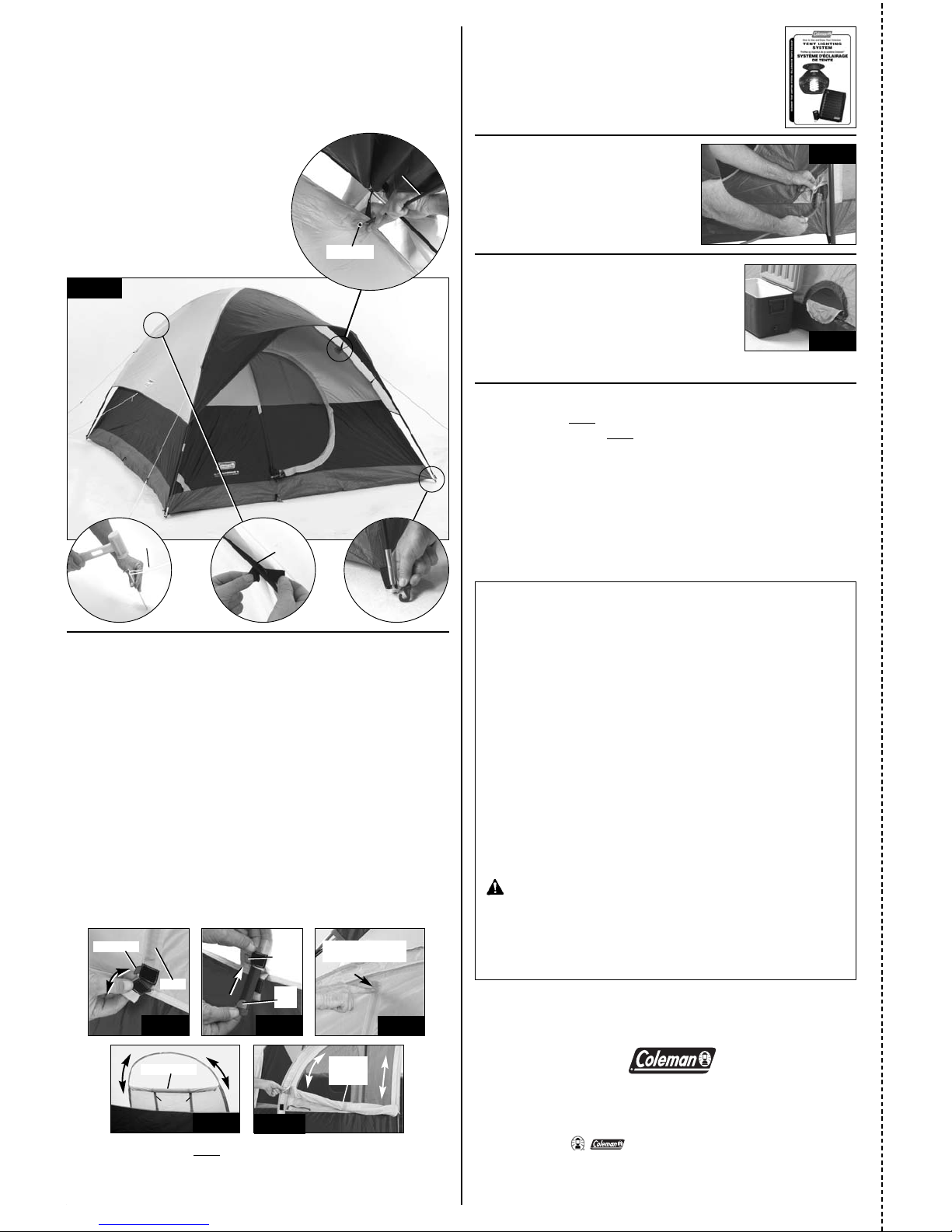

To Attach Rainfly continued
5. Insert metal tip of black rainfly pole into metal grommet located on
front seams of tent (Fig. 11 & 11A). Gradually apply pressure to
other end of pole to form an arch & insert metal tip into grommet.
6. Attach hook & loop fasteners, located on seams of the underside of
Rainfly, around the black main poles, to secure. (Fig. 11B)
7. Clip hooks on elastic cords, on the front and
back corners of Rainfly, onto metal loops
at front and back corners of tent.
(Fig. 11C)
8. Stretch guylines until taut, then
secure with stakes. (Fig. 11D)
Fig. 11
11D 11B
Black Main
Pole
11C
The Coleman Company, Inc. • 3600 N. Hydraulic • Wichita, Kansas 67219
1-800-835-3278 • www.coleman.com
MADE IN CHINA • PRINTED IN CHINA
© 2008 The Coleman Company, Inc.
Coleman®, , , and Sundome®are registered trademarks of
The Coleman Company, Inc.
4010003992 (20080928)
Tent Lighting System
Your tent comes pre-wired with the Coleman®Tent
Lighting System. See manual that came with the light
and carefully read all instructions before use then save
for future reference.
Things You Should Know:
• Under certain conditions (cold weather, high humidity, etc.) condensa-
tion will form on the inside of your tent. Condensation is caused by water
vapor from your breath, perspiration, or any wet clothing inside the tent.
It is NOT LEAKAGE through the shelter fabric. It can be minimized by
removing wet clothing from your shelter and by providing good ventila-
tion through the tent.
• Tree limbs, tree sap, bird droppings, or moisture steadily dripping off
tree limbs can cause damage to the tent fabric and its coating resulting
in leaks or loss of flame-resistant properties.
• Never store tent, even for a short period of time, without drying it
thoroughly and brushing off caked dirt. Do not pack stakes or poles
inside your tent. Use a separate storage bag.
• Stakes should be removed by pulling on the stake itself. NEVER PULL ON
THE TENT TO REMOVE STAKES AS THIS COULD RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
• Tent poles should not be left telescoped together during storage.
• Do not leave your tent set-up for weeks at a time. Be aware that exposure
to ultraviolet rays from the sun can seriously damage material and/or
cause it to become discolored.
WARNING: Keep all flame and heat sources away
from this shelter fabric.
This shelter meets the flammability requirements of CPAI-84. The
fabric may burn if left in continuous contact with any flame source.
The application of any foreign substance to the tent fabric may
render the flame-resistant properties ineffective.
CAUTION: All “springs” must be removed from sleeves before tearing
down tent to avoid damage to the tent fabric or part. To avoid injury,
carefully roll up “springs”. Keep out of reach of children. Store rolled
“springs” in bag with stakes.
Cooler Access
The smaller zippered opening at the side of tent is
designed for added ventilation and easy access to
your beverage cooler.
1. To use as a vent, unzip flap to expose screen.
2. To use as a cooler access, unzip other flap to
make an avenue to bring beverages into tent. (Fig. 18)
To Store
1. All “springs” must be rolled up and placed in bag with stakes.
2. All poles and stakes must be placed in the storage bag to prevent
damage to the fabric items placed in the carry case.
3. Make sure tent is clean and dry before placing in carry case.
4. Remove rainfly, spread out on floor of tent, then unzip door & vents
before taking tent down for storage.
5. Neatly fold tent to width of pole storage bag, place on tent, roll
tightly, and place in carry case.
6. Store in a clean, dry area.
Electrical Cord Access
1. Unzip the access panel in the lower
left corner of tent and bring in an
electrical cord.
NOTE: Use only UL approved cords
rated for outdoor usage. (Fig. 17)
Fig. 18
Fig. 17
Self-rolling Windows
CAUTION: “Springs” may have sharp edges. Handle with care to avoid
injury. Keep out of reach of children.
NOTE: Carefully unroll metal “springs” stored in bag with stakes. The
color marking on each “spring” should match the color of the fabric
“flag” sewn to the window or door sleeve opening. (Fig. 12)
1. Locate sleeve(s) in window panel, open hook & loop fastener; then
insert “spring(s)” with matching color marking. (Fig. 12 & 13)
NOTE: When inserting into the sleeve(s), the color marking on the
“spring(s)” should always face the operator.
2. Close hook & loop fastener to secure.
3. Before unzipping and opening the window, push in at top to engage
“spring(s)” to activate the self-rolling feature. (Fig. 14)
4. Unzip to allow the window panel to roll down automatically; zip
back to close window panel. (Fig. 15 & 16)
NOTE: Repeat steps above for inserting the color matching “spring(s)”
into sleeve(s) for the rest of the windows.
Fig. 12
Sleeve
Color “Flag”
Door
Window
Panel
Window Panel
Push in at top
to engage “spring(s)”
Color
Dot
Fig. 14
Fig. 13
Sleeves
Fig. 15 Fig. 16
Color
“Flag”
11A
Grommet
Rainfly
Pole
Guyline
