MODEL 2000008054
STITCH LINE
TENT SETUP INSTRUCTIONS
Before you begin
• Read all instructions before set up.
• Select a level site clear of rocks, branches, and other hard or
sharp objects, to install your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees because of potential lightning
strikes or falling tree limbs in inclement weather.
• Secure with all stakes and guylines provided to prevent property
damage or personal injury.
• For best results in windy conditions, position narrow end of tent
into the wind.
• Do not drop tent.
• Do not bounce tent bag on its end to remove tent, as these
actions may damage the frame.
• THIS RECREATIONAL PRODUCT REQUIRES A MINIMUM OF TWO
PEOPLE TO ASSEMBLE.
• Under no circumstances should this product be used to cover
automobiles, marine products or similar items.
CAUTION: Avoid pinch points when opening and closing the
tent frame.
(continued on other side)
Extend the Tent Frame
Raise the Tent
• Stand the tent upright with the hub assembly at the
top. (Fig. 1)
• Unfold the arms of the tent downward until they lay flat on
the ground. (Fig. 2)
1
2
3
Verify Connections
between Tent and
Frame Poles
• Verify the clips along the edges of the tent are properly
attached to the frame poles. (Fig. 7 and Fig. 8)
• Unfold the arm joints located at each of the tent corners.
The tent will raise as the leg poles are extended.
(Fig. 3 and 4)
• Extend each of the telescoping leg poles until they snap
into place. (Fig. 5 and 6)
Clip Pole

Fig. 10
Fig. 9
4010009453 (20100720)
STITCH LINE
1. All stakes must be placed in the storage bag to prevent
damage to the fabric items placed in the carry case.
2. Make sure all components are clean and dry before
placing in carry case.
3. Store in a clean, dry area.
7
To Store
Things You Should Know:
• Under certain conditions (cold weather, high humidity, etc.)
condensation will form on the inside of your tent. Condensation
is caused by water vapor from your breath, perspiration, or any
wet clothing inside the tent. It is NOT LEAKAGE through the tent
fabric.
• Tree limbs, tree sap, bird droppings, or moisture steadily dripping
off tree limbs can cause damage to the tent fabric and its coating
resulting in leaks or loss of flame-resistant properties.
• Never store tent, even for a short period of time, without drying it
thoroughly and brushing off caked dirt. Do not pack stakes inside
your tent. Use a separate storage bag.
• Stakes should be removed by pulling on the stake itself. NEVER
PULL ON THE TENT TO REMOVE STAKES AS THIS COULD RESULT
IN PROPERTY DAMAGE OR PERSONAL INJURY.
• Do not leave your tent set-up for weeks at a time. Be aware that
exposure to ultraviolet rays from the sun can seriously damage
material and/or cause it to become discolored.
• This product is not intended to be used during heavy rain, wind,
hail, snow or other inclement weather. Excess water build-up
can cause the frame system to be come unstable, and possibly
collapse, causing injury.
Disassembly
To take down the tent, follow the previous steps and
illustrations in the reverse order:
• Remove guylines and stakes. (Fig. 10 and 9)
• Lower the frame one leg pole at a time by pushing the
lock buttons and collapsing the telescoping leg
poles. (Fig. 6)
• Fold the arm joints located at each of the tent
corners. (Fig. 4)
• Collapse the tent by folding the arms upward until the
tent stands upright with the hub assembly at the top.
(Fig. 2 and 1)
• Place the tent in the carry bag for storage.
TIP: After collapsing the tent, place it on its side, then roll
it multiple times with pressure to reduce its size. This will
allow the unit to slip into the carry bag.
6
This tent meets the flammability requirements of CPAI-84. The
fabric may burn if left in continuous contact with any flame source.
The application of any foreign substance to the tent fabric may
render the flame-resistant properties ineffective.
WARNING: Keep all flame and heat sources away from this
tent fabric.
• The tent should be taken down and placed in storage during
windy conditions to avoid damage to product or personal injury.
• DO NOT use gas or flame sources under or near this product.

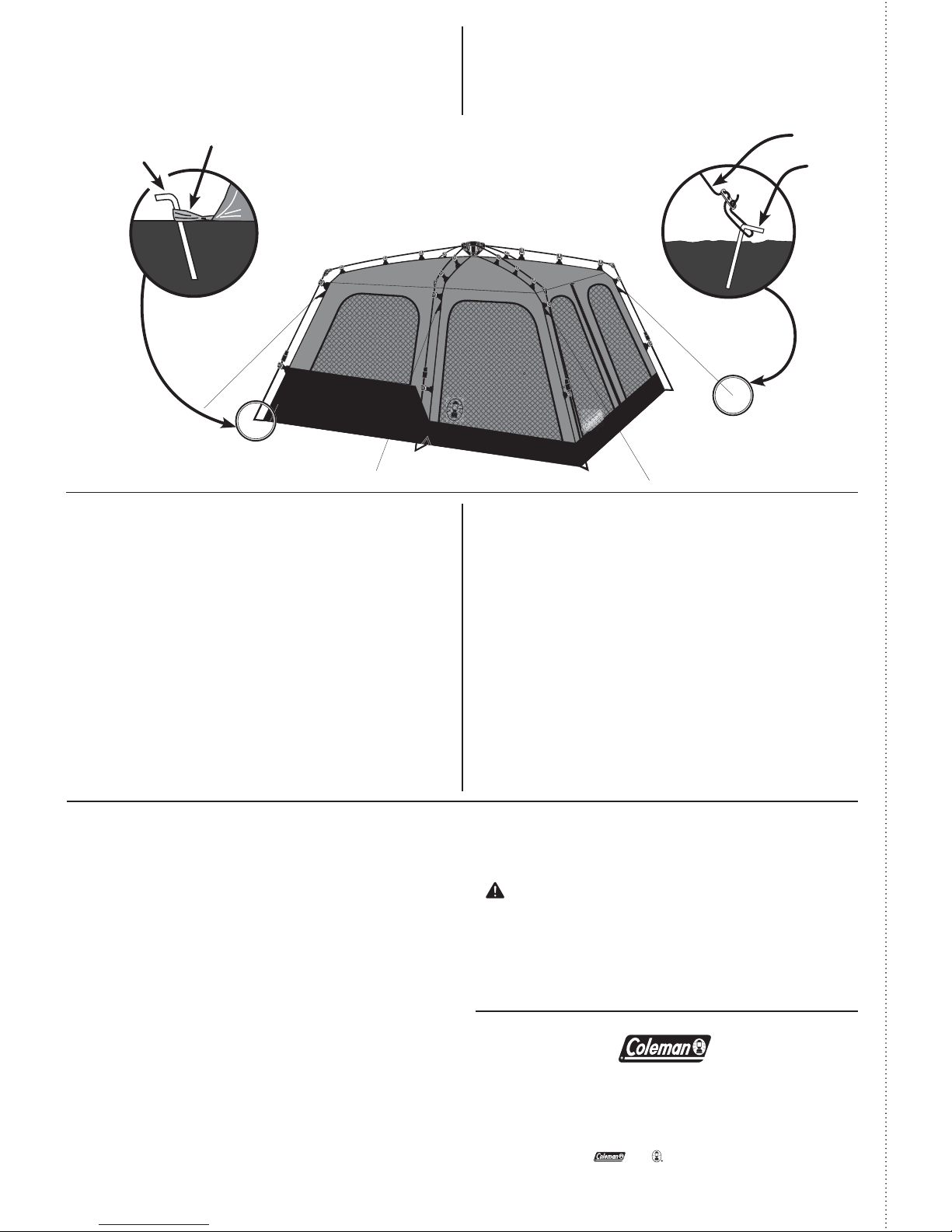

Secure the Guylines
• Attach and stake out guylines. (Fig. 10)
• Adjust sliders to make guylines tight.
5
Stake the Tent
• Secure tent by driving stakes through the
webbing loops sewn to the tent base. (Fig. 9)
• Keep the floor taut.
4
