Collomix VIBA POS User manual

Version G 3.3-23
Operating Instructions
Shaker
VIBA POS & VIBA PRO
Keep this manual within immediate
reach of the machine
GB - Englisch

Shaker VIBA POS & VIBA PRO Collomix Rühr- und Mischgeräte GmbH
D-85080 Gaimersheim
2Version G 3.3-23
0. Models
The Viba is offered in various models which are all slightly different from a visual and
technical perspective. However, general operation and servicing of the appliance is
largely identical.
DDOOR – Sliding door for VIBA 25
VVARIO - Variable frequency for VIBA 25
C CLAMPING – second clamping pressure at POS

Collomix Rühr- und Mischgeräte GmbH Shaker VIBA POS & VIBA PRO
D-85080 Gaimersheim
Version G 3.3-23 3
Contents
0. Models................................................................................................................2
1. Layout drawings................................................................................................4
1.1 Machine components 4
1.2 Control and display components 5
2. General information .........................................................................................6
3. For your safety...................................................................................................6
3.1 Pictograms and symbols used in this manual 6
3.2 Proper use 6
3.3 General safety instructions 7
3.4 Safety-relevant components 7
4. Using for the first time........................................................................................8
4.1 Unpacking and installation 8
4.2 Detaching and re-attaching the transport brace 8
4.3 Moving the machine 9
4.4 Trial run 9
4.5 Manual door release 9
5. Operation.........................................................................................................10
5.1 Switching on the machine 10
5.2 Load a container 10
5.3 Starting the mixing cycle 11
5.4 Ending the mixing cycle 11
5.5 Stand-by 11
5.6 Triggering the Emergency Stop function 11
6. Trouble-shooting .............................................................................................12
6.1 Initialization 12
6.2 Error messages 13
7. Service and maintenance.............................................................................14
7.1 Inspections 14
7.2 Cleaning 14
7.3 Maintenance intervals 14
7.4 The recommended maintenance work is detailed in Appendix 8.5
Maintenance book 14
8. Annex ...............................................................................................................15
8.1 Technical data 15
8.2 Warranty 15
8.3 Recycling and disposal 16
8.4 Declaration of EC conformity 16
8.5 Maintenance book 17

Shaker VIBA POS & VIBA PRO Collomix Rühr- und Mischgeräte GmbH
D-85080 Gaimersheim
4Version G 3.3-23
1. Layout drawings
1.1 Machine components
Machine components
1. Mixing table 6. Door
2. Manual door release 7. Loading shelf
3. Clamping plate 8. Transport rollers
4. Main switch 9. Rating plate
5. Control panel
5
4
2
1
7
6
3
8
9

Collomix Rühr- und Mischgeräte GmbH Shaker VIBA POS & VIBA PRO
D-85080 Gaimersheim
Version G 3.3-23 5
1.2 Control and display components
10. Control buttons
Button E
•OPEN the mixing unit
•QUIT stand-by mode
•STOP mixing cycle prematurely
•ACKNOWLEDGE messages
Button I
•Mixing cycle I (works setting 1:00 minute)
Button II
•Mixing cycle II (works setting 2:00 minutes)
Button III •Mixing cycle III (works setting 3:00 minutes)
11. Display for 230V mains voltage and 24V control voltage
12. LCD Display
13. EMERGENCY STOP button
13
10
12
11

Shaker VIBA POS & VIBA PRO Collomix Rühr- und Mischgeräte GmbH
D-85080 Gaimersheim
6Version G 3.3-23
2. General information
The Viba is a stationary shaker for closed, tightly closing, round, rectangular and oval
containers made of metal or plastic. It can be used to mix paints, master batches,
house paints, industrial paints and plasters as well as other low-viscosity materials.
Practical applications are to be found in the wholesale and retail paint trade, in the
paint, lacquer and chemical industries, and many other related sectors. This shaker is
particularly ideal as a component in paint dosing systems.
The container is automatically clamped in the machine and is mixed, using an
alternating orbital shaking movement, by means of linear forces of inertia. The
required mixing time and the suitability of the container are to be determined
before attempting to use the shaker.
This manual is intended for persons who operate the machine.
3. For your safety
Although the VIBA has been developed, manufactured and tested in accordance
with fundamental safety requirements, an element of risk is still present!
Therefore, read this manual before you work with the machine
Keep this manual within immediate reach of the machine
3.1 Pictograms and symbols used in this manual
The "caution" symbol is used to indicate a situation in which persons
are at risk of suffering physical injury. The warning must be heeded
at all costs.
The "stop" symbol is used to indicate a situation in which the
machine is at risk of being damaged.
The "hazardous electric voltage" symbol is used to indicate live
components that may pose a risk to life and limb.
The symbol "Warning of danger due to crushing" indicates a
physical danger to persons, and must be observed at all costs
Those parts of the manual that are important for the correct and safe operation of
the machine are printed in bold type.
3.2 Proper use
The machine must not be operated in any way other than described in this manual.
The term ‘improper use’ applies in particular to the following:
•Operation with defective or missing parts.
•The bridging or deactivation of any safety devices.
•Operation of the machine in areas with a potentially explosive atmosphere.
•The use and installation of non-original replacement parts.
•Running the machine for too long, which can potentially lead to the mixing
container bursting.
The consequences of improper use can be personal injury to the user
or third party, as well as material damages to the appliance or
mixing material.

Collomix Rühr- und Mischgeräte GmbH Shaker VIBA POS & VIBA PRO
D-85080 Gaimersheim
Version G 3.3-23 7
3.3 General safety instructions
Observe the electrical regulations in force as well as the additional instructions listed
in this manual when you install the machine. Installation and use of the machine for
the first time must be carried out by a trained specialist.
The machine is to be used only by persons who are acquainted with the working
principles of the machine and also with the safety and accident prevention
regulations in force in your country.
Check that the machine is in the proper condition and that all parts
are in good working order before beginning with your work. Do not
operate the machine with any defective or missing parts.
Any maintenance work or repairs must only be carried out by qualified personnel.
Before performing any maintenance work or repairs be sure to disconnect the
machine from the power supply by pulling out the power plug. Use only original
replacement parts.
Close the machine when not in use and turn off at the main switch. Projecting parts
may injure you and others.
3.4 Safety-relevant components
Closed housing
The housing is a stationary safeguard and partition that can only be opened with
the use of tools.
Machine door with bolt
The door is an interlocking safeguard and partition with bolt. It is impossible to start
the machine when the door is open. The door is not released until after the mixing
cycle is ended and the mixing container unclamped.
EMERGENCY STOP function:
With the Emergency Stop function you can
•reliably interrupt the control voltage supply so that the machine is unable to
move.
•bring the machine to a halt when it is running.

Shaker VIBA POS & VIBA PRO Collomix Rühr- und Mischgeräte GmbH
D-85080 Gaimersheim
8Version G 3.3-23
4. Using for the first time
4.1 Unpacking and installation
Your Viba is delivered in reusable cardboard packaging on a wooden pallet. Please
immediately check the packaging when received, as well as the appliance during
unpacking, for any visible signs of external damage. Keep all parts of the original
packaging for any necessary return transport.
Lift the machine from the pallet with a suitable hoisting device and place on a firm
and level surface. Fit the loading shelf and door handle with the supplied mounting
materials.
3-footed installation usually renders any fine tuning of the machine unnecessary.
However, according to requirements, any severe unevenness of the floor can be
compensated with the height-adjustable machine feet.

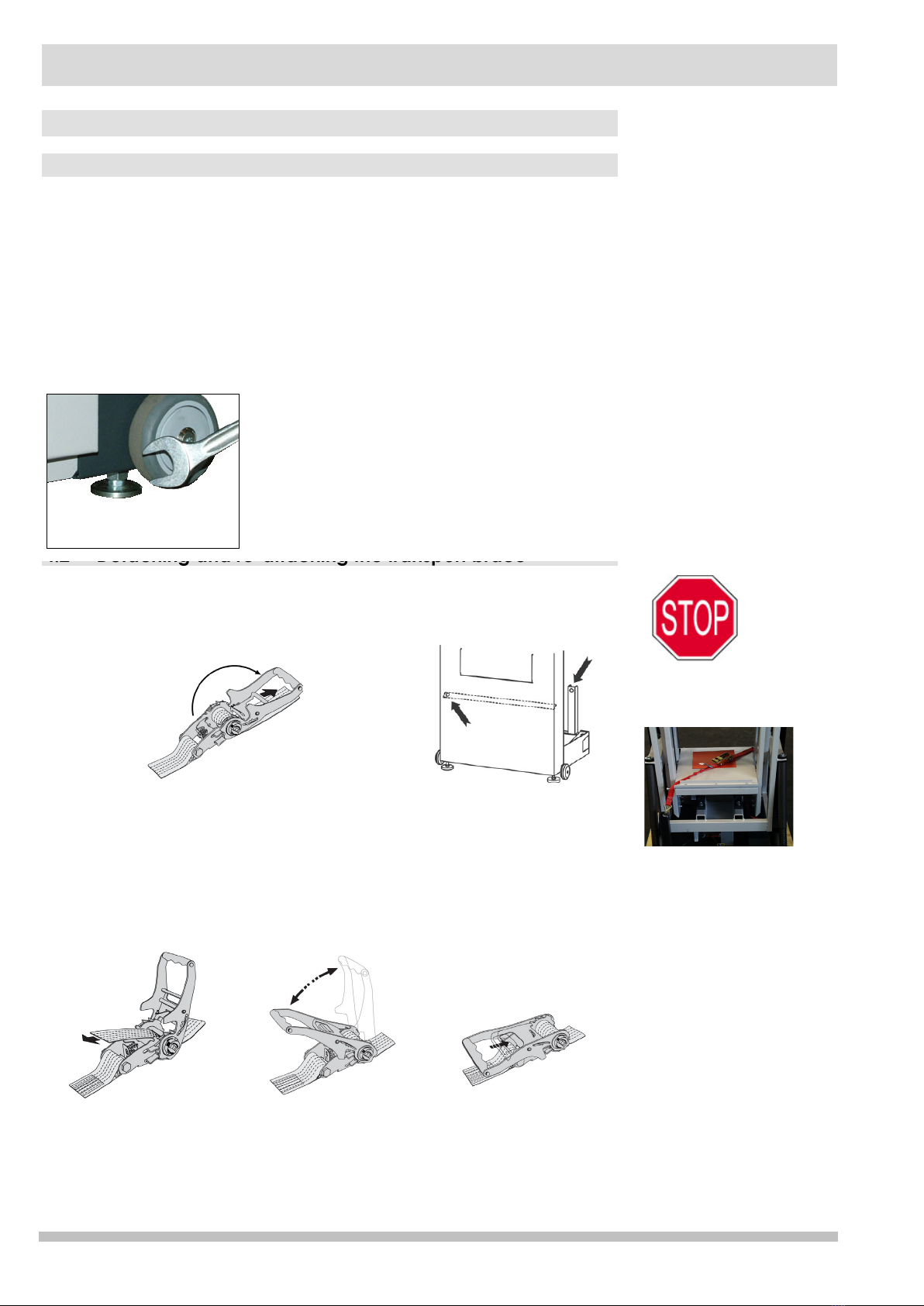

4.2 Detaching and re-attaching the transport brace
During transport, the mixing unit is protected from damage by a lashing belt which is
stretched tight over the mixing unit. The lashing belt must be removed before using
the machine for the first time:
To detach, pull the slider and swivel the lever by
approx. 180° until the end stop is reached. Caution:
The pre-load force will be released with a jolt.
The lashing belt is hooked
onto the attachment
points in the machine
The lashing belt must be re-attached for any transportation of the machine as the
otherwise free-swinging mixing unit can lead to the DESTRUCTION of the machine.
For this reason, you should keep the lashing belt for later use:
Feed the end of the belt
into the buckle and pull
through until the belt is
tight.
Tighten the belt with the
lever until the mixing unit
come
s to a dead stop
below.
Swivel the lever into the
closed position, until the
slider is locked into
place.
transport brace

Collomix Rühr- und Mischgeräte GmbH Shaker VIBA POS & VIBA PRO
D-85080 Gaimersheim
Version G 3.3-23 9
4.3 Moving the machine
The Viba has two transport rollers at the front end of the housing. These transport
rollers enable ergonomic movement of the machine over short distances.
To be able to grip the machine securely during transport, the door
must be open!
4.4 Trial run
To check that the machine is in good working order, you must carry out a trial run
with an empty mixing container when you are starting up the machine for the first
time or after carrying out maintenance work or repairs.
Do not operate the machine on its shipment pallet or on any other unsuitable
surface.
4.5 Manual door release
The machine is fitted with a security bolt which automatically interlocks the door
when the mixing cycle is started and when the machine is switched off.
For servicing purposes, however, it is possible to open the door manually:
•Remove the plastic plug cap from the door release (2).
•Press the actuator with a screwdriver or similar device.
•Open the door.
Never operate the machine with any defective or modified safety
devices.

Shaker VIBA POS & VIBA PRO Collomix Rühr- und Mischgeräte GmbH
D-85080 Gaimersheim
10 Version G 3.3-23
5. Operation
5.1 Switching on the machine
The machine is switched on with the main switch (4).
The word READY appears in the display after automatic initialization is completed.
Any errors detected during initialization will be indicated in clear text in the display.
See description in 6.1 Initialization.
5.2 Load a container
Open the door (if necessary cancel "STAND-BY“ mode by pressing button E).
To adjust the mixing unit to the height of the mixing vessel, close the door and press
button E to raise the clamping plate.
Check that the weight and dimensions of the mixing container are suitable. Do not
overload the machine.
Secure the container handle with a rubber band or adhesive tape and place the
mixing container on the mixing table in central position.
It is also possible to shake several identical containers simultaneously. In this case,
make sure the containers are placed on the mixing table in a symmetrical
arrangement.
Always arrange containers centrally
When using larger containers, it is recommended that you place an
additional foam filling disk inside the lid. This will reduce the
membrane effect of the lid and will minimize operating noise.
Warning: There is a risk of crushing or shearing of limbs in the area of
the mixing unit – Observe the following specifications for safe
operations:
•Never reach into the mixing chamber during the clamping and
unclamping process of the mixing unit.
•If possible, always keep the door closed.
•Disconnect the machine from the mains plug during cleaning and
maintenance work.
Füllscheibe
Collomix Shaker init
Version X.XX

d=55
c 80 / 25 / 160

Collomix Shaker init
000011 cycles

Ready
1:00 2:00 3:00
Do not stack containers!

Collomix Rühr- und Mischgeräte GmbH Shaker VIBA POS & VIBA PRO
D-85080 Gaimersheim
Version G 3.3-23 11
5.3 Starting the mixing cycle
The door has to be closed to start the mixing cycle.
Start the mixing cycle by pressing one of the timer buttons I, II or III.The
corresponding mixing times are indicated in the LCD display above the buttons.
The mixing container is clamped in the mixing unit and the mixing cycle is started.
The remaining mixing time is indicated in the display as the mixing cycle progresses.
5.4 Ending the mixing cycle
The mixing cycle is ended automatically when the selected mixing time is over.The
mixing unit is opened, the door can be opened and the container removed.
You can end the mixing cycle prematurely before the selected mixing time is over
by pressing button E.
5.5 Stand-by
If approximately 60 minutes pass without the user actuating any function, the Viba
will automatically switch to stand-by mode and the door will be locked.
Stand-by mode is cancelled by pressing button E, the door can then be opened.
5.6 Triggering the Emergency Stop function
By pressing the Emergency Stop button, the machine can be switched off in a
dangerous situation.
After the machine is switched off, the mixing unit will coast to a standstill and remain
in this position.
The Emergency Stop button has to be unlocked again by hand. This is done by
turning the red actuator clockwise.
After unlocking the Emergency Stop button you must cancel the message in the
display by pressing button E.
The mixing unit is released automatically, the door can be opened and the
container removed.
The EMERGENCY STOP button does not disconnect the machine from
the mains power supply! Therefore, before performing any
maintenance work or repairs always be sure to disconnect the
machine from the mains by pulling out the power plug!
Ready
1:00 2:00 3:00


Mixing t = 1.00
clamping Pot clampt

Mixing t = 0.59
mixing
t = 0.00
<->

Mixing t = 0.00
wait disclamping

Ready
1:00 2:00 3:00
E 000 Stand-by
> press "E" to quit


Ready
1:00 2:00 3:00
E 020 Emergency stop
> unlock switch


Ready
1:00 2:00 3:00

Shaker VIBA POS & VIBA PRO Collomix Rühr- und Mischgeräte GmbH
D-85080 Gaimersheim
12 Version G 3.3-23
6. Trouble-shooting
Using the trouble-shooting tables listed in this chapter, you can check whether you are able to correct the errors
yourself or whether you need to call the customer service department.
Before calling the customer service department, please make a note of the machine’s serial number,
the error code being shown in the display and also the status of the LEDs on the control panel. The
machine’s serial number can be found on the machine’s rating plate (9).
6.1 Initialization
After switching on the machine, a self-test routine is performed. During this initialization, the messages listed below
may be displayed. The actions printed on a gray background have to be performed by authorized and suitably
trained personnel.
LED Display
Display
Remedial actions
230 V
empty
•Check the power supply
24 V
•Check the 230 V fuse
•Check the connector / cable of the control pcb
230 V
empty
•Check the connector / cable of the display pcb
•The display is defective
•The control pcb is defective
24 V
230 V
Ready
1:00 2:20 3:00
•Connector for control buttons in wrong position (buttons
do not work)
24 V
230 V
Door open
> Close door
•Check the 24 V fuse
•Check the connector / cable of the transformer
•The transformer is defective
24 V
230 V
Door switch fault
> Call Service
•Close the door
24 V
•Check the door interlock system
•Check the connector / cable of the door interlock
system
230 V
Clamp motor fault
> Call Service
•Check the clamp motor
•Check the connector / cable of the clamp motor
•The control pcb is defective
24 V
230 V
Clamp belt fault
> Call Service
•Check the clamp belt
•The threaded spindles have jammed
•Check the clamp motor / cable – connector
24 V
230 V
Only high clamp
> Call Service
•Check the rotary encoder
•Check the connector / cable of the rotary encoder
24 V
Please note that all maintenance and servicing work must be left strictly to
authorized and suitably trained personnel. This applies in particular to work
performed with the housing open.

Collomix Rühr- und Mischgeräte GmbH Shaker VIBA POS & VIBA PRO
D-85080 Gaimersheim
Version G 3.3-23 13
6.2 Error messages
The following table provides an overview of possible errors and their remedies. The actions printed on a gray
background have to be performed by authorized and suitably trained personnel.
Fault ExplanationMachine status Remedial actions
E000 stand-by mode Stand-by mode •Machine has gone into
stand-by mode
•Press button E to cancel stand-by mode
E010 door open The door is open •The door has been
opened
•Close the door
•The door is closed and
the LED for 24V is not on
•Check the fuse for 24 V
•Check the 24 V circuit
•Check the transformer
•The door is closed and
the LED for 24V is on
•Check the door interlock system
•Check the lead/connector to the door
interlock
E020 emergency stop
EMERGENCY STOP
actuated
•EMERGENCY STOP
button has been
actuated
•Release the EMERGENCY STOP button
•EMERGENCY STOP not
actuated
•Check the EMERGENCY STOP button switching
element
•Check the lead/connector to the EMERGENCY
STOP
E025 door not locked Door is not locked •Door unlocked by hand •Lock the door by hand
•Door not unlocked by
hand
•Check the door interlock system
•Check the lead/connector to the door
interlock
E040 max. open The mixing unit is
fully open
•The mixing unit is fully
open
•Note that the maximum container height is
400mm
•The mixing unit is not
fully open
•Check whether the threaded spindles move
smoothly, clean and lubricate with grease as
necessary
E050 defect pot The container is
defective
•The container is
defective
•The container is too unstable
•Check clamping pressure and adjust as
necessary
E130 door switch fault Door interlock error The machine does not start •Check the door interlock system
•Check the lead/connector to the door
interlock
E140 only high clamp* Only high clamping
pressure is available
The machine only clamps
with high clamping
pressure
•Check the rotary encoder
•Check the operating distance to the rotary
encoder
•Check the lead/connector to the clamp motor
E150 clamp motor fault Clamp motor error Machine does not clamp •Check the clamp motor
•Check the lead/connector to the clamp motor
E150 clamp belt fault Clamp belt error Machine does not clamp •Check clamp belt
* only with VIBA 25 / VIBA 25 VARIO

Shaker VIBA POS & VIBA PRO Collomix Rühr- und Mischgeräte GmbH
D-85080 Gaimersheim
14 Version G 3.3-23
7. Service and maintenance
Regular inspections, cleaning and maintenance are necessary to ensure that the
machine remains in good working condition at all times.
7.1 Inspections
Check that all safety-relevant parts of the machine are in good working order
before beginning with your work. Arrange for authorized personnel to replace
defective or damaged parts before you work with the machine again.
7.2 Cleaning
If any material escapes from the mixing container when it is inside the machine,
remove it immediately. Use a rag or a spatula. Take care not to damage any
connecting leads or sensors.
Dirty threaded spindles can be cleaned with a rag or a wire brush. When you have
finished cleaning the threaded spindles, lubricate them again with MOBILUX EP 2.
Never clean the machine with a high-pressure cleaner or the like. This
could wash the lubricating grease out of the ball bearings, leaving
them to run dry. Ball bearings which have run dry must be replaced
immediately!
7.3 Maintenance intervals
Machine maintenance and repair work must only be carried out by authorized
personnel. The extent of the maintenance work is described in the servicing plan
drawn up for this machine.
How often you repeat the maintenance work depends on how intensively the
machine is operated and also on its average load. The following table provides a
guide to the maintenance intervals.
Average load Number of cycles
12 kg 10000
20 kg 5000
30 kg 1000
The number of cycles completed so far is indicated in the display after the machine
is switched on. This provides a guide for when maintenance is next due. When the
number of cycles quoted in the table is reached, it is time to arrange for
maintenance work to be carried out.
The recommended maintenance work is detailed in Appendix 8.5 Maintenance
book
. On this page, you should make a note of all the servicing work carried out on the
machine. This will provide an overview of maintenance work that has already been
completed and work that is still to be carried out.
Please note that all maintenance and servicing work must be left
strictly to authorized and suitably trained personnel. This applies in
particular to work performed with the housing open.
Collomix Shaker init
000011 cycles

Collomix Rühr- und Mischgeräte GmbH Shaker VIBA POS & VIBA PRO
D-85080 Gaimersheim
Version G 3.3-23 15
8. Annex
8.1 Technical data
VIBA POS VIBA PRO VIBA PRO V
Power supply: L1, N, PE; 230Volt / 50Hz
Rated power: 0.9 kW 0.9 kW 1.1 kW
Frequency: 50 Hz
Fuse: 10 amp
Speed of mixing unit: -700 rpm -700 rpm - 900 rpm*
Noise emission: < 65 dB (A) measured in accordance with DIN 45.635
Max. container weight: up to 25 kg up to 40 kg up to 40 kg
Max. container height: 70 - 300 mm 40 - 400 mm 40 - 400 mm
Max. container footprint:
(w x d)
370 x 330 mm 370 x 330 mm 370 x 330 mm
Machine weight: 148 kg 156 kg 158 kg
Dimensions (w x d x h): 710 x 560 x
1205 mm
710 x 560 x 1205
mm
710 x 560 x 1205
mm
* variable, depending on container weight
8.2 Warranty
Within the scope of the conditions of supply, the manufacturer issues a 12 month
warranty which applies to single-shift operation and is counted from the date of
initial start-up. It covers all defects arising from faulty material or workmanship.
Please note that all warranty claims must be accompanied by the original delivery
note or initial start-up report.
All essential warranty repair work must only be carried out by adequately trained
service engineers or by third parties with express prior authorization from Collomix.
The carrying out of unauthorized repairs may render the warranty null and void.
Please return any defective parts or machines carriage-paid to our factory. Collomix
reserves the right to decide whether cost-free replacement of parts is applicable.
Parts and labor covered by the warranty will be supplied free of charge. The
warranty does not cover travel costs, expenses or possible overnight
accommodation resulting from warranty repairs carried out off our premises.
Any further responsibility, with particular reference to damage claims, including
foregone profit or other material losses on the part of the customer, is expressly
excluded.
Warranty and liability claims for personal or material damages are excluded if
attributable to one or more of the following causes:
•Incorrect operation of the machine, as defined in the operating instructions
•Failure to observe the instructions in the operating manual with respect to set-up,
initial start-up, operation and maintenance of the machine
•Faults or damage caused by excessive accumulations of dirt and/or incorrect
cleaning schedules, with particular reference to leaks and damaged containers
•Operation of the machine with defective safety and/or protection devices
•Unauthorized structural modifications to the machine
•Incorrect monitoring of parts subject to wear and consumables
•Unauthorized repairs and/or the fitting of non-original spare parts
•Damage caused by the impact of foreign bodies or force majeure
We reserve the right to make amendments as a result of ongoing advances in the
technical field.

Shaker VIBA POS & VIBA PRO Collomix Rühr- und Mischgeräte GmbH
D-85080 Gaimersheim
16 Version G 3.3-23
8.3 Recycling and disposal
The transport packaging consists of recyclable material. Please dispose of it
accordingly.
At the end of the machine's working life, the machine must be professionally
disposed and the materials used in its construction must be properly recycled. If you
have any questions concerning the disposal of any materials, please contact the
manufacturer.
8.4 Declaration of EC conformity
We declare herewith that this product conforms with the following standards and
standard-setting documents:
DIN EN ISO 12100-1, DIN EN ISO EN 12100-2, DIN EN ISO 954-1, DIN EN ISO 14121-1, DIN
EN 55011, DIN EN 61000-6-2, DIN EN 61000-4-2, DIN EN 61000-4-3, DIN EN 61000-4-4,
DIN EN 61000-4-5
in accordance with the provisions of directives 2006/95/EEC, 2004/108/EC,
2006/42/EC.
Technical file at: Collomix Rühr- und Mischgeräte GmbH, Abt. Technische
Entwicklung, Daimlerstr. 9, 85080 Gaimersheim, Germany
Gaimersheim, 29.12.2009
Alexander Essing
Chief Executive Officer
Manufacturer:
Collomix Rühr- und Mischgeräte GmbH
Daimlerstr. 9, D-85080 Gaimersheim
Federal Republic of Germany
Tel.: ++49 (0)8458 32 98 - 0
Fax: ++49 (0)8458 32 98 30
This declaration of conformity will lose its validity if any changes or
modifications are made to the machine without the manufacturer's
approval.

Collomix Rühr- und Mischgeräte GmbH Shaker VIBA POS & VIBA PRO
D-85080 Gaimersheim
Version G 3.3-23 17
8.5 Maintenance book
On this page, you should make a note of all the servicing work carried out on the machine. This will provide an
overview of maintenance work that has already been completed and work that is still to be carried out.
Date:
Counter total:
Cycles
Name
Next maintenance
at cycles
Cleaning the machine
Clean the inside and the outside of the machine
Remove paint residues from the spindle with a steel brush
Check wearing parts
Drive belt and clamp belt in clamp motor
Crankshaft bearing
Spindle bearing
Lubricating the machine
Lubricate crankshaft bearing (MOLIKOTE BR2+)
Lubricate the threaded spindles (MOBILUX EP 2)
Other work
Date:
Counter total:
Cycles
Name
Next maintenance
at cycles
Cleaning the machine
Clean the inside and the outside of the machine
Remove paint residues from the spindle with a steel brush
Check wearing parts
Drive belt and clamp belt in clamp motor
Crankshaft bearing
Spindle bearing
Lubricating the machine
Lubricate crankshaft bearing (MOLIKOTE BR2+)
Lubricate the threaded spindles (MOBILUX EP 2)
Other work
Date:
Counter total:
Cycles
Name
Next maintenance
at cycles
Cleaning the machine
Clean the inside and the outside of the machine
Remove paint residues from the spindle with a steel brush
Check wearing parts
Drive belt and clamp belt in clamp motor
Crankshaft bearing
Spindle bearing
Lubricating the machine
Lubricate crankshaft bearing (MOLIKOTE BR2+)
Lubricate the threaded spindles (MOBILUX EP 2)
Other work
Date:
Counter total:
Cycles
Name
Next maintenance
at cycles
Cleaning the machine
Clean the inside and the outside of the machine
Remove paint residues from the spindle with a steel brush
Check wearing parts
Drive belt and clamp belt in clamp motor
Crankshaft bearing
Spindle bearing
Lubricating the machine
Lubricate crankshaft bearing (MOLIKOTE BR2+)
Lubricate the threaded spindles (MOBILUX EP 2)
Other work
Date:
Counter total:
Cycles
Name
Next maintenance
at cycles
Cleaning the machine
Clean the inside and the outside of the machine
Remove paint residues from the spindle with a steel brush
Check wearing parts
Drive belt and clamp belt in clamp motor
Crankshaft bearing
Spindle bearing
Lubricating the machine
Other work

Shaker VIBA POS & VIBA PRO Collomix Rühr- und Mischgeräte GmbH
D-85080 Gaimersheim
18 Version G 3.3-23

Lubricate crankshaft bearing (MOLIKOTE BR2+)
Lubricate the threaded spindles (MOBILUX EP 2)

Collomix Rühr- und Mischgeräte GmbH Shaker VIBA POS & VIBA PRO
D-85080 Gaimersheim
Version G 3.3-23 19

Shaker VIBA POS & VIBA PRO Collomix Rühr- und Mischgeräte GmbH
D-85080 Gaimersheim
20 Version G 3.3-23
Collomix Rühr- und Mischgeräte GmbH
Daimlerstr. 9, D-85080 Gaimersheim
Federal Republic of Germany
Tel.: ++49 (0)8458 32 98 - 0
Fax: ++49 (0)8458 32 98 30
www.collomix.de
