Collomix VIBA X.30 User manual

Version 1.0-20
Instructions
Shaker
VIBA X.30
Keep this manual within immediate
reach of the machine
Translation of the original instructions -en Englisch

Shaker VIBA X.30 Collomix GmbH
D-85080 Gaimersheim
2Version 1.0-20

Collomix GmbH Shaker VIBA X.30
D-85080 Gaimersheim
Version 1.0-20 3
Contents
1. Layout Drawings........................................................................................................4
1.1 Machine components 4
1.2 Operating and display components 5
2. About this document.................................................................................................6
2.1 Pictograms and symbols 6
3. For your safety ..........................................................................................................7
3.1 General Safety Information 7
3.2 Intended Use 7
3.3 Foreseeable Misuse 8
3.4 Qualifications of operating personnel 8
3.5 Safety-relevant components 9
3.6 Residual Risks 9
4. Equipment Description ..............................................................................................9
5. Set-up and using the Shaker for the first time .........................................................10
5.1 Content 10
5.2 Set-up the equipment 10
5.3 Mains connection 10
5.4 Trial run 11
5.5 Transport 11
5.6 Attach transport lock 11
6. Operation ................................................................................................................ 12
6.1 Switching on the machine 12
6.2 Load a container 12
6.3 Starting the mixing cycle 13
6.4 Ending the mixing cycle 13
6.5 End of work 13
6.6 EMERGENCY STOP switch 13
7. Errors and Troubleshooting ..................................................................................... 14
7.1 Possible errors 14
7.2 Unlock door manually 15
7.3 Fuses on the device 15
8. Cleaning, maintenance, and service......................................................................... 16
8.1 Cleaning 16
8.2 Maintenance 16
8.3 Service 16
9. Accessories .............................................................................................................. 17
10. Storage, disposal ..................................................................................................... 17
10.1 Storage 17
10.2 Disposal 17
11. Appendix ................................................................................................................. 18
11.1 Technical Specifications 18
11.2 Dimensions 18
11.3 EC Conformity Declaration 20
11.4 Warranty 20

Shaker VIBA X.30 Collomix GmbH
D-85080 Gaimersheim
4Version 1.0-20
1. Layout Drawings
1.1 Machine components
Machine components
1. Power supply and AC fuse 6. EMERGENCY STOP Switch
2. Mixing table 7. Control unit
3. Clamping plate 8. Door
4. Manual door release 9. Loading shelf
5. Main switch and DC Fuse 10. Transport rollers
10
5
1
2
4
6
7
8
9
3

Collomix GmbH Shaker VIBA X.30
D-85080 Gaimersheim
Version 1.0-20 5

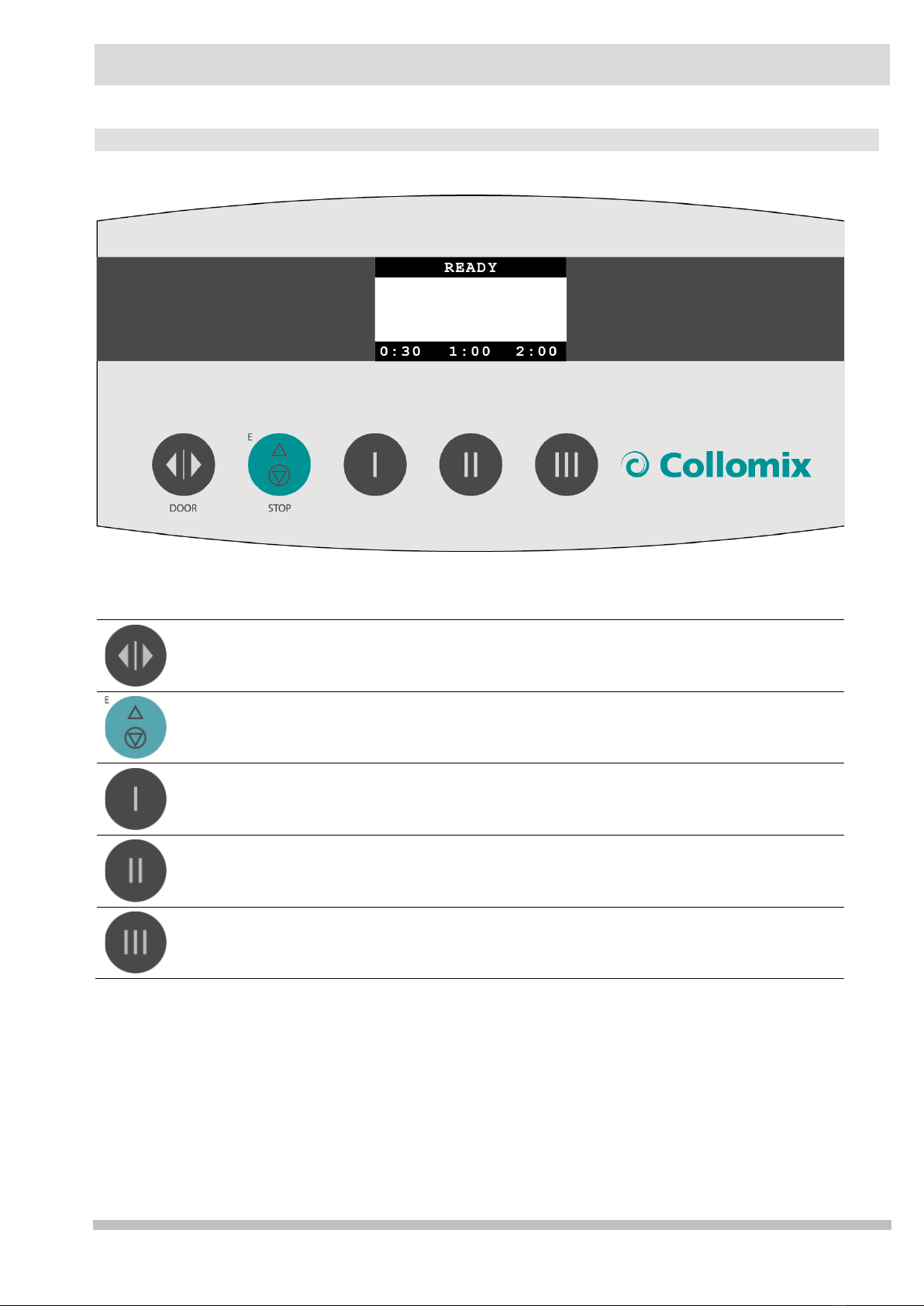

1.2 Operating and display components
Button for DOOR •OPEN door
Button E
•OPEN the mixing unit
•STOP – stop mixing cycle prematurely
•ACKNOWLEDGE messages
Button I
•Mixing cycle I
Button II
•Mixing cycle II
Button III •Mixing cycle III

Shaker VIBA X.30 Collomix GmbH
D-85080 Gaimersheim
6Version 1.0-20
2. About this document
These instruction uses symbols and labels, which should make it easier for you to find information
swiftly. Please read the explanations in the following Section. Please read the safety and warning
information in these instructions especially carefully. Safety information is in Chapter 2. You find
information on warnings in the introduction of Chapters and before instructions.
Collomix GmbH owns the copyright of images and text.
Please read the operating instructions prior to first use. Pay attention to safety instructions. Keep for
future use. This documentation is not subject to change services.
2.1 Pictograms and symbols
Warnings
The following symbols and signal words are used in this documentation.
Symbol Meaning
DANGER
This signal word is used, if death or severe physical injuries is the result
of not paying attention to the corresponding precautionary measures.
WARNING
This signal word is used, if death or severe physical injuries may result
from not paying attention to the correspondin
g precautionary
measures.
ATTENTION
This signal word is used, if slight physical injuries occur from not paying
attention to the corresponding precautionary measures.
CAUTION This signal word is used, if malfunction of functions or property damages
may
occur from not paying attention to the corresponding
precautionary measures.
IMPORTANT
This signal word is used for easing operation or for pointing to
references.
Structure of warnings
DANGER
The first line describes the type and source of danger.
The second line describes the consequences which occur if no actions are taken to avert the
danger.
The last line describes the actions to take in order to avoid the danger.
WARNING
Danger of injury through disregard of safety symbols
Ignoring the warnings on the equipment and in the operating instructions can lead to injuries and
additional risks.
Pay attention to the warnings on the equipment and in the operating instructions.

Collomix GmbH Shaker VIBA X.30
D-85080 Gaimersheim
Version 1.0-20 7
The following special safety symbols are used in the appropriate text portions of these Operating
Instructions.
Mandatory signs
Symbol Explanation Symbol Explanation
Please read the information Disconnect from power
after use
Disconnect from power
before opening the housing
Warning signs
Symbol Explanation Symbol Explanation
Warning from a danger zone Danger of electric shock
Position numbers to the illustrations are stated in parenthesis in the text.
3. For your safety
The machine was developed, manufactured, and tested in accordance with the basic safety
requirements. Despite, there is an element of risk.
Therefore, please read these Operating Instructions before working with the machine.
Keep the Operating Instructions within immediate reach of the machine.
Please hand the Operating Instructions to any subsequent owners.
3.1 General Safety Information
The basic safety information of this Chapter are supplemented by precise warnings in further
chapters of the Operating Instructions.
3.2 Intended Use
The Collomix Shaker is intended to mix:
Colours
Colour granulate
Façade colours
Industrial colours
Plaster
Other materials with low viscosity.
Any other or expanded use of the Shaker is a non-intended and therefore, improper use. In this
case, the safety mechanisms and the protection provided by them may be compromised. Collomix
GmbH is not liable for any damages caused by it. Part of the intended use are:
complying with all information in these Operating Instructions
complying with all safety information
complying with the inspection and maintenance work

Shaker VIBA X.30 Collomix GmbH
D-85080 Gaimersheim
8Version 1.0-20
3.3 Foreseeable Misuse
Any reasonably foreseeable misuse, which can be hazardous for the user, third parties, or for the
Shaker are:
the use of the Shaker and its accessories contrary to the intended use.
The use of damaged containers or containers not suitable for mixing.
The mixing of explosive substances.
The use of substances, which react chemically with one another; in particular, expanding
substances.
The use of the equipment outside the physical use limitations described in the Chapter
"Commissioning / Operating".
The modification of the control software without the prior coordination with Collomix GmbH.
Modifications on the Shaker as well as add-ons and retrofits without the prior coordination with
Collomix GmbH.
Operating the system contrary to the requirements of the Operating Instructions concerning
safety information, installation, operation, servicing, and maintenance, set-up, and
malfunctions.
Bridging or decommissioning of safety and protective actions of the system.
Operating the system if malfunctions are obvious / with obvious malfunctions
Repair, cleaning, and maintenance work without disconnecting the system from power.
WARNING
Danger of injury through improper modifications
Hazards exist through unauthorized modifications to the system and the use of third party spare
parts.
Use only original spare parts and accessories of the manufacturer.
Do not change, add to, or retrofit the system without the consent of the manufacturer.
3.4 Qualifications of operating personnel
These Operating Instructions are directed toward operators and personnel with the following areas
of competency:
Working area
Expertise
Installation, transport and storage
Expert
staff
Commissioning, decommissioning
Trained
staff
Operation
Trained
staff
Servicing and maintenance
Expert
staff
Troubleshooting
Expert
staff
Definition acc. to DIN EN 60204-1:
Trained staff:
A person, who was instructed by an expert in the responsibilities he or she has been assigned and
any possible hazards in case of improper behaviour and a person, who was trained in the necessary
protective devices and protective actions, if needed.
Expert staff:
Persons who can evaluate the work assigned to them and recognize possible dangers on the basis of
their specialised training, knowledge, experience, and familiarity with the relevant norms.

Collomix GmbH Shaker VIBA X.30
D-85080 Gaimersheim
Version 1.0-20 9
3.5 Safety-relevant components
The machine is equipped with various safety devices. These help to avoid dangers to body and life
through electrical and mechanical impacts on the persons working with the Shaker and they help to
limit any material damages to the system.
Do not bypass, remove, or render ineffective the safety equipment.
Do not operate the system if the safety equipment is not complete or fully functional.
Closed housing
The housing, which can only be opened with tools, forms a fixed, separating safety device.
Therefore, do not operate the machine if the rear panel or other covers are open; Unplug mains
before opening this, to avoid a start
Machine door with interlocking device
The door forms a locking, separating unit with interlocking device. The machine cannot be started
when the door is open. The door is only releases after the mixing process has ended and the mixing
vessel is released. Never operate the machine if the machine door is damaged.
EMERGENCY STOP Switch
In emergencies, the EMERGENCY STOP function is used to stop the running machine if necessary.
3.6 Residual Risks
If all precautions are taken, there may be obvious residual risks. Adhering to the safety instructions,
the designated use, and the operating instructions can reduce residual risks!
4. Equipment Description
The Shaker is a stationary mixing device for closed, tightly closing, round, angular, and oval vessels
made of metal or plastic. It is suitable for mixing colours, colour concentrates, building and industrial
lacquers, and other materials with low viscosity.
The area of application ranges from the colour wholesale to retail trade, the lacquer and chemical
industry to any similar areas. This mixing device is especially suited as system component for colour
dosing systems.
The container is automatically clamped into the machine and the substance is mixed by linear
inertial forces using an alternating orbital shaking motion.
The necessary mixing time and the suitability of the containers must be determined by mixing trials
prior to use.

Shaker VIBA X.30 Collomix GmbH
D-85080 Gaimersheim
10 Version 1.0-20
5. Set-up and using the Shaker for the first time
5.1 Content
The Shaker is delivered with the following:
These Operating Instructions
Cover insert made of foam
A rubber band to secure the handles
A power supply cord
5.2 Set-up the equipment
The machine is delivered on a wooden pallet packaged in recyclable cardboard. Check the packaging
immediately upon receipt and the equipment when unwrapping it for any visual external defects.
Keep all parts of the original packaging for a possible necessary return.
The machine shall be operated only by qualified personnel using suitable lifting equipment eg. a
forklift truck to be lifted from the palette. Only move the fork in from the front or back to avoid
damaging the transport rollers.
Pay attention to the weight of the machine specified in 11.1 not to exceed the permissible load of
the floor.
Do not operate the machine on the shipping pallet or on any other unsuitable sub-surfaces.
When setting up, make sure there is enough working space in front of the machine. The opened
machine door must not protrude into corridors or walkways!
In general, the machine does not need any fine adjustment because of its 3 legs. If necessary, you
can adjust any unevenness in the floor with the height-adjustable legs.
To protect the mixing unit from damages during transport, it is secured with a lashing belt, which
goes over the mixing unit. The belt must be removed prior to switching on the machine:
To release, pull the slider and move the lever by approx. 180°
to the stop.
The pre-tensioning force is released immediately.
The strap is hooked into the
attachment
points in the
machine.
5.3 Mains connection
Pay attention on proper protection of the electrical circuit such as described under 11.1 Only use
Type B residual-current devices (RCD).
Place the mains cable in a way to prevent from stumbling or snagging.
Machine legs
Transport lock with lashing belt

Collomix GmbH Shaker VIBA X.30
D-85080 Gaimersheim
Version 1.0-20 11
5.4 Trial run
A trial run with an empty mixing container must be conducted when first starting the machine or
after maintenance and repair work in order to check the proper function of the machine.
WARNING
Risk of injury due to protruding parts
Parts may protrude from the equipment.
•Always work diligently on the equipment and in close proximity of the equipment.
•If the machine is not used, close the door and turn it off on the main switch.
5.5 Transport
The equipment has two transport rollers (10) on the front side of the housing. These transport
rollers allow to move the machine over short distances in an ergonomically user-friendly manner.
The door must be opened for the machine to be handled safely during transport. Secure the opened
door with the hand against swinging.
5.6 Attach transport lock
The lashing strap must be inserted into machine during every transport of the machine otherwise
the swinging mixing unit could damage the machine. Therefore, you need to keep the lashing strap
for a later transport of the machine.
Thread the end of the strap
into the shaft until the strap is
tight.
Tension the strap with the
lever until the mixing unit
reaches the lower limit stop.
Move the lever into the
locked position until the
slider is engaged.
Front attachment
Rear attachment

Shaker VIBA X.30 Collomix GmbH
D-85080 Gaimersheim
12 Version 1.0-20
6. Operation
Prior to working with the machine, check all parts for their proper condition and function. Do not
start the machine with defective or missing parts.
Check all safety-relevant structural components of the machine for proper function before starting
it. Any defective or damaged parts must be replaced by qualified personnel prior to starting to work
with it.
6.1 Switching on the machine
The machine is turned on using the main switch (1). After an automatic initialisation, START is shown
on the display.
Any errors detected during initialisation are shown in text form on the display.

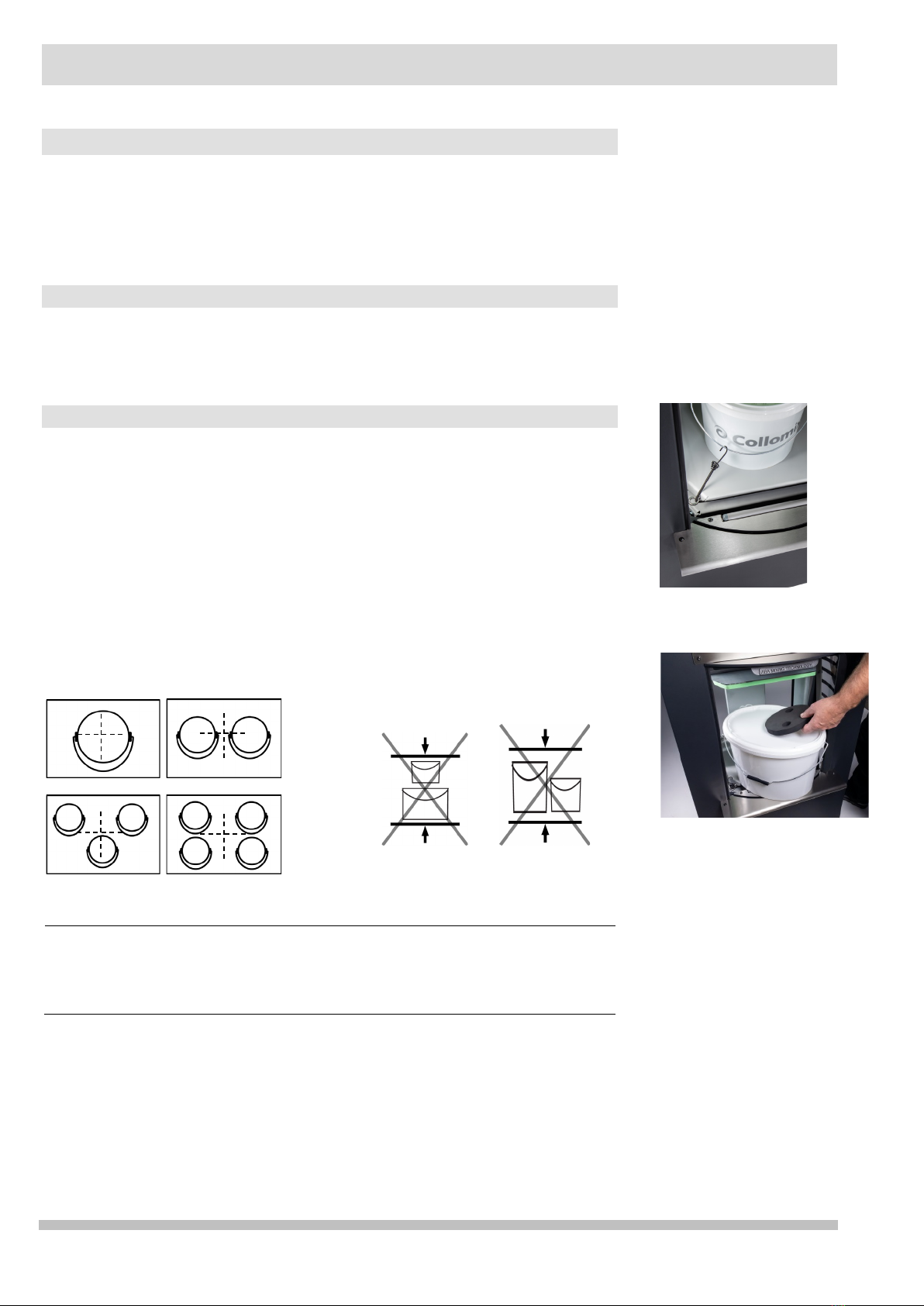

6.2 Load a container
Only use sufficiently stable and tight-closing vessels for mixing. In case of doubt, consult the
manufacturer of the mixing vessels.
To place the container, proceed as follows:
Unlock and open the door by pushing the DOOR button.
To adjust the mixing unit to the height of the container, use the E-Button to raise the clamping
plate.
Observe the weight and size limits of the mixing vessel. Never overload the machine!
Place the container centrically on the mixing table and secure the container handle with a
rubber band or an adhesive.
Use only undamaged containers, never stack containers!
Several identical containers can be mixed at the same time. Pay attention to a symmetric
arrangement of the containers on the mixing plate.
Close the door.
IMPORTANT
If you use larger containers, it is recommended to insert an additional filler disk made of foam.
However, the filler disk should not be higher than the rim of the cover. It reduces the membrane
effect of the cover and the running noise is reduced.
Place containers always in the centre.
Do not stack containers!
Filler disk
Securing the handle with
a rubber band

Collomix GmbH Shaker VIBA X.30
D-85080 Gaimersheim
Version 1.0-20 13
6.3 Starting the mixing cycle
The mixing cycle can only be started after the door is closed.
Push buttons I, II, or III to start the mixing process. The corresponding mixing times are shown on
the LD display above the key pad.
The mixing container is clamped into the machine and the mixing process is started. The remaining
mixing time is displayed during the mixing process.
6.4 Ending the mixing cycle
After the selected time is over
The mixing process is automatically stopped. The mixing unit is opened, the door is opened by spring
force, and the container can be removed.
Before the selected time is over
The mixing process can be stopped early by pushing the E-button.
6.5 End of work
When the machine is not in use, the door should be kept closed.
When done working, switch the machine off at the mains switch (1).
6.6 EMERGENCY STOP switch
In dangerous situations, the machine can be turned off with the EMERGENCY STOP switch (3).
After the machine is turned off, the mixing unit rotates until it comes to a stop in its position.
Reset the EMERGENCY STOP switch
The EMERGENCY STOP switch must be reset by hand.
Rotate the red control element clockwise.
After you reset the EMERGENCY STOP switch, reset the message in the display be pushing the E-
button.
The mixing unit loosens automatically, the door can be opened, and the container removed.
DANGER
Danger of death by dangerous voltage
There is a residual electrical energy in lines and equipment after the EMERGENCY STOP switch is
used. The EMERGENCY STOP switch does not disconnect the machine from the mains voltage.
•If maintenance or repair work is carried out on the machine, always unplug the power cord.

Shaker VIBA X.30 Collomix GmbH
D-85080 Gaimersheim
14 Version 1.0-20
7. Errors and Troubleshooting
The troubleshooting tables in this Chapter will help you to determine whether you can troubleshoot yourself or whether you need to call
customer service.
IMPORTANT
Jot down the serial number of the machine and the error code from the display before you call customer service. The machine's serial
number is on the type plate.
7.1 Possible errors
Fault Description Machine condition Solutions
E010 Door open •Door open
•Close door
•Door closed
•Check the door lock
•Check the power cord / plug to the door lock.
E020 EMERGENCY STOP
activated
•EMERGENCY STOP button pushed
•EMERGENCY STOP button released
•EMERGENCY STOP button not
pushed
•Check the switch of the EMERGENCY STOP button
•Check the power cord / plug to the EMERGENCY STOP
button.
E025 Door unlocked •Door does not engage •Check the door lock
E030 Did not find the
container
•No mixing container is placed
•Place mixing container
•Mixing container is placed
•The mixing container is too small
E050 Defective container •
Container is defect
•Container is unstable
•Check clamping pressure, if necessary adjust
E150 Error clamp motor •The mixing container is not
clamped
•Check the clamp motor
•Check the lines to the clamp motor
•Check the control
E160 Error rotary decoder •The mixing unit does not clamp
•Check clamp motor
•Check the lines to the clamp motor
•Check the control
•The mixing unit clamps
•Check the control
E170 Error door lock •Close door completely
•
Check the door lock
•Check the connection of the door lock
E220 G Sensor
•Container is too heavy or placed de centred
•Check alignment of the machine
•Check flange bearing and oscillating arms
The grey highlighted services can only be carried out by trained technicians.

Collomix GmbH Shaker VIBA X.30
D-85080 Gaimersheim
Version 1.0-20 15

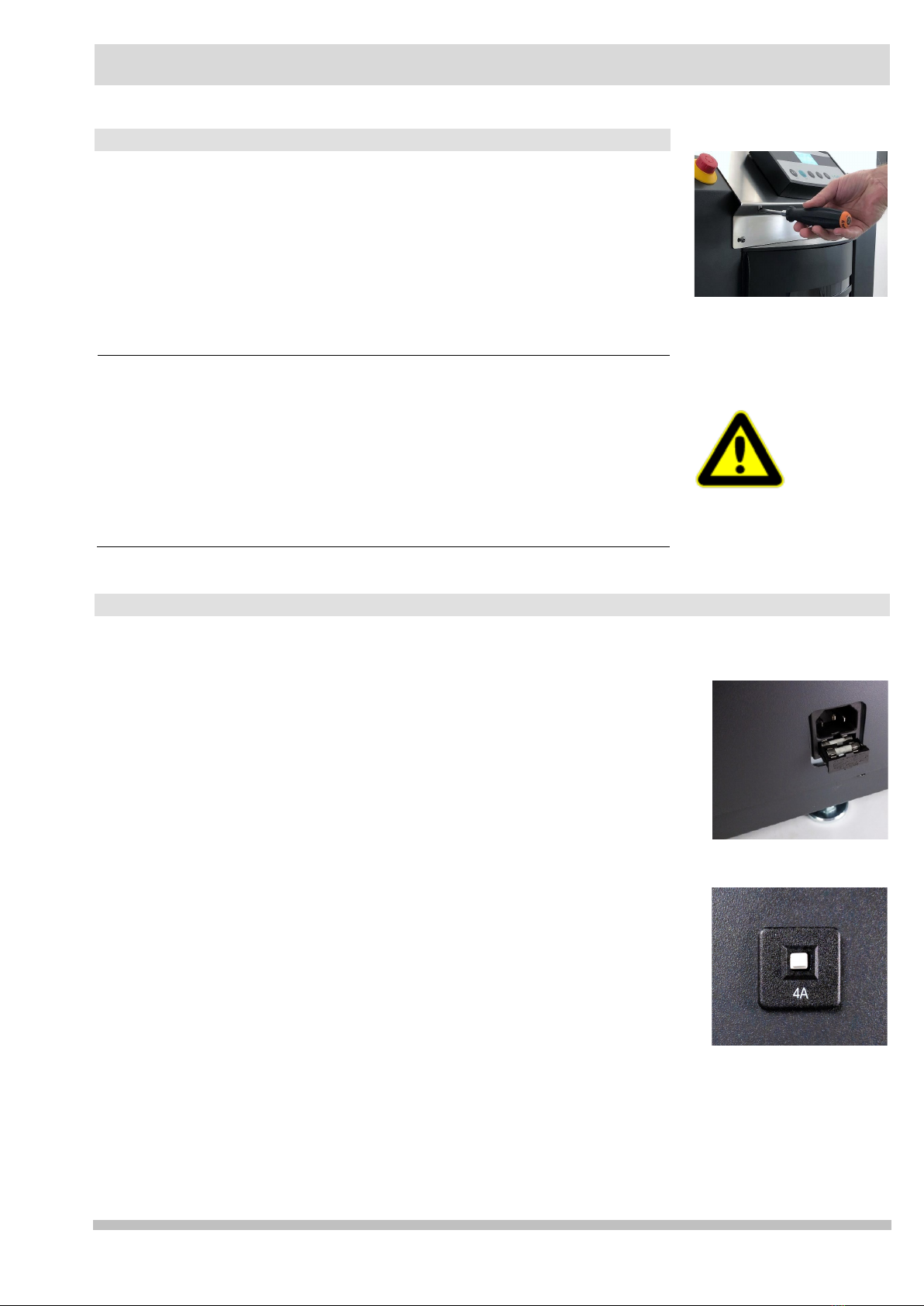

7.2 Unlock door manually
The machine is equipped with a safety lock, which locks the door automatically after it is closed. In
the event of a malfunction or power outage, the door can be unlocked manually.
•Disconnect the machine from the mains by pulling out the mains plug.
•Insert a screwdriver into the hole of the door release and press downwards
•The door opens automatically.
WARNING
Risk of injury by machine parts that continue to rotate
When activating the manual door release, the mixing process is interrupted automatically. The
mixing unit will run for a few seconds up to a complete standstill.
•Use the manually door unlocking device only in case of emergency.
•Before using the manually door unlocking device, always disconnect the machine from the
mains by pulling out the mains plug.
•Never use the manually door unlocking device whilst the mixing unit is turning.
7.3 Fuses on the device
7.3.1 Device fuse
If line voltage is available but the power button does not light up, the cause may be a faulty device
fuse.
The device fuse is in the mains connection on the back of the machine. Only use 5x20mm,
230V/10AT fuses to replace a blown fuse.
If the device fuse is tripped again, there is a defect in the control unit. If this is the case, contact an
authorised service partner to correct the error.
7.3.2 DC fuse
If the power button is on, but nothing is showing on the display of the operating unit, the cause may
be a tripped DC fuse.
The DC fuse is located next to the power button. After the fuse is tripped, wait at least one minute,
and only then press the pin back in until it locks into place.
If the device fuse is tripped again, there is a defect in the control unit. If this is the case, contact an
authorised service partner to correct the error.
Door unlocking device
Device fuse
DC fuse

Shaker VIBA X.30 Collomix GmbH
D-85080 Gaimersheim
16 Version 1.0-20
8. Cleaning, maintenance, and service
It is necessary to check, clean, and service the machine regularly to ensure continuous function.
Unplug the machine from power by pulling the plug before all cleaning, maintenance, and repair
work is done on the machine.
8.1 Cleaning
Remove any spilled mixed compound immediately from the interior of the machine. For this
purpose, use a rag or a scraper. Be careful not to damage any connections or sensors.
Never use solvent cleaning agents, acetone, gasoline or similar aggressive substances to clean the
window in the door or the control panel. Such substances can corrode or even destroy plastic
parts.
Soiled threaded spindles can be cleaned with a rag or a wire brush. The threaded spindles must be
re-lubricated with Mobilux EP2 after cleaning.
CAUTION
Damage to the machine through dry run ball bearings
If you clean the machine with a high-pressure washer, the lubricant is washed out from the ball
bearings and they run try.
•Never clean the machine with a high-pressure washer or similar.
•Replace dry-run ball bearings immediately.
8.2 Maintenance
Only qualified personnel may carry out maintenance and repair work. Use only original replacement
parts.
8.2.1 Annual maintenance
Clean the threaded spindles and lubricate with Mobilux EP2.
Check the outer flange bearings and swing arms for damages.
Check the drive belt for wear and tear and adjust the belt tension if needed.
Check the clamping plate (3) for wear and tear. Replace if needed.
8.2.2 Runtime-dependent service
Drive belts and flange bearings of the mixing unit must be replaced by an authorized service
technician every 30,000 mixing cycles but no later than after 1,000 operating hours.
The number of cycles and the operating hours are shown on the LC display of the operating unit
during the initialization after the machine is turned on.
8.3 Service
If service is required, please consult the customer service or the manufacturer of the machine.
DANGER
Danger of death by dangerous voltage
Do not open the housing or remove any safety equipment of the machine. Please note that all
maintenance and servicing jobs must be left strictly to authorized and suitably trained expert
staff. The proper state of all safety equipment and electrical equipment is to verify and
document after the repair.
Only use original spare parts.
Do not modify or change safety-related parts!
Any additional components added may not impair safety and must be approved by the
manufacturer.

Collomix GmbH Shaker VIBA X.30
D-85080 Gaimersheim
Version 1.0-20 17
9. Accessories
The following accessories are available for the device:
Part Article no.:
Cover insert 20 mm (set has 5 pieces each) 74088
Cover insert 5 mm (set has 5 pieces each) 74136
Handle fixation 64447
Mobilux EP2 100 g 61299
Spare parts are available at www.collomix.de.
10. Storage, disposal
10.1 Storage
The storage area should be cool and dry in order to prevent corrosion on the individual parts of the
machine.
The room temperature of the storage area must be constantly above freezing.
Package the device to prevent any damages through outside impacts during storage.
If necessary, use cardboard and other packaging material.
Secure the machine against unintentional tilting and instability.
10.2 Disposal
The transport package is made of recyclable material. Please dispose this material accordingly.
At the end of the useful life, the machine must be properly disposed to return the used raw
materials to the recycling loop. Please contact the manufacturer directly for any questions
concerning disposal.

Shaker VIBA X.30 Collomix GmbH
D-85080 Gaimersheim
18 Version 1.0-20
11. Appendix
11.1 Technical Specifications
VIBA X.30 VIBA X.30 S VIBA X.30 V
Power supply: L1, N, PE;
230
V / 50 Hz
L1, N, PE;
230 V / 50 Hz
L1, N, PE;
230-240 V / 50-60 Hz
Rated power: 0,9 kW 0,9 kW 0,9 kW
Device fuse: 10 A 10 A 10 A
Line Fuse: 16 A C (RCD Typ B) 16 A C (RCD Typ B) 16 A C (RCD Typ B)
No load apeed mixing unit: - 660 1/min - 690 1/min - 710 1/min
Variable speed no no 4 intervals / speeds
Maximum mixing weight: 40 kg 40 kg 40 kg
Container height: 50 - 400 mm 50 - 400 mm 50 - 400 mm
Max. container footprint (w x d): 370 x 354 mm 370 x 354 mm 370 x 354 mm
Ambient temperature: 5 … 30°C 5 … 30°C 5 … 30°C
Machine weight: 131 kg 131 kg 131 kg
Noise emission in accordance with 2006/42/EG
Sound pressure level LpA 74,2
dB re 20 µPa 74,2 dB re 20 µPa 74,2 dB re 20 µPa
Sound power level LWA 66,1 dB re 1 pW 66,1 dB re 1 pW 66,1 dB re 1 pW
Uncertainty KpA+WA 3 dB 3 dB 3 dB
11.2 Dimensions

Collomix GmbH Shaker VIBA X.30
D-85080 Gaimersheim
Version 1.0-20 19

Shaker VIBA X.30 Collomix GmbH
D-85080 Gaimersheim
20 Version 1.0-20
11.3 EC Conformity Declaration
We hereby declare under our sole responsibility that the products
VIBA X.30
are in conformity with the following European directives:
2006/42/EC; 2014/30/EU; 2011/65/EU
The following harmonized standards were applied:
EN 60204-1:2006 + A1:2009 + AC:2010, EN ISO 12100:2010, EN ISO 13849-1:2015, EN 50581:2012
EN 55011:2009 + A1:2010 (group 1 , limit class B), EN 61000-3-2:2014, EN 61000-3-3:2013, EN
61000-6-2:2005
Please request technical information from:
Collomix GmbH, Abt. Technische Entwicklung, Daimlerstr. 9, 85080 Gaimersheim, Deutschland
Gaimersheim, 31.08.2019
Alexander Essing
Managing Director
Manufacturer:
Collomix GmbH
Daimlerstr. 9
85080 Gaimersheim
Germany
Tel.: [phone] – 0
Fax: [phone]
IMPORTANT
This declaration of conformity will lose its validity if any changes or modifications are made to the
machine without the manufacturer's approval.
11.4 Warranty
For your rights in the event any rectifications become necessary, please read our General Delivery
Terms and Conditions.
You find these on our website www.collomix.de. We are happy to send you our General Delivery
Terms and Conditions on request.
