Colombini ANGEL.ST.18 User manual

IT
by Colombini
INSTRUCTIONS FOR USE
Read the instructions carefully
Edition EN-01 - January 2020
www.absoluteaftersales.it
ANGEL.ST.18
ANGEL.ST.22
ANGEL.RT.18
ANGEL.RT.22
Translations of the original instructions

EN
2
Introduction
Dear Customer, Congratulations for having chosen the
Angel series COLOMBINI grinder and thank you for
your confidence in us. We suggest you carefully read
the instructions for using the machine before turning it
on. They explain how to use it, clean it and keep it in
perfect working order.
This manual describes the ST. models from 1.8 kW and
2.2 kW used for filling bags up to 1 kg and RT. models
from 1.8 kW and 2.2 kW used for continuous cycle
grinding.
This manual provides you with all of the information
needed for the use and maintenance of your machine.
Correct operation and its duration will depend on good
maintenance and attention during use.
Before leaving the production site, this specific model
has undergone a strict test to ensure maximum reliabi-
lity, however it is necessary to ensure that the machine
has not been structurally damaged during transporta-
tion which could be detrimental to its operation and
safety.
This manual is to be considered an integral part of the
machine and must accompany it until it is destroyed.
If it gets lost or damaged contact COLOMBINI for a
replacement copy.
The technical information contained in this manual is
the property of COLOMBINI and must be considered
confidential.
Reproduction, even partial, of the graphic design, text
and illustrations is prohibited by law.
Some of the parts depicted in the illustrations present
in this manual and on the relative tutorial videos, may
be different than those on your machine. Some com-
ponents may have been removed to make sure the illu-
strations are clear.
To make the instructions more complete, the Colombini
Service Technical Assistance Service has made a series
of video tutorials available that can be obtained with
QR Code shown on this manual in correspondence with
certain operations.
However, it is first necessary to carefully read all the
instructions provided in this manual. The videos do not
replace these instructions.
The subjects covered in this manual are those expressly
required by “EC Directive 2006/42”.
This manual must be kept in a place accessible to all
personnel assigned to running and doing maintenance
work on the machine.
In the event of any doubts on what is described in this
manual, do not interpret the contents but contact the
manufacturer or authorised retailer directly.
The court of TURIN (Italy) has jurisdiction for any di-
sputes.
CE declaration of conformity
THE ORIGINAL EC DECLARATION OF CONFORMITY,
SIGNED BY THE MANUFACTURER, IS PROVIDED
IN THE USE AND MAINTENANCE MANUAL
SUPPLIED WITH THE GRINDER.
(for machines not included in annex IV according to
Italian Presidential Decree no. 459/96) EC Directive
2006/42, Annex II part A
The manufacturer COLOMBINI Srl
Via De Francisco 130/16 - 10036
SETTIMO TORINESE (TO) - ITALY
Tel. [phone] Fax [phone]
E-mail: [email protected]
DECLARES
under its own responsibility that
the machine model ANGEL GRINDER
to which this declaration refers, conforms
to the essential safety requirements contained
in EC Directive 2006/42 and EC Directive 2014/30
related to electromagnetic compatibility
and EC Directive 2014/35 related to low voltage.
The machine, intended for grinding roasted coffee
beans, also complies with the FCMs Directive
related to materials and objects intended to come
into contact with foodstuffs.
(EC regulations 1935/2004; 1985/2005;
2023/2006 and Italian law DM 21.03.73).
The harmonised legislation used as a reference
for designing, manufacturing and testing
of the machine are listed
in the technical file stored at COLOMBINI Srl.
The person authorised to construct the technical file
is Mr. Paolo Colombini at COLOMBINI Srl
in Via De Francisco 130/16 - Settimo Torinese (Turin).
This declaration shall lose its validity in the event of
modifications made on the machine,
without the authorisation of COLOMBINI Srl.

EN
3
Index
General Information ......................................... 4
1.1. Machine components ................................. 4
1.2. Manufacturer’s information......................... 4
1.3. Messages used ......................................... 4
1.4. Intended uses .......................................... 4
1.5. Required ambient conditions ..................... 4
1.6. Noise level ............................................... 4
1.7. CE marking plate ...................................... 4
1.8. Technical specifications ............................. 4
1.9. Storage..................................................... 4
1.10. Dismantling the machine ......................... 4
1.11. Warranty ................................................ 4
1.12. Applied directives ................................... 4
General safety ................................................. 5
2.1.Safety information ..................................... 5
2.2. Safety instructions .................................... 5
Installation ...................................................... 6
3.1. Positioning ............................................... 6
3.2. Commissioning.......................................... 6
Operation......................................................... 7
4.1. Disc distance display ................................. 7
4.2. Operation ................................................. 7
Maintenance ................................................... 8
5.1. Cleaning ................................................... 8
5.2. Battery replacement display ....................... 8
5.3. Disc replacement ...................................... 8
5.4. Minimum disc distance regulation.............. 8
5.5. Product discharge pipes (RT. model)............ 8
5.6. Discharge chute cleaning (RT. model) .......... 8
5.7. Table of anomalies, causes and solutions ..... 8
Wiring diagrams................................................ 9
6.1. Wiring diagram 400 V ................................ 9

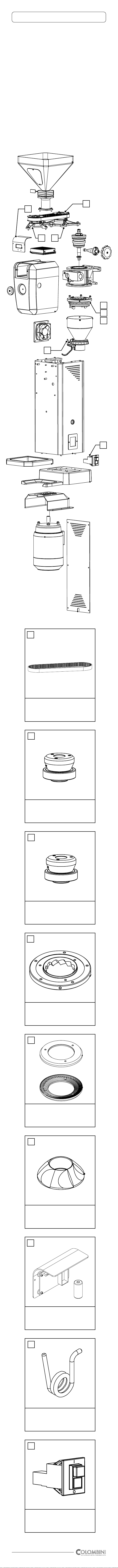

Components subject to wear ............................ 10
7.1. Components subject to wear ..................... 10

EN
1.1. Machine components
1) Product loading hopper
2) Disc distance display
3) Bag stopper clamp
4) Bag support plate
5) Product infeed manual gate
6) Disc distance adjustment wheel
7) Product outlet chute with ferrule
for internal cleaning
8) START control button (green)
9) STOP control button (red)
10) Cooling fan
1.2. Manufacturer’s information
COLOMBINI Srl
Via De Francisco 130/16
10036 - SETTIMO TORINESE (TO) - ITALY
Tel. [phone] - Fax [phone]
E-mail: [email protected]
1.3. Messages used
Warning
The WARNING messages indicate a hazard for the
technician including with a high risk. The operations
described following this message must be performed
with extreme care and in conditions of maximum
safety using personal protection equipment.
Caution
The CAUTION messages are displayed before proce-
dures that, if not observed, could cause damage to
the machine.
Environment
The ENVIRONMENT messages are displayed before
procedures that, if not observed, could cause dam-
age to the environment.
1.4. Intended uses
The Angel grinder has been designed and manufac-
tured mainly for grinding roasted coffee.
Suited for small coffee roasters, labs, coffee shops
and grocery shops, the ST. model is set up for filling
bags up to 1 kg of ground product. While the RT.
model is prepared for continuous grinding and for
filling drums using an extension to connect to the
product outlet chute.
Any incorrect use (not described in these instruc-
tions) and not expressly established with the manu-
facturer is prohibited. It is prohibited to make tech-
nical modifications. The machine is not intended to
be used by children or people with reduced physical,
mental or sensory capacities, or without experience
and knowledge, unless they received instructions re-
lated to use of the machine and are supervised by a
person responsible for their safety.
1.5. Required ambient conditions
To ensure the correct operation of the machine it
must be positioned sheltered from atmospheric
agents (rain, hail, snow, fog, suspended dust, etc.)
with an operating ambient temperature of ≤ 35° C
and relative humidity not greater than 70 %.
The work environment must be clean, sufficiently lu-
minous and without an explosive atmosphere.
1.6. Noise level
The sound power level tests performed on this spe-
cific machine model report a sound pressure less
than 70 dB (A).
1.7. CE marking plate
For any communication with the manufacturer al-
ways quote the information shown on the CE mark-
ing plate.
1.8. Technical specifications
Height: 885 mm - Width: 245 mm
Depth: 435 mm - Weight: 50 Kg
Power supply:
ANGEL ST. 18: 1,8 kW - 400V - 50/60 Hz
ANGEL ST. 22: 2,2 kW - 400V - 50/60 Hz
ANGEL RT. 18: 1,8 kW - 400V - 50/60 Hz
ANGEL RT. 22: 2,2 kW - 400V - 50/60 Hz
1.9. Storage
Open the mobile guards and remove all foreign parts
from the machine, then clean the surfaces.
Use a brush to cover all of the mechanical parts, in-
cluding fixing devices, with a protective lubricant to
remove for re-installation with an alkaline degreaser
(sodium hydroxide).
Lubricate the mechanical parts.
Cover the surfaces with protective lubricant.
Group the parts and fix them on specific pallets with
reference to the delivery packing list, following the
instructions for handling the machine.
Place bags of silica gel hygroscopic salt on the pal-
lets.
Store everything in a place away from atmospheric
agents with a temperature between 0° C and 40° C,
protecting the parts so as to avoid an accumulation
of dust.
1.10. Dismantling the machine at the end of its life
cycle (European Directive 2002/96/EC - Italian Leg-
islative Decree no. 151 of 25 July 2005)
The trash bin symbol affixed to the equip-
ment and/or its package indicates that the
product should not be disposed of amongst
normal waste at the end of its life cycle. The ma-
chine must be brought to one of the recycling cen-
tres specific for electric and electronic waste located
within the country or redelivered to the retailer when
a new equivalent machine is bought on a one for one
basis.
The user is responsible for delivering the machine to
the proper collection centres, or pay the fines envis-
aged by current legislation on the matter. Adequate
sorted collection of this equipment for environmen-
tally compatible recycling and/or dismantling, con-
tributes to avoiding possible negative effects on the
environment and on health and promotes the reuse
and/or recycling of the materials the machine is
composed of. For more detailed information related
to the available collection system, contact the local
waste disposal service or the retailer where it was
purchased.
1.11. Warranty
COLOMBINI Srl guarantees, unless otherwise agreed
in writing, that the machine is supplied and built
perfectly, with good material and agrees to exchange
at no cost ex-works, for a period of twelve months all
mechanical parts and six months all electric parts
(excluding electric motors) that are defective or due
to the material used or manufacturing, as long as the
defective parts are sent free of charge to its address
in Settimo Torinese.
The warranty shall start from the day the supply is
shipped and is reduced by half when the machine
works day and night.
The warranty does not cover defects and faults result-
ing from failure to conduct maintenance, defects and
faults caused by mishandling, defects and faults due
to normal wear or machine parts which are frequently
subject to replacement.
The warranty shall be invalid if:
• repairs or modifications are made by the Customer
or on behalf of the Customer without authorisation
of COLOMBINI Srl;
• the machine is used for purposes other than that
for which it was sold;
• spare parts are replaced with non-original parts;
• the sharpening of the work units is modified;
• the payment terms and conditions are not respected.
The warranty provided by COLOMBINI Srl is intended
limited to what is stated in this article, and that is
without any other liability for COLOMBINI Srl nor the
Customer’s right to any compensation for damages.
The measurements, weights, illustrations and draw-
ings present in the manual are intended to be in-
dicative and not binding, since they are subject to
change and improvements according to COLOMBINI
Srl technical criteria.
COLOMBINI Srl is not required to apply to products
already manufactured or in the process of being
manufactured and intended for the Customer, any
modifications that may occur on a date after the date
of the order.
1.12. Applied directives
The machine has been designed and manufactured
considering the safety requirements indicated in:
• EC Directive 2006/42;
• EC Directive on low voltage 2006/95;
• EC Directive on electromagnetic compatibility
2004/108.
• FCMs Directive related to materials and objects in-
tended to come into contact with foodstuffs.
General Information
4
1
10
6
9
8
7
5
2
3
4
by Colombini
PRODUCED BY:
COLOMBINI Srl
Via De Francisco, 130/16
10036 - Settimo T.se (To)
Made in Italy
QR CODE
USER MANUAL

EN General safety
5
2.1. Safety information
As per Italian Law 626/94, the safety officer
has the obligation to inform the workers on
the risks connected with the use of the ma-
chine. Moreover, there is an obligation to provide for
worker training so that they are able to protect their
own safety and that of others.
Failure to comply with the basic safety rules and pre-
cautionary measures could cause accidents during
operation, maintenance and repair of the machine.
An accident can often be avoided by recognising po-
tential hazardous situations before they occur. The
operator must pay attention to potential hazards and
possess the training, skills and instruments for per-
forming these duties correctly.
COLOMBINI Srl cannot be held liable in any case for
accidents or damages consequent to using the ma-
chine by personnel that is not adequately instructed
or used it incorrectly, as well as failure, including
partial, to comply with the safety rules and interven-
tion procedures contained in this manual.
2.2. Safety instructions
Warning
The indications stated below cannot provide com-
plete protection from all of the hazards that may
occur when working on the machine; they must be
integrated with good sense and the experience of the
person working, the only indispensable measures for
preventing accidents.
This grinder is intended for professional use.
It is not suitable for domestic use.
Only connect the machine to an adequate power
socket. The voltage must correspond to what is indi-
cated on the machine plate.
Do not use the machine if the power cord is defec-
tive or damaged. In these cases it must be replaced
immediately. Do not run the cord around corners and
over sharp edges, over very hot objects and protect it
from oil and water. Do not carry or pull the machine
holding it by the cord. Do not remove the plug by
pulling it by the cord; do not touch it with wet hands.
Avoid letting the power cord hang freely from tables
or shelves.
Never block the upper part of the fan nor insert water
or any kind of liquid.
Never put live parts in contact with water.
Make sure children are supervised so that they do
not play with the equipment. Children are not aware
of the danger.
Keep the materials used for packing the machine out
of their reach.
Do not insert foreign material in the hopper for any
reason or materials other than those specified in the
intended uses.
It is indispensable to remove the socket from the
power socket before cleaning the machine. Never
use alkaline detergents, solvents, alcohol or aggres-
sive substances. Never immerse the machine in wa-
ter! It is strictly forbidden to try to intervene inside
the machine.
When the machine remains unused for a prolonged
period of time, remove the plug from the socket and
store it in a dry place where it is not accessible to
children. Protect it from dust and dirt.
In the event of faults, defects or suspected defect
after a falling or being dropped, immediately remove
the plug from the socket. Do not operate a defective
machine.
Only Authorised Technical Services Centres can
make interventions and repairs. In the event of inter-
ventions not done perfectly, the company shall not
be held liable for damage.
The manual must always be kept on hand, in order
to be able to consult it to verify the correct operating
cycle any time one has doubts.
If this manual is lost or damaged ask COLOMBINI
Srl for a replacement copy.
Structural damages, modifications, alterations or in-
correct repairs may modify the protection capacities
of the machine therefore cancelling this certification.
Modification interventions shall only be performed
by COLOMBINI Srl technicians.
Only use COLOMBINI
original spare parts.
COLOMBINI Srl shall not be held liable for use of
non-original spare parts.

IT
6
Installation
Warning
Two operators are required to lift and position the ma-
chine. Machine weight: 50 Kg.
Caution
Before positioning the machine it is necessary to per-
form a careful preventive inspection in order to iden-
tify any damages sustained during the transportation
phase.
If one or more of the components is damaged it is
indispensable to stop the installation and report the
fault found to the company COLOMBINI Srl making
arrangements with the same on the actions to take.
3.1. Positioning
Position the machine on a flat, horizontal and stable
surface able to sustain the machine weight.
Make sure it is in a safe place, where no one can turn
it over or get injured. Do not keep the machine at
a temperature less than 0°, because freezing could
damage it. Do not use the machine outdoors. Do not
place the machine on hot surfaces and/or near water,
flames or sources of heat. The machine must not be
covered with rags or other things when it is on.
Do not position the grinder near or above sources of
heat.
Warning
Position the machine considering that the START
switch, located on the side of the machine should
be at a minimum height of 1 metre from the ground.
Caution
Position the machine so that there is sufficient
space around it to be able to perform maintenance
work and visual inspections.
Position the bag support plate (4).
Fit the hopper (1), ensuring that the two pins match
the respective holes.
3.2. Commissioning
Caution
Ensure that the mains voltage is identical to that
shown on the machine’s CE marking plate.
Warning
Ensure that your hands, the machine, power cord,
plug and machine support surface are not wet.
Insert the plug into the power socket. Turn on the
machine using the green START (8) button.
Put the product infeed open/close lever (5) in the
OPEN position.
Insert a little bit of coffee in the hopper. If the
ground product does not flow from the pipe, turn the
machine off by pressing the red (9) STOP button,
disconnect the plug and invert the phase using a
screwdriver, as shown in the figure.
Put lever (5) back in the CLOSED position.
4
1
9
8
CLOSED
POSITION
5
5
CLOSED
POSITION

EN
4.1. Disc distance display
1) Display
The display shows the distance of the discs. The
number to the left of the point indicates the dis-
tance expressed in mm.
Tenths, hundredths and thousandths of a milli-
metre are displayed to the right
2) Maintenance key
This will flash after 1000 hours of work (Please
contact Colombini technical service centre)
3) Battery charge indicator
This will flash when the battery is flat (replace the
battery). See chapter 4.2. Battery replacement
4) Button
By pressing for 10 seconds, the measurement on
the display will be reset
5) Button
Press down for 10 seconds to reset the hour
count (operation to perform after replacing the
discs).
4.2. Operation
Make sure the product infeed open/close lever (5) is
in the CLOSED position.
Add the product to be ground to the hopper (1).
Use the micrometric adjustment wheel (6) to set the
grind size shown on the display (2).
The display shows the distance of the discs. The num-
ber to the left of the point indicates the distance ex-
pressed in mm.
Tenths, hundredths and thousandths of a millimetre
are displayed to the right
We have recommended some settings below for ob-
taining different types of coffee (these values are
purely a guideline).
Turkish Coffee up to 0.100 ~
Home espresso from 0.100 to 0.180 ~
Moka coffee from 0.180 to 0.250 ~
Filter coffee from 0.250 to 0.400 ~
Lift the lever (3), insert the bag inside the pipe (7)
and release the lever to secure the bag.
Press the green luminous START (8) button to oper-
ate the machine.
Put the product infeed open/close lever (5) in the
OPEN position.
The machine will begin the work cycle performing
grinding of the product.
Once the work cycle has finished (with bag almost
full) it is necessary to:
- close the product infeed lever (5)
- wait until the product inside is completely ground.
- stop the machine by pressing on the red STOP (9)
button.
Caution
Never open lever (5) for product opening without
first having turned on the machine using the green
START (8) button.
- turn the ferrule indicated in the figure various
times clockwise and anticlockwise to internally
clean the product outlet chute.
- lift the lever (3) and extract the bag.
4 5
1
2 3
CLOSED
POSITION
1
6
2
3
7
5
8
7
OPEN
POSITION
5
9
8
3
Operation

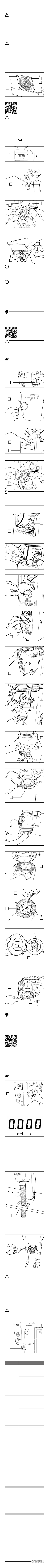

EN Maintenance
Warning
Turn the machine off and disconnect the power plug
prior to beginning any maintenance operations.
5.1. Cleaning
Clean the hopper and machine surfaces daily using
a cloth dampened with water only.
Once a week remove the hopper and remove the oily
layer left by the coffee beans with a cloth dampened
only with water.
Warning
If the dirt is encrusted and difficult to remove, use
products suitable for cleaning machines for food
processing.
Clean the heat dissipation fan filter every six months
proceeding as follows.
- Unscrew the four Allen screws (A).
- Remove the fan cover (B) and clean the filter, re-
place it if necessary.
- Remount the cover securing it with the four Allen
screws.
5.2. Battery replacement display
Watch the video
Warning
Disconnect the power plug and wait until the grinder
cools off.
For the following operations you need:
- 2 and 3 mm Allen keys;
- wire cutters;
- self-locking clamp;
- battery type CR123A
When the symbol egins flashing on the display,
the battery needs to be replaced performing the op-
erations described below.
By Colombini
Unscrew the two Allen screws located on the display
panel (C).
Remove the display panel (2) and disconnect the
connector (D).
Cut the clamp (E) using the wire cutter and remove
the battery (F).
Replace the battery with a new type CR123A one.
Important
Replacement of the battery must be done in a time
less than 5 seconds to prevent the display from go-
ing off with consequent resetting of the data.
If the data on the display is lost, the operations pro-
vided in chapter 5.4 need to be performed.
Important
Be careful not to turn the wheel (6) during the bat-
tery replacement operations.
If the wheel is accidentally turned the operations
provided in chapter 5.4 need to be performed.
Once the battery replacement operation is complet-
ed it needs to be blocked in its support using a new
locking clamp.
- insert the previously removed connector (D), in its
seat.
- mount the display panel (2) securing it with the
two previously removed Allen screws (C).
Environment
Dispose of the flat battery at an appropriate waste dis-
posal site, in accordance with applicable legislation.
5.3. Disc replacement
Watch the video
Warning
Disconnect the power plug and wait until the grinder
cools off.
For the following operations you need:
- 2 and 3 mm Allen keys;
- 8 and 14 mm spanner.
Caution
The discs must always be replaced in pairs.
Use the micrometric adjustment wheel (6) and set
the disc distance to 0,200.
Unscrew the Allen screw and remove the wheel (6).
Unscrew the two Allen screws (A) located on the dis-
play panel (2).
Remove the display panel (2) and disconnect the
connector (B).
Notes
The patented Colombini grinders have a duration
that can vary from 50 tonnes to 100 tonnes of prod-
uct (roasted coffee beans). This figure varies based
on the degree of coffee roasting and according to the
type of grain size selected for the grinding.
Extract the wiring with the two connectors (C) and
(D) from the display panel compartment.
Remove the two connectors.
Unscrew the Allen screw (E) located on the front cap.
Remove the cap (F).
Remove the front guard (G).
Unscrew and remove the four knobs (H) that secure
the discharge chute.
Remove the discharge chute (I).
Loosen the nut shown in figure (L).
With one hand hold the flange and completely un-
screw the previously loosened nut.
Remove the flange with the lower disc (M).
Carefully clean the seat of the three Allen screws
(N) and then unscrew them. Remove the lower disc.
Protection gloves should be used to avoid cuts.
Clean the support surfaces (O) well. Mount the new
disc.
Even a minimum presence of coffee under the discs
may prevent the correct operation of the grinder.
Carefully clean the seat of the three Allen screws
(P). Unscrew the three screws and remove the upper
disc.
Clean the support surfaces well and then mount the
new upper disc.
Environment
Dispose of the worn disc at an appropriate waste dis-
posal site, in accordance with applicable legislation.
For the correct reassembly perform the operations in
the inverse order.
5.4. Minimum disc distance regulation
Watch the video
This operation should be performed after each disc
replacement.
Operations to perform with the machine operating
(START button on and hopper lever in closed posi-
tion).
Slowly turn the wheel (6) clockwise to bring the disc
closer.
As soon as a slight friction sound can be heard due
to the two discs touching (upper and lower) release
the wheel (6).
Caution
Avoid letting the discs touch for a long time.
Using an object with a fine tip press button A (in-
dicated in the figure), for around 10 seconds; four
zeros will be shown on the display.
Slowly turn wheel (6) anticlockwise until 0.060 is
shown on the display to obtain a minimum safety
distance between the discs.
Using an object with a fine tip press button (A) for
ten seconds to return to the value 0.000.
Turn the wheel (6) anticlockwise until reaching the
desired value for the product to grind.
5.5. Product discharge pipes (RT. model)
The RT. grinder model is equipped with an extension
pipe to discharge the product with a 80 mm diam-
eter.
Drill a 85 mm hole on the support bench for the
outlet of the pipe suitable for filling the container.
Fix the extendible pipe to the product discharge
chute with the specific clamp.
5.6. Discharge chute cleaning (RT. model)
Warning
Turn the machine off and disconnect the power plug
prior to beginning any maintenance operations.
There is no internal discharge chute cleaning system
on the RT. model.
Each week it is necessary to perform internal clean-
ing of the chute (A) by removing the oily coffee
residue and relative powders. For these operations
follow the instructions in Chapter 5.3 until the dis-
charge chute is removed.
Once the cleaning is completed remount the chute
and the other parts correctly.
Warning
If the dirt is difficult to remove, use products with
technical characteristics suitable for cleaning parts
in contact with foodstuffs.
by Colombini
by Colombini
5.7. Table of anomalies, causes and solutions
ANOMALIES CAUSES SOLUTIONS
The grinder
does not come
on (Luminous
green START
button pressed
and power cord
undamaged).
Plug discon-
nected
Connect the
plug to the
power socket
Current does
not arrive to
the grinder.
Check the
power cord
Make sure that
there is power
in the socket
The display
unit does not
come on.
(With the
machine
correctly
powered up).
Battery flat
Replace the
battery as
indicated in
point 5.2
Display
faulty
Contact
specialised
personnel.
Order spare
parts.
The grinder
blocks during
the work cycle.
(Possible
noises
identified
in the area
inside the
grinder).
Possible
foreign body
between
the discs.
Turn off the
machine and
contact
specialised
personnel.
The motor
overheated.
Check that
the fan that
dissipates the
interior heat
works correctly.
Clean the
interior filter.
The grinder
does not start
after having
pressed the
green START
BUTTON.
Possible
fault on the
motor
or electrical
parts
Make a note
of the error
code on the
INVERTER
display and
report it to the
maintenance
technician
The green
START
button does
not remain
pressed.
The internal
automatic
thermal
relay tripped
due to
overheating
of the
motor.
Let the
machine cool
down and try to
turn it on again
after around
15 minutes.
The discharged
product is very
powdery.
Disc worn
Replace the
discs.
See ch. 5.3
Hourly
production has
decreased.
Increase
of product
temperature.
D
2
E
F
6
0.200
6
AA
2
2
B
E
F
G
O
O
P
PP
6
8
A
https://youtu.be/pb1669VZuYU
https://youtu.be/nGEnsdVRSuk
A
A
A
A
B
L
M
N
N
N
https://youtu.be/9qJMT91F7fE
C
C
C
D
I
Ø 85
A
H
H

EN
9
Wiring diagrams
6.1. Wiring diagram 400 V
PE
L L L

EN Components subject to wear
7.1. Components subject to wear.
The machine does not need particular maintenance,
the bearings are lubricated for life and most of the
components have a long duration.
If it is necessary to intervene to replace parts subject
to wear such as the discs, electric components, the
belt or other it is necessary to refer to this exploded
drawing reporting the following data to Colombini:
- type of grinder
- serial number
- electrical specifications
- spare part code
- requesting party’s details
- destination address
The data are shown on the CE marking plate on the
machine.
Requests for spare parts should be sent to the fol-
lowing e-mail address: [email protected]
10
5
4
6
7
23
9
HUB
Code: GV.AG.TRSM.CND
2
GRINDING DISCS
UIX 30.TK
Code: AG.I0.0095
5
SRM SPRING
Code: AG.10.0345
8
HUB
Code: GV.AG.TRSM.MTR
3
LOWER ROTARY BREAKER
R0.6/UIX30
Code: AG.I0.0066
6
TIMING BELT
HPPD 720 P8M 18
Code: AG.E1.0060
1
UPPER FIXED BREAKER
F12/UIX 30
Code: AG.I0.0040
4
DISPLAY
Code: GV.AG.DISP.01
BATTERY
Code: AG.E2.0025
7
1
8
SWITCH
400 V.
Code: AG.E2.0015
9

COLOMBINI Srl
Via De Francisco 130/16 - 10036
SETTIMO TORINESE (TO) - ITALY
Tel. [phone] - Fax [phone]
E-mail: [email protected]
