ComAp InteliVision 18Touch User manual

Copyright © 2018 ComAp a.s.
Written by ComAp a.s.
Prague, Czech Republic
ComAp a.s., U Uranie 1612/14a,
170 00 Prague 7, Czech Republic
Tel: +420 246 012 111
E-mail: info@comap-control.com, www.comap-control.com Global Guide
InteliVision
18Touch
18.5" display unit for ComAp
controllers
SW version 1.0
1 Document information 4
2 System overview 8
3 Technical data 9
4 Installation and wiring 10
5 Display Unit Settings 20
6 InteliVision 18Touch connection possibilities 21
7 Automatic SCADA start and connecting to the system 28
8 Creating a SCADA diagram 29

InteliVision 18Touch 1.0 Global Guide 2
Table of contents
1 Document information 4
1.1 Clarification of notation 4
1.2 About this guide 4
1.3 Legal notice 4
1.4 Certifications 6
1.5 Document history 7
1.6 Related products 7
2 System overview 8
2.1 General description 8
3 Technical data 9
4 Installation and wiring 10
4.1 Front panel description 10
4.2 Rear panel description 11
4.2.1 Rear Top 11
4.2.2 Rear Bottom 12
4.3 Dimensions drawings 13
4.4 Mounting 13
4.5 Power 14
4.6 Ethernet (LAN) Ports 15
4.6.1 LAN1 Port 15
4.6.2 LAN2 Port 15
4.7 COM Ports 17
4.7.1 COM1 Port 17
4.7.2 COM2 Port 17
4.7.3 COM Port Mode 18
5 Display Unit Settings 20
5.1 Touchscreen settings 20
5.2 On-Screen Keyboard (OSK) settings 20
6 InteliVision 18Touch connection possibilities 21
6.1 IV18T connection to a Single gen-set 21
6.1.1 RS-232 connection 21
6.1.2 USB connection 22
6.1.3 Ethernet (direct) connection 22

InteliVision 18Touch 1.0 Global Guide 3
6.2 IV18T connection to a Multiple gen-set 24
6.2.1 USB / RS-232 connection via I-LB+. 24
6.2.2 Multiple Ethernet Connection 25
6.2.3 Ethernet (Internet) connection via InternetBridge-NT 26
7 Automatic SCADA start and connecting to the system 28
8 Creating a SCADA diagram 29
8.1 Automatic SCADA generating 29
8.2 User-defined SCADA layout 31
8.2.1 Preparing SCADA archives 31
8.2.2 Creating SCADA on another PC 32

InteliVision 18Touch 1.0 Global Guide 4
1 Document information
1.1 Clarification of notation 4
1.2 About this guide 4
1.3 Legal notice 4
1.4 Certifications 6
1.5 Document history 7
1.6 Related products 7
6back to Table of contents
1.1 Clarification of notation
Note: This type of paragraph calls readers attention to a notice or related theme.
IMPORTANT: This type of paragraph highlights a procedure, adjustment etc., which can cause a
damage or improper function of the equipment if not performed correctly and may not be clear at
first sight.
Example: This type of paragraph contains information that is used to illustrate how a specific function
works.
1.2 About this guide
This manual contains important instructions about InteliVision 18Touch display unit that shall be fullfilled during
the installation and maintenance.
This manual provides general information how to install and use InteliVision 18Touch display unit.
1.3 Legal notice
This End User's Guide/Manual as part of the Documentation is an inseparable part of ComAp’s Product and
may be used exclusively according to the conditions defined in the “END USER or Distributor LICENSE
AGREEMENT CONDITIONS – COMAP CONTROL SYSTEMS SOFTWARE” (License Agreement) and/or in
the “ComAp a.s. Global terms and conditions for sale of Products and provision of Services” (Terms) and/or in
the “Standardní podmínky projektů komplexního řešení ke smlouvě o dílo, Standard Conditions for Supply of
Complete Solutions” (Conditions) as applicable.
ComAp’s License Agreement is governed by the Czech Civil Code 89/2012 Col., by the Authorship Act
121/2000 Col., by international treaties and by other relevant legal documents regulating protection of the
intellectual properties (TRIPS).
The End User and/or ComAp’s Distributor shall only be permitted to use this End User's Guide/Manual with
ComAp Control System Registered Products. The Documentation is not intended and applicable for any other
purpose.
Official version of the ComAp’s End User's Guide/Manual is the version published in English. ComAp reserves
the right to update this End User's Guide/Manual at any time. ComAp does not assume any responsibility for its
use outside of the scope of the Terms or the Conditions and the License Agreement.

InteliVision 18Touch 1.0 Global Guide 5
Licensed End User is entitled to make only necessary number of copies of the End User's Guide/Manual. Any
translation of this End User's Guide/Manual without the prior written consent of ComAp is expressly prohibited!
Even if the prior written consent from ComAp is acquired, ComAp does not take any responsibility for the
content, trustworthiness and quality of any such translation. ComAp will deem a translation equal to this End
User's Guide/Manual only if it agrees to verify such translation. The terms and conditions of such verification
must be agreed in the written form and in advance.
For more details relating to the Ownership, Extent of Permitted Reproductions Term of Use of the
Documentation and to the Confidentiality rules please review and comply with the ComAp’s License
Agreement, Terms and Conditions available on www.comap-control.com.
Security Risk Disclaimer
Pay attention to the following recommendations and measures to increase the level of security of ComAp
products and services.
Please note that possible cyber-attacks cannot be fully avoided by the below mentioned recommendations and
set of measures already performed by ComAp, but by following them the cyber-attacks can be considerably
reduced and thereby to reduce the risk of damage. ComAp does not take any responsibility for the actions of
persons responsible for cyber-attacks, nor for any damage caused by the cyber-attack. However, ComAp is
prepared to provide technical support to resolve problems arising from such actions, including but not limited to
restoring settings prior to the cyber-attacks, backing up data, recommending other preventive measures against
any further attacks.
Warning: Some forms of technical support may be provided against payment. There is no legal or factual
entitlement for technical services provided in connection to resolving problems arising from cyber-attack or
other unauthorized accesses to ComAp's Products or Services.
General security recommendations and set of measures
1. AccessCode
• Change the AccessCode BEFORE the device is connected to a network.
• Use a secure AccessCode – ideally a random string of 8 characters containing lowercase, uppercase letters
and digits.
• For each device use a different AccessCode.
2. Password
• Change the password BEFORE the device enters a regular operation.
• Do not leave displays or PC tools unattended if an user, especially administrator, is logged in.
3. Controller Web interface
• The controller web interface at port TCP/80 is based on http, not https, and thus it is intended to be used only
in closed private network infrastructures.
• Avoid exposing the port TCP/80 to the public Internet.
4. MODBUS/TCP
• The MODBUS/TCP protocol (port TCP/502) is an instrumentation protocol designed to exchange data
between locally connected devices like sensors, I/O modules, controllers etc. From it’s nature it does not
contain any kind of security – neither encryption nor authentication. Thus it is intended to be used only in closed
private network infrastructures.
• Avoid exposing the port TCP/502 to the public Internet.
5. SNMP

InteliVision 18Touch 1.0 Global Guide 6
• The SNMP protocol (port UDP/161) version 1,2 is not encrypted. Thus it is intended to be used only in closed
private network infrastructures.
• Avoid exposing the port UDP/161 to the public Internet.
1.4 Certifications
Declaration of Conformity
The product(s) described in this manual complies with all applicable European Union (CE)
directives if it has a CE marking. For computer systems to remain CE compliant, only CE-
compliant parts may be used. Maintaining CE compliance also requires proper cable and
cabling techniques.
FCC
This equipment has been tested and verified to comply with the limits for a Class A digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. Operation of this equipment in a residential area
(domestic environment) is likely to cause harmful interference, in which case the user will
be required to correct the interference (take adequate measures) at their own expense.
UL
This product is Listed by UL. Representative samples of this product have been evaluated
by UL and meet applicable safety standards.
1. Battery used only. CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY
AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS ATTENTION IL Y A RISQUE D'EXPLOSION SI LA BATTERIE EST
REMPLACÉE PAR UNE BATTERIE DE TYPE INCORRECT. METTRE AU REBUT
LES BATTERIES USAGÉES CONFORMÉMENT AUX INSTRUCTIONS
2.Caution for Replaceable batteries and instruction may be forming by a hard copy format,
CD-ROM or website
3. This product is intended to be supplied by a Listed Power Adapter, rated 12-30Vdc, 5-2A
minimum and Tma 60 degree C minimum and LPS, if need further assistance, please
contact NEXCOM INTERNATIONAL CO LTD for further information.
4. The product intended for vertical use only.
I.T.E
15CR
E465230
RoHS
This device complies with conditions known as “RoHS compliance” and conforms to the
requirements of the European Union’s Restrictions on the Use of Certain Hazardous
Substances in Electrical and Electronic Equipment (“RoHS”) Directive, 2011/65/EU. RoHS
restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm,
Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm,
Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers
(PBDE) < 0.1% or 1,000ppm.

InteliVision 18Touch 1.0 Global Guide 7
1.5 Document history
Revision number Related sw. version Date Author
1 1.0 11.4. 2018 ComAp a.s.
1.6 Related products
Product Description Order code
InteliSys Gas Industrial grade controller for gas gen-set based CHPs and power generation
applications I2GASXXBAB
InteliSysNTC BaseBox Premium Parallel Gen-set Controller IS-NTC-BB
InteliGenNTC BaseBox Complex Parallel Gen-set Controller IG-NTC-BB
InteliMainsNTC
BaseBox Mains Supervision Controller Base Unit IM-NTC-BB
InteliGenNT Complex Parallel Gen-set Controller IG-NT GC
InteliSysNTC Hybrid Hybrid system controller IS-NTC HYBRID
InteliMainsNT Mains Supervision Controller IM-NT GC
InteliDrive DCU Marine Modular Certified Engine Controller for Marine Applications ID-DCU MARINE
InteliGenNTBaseBox Complex Parallel Gen-set Controller with Detachable Colour Display IG-NT-BB
InteliLiteNT Manual Remote Start (MRS) Gen-set Controller IL-NT MRS15
InteliCompactNT Genset Controller for Gensets in Multiple Parallel Applications IC-NT MINT
InteliLite New generation of the most advanced Auto Mains Failure (AMF) gen-set controller IL3AMF25BAA
InteliGen 200 New Generation of Parallel Gen-set Controller IG3200XXBAA

InteliVision 18Touch 1.0 Global Guide 8
2 System overview
2.1 General description 8
6back to Table of contents
2.1 General description
The new InteliVision 18Touch is the natural successor to the InteliVision 17Touch. It is designed as an easy-to-
use Windows based panel suitable for use with a wide range of ComAp controllers. InteliVision 18Touch
features 18.5“ LED backlit projected capacitive touchscreen with a resolution of 1366x768 pixels, extended
temperature range and UL certification. Its front protection complies with IP66 and operating temperature
extends from -10 °C to +60 °C. Smooth operation is ensured by powerful Intel processor.
The new InteliVision 18Touch is designed for complete monitoring and control of multiple controllers or complex
installation, with large numbers of measured values (CHP - Combined Heat and Power). Optimized for ease of
installation, configuration and use, the touchscreen allows users to create touch buttons linked to another
screen, with the option of directly controlling gen-sets or breakers. InteliVision 18Touch communicates over
standard interfaces such as RS232/485, Ethernet & USB. InteliVision 18Touch comes with PC SCADA
software enabling users to freely configure their screen with different types of items such as meters, bar graphs,
numeric values, control buttons, pictures, etc. The software allows users to check the history of multiple
controllers and change setpoints from a single location. IGS-LOG software is also preinstalled at no extra cost
for continuous logging of desired parameters. InteliVision 18Touch is designed to mount on a panel in a power
distribution room or optionally on the wall using the VESA standard. InteliVision 18Touch has an integrated
mounting kit.

3 Technical data
Power supply range 12-30 VDC
Power supply
Operating
temperature -10 to 60 °C
Storage
temperature -20 to 75 °C
Operating
humidity
10%~90% relative
humidity
(non-condensing)
Vibration
IEC 68 2-64 (w/ HDD)
1Grms @ sine,
5~500Hz,
1hr/axis (HDD
operating)
2Grms @ sine,
5~500Hz,
1hr/axis (CFast
operating)
2.2Grms @ random
condition,
5~500Hz, 0.5hr/axis
(non-operating)
Shock
IEC 68 2-27
HDD: 20G@wall
mount,
half sine, 11ms
Operating conditions
Housing IP-66 (front)
Mounting Panel/Wall/Stand/VESA100
Weight 8.2 kg
Dimension 490.8 mm x 320.6 mm x 62.65
mm
Mechanical
Rear I/O
2 x RS232/422/485
2 x USB 2.0
1 x USB 3.0
VGA port: 1 x DB15
Audio port: 1x Line-out
Ethernet 10/100/1000 Base-Tx, 2 x RJ45
Interfaces
CPU
Intel® Celeron® quad core
J1900 2.0 GHz
(2.42 GHz turbo boost)
Memory 4GB RAM
Storage
Device
1x 32 GB Solid-state-drive
1x External locked CFast
socket
Expansion
2 x mini-PCIe sockets
support optional Wi-Fi,
3.5G module or fieldbus card
System
LCD panel 18.5" TFT LCD
Resolution 1366 x 768 px
Luminance 300 cd/m2
Contrast Ratio 1000
Viewing angle 170°(H), 160°(V)
Backlight LED
LCD specification
Type
Ten points P-Cap
(Projected Capacitive
Touch)
Light
Transmission 87%
Anti-scratch
Surface 7H hardness
Touchscreen
OS Windows Embedded Standard 7
Operating system
6back to Table of contents
InteliVision 18Touch 1.0 Global Guide 9

InteliVision 18Touch 1.0 Global Guide 10
4 Installation and wiring
4.1 Front panel description 10
4.2 Rear panel description 11
4.3 Dimensions drawings 13
4.4 Mounting 13
4.5 Power 14
4.6 Ethernet (LAN) Ports 15
4.7 COM Ports 17
6back to Table of contents
4.1 Front panel description
Image 4.1 Front panel overview

InteliVision 18Touch 1.0 Global Guide 11
4.2 Rear panel description
4.2.1 Rear Top
Image 4.2 Rear bottom panel description
Title Description
Antenna holes The 3 external antenna holes are used to mount and connect optional 3.5G/ Wi-Fi
antennas.
CFast CFast Card Socket Used to insert a CFast card.
Power switch Press to power-on or power-off the panel PC.
Backlight on/off Press to turn-on or turn-off the display
Increase Brightness Press to increase brightness of the screen.
Decrease Brightness Press to decrease brightness of the screen.

InteliVision 18Touch 1.0 Global Guide 12
4.2.2 Rear Bottom
Image 4.3 Rear bottom panel description
Title Description
PS/2 KB/MS Used to connect a PS/2 keyboard or a PS/2 mouse.
Line-out Used to connect a headphone or a speaker.
Remote On/Off Used to connect a remote to power on/off the system.
LAN1 / LAN2 Used to connect the system to a local area network. LAN1 supports Wake up on
LAN.
USB 2.0 Used to connect USB 2.0/1.1 devices.
USB 3.0 USB 3.0 port to connect the system with USB 3.0/2.0 devices.
COM1 / COM2 These COM ports support RS232/422/485 compatible series device through BIOS
setting, and have 2.5kV isolated protection.
Reset Button Press this button to restart the system.
VGA Used to connect an analog VGA monitor.
12-30 V DC Input Used to plug a DC power cord.

InteliVision 18Touch 1.0 Global Guide 13
4.3 Dimensions drawings
Image 4.4 Dimensions of the InteliVision 18Touch
4.4 Mounting
IV18T is designed to mount onto the panel. IV18T has an integrated mounting system. The recommended
cutout size for panel mounting is 472,4 mm (width) x 302,2 mm (height). Insert IV18T into the cut area and from
the rear side install the attached mounting clips and fix them with a screwdriver.

InteliVision 18Touch 1.0 Global Guide 14
IV18T is a fanless system – no fan cooling system is installed inside the IV18T. For proper operation, install
IV18T in a cabinet or rack with enough space around it and away from any strong source of heat. The operating
temperature range of the IV18T is from -10 to 60 °C.
IMPORTANT: Do not overtighten the screws to prevent damaging the Panel PC.
4.5 Power
Use the proper power cable. The power supply range is from a 12–30V DC. Use the proper fuse (maximum 5 A)
when powered from an onsite DC source. The max input current is 5 A at 12 V. The negative supply voltage pin
is connected to the IV18T chassis internally. Ensure correct polarity when connecting the DC power supply.
PIN Definition
1DC+ (Positive supply voltage)
2DC- (Negative supply voltage)
3GND (Ground)
Table 4.1 Description of Power connector
IMPORTANT: Do NOT connect power between pins GND and DC- (IT WILL CAUSE
UNREPAIRABLE DAMAGE OF THE DISPLAY UNIT).
Table 4.1 shows the consumption of the InteliVision 18Touch measured on the two voltage level. The values
was measured by the temperature of 20°C.
Performance (Mode) +12 V +30 V
S3 Mode - StandBy 0,13 A 0,11 A
Total Watts 1,56 W 3,30 W
Idle Mode 1,58 A 0,71 A
Total Watts 18,96 W 21,30 W
Full-Loading Mode 2,70 A 1,16 A
Total Watts 32,40 W 34,80 W
Table 4.2 Consumption of IV18T
6back to Installation and wiring

InteliVision 18Touch 1.0 Global Guide 15
4.6 Ethernet (LAN) Ports
4.6.1 LAN1 Port
Support Wake on LAN (WOL)
Connector type: RJ45 port with LEDs
Pin Definition Pin Definition
1 LAN1M0P 2 LAN1M0N
3 LAN1M1P 4 LAN1M2P
5 LAN1M2N 6 LAN1M1N
7 LAN1M3P 8 LAN1M3N
Table 4.3 Pin description of LAN1 Port on InteliVision 18Touch
ACT Status
Flashing yellow Data activity
Off No activity
Table 4.4 ACT / Status description table
LINK Status
Steady Green 1G network link
Steady Orange 100Mbps network link
Off 10Mbps or no link
Table 4.5 LINK / Status description table
4.6.2 LAN2 Port
Support Wake on LAN (WOL)
Connector type: RJ45 port with LEDs

InteliVision 18Touch 1.0 Global Guide 16
Pin Definition Pin Definition
1 LAN1M0P 2 LAN1M0N
3 LAN1M1P 4 LAN1M2P
5 LAN1M2N 6 LAN1M1N
7 LAN1M3P 8 LAN1M3N
Table 4.6 Pin description of LAN1 Port on InteliVision 18Touch
ACT Status
Flashing yellow Data activity
Off No activity
Table 4.7 ACT / Status description table
LINK Status
Steady Green 1G network link
Steady Orange 100Mbps network link
Off 10Mbps or no link
Table 4.8 LINK / Status description table

InteliVision 18Touch 1.0 Global Guide 17
4.7 COM Ports
4.7.1 COM1 Port
Connector type: DB-9 port, 9-pin D-Sub
Pin RS232 RS422 RS485
1 COM1_DCD COM1_TXD COM1_TXD-
COM1_RXD-
2 COM1_RXD COM1_TXD+ COM1_TXD+
COM1_RXD+
3 COM1_TXD COM1_RXD+ Reserve
4 COM1_DTR COM1_RXD- Reserve
5 COM1_GND COM1_GND Reserve
6 COM1_DSR COM1_RTS- Reserve
7 COM1_RTS COM1_RTS+ Reserve
8 COM1_CTS COM1_CTS+ Reserve
9COM1_RI
(Could be a +5V Power Pin)
COM1_CTS-
(Could be a +5V Power Pin)
Reserve
(Could be a +5V Power Pin)
Image 4.5 Pin description of COM1 Port on InteliVision 18Touch
4.7.2 COM2 Port
Connector type: DB-9 port, 9-pin D-Sub
Pin RS232 RS422 RS485
1 COM1_DCD COM1_TXD COM1_TXD-
COM1_RXD-
2 COM1_RXD COM1_TXD+ COM1_TXD+
COM1_RXD+
3 COM1_TXD COM1_RXD+ Reserve
4 COM1_DTR COM1_RXD- Reserve

InteliVision 18Touch 1.0 Global Guide 18
5 COM1_GND COM1_GND Reserve
6 COM1_DSR COM1_RTS- Reserve
7 COM1_RTS COM1_RTS+ Reserve
8 COM1_CTS COM1_CTS+ Reserve
9COM1_RI
(Could be a +12V Power Pin)
COM1_CTS-
(Could be a +12V Power Pin)
Reserve
(Could be a +12V Power
Pin)
Image 4.6 Pin description of COM2 Port on InteliVision 18Touch
4.7.3 COM Port Mode
COM port mode can be changed using BIOS setup
RS-232
RS-422
RS-485
About BIOS setup
The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make
changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-
based configuration utility that displays the system’s configuration status and provides you with a tool to set
system parameters. These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this
information even when the power is turned off. When the system is turned back on, the system is configured
with the values found in CMOS.
How to get to BIOS Setup
At first connect the keyboard to the Panel PC. Powering on the computer and immediately pressing <Del> key
allows you to enter Setup. Press the <Del> key to enter Setup. Navigate to the Serial Port Configuration (see
picture bellow) and setup the requested mode and interface parameters. Then exit the BIOS setup with saving
the changes.

InteliVision 18Touch 1.0 Global Guide 19
Image 4.7 Serial Port mode settings using BIOS setup
Serial Port
Enables or disables the serial port.
Onboard Serial Port Mode
Select this to change the serial port mode to RS232, RS422, RS485 or RS485 Auto.
Terminal Resistor
Enables or disables the terminal resistor.
IMPORTANT: Only experinced user should do the BIOS changes.

InteliVision 18Touch 1.0 Global Guide 20
5 Display Unit Settings
5.1 Touchscreen settings 20
5.2 On-Screen Keyboard (OSK) settings 20
6back to Table of contents
As the operating system Microsoft Windows Embedded Standard 7 is installed on the IV18T, you can use
standard settings such as the screensaver (the ComAp Screensaver is preinstalled), power off the display or
the whole unit after a set period of time, etc.
Only one user, ‘admin’, is predefined with no password set. You can restrict users by setting passwords and/or
creating new users with limited rights. For more details, use Windows help.
5.1 Touchscreen settings
It is possible to calibrate touch sensor using the standard Microsoft Windows 7 functions.
1. Navigate to Start - Control Panel - Tablet PC Settings - Calibration
2. Perform the calibration
3. Save the calibrate data
4. Done
5.2 On-Screen Keyboard (OSK) settings
The On-Screen Keyboard (OSK) is preinstalled. It can be found on the left side of your desktop. The OSK can be
called simply using the gesture tap on the keyboard area.
6back to Display Unit Settings
Table of contents

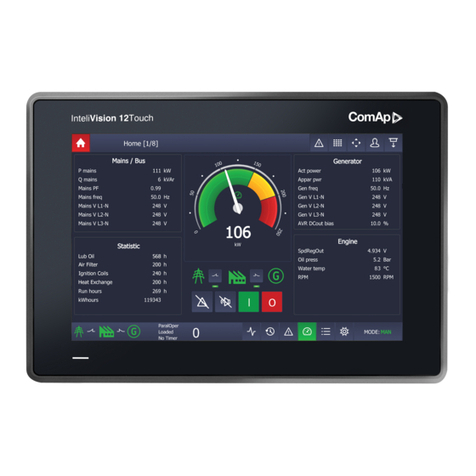

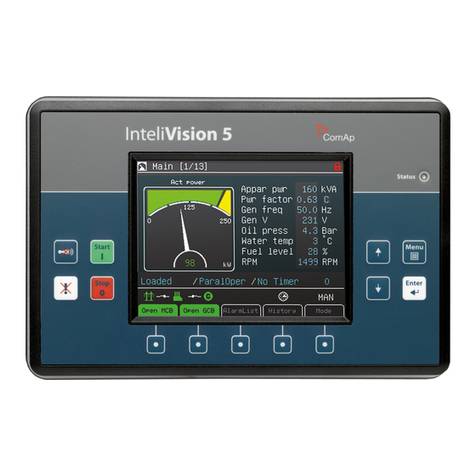

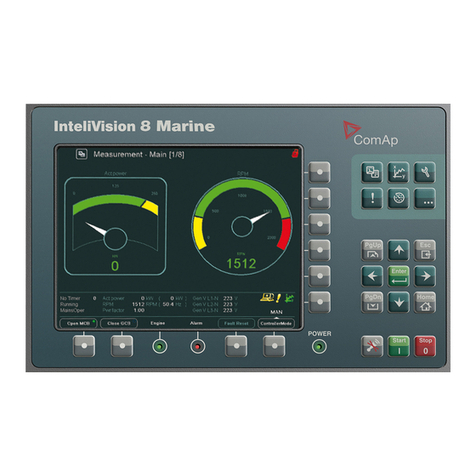

Other ComAp Monitor manuals
