Dell S2722DGM User manual

Model: S2722DGM
Regulatory model: S2722DGMt
Dell 27 Curved Gaming Monitor
-S2722DGM
User’s Guide

NOTE: A NOTE indicates important information that helps you make
better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of
data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
Copyright © 2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks
are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective
owners.
2021 – 05
Rev. A00

Contents
Safety instructions.......................... 5
About your monitor ......................... 6
Package contents . . . . . . . . . . . . . . . . . . . . . . 6
Product features . . . . . . . . . . . . . . . . . . . . . . .8
Identifying parts and controls . . . . . . . . . . . . . . . .9
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Back view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Bottom view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Monitor specifications . . . . . . . . . . . . . . . . . . . 13
Resolution specifications . . . . . . . . . . . . . . . . . . . . . . 14
Preset display modes . . . . . . . . . . . . . . . . . . . . . . . . 15
Electrical specifications. . . . . . . . . . . . . . . . . . . . . . . 16
Physical characteristics. . . . . . . . . . . . . . . . . . . . . . . 17
Environmental characteristics . . . . . . . . . . . . . . . . . . . 18

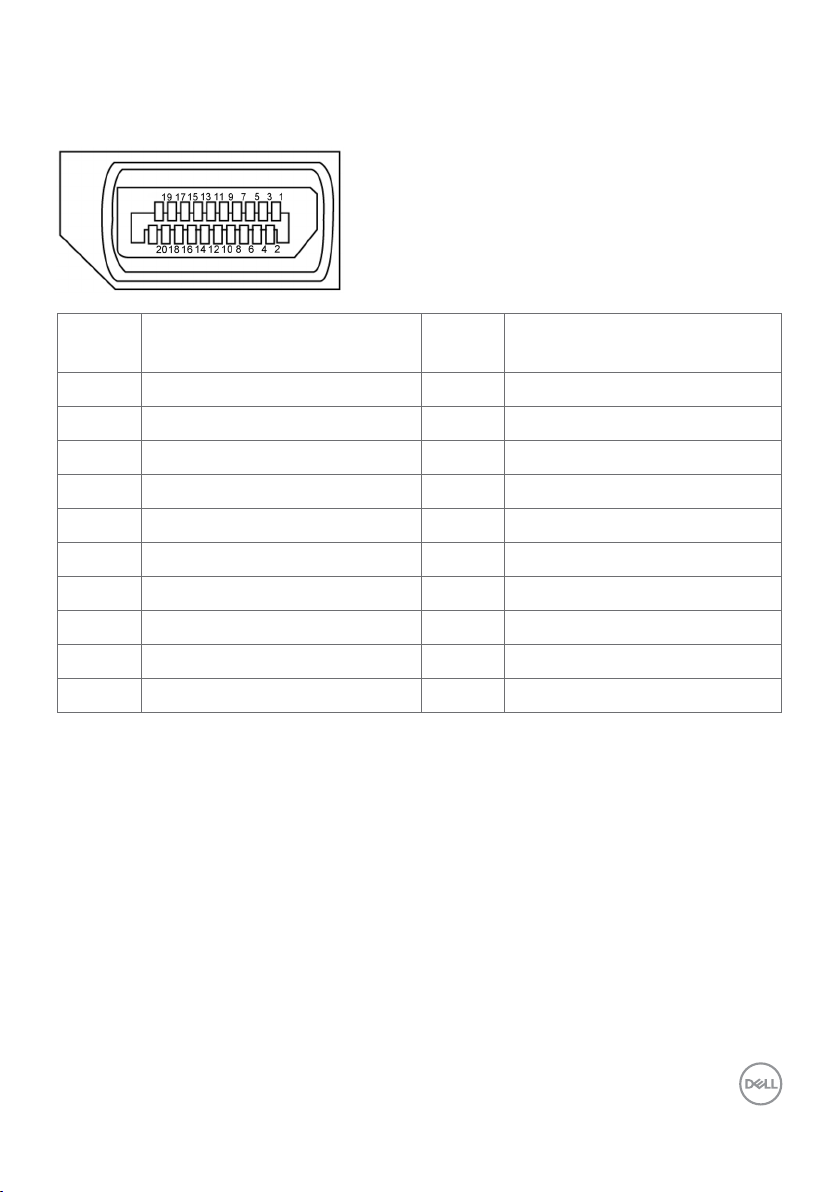

Pin assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Plug-and-Play . . . . . . . . . . . . . . . . . . . . . . . 21
LCD monitor quality and pixel policy . . . . . . . . . . . 21
Ergonomics. . . . . . . . . . . . . . . . . . . . . . . . . 21
Handling and moving the monitor . . . . . . . . . . . . . 23
Maintenance guidelines . . . . . . . . . . . . . . . . . . 24
Cleaning the monitor . . . . . . . . . . . . . . . . . . . . . . . . 24
Contents | 3

4| Contents
Setting up the monitor ...................... 25
Connecting the stand . . . . . . . . . . . . . . . . . . . 25
Using the tilt and vertical extension. . . . . . . . . . . . 28
Connecting the monitor . . . . . . . . . . . . . . . . . . 29
Organizing the cables . . . . . . . . . . . . . . . . . . . 30
Securing the monitor using Kensington lock (optional) . 31
Removing the monitor stand . . . . . . . . . . . . . . . 32
Wall mounting (Optional) . . . . . . . . . . . . . . . . . 33
Operating the monitor ...................... 34
Turning on the monitor . . . . . . . . . . . . . . . . . . 34
Using the joystick control . . . . . . . . . . . . . . . . . 34
Using the rear-panel controls . . . . . . . . . . . . . . . 35
Using the On-Screen Display (OSD) menu . . . . . . . . 37
Accessing the menu system . . . . . . . . . . . . . . . . . . . . 37
OSD warning messages . . . . . . . . . . . . . . . . . . . . . . . 47
Locking the rear-panel control buttons. . . . . . . . . . . . . . .50
Setting the maximum resolution . . . . . . . . . . . . . . . . . . 51
Troubleshooting ........................... 52
Self-test . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Built-in diagnostics . . . . . . . . . . . . . . . . . . . . 54
Common problems . . . . . . . . . . . . . . . . . . . . . 55
Product specific problems. . . . . . . . . . . . . . . . . 57
Appendix................................. 58
FCC notices (U.S. only) and other regulatory information 58
Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . 58
EU product database for energy label and product
information sheet . . . . . . . . . . . . . . . . . . . . . 58

Safety instructions | 5
Safety instructions
WARNING: Use of controls, adjustments, or procedures other than those
specified in this documentation may result in exposure to shock, electrical
hazards, and/or mechanical hazards.
• Place the monitor on a solid surface and handle it carefully. The screen is fragile
and can be damaged if dropped or hit sharply.
• Always be sure that your monitor is electrically rated to operate with the AC
power available in your location.
• Keep the monitor in room temperature. Excessive cold or hot conditions can have
an adverse effect on the liquid crystal of the display.
• Do not subject the monitor to severe vibration or high impact conditions. For
example, do not place the monitor inside a car trunk.
• Unplug the monitor when it is going to be left unused for an extended period of
time.
• To avoid electric shock, do not attempt to remove any cover or touch the inside
of the monitor.
For information on safety instructions, see the Safety, Environmental, and Regulatory
Information (SERI) document.

6| About your monitor
About your monitor

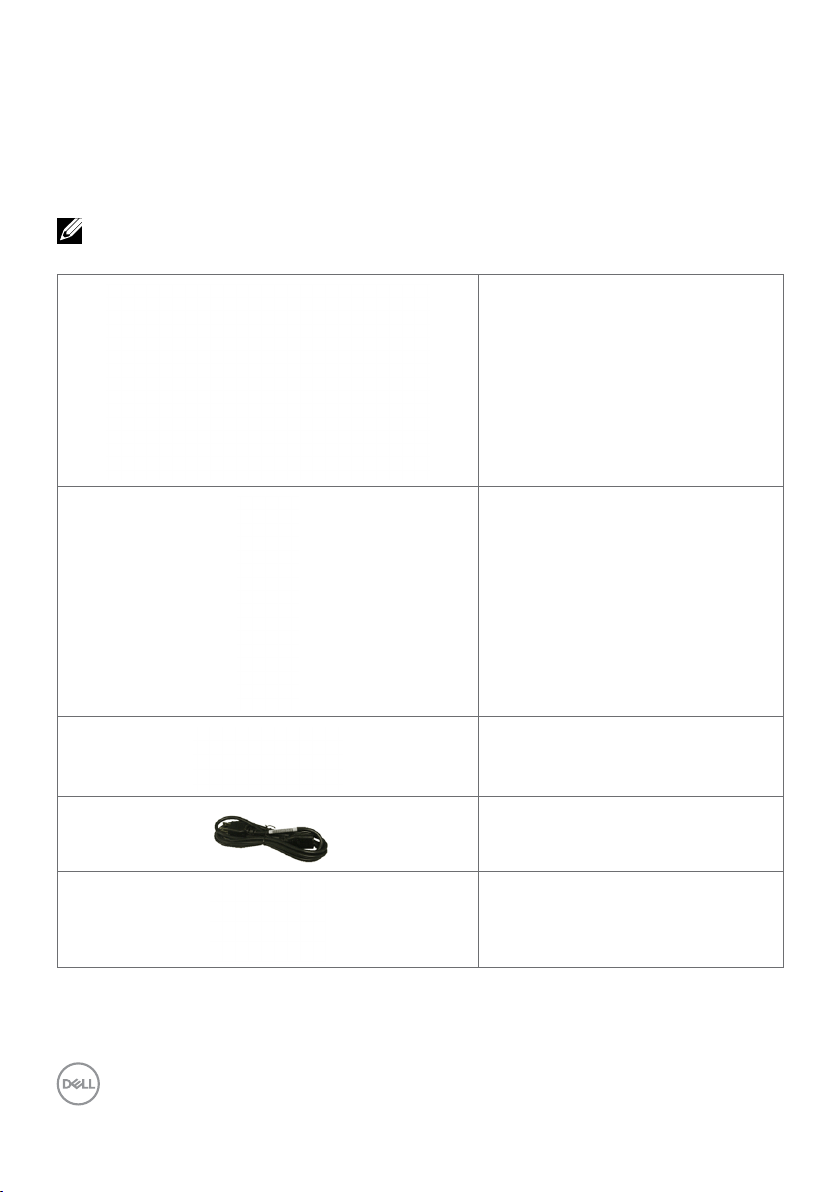

Package contents
Your monitor ships with the components shown in the table below. Ensure that you
have received all the components and Contact Dell if anything is missing.
NOTE: Some components may be optional and may not ship with your
monitor. Somefeatures may not be available in certain countries.
Display
Stand riser
Stand base
Power cable (varies by country)
HDMI cable

About your monitor | 7
DisplayPort (DP) cable (DP to DP)
• Quick Start Guide
• Safety, Environmental, and
Regulatory Information

8| About your monitor
Product features
The Dell 27 Curved Gaming Monitor-S2722DGM has an active matrix, Thin-Film
Transistor (TFT), Liquid Crystal Display (LCD), and LED backlight. The monitor features
include:
• 68.47 cm (27 in.) viewable area (measured diagonally), 2560 x 1440 (16:9)
resolution, plus full-screen support for lower resolutions.
• Color gamut of 99% sRGB.
• Digital connectivity with DisplayPort and HDMI.
• Enabled with gaming console VRR supportability.
• Tilt and height adjustment capabilities.
• Removable-pedestal stand and Video Electronics Standards Association (VESATM)
100 mm mounting holes for flexible mounting solutions.
• Plug and Play capability, if supported by your computer.
• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
• Game-enhanced features such as Timer, Frame Rate Counter and Dark Stabilizer
in addition to enhanced game modes such as FPS, MOBA/RTS, SPORTS, or RPG,
and 3 additional game modes to personalize your preferences.
• Power and OSD buttons lock.
• Security-lock slot.
• Stand lock.
• ≤ 0.3 W in Standby mode.
• AMD FreeSyncTM Premium Technology, which minimizes graphic distortions like
screen tearing and stuttering for smoother, fluid gameplay.
• Supports high refresh rates of 144 Hz and 165 Hz and a rapid response time of 1
ms in MPRT mode*.
• Dell Premium Panel Exchange for peace of mind.
• Optimize eye comfort with a flicker-free screen and ComfortView feature which
minimizes blue light emission.
WARNING: The possible long-term effects of blue-light emission from
the monitor may cause damage to the eyes, including eye fatigue, digital
eye strain, and so on. The ComfortView feature is designed to reduce the
amount of blue-light emitted from the monitor to optimize eye comfort.
* 1 ms is achievable in the MPRT mode and reduces visible motion blur and increases
image responsiveness. However, this may introduce some slight and noticeable visual
artifacts into the image. As every system setup and every gamer’s needs are different,
we recommend that users experiment with the different modes to find the setting that
is right for them.

About your monitor | 9
Identifying parts and controls

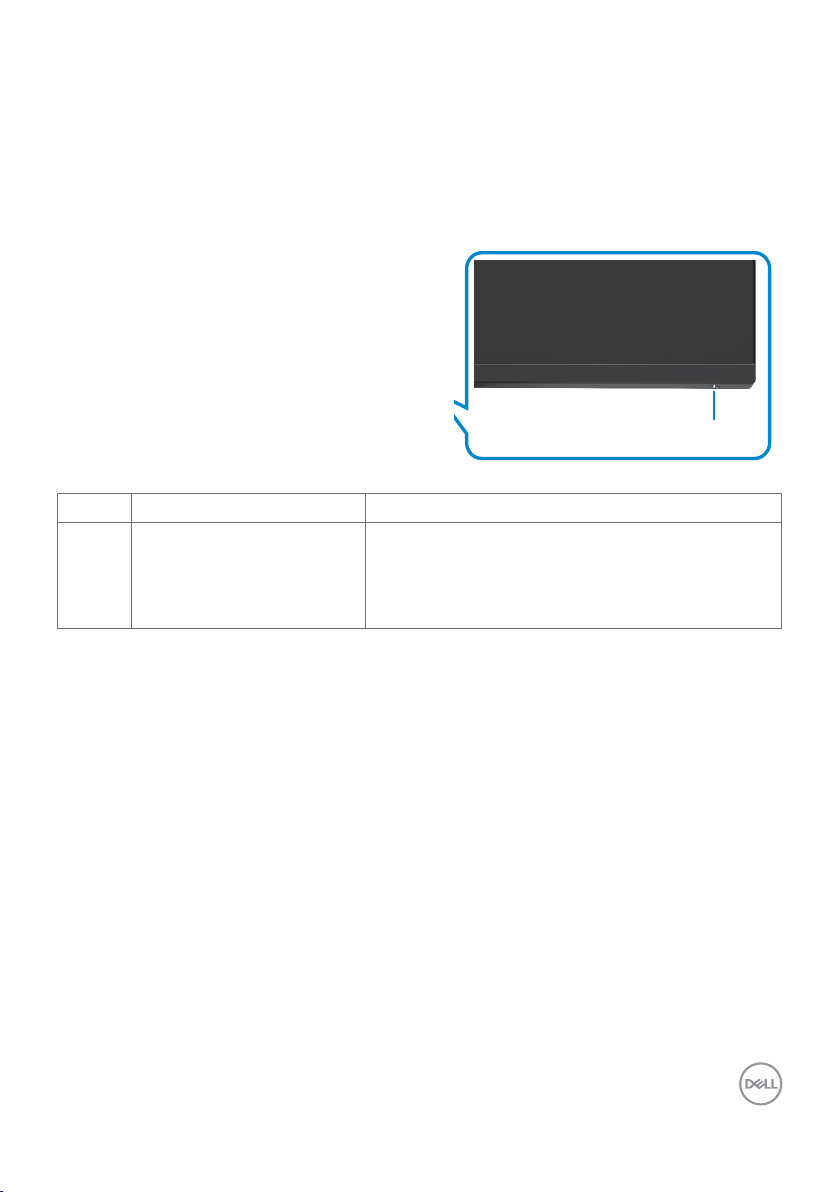

Front view
1
Label Description Use
1Power-status light Solid white: The monitor is turned on and
functioning correctly.
Blinking white: The monitor is in Standby
mode.

10 | About your monitor
Back view
1
2
3
4
5
6
7
Label Description Use
1VESA mounting holes (100 mm x
100 mm-behind attached VESA
cover)
Wall mount the monitor using a VESA-
compatible wall-mounting kit (100 mm x
100 mm).
2Regulatory label Lists the regulatory approvals.
3Stand-release button Releases stand from the monitor.
4Joystick Use it to control the OSD menu.
5Function buttons Use the function buttons to adjust items
in the OSD menu. For more information,
see Operating the monitor.
6Barcode, serial number, and Service
Tag label
Refer to this label if you need to contact
Dell for technical support. The Service
Tag is a unique alphanumeric identifier
that enables Dell service technicians
to identify the hardware components
in your computer and access warranty
information.
7Cable-management slot Organizes the cables when the cables are
routed through the slot.

About your monitor | 11
Bottom view
1 2 4 5 63 7
8
Label Description Use
1Power port Connect the power cable (shipped with your monitor).
2Security-lock slot Secures monitor with security cable lock (sold
separately).
3Stand lock Lock the stand to the monitor using a M3 x 6 mm
screw (screw not included).
4HDMI port (HDMI 1) Connect the HDMI cable (shipped with your monitor).
5HDMI port (HDMI 2) Connect the HDMI cable (shipped with your monitor).
6DisplayPort Connect the DisplayPort (DP) cable.
7Headphone out port Connect the headphones to the computer.
CAUTION: Increasing the audio output beyond 50%
on the volume control or equalizer may increase the
output voltage on the headphones thereby increasing
the sound pressure levels.

12 | About your monitor
8Downlights When the monitor setup is complete, tap the touch
sensor at the bottom of the display to turn the
downlights on or off. The factory setting is on, so the
downlights are active if the power cable is connected
(see Downlight).

About your monitor | 13
Monitor specifications
Screen type Active matrix - TFT LCD
Panel type Vertical Alignment (VA)
Aspect ratio 16:9
Viewable image dimensions
Diagonal 684.70 mm (27 in.)
Active area
Horizontal 596.73 mm (23.49 in.)
Vertical 335.66 mm (13.21 in.)
Area 200301.7 mm2(310.30 in.2)
Pixel pitch 0.2331 mm x 0.2331 mm
Pixel Per Inch (PPI) 108.79
Viewing angle
Horizontal 178° (typical)
Vertical 178° (typical)
Brightness 350 cd/m² (typical)
Contrast ratio 3000 to 1 (typical)
Curvature Curvature 1500R
Display screen coating Anti-glare treatment of the front polarizer, 3H hard
coating
Backlight LED edge-lit system
Response time (Gray to
Gray)
6 ms (Fast mode)
4 ms (SuperFast mode)
2 ms (Extreme mode)
1 ms (MPRT mode)
NOTE: In Extreme mode, slight artifacts may
be encountered due to overdriving. Use Super
Fast/Fast mode for optimal front of screen
experience and game play.
Color depth 16.7 million colors
Color Gamut sRGB 99% (typical)
Connectivity • 1 x Display 1.2 port
• 2 x HDMI 2.0 port
• 1 x Audio headphone port (3.5 mm jack)

14 | About your monitor
Border width (edge of monitor to active area)
To p 7.68 mm
Left/Right 7.7 3 mm
Bottom 20.94 mm
Adjustability
Height adjustable stand 100 mm
Tilt -5° to 21°
Cable management Yes
Dell Display Manager (DDM)
Compatibility
Easy Arrange
and other key features
Security Security lock slot (cable lock sold separately)
Resolution specifications
Resolution
specifications
HDMI DisplayPort
Maximum preset
resolution
2560 x 1440 at 144 Hz 2560 x 1440 at 165 Hz
Horizontal scan range 30 kHz to 230 kHz 30 kHz to 250 kHz
Vertical scan range 48 Hz to 144 Hz 48 Hz to 165 Hz
Video display capabilities
(HDMI & DisplayPort
alternate mode)
480p@60Hz, 576p@50Hz, 720p@50Hz, 720p@60Hz,
1080p@50Hz, 1080p@60Hz, 1080p@120Hz

About your monitor | 15
Preset display modes
Display mode Horizontal
frequency
(kHz)
Vertical
frequency
(Hz)
Pixel clock
(MHz)
Sync polarity
(Horizontal/
Vertical)
VGA 720 x 400
31.47
70.08
28.32
-/+
VGA 640 x 480 31.47 59.94 25.18 -/-
VESA 640 x 480
37.50
75
31.50
-/-
VESA 800 x 600
37.88
60.32
40
+/+
VESA 800 x 600
46.88
75
49.50
+/+
VESA 1024 x 768
48.36
60
65
-/-
VESA 1024 x 768
60.02
75.03
78.75
+/+
MAC 1152 x 864 67.50 75 108 +/+
CVT 1280 x 800
49.70
59.81
83.50
+/+
VESA 1280 x 1024
64
60.02
108
+/+
VESA 1280 x 1024
80
75.02
135
+/+
VESA 1600x 1200
75
60
175.50
+/+
VEST 1680 x 1050
65.29
59.95
146.25
+/+
CVT 1920 x 1080 67.50 60 148.50 +/+
CEA 1920 x 1080
135
120
297
+/+
VEST 1920 x 1200
74.04
59.89
154
+/+
CVT 2560 x 1440
88.79
59.95
241.50
+/+
CVT 2560 x 1440
183
120
497.75
+/+
CVT 2560 x 1440
222.06
143.91
592
+/+
CVT 2560 x 1440 244.32 165 645 +/+

16 | About your monitor
Electrical specifications
Video input signals • Digital video signal for each dierential line.
Each dierential line is rated at 100 ohm
impedance.
• DisplayPort/HDMI signal input support.
Input voltage/frequency/current 100-240 VAC / 50 or 60 Hz ± 3 Hz / 1.50 A
(maximum)
In-rush current 120 V: 30 A (Max.)
240 V: 60 A (Max.)
Power consumption 0.20 W (Off mode)1
0.21 W (Standby mode)1
25.3 W (On mode)1
56 W (Max.)2
20.97 W (Pon)3
65.55 kWh (TEC)3
1As defined in EU 2019/2021 and EU 2019/2013.
2Max brightness and contrast setting.
3Pon: Power consumption of On mode measured with reference to Energy Star test
method.
TEC: Total energy consumption in kWh measured with reference to Energy Star test
method.

About your monitor | 17
Physical characteristics
Connector type • One Display 1.2 port
• Two HDMI 2.0 ports
• One headphone port
Signal-cable type • HDMI cable (1.80 m)
• DisplayPort cable (1.80 m)
Dimensions (with stand):
Height (extended) 493.21 mm (19.42 in.)
Height (compressed) 393.21 mm (15.48 in.)
Width 608.38 mm (23.95 in.)
Depth 190.37 mm (7.49 in.)
Dimensions (without stand):
Height 364.14 mm (14.34 in.)
Width 608.38 mm (23.95 in.)
Depth 96.28 mm (3.79 in.)
Stand dimensions:
Height (extended) 386 mm (15.20 in.)
Height (compressed) 337 mm (13.27 in.)
Width 230.25 mm (9.06 in.)
Depth 190.37 mm (7.49 in.)
Weight
Weight with packaging 9.12 kg (20.10 lb)
Weight with stand assembly and
cables
6.17 kg (13.59 lb)
Weight without stand assembly
(For wall mount or VESA mount
considerations - no cables)
4.24 kg (9.35 lb)
Weight of stand assembly 1.59 kg (3.51 lb)

18 | About your monitor
Environmental characteristics
Compliant Standards
• RoHS Compliant
• BFR/PVC Free monitor (excluding external cables)
• Arsenic-free glass and mercury-free glass (panel only)
Temperature
Operating 0°C to 40°C (32°F to 104°F)
Non-operating -20°C to 60°C (-4°F to 140°F)
Humidity
Operating 10% to 80% (non-condensing)
Non-operating 5% to 90% (non-condensing)
Altitude
Operating 5,000 m (16,404 ft) (maximum)
Non-operating 12,192 m (40,000 ft) (maximum)
Thermal dissipation 191.08 BTU/hour (maximum)
86.33 BTU/hour (On mode)

About your monitor | 19
Pin assignments
DisplayPort
Pin
number
20-pin side of theconnected
signal cable
Pin
number
20-pin side of theconnected
signal cable
1ML3 (n) 11 GND
2GND 12 ML0 (p)
3ML3 (p) 13 CONFIG1
4ML2 (n) 14 CONFIG2
5GND 15 AUX CH (p)
6ML2 (p) 16 GND
7ML1 (n) 17 AUX CH (n)
8GND 18 Hot Plug Detect
9ML1 (p) 19 Return
10 ML0 (n) 20 DP_PWR

20 | About your monitor
HDMI port
Pin
number
19-pin side of theconnected
signal cable
Pin
number
19-pin side of theconnected
signal cable
1TMDS DATA 2+ 11 TMDS CLOCK SHIELD
2TMDS DATA 2 SHIELD 12 TMDS CLOCK-
3TMDS DATA 2- 13 CEC
4TMDS DATA 1+ 14 Reserved (N.C. on device)
5TMDS DATA 1 SHIELD 15 DDC CLOCK (SCL)
6TMDS DATA 1- 16 DDC DATA (SDA)
7TMDS DATA 0+ 17 DDC/CEC Ground
8TMDS DATA 0 SHIELD 18 +5 V POWER
9TMDS DATA 0- 19 HOT PLUG DETECT
10 TMDS CLOCK+
