Dear Customer
We thank you for choosing our product
Important
Our company is not responsible for any negative results and damages that may occur in case the security
measures mentioned in this manual are not implemented properly. In the buildings, facilities and similar places
where the appliance is to be connected, there must be an electrical installation in accordance with the local
regulations and all necessary measures should be taken to ensure the safety of human life and property.
Introduction
Do not install, operate, repair or interfere in any way, without reading the manual completely.
For proper operation of the dispenser, the room temperature must be between + 5°C and + 32°C
Use the device only to cool the specified types of beverages.
Personnel responsible for daily operations must be carefully trained on procedures related to cleaning,
dismantling, assembly and operations in order to avoid unwanted results.
Security details
Dispenser should be connected to a grounded electricity outlet as specified in current regulations, do not
use an extension cord.
Do not connect the dispenser to an electricity outlet other than with the specified supply voltage of 230-
240V NPE- / 50HZ.
If the electric cable is damaged, it must be replaced by a manufacturer’s authorized service or by a similarly
qualified person.
Disconnect the appliance from the mains before any intervention.
Dispenser is not suitable for outdoor use
Dispenser should be installed upright.
Bottom compartment with electrically operated internal parts should never be washed with water.
Dispenser should not be operated by children or used as a toy.
Do not use the device other than for its intended use.
Make sure the dispenser is not placed and does not operate under direct sunlight.
Installation procedures
Remove the device from the transport box and save the box for later use.
Check for damage occurred during transportation. If damaged please contact the forwarder.
For in case your dispenser has not been kept straight during shipping, keep it upright for at least one hour
before starting the installation procedures.
Connect the dispenser to the mains so that the cable is easily accessible.
Place the dispenser onto a surface that can hold the total weight of the dispenser and the beverage.
Place the dispenser on a dry and flat surface. Make sure there is enough space of minimum 15 cm on each
side for proper air circulation.
There should not be any heat generating source near the dispenser as it might affect the cooling
performance as well as melting of plastic components.
You can adjust the height with the adjustable feet under the dispenser.
Dispenser is not delivered pre-sterilized.
The dispenser has to be disassembled, cleaned and sterilized according to details specified in paragraph 6
before the initial use.

4
www.combisteel.com
Electric schemes
7065.0015 – 7065.0020
S1:on/off switch
M: coolant motor
Mf: fan motor
Mk: mixer motor
Installation and operation of the dispenser

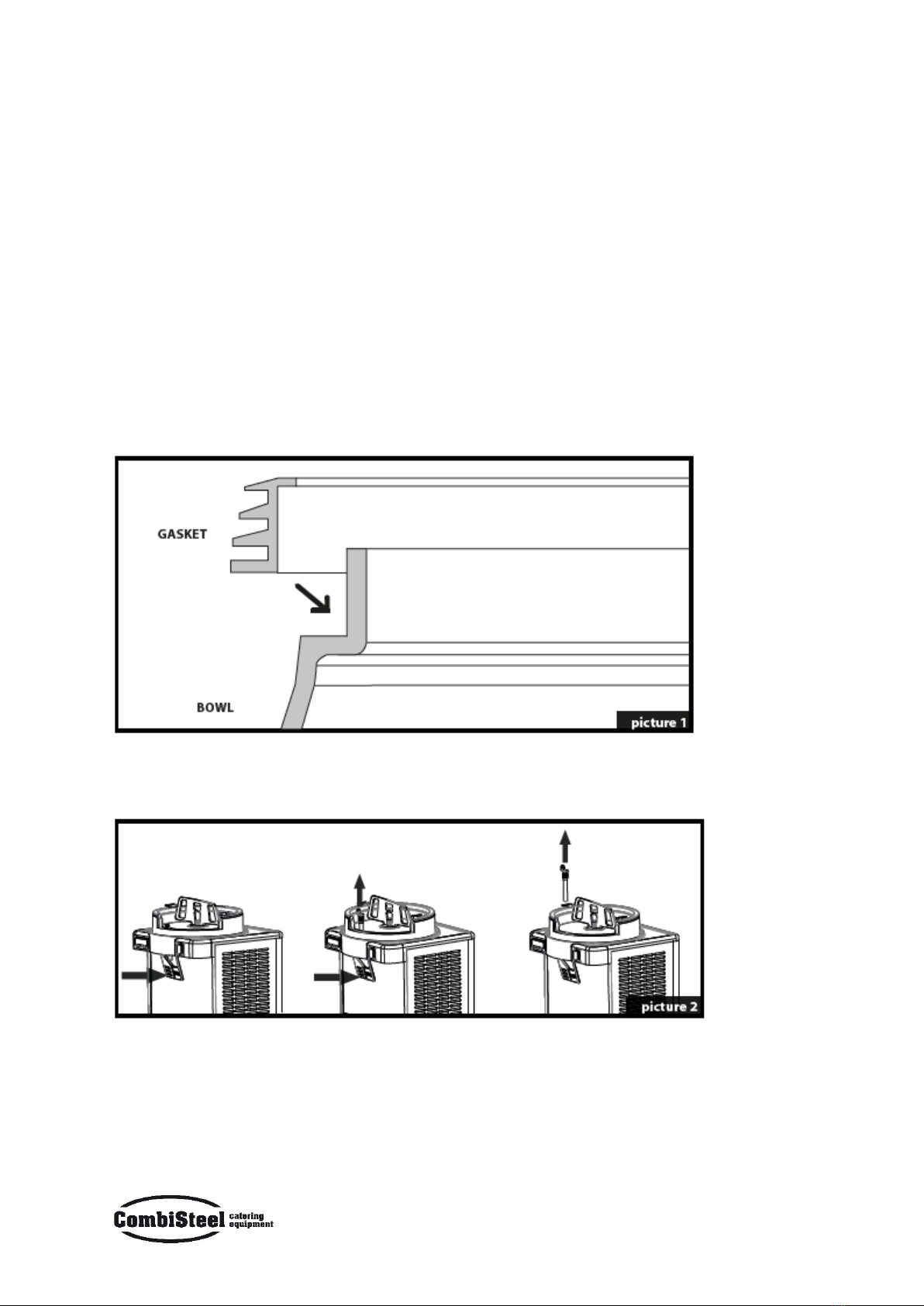

Make sure that the bowl gasket (page 5 / figure 1) and the tap hose (page 6 / picture 3.1) are installed
correctly as shown.
Put the drip tray back in place.
Check that the pallet is well positioned on the shaft in the center of the bowl.
Make sure the bowl tabs are fully inserted into the bowl holders.
Your dispenser is ready for use. You can pour fruit juices which do not require to be mixed with water directly
into the bowl. Concentrated fruit juices which need to be mixed with water with a given ratio or fruit
powders to be mixed with water or yogurt to be mixed with water to obtain ayran should be mixed in a
separate container before being poured into the dispenser’s bowl.
The dispenser cap should always be fully closed to prevent possible contamination of the beverage.
Tips to facilitate usage
When the beverage reaches the preset temperature level keep the dispenser running without interruption
as cooling function stops automatically by the thermostat. Mixing function will continue to work in any case.
Keep the cooling and mixing functions on during the night to maintain the flavor standard of the beverage.
Time required for the dispenser to cool the beverage depends on many variables such as the ambient
temperature and the initial temperature of the beverage
To shorten the cooling time of the beverage and to increase the efficiency of the dispenser it is
recommended to pre-cool the beverage before pouring.
Unplug the dispenser from the electrical outlet if will not be used for a long time. Keep the tap hose and the
gasket of the bowl in a dry place.

5
www.combisteel.com
Cleaning and sterilization procedures
Cleaning and sterilization procedure which is crucial for both the user’s as well as the customer’s health,
must be done before the first use, during every beverage renewal and at regular intervals. Thus the user will
obtain the best beverage taste balance and highest dispenser efficiency.
Make sure that the dispenser has been disconnected from the mains before the procedure.
Cleaning: Remove the bowl, remove the faucet hose from above pull it out, remove bowl seal, in case of
Spray models remove the magnetic pump, in case of Mixer models remove the palette, place them all in
warm water.
Sterilization: Sterilization process should be performed prior to the first use of the dispenser. Following this
operation the dispenser should not be stored or kept without being operated for a long time.
Wash your hands with a suitable antibacterial soap
5 liters of warm water with a disinfecting solution (100 PPM chlorine concentrate or prepared with two
spoons of sodium hypochlorite.
Let the parts sit for five minutes in the disinfectant solution.
Place sterilized parts on a clean, dry surface and let them dry.
Wipe and clean all exterior surfaces of the dispenser. Do not use any abrasive cleaner.
Removing the tap hose
Pull out the tap hose by pushing the tap lever up.

6
www.combisteel.com

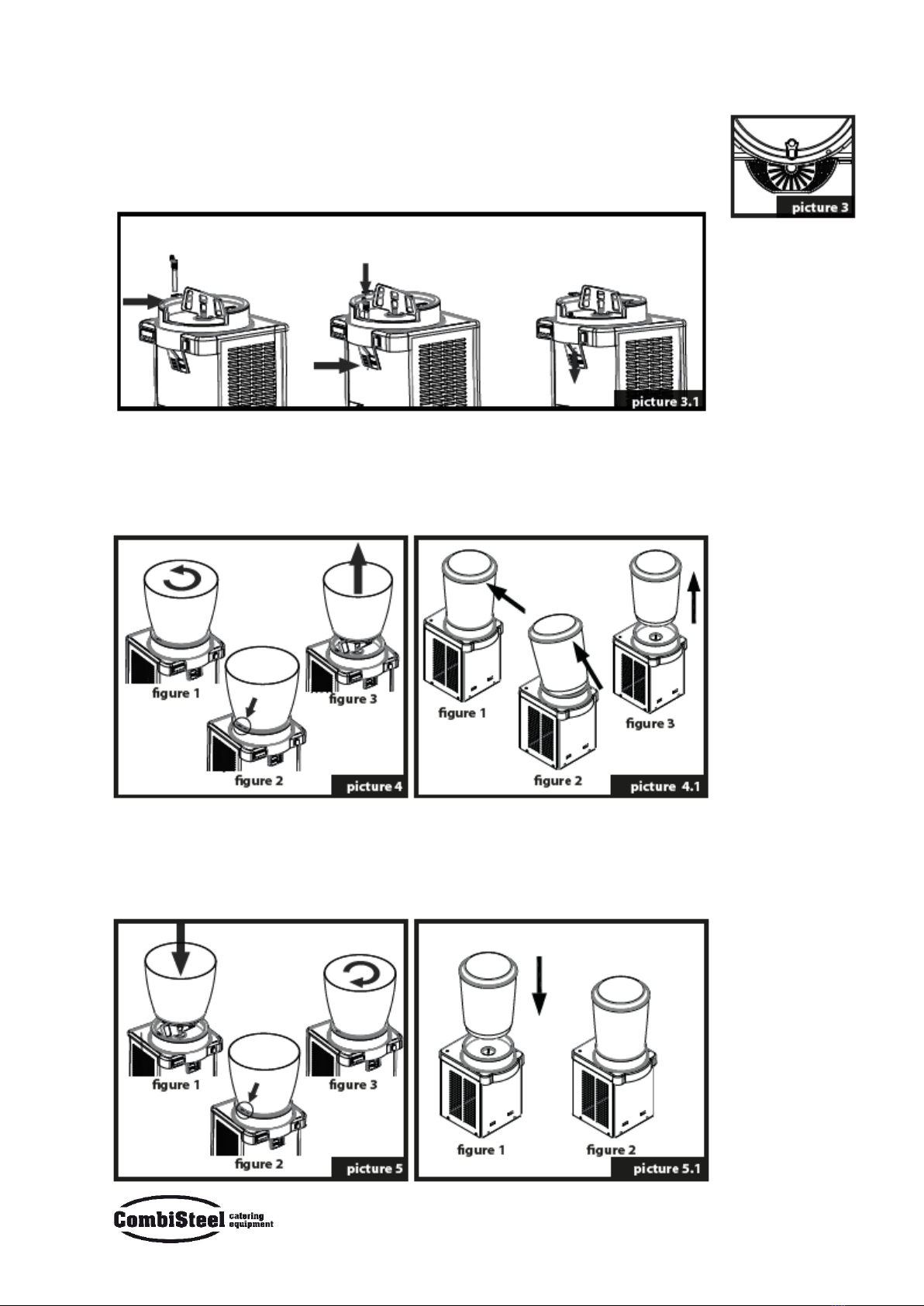

Fitting the tap hose
Push the faucet lever down and push the faucet hose downwards (make sure that the tap retainer
is at the front) and gently pull down the faucet hose between the tap handle and the tap body.
Removing the bowl
Fix the bottom of the machine and turn counterclockwise both sides of the bowl. When the bowl tabs are free
of the bowl retainer plastics, remove the bowl by pulling it upwards. While holding the machine’s body down
with one hand push the bowl forward and upward in order to remove.
Installing the bowl
First, wet the surfaces where the coolant tank meets the bowl gasket, or lubricate it with food oil. After placing
the bowl gasket as in example 3, place the bowl lugs in front of the bowl retainer plastic as shown in figure 2 and
press downwards. Turn the bowl clockwise to allow the tabs to enter the bowl holder. Put pressure onto the bowl
until it sits firmly on the cooling base.

7
www.combisteel.com
KAM 22 and KAM 40 Foamy Ayran Dispensers: Removing and cleaning of the foam making apparatus.
“Rinse all removed parts thoroughly with warm water. Parts which are not cleaned after each use may cause
bacteria formation and this may result in spoiling of the drink in the bowl.”
Disassembly of the foam apparatus
Pull-up the white part of the faucet hose and
disconnect it from the gray part. (picture 6).
Pull down the white part and disconnect it from
the hose. (Picture 6.1).
Turn the foaming chamber clockwise to release
it from the tabs and pull it toward you.
Pull out the black impeller
Rotate clockwise the part to which the foaming
container is connected to release the pins and pull
them towards yourself.
Turn and place the part connected to the foaming
container to the pins, by turning it counterclockwise.
Make sure that the seal gasket is on the part,
otherwise liquid will escape to the engine.
Insert the impeller into the motor shaft and place
it forward.
Place foaming chamber and turn counterclockwise.
First insert the white part into the foaming chamber.
Connect the tap hose of the tap to the small side of
the part.

8
www.combisteel.com
KAM model dispensers: Dismantling and fitting of faucet hose.
Press the handle down and pull the faucet hose upwards using the ring.
Insert the tap hose with the ring facing the front
as shown in the illustration.
Push the faucet handle and insert the faucet hose. Push the faucet hose down using the tool that
comes with the instruction manual and make it come out between the faucet body and the tap handle.

9
www.combisteel.com
Dismantling and installation of spray apparatus
Pull the spray pipe upwards and remove.
Pull spray hat upwards and remove.
Remove the magnet by pulling it upwards.
Unscrew the butterfly nut counterclockwise.
Pull the Spray pump apparatus upwards and remove.
Make sure not to lose the plastic o-ring which
sits under the magnet.

10
www.combisteel.com

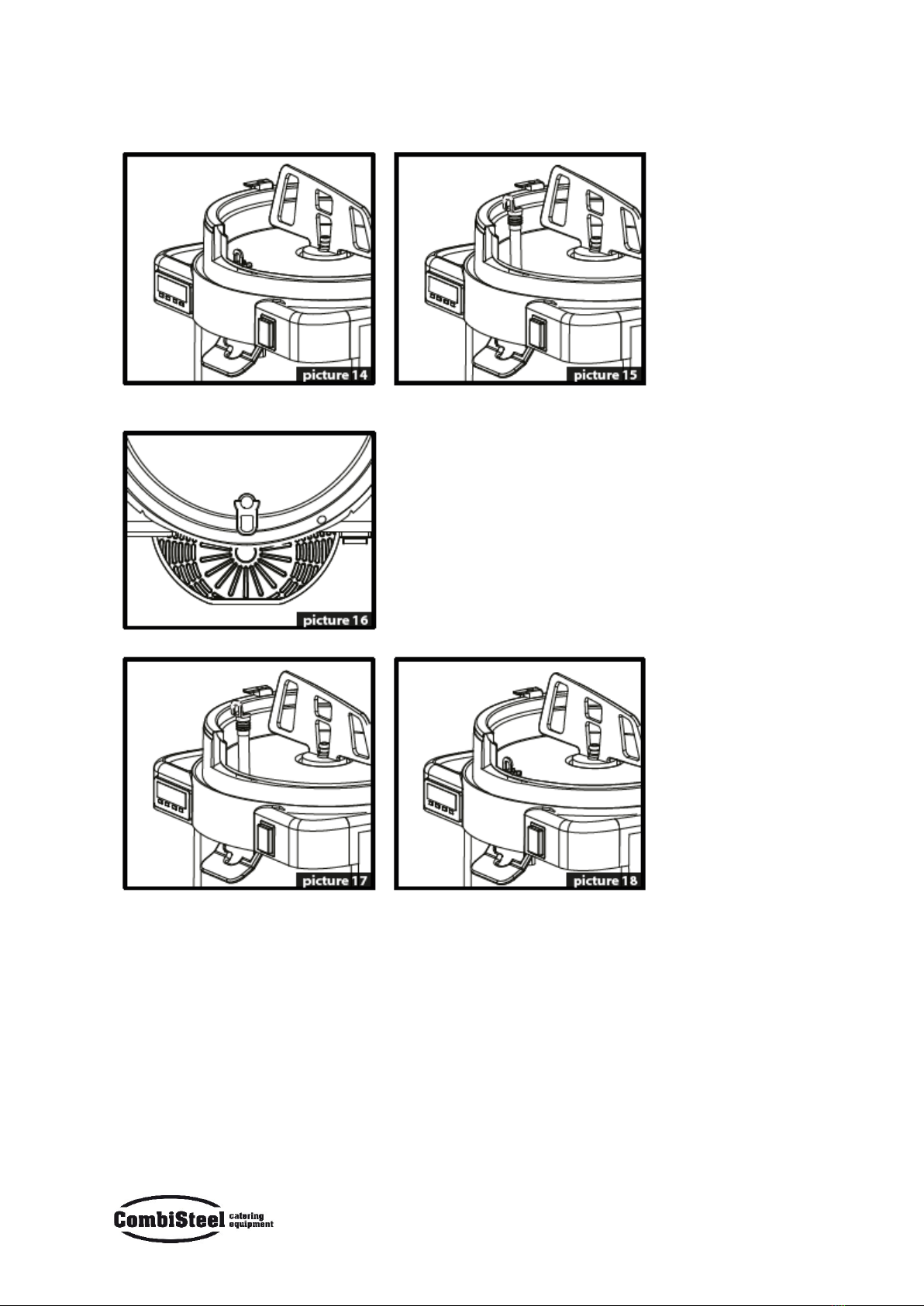

Dismantling and installation of spray apparatus
Make sure the plastic washer is in place before
placing the parts.
Insert the Spray pump apparatus so that the
shaft passes through the hole in the center.
Tighten the butterfly nut clockwise so that the
part does not move (you can damage the part if
you squeeze too much).
Place the magnet on the shaft. Make sure that there
is no particle (e.i. lemon core) between the magnet
and the base plate.
Place the Spray hat as shown.
Replace the pipe as shown in the illustration.
If your machine is S40 i.e. 40 liter model;
make sure the extension apparatus is on.
