Comfort Furnace CF0036 User manual

CF0036
User’s Manual
FOR INDOOR USE ONLY
120VAC 15 AMP DEDICATED CIRCUIT
Carefully and thoroughly read this manual before using the Portable Heater for the
first time. We advise to keep this manual for regular review and future reference.
Heater is intended for residential use.

1
Introduction
Portable Heater utilizes the latest infrared heat technology. It provides a safe,
convenient, clean and economical way to distribute heat throughout your home or
business office without producing deadly fumes or monoxide gases. The heating
system produces therapeutic infrared heat that can potentially relieve symptoms of
cardiovascular conditions and inflammatory diseases.
Portable Heater is constructed of a wood housing made of walnut, dark oak and
light oak finishes. They are equipped with locking nylon caster wheels for easy
mobility. The highly efficient air filter can be maintained and cleaned by simply
vacuuming the filters. Do not get filters wet.
Safety Instruction
USE CAUTION
Save these instructions because electrical safety is essential to keep your home
safe. When using an electrical appliance, basic precautions should always be
followed to reduce the risk of fire, electric shock, and injury to persons. Please
adhere to the following safety instructions:
The heater must be operated by an adult. Keep heater out of the reach of
children.
Only operate the heater when it is on the floor.
Do not operate heater near any water.
Do not plug heater into any other cord connected device such as power strip,
surge protector, multiple outlet adapter, grounding adapter, outlet-type air
fresheners or extension cords. Plug the heater cord directly into a 3-prong 120V
15 amp grounded circuit receptacle.
Never plug heater cord into a loose fitting or broken receptacle.
Never alter the heater’s design or operation. Such actions will void warranty and
IMPORTANT INSTRUCTIONS

2
could result in injury and/or death.
Do not operate the heater if it has a damaged cord or plug.
Do not operate the heater if there are signs of malfunction. If the heater has
been dropped or damaged, do not operate.
Keep combustible materials such as furniture, pillows and other bedding
materials, paper(s), clothing, and curtains at least three feet away from all sides
of the heater during operation.
Always unplug heater when not in use.
Do not use the heater outdoors.
Do not run heater cord under carpet. Do not cover cord with throw rugs, runners,
or similar coverings. Do not route cord under furniture or appliances. Route cord
away from traffic areas.
Do not use the heater in bathrooms, laundry rooms, or similar indoor locations.
Turn off heater before unplugging.
Do not insert any foreign object or allow foreign object to enter the ventilation
opening or exhaust opening as this may cause electric shock, fire, and/or injury.
Never block the air intake or exhaust opening in any manner as this could lead
to fire.
Do not locate heater, when in use, immediately below a receptacle.
Never operate heater in or around a bathtub, shower, or swimming pool.
Only open heater if instructed by an authorized representative of the
manufacturer. There are limited user-serviceable parts inside.
Use heater only as described in this manual. Any other use is not
recommended by the manufacturer as it may lead to fire, electric shock, and/or
series physical injury or death.

3

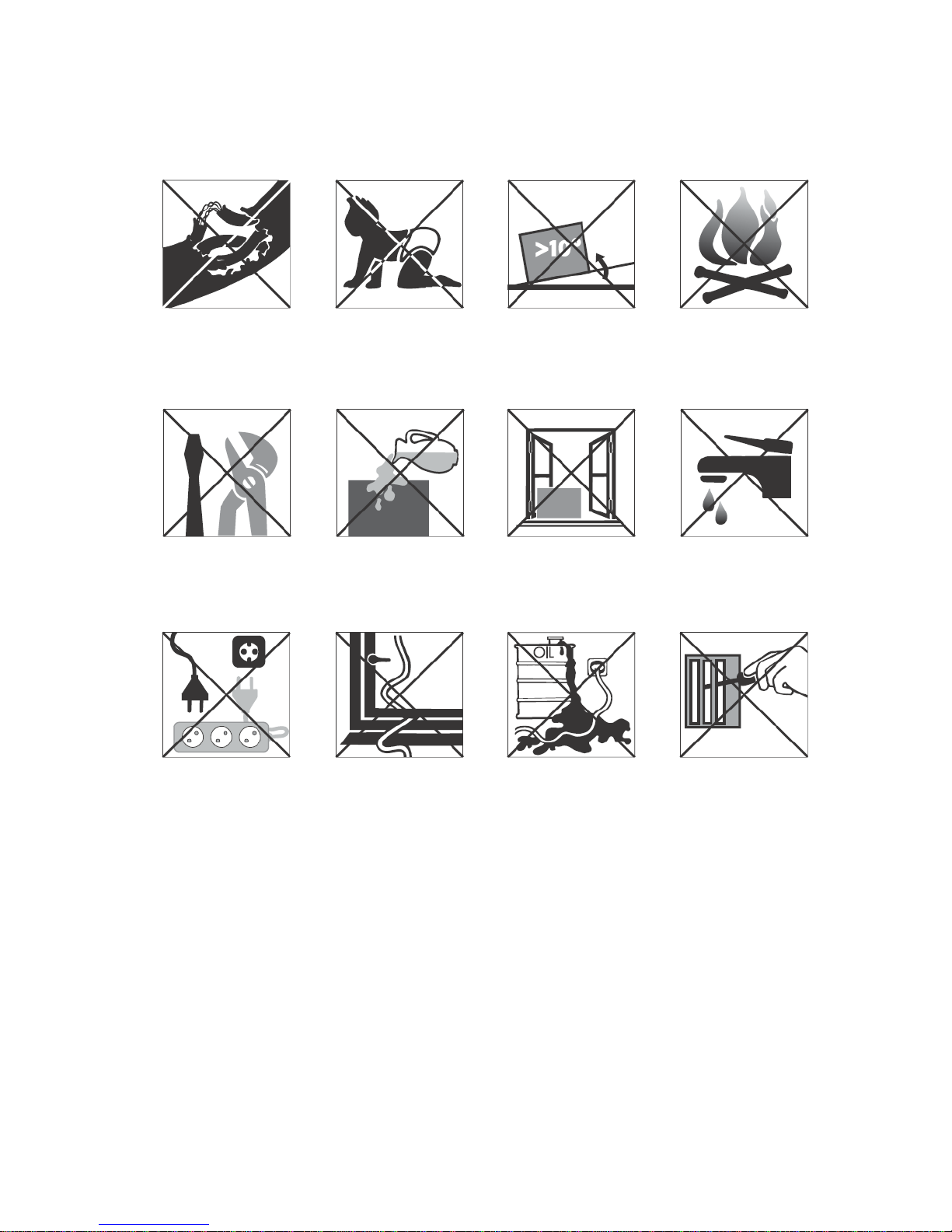

Do not use your Portable Heater under the following conditions:
How It Works
In short, the indoor air circulates from the rear of the Portable Heater, passes
through a highly efficient air filter, and enters a chamber with infrared quartz bulbs.
Finally, the heater discharges heated air from the diathermanous copper plate
constructed on the front of the unit. The Portable Heater ideally heats a room of 500
to 700 square feet. It can be used to heat up a single room size up to 1000 square
feet depending on the ambient temperature. It does all this with a noise level below
46db. The Portable Heater is not for use as the primary/sole heating system.
If the power cable
is frayed or cut
When small children
may be left unattended
On a slope or
uneven surface
In close proximity to
another heat source
This product is not
made for DIY repair
If there is a risk of liquid
falling onto the unit
Inside unit exposed to
the weather outdoors
In a permanent humid
environment
If an unsuitable
extension cord is
needed to reach the
outlet
Where the power
cable is in danger of
damage
Where it may be
damaged by chemicals
Where there is a risk
of damage by foreign
objects

4
Components and Functions
A. The Portable Heater is constructed with infrared quartz bulbs. Each infrared
quartz bulb rates at 375W. These bulbs produce therapeutic infrared rays that
warm the air which passes through the inner chamber. The infrared quartz bulbs
are constructed with a stainless steel thermal conducting housing. The
incorporated twisted style increases the efficiency of the unit.
B. An AC cross flow fan pushes air over these infrared quartz bulbs. Cross flow
fans create a wide flow of air using a cylindrical-shaped impeller. Air is drawn
inside the Portable Heater, flows along the circumference of the chamber and
over the infrared quartz bulbs, and is blown out laterally creating a uniform flow
of warm air.
C. The Portable Heater has a delay start function which controls the AC cross flow
fan. The purpose of the delay start function is to allow the infrared quartz bulbs
to heat up before the fan begins to circulate the air flow. In addition, the AC
cross flow fan will continue to circulate the airflow after the power is turned off to
circulate the warm air from the Portable Heater cooling the unit down.
D. The air flow exits through the front of the Portable Heater. It travels from the
diathermanous copper plate. The diathermanous copper plate is constructed
from red copper making it advantageous for efficient thermal conductivity. It is a
resourceful material in reflecting the infrared rays.
E. The LED digital display is a convenient, stylish, and modern way to display the
temperature and timer. This attractive addition compliments the Portable Heater,
in that, it simplifies and makes controlling the unit easy. Operating the heater is
logical and can be done on the unit itself or by remote.
F. In the event of a power failure the heater will Auto On by itself once the power comes
back on. It will continue working with the last setting temperature.
G. LED Display power saving function
If 2 minutes passes, and no buttons have been pressed on the unit or the remote
the display will turn off to save power. The unit continues to run normally.
Pressing any button will turn the display lights back on.

5
Heater Specifications
Model No.
ACW0036
Carton Size:
18.7 in x 17 in x 18.1 in
Heater Size:
16.3 in x 14.5 in x 14.7 in
Net Weight:
28.6 lbs
Gross Weight:
35.2 lbs
Cabinet Color:
TUSCAN, EXPRESSO, OAK
Power Cord:
8 ft / 14 gauge
Power requirement:
120V 15 amp
Thermostat:
Electronic Analog
Fan System:
Cross Flow Fan
Fan Noise Level:
46 dB
Remote Control:
YES
PP mesh+ charcoal
mesh+ TIO2
YES
Heat Type:
Quartz Infrared Heat
Heating Elements:
4 Infrared Quartz Bulbs w/Nickel-Chrome Filament
Warranty:
Limited 3-Year Parts Warranty
Heating Elements Life Expectancy Potential: Rated 20,000 –30,000 hrs
Unpack the Portable Heater
1.Check the carton to make sure no obvious damages that may have occurred
during shipment.
2.Open the carton and take it out from the box. Or you may flip the entire box
gently and let the heater slide out slowly.
3.Remove all the protective materials from the heater. It may be a good idea to
keep the protective materials and packaging in storage when you do not use it.

6
Operating Instructions
Visually inspect the Portable Heater before operation. Do not operate the heater if
any damages are detected. Contact your dealer immediately.
NOTE: “ ” and “ ” buttons both on the control panel and remote control.
1) Plug the power cord directly into a conventional 120V 15 amp outlet and press
the MASTER POWER switch on the rear of the Portable Heater. Then press the
“ “ button on the front control panel or on the remote to start the unit. The LED
display will show the default value as 72 °F /22 °C. By pressing the“” or “ ”
button, you will choose the desire temperature. The temperature range you can set
on this heater is 50°F / 10°c ~ 86°F / 30°c.
2) By pressing both the “ ” and “ ” button on the front control panel, you can
switch the temperature format between Fahrenheit and Celsius.
3) By pressing the “ ” button, the LED display will switch from the temperature
setting to the timer setting and begin to blink the default timer “--", and that means
Function Display
Press the buttons
“ ” and “ ” on the
control panel at the
same time

7
that the TIMER is not activated and the heater will work all the time. If you press the
“ ” button again, the screen will display “02”, that is 2 hours. The timer will increase
2 hours on each pressing the “ ”button. The maximum timer is 24 hours. When it
reaches 24hours, the screen will return to “--”and you will restore the setting on
timer. If you do not press “ ” or “ ” within (5) seconds after you set the TIMER,
the time status will switch back to the temperature status.
4) Delay start:
a) Mode in Fan function, by pressing the “ ” button, the screen will display “02”,
the maximum timer is 12 hours. When it reaches 12 hours, the screen will return to
“02” and you will restart the setting timer by pressing“” or “ ”. If you do not
press “ ” or “ ” within (5) seconds, the screen will display“F”.
b) Mode in Heater function, by pressing the “ ” button, the screen will display“02”,
the maximum timer is 12 hours. When it reaches 12 hours, the screen will return to
“02” and you will restart the setting timer by pressing“” or “ ”. If you do not
press “ ” or“ ” within (5) seconds, the time status will switch back to the
temperature status.
5) To switch between heater and air purifier press “ ”, Please note the air purifier
is on during heater operation.
5 seconds later the
value swithches to
ambient temperature
5 seconds later the
screen will
display“F”
5 seconds later the
screen will display
“setting temperature”

8
6) Calibration Instruction:
a) by pressing both “ ” and””button on the front control panel, the LED
display will blink one second of “00".Without any operation within (5) seconds,
LED display the setting temperature.
b) The calibration range is -9ºC to +9ºC the difference between the thermostat
readings to the actual room temperature. Once you set it don’t touch the unit
for 5 seconds and it will switch automatically to the new setting.
c) Calibrated temperature will not saved, the default value display”00” after
power off. But by pressing “ ” and“ ” to switch calibration temperature,
data and unit indication switch at the same time.
7) By pressing both the “ ” and “ ” button on the front control panel, it will turn to
high or low power.
8) By pressing both the “ ” and “ ” button on the front control panel, it will turn to
setting temperature or ambient temperature.
9) Portable Heater will turn off by pressing the button on the front control panel.
DO NOT TURN OFF THE MASTER POWER SWITCH ON THE REAR OF THE
HEATER OR UNPLUG THE HEATER UNTIL THE FAN SHUTS DOWN. If the
heater is still in the TIMER function, there will be (5) seconds sound alert to let you
know that the timer has been cancelled. If no actions are taken, the heater will shut
off.
Press the “ ”
Press “ ” and”
”button

9
10) If the quartz heater gets damaged, the LED will display “E1”
11) If the temperature system gets breakdown, the LED will display “E2”.With alarm
sound, heater will stop working.
13) As a safety procedure if the temperature is more than 98ºF (37ºC) in the room,
the LED will display “E3”, with alarm sound, heater will stop working.
Recommendations for Maximum Performance
1. Be sure not to place the heater in an area where the air flow or air movement is
great.
2. Direct the outflow towards the center of the room and not against a solid
structure, like a wall for example for larger areas place the heater within a
central location.
3. The Infrared heater is designed for maximum efficiency in the 68 °F to 74°F
range. This is because of the ambient air moving through the heater and out
constantly.
4. It is not recommended to operate heater in areas exposed to non-insulated
concrete or metal walls. Concrete floors should be covered to insulate the heat
within the room.
5. If the heater filters become dirty or dusty, they must be cleaned for the heater to
operate at it maximum efficient.
Care, Maintenance, and Storage
Before care or maintenance is applied, always unplug the cord from the receptacle.
The cabinet housing can be wiped down with water and a damp cloth or with
furniture polish. The heater has a washable air filter. The filter should be cleaned
regularly to provide for maximum performance. Once the filter is removed, run warm
water through and over the filter to remove dirt and dust. Shake all residue water
from the filter and replace it back in the heater.

10
If the heater is not to be used for an extended period of time, it can be stored away.
Make sure the power is turned off and the cord is unplugged from the receptacle.
Wrap the cord around the handle on the rear of the Portable Heater. Cover the
heater to prevent dust from accumulating on the heater. You may want to repack it
back in its original carton. Always store the heater in a dry and dust free
environment.
(Note: You may want to clean the filter prior to storing the heater away so that it is
ready for operation the next time it is put in use.)
Troubleshooting
1. PROBLEM:
a. If the Heat Emitter is broken or damaged.
b. If the Control Panel is not responding, the temperature reading is above 85°F /
32°c, or there is a burning odor coming from the Portable Heater
c. Or if the power cord is damaged.
SOLUTION:
Contact the manufacturer immediately. DO NOT attempt to operate the Portable
Heater as this may cause electric shock, fire, and/or injury.
2. PROBLEM:
The amount of heated air exiting the front of the Portable Heater is reduced.
SOLUTION:
Check the electrostatic filter to make sure it is free of dust and dirt. Also check the
front grill and rear air intake to make sure it is not being blocked by any kind of
debris.
3. PROBLEM:
The Portable Heater will not turn on.

11
SOLUTION:
a. Test your outlet to make sure it has power. You can do this by plugging in
another appliance and turning the appliance on.
b. Check the LED display to see if it is flashing. If this is the case, press the
POWER button to turn off the timer and resume normal operation of the Portable
Heater.
c. Check the power switch to see if it is lighting up. If the outlet does have power,
the LED display is not flashing, or the power switch is not lighting up, please
contact the manufacturer immediately for further troubleshooting.
4. PROBLEM:
The Portable Heater continues to operate even when the power switch is turned
off.
SOLUTION:
Do not unplug. The Portable Heater has a fan that will continue to operate even
when the power switch is turned off. This fan continues to run in order to cool
down the Portable Heater. Once the fan stops running, you can then unplug the
Portable Heater.
5. PROBLEM:
The control panel displays no temperature or timer.
SOLUTION:
a. Check to make sure the power cord is not damaged and it is plugged in, and
the outlet has power.
b. Check to make sure the control panel is not damaged. If the control panel
display continues to be inoperable, contact the manufacturer for furthering
troubleshooting.
6. PROBLEM:
The control panel is displaying a temperature and timer, but the Portable Heater
does not operate.

12
SOLUTION:
The signal cable or other relevant plugs may have become disconnected.
Please contact the manufacturer for further troubleshooting.
7. PROBLEM:
The heat emitter is functioning and the air outflow is working, but the temperature
display on the LED panel does not increase.
SOLUTION:
The temperature sensor may be damaged or has become disconnected. Please
contact the manufacturer immediately for further troubleshooting.
8. PROBLEM:
The display is showing “Er.” This error code means the heating system is not
working correctly.
SOLUTION:
Contact the manufacturer immediately. Do Not attempt to operate the Portable
Heater as this may cause electric shock, fire, and/or injury.
9. PROBLEM:
The Furnace Heater will run for a period of time and then start beeping. It shuts
off automatically.
SOLUTION:
Some units may not have been set back to the default timer during the test in
production. When the set timer reaches to the end of the timer cycle, it will start
beeping and then shut off the power. You may need to restart the furnace heater
and set on the timer again or cancel the previous setting.

13
Warranty information
1. Warranty period is 36 months from the purchased date.
2. This warranty is void if the Portable Heater has been altered, misused, or has
been repaired by an unauthorized dealer, or it is not installed according to stated
instructions.
3. You will be charged a minimum repair cost in the following cases:
a) When warranty period has expired.
b) Force majeure.
c) Rough and wrong operation on the Portable Heater.
4. The warranty extends only to the manufacturing defects and does not cover any
damage resulting from mishandling of the product by the owner.
“Certificate of Warranty”
This product has completely passed tests on quality control and safety features,
conducted by the technical department of the Manufacturer. It will be greatly
appreciated to inquire and ask for required service work upon finding any defects by
presenting the Certificate of Warranty to the authorized dealer in your area.
Serial No.:
Date of Purchase
Name of Customer
Dealer information
Distributor Contact Information for Customer Service

Portable Heater
CF0036
Guide de l’utilisateur
POUR USAGE À L’INTÉRIEUR SEULEMENT
120 V CA 15 A CIRCUIT DÉDIÉ
Lisez attentivement ce guide en entier avant d’utiliser le foyer portatif pour la première fois. Nous vous
recommandons de conserver le guide en lieu sûr pour pouvoir le consulter au besoin. Ce foyer a été
conçu uniquement pour usage domestique.

1
Introduction
Votre foyer portatif fait appel à une technologie infrarouge de pointe. Il fournit une source de chaleur
sécuritaire, commode, propre et économique pour la maison ou le bureau qui ne dégage pas de fumées
toxiques ni de monoxyde de carbone. Le foyer portatif est protégé par un boîtier en bois, fait de noyer,
de chêne foncé ou de chêne pâle. Il est équipé de roulettes en plastique qui permettent de le déplacer
facilement. Le filtre au charbon actif peut aider à éliminer les substances toxiques, telles que le
formaldéhyde, le benzène, le toluène, l’acétone et le gaz de pétrole. Pour nettoyer ce filtre à haute
efficacité, il suffit de le rincer à l’eau tiède.
Sécurité
ATTENTION
Conservez ces mises en garde, car la sécurité électrique est essentielle à la sécurité de votre
domicile. Lorsque vous utilisez un appareil électrique, il faut toujours suivre certaines précautions
élémentaires afin de réduire le risque d’incendie, de choc électrique et de blessures corporelles.
Veuillez observer les consignes de sécurité suivantes :
Seuls les adultes doivent faire fonctionner le foyer. Tenez-le éloigné des enfants.
Faites fonctionner le foyer seulement lorsqu’il est posé à plat sur le plancher.
N’utilisez pas le foyer à proximité de l’eau.
Ne le branchez pas à une interface de connexion comme une multiprise électrique, un
protecteur de surtension, un raccord électrique, un adaptateur de masse, une prise de
désodorisant ou une rallonge électrique. Ne branchez l'appareil qu'à une prise à trois broches,
120V 15 A, dans un circuit connecté à la masse.
Ne branchez pas l’appareil dans un connecteur présentant du jeu ou qui est brisé.
Ne modifiez pas le design du foyer ou son fonctionnement. De telles actions auraient pour effet
d’annuler la garantie et pourraient être la cause de blessures ou de mort.
N’utilisez pas le foyer si le cordon ou la fiche sont endommagés.
N’utilisez pas le foyer si son fonctionnement est défectueux ou s’il est tombé ou a été
endommagé.
Veillez à ce que le foyer soit installé à au moins trois pieds de toute matière combustible, telle
que les meubles, les oreillers, la literie, le papier, les vêtements et les rideaux, lorsqu’il
fonctionne.
Débranchez toujours le foyer lorsque vous ne l’utilisez pas.
N’utilisez pas le foyer à l’extérieur.
Ne couvrez pas le cordon avec des carpettes, glissières ou autres couvre-planchers semblables.
Ne faites pas passer le cordon d’alimentation sous un tapis, des meubles ou d’autres appareils
électriques. Ne posez pas le cordon dans un lieu de passage où il risque d'être piétiné.
N’utilisez pas le foyer dans une salle de bain, une salle de lavage et autres emplacements
intérieurs similaires.
Éteignez le foyer avant de le débrancher.
N’insérez pas d'objets dans toute entrée ou sortie d’air, car cela risque de causer un choc
MISES EN GARDE IMPORTANTES

2
électrique, un incendie ou des blessures corporelles.
Ne bloquez jamais la prise d’air ou la sortie d’air d’aucune façon. Cela pourrait déclencher un
incendie.
N'installez pas le foyer directement sous un conteneur lorsqu’il fonctionne.
N’utilisez jamais le foyer à proximité de ou dans une baignoire, une douche ou une piscine.
Ouvrez le foyer seulement si un représentant autorisé du fabricant vous a indiqué de le faire. Il y
a à l’intérieur seulement un nombre limité de pièces que vous pouvez entretenir.
Respectez les instructions d'utilisation du foyer décrites dans ce manuel. Toute autre utilisation
non recommandée par le fabricant risque de causer un incendie, un choc électrique ou des
blessures corporelles.
N’utilisez pas votre foyer portatif dans les circonstances suivantes :
Ce produit n’est pas
conçu pour être réparé
par l’utilisateur.
Si des liquides peuvent
être renversés sur
l’appareil
S’il est exposé à des
intempéries
Dans un
environnement
toujours très humide
Ne pas brancher
l’appareil au moyen
d’une rallonge.
Si le cordon
d’alimentation
risque d’être
endommagé
Si l’appareil risque d’être
endommagé par des
produits chimiques
Si des corps
étrangers risquent
d’endommager
l’appareil
Si le cordon
d’alimentation
est effiloché ou
coupé
Si de jeunes
enfants peuvent
être sans
surveillance
Sur un surface en
pente ou inégale
À proximité
d’une source de
chaleur

3
How It Works
In short, the indoor air circulates from the rear of the portable furnace heater,
passes through a highly efficient air filter, and enters a chamber with infrared quartz
bulbs. Finally, the heater discharges heated air from the diathermanous copper
plate constructed on the front of the unit. The portable furnace heater ideally heats a
room of 500 to 700 square feet. It can be used to heat up a single room size up to
1000 square feet depending on the ambient temperature. It does all this with a
noise level below 46db. The portable furnace heater is not for use as the
primary/sole heating system.
Components and Functions
A. The portable furnace heater is constructed with infrared quartz bulbs. Each
infrared quartz bulb rates at 375W. These bulbs produce therapeutic infrared
rays that warm the air which passes through the inner chamber. The infrared
quartz bulbs are constructed with a stainless steel thermal conducting housing.
The incorporated twisted style increases the efficiency of the unit.
B. An AC cross flow fan pushes air over these infrared quartz bulbs. Cross flow
fans create a wide flow of air using a cylindrical-shaped impeller. Air is drawn
inside the portable furnace heater, flows along the circumference of the
chamber and over the infrared quartz bulbs, and is blown out laterally creating a
uniform flow of warm air.
C. The portable furnace heater has a delay start function which controls the AC
cross flow fan. The purpose of the delay start function is to allow the infrared
quartz bulbs to heat up before the fan begins to circulate the air flow. In addition,
the AC cross flow fan will continue to circulate the airflow after the power is
turned off to circulate the warm air from the portable furnace heater cooling the

4
unit down.
D. The air flow exits through the front of the portable furnace heater. It travels from
the diathermanous copper plate. The diathermanous copper plate is constructed
from red copper making it advantageous for efficient thermal conductivity. It is a
resourceful material in reflecting the infrared rays.
E. The LED digital display is a convenient, stylish, and modern way to display the
temperature and timer. This attractive addition compliments the portable furnace
heater, in that, it simplifies and makes controlling the unit easy. Operating the
heater is logical and can be done on the unit itself or by remote.
F. With Auto On Function.
If power failure, then power on again. Heater will Auto On by itself. It will
continue working with the rest setting time.
LED displayer will display the setting time, to the setting time it will automatic
shut down.
G. With time saving function.
If didn’t press the button within 2 min, there will be one lights on.
Heater Specifications

5
Model No.
ACW0036
ACW0039
Carton Size:
18.7 in x 17 in x 18.1 in
15.0 in x 16.5 in x 21 in
Heater Size:
16.3 in x 14.5 in x 14.7 in
12.5 in x 14.2 in x 17.0 in
Net Weight:
28.6 lbs
26.9lbs
Gross Weight:
35.2 lbs
32.4lbs
Cabinet Color:
TUSCAN, EXPRESSO,
OAK
TUSCAN, EXPRESSO,
OAK
Power Cord:
8 ft / 14 gauge
8 ft / 14 gauge
Power requirement:
120V 15 amp
120V 15 amp
Thermostat:
Electronic Analog
Electronic Analog
Fan System:
Cross Flow Fan
Cross Flow Fan
Fan Noise Level:
46 dB
46 dB
Remote Control:
YES
YES
PP mesh+ charcoal
mesh+ TIO2
YES
YES
Heat Type:
Therapeutic Quartz Infrared
Heat
Therapeutic Quartz Infrared
Heat
Heating Elements:
4 Infrared Quartz Bulbs w/Nickel-Chrome Filament
Warranty:
Limited 3-Year Parts Warranty
Heating Elements Life Expectancy Potential: Rated 20,000 –30,000 hrs
Unpack the Portable Furnace Heater
1.Check the carton to make sure no obvious damages that may have occurred
during shipment.
2.Open the carton and take it out from the box. Or you may flip the entire box
gently and let the heater slide out slowly.
