Comfort Glow Comfort Glow CGN10TLA Quick start guide

®
VENT-FREE NATURAL GAS HEATER
OWNER'S OPERATION AND INSTALLATION MANUAL
CGN10TA
CG N 10TLA
7
J
WARNING: If the information in this manual is not
followed exactly, a fire or exploston may result caus-
ing property damage, personal injury, or loss of life.
mDo not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
•Do not touch any electrical switch; do not use
any phone in your building.
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's in-
structions.
• If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency, orthe gas supplier.
WARNING: Improper installa-
tion, adjustment, alteration, ser-
vice, or maintenance can cause
Injury or property damage. Re-
fer to this manual for correct
installation and operational pro-
cedures. For assistance or addi-
tional information consult a
qualified installer, service
agency, or the gas supplier.
WARNING: This is an unvented
gas-fired heater. It uses air(oxy-
gen) from the room in which it is
installed, Provisions for ad-
equate combustion and ventila-
tion air must be provided.
to Air for Combustion and
tilationon
This appliance may be installed In an aftermarket* manufactured (mobile) home, where not
prohibited by state or local codes.
*Aftarmarket:Completion of sale, not for purposeof resale,from the manufacturer. (I.E. installation of this product is
permitted after the manufactured (mobile) home is stied)
This appliance Is only for use with the type of gas Indicated on the rating plate.
Tills appliance is not convertible for use with other gases,

CGNIOTA and CGNIOTLA
VENT-FREE NATURAL GAS HEATER

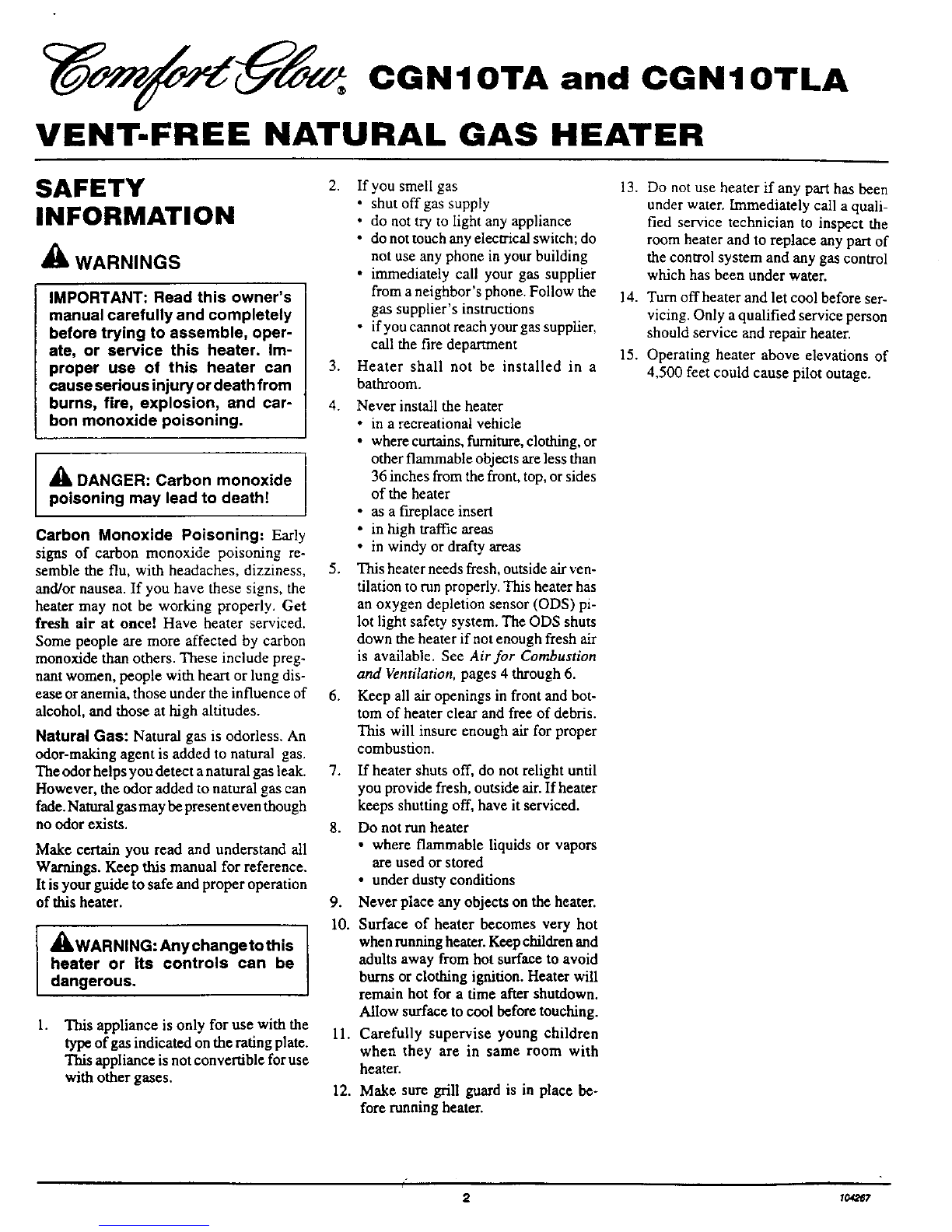

SAFETY
INFORMATION
_k WARNINGS
IMPORTANT: Read this owner's
manual carefully and completely
before trying to assemble, oper-
ate, or service this heater. Im-
proper use of this heater can
cause serious injury or death from
burns, fire, explosion, and car-
bon monoxide poisoning.
DANGER: Carbon monoxide
poisoning may lead to death!
2.
3.
4.
Carbon Monoxide Poisoning: Early
signs of carbon monoxide poisoning re-
semble the flu, with headaches, dizziness, 5.
and/or nausea. If you have these signs, the
heater may not be working properly. Get
fresh air at once! Have heater serviced.
Some people are more affected by carbon
monoxide than others. These include preg-
nant women, people with heart or lung dis-
ease or anemia, those under the influence of 6.
alcohol, and those at high altitudes.
Natural Gas: Natural gas is odorless. An
odor-making agent is added to natural gas.
The odor helps you detect a natural gas leak.
However, the odor added to natural gas can
fade. Natural gas may be present even though
no odor exists.
Make certain you read and understand all
Warnings. Keep this manual for reference.
It is your guide to safe and proper operation
of this heater.
_WARNING: Anychangetothis
heater or its controls can be
dangerous.
1. This appliance is only for use with the
type of gas indicated on the rating plate.
This appliance is not convertible for use
with other gases.
If you smell gas
•shut offgas supply
• do not try to light any appliance
•do not touch any electrical switch; do
not use any phone in your building
• immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions
•if you cannot reach your gas supplier,
call the fire department
Heater shall not be installed in a
bathroom.
Never install the heater
• in a recreational vehicle
•where curtains, furniture, clothing, or
other flammable objects are less than
36 inches from the front, top, or sides
of the heater
• as a fireplace insert
• in high traffic areas
• in windy or drafty areas
This heater needs fresh, outside air ven-
tilation to run properly. This heater has
an oxygen depletion sensor (ODS) pi-
lot light safety system. The ODS shuts
down the heater if not enough fresh air
is available. See Air for Combustion
and Ventilation, pages 4 through 6.
Keep all air openings in front and bot-
tom of heater clear and free of debris.
This will insure enough air for proper
combustion.
7. If heater shuts off, do not relight until
you provide fresh, outside air. If heater
keeps shutting off, have it serviced.
8. Do not run heater
• where flammable liquids or vapors
are used or stored
•under dusty conditions
9. Never place any objects on the heater.
10. Surface of heater becomes very hot
when running heater. Keep children and
adults away from hot surface to avoid
burns or clothing ignition. Heater will
remain hot for a time after shutdown.
Allow surface to cool before touching.
11. Carefully supervise young children
when they are in same room with
heater.
12. Make sure grill guard is in place be-
fore running heater.
13. Do not use heater if any part has been
under water. Immediately call a quali-
fied service technician to inspect the
room heater and to replace any part of
the control system and any gas control
which has been under water.
14. Turn off heater and let cool before ser-
vicing. Only a qualified service person
should service and repair heater.
15. Operating heater above elevations of
4,500 feet could cause pilot outage.
2I0d_67

OWNER'S MANUAL
PRODUCT
IDENTIFICATION ignitorButton
Control Knob
Grill
Guard
Glass
Panel
PRODUCT
FEATURES
Safety Device
This heater has a pilot with an Oxygen
Depletion Sensor Shutoff System (ODS).
The ODS/pilot is a required feature for vent-
free room heaters. The ODS/pilot shuts off
the heater if there is not enough fresh air.
Piezo Ignition System
This heaterhas a piezo ignitor. This system
requires no matches, batteries, or other
sources to light heater.
Thermostatic Heat Control
This heater has a thermostat sensing bulb
and thermostat control. This results in the
greatest heater comfort. This can also result
in lower gas bills.
Front
Panel IIIIIIIIIIIIIIIIIIIIi Cabinet
Figure 1 -Vent-Free Natural Gas Heater
LOCAL CODES
Install and use heater with care. Follow all
local codes. In the absence of local codes, use
the latest edition of The National Fuel Gas
Code ANSI Z223.1 also known as NFPA 54".
*Available from:
American Nadonal Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
UNPACKING
1. Remove heater from carton.
2. Remove all protective packaging ap-
plied to heater for shipment.
3. Check heater for any shipping damage.
If heater is damaged, promptly inform
dealer where you bought heater.
Io_7 3

CGNIOTA and CGNIOTLA
VENT-FREE NATURAL GAS HEATER
AIR FOR
COMBUSTION AND
VENTILATION
_k WARNING: This heater shall
not be installed in a confined
space unless provisions are pro-
vided for adequate combustion
and ventilatlon air. Read the fol-
lowing instructions to insure
proper fresh air for this and other
fuel-burning appliances in your
home.
Today's homes are built more energy effi-
cient than ever. New materials, increased
insulation, and new conslz_ction methods
helpreduce heatloss in homes. Home owners
weatherstrip andcaulk around windows and
doors tokeep the cold air out and the warm ah"
in. During heating months, home owners
want their homes as airtight as possible.
While itis good to make your home energy
efficient, your home needs to breathe. Fresh
air must enter your home. All fuel-burning
appliances need flesh air for proper com-
bustion and ventilation.
Exhaust fans, fireplaces, clothes dryers, and
fuel burning appliances draw air from the b.
house to operate. You must provide ad-
equate flesh air for these appliances. This
wifi insure proper venting of vented fuel-
burning appliances, c.
PROVIDING ADEQUATE
VENTILATION
The following is exespts from National Fuel
Gas Code. NFPA 54/ANSI Z223.1, Section
5.3, Airfor Combustion and Ventilation.
All spaces inhomes fall into one of the three
following ventilation classifications:
I. Unusually Tight Contruction
2. Unconfined Space
3. Confined Space
The information on pages-4 through 6will
help you classify your space and provide
adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and win-
dows may provide enough fresh air for
combustion and ventilation. However, in
buildings of unusually tight construction,
you must provide additional fresh air.
Unusually tight construction is de-
fined as construction where:
a. walls and ceilings exposed to the
outside atmosphere have a con-
tinuous water vapor retarder with
a rating of one perm (6 x 10"11kg
per pa-sec-n_ or less with open-
ings gasketed or sealed and
weather stripping has been
added on openable windows and
doors and
caulldng or eaalanta are applied
to areas such as joints around
window and door frames, be-
tween sole plates and floors, be-
tween wall-ceiling joints, be-
tween wall panels, at penetra-
tions for plumbing, electrical, and
gas lines, end at other openings.
If your home meets all of the three
crifeds above, you must provide ed-
difional fresh air. See Ventilation Air
From Outdoors, page 6.
If your home does not meet all of the
three cdteda above, proceed to Deter-
mining Fresh-Air flow for Heater Lo-
cation on page 5.
Confined and Unconfined
Spaces
The National Fuel Gas Code (ANSI Z223.1,
1992 Section 5.3) defines a confined space
as a space whose volume is less than 50
cubic feet per 1000 Btu per hour (4.8 cubic
meters per kw) of the aggregate input rating
of nil appliances installed in that space and
an unconfined space as a space whose vol-
ume is not less than 50 cubic feet per 1000
Btu perhour(4.8 cubic meters per kw) ofthe
aggregate input rating of all appliances in-
stalled inthat space. Rooms communicating
directly with the space in which the appli-
anees are installed*, through openings not
furnished with doors, are considered a part
of the unconfined space.
This heater shall not be installed in a con-
fined space or unusually tight construction
unless provisions are provided for adequate
combustion and ventilation air.
*Adjoining rooms are communicating only
ffthere are doorless passageways or ventila-
tion grills between them.
41o¢f117

OWNER'S MANUAL
AIR FOR
COMBUSTION AND
VENTILATION
Continued

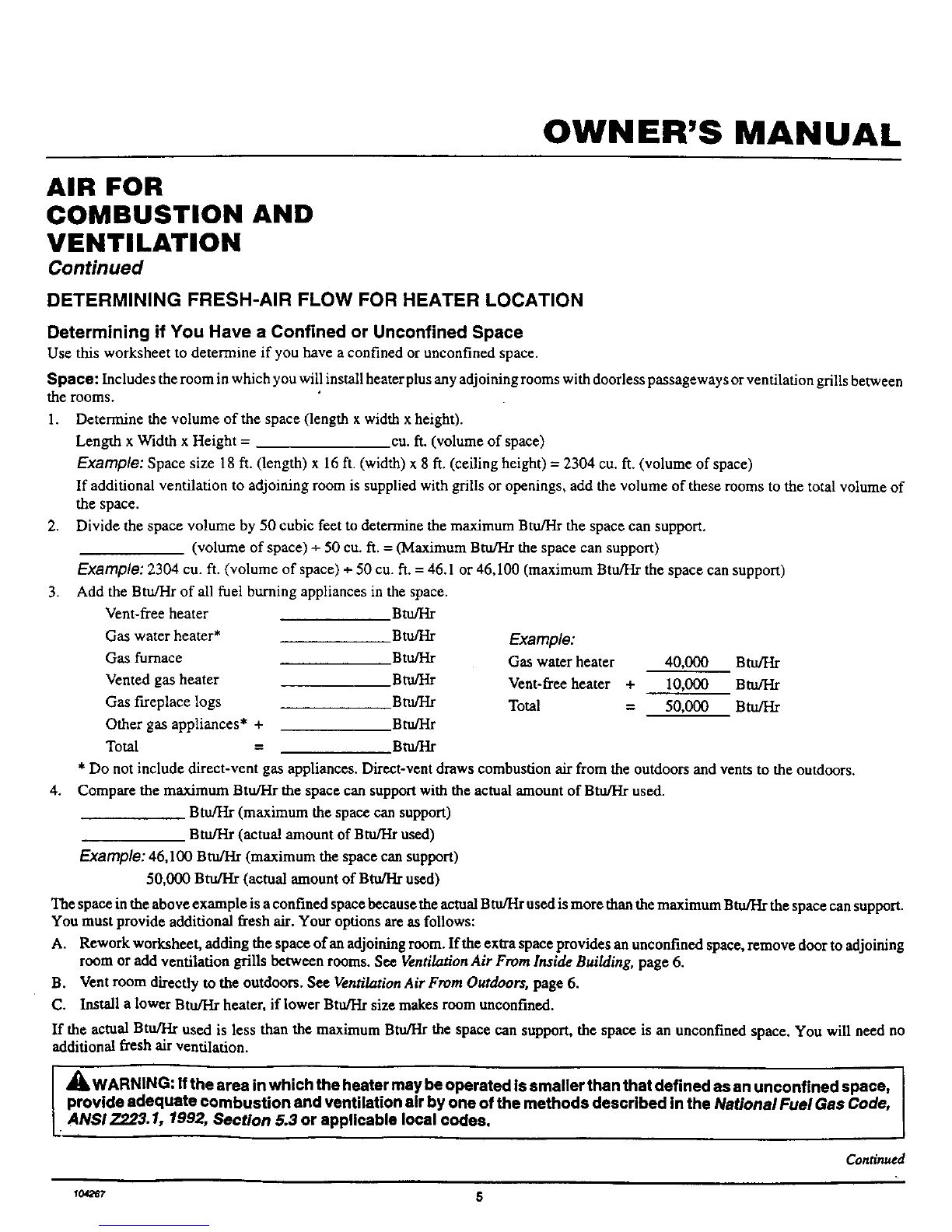

DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION
Determining if You Have a Confined or Unconfined Space
Use this worksheet to determine if you have a confined orunconfined space.
Space: Includes the room in which you will install heater plus any adjoining rooms with doorless passageways orventilation grills between
the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = eu. ft. (volume of space)
Example: Space size 18 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) = 2304 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of
the space.
2. Divide the space volume by 50 cubic feet to determine the maximum Btu/I-Ir the space can support.
(volume of space) + 50 cu. ft. = (Maximum Btu/Hr the space can support)
Example: 2304 cu. ft. (volume of space) + 50 cu. ft. = 46.1 or 46,100 (maximum Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free heater Btu/Hr
Gas water heater* Btu/Hr Example:
Gas furnace Btu/Hr Gas water heater 40,000 Btu/Hr
Vented gas heater Btu/Hr Vent-free heater + 10,000 Btu/Hr
Gas fireplace logs Btu/Hr Total =50,000 Btu/Hr
Other gas appliances* + Btu/Hr
Total =Btu/Hr
*Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.
Btu/Hr (maximum the space can support)
Btu/Hr (actual amount of Btu/Hr used)
Example: 46,100 Btu/Hr (maximum the space can support)
50,000 Btu/Hr (actual amount of Btu/Hr used)
The space in the above example is a confined space because the actual Btu/Hr used is more than the maximum Btu/I-Ir the space can support.
You must provide additional fresh air. Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the extra space provides an unconfined space, remove door to adjoining
room or add ventilation grills between rooms. See Ventilation Air From Inside Building, page 6.
B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 6.
C. Install a lower Btu/Hr heater, if lower Btu/I-Ir size makes room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an unconfined space. You will need no
additional fresh air ventilation.
_k WARNING: Ifthe area in which the heater may be operated Issmaller than that deftned as an unconfined space,
I pr_v_deadequ_te__mbusti_n_ndventi_ati_nairby_ne_fthemeth_dsdescribedintheNati_na_Fue_GasC_de_
LANSl Z223.1, 1992, Section 5.3 or applicable local codes.
Continued
1_"*r 5

CGNIOTA and CGNIOTLA
VENT-FREE NATURAL GAS HEATER
AIR FOR
COMBUSTION AND
VENTILATION
Contmued
VENTILATION AIR
Ventilation Air From Inside
Building
This fresh air would come from an adjoining
unconfined space. When ventilating to an
adjoining unconfined space, you must pro-
vide two permanent openings: one within
12" of the ceiling and one within 12" of the
floor on the wall connecting the two spaces
(see options 1and 2, Figure 2). You can also
remove door into adjoining room (see op-
tion 3, Figure 2). Follow the National Fuel
Gas Code NFPA 54/ANSI Z223.1, Section
5.3, Airfor Combustion and Ventilation for
required size of ventilation grills or ducts.
,_ WARNING: Rework work-
sheet, adding the space of the
adjoining unconfined space. The
combined spaces must have
enough fresh air to supply all
appliances in both spaces.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation
grills or ducts. You must provide two per-
manent openings: one within 12" of the
ceiling and one within 12" of the floor.
Connect these items direcdy to the outdoors
or spaces open to the outdoors. These spaces
include attics and crawl spaces. Follow the
National Fuel Gas Code NFPA 541ANSI
7-223.1, Section 5.3, Air for Combustionand
Ventilation for required size of ventilation
grills or ducts.
IMPORTANT: Do not provide openings
for inlet oroutlet air into attic if attic has a
thermostat-cootxolled power vent. Heated
air entering the attic will activate the power
vent.
Ventilation
Grills
into Adjoining
Room,
Option 1
Or
Remove
Door into
Adjoinirxo
Room,
Option 3
12
A
12"
VentilationGrills
IntoAdjoiningRoom,
Option 2
Figure 2 -Ventilation Air from Inside Building
Outlet
Air
Inlet
Air
To Attic
InletAir
To
mm_ Crawl
[] Space
Ventilated B
CrawlSpace
Figure 3 - Ventilation Air from Outdoors
6104267

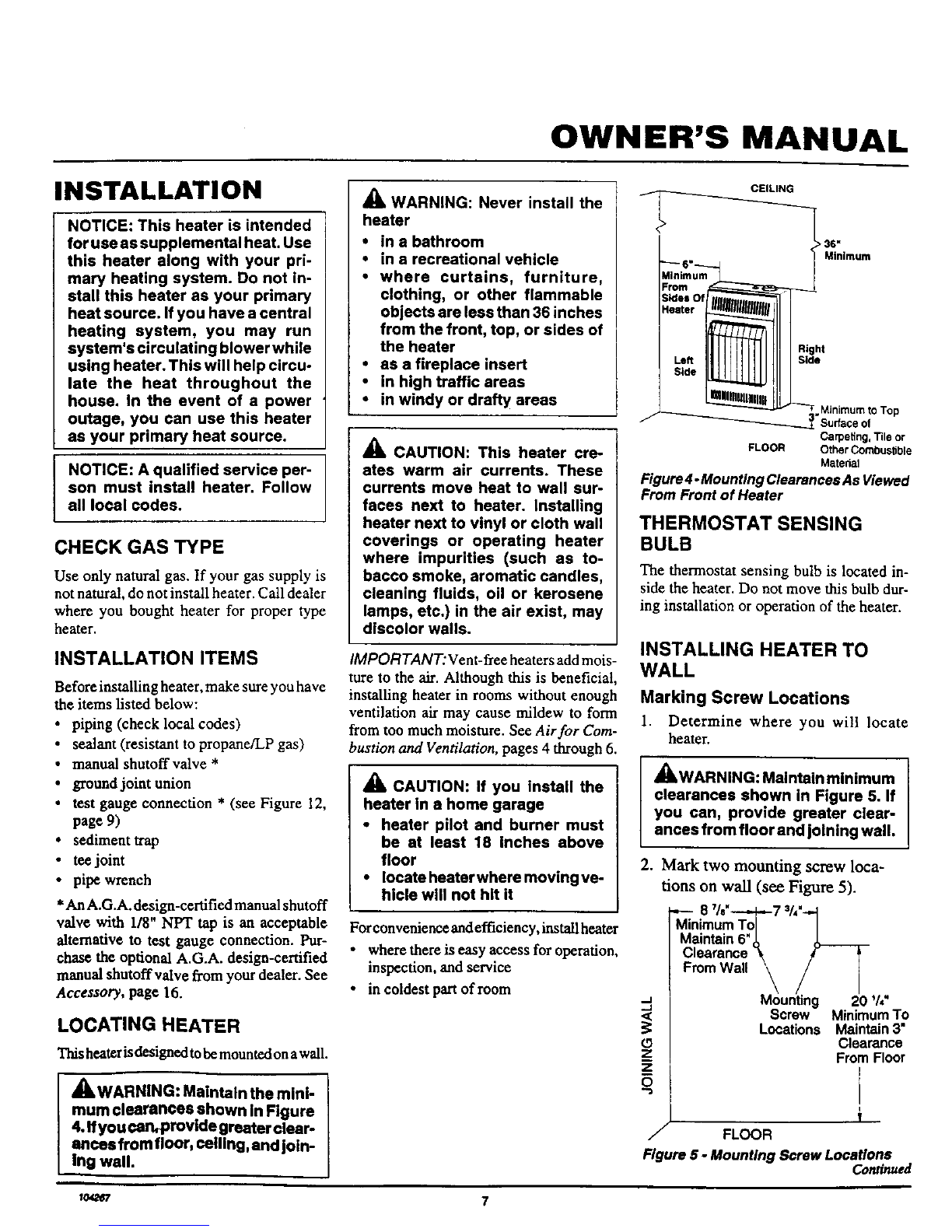

OWNER'S MANUAL
INSTALLATION
NOTICE: This heater is intended
for use as supplemental heat. Use
this heater along with your pri-
mary heating system. Do not in-
stall this heater as your primary
heat source. If you have a central
heating system, you may run
system's circulating blower while
using heater. This will help circu-
late the heat throughout the
house. In the event of a power
outage, you can use this heater
as your primary heat source.
NOTICE: A qualified service per-
son must install heater. Follow
all local codes.
CHECK GAS TYPE
Use only natural gas. If your gas supply is
not natural, do not install heater. Call dealer
where you bought heater for proper type
heater.
INSTALLATION ITEMS
Before installing heater, make sureyou have
the items listed below:
• piping (check local codes)
•sealant (resistant to propane/LP gas)
• manual shutoff valve *
• ground joint union
• test gauge connection * (see Figure 12,
page 9)
•sediment trap
• tee joint
•pipe wrench
•An A.G.A.design-certified manual shutoff
valve with 1/8" NPT tap is an acceptable
alternative to test gauge connection. Pur-
chase the optional A.G.A. design-certified
manual shutoff valve from your dealer. See
Accessory, page 16.
LOCATING HEATER
This heaterisdesigned to be mountedona wall.
Ak WARNING: Maintain the mini-
mum clearances shown In Figure
4. Ifyou earl,provide greater clear-
ances from floor, ceiling, and join-
ing wall.
1O4267
WARNING: Never install the
heater
• in a bathroom
• in a recreational vehicle
•where curtains, furniture,
clothing, or other flammable
objects are less than 36 inches
from the front, top, or sides of
the heater
•as a fireplace insert
•in high traffic areas
•in windy or drafty areas
_1= CAUTION: This heater cre-
ates warm air currents. These
currents move heat to wall sur-
faces next to heater. Installing
heater next to vinyl or cloth wall
coverings or operating heater
where impurities (such as to-
bacco smoke, aromatic candles,
cleaning fluids, oil or kerosene
lamps, etc.) in the air exist, may
discolor walls.
IMPORTANT:Vent-free heaters add mois-
ture to the air. Although this is beneficial,
installing heater in rooms without enough
ventilation air may cause mildew to form
from too much moisture. See Air for Com-
bustion and Ventilation, pages 4 through 6.
_, CAUTION: If you install the
heater In a home garage
• heater pilot and burner must
be at least 18 inches above
floor
• Iocata heater where moving ve-
hicle will not hit it
For convenience and efficiency, install heater
•where there is easy access for operation,
inspection, and service
• in coldest part of room
CEILING
36"
6" Minimum
Minimum
From
Sides Of
Heater
Right
Len Side
_ Minimum to Top
_'Surface of
Carpeting, Tile or
FLOOR Other Combustible
Mate_al
Figure4- Mounting Clearances As Vie_d
From Front of Heater
THERMOSTAT SENSING
BULB
The thermostat sensing bulb is located in-
side the heater. Do not move this bulb dur-
ing installation or operation of the heater.
INSTALLING HEATER TO
WALL
Marking Screw Locations
1. Determine where you will locate
heater.
_k WARNING: Maintain minimum
clearances shown In Figure 5. If
you can, provide greater clear-
ances from floor and joining wall.
2. Mark two mounting screw loca-
tions on wall (see Fi ure 5).
,-- 8 Vs"__...p_73/4
MinimumTel
Maintain6'
Clearance
FromWall '\
-J M;unl ng
Screw
Locations
L_
Z
z
20 'A"
MinimumTo
Maintain3"
Clearance
FromFloor
I
i
/FLOOR
Figure 5. Mounting Screw Locations
Cominued

VENT-FREE NATURAL GAS HEATER
INSTALLATION
Continued
Installing Two Mounting Screws
Note: Wall anchors and mounting screws
are in hardware package. The hardware pack-
age is provided with heater.
Attaching to Wall Stud Method
For attaching mounting screw to wall stud
1. Drill hole at marked location using 9/64"
drill bit.
2.
3. Insert mounting screw into wall stud.
Tighten screw until 1/16" space (thick-
ness of penny) is between screwhead
and wall.
Attaching to Wall Anchor
Method
Follow instructions below to attach mount-
ing screws to hollow walls (wall areas be-
tween studs) or solid walls (concrete or
masonry).
1. Drill holes at marked locations using
5/16" drill bit. For solid walls (concrete
or masonry), drill at least 1 _/4"deep.
2. Fold wall anchor (see Figure 6).
3. Insert wall anchor (wings first) into
hole• Tap anchor flush to wall.
4. For thin walls (112" or less), insert red
key into wall anchor. Push red key to
"pop" open anchor wings (see Figure
7). IMPORTANT:Do not hammer key !
For thick walls (over 1/2" thick) or solid
walls, do not pop open wings.
5. Tighten two screws until 1/16" space
(thickness of penny) is between
screwheads and wall (see Figure 8).
Figure 6 - Folding Anchor
Thin Walls
(1/4" to 1/2" thick)
Figure 7- Popping Open Anchor Wings
For Thin Walls
1/16":
Wall
shown)
Solid
Wall
Figure 8 -Tightening Anchors
Placing Heater On Mounting
Screws
1. Locate two keyhole slots on back panel
of heater (see Figure 9).
2. Place large openings of slots over
screwheads. Slide heater down until
screws are in small portion of slots.
Figure 9 -Location Of Keyhole Slots On
Back Panel Of Heater
Removing Front Panel Of Heater
1. Remove two screws near bottom cor-
ners of front panel.
2. Liftstraightup on grillguard until itstops.
Grill guard will slide up about 1/4".
3. Pul! bottom of front panel forward, then
down.
Figure 10. Removing Front Panel Of
Heater
Installing Bottom Mounting
Screw
1.
2.
3.
4.
5.
6.
7.
Locate bottom mounting hole• This
hole is near bottom on back panel of
heater (see Figure 11).
Mark screw location on wall.
Remove heater from wall.
If installing bottom mounting screw
into hollow or solid wall, install wall
anchor. Follow steps 1 through 5 un-
der Attaching To WallAnchor Method,
column 1.
If installing bottom mounting screw
into wall stud, drill hole at marked lo-
cation using 9/64" drill bit.
Replace heater on wall.
Insert bottom anchor screw through
back panel into bottom anchor or drilled
hole (see Figure 11).
Tighten screw until heater is firmly se-
cured to wall. Do not over tighten.
Note: Do not replace front panel at this
time. Replace front panel after making
gas connections and checking for leaks
(see pages 9 and 10).
.L
/
/
Figure 11 -Installing Bottom Mounting
Screw
8104267

OWNER'S MANUAL
INSTALLATION
Continued
CONNECTING TO GAS
SUPPLY
NOTICE: A qualified service per-
son must connect heater to gas
supply. Follow all local codes.
_lb WARNING: Never connect
heater to private (non-utility) gas
wells. This gas is commonly
known as wellhead gas.
IMPORTANT: Check gas line pressure be-
fore connecting heater to gas line. Gas line
pressure must be no greater than 14 inches
of water. If gas line pressure is higher,
heater regulator damage could occur.
Installation must include amanual shutoff
valve, ground joint union, and plugged
1/8" NPT tap. Locate NPT tap within reach
for test gauge hook up. NPT tap must be
upstream from heater (see Figure 12).
Apply pipe joint sealant lightly to male
threads. This will prevent excess sealant
from going into pipe. Excess sealant in pipe
could result in clogged heater valves.
• ILCAUTION: Use pipe joint seal-
ant that is resistant to liquid pe-
troleum (LP) gas.
Install sediment trap (trap) in supply line as
shown in Figure 12. Locate sediment trap
where it is within reach for cleaning. Locate
sediment trap where trapped matter is not
likely to freeze. A sediment trap traps mois-
ture and contaminants. This keeps them
from going into heater controls. If sediment
trap is not installed or is installed wrong,
heater may not run properly.
IMPORTANT: Hold pressure regulator
•,uithwrench when connecting it to gas pip-
ing and/or fittings.
CAUTION: Use only new,
black Iron or steel pipe. Inter-
nally-tinned copper tubing may
be used in certain areas. Check
your local codes. Use pipe 3/8"
diameter or greater to allow
proper gas volume to heater. If
pipe is too small, undue loss of
pressure will occur.
3/8" NPT
Pipe Nipple
Ground Joint Union
Pressure
Regulator
Heater
Cabinet
Manual
Shutoff
Valve * Reducer Test
Bushing to Gauge
From
External _. Connection"
Gas Meter" 1/5" NPT
(5" W.C. to Plug Tap
10.5" W,C.
Pressure) Tee
3" Joint _ Sediment
. Pipe Trap
Nipple
Cap
Figure 12 -Gas Connection
* An A.G.A. design certified manual shutoff valve with 1/8" NPT tap is an acceptable
alternative to test gauge connection. Purchase the optional A,G,A, design certified manual
shutoff valve from your dealer. See Accessory, page 16.
Continued
1o42_r g

CGNIOTA and CGNIOTLA
VENT-FREE NATURAL GAS HEATER
INSTALLATION
Continued

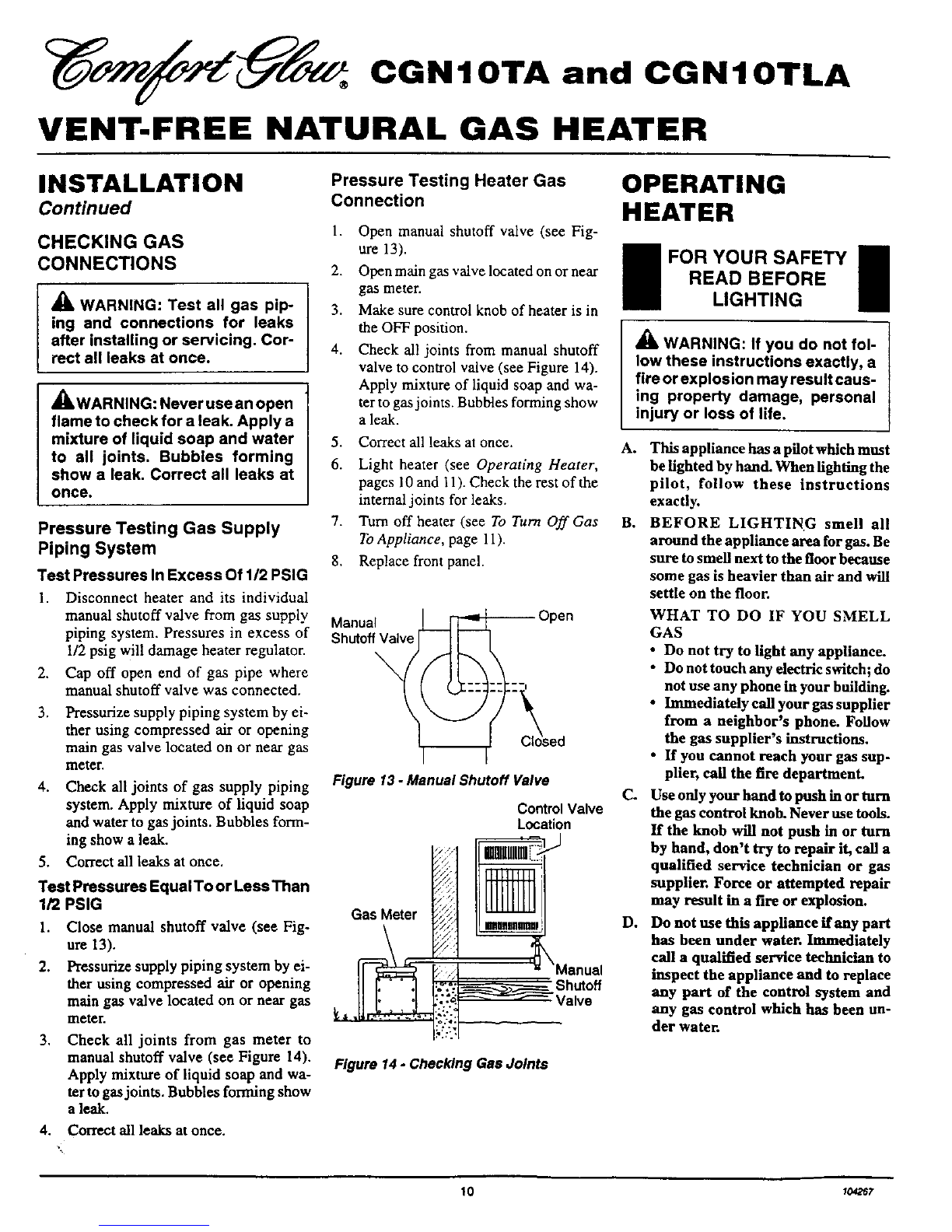

CHECKING GAS
CONNECTIONS
WARNING: Test all gas pip-
ing and connections for leaks
after installing or servicing. Cor-
rect all leaks at once.
_kWARNING: Never use an open
flame to check for a leak. Apply a
mixture of liquid soap and water
to all joints. Bubbles forming
show a leak. Correct all leaks at
once.
Pressure Testing Heater Gas
Connection
1.
2.
3.
4.
5.
6.
Pressure Testing Gas Supply 7.
Piping System 8.
Test Pressures In Excess Of 1/2 PSIG
Open manual shutoff valve (see Fig-
ure 13).
Open main gas valve located on or near
gas meter.
Make sure control knob of heater is in
the OFF position.
Check all joints from manual shutoff
valve to control valve (see Figure 14).
Apply mixture of liquid soap and wa-
ter to gasjoints. Bubbles forming show
a leak.
Correct all leaks at once.
Light heater (see Operating Hearer,
pages 10 and 11). Check the rest of the
internal joints for leaks.
Turn off heater (see To Turn Off Gas
ToAppliance, page 1I).
Replace front panel.
1. Disconnect heater and its individual
manual shutoff valve from gas supply Manual I
piping system. Pressures in excess of Shutoff Valve
1/2 psig will damage heater regulator. \
2. Cap off open end of gas pipe where
manual shutoff valve was connected.
3. Pressurize supply piping system by ei-
ther using compressed air or opening
main gas valve located on or near gas
meter.
4. Check all joints of gas supply piping
system. Apply mixture of liquid soap
and water to gas joints. Bubbles form-
ing show a leak.
5. Correct all leaks at once.
Test Pressures Equal To or Less Than
1/2 PSIG
Close manual shutoff valve (see Fig-
ure 13).
Pressurize supply piping system by ei-
ther using compressed air or opening
male gas valve located on or near gas
meter.
|,
2,
Check all joints from gas meter to
manual shutoff valve (see Figure 14).
Apply mixture of liquid soap and wa-
terto gas joints. Bubbles forming show
aleak.
3,
4. Correct all leaks at once.
Figure 13- Manual Shutoff Valve
ControlValve
Location
Gas Meter _! I
II F,- :1 I:__'__----_-_----/__-_--Sshut°ff
II I" "1l_.b:<F vatve
Figure 14-Checking GasJoints
OPERATING
HEATER
FOR YOUR SAFETY I
READ BEFORE
LIGHTING
WARNING: If you do not fol-
low these instructions exactly, a
fire or explosion may result caus-
ing property damage, personal
injury or loss of life.
A. This appliance has a pilot which must
be lighted by hand. When lighting the
pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all
around the appliance area for gas. Be
sure to smell next to the floor because
some gas is heavier than air and will
settle on the floor.
C°
V.
WHAT TO DO IF YOU SMELL
GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do
not use any phone in your building.
• Immediately call your gas supplier
from a neighbor's phone. Follow
the gas supplier's instructions.
•If you cannot reach your gas sup-
plier, call the fire department.
Use only your hand to push in or turn
the gas control knob. Never use tools.
If the knob will not push in or turn
by hand, don't try to repair it, call a
qualified service technician or gas
supplier. Force or attempted repair
may result in a fire or explosion.
Do not use this appliance if any part
has been under water. Immediately
call a qualified service technician to
inspect the appliance and to replace
any part of the control system and
any gas control which has been un-
der water.
10 i0€26r

OWNER'S MANUAL
OPERATING
HEATER
Continued
LIGHTING 1
INSTRUCTIONS
1. STOP! Read the safety informa-
tion, page 10.
2. Make sure manual shutoff valve is
fully open.
3. Turn control knob clock- •
wise _to the OFF position.
4. Wait five (5) minutes to dear out
any gas. Then smell for gas, includ-
ing near the floor. If you smell gas,
STOP! Follow "B" in the safety in-
formation on page I0. If you don't
smell gas, go to the next step.
5. Turn control knob counterclock-
wise _to the PILOT posi-
tion. Press in control knob for five
(5) seconds (see Figure 15).
Note: You may be running this
heater for the first time after hook-
ing up to gas supply. If so, the con-
trol knob may need to be pressed
in for 30 seconds. This will allow
air to bleed from the gas system.
6. With control knob pressed in, push
down and release ignitor button.
This will light pilot. The pilot is at-
tached to the front of burner. The
pilot can be seen through the glass
panel. If needed, keep pressing ig-
ultor button until pilot lights.
Note: If pilot does not stay lit, re-
fer to Troubleshooting, pages 13
through 15.Also contact a qualified
service person or gas supplier for
repairs. Until repairs are made,
light pilot with match. To light pi-
lot with match, see Manual Light-
ing Procedure, column 3.
7. Keep control knob pressed in for
30 seconds after lighting pilot. Af-
ter 30 seconds, release control
knob.
• If control knob does not pop up
when released, contact a quali-
fied service person or gas sup-
plier for repairs.
Note: If pilot goes out, repeat steps
8.
3 through 7. This heater has a safety
interlock systenl Wait one (1) minute
before lighting pilot again.
Turn control knob counterclockwise
to desired heating level. The
main burner should light. Set control
knob to any heat level between HI
and LO.
CAUTION: Do not try to ad-
just heating levels by using the
manual shutoff valve.
Ignitor Control
Button Knob
Figure 15 -Control Knob In The OFF
Position
IgnitorElectrode
Therrnocouple PilotBurner
\
Figure 16 - Pilot
TO TURN OFF GAS TO 1 4.
APPLIANCE
Shutting Off Heater
1. Turn controlknob dock'wise
to the OFF position.
2. Turn off all deetrie power to the ap-
pliance if service is to be performed.
Shutting Off Burner Only (pilot
stays lit)
Turn control knob clockwise _to
the PILOT position.
THERMOSTAT
CONTROL
OPERATION
The thermostatic control used on these
models differs from standard thermo-
stats. Standard thermostats simply turn
on and off the burner. The thermostat
used on this heater senses the room tem-
perature. The thermostat adjusts the
amount of gas flow to the burner. This
increases or decreases the burner flame
height. At times the room may exceed the
set temperature. If so, the burner will
shut off. The burner will cycle back on
when room temperature drops below the
set temperature. The control knob can be
set to any heat level between HI and LO.
Note: The thermostat sensing bulb mea-
sures the temperature of air near the
heater cabinet. This may not always agree
with room temperature (depending on
housing construction, installation loca-
tion, room size, open air temperatures,
etc.). Frequent use of your heater will let
you determine your own comfort levels.
MANUAL LIGHTING
PROCEDURE 1
1. Remove front panel (see Figure 10,
page 8).
2. Fonow steps I through 5ander Light-
ing Instructions, column 1.
3. With control knob pressed in, strike
match. Hold match to pilot until pi-
lot lights.
Keep control knob pressed in for 30
seconds after lighting pilot. After 30
seconds, release control knob.
5. Replace front panel.
70/"_ 11

CGNIOTA and CGNIOTLA
VENT-FREE NATURAL GAS HEATER

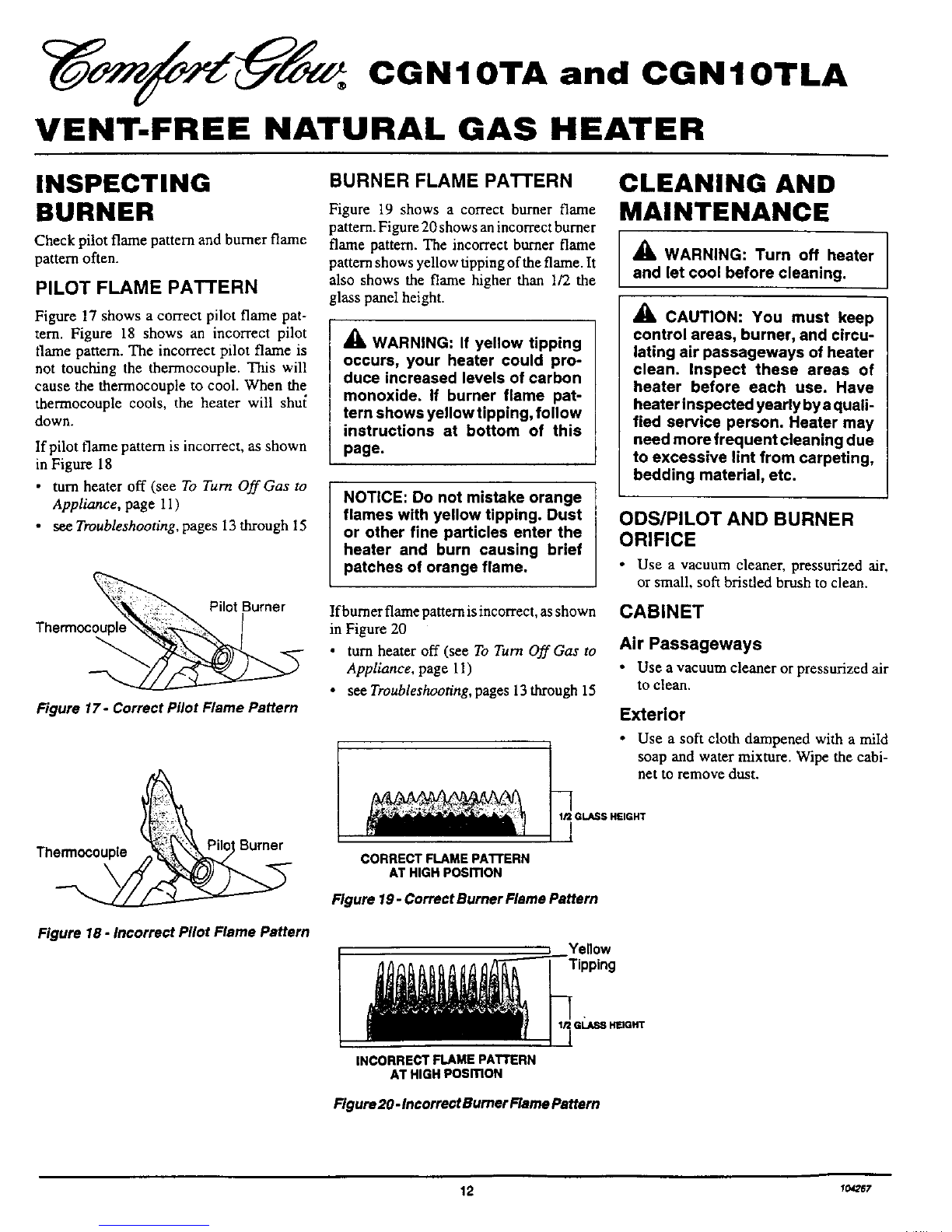

INSPECTING
BURNER
Check pilot flame pattern and burner flame
pattern often.
PILOT FLAME PATTERN
Figure 17 shows a correct pilot flame pat-
tern. Figure 18 shows an incorrect pilot
flame pattern. The incorrect pilot flame is
not touching the thermocouple. This will
cause the thermocoupte to cool. When the
ther'mocouple cools, the heater will shul
down.
If pilot flame pattern is incorrect, as shown
in Figure 18
• turn heater off (see To Turn OffGas to
Appliance, page 1i)
• see Troubleshooting, pages 13 through 15
_Pilot Burner
Figure 17- Correct Pilot Flame Pattern
_ Pilo_ Burner
Figure 18- Incorrect Pilot Flame Pattern
BURNER FLAME PATTERN
Figure 19 shows a correct burner flame
pattern. Figure 20 shows an incorrect burner
flame pattern. The incorrect burner flame
pattern shows yellow tipping of the flame. It
also shows the flame higher than 1/2 the
glass panel height.
A
dL WARNING: If yellow tipping
occurs, your heater could pro-
duce increased levels of carbon
monoxide. If burner flame pat-
tern shows yellow tipping, follow
instructions at bottom of this
page.
NOTICE: Do not mistake orange
flames with yellow tipping. Dust
or other fine particles enter the
heater and burn causing brief
patches of orange flame,
CLEANING AND
MAINTENANCE
WARNING: Turn off heater
and let cool before cleaning.
_, CAUTION: You must keep
control areas, burner, and circu-
lating air passageways of heater
clean. Inspect these areas of
heater before each use. Have
heater inspected yearly bya quali-
fied service person. Heater may
need more frequent cleaning due
to excessive lint from carpeting,
bedding material, etc.
ODS/PILOT AND BURNER
ORIFICE
•Use a vacuum cleaner, pressurized air,
or small, soft bristled brush to clean.
If burner flame pattern is incorrect, as shown
in Figure 20
• turn heater off (see To Turn OffGas to
Appliance, page 11)
• seeTroubleshooting, pagesl3throughl5
CORRECTFLAMEPAI-rERN
ATHIGHPosmoN
CABINET
Air Passageways
•Use a vacuum cleaner or pressurized air
to clean.
Exterior
•Use a soft cloth dampened with a mild
] soap and water mixture. Wipe the cabi-
___ net to remove dust.
I1_ GLASS HEIGHT
Figure 19 -Correct Burner Flame Pattern
Yellow
INCORRECTFLAMEPATTERN
ATHIGH PosmoN
Figure 20-Incorrect Burner Flame Pattern
12 lo,_z

OWNER'S MANUAL
TROUBLESHOOTING
Note: All troubleshooting items are listed in
order of operation.
_k WARNING: Turn off heater
and let cool before servicing.
Only a qualified service person
should service and repair
heater.
_, CAUTION: Never use a wire, ]
needle, or similar object to clean I
ODS/pilot. This can damage ODS/
pilot unit.
OBSERVED PROBLEM POSSIBLE CAUSE REMEDY
When ignitor button is pressed, there is no
spark at ODS/pilot
1.
2.
3.
Ignitor cable pinched or wet
Ignitor electrode not connected to igni-
tor cable
Piezo ignitor nut is loose
4. Broken ignitor cable
5. Ignitor electrode broken
6. Bad piezo ignitor
7. Ignitor electrode positioned wrong
1. Free ignitor cable if pinched by any
metal or tubing. Keep ignitor cable dry
2. Reconnect ignitor cable
3. Tighten nut holding piezo ignitor to
heater cabinet. Nut is located inside
heater cabinet at top
4. Replace ignitor cable
5. Replace ignitor
6. Replace piezo ignitor
7. Replace ignitor
When ignitor button is pressed, there is
spark at ODS/pilot but no ignition 1. Gas supply turned off or manual shutoff
valve closed
2. Control knob not in PILOT position
3. Control knob not pressed in while in
PILOT position
4. Air in gas lines when installed
5. ODS/pilot is clogged
6. Gas regulator setting is not correct
1. Turn on gas supply or open manual
shutoff valve
2. Turn control knob to PILOT position
3. Press in control knob while in PILOT
position
4. Continue holding down control knob.
Repeat igniting operation until air is re-
moved
5. Clean ODS/pilot (see Cleaning and
Maintenance, page 12) or replace ODS/
pilot assembly
6. Replace gas regulator
ODS/pilot lights but flame goes out when
control knob is released 1. Control knob not fully pressed in
2. Control knob not pressed in long enough
3. Safety interlock system has been triggered
4. Manual shutoff valve not fully open
5. Thermocouple connection loose at con-
trol valve
6. Pilot flame not touching thermecouple,
which allows thermocouple to cool,
causing pilot flame to go out. This prob-
lem could be caused by one or both of
the following:
A) Low gas pressure
B) Dirty or partially clogged ODS/pilot
7. Thermocouple damaged
8. Control valve damaged
1. Press in control knob fully
2. After ODS/pilot lights, keep control
knob pressed in 30 seconds
3. Wait one minute for safety interlock sys-
tem to reset. Repeat ignition operation.
4. Fully open manual shut-off valve
5. Hand tighten until snug, then tighten 1/4
turn more
6. A) Contact local natural gas company
B) Clean ODS/pilot (see Cleaning and
Maintenance, page 12) orreplace ODSI
pilot assembly
7. Replace thermocouple
8. Replace control valve
Continued
1¢'_'_"z 13

CGNIOTA and CGNIOTLA
VENT-FREE NATURAL GAS HEATER
TROUBLESHOOTING
Continued
OBSERVED PROBLEM POSSIBLE CAUSE REMEDY
Burner does not light after ODS/pilot is lit 1. Burner orifice is clogged
2. Burner orifice diameter is too small
3. Inlet gas pressure is too low
1. Clean burner orifice (see Cleaning and
Maintenance, page 12) or replace burner
orifice
2. Replace burner orifice
3. Contact local natural gas company
Delayed ignition of burner 1. Manifold pressure is too low
2. Burner orifice is clogged
I.
2. Contact local natural gas company
Clean burner orifice (see Cleaning and
Maintenance, page 12) or replace burner
orifice
Burner backfiring during combustion 1. Burner orifice is clogged or damaged
2. ]nlet gas pressure is too low
3. Burner damaged
4. Gas regulator defective
1. Clean burner orifice (see Cleaning and
Maintenance, page 12) or replace burner
orifice
2. Contact local natural gas company
3. Replace burner
4. Replace gas regulator
Yellow flame during burner combustion 1. Not enough air I. Check burner for dirt and debris. If
found, clean burner (see Cleaning and
Maintenance, page 12)
2. Inlet gas pressure is too low 2. Contact local natural gas company
3. Gas regulator defective 3. Replace gas regulator
Slightsmokeorodorduringinitialoperation 1. Residues from manufacturing processes 1. Problem will stop after a few hours of
operation
Heater produces a whistling noise when 1. Turning control knob to HI position 1. Turn control knob to LO position and
burner is lit when burner is cold let warm up for a minute
2. Air in gas line 2. Operateburneruntilairisremovedfrom
line. Have gas checked by local natural
gas company
3. Observe minimum installation clear-
anees (see Figure 4, page 7)
4. Clean burner (see Cleaning and Mainte-
nance, page 12) or replace burner orifice
3. Air passageways on heater blocked
4. Dirty or partially clogged burner orifice
14 _7

OWNER'S MANUAL
TROUBLESHOOTING
Continued
WARNING: If you smell gas
• Shut off gas supply.
•Do not try to light any appliance,
•Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the
gas supplier's instructions.
•If you cannot reach your gas supplier, call the fire department.
IMPORTANT." Operating heater where impurities in air exist may create odors. Cleaning
supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc.,
create fumes. These fumes may mix with combustion air and create odors.
OBSERVED PROBLEM POSSIBLE CAUSE REMEDY
Heater produces a clicking/ticking noise 1. Metal expanding while heating or con- 1. This is common with most heaters. If
just after burner is lit or shut off tracting while cooling noise is excessive, contact qualified ser-
vice person
Heater produces unwanted odors 1. Heater burning vapors from paint, hair I. Ventilate room. Stop using odor-causing
spray, glues, etc. See IMPORTANT products while heater is running
statement above.
2. Gasleak. SeeWarningstatementat 2. Locate and correct all leaks (seeCheck-
top of page ing Gas Connections, page 10)
Heater shuts off in use (ODS operates) 1. Not enough fresh air is available 1. Open window and/or door for ventilation
2. Low line pressure 2. Contact local natural gas company
3. ODS/pilot is partially clogged 3. Clean ODS/pilot (see Cleaning and
Maintenance, page 12)
GasodorevanwhencontrolknobisinOFF 1. Gasleak. SeeWaming statement at 1. Locate and correct alt leaks (see Check-
position top of page ing Gas Connections, page 10)
2. Control valve defective 2. Replace control valve
Gas odor during combustion 1. Foreign matter between control valve 1. Take apart gas tubing and remove for-
and burner eign matter
2. Gas leak. See Warning statement at 2. Locate and correct all leaks (see Check-
top of page ing Gas Connections, page 10)
Moisture/condensation noticed on windows 1. Not enough combustion/ventilation air 1. Refer to Air for Combustion and Venti-
lation requirements (page 4)
r
_15

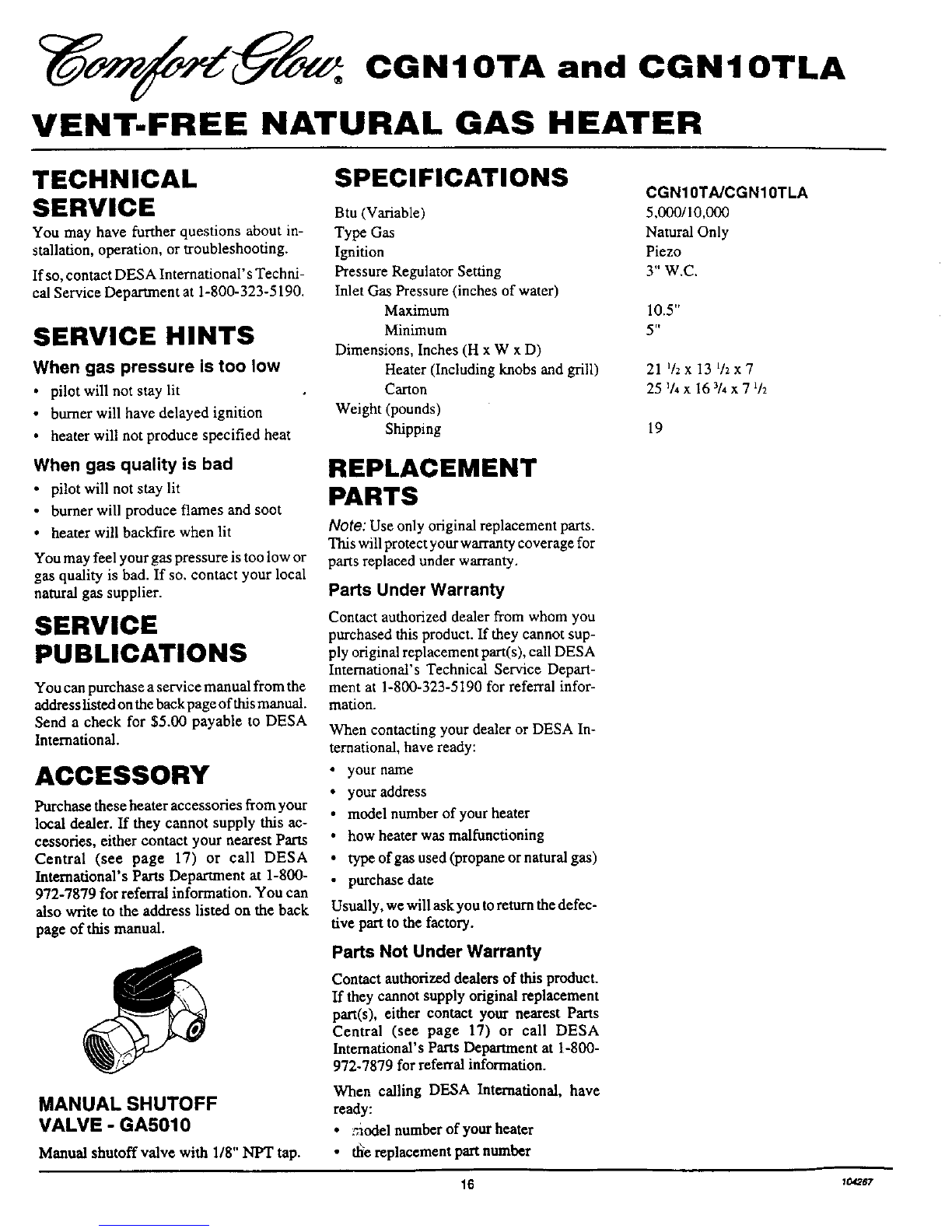

VENT-FREE NATURAL GAS HEATER
TECHNICAL
SERVICE
You may have further questions about in-
stallation, operation, or troubleshooting.
If so, contact DESA International' sTechni-
cal Service Department at 1-800-323-5190.
SERVICE HINTS
When gas pressure is too low
•pilot will not stay lit
• burner will have delayed ignition
• heater will not produce specified heat
When gas quality is bad
•pilot will not stay lit
• burner will produce flames and soot
• heater will backfire when lit
You may feel your gas pressure is too low or
gas quality is bad. If so. contact your local
natural gas supplier.
SERVICE
PUBLICATIONS
You can purchase a service manual from the
address listed on the back page of this manual.
Send a check for $5.00 payable to DESA
International.
ACCESSORY
Purchase these heater accessories from your
local dealer. If they cannot supply this ac-
cessories, either contact your nearest Parts
Central (see page 17) or call DESA
International's Parts Department at 1-800-
972-7879 for referral information. You can
also write to the address listed on the back
page of this manual.
MANUAL SHUTOFF
VALVE - GA5010
Manual shutoff valve with 1/8" NF'i" tap.
SPECIFICATIONS
Btu (Variable)
Type Gas
Ignition
Pressure Regulator Setting
Inlet Gas Pressure (inches of water)
Maximum 10.5"
Minimum 5"
Dimensions, Inches (H x W x D)
Heater (Including knobs and grill)
Carton
Weight (pounds)
Shipping 19
REPLACEMENT
PARTS
Note: Use only original replacement parts.
This will protect your warranty coverage for
parts replaced under warranty.
Parts Under Warranty
Contact authorized dealer from whom you
purchased this product. If they cannot sup-
ply original replacement part(s), call DESA
International's Technical Service Depart-
ment at 1-800-323-5190 for referral infor-
marion.
When contacting your dealer or DESA In-
ternational, have ready:
your name
your address
model number of your heater
how heater was malfunctioning
type of gas used (propane or natural gas)
purchase date
Usually, we will ask you to return the defec-
tive part to the factory.
Parts Not Under Warranty
Contact authorized dealers of this product.
If they cannot supply original replacement
part(s), either contact your nearest Parts
Central (see page 17) or call DESA
International's Parts Department at 1-800-
972-7879 for referral information.
When calling DESA International, have
ready:
•_odel number of your heater
• tti'e replacement part nnmbcr
CGN10TA/CGN10TLA
5,000/10,000
Natural Only
Piezo
3" W.C.
21 _hx 13 V2x7
25 ¾x 16¾x7_h
16 1_s7

OWNER'S MANUAL
PARTS CENTRAL These Parts Centrals are privately-owned businesses. They have agreed to support our
customer's needs by providing original replacement parts and accessories.
Baltimore Electric
1348 Dixwell Avenue
Hamden, CT 06514
1-800-397-7553
203-248-7553
Parts Department
Portable Heater Parts
342 N. County Rd. 400 E.
Valparaiso, IN 46383
All States
219-462-7441
1-800-362-6951
Parts Department
FBD
1349 Adams St.
Bowling Green, KY 42103
502-846-I 199
1-800-654-8534
Four Flags Power Products
1115 Stateline Road
Niles, MI 49120
616-684-2697
Parts Only
Master Parts Distributor
1184 Wilson Ave. NW
Grand Rapids, MI 49504
616-791-0505
1-800-446-1446
Fax: [phone]
Parts Department
Washer Equipment Co.
1715 Main Street
Kansas City, MO 64108
KS, MO, AR
816-842-3911
Parts Department
East Coast Energy Products
707 Broadway
W. Long Branch, NJ 07764
908-870-8809
1-800-755-8809
Parts Department
Tarantin Tank Co.
P.O. Box 6129
Freehold, NJ 07728
908-780-9340
1-800-922-0724
Parts Deparmaent
Dayton Hardware
P.O. Box 275
North Dayton Station
Dayton, OH 45404
All States
513-258-3721
OH 1-800-762-3426
Parts Department
Halco Enterprises
208 Carter Drive, Unit 21
West Chester, PA 19382
610-430-7717
t-800-368-0803
Parts Department
LaPorte's Parts and Service
2444 North 5th Street
Hartsville, SC 29550
803-332-0191
Parts Department
Cans Unlimited, Inc.
P.O. Box 645
Taylor, SC 29687
All States
803-879-3009
1-800-845-5301
Parts Department

____ CGNIOTA and CGNIOTLA
VENT-FREE NATURAL GAS HEATER

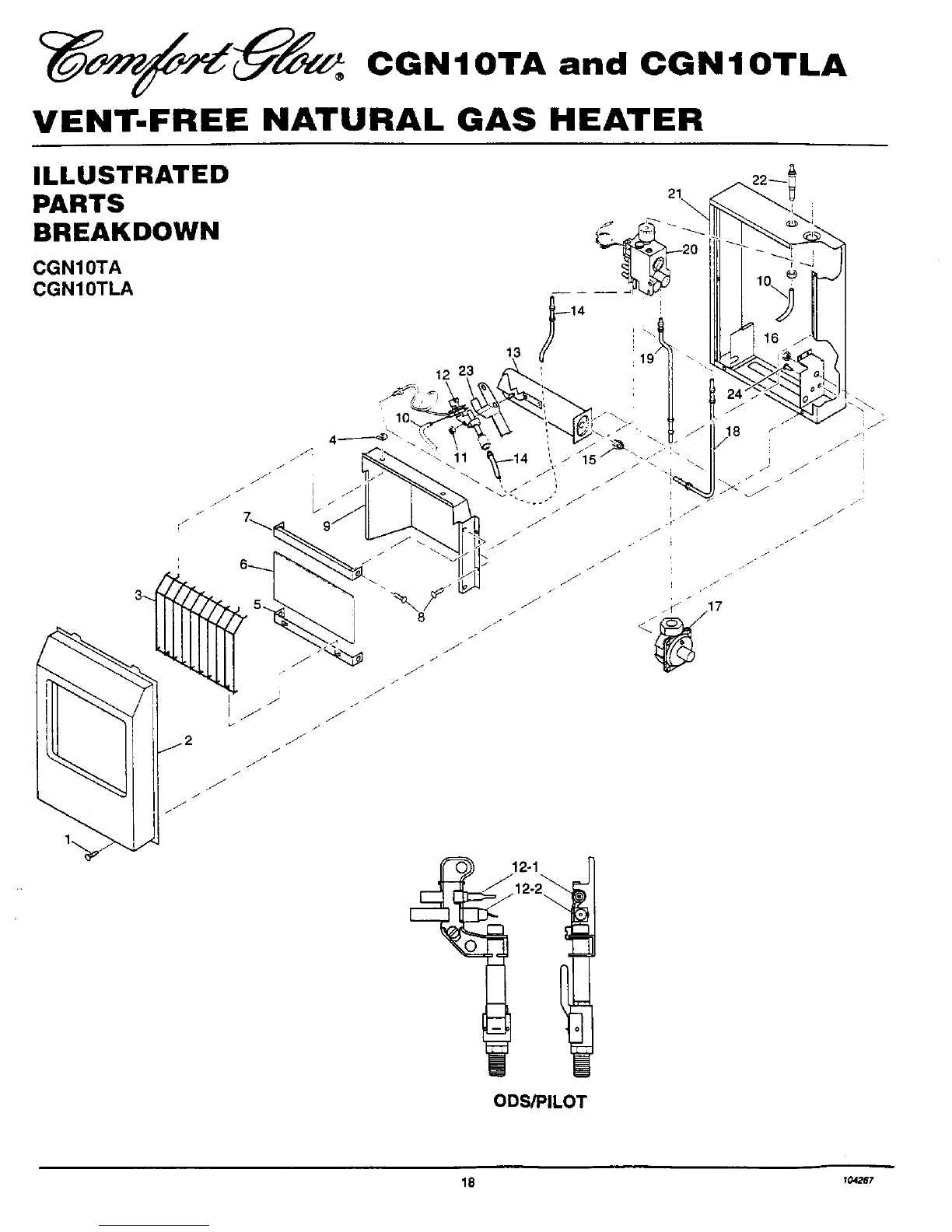

ILLUSTRATED
PARTS
BREAKDOWN
CGN10TA
CGN10TLA
/
r
13 i19
12
J
12-1
ODSmlLOT
18 _67

PARTS LIST
CGN10TA
CGN10TLA
OWNER'S MANUAL
This list contains replaceable parts used in your heater. When ordering parts, follow the
instructions listed under Replacement Parts on page 16 of this manual.
KEY PART
NO. NUMBER DESCRIPTION QTY.
2
1
2
3
4
5
6
7
8
9
10
11
12
12-1
12-2
13
14
15
16
17
18
19
20
21
22
23
24
098304-01
099467-02
099467-05
099318-04
101108-01
102018-02AA
098260-11
098532-06AA
Ml1084-38
098352-03BR
098271-03
098249-01
100701-03
098514-01
098594-01
104263-01
099387-11
104259-05
NJF 8C
099415-14
104261-01
104264-01
098522-11
102571-08
102571-07
097159-04
099553-01
098303-02
Screw, #10 x3/8"
Front Panel Assembly,
Earthtone (CGN 10TA)
Front Panel Assembly,
•Ivory (CGN10TLA)
Gdtl Guard
Gdtl Guard Clip
Bottom Glass Retainer
Glass Panel
Top Glass Retainer
Screw, #8 x 3/8"
Deflector Unit
Ignitor Cable
Nut, M5
ODS/Pilct Assembly
Thermocouple
Ignitor Electrode
Burner
Pilot Tubing
Injector, 1 Piece
Hex Nut
Pressure Regulator
Bumer Tubing
Regulator Tubing
Thermostat Gas Valve
Cabinet Assembly, Brown (CGN10TA)
Cabinet Assembly, Ivory (CGN 10TLA)
Piezo Ignitor
Pilot Shield
Screw, #6 x 5/16"
PARTS AVAILABLE - NOT SHOWN
102471-01
100642-02 Control Position Label
Assembly, Hardware
1
1
2
1
1
1
8
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
_o_ 19

WARRANTY INFORMATION
KEEP THIS WARRANTY
Model
Serial No.
Date Purchased
Always specify model and serial numbers when communicating with the factory.
We reserve the right to amend these specifications at any time without notice, The only warranty applicable is our
standard written warranty. We make no other warranty, expressed or implied.
LIMITED WARRANTY
COMFORT GLOW VENT-FREE RESIDENTIAL GAS HEATERS
DESA International warrants this product to be free from defects in materials and components for two (2) years from the
date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with
all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.
This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore
this heater to proper operating condition and an allowance for labor when provided by a DESA Authorized Service Center.
Warranty part(s) MUST be obtained through anthorized dealers of this product and/or DESA International who will
provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The
heater MUST be installed by a qualified installer in accordance with all local codes and instructions famished with the
onit.
This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail
or become damaged as aresult of misuse, accidents, lack of proper maintenance or defects caused by improper installation.
Travel, diagnostic cost, labor, transportation and any and all such other costs related to repairing a defective heater will
be the responsibility of the owner.
TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURIsDIcTION THAT GOVERNS THE SALE OF
THE PRODUCT; THIS EXPRESS WARILANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRAN-
TIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARR.ANTIES, INCLUDING WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO TWO (2) YEARS ON ALL
COMPONENTS FROM THE DATE OF FIRST PURCHASE; AND DESA INTERNATIONAL'S LIABILITY IS
HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA INTERNATIONAL SHALL
NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECq', INCIDENTAL OR
CONSEQUENTIAL DAMAGES.
Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental
or consequential damages, so the above limitation on implied warranties, or exclusion or limitation on damages may not
apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
For information about this warranty write: DESA
INTERNATIONAL
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
lllili||l |llH
104267 01
NOT A UPC
104267-01
REV.A
01/98
