Comfort Glow Comfort Glow RGA 2-72 Quick start guide

WARNING: If the information in this manual is not fol-
lowed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by
a qualified installer, service agency, or the gas
supplier.
WARNING: Improper installation,
adjustment, alteration, service,
or maintenance can cause injury
or property damage. Refer to this
manual for correct installation and
operational procedures. For as-
sistance or additional information
consult a qualified installer, service
agency, or the gas supplier.
WARNING: This appliance is for
installation only in a solid-fuel burn-
ing masonry or UL127 factory-built
fireplace, constructed of noncom-
bustible material, and connected
to a working flue. (See page 7 for
minimum flue opening.)
RGA 2-72
APPROVED
TESTED AND
LISTED BY
VENTED DECORATIVE NATURAL GAS LOGS
OWNER’S OPERATION AND
INSTALLATION MANUAL
WARNING: This is a gas-fired appliance. It uses air (oxygen) from the room in which it is in-
stalled. Provisions for adequate combustion and ventilation air must be provided. Refer to
the National Fuel Gas Codes, ANSI Z233.1/NFPA 54, Section 5.3, Air for Combustion and Ven-
tilation.
This appliance may be installed in an aftermarket,* permanently located, manufactured (mo-
bile) home, where not prohibited by local codes.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
Brentwood
Models LCF18 and LCF24
For more information, visit www.desatech.com
Save this manual for future reference

115043-01
2
For more information, visit www.desatech.com
SAFETY INFORMATION
Carbon Monoxide Poisoning: Early signs of carbon monoxide
poisoning resemble the flu, with headaches, dizziness, or nausea. If
you have these signs, the log set may not be working properly. Get
fresh air at once! Have log set serviced. Some people are more
affected by carbon monoxide than others. These include pregnant
women, people with heart or lung disease or anemia, those under
the influence of alcohol, and those at high altitudes.
Natural Gas: Natural gas is odorless. An odor-making agent is
added to the gas. The odor helps you detect a gas leak. However,
the odor added to the gas can fade. Gas may be present even though
no odor exists.
Makecertainyoureadandunderstandallwarnings.Keepthismanualfor
reference. It is your guide to safe and proper operation of this log set.
WARNINGS
IMPORTANT: Read this owner’s manual carefully
and completely before trying to assemble, operate,
or service this log set. Improper use of this log set
can cause serious injury or death from burns, fire,
explosion, electrical shock, and carbon monoxide
poisoning.
DANGER: Carbon monoxide poisoning may lead
to death!
WARNING: Any change to this log set or its controls
can be dangerous.
1. This appliance, as supplied, is only for use with the type of gas
indicated on the rating plate.
2. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use any phone in
your building
• immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions
• if you cannot reach your gas supplier, call the fire depart-
ment
3. Never install the log set
• in a recreational vehicle
• where curtains, furniture, clothing, or other flammable ob-
jects are less than 42 inches from the front, top, or sides of
the log set
• in high traffic areas
• in windy or drafty areas
4. Before installing in a solid fuel burning fireplace, the chimney
flue and firebox must be cleaned of soot, creosote, ashes and
loose paint by a qualified chimney cleaner. Creosote will ignite
if highly heated. Inspect chimney flue for damage. If damaged,
repair flue before operating heater.
5. You must operate this log set with a fireplace screen in place.
Make sure fireplace screen is closed before running log set.
6. This log set is designed to be smokeless. If logs ever appear to
smoke, turn off appliance and call a qualified service person.
Note: During initial operation, slight smoking could occur due
to log curing and the burning of manufacturing residues. You
may wish to add more ventilation by opening a window.
7. To reduce the creation of soot, follow the instructions in Clean-
ing and Maintenance, page 11.
8. Do not allow fans to blow directly into the fireplace. Avoid any
drafts that alter burner flame patterns. Ceiling fans can create
drafts that alter burner flame patterns. Altered burner patterns
can increase sooting.
9. Do not use a blower insert, heat exchanger insert or other ac-
cessory not approved for use with this log set.
10. The installation and provisions for combustion and ventilation air
must conform with the National Fuel Gas Code, ANSI Z233.1/
NFPA 54, Section 5.3, Air for Combustion and Ventilation.
WARNING: Keep flue open when operating unit.
TABLE OF CONTENTS
SAFETY INFORMATION
TABLE OF CONTENTS
SAFETY INFORMATION..............................................................2
PRODUCT IDENTIFICATION ......................................................3
LOCAL CODES ............................................................................3
UNPACKING ................................................................................3
OPTIONAL PRODUCT FEATURES.............................................3
INSTALLATION ...........................................................................4
OPERATING APPLIANCE..........................................................10
CLEANING AND MAINTENANCE.............................................. 11
SERVICE HINTS ........................................................................ 11
TECHNICAL SERVICE .............................................................. 11
REPLACEMENT PARTS............................................................ 11
TROUBLESHOOTING ...............................................................12
ACCESSORIES .........................................................................15
ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST ........16
OWNER’S REGISTRATION FORM ...........................................17
WARRANTY INFORMATION ...................................... Back Cover
WARNING: This product contains and/or generates
chemicals known to the State of California to cause
cancer or birth defects, or other reproductive harm.

115043-01
3
3
For more information, visit www.desatech.com
SAFETY INFORMATION
PRODUCT IDENTIFICATION
LOCAL CODES
UNPACKING
OPTIONAL PRODUCT FEATURES
PRODUCT IDENTIFICATION
Figure 1 - Product Identification (Dual Burner Shown)
Hearth Kit Model _________________________
Serial Number ___________________________
Log Set Model ___________________________
SAFETY INFORMATION
Continued
Grate
Burn-
er Pan
Burner
Manifold Burner Inlet
Fitting
Burner
Clamp
Grate Steps
UNPACKING
CAUTION: Do not remove the data plates from
the burner pan. The data plates contain important
product information.
1. Remove logs, hearth kit, pan materials, and hardware from car-
ton.
2. Remove all protective packaging applied to logs and base for
shipment.
3. Check all items for any shipping damage. If damaged, promptly
inform dealer where you bought the product.
LOCAL CODES
Install and use log set with care. Follow all local codes. In the
absence of local codes, use the latest edition of The National Fuel
Gas Code ANSI Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
OPTIONAL PRODUCT FEATURES
ON/OFF SAFETY VALVE/PILOT KIT AND PRO-
PANE/LP CONVERSION
An optional valve/safety pilot kit with a piezo ignitor is available
for this appliance. This system requires no matches, batteries, or
other sources to light. You must use this optional system for LP
conversion. See Accessories, page 15.
REMOTE CONTROL READY (MILLIVOLT)
SAFETY VALVE/PILOT KIT
An optional millivolt valve/safety pilot kit with a piezo ignitor is avail-
able for this appliance. This system requires no matches, batteries, or
other sources to light. This system may be connected to a wall switch
or hand-held wireless remote control. See Accessories, page 15.
REMOTE CONTROL ACCESSORIES
There is an optional hand-held ON/OFF remote control that can
be purchased separately for this log set. You must use the millivolt
valve/safety pilot kit to use remote accessories with this appliance.
See Accessories, page 15.
A wall switch is also available for this appliance. You must use
the millivolt valve/safety pilot kit to use the wall switch with this
appliance. See Accessories, page 15.
11. Do not run log set
• where flammable liquids or vapors are used or stored
• under dusty conditions
12. Do not burn solid fuel in the fireplace after installing the log set. Do
not use this log set to cook food or burn paper or other objects.
13. Log set becomes very hot when in use. Keep children and adults
away from hot surface to avoid burns or clothing ignition. Log
set will remain hot for a time after shutdown. Allow surface to
cool before touching.
14. Carefully supervise young children when they are in the room
with log set.
15. Do not use appliance if any part has been exposed to or under
water. Immediately call a qualified service technician to inspect
the room appliance and to replace any part of the control system
(if using GA9050A or GA9150A) and any gas control which
has been under water.
16. To help prevent breakage, new logs must be broken-in (see
Curing Logs page 10).
17. Turn log set off and let cool before servicing, installing, or re-
pairing. Only a qualified service person should install, service,
or repair log set.
18. Provide adequate clearances around air openings.

115043-01
4
For more information, visit www.desatech.com
INSTALLATION
WARNING: Before installing in a solid fuel burning
fireplace, the chimney flue and firebox must be cleaned
of soot, creosote, ashes and loose paint by a qualified
chimney cleaner. Creosote will ignite if highly heated.
A dirty chimney flue may create and distribute soot
within the house. Inspect chimney flue for damage. If
damaged, repair flue before operating heater.
NOTICE: Installation, service, and repair of this appli-
ance must be performed by a qualified installer, service
agency, company or gas supplier experienced with
this type of gas appliance. Only factory authorized
components listed in these instructions may be used
in accordance with the manufacturer’s instructions
and all codes and requirements of the authority hav-
ing jurisdiction. Any modifications to this kit, or use
of unauthorized components or accessory items will
void the manufacturer’s warranty, and may result in
a hazardous condition.
CHECK GAS TYPE
Use only natural gas. If your gas supply is not natural gas, you must
install ON/OFF Safety Valve/Pilot Kit (see Accessories, page 15).
Call dealer where you bought log set.
If the fireplace does not have a gas supply shutoff valve, one must
be installed.
CAUTION: Do not remove the data plates attached
to the burner pan. The data plates contain important
warranty information.
FLUE OPENING SPECIFICATIONS
Note: This vented appliance must be installed only in a solid-fuel
burning fireplace with a working flue and constructed of noncom-
bustible material.
The charts in Figure 2 indicate technical information regarding
the installation of your gas log set. Please make sure that all of
the specifications shown are applicable before installation is at-
tempted.
The fireplace must include a working flue and venting system with
the minimum openings shown in the Figure 2.
VENTING SPECIFICATIONS FOR
INSTALLATION
The fireplace chimney flue and vent must be drafting properly. To
check the vent for proper drafting: Light a tightly rolled newspaper
on one end and place it at the inside front edge of the fireplace. Ob-
serve the smoke and be sure the vent is properly drawing it up the
chimney. If the smoke spills out into the room, extinguish the flame
and remove any obstruction until proper venting is achieved.
The chimney flue must remain open a minimum of 3" at all times
during the operation of this log set.
INSTALLATION
Flue Opening Specifications
Check Gas Type
Venting Specifications for Installation
Installing Damper Clamp
Figure 2 - Technical Information Charts
Model Burner
Description
BTU Input
(Natural Gas)
Minimum Vent
Opening
LCF18 18" Dual 55,000 8"
LCF24 24" Dual 60,000 8"
Minimum Fireplace Dimensions
Model Front
Width
Back
Width* Depth Height
LCF18 28" 18" 14" 16"
LCF24 29.75" 17" 15.5" 18"
* At depth Indicated
Fuel Inlet Pressure
Specifications (W.C.)
Min. Max.
N.G. 5.5" 10.5"
Burner Orifice Sizing
Log Size Natural Gas
In. Num.
18" .120 31
24" .129 30
INSTALLING DAMPER CLAMP
Secure the damper stop clamp provided to the leading edge of the
damper as shown in Figure 3. If for any reason this clamp doesn't
work on your fireplace, another suitable clamp or permanent stop
must be installed, or the damper blade must be cut or removed.
Figure 3 - Attaching Damper Clamp
Damper
Clamp
Damper
Manufactured
Fireplace
Masonry Fireplace
Damper Damper
Damper Clamp

115043-01
5
5
For more information, visit www.desatech.com
INSTALLATION
Continued
CONNECTING TO GAS SUPPLY
WARNING: A qualified service person must con-
nect log set to gas supply. Follow all local codes.
Installation Items Needed
Before installing log set, make sure you have the items listed
below.
• piping (check local codes)
• sealant (resistant to Propane/LP gas)
• equipment shutoff valve
• test gauge connection
• adjustable (crescent) wrench or pliers
• sediment trap
• tee joint
• pipe wrench
CAUTION: Use only new, black iron or steel pipe.
Internally-tinned copper tubing may be used in certain
areas. Check your local codes. Use pipe of 1/2" diameter
or greater to allow proper gas volume to log set. If pipe
is too small, undue loss of volume will occur.
We recommend that you install a sediment trap in supply line as
shown in Figure 4. Locate sediment trap where it is within reach for
cleaning. Install in piping system between fuel supply and heater.
Locate sediment trap where trapped matter is not likely to freeze.
A sediment trap traps moisture and contaminants. This keeps them
from going into log set controls. If sediment trap is not installed or
is installed wrong, log set may not run properly.
Installation must include a equipment shutoff valve, union, and
plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge
hook up. NPT tap must be upstream from log set (see Figure 4).
IMPORTANT: Install equipment shutoff valve in an accessible
location. The equipment shutoff valve is for turning on or shutting
off the gas to the appliance.
Apply pipe joint sealant lightly to male NPT threads. This will
prevent excess sealant from going into pipe. Excess sealant in pipe
could result in a clogged burner injector.
WARNING: Use pipe joint sealant that is resistant to liquid
petroleum (LP) gas.
Figure 4 - Gas Connection
* Purchase the optional CSA design-certified equipment shutoff
valve from your dealer. See Accessories, page 15.
** Minimum inlet pressure for purpose of input adjustment.
3" Minimum
Sediment Trap
From Gas Meter
(5" W.C.** to 10.5"
W.C. Pressure)
CSA Design-Certified
Equipment Shutoff Valve
With 1/8" NPT Tap*
Approved Flexible Gas Hose
(if allowed by local codes)
Tee Joint
Pipe Nipple
Cap
INSTALLATION
Connecting to Gas Supply
Checking Gas Connections
WARNING: Test all gas piping and connections,
internal and external to unit, for leaks after installing
or servicing. Correct all leaks at once.
WARNING: Never use an open flame to check
for a leak. Apply a noncorrosive leak detection fluid
to all joints. Bubbles forming show a leak. Correct
all leaks at once.
CHECKING GAS CONNECTIONS
Pressure Testing Gas Supply Piping System
Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)
1. Disconnect log set and its individual equipment shutoff valve
from gas supply piping system.
2. Cap off open end of gas pipe where equipment shutoff valve
was connected.
3. Pressurize supply piping system by either using compressed
air or opening main gas valve located on or near gas meter.
4. Check all joints of gas supply piping system. Apply noncorrosive
leak detection fluid to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Reconnect log set and equipment shutoff valve to gas supply.
Check reconnected fittings for leaks.

115043-01
6
For more information, visit www.desatech.com
Installation and Gas Connection
1. Place the burner pan assembly in the center of the fireplace
floor. Make sure the front of pan faces forward.
2. Thread the gas supply fitting to the fireplace gas supply pipe.
Use thread sealant.
3. Install adapter fitting onto the burner inlet fitting using thread
sealant on male threads of burner inlet fitting (see Figure 7).
Adjust to most convenient position.
4. Install the gas connector tube to the gas supply fitting. Carefully
shape tube to attach to adapter fitting. Be careful not to cause
kinks in tube.
OPTIONAL GA9050A ON/OFF SAFETY VALVE/
PILOT KIT ASSEMBLY
For additional convenience and safety, or for propane/LP conver-
sion, an optional ON/OFF safety valve/pilot kit is available. See
Accessories, page 15.
WARNING: You must use a ON/OFF safety valve/
pilot kit for propane/LP conversion.
Figure 7 - Connecting Gas to Appliance
Adapter
Fitting
Gas Connector
Tube
Burner Pan Assem-
bly (Facing Front of
Fireplace)
Figure 5 - Checking Gas Joints
HEARTH KIT ASSEMBLY AND INSTALLATION
Kit Assembly - Dual-Flame Burner
1. Determine which side the gas line will be coming into the fire-
place.
2. Using a hammer and screw driver, remove knockout plug from the
side of the pan that corresponds to the gas line (see Figure 6).
3. Unscrew burner inlet fitting from burner manifold.
4. Place burner manifold in pan with threaded opening facing
open knockout plug.
5. Using thread sealant (resistant to the action of propane/LP gas)
on larger end of fitting, screw the burner inlet fitting through
hole and into burner manifold (see Figure 6). Tighten using
a wrench.
6. Using burner clamp, screw, and nut provided, assemble clamp
to pan (“U” style and triple burners only). This will hold the
burner manifold in place.
INSTALLATION
Continued
Gas Meter
Equipment Shutoff
Valve
INSTALLATION
Hearth Kit Assembly and Installation
Figure 6 - Installing Burner
Burner Inlet
Fitting
Screw
Nut Burner Clamp
Burner Pan
(Front)
Burner Manifold
Knockout
Plugs
DUAL-FLAME
Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve (see Figure 5).
2. Pressurize supply piping system by either using compressed
air or opening main gas valve located on or near gas meter.
3. Check all joints from gas meter to equipment shutoff valve
(see Figure 5). Apply noncorrosive leak detection fluid to gas
joints. Bubbles forming show a leak.
4. Correct all leaks at once.

115043-01
7
7
For more information, visit www.desatech.com
INSTALLATION
Continued
Natural Gas Installation
1. Thread the gas control valve onto the burner inlet fitting (see
Figure 8). Use thread sealant on the male threads of the burner
inlet fitting. Hold the burner inlet fitting with a wrench to pre-
vent overtightening the connection to the burner. Make sure
the control rod is facing the front (see Figure 8).
2. Attach the pilot gas line to the pilot outlet of the gas control valve
and tighten. Connect the thermocouple to the rear of the gas control
valve. See Figure 9. Do not overtighten. If using propane/LP
gas, see Changing Pilot Orifice, page 8.
3. Install the inlet fitting into the inlet opening of the gas control
valve (see Figure 10). Use thread sealant on the male pipe
threads.
4. Place the burner pan assembly in the center of the fireplace
floor. Make sure the front of pan faces forward.
5. Thread the gas supply fitting to the fireplace gas supply pipe.
Adjust to most convenient position.
6. Install the gas connector tube to the gas supply fitting. Carefully
shape tube to attach to adapter fitting. Be careful not to cause
kinks in tube.
7. Test for leaks following instructions under Testing Burner for
Leaks, page 9.
8. Retighten and adjust the location of the gas control as neces-
sary. The gas control should be level, with the control rod to the
front.
9. Install cover to burner pan using screws provided.
10. Install thermocouple, pilot, and ignitor onto valve cover as
shown in Figure 11. Use the provided screws.
11. Push the control rod extension onto the “D” shaped control rod
through the center hole in the cover.
12. Install the position decal and control knob making sure to align
the marks with the correct stop positions of the gas control.
Pilot position will allow the knob to push in about 1/2". Align
the decals in the pilot position.
Burner Inlet Fitting
Gas Control
Valve
Burner Pan As-
sembly

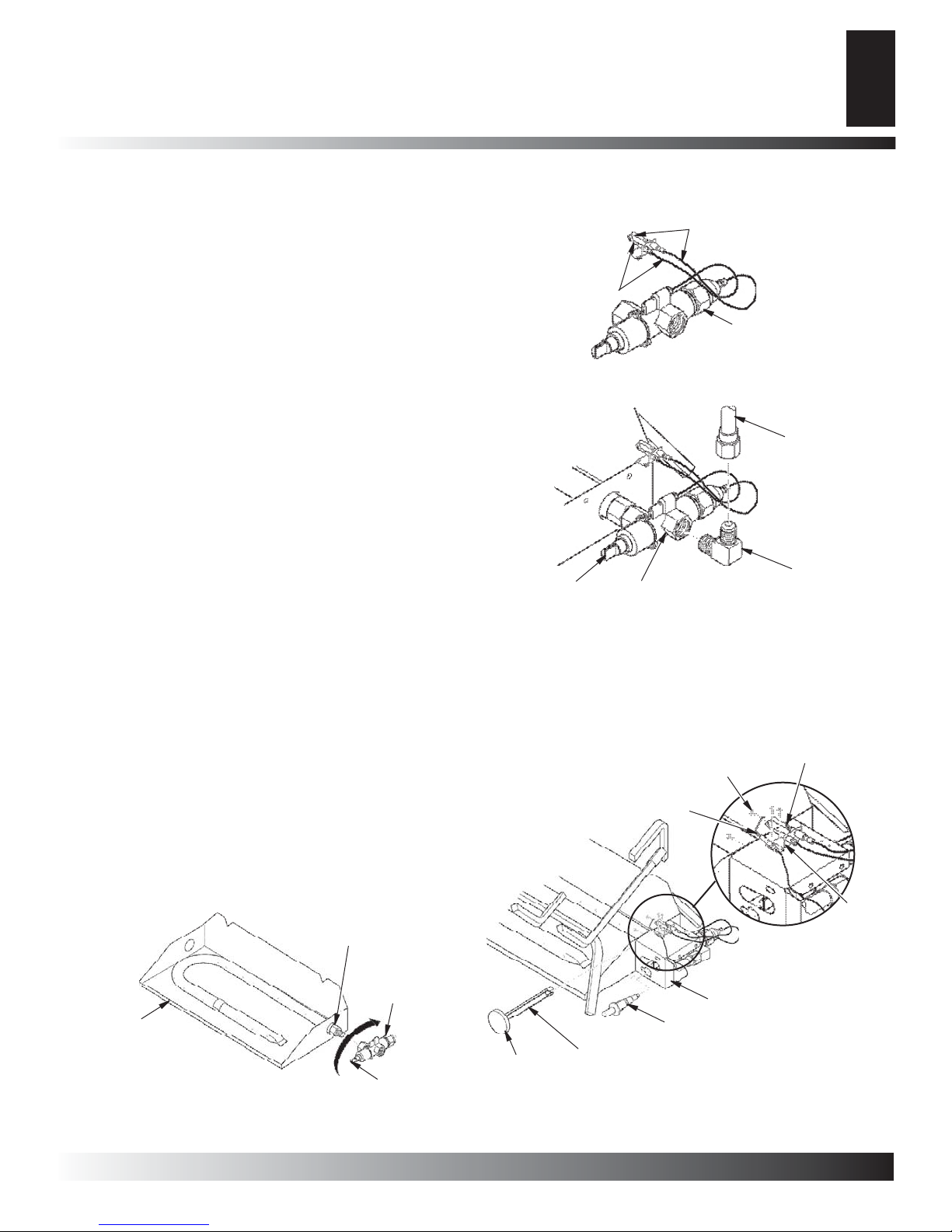

Figure 8 - Installing Gas Control Valve Control Rod
Figure 9 - Gas Control Valve with Thermocouple and Pilot
Figure 10 - Installing Inlet Fitting and Gas Connector Tube
Thermocouple and Line
Pilot and Line
Gas Control Valve
Gas Control
Valve
Gas Inlet
Fitting
Gas Con-
nector Tube
Inlet
Opening
INSTALLATION
Hearth Kit Assembly and Installation (Cont.)
Optional GA9050A ON/OFF Safety Valve/Pilot Kit Assembly
Figure 11 - Installing Cover, Control Knob, and Piezo Ignitor
Piezo Ignitor
Control Rod
Extension
Screw
Valve Cover
Control
Knob
Thermocouple
Ignitor
Pilot

115043-01
8
For more information, visit www.desatech.com
TESTING BURNER FOR LEAKS
1. Generously apply noncorrosive leak detection fluid to all
connections.
WARNING: Never check for gas leaks with
open flame.
2. Light the burner with the shutoff valve no more than half open
and holding a match slightly in front of the pan (see Lighting
Instructions,page 10).
3. Inspect all connections for bubbles, raw gas odor, or flame from
any area other than the burner (leaks). If leaks are detected,
shut off the gas valve immediately. Tighten, or reassemble the
loose connection(s) using pipe joint compound until burner
system is leak free.
4. When the burner is tested and leak free, observe the individual
tongues of flame on the burner. Note: The burner design includes
more ports on the outside of the bar. Make sure that all ports
are clear and producing flame evenly across the burner. If
any ports appear blocked, clear them by removing the burner
manifold and reaming the ports with a modified paper clip or
other suitable tool.
5. When finished testing, turn the gas shutoff valve OFF to ex-
tinguish all flames.
ADDING PAN MATERIAL
1. Open the bag of ash bed material (vermiculite) and spread it
evenly across the burner pan to the top. You may overflow the
front and sides of the pan to cover the entire pan and connect-
ing hardware. Do not cover GA9050A or GA9150A valve.
2. Open the glowing embers and evenly cover the ash bed material
(vermiculite) in the burner pan.
INSTALLING THE GRATE AND LOGS
1. Place the grate over the burner pan where the two outer hori-
zontal supports on the grate fit into the two pan positioning
notches in the rear vertical edge of the pan.
INSTALLATION
Continued
Figure 15 - Installing Grate (Pan Material Not Shown)
2. Slide the two rear log grate steps over the two outer horizontal
supports on the grate as shown in Figure 15.
3. Place the back log on the grate onto the grate steps (see
Figure 16).
4. Place the front log(s) on the grate and slide forward against the
front bars on the grate (see Figure 16).
5. Place the smaller top logs onto the bottom logs (see Figure 17).
Leave as much open space between logs as possible to minimize
flame impingement and sooting. Note: Logs may chip if they
are handled roughly or if hit together while being placed.
Figure 16 - Installing Front and Back Logs (Number and style
of your logs may vary)
Figure 17 - Placement of Top Logs
Grate
Grate Steps
INSTALLATION
Testing Burner for Leaks
Adding Pan Material
Installing the Grate and Logs

115043-01
9
9
For more information, visit www.desatech.com
LIGHTING
INSTRUCTIONS
OPERATING APPLIANCE
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not follow these instructions
exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.
BEFORE LIGHTING smell all around the appliance area for gas.
Be sure to smell next to the floor because some gas is heavier than
air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your
building.
• Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
GAS SHUTOFF
VALVE OPERATION
Flame Adjustment
Adjust the flame ON/OFF by turning the gas shutoff valve coun-
terclockwise to open or clockwise to close, as
necessary.
Shutting Off Appliance
Turn gas shutoff valve clockwise to the OFF position.
During the 2-3 hour appliance break-in period, you may detect
an odor from the appliance as the various paints and compounds
used in the manufacturing of this log set cure. This is a normal and
temporary situation that is not cause for alarm. However, you may
want to provide extra ventilation to the room during this time.
To ensure proper curing of the logs:
• Ignite a 2" flame and maintain it for 1 hour.
• Burn the logs in consecutive 1 hour periods raising the flame an
additional 2" to full flame height for a total of three hours.
CURING
LOGS
1. STOP! Read the safety information, above.
2. Turn the gas shutoff valve to OFF.
3. Wait five (5) minutes to clear out any gas. If you then smell
gas STOP! Follow the safety information above. If you don't
smell gas, go on to the next step.
4. Light a match and lay it on top of the pan material about 2"
from the end of the supply side of the pan
5. Slowly turn the gas shutoff valve ON until the burner ignites.
If the burner doesn’t ignite within 10 seconds with the match
burning, turn the shutoff valve OFF and repeat steps 1 through
4 again.
Note: Operation instructions for GA9150A Remote Ready Valve/
Pilot Kit will be included with the kit.
1. STOP! Read the safety information, column one this page.
2. Make sure equipment shutoff valve is fully open.
3. Press in and turn control knob clockwise to the OFF
position.
4. Wait five (5) minutes to clear out any gas. Then smell for gas
around log set and near floor. If you smell gas, STOP! Refer to
the National Fuel Gas Codes, ANSI Z233.1/NFPA 54, Section
5.3, Air for Combustion and Ventilation. If you don’t smell
gas, go to the next step.
5. Turn control knob counterclockwise to the PILOT
position and press in. Keep control knob pressed in for five
(5) seconds.
Note: You may be running this log set for the first time after
hooking up to gas supply. If so, the control knob may need to
be pressed in for 30 seconds. This will allow air to bleed from
the gas system.
• If control knob does not pop up when released, contact a
qualified service person or gas supplier for repairs.
OPERATING INSTRUCTIONS
FOR GA9050A
Ignitor
Control Knob
Pilot
FROM "PILOT" POSITION
SLIGHT PUSH TO
TURN OFF
PULL PUSH
ON
ON
FROM "PILOT" POSITION
SLIGHT PUSH TO
TURN OFF
PULL PUSH
FROM "PILOT" POSITION
SLIGHT PUSH TO
TURN OFF
PULL PUSH
ON OFF
On Off
OFF
OFF

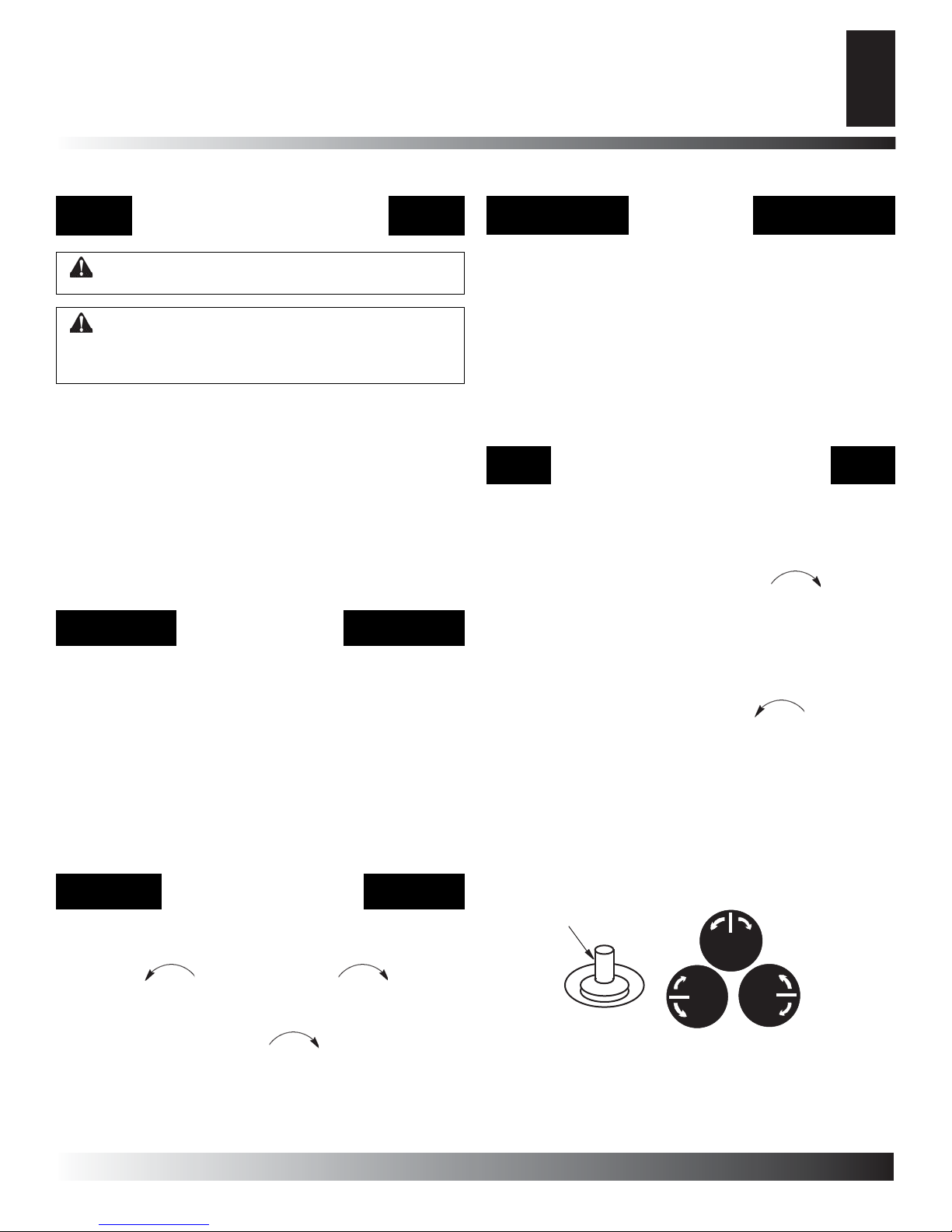

Figure 18 - Ignitor and Control Knob
WARNING: Keep flue open when operating unit.
OPERATING APPLIANCE
For Your Safety Read Before Lighting
Lighting Instructions
Gas Shutoff Valve Operation
Curing Logs
Operating Instructions for GA9050A

115043-01
10
For more information, visit www.desatech.com
6. With control knob pressed in, push down and release ignitor
button. This will light pilot. The pilot is attached to the rear of
the front burner. If needed, keep pressing ignitor button until
pilot lights.
Note: If pilot does not stay lit, contact a qualified service person
or gas supplier for repairs. Until repairs are made, light pilot
with match.
7. Keep control knob pressed in for 30 seconds after lighting pilot.
After 30 seconds, release control knob.
Note: If pilot goes out, repeat steps 3 through 7, pages 10 and
11.
8. Turn control knob counterclockwise to the ON posi-
tion. Burner should light. If burner does not light, call a quali-
fied service person.
Figure 19 - Thermocouple and Pilot
Pilot
Burner
Thermocouple
OPERATING APPLIANCE
Continued
TO TURN OFF GAS
TO APPLIANCE
Shutting Off Appliance
1. Turn control knob clockwise to the PILOT position.
2. Press in and turn control clockwise to the OFF posi-
tion.
Shutting Off Burner Only (pilot stays lit)
Turn control knob clockwise to the PILOT position.
OPERATING APPLIANCE
Operating Instructions for GA9050A (Cont.)
To Turn Off Gas to Appliance
CLEANING AND MAINTENANCE
SERVICE HINTS
TECHNICAL SERVICE
REPLACEMENT PARTS
CLEANING AND
MAINTENANCE
• Keep the area around the log set clean and clear of debris.
• Occasionally, you may use a soft bristle brush to clean logs.
• Once every year a qualified agency or certified chimney sweep
should examine and clean the venting system of the fireplace.
TECHNICAL SERVICE
You may have further questions about installation, operation, or
troubleshooting. If so, contact DESA’s Technical Service Depart-
ment at 1-866-672-6040. When calling please have your model and
serial numbers of your heater ready.
You can also visit DESA’s technical services web site at www.
desatech.com.
SERVICE HINTS
When Gas Pressure is Too Low
• pilot will not stay lit
• burners will have delayed ignition
• heater will not produce specified heat
You may feel your gas pressure is too low. If so, contact your local
natural gas supplier.
REPLACEMENT PARTS
Note: Use only original replacement parts. This will protect your
warranty coverage for parts replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product. If they can’t supply origi-
nal replacement part(s), call DESA’s Technical Service Department
at 1-866-672-6040. When calling DESA, have ready:
• your name and address
• model and serial numbers of your log set
• how log set was malfunctioning
• type of gas used (natural gas)
• purchase date
Usually, we will ask you to return the part to the factory.
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product. If they can’t supply
original replacement part(s), call DESA at 1-866-672-6040 for
referral information. When calling DESA, have ready
• model number of your log set
• the replacement part number

115043-01
11
11
For more information, visit www.desatech.com
TROUBLESHOOTING
WARNING: Turn off log set and let cool before
servicing. Only a qualified service person should
service and repair log set.
POSSIBLE CAUSE REMEDY
OBSERVED PROBLEM
Note: All troubleshooting items are listed in order of operation.
1. Poor fuel quality
2. Fireplace venting system not drafting
properly
3. Excessive flame impingement or
blockage
4. Improper fuel/air mixture
5. Excessive gas supply/pressure
1. Passage of air/gas across irregular sur-
faces
1. Incorrect gas supply or pressure
2. Blocked burner orifice or burner mani-
fold ports
3. Improper burner orifice size
1. Ignitor electrode not connected to ignitor
cable
2. Ignitor cable pinched or wet
3. Bad ground on piezo ignitor
4. Broken ignitor cable
5. Bad piezo ignitor
6. Ignitor electrode broken
7. Ignitor electrode positioned wrong
Log set is smoking/sooting excessively
(Note: It is natural and unavoidable for
vented gas log sets to produce moderate
levels of carbon (soot) where flames
contact the logs.
Burner is excessively noisy
(Note: The movement and combustion of
gas will create low, unavoidable levels of
noise.)
Burner flame is too low or too high
When ignitor button is pressed, there is no
spark at pilot (GA9050A Only)
1. Contact local natural or propane/LP gas
company
2. Adjust damper wide open and/or have
fireplace and venting professionally
cleaned and checked
3. Separate the logs to allow more flame
passage
4. Remove any foreign items from the
flame pattern and/or check for proper
orifice sizing
5. Preheat flue in very cold weather
1. Relieve any tight bends or kinks in gas
supply line
1. Check for proper gas supply pressure
2. Free burner orifice and manifold ports
of any burrs, paint, or other blockage
3. Verify proper burner orifice sizing (see
Figure 2, page 4)
1. Reconnect ignitor cable
2. Free ignitor cable if pinched by any
metal or tubing. Keep ignitor cable dry
3. Scrape away paint on bracket for better
contact with ground on piezo ignitor
4. Replace ignitor cable
5. Replace piezo ignitor
6. Replace electrode
7. Reposition electrode
TROUBLESHOOTING

115043-01
12
For more information, visit www.desatech.com
OBSERVED PROBLEM
When ignitor button is pressed, there is spark
at pilot but no ignition (GA9050A Only)
Pilot lights but flame goes out when control
knob is released (GA9050A Only)
Burner does not light after pilot is lit
(GA9050A Only)
Delayed ignition burner (GA9050A Only)
REMEDY
1. Turn on gas supply or open equipment
shutoff valve
2. Turn control knob to PILOT position
3. Press in control knob while in PILOT
position
4. Continue holding down control knob.
Repeat igniting operation until air is
removed
5. Adjust pilot flame for approximately
2" blue flame
6. Clean pilot (see Cleaning and Mainte-
nance, page 11) or replace pilot assem-
bly
7. Replace gas control
1. Press in control knob fully
2. After pilot lights, keep control knob
pressed in 30 seconds
3. Fully open equipment shutoff valve
4. A) Contact local natural gas company
B) Clean pilot (see Cleaning and Main-
tenance, page 11) or replace pilot as-
sembly
5. Hand tighten until snug, then tighten
1/4 turn more
6. Replace thermocouple
7. Replace control valve
1. Clean burner orifice
2. Contact local natural gas company
3. Reconnect leads
1. Adjust pilot flame for approximately
2" blue flame
2. Replace pilot orifice set
POSSIBLE CAUSE
1. Gas supply turned off or equipment
shutoff valve closed
2. Control knob not in PILOT position
3. Control knob not pressed in while in
PILOT position
4. Air in gas lines when installed
5. Pilot adjustment screw closed
6. Pilot is clogged
7. Low gas pressure
1. Control knob not fully pressed in
2. Control knob not pressed in long
enough
3. Equipment shutoff valve not fully
open
4. Pilot flame not touching thermocouple,
which allows thermocouple to cool,
causing pilot flame to go out. This prob-
lem could be caused by one or both of
the following:
A) Low gas pressure
B) Dirty or partially clogged pilot
5. Thermocouple connection loose at con-
trol valve
6. Thermocouple damaged
7. Control valve damaged
1. Burner orifice clogged
2. Inlet gas pressure is too low
3. Thermocouple leads disconnected or
improperly connected
1. Pilot flame needs adjusting
2. Wrong pilot orifice
TROUBLESHOOTING
Continued
TROUBLESHOOTING

115043-01
13
13
For more information, visit www.desatech.com
TROUBLESHOOTING
Continued
WARNING: If you smell gas
•Shut off gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• Immediately call your gas supplier from a neighbor’s phone. Fol-
low the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
POSSIBLE CAUSE
1. Metal expanding while heating or con-
tracting while cooling
1. Log Set burning vapors from paint, hair
spray, glues, cleaners, chemicals, new
carpet, etc. (See IMPORTANT statement
above)
2. Gas leak. See Warning statement at top
of page
1. Gas leak. See Warning statement at top
of page
2. Control valve defective
1. Gas leak. See Warning statement at top
of page
OBSERVED PROBLEM
Log Set produces a clicking/ticking noise
just after burner is lit or shut off
Log Set produces unwanted odors
Gas odor even when control knob is in OFF
position
Gas odor during combustion
REMEDY
1. This is common with most log sets. If
noise is excessive, contact qualified
service person
1. Open flue to maximum. Stop using odor
causing products while log set is run-
ning
2. Locate and correct all leaks (see Check-
ing Gas Connections, page 6)
1. Locate and correct all leaks (see Check-
ing Gas Connections, page 6)
2. Replace control valve
2. Locate and correct all leaks (see Check-
IMPORTANT: Operating log set where impurities in air exist may create odors.
Cleaning supplies, paint, paint remover, cigarette smoke, cements and glues, new
carpet or textiles, etc., create fumes. These fumes may mix with combustion air
and create odors. These odors will disappear over time.
TROUBLESHOOTING

115043-01
14
For more information, visit www.desatech.com
ACCESSORIES
ACCESSORIES
Purchase these log set accessories from your local dealer. If they
can not supply these accessories, call DESA at 1-866-672-6040
for referral information. You can also write to the address listed
on the back page of this manual.
EQUIPMENT SHUTOFF VALVE - GA5010
For all models. Equipment shutoff valve with 1/8" NPT tap. Fits
1/2" NPT pipe.
WALL-MOUNT ON/OFF SWITCH - GWMS2
(Not Shown)
For all models. Allows the gas log set to be turned on and off with
a wall switch. Valve/Pilot Kit GA9150A must be purchased to use
this remote.
MANUAL CONTROL ON/OFF SAFETY VALVE/
PILOT KIT - GA9050A
(Not Shown)
For all models. Contains components for propane/LP conver-
sion.
REMOTE CONTROL READY ON/OFF SAFETY
VALVE/PILOT KIT - GA9150A
(Not Shown)
For all models. Required for remote control operation. Contains
components for propane/LP conversion.
INDIVIDUAL ROUND LOG - GA9450A
(Not Shown)
For decorative purposes only. Not to be used as additional logs on
unit.
INDIVIDUAL SPLIT LOG - GA9550A
(Not Shown)
For decorative purposes only. Not to be used as additional logs on
unit.
PINE CONES - GA9650A
(Not Shown)
For all models. Use for additional decoration only. (3 pine cones
per box).
ASH BED MATERIAL (Vermiculite) - GA9750A
(Not Shown)
For all models. Use for firebox decoration only.
GLOWING EMBERS - GA9950A
(Not Shown)
For all models. Use for firebox decoration only.
SILICA SAND - GA9850A
(Not Shown)
For all models. Use for firebox decoration only.
LAVA ROCK - GA6067A
(Not Shown)
For all models. Use for firebox decoration only.
DECORATIVE ASH BED CONTROL COVER
CDABKA (Not Shown)
An attractive way to cover control knob and piezo ignitor.
18" ORNAMENTAL GRATE ENHANCER
GA9350A (Not Shown)
For 18" models only. Additional decoration for front grate.
24" ORNAMENTAL GRATE ENHANCER
GA9360A (Not Shown)
For 24" models only. Additional decoration for front grate.
30" ORNAMENTAL GRATE ENHANCER
GA9370A (Not Shown)
For 30" models only. Additional decoration for front grate.
FIRE CRACKLE - CF6-A
(Not Shown)
For all models. Creates the sound of a real burning fire.
RECEIVER AND HAND-HELD ON/OFF RE-
MOTE CONTROL KIT - GHRCB Series
For all models. Allows the gas log set to be turned on and off by
using the hand-held remote control. Valve/Pilot Kit GA9150A must
be purchased to use this remote.

115043-01
15
15
For more information, visit www.desatech.com
PARTS LIST AND ILLUSTRATED PARTS BREAKDOWN
This list contains replaceable parts used in your log set. When
ordering parts, follow the instructions listed under Replacement
Parts on page 11 of this manual.
PARTS LIST
Models LCF18 and LCF24
3
13
1
8
6
4
2
10
7
5
9
9
11
12
14
20
15
16
19 18
17
KEY PART NUMBER
NO. LCF18 LCF24 DESCRIPTION QTY.
1 901058-01 901058-01 3/8 FLR x 1/2 FPT Adapter 1
2 901059-01 901059-01 3/8 FLR x 3/8 FPT Adapter 1
3 901066-01 901066-01 Brass Air Mixer - Natural Gas 1
4 901064-02 901064-03 Natural Gas Injector 1
5 901207-01 901207-01 Burner Manifold 1
6 901137-01 901137-02 Burner Pan 1
7 901242-01 901242-01 Damper Clamp - Std. Assy 1
8 101628-01 101628-01 Gas Line - 10" Flex 1
9 901431-01 901431-01 Grate Steps 2
10 901246-01 901246-02 Log Grate 1
11 901681-01 901681-01 Burner Strap 1
12 901078-01 9010787-01 Nut #8/32 1
13 901076-01 901076-01 Screw #8/32 x 3/8 1
14 115049-01 115052-01 Front Bottom Log 1
15 901111-01 901111-02 Rear Bottom Log 1
16 115050-01 115050-01 Top Log 1
17 115051-01 115051-01 Top Log 1
18 901090-01 901090-01 Top Log 1
19 901126-01 901126-01 Top Log 1
20 901094-01 Top Log 1
PARTS AVAILABLE — NOT SHOWN
901156-01 901156-01 .125# Bag Embers 1
901155-01 901155-01 1.5# Bag Ash Bed Material (Vermiculite) 1

115043-01
16
For more information, visit www.desatech.com
1. Where will the product be used?
m Living/Family Room ❍ Office/Warehouse ❍ Utility Shed/Outbuilding ❍ Garage ❍ Bedroom ❍ Bathroom ❍ Other
2. If you bought this product yourself, did you plan to purchase this type of product before going into the store? ❍ Yes ❍ No
3. Who selected the product? ❍ Male ❍ Female ❍ Both
4. What is the population of your area? ❍ Under 10,000 ❍ 10,000 to 25,000 ❍ 25,000 to 50,000 ❍ 50,000 to 100,000
❍ 100,000 to 250,000 ❍ Over 250,000
5. What is your primary source of heat? ❍ Propane (LP Gas) ❍ Fuel Oil ❍ Wood ❍ Natural Gas ❍ Electric ❍ Other
6. How was the product installed? ❍ Professional Installer ❍ Self ❍ Other
7. Cost of product excluding sales tax? $___________________
8. Cost to install product? $____________________
9. Type of store where product was purchased? ❍ Hardware ❍ Propane Dealer ❍ Natural Gas/Utility Co. ❍ Home Center/Builder's Supply
❍ Fireplace or Hearth Shop ❍ Farm Store ❍ Other
10. What motivated you to buy this product? ❍ Sudden Cold Weather ❍ Replace Older Model ❍ D.I.Y. Home Project
❍ Emergency Back-Up Heat ❍ Heater was on Sale ❍ Energy Savings/High Efficiency ❍ Construction Project ❍ Other
11. How did you learn about this product brand? ❍ Advertising ❍ Relative or Friend ❍ Store Display ❍ Other ________________________
12. Level of Education of Purchaser: ❍ Some High School ❍ Completed High School ❍ Completed College ❍ Completed Graduate School
13. Age of Purchaser: ❍ Under 20 ❍ 20 - 29 ❍ 30 - 39 ❍ 40 - 49 ❍ 50 - 59 ❍ 60 or Over
14. Buyer's total annual household income: ❍ Under $15,000 ❍ $15,000 to $19,999 ❍ $20,000 to $34,999 ❍ $35,000 to $49,999
❍ $50,000 to $74,999 ❍ $75,000 to $99,999 ❍ $100,000 and Over
15. Store where product was purchased:
Name: ______________________________________
City: _______________________ State: __________
16. In choosing this product, how important were the following:
Availability
Price
Brand Name
Overall Quality
Heat Output
Made in USA
Warranty
Local Service
Value for Price
Prior Brand Experience
Controls Location
Thermostat, Remote, or Manual Operation
Ease of Operation
Special Features
Salesperson's Recommendation
Friend/Relative's Recommendation
Portability
Quiet Operation
OWNER'S REGISTRATION FORM
Please answer the following questions to register your product with DESA:
In order to provide better customer service for this and future purchases, we recommend that you register your product with us.
You can register online at www.desatech.com. If access to our website is not available to you, please complete this Owner's
Registration Form and mail to the address on the back of this owner's manual. Please provide the following product information:
Not Important Somewhat Important Very Important
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
Brand: (Comfort Glow, Vanguard, etc.)
Model: (EFP33PR, VTGH33NR, etc.)
Date Purchased: Note: Keep receipt for warranty verification.
Serial Number: 7 or 9 digit number located on product or identification tag.
First Name: Last Name:
Address:
City: State: Zip: Country:
Home Phone: ( ) -
E-Mail:

115043-01
17
17
For more information, visit www.desatech.com
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
Postage
Required
TAPE
TAPE

115043-01
18
For more information, visit www.desatech.com
NOTES
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________

115043-01
19
19
For more information, visit www.desatech.com
NOTES
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________

115043-01
20
For more information, visit www.desatech.com
LIMITED WARRANTY - VENTED GAS LOGS
DESA warrants this product to be free from defects on burner system for four (4) years and logs for a lifetime from the date of first purchase,
provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions. To make a claim
under this warranty the Bill of Sale or cancelled check must be presented.
This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this log set to proper operating
condition and an allowance for labor when provided by a DESA Authorized Service Center. Warranty part(s) MUST be obtained through authorized
dealers of this product and/or DESA who will provide original factory replacement parts. Failure to use original factory replacement parts voids this
warranty. The log set MUST be installed by a qualified installer in accordance with all local codes and instructions furnished with the unit.
This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become damaged as
a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost, labor, transportation
and any and all such other costs related to repairing a defective log set will be the responsibility of the owner.
TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT; THIS
EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY AND
ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
TO FOUR (4) YEARS ON BURNER SYSTEM AND A LIFETIME ON LOGS FROM THE DATE OF FIRST PURCHASE; AND DESA’S
LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA SHALL NOT BE LIABLE FOR ANY
OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages,
so the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
For information about this warranty write:
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
www.desatech.com
KEEP THIS WARRANTY
WARRANTY INFORMATION
Model
Serial No.
Date Purchased
Always specify model and serial numbers when communicating with the factory.
We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We make
no other warranty, expressed or implied.
115043-01
10/04
NOT A UPC
115043 01
