Comfort Glow CSBNT Quick start guide

WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result caus-
ing property damage, personal injury, or loss of life.
-- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
-- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s in-
structions.
• If you cannot reach your gas supplier, call the fire
department.
-- Installation and service must be performed by a quali-
fied installer, service agency, or the gas supplier.
WARNING: Improper installation,
adjustment, alteration, service, or
maintenance can cause injury or
property damage. Refer to this
manual for correct installation and
operational procedures. For assis-
tance or additional information con-
sult a qualified installer, service
agency, or the gas supplier.
WARNING: This is an unvented gas-
fired heater. It uses air (oxygen)
from the room in which it is in-
stalled. Provisions for adequate
combustion and ventilation air must
be provided. Refer to Air for Com-
bustion and Ventilation section on
page 4 of this manual.
Propane/LP and Natural Gas
Thermostat Control Gas Log Heaters
(Burner System For Cast Iron Stoves)
Models
CSBNT, CSBPT
CSPBNT, CSPBPT
CSPINT, CSPIPT
This appliance may be installed in an aftermarket*, permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appli-
ance is not convertible for use with other gases.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
(VENT-FREE)
GAS STOVE HEATER
OWNER’S OPERATION AND
INSTALLATION MANUAL
Save this manual for future reference.
Save this manual for future reference.
For more information, visit www.desatech.com
For more information, visit www.desatech.com

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
2
SAFETY INFORMATION
IMPORTANT: Read this owner’s manual carefully and
completely before trying to assemble, operate, or ser-
vice this heater. Improper use of this heater can cause
serious injury or death from burns, fire, explosion,
electrical shock, and carbon monoxide poisoning.
Carbon Monoxide Poisoning: Early signs of carbon monoxide
poisoning resemble the flu, with headaches, dizziness, or nausea. If
you have these signs, the heater may not be working properly. Get
fresh air at once! Have heater serviced. Some people are more
affected by carbon monoxide than others. These include pregnant
women, people with heart or lung disease or anemia, those under the
influence of alcohol, and those at high altitudes.
Propane/LP Gas: Propane/LP gas is odorless. An odor-making
agent is added to the gas. The odor helps you detect a gas leak.
However, the odor added to the gas can fade. Gas may be present
even though no odor exists.
Make certain you read and understand all warnings. Keep this
manual for reference. It is your guide to safe and proper operation
of this heater.
WARNINGICON G001
WARNINGS
DANGER: Carbon monoxide poisoning may lead
to death!
WARNING: Any change to this heater or its con-
trols can be dangerous.
WARNING: Do not allow fans to blow directly into
the stove. Avoid any drafts that alter burner flame
patterns. Ceiling fans can create drafts that alter
burner flame patterns. Altered burner patterns can
cause sooting.
WARNING: Do not use a blower insert, heat
exchanger insert or other accessory not approved for
use with this heater.
Due to high temperatures, the appliance should be
located out of traffic and away from furniture and
draperies.
Do not place clothing or other flammable material on
or near the appliance. Never place any objects on the
heater.
Stove becomes very hot when running heater. Keep
children and adults away from hot surface to avoid
burns or clothing ignition. Heater will remain hot for
a time after shutdown. Allow surface to cool before
touching.
Carefully supervise young children when they are in
the room with fireplace.
Keep the appliance area clear and free from combus-
tible materials, gasoline, and other flammable vapors
and liquids.
WARNING: This product contains and/or generates
chemicals known to the State of California to cause
cancer or birth defects, or other reproductive harm.
TABLE OF CONTENTS
SAFETY INFORMATION
TABLE OF CONTENTS
SAFETY INFORMATION ............................................................ 2
PRODUCT IDENTIFICATION ..................................................... 3
LOCAL CODES ........................................................................... 4
PRODUCT FEATURES .............................................................. 4
AIR FOR COMBUSTION AND VENTILATION ........................... 4
UNPACKING ............................................................................... 6
INSTALLATION ........................................................................... 6
OPERATING HEATER ............................................................... 11
INSPECTING BURNERS.......................................................... 12
CLEANING AND MAINTENANCE ............................................ 13
TROUBLESHOOTING .............................................................. 14
SPECIFICATIONS .................................................................... 17
REPLACEMENT PARTS .......................................................... 17
SERVICE HINTS ....................................................................... 17
TECHNICAL SERVICE ............................................................. 17
ACCESSORIES ........................................................................ 17
ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST ....... 18
PARTS CENTRALS .................................................................. 22
OWNER’S REGISTRATION FORM .......................................... 23
WARRANTY INFORMATION ....................................... Back Page

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
3
3
1. This appliance is only for use with the type of gas indicated on
the rating plate. This appliance is not convertible for use with
other gases.
2. Do not place propane/LP supply tank(s) inside any structure.
Locate propane/LP supply tank(s) outdoors.
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use any phone in
your building
• immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions
• if you cannot reach your gas supplier, call the fire department
4. This heater shall not be installed in a bedroom or bathroom.
5. Do not place stove directly on carpeting, vinyl tile, or any
combustible material other than wood. The stove must set on
a metal or wood panel extending the full width and depth of
the appliance.
6. Do not use this stove as a wood burning fireplace. Use only
model 111485-02/111485-01 vent-free gas log heater.
7. Do not add extra logs or ornaments such as pine cones, vermicu-
lite, or rock wool. Using these added items can cause sooting.
8. This log heater is designed to be smokeless. If logs ever appear
to smoke, turn off heater and call a qualified service person.
Note: During initial operation, slight smoking could occur due
to log curing and heater burning manufacturing residues.
9. To prevent the creation of soot, follow the instructions in Clean-
ing and Maintenance, page 13.
10. Before using furniture polish, wax, carpet cleaners, or similar
products, turn heater off. If heated, the vapors from these prod-
ucts may create a white powder residue within burner box or
on adjacent walls or furniture.
11. This heater needs fresh, outside air ventilation to run properly.
This heater has an Oxygen Depletion Sensing (ODS) safety shutoff
system. The ODS shuts down the heater if not enough fresh air is
available. See Air for Combustion and Ventilation, page 4. If heater
keeps shutting off, see Troubleshooting, page 14.
12. Do not run heater
• where flammable liquids or vapors are used or stored
• when under dusty conditions
13. Do not use this stove to cook food or burn paper or other objects.
14. Do not use heater if any part has been exposed to or under
water. Immediately call a qualified service technician to inspect
the room heater and to replace any part of the control system
and any gas control which has been under water.
15. Do not operate heater if any log is broken. Do not operate
heater if a log is chipped (dime-sized or larger).
16. Turn heater off and let cool before servicing. Only a qualified
service person should service and repair heater.
17. Operating heater above elevations of 4,500 feet could cause
pilot outage.
18. For propane/LP units, do not use propane/LP tank of less than
100 lb. capacity.
19. Provide adequate clearances around air openings.
20. Screen must be completely closed before using heater. Never
run heater with screen open.
SAFETY INFORMATION
Continued
PRODUCT IDENTIFICATION
Figure 1 - Typical Stove Cabinet Model with Comfort Glow Gas
Log Heater
Stove Body
Stove Door (Shown in
the open position)
Piezo Ignitor Control Knob
One Piece Log
Set Inside Stove
Cavity
SAFETY INFORMATION
PRODUCT IDENTIFICATION
Screen

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
4
AIR FOR COMBUSTION AND
VENTILATION
Today’s homes are built more energy efficient than ever. New materi-
als, increased insulation, and new construction methods help reduce
heat loss in homes. Home owners weather strip and caulk around
windows and doors to keep the cold air out and the warm air in. During
heating months, home owners want their homes as airtight as possible.
While it is good to make your home energy efficient, your home
needs to breathe. Fresh air must enter your home. All fuel-burning
appliances need fresh air for proper combustion and ventilation.
Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances
draw air from the house to operate. You must provide adequate fresh
air for these appliances. This will insure proper venting of vented
fuel-burning appliances.
PROVIDING ADEQUATE VENTILATION
The following are excerpts from National Fuel Gas Code,
ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and
Ventilation.
All spaces in homes fall into one of the three following ventilation
classifications:
1. Unusually Tight Construction
2. Unconfined Space
3. Confined Space
The information on pages 4 through 6 will help you classify your
space and provide adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough
fresh air for combustion and ventilation. However, in buildings of
unusually tight construction, you must provide additional fresh air.
Unusually tight construction is defined as construction
where:
a. walls and ceilings exposed to the outside atmo-
sphere have a continuous water vapor retarder with
a rating of one perm (6 x 10-11 kg per pa-sec-m2) or
less with openings gasketed or sealed and
b. weather stripping has been added on openable win-
dows and doors and
c. caulking or sealants are applied to areas such as
joints around window and door frames, between sole
plates and floors, between wall-ceiling joints, be-
tween wall panels, at penetrations for plumbing, elec-
trical, and gas lines, and at other openings.
If your home meets all of the three criteria above, you
must provide additional fresh air. See Ventilation Air
From Outdoors , page 6.
If your home does not meet all of the three criteria above,
proceed to Determining Fresh-Air Flow For Heater Loca-
tion , page 5.
Confined and Unconfined Space
The National Fuel Gas Code ANSI Z223.1/NFPA 54 defines a
confined space as a space whose volume is less than 50 cubic feet
per 1,000 Btu per hour (4.8 m3per kw) of the aggregate input rating
of all appliances installed in that space and an unconfined space as
a space whose volume is not less than 50 cubic feet per 1,000 Btu per
hour (4.8 m3per kw) of the aggregate input rating of all appliances
installed in that space. Rooms communicating directly with the
space in which the appliances are installed*, through openings not
furnished with doors, are considered a part of the unconfined space.
* Adjoining rooms are communicating only if there are doorless
passageways or ventilation grills between them.
WARNING: This heater shall not be installed in a
confined space or unusually tight construction unless
provisions are provided for adequate combustion and
ventilation air. Read the following instructions to in-
sure proper fresh air for this and other fuel-burning
appliances in your home.
LOCAL CODES
Install and use heater with care. Follow all local codes. In the absence
of local codes, use the latest edition of The National Fuel Gas Code
ANSI Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
OPERATION
This heater is clean burning. It requires no outside venting. There is no
heat loss out a vent or up a chimney. Heat is generated by realistic,
dancing yellow flames. This heater is designed for vent-free operation.
State and local codes in some areas prohibit the use of vent-free heaters.
SAFETY PILOT
This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety
shutoff system. The ODS/pilot is a required feature for vent-free room
heaters. The ODS/pilot shuts off the heater if there is not enough fresh air.
PIEZO IGNITION SYSTEM
This heater has a piezo ignitor. This system requires no matches,
batteries, or other sources to light heater.
PRODUCT FEATURES
LOCAL CODES
PRODUCT FEATURES
AIR FOR COMBUSTION AND VENTILATION
Providing Adequate Ventilation

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
5
5
AIR FOR COMBUSTION AND
VENTILATION
Continued
DETERMINING FRESH-AIR FLOW FOR
HEATER LOCATION
Determining if You Have a Confined or
Unconfined Space
Use this work sheet to determine if you have a confined or uncon-
fined space.
Space: Includes the room in which you will install heater plus any
adjoining rooms with doorless passageways or ventilation grills
between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = cu. ft. (volume of space)
Example: Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling
height) = 2560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or open-
ings, add the volume of these rooms to the total volume of the space.
2. Multiply the space volume by 20 to determine the maximum Btu/Hr
the space can support.
(volume of space) x 20 = (maximum Btu/Hr the space can support)
Example: 2560 cu. ft. (volume of space) x 20 = 51,200 (maximum
Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free heater ______________ Btu/Hr
Gas water heater* ______________ Btu/Hr
Gas furnace ______________ Btu/Hr
Vented gas heater ______________ Btu/Hr
Gas fireplace logs ______________ Btu/Hr
Other gas appliances* + _____________ Btu/Hr
Total = _____________ Btu/Hr
* Do not include direct-vent gas appliances. Direct-vent draws com-
bustion air from the outdoors and vents to the outdoors.
Example:
Gas water heater _____________ Btu/Hr
Vent-free heater + _____________ Btu/Hr
Total = _____________ Btu/Hr
4. Compare the maximum Btu/Hr the space can support with the actual
amount of Btu/Hr used.
__________________ Btu/Hr (maximum the space can support)
__________________ Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space can support)
70,000 Btu/Hr (actual amount of Btu/Hr used)
The space in the above example is a confined space because the actual Btu/
Hr used is more than the maximum Btu/Hr the space can support. You must
provide additional fresh air. Your options are as follows:
WARNING: If the area in which the heater may be
operated is smaller than that defined as an uncon-
fined space or if the building is of unusually tight
construction, provide adequate combustion and ven-
tilation air by one of the methods described in the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Sec-
tion 5.3 or applicable local codes.
40,000
30,000
70,000
A. Rework worksheet, adding the space of an adjoining room. If the
extra space provides an unconfined space, remove door to adjoining
room or add ventilation grills between rooms. See Ventilation Air
From Inside Building, page 6.
B. Vent room directly to the outdoors. See Ventilation Air From Out-
doors, page 6.
C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support,
thespaceisanunconfinedspace.Youwillneed no additional fresh air ventilation.
AIR FOR COMBUSTION AND VENTILATION
Determining Fresh-Air Flow for Heater Location
Ventilation Air
Figure 2 - Ventilation Air from Inside Building
VENTILATION AIR

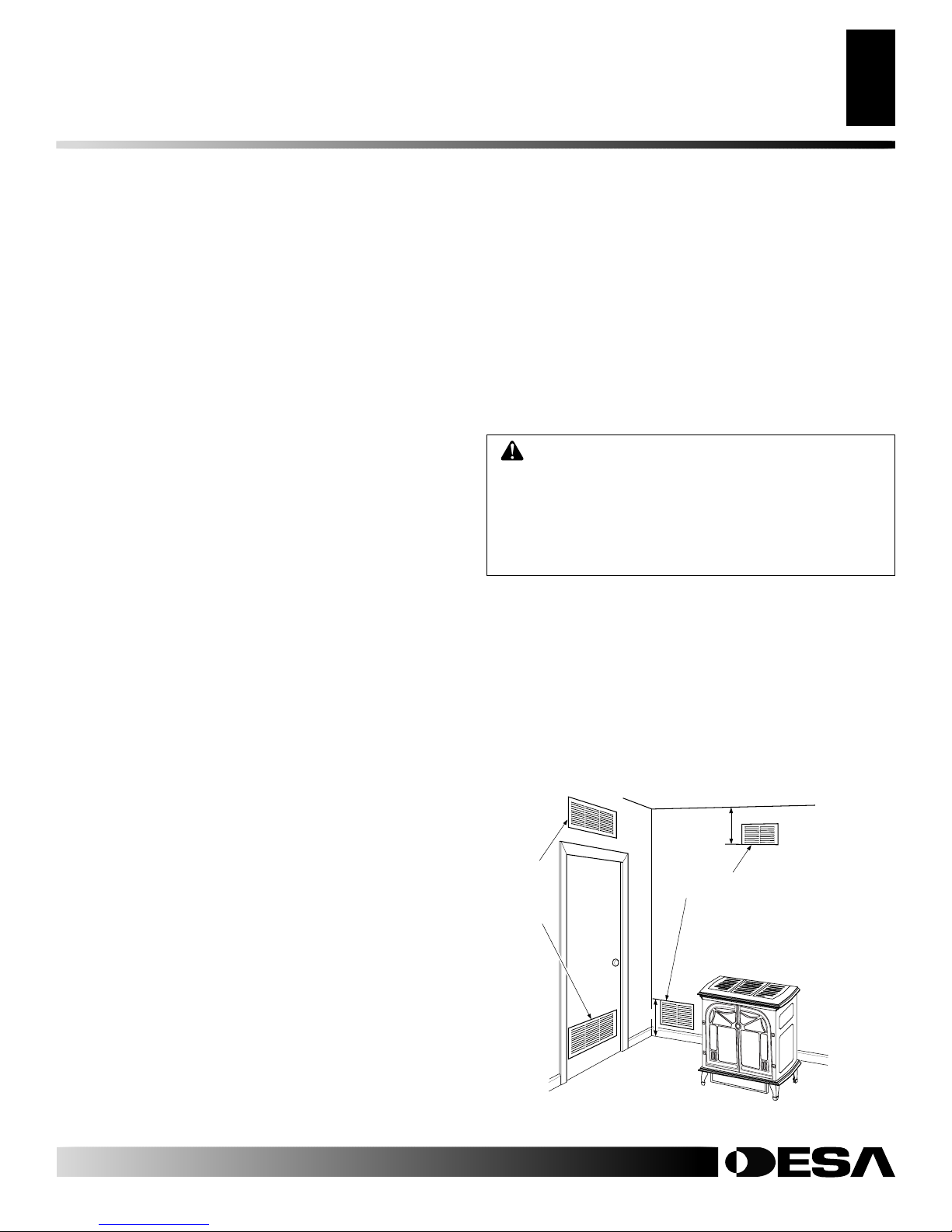

Ventilation Air From Inside Building
This fresh air would come from an adjoining unconfined space.
When ventilating to an adjoining unconfined space, you must
provide two permanent openings: one within 12" of the ceiling and
one within 12" of the floor on the wall connecting the two spaces
(see options 1 and 2, Figure 2). You can also remove door into
adjoining room (see option 3, Figure 2). Follow the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion
and Ventilation for required size of ventilation grills or ducts.
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills
Into Adjoining
Room,
Option 1
12"
12"

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
6
NOTICE: This heater is intended for use as supple-
mental heat. Use this heater along with your primary
heating system. Do not install this heater as your
primary heat source. If you have a central heating
system, you may run system’s circulating blower
while using heater. This will help circulate the heat
throughout the house. In the event of a power outage,
you can use this heater as your primary heat source.
WARNING: A qualified service person must in-
stall heater. Follow all local codes.
WARNING: Never install the heater
• in a bedroom or bathroom
• in a recreational vehicle
• where curtains, furniture, clothing, or other flam-
mable objects are less than 42 inches from the
front, top, or sides of the heater
• in high traffic areas
• in windy or drafty areas
INSTALLATION
AIR FOR COMBUSTION AND
VENTILATION
Continued

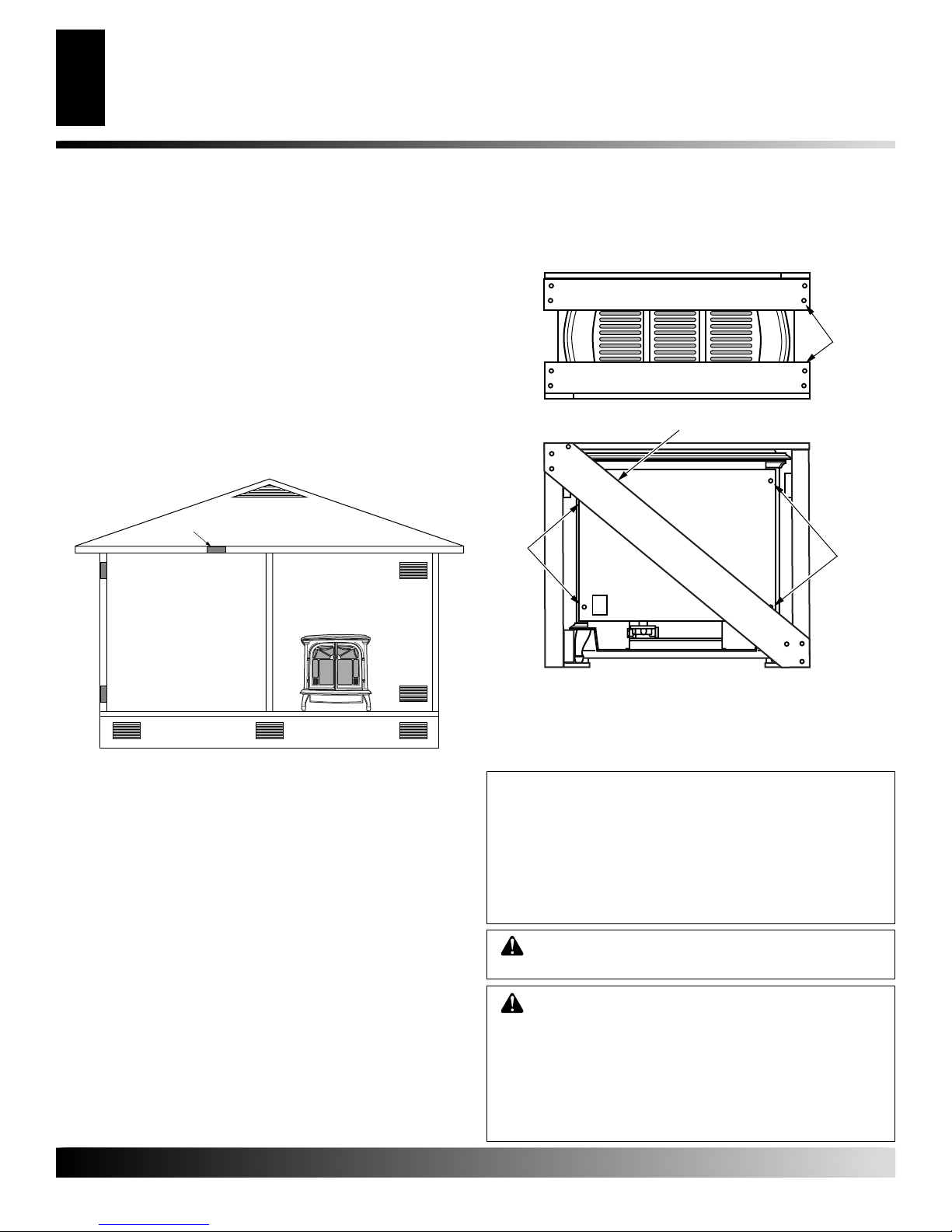

Figure 3 - Ventilation Air from Outdoors
Outlet
Air
Ventilated
Attic
Outlet
Air
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
AIR FOR COMBUSTION AND VENTILATION
Ventilation Air (Cont.)
UNPACKING
INSTALLATION
UNPACKING
1. Lift off corrugated box enclosing stove body crating.
2. Remove screws fastening back and top of wood frame enclo-
sure. Two or more people must carefully lift stove up and out
of wooden crate.
3. Remove plastic bag from stove body.
4. Remove back panel from stove (see Figure 4). Use an adjust-
able wrench or a 10 mm socket. Remove four (4) bolts and
washers. Keep bolts and washers to reattach back panel later.
5. Remove bubble-wrapped log set, rod and screen from stove.
Remove all protective packaging applied for shipment.
6. Check all items for any shipping damage. If damaged, promptly
inform dealer where you bought heater. Some fiber flakes may
fall from logs. This is acceptable.
7. Place freestanding stove near desired location in room.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or ducts. You must
provide two permanent openings: one within 12" of the ceiling and
one within 12" of the floor. Connect these items directly to the
outdoors or spaces open to the outdoors. These spaces include attics
and crawl spaces. Follow the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation
for required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet or outlet air
into attic if attic has a thermostat-controlled power vent. Heated
air entering the attic will activate the power vent.
Figure 4 - Unpacking Stove from Wooden Shipping Enclosure
Back of Wood
Frame Enclosure
Back
Panel
Screws
Back
Panel
Screws
STOVE BACK
STOVE TOP
Top of
Wood
Frame
Enclosure

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
7
7
s
INSTALLATION
Check Gas Type
Clearances to Combustibles
CAUTION: This heater creates warm air currents.
These currents move heat to wall surfaces next to
heater. Installing heater next to vinyl or cloth wall
coverings or operating heater where impurities (such
as, but not limited to, tobacco smoke, aromatic
candles, cleaning fluids, oil or kerosene lamps, etc.)
in the air exist, may discolor walls or cause odors.
CHECK GAS TYPE
Use the correct gas type (natural or propane/LP) for your unit. If your
stove heater gas type is different from your house gas type, do not install
heater. Call dealer where you bought heater for proper type heater.
WARNING: This appliance is equipped for (natural
or propane/LP) gas. Field conversion is not permitted.
IMPORTANT: Vent-free heaters add moisture to the air. Although
this is beneficial, installing heater in rooms without enough venti-
lation air may cause mildew to form from too much moisture. See
Air for Combustion and Ventilation, pages 4 through 6.

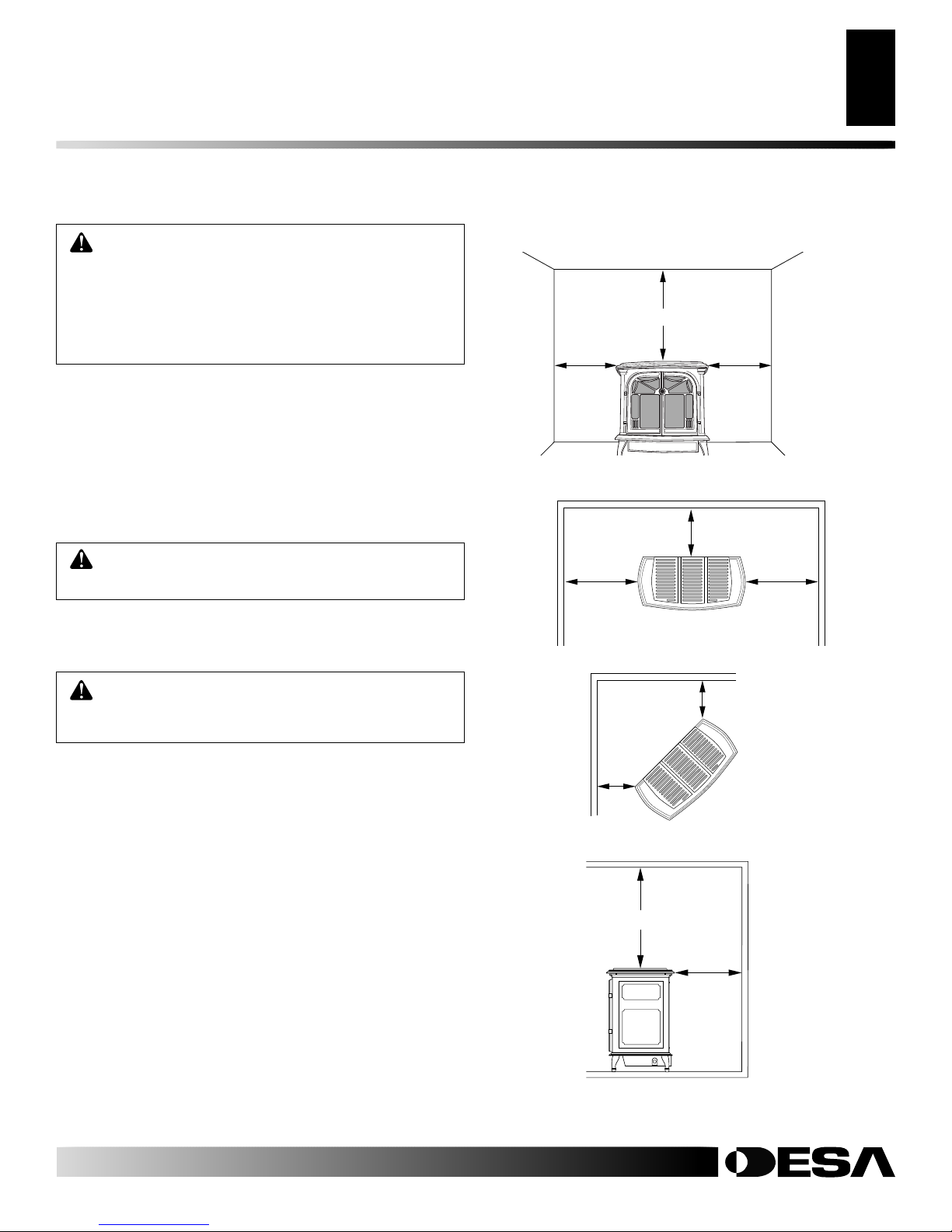

CLEARANCES TO COMBUSTIBLES
(Vent-Free Operation Only)
WARNING: Maintain the minimum clearances. If
you can, provide greater clearances from floor, ceil-
ing, and adjoining side and back walls.
Carefully follow the instructions below. This stove is a freestanding
unit designed to set directly on the floor. DO NOT place stove
directly on carpeting, vinyl tile or any combustible material other
than wood. The stove must be set on a metal or wood panel
extending the full width and depth of the stove for these floor
coverings. IMPORTANT: You must maintain minimum wall and
ceiling clearances during installation. The minimum clearances are
shown in Figure 5. Measure from outermost point of stove top.
Minimum Wall and Ceiling Clearances (see Figure 5)
A. Clearances from outermost point of stove top to any combus-
tible side wall should not be less than 12 inches.
B. Clearances from outermost point of stove top to any combus-
tible back wall should not be less than 6 inches (includes cor-
ner installations).
C. Clearances from the stove top to the ceiling should not be less
than 48 inches.
Figure 5 - Minimum Clearance to Walls and Ceiling (Stove May
Vary Depending on Model)
Front View
Top View
Side View
Front of
Stove Unit
12"
Minimum
12"
Minimum
48"
Minimum
Ceiling
Side Wall Side Wall
Back Wall
Side Wall Side Wall
12 "
Minimum 12
"
Minimum
6
"
Minimum
6"
Minimum
48"
Minimum
Ceiling
Floor
Back Wall
Corner
Wall
Wall
6 "
Minimum
6 "
Minimum
Front of
Stove Unit
Front of
Stove Unit
INSTALLATION
Continued

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
8
CONNECTING TO GAS SUPPLY
WARNING: A qualified service person must con-
nect heater to gas supply. Follow all local codes.
Installation Items Needed
Before installing heater, make sure you have the items listed below.
• external regulator [propane/LP only] (supplied by installer)
• piping to stove location (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
* A CSA design-certified equipment shutoff valve with 1/8" NPT
tap is an acceptable alternative to test gauge connection. Purchase
the optional CSA design-certified equipment shutoff valve from
your dealer. See Accessories, page 17.
The gas inlet connection for the stove heater is located on the lower
right-hand side of the stove when viewed from the front of the unit.
The gas connection can be made either through the bottom right side
or through the lower back opening as illustrated in Figure 6. Make
sure gas log heater is secured to the stove cavity assembly.
For propane/LP units, the installer must supply an external regulator.
The external regulator will reduce incoming gas pressure. You must
reduce incoming gas pressure to between 11 and 14 inches of water.
If you do not reduce incoming gas pressure, heater regulator damage
could occur. Install external regulator with the vent pointing down as
shown in Figure 7. Pointing the vent down protects it from freezing
rain or sleet.
CAUTION: Never connect propane/LP heater di-
rectly to the propane/LP supply. This heater requires an
external regulator (not supplied). Install the external
regulator between the heater and propane/LP supply.
WARNING: This appliance requires a 1/2" NPT
(National Pipe Thread) inlet connection to the pres-
sure regulator.
INSTALLATION
Continued

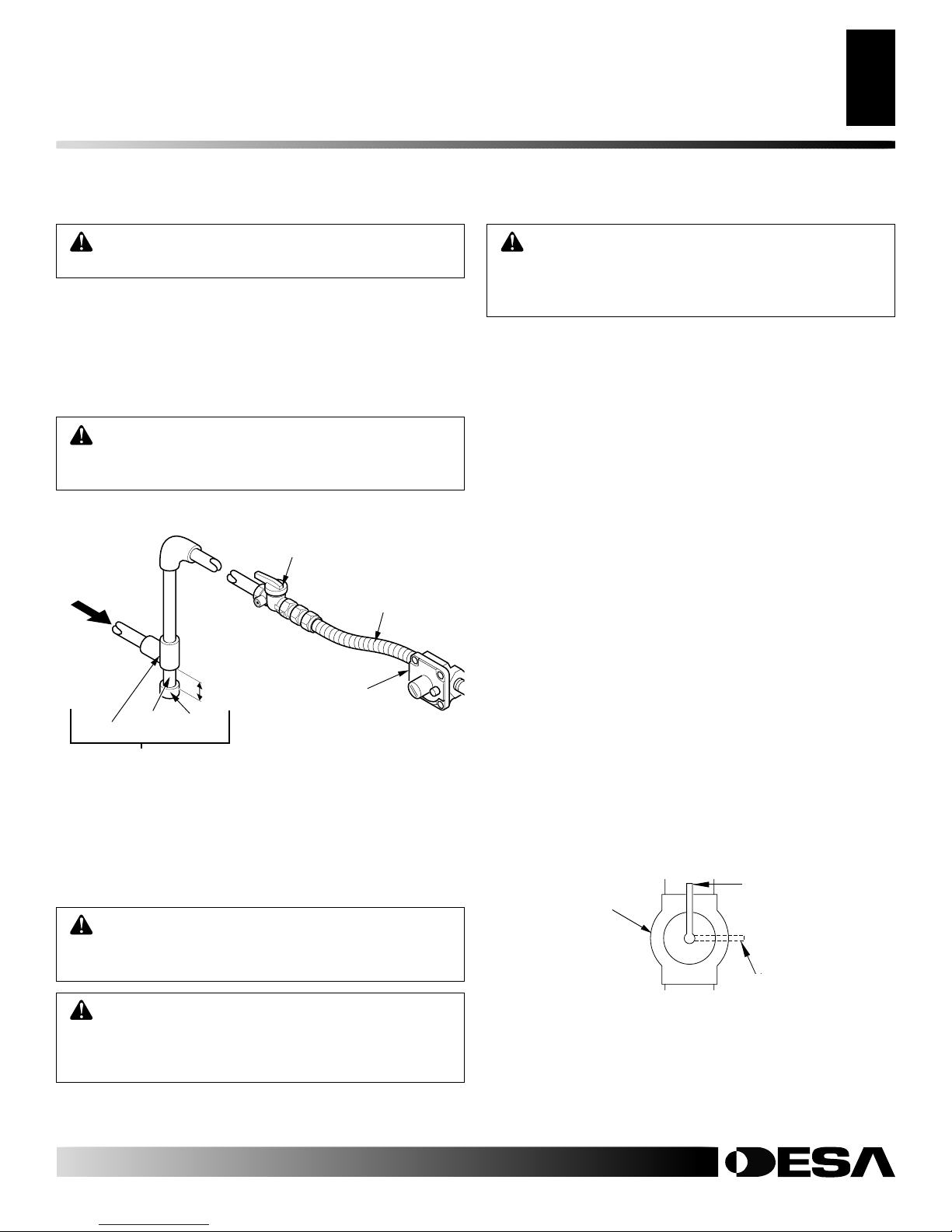

Figure 6 - Gas Regulator Location and Gas Line Access Into
Stove Cabinet
Back
Stove
Panel
Front
of
Stove
Unit
Gas Inlet
Connection
Access
Product
Identification
Label
Gas Log Heater
Back ViewSide View
Figure 7 - External Regulator For Propane/LP Gas With Vent
Pointing Down
Propane/LP
Supply Tank
Vent Pointing
Down
CAUTION: For propane/LP units, use only new,
black iron or steel pipe. Internally-tinned copper tub-
ing may be used in certain areas. Check your local
codes. Use pipe of 1/2" diameter or greater to allow
proper gas volume to heater. If pipe is too small, undue
loss of volume will occur.
Installation must include an equipment shutoff valve, union, and
plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge hook
up. NPT tap must be upstream from heater (see Figure 8, page 9).
IMPORTANT: Install equipment shutoff valve in an accessible
location. The equipment shutoff valve is for turning on or shutting
off the gas to the appliance.
Check your building codes for any special requirements for locating
equipment shutoff valve to fireplaces.
Apply pipe joint sealant lightly to male NPT threads. This will
prevent excess sealant from going into pipe. Excess sealant in pipe
could result in clogged heater valves.
External Regulator
INSTALLATION
Connecting To Gas Supply
WARNING: Never connect natural gas heater to
private (non-utility) gas wells. This gas is commonly
known as wellhead gas.

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
9
9
INSTALLATION
Continued
WARNING: Use pipe joint sealant that is resistant
to liquid petroleum (LP) gas.
INSTALLATION
Connecting to Gas Supply (Cont.)
Checking Gas Connections
Tee Pipe Cap
Joint Nipple
Figure 8 - Gas Connection
3" Minimum
Sediment Trap
Gas
Regulator
(Propane/LP)
From External
Regulator (11"
W.C.** to 14"
W.C. Pressure)
CSA Design-Certified
Equipment Shutoff Valve
With 1/8" NPT Tap*
Approved Flexible
Gas Hose (if allowed
by local codes)
CAUTION: Avoid damage to regulator. Hold gas
regulator with wrench when connecting it to gas
piping and/or fittings.
We recommend that you install a sediment trap in supply line as
shown in Figure 8. Locate sediment trap where it is within reach for
cleaning. Install in piping system between fuel supply and heater.
Locate sediment trap where trapped matter is not likely to freeze. A
sediment trap traps moisture and contaminants. This keeps them
from going into heater controls. If sediment trap is not installed or
is installed wrong, heater may not run properly.
* Purchase the optional CSA design-certified equipment shutoff
valve from your dealer. See Accessories, page 17.
** Minimum inlet pressure for purpose of input adjustment.
WARNING: Never use an open flame to check for
a leak. Apply a noncorrosive leak detection fluid to all
joints. Bubbles forming show a leak. Correct all leaks
at once.
WARNING: Test all gas piping and connections,
internal and external to unit, for leaks after installing
or servicing. Correct all leaks at once.
CHECKING GAS CONNECTIONS
Pressure Testing Gas Supply Piping System
Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)
1. Disconnect appliance with its appliance main gas valve (control
valve) and equipment shutoff valve from gas supply piping sys-
tem. Pressures in excess of 1/2 psig will damage heater regulator.
2. Cap open end of gas pipe where equipment shutoff valve was
connected.
3. Pressurize supply piping system by either opening propane/LP sup-
ply tank valve for propane/LP gas or opening main gas valve lo-
cated on or near gas meter for natural gas, or using compressed air.
4. Check all joints of gas supply piping system. Apply noncorrosive
leak detection fluid to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Reconnect heater and equipment shutoff valve to gas supply.
Check reconnected fittings for leaks.
Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve (see Figure 9).
2. Pressurize supply piping system by either opening propane/
LP supply tank valve for propane/LP gas or opening main gas
valve located on or near gas meter for natural gas, or using
compressed air.
3. Check all joints from gas meter for natural or propane/LP sup-
ply to equipment shutoff valve (see Figure 10 or 11, page 10).
Apply noncorrosive leak detection fluid to gas joints. Bubbles
forming show a leak.
4. Correct all leaks at once.
CAUTION: Make sure external regulator has been
installed between propane/LP supply and propane/LP
heater. See guidelines under Connecting to Gas Sup-
ply, page 8.
O
N
POSI
T
O
PO
S

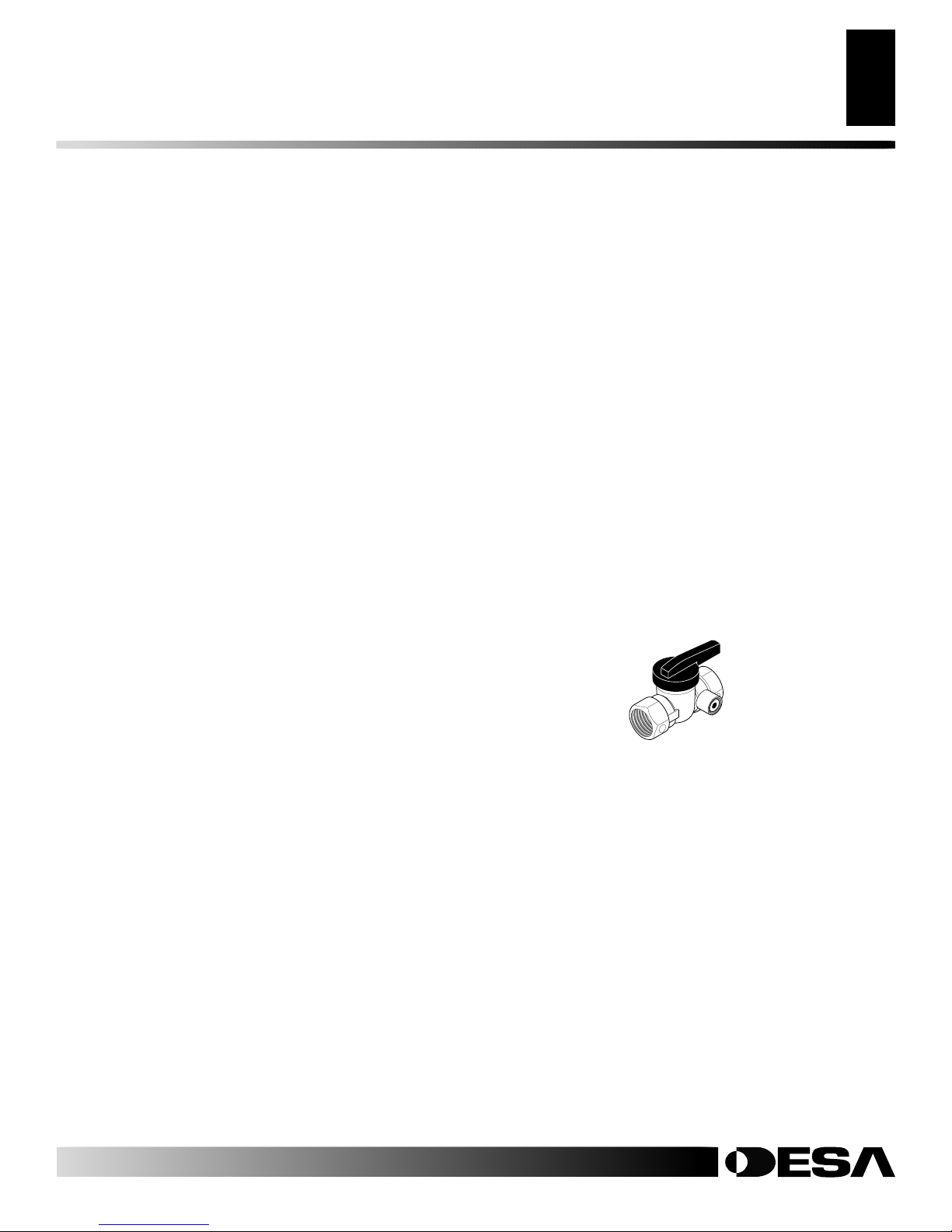

Figure 9 - Equipment Shutoff Valve
Closed
Equipment
Shutoff
Valve
Open

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
10
INSTALLATION
Continued
Figure 10 - Checking Gas Joints on Propane/LP Gas Unit
Control Valve Location
Propane/LP
Supply Tank
Equipment
Shutoff Valve
Pressure Testing Heater Gas Connections
1. Open equipment shutoff valve (see Figure 9, page 9).
2. Open main gas valve located on or near gas meter for natural
gas or open propane.LP supply tank valve.
3. Make sure control knob of heater is in the OFF position.
4. Check all joints from equipment shutoff valve to control valve
(see Figure 10 or 11). Apply noncorrosive leak detection fluid
to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light heater (see Operating Heater, page 11). Check all other
internal joints for leaks.
7. Turn off heater (see To Turn Off Gas to Appliance, page 11).
INSTALLATION
Checking Gas Connections (Cont.)
Installing Rod and Screen
Figure 11 - Checking Gas Joints on Natural Gas Unit
Gas Meter
Equipment
Shutoff Valve
Control Valve Location
INSTALLING ROD AND SCREEN
1. Insert rod through small rings located at top of screen (see
Figure 12).
2. From back of stove, insert rod into hole located inside right
front of stove as shown in Figure 13.
3. Slip left side of rod down into slot on inside left front of stove
(see Figure 13).
Figure 12 - Assembling Rod and Screen
Slot on Inside Left
Front of Stove
Rod
Figure 13 - Installing Screen Into Stove (View From Back of
Stove)
Rings
Hole on Inside Right
Front of Stove
Rod with Screen
Assembled

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
11
11
OPERATING HEATER
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not follow these instructions
exactly, a fire or explosion may result causing prop-
erty damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand.
When lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the floor because some gas
is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in
your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire de-
partment.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by
hand, don’t try to repair it, call a qualified service techni-
cian or gas supplier. Force or attempted repair may result
in a fire or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
1. STOP! Read the safety information, abovc.
2. Make sure equipment shutoff valve is fully open.
3. Turn control knob clockwise
Clockwise
to the OFF position.
4. Wait five (5) minutes to clear out any gas. Then smell for
gas, including near the floor. If you smell gas, STOP! Fol-
low “B” in the safety information, above. If you don’t smell
gas, go to the next step.
5. Turn control knob counterclockwise
C-clockwise
to the PI-
LOT position. Press in control knob for five (5) seconds
(see Figure 16, page 12).
LIGHTING
INSTRUCTIONS
NOTICE: During initial operation of new heater, burning
logs will give off a paper-burning smell. Orange flame
will also be present. Open a window to vent smell. This
will only last a few hours.
INSTALLATION
Installing Log Set
OPERATING HEATER
For Your Safety Read Before Lighting
Lighting Instructions
LO
PILOT
OFF
HI
Figure 14 - Installing One-Piece Stove Log Set
Burner Porting Areas (double
slotted rectangular openings
Figure 15 - Top View of One-Piece Log Set on Gas Log Heater
Safety Pilot
Location
One-Piece
Log Set
One-Piece
Log Set
Heater
Base
"U" Shaped
Cutout in
Chassis
Burner
Middle Section
at Bottom of
Log Set
INSTALLING LOG SET
1. Set one-piece log on heater base as shown in Figure 12. Make
sure middle section at bottom of log is seated into "U" shaped
cutout in center of heater base. Log will fit securely on base.
IMPORTANT: Make sure log does not cover any burner ports
and does not touch the stove cavity (see Figure 14).
2. Fasten back panel to stove with four (4) bolts and washers re-
moved in step 4 of Unpacking, page 6. Make sure product iden-
tification label is located on the outside lower left-hand corner.
3. Place freestanding stove in desired position being careful not
to damage gas connections. Be sure to maintain clearances to
combustibles and wall clearances as outlined on page 7.
INSTALLATION
Continued

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
12
INSPECTING BURNERS
Check pilot flame pattern and burner flame patterns often.
PILOT FLAME PATTERN
Figure 18 shows a correct pilot flame pattern. Figure 19 shows an
incorrect pilot flame pattern. The incorrect pilot flame is not touching
the thermocouple. This will cause the thermocouple to cool. When the
thermocouple cools, the heater will shut down.
If pilot flame pattern is incorrect, as shown in Figure 19
• turn heater off (see To Turn Off Gas to Appliance, column 1)
• see Troubleshooting, pag 14
Note: The pilot flame on natural gas units will have a slight curve,
but flame should be blue and have no yellow or orange color.
Figure 18 - Correct Pilot Flame
Pattern (Propane/LP Shown)
Figure 19 - Incorrect Pilot Flame
Pattern (Propane/LP Shown)
Thermocouple
Pilot Burner Pilot Burner
Thermocouple
1. Follow steps 1 through 5 under Lighting Instructions, page 11.
2. Depress control knob and light pilot with match.
3. Keep control knob pressed in for 30 seconds after lighting
pilot. After 30 seconds, release control knob. Now follow
step 8 in Lighting Instructions, column 1.
THERMOSTAT CONTROL
OPERATION
The thermostat control knob can be set to any comfort level
between HI and LO. The thermostat will gradually modulate
the heat output and flame height from higher to lower settings,
or pilot, in order to maintain the comfort level you select. The
ideal comfort setting will vary by household depending upon the
amount of space to be heated, the output of the central heating
system, etc.
Note: Selecting the HI setting with the control knob will cause the
burner to remain fully on, without modulating down in most cases.
MANUAL LIGHTING
PROCEDURE
OPERATING HEATER
Continued
OPERATING HEATER
Lighting Instructions (Cont.)
To Turn Off Gas To Appliance
Thermostat Control Operation
Manual Lighting Procedure
INSPECTING BURNERS

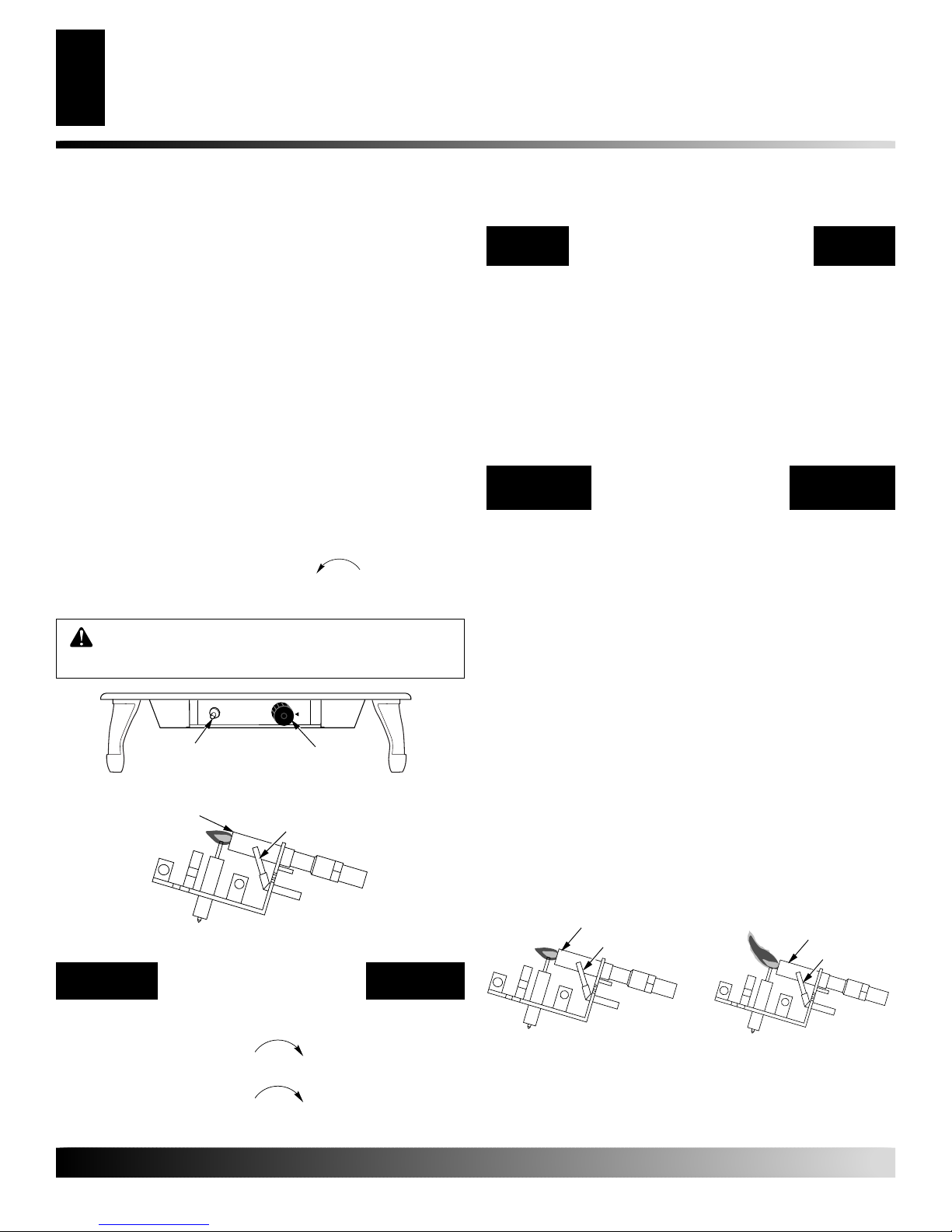

Figure 16 - Control Knob and Ignitor Button Location
Control Knob
Ignitor Button
Figure 17 - Pilot
Thermocouple
Pilot Burner
CAUTION: Do not try to adjust heating levels by
using the equipment shutoff valve.
TO TURN OFF GAS
TO APPLIANCE
Shutting Off Heater
Turn control knob clockwise
Clockwise
to the OFF position.
Shutting Off Burners Only (pilot stays lit)
Turn control knob clockwise
Clockwise
to the PILOT position.
Note: You may be running this heater for the first time
after hooking up to gas supply. If so, the control knob may
need to be pressed in for 30 seconds or more. This will al-
low air to bleed from the gas system.
6. With control knob pressed in, press and release ignitor but-
ton. This will light pilot. The pilot is attached to the front
burner. If needed, keep pressing ignitor button until pilot lights.
Note: If pilot does not stay lit, contact a qualified service
person or gas supplier for repairs. Until repairs are made,
light pilot with match. To light pilot with match, see Manual
Lighting Procedure, column 2.
7. Keep control knob pressed in for 30 seconds after lighting
pilot. After 30 seconds, release control knob.
• If control knob does not pop out when released, contact a
qualified service person or gas supplier for repairs.
Note: If pilot goes out, repeat steps 3 through 7. This heater
has a safety interlock system. Wait one (1) minute for sys-
tem to reset before lighting pilot again.
8. Turn control knob counterclockwise
C-clockwise
to desired heat-
ing level. The burners should light. Set control knob to any
heat level between HI and LO.

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
13
13
CLEANING AND
MAINTENANCE
WARNING: Turn off heater and let cool before
cleaning.
CAUTION: You must keep control areas, burner,
and circulating air passageways of heater clean. In-
spect these areas of heater before each use. Have
heater inspected yearly by a qualified service person.
Heater may need more frequent cleaning due to exces-
sive lint from carpeting, pet hair, bedding material, etc.
BURNER INJECTOR HOLDER AND PILOT AIR
INLET HOLE
The primary air inlet holes allow the proper amount of air to mix with
the gas. This provides a clean burning flame. Keep these holes clear
of dust, dirt, lint and pet hair. Clean these air inlet holes prior to each
heating season. Blocked air holes will create soot. We recommend
that you clean the unit every three months during operation and have
heater inspected yearly by a qualified service person.
We also recommend that you keep the burner tube and pilot assembly
clean and free of dust and dirt. To clean these parts we recommend using
compressed air no greater than 30 PSI. Your local computer store,
hardware store, or home center may carry compressed air in a can. You
can use a vacuum cleaner in the blow position. If using compressed air in
acan,pleasefollowthedirectionson the can. If you don'tfollowdirections
on the can, you could damage the pilot assembly. Note: Removing the
rear panel and top grates of your stove will make cleaning easier.
1. Shut off the unit, including the pilot. Allow the unit to cool for
at least thirty minutes.
2. Inspect burner, pilot, and primary air inlet holes on injector
holder for dust and dirt (see Figure 20).
3. Blow air through the ports/slots and holes in the burner.
Figure 20 - Injector Holder On Outlet Burner Tube
Burner Tube
Injector Holder
(May Be Brass
or Aluminum
Depending on
Model)
Primary Air Inlet Holes
(Shape of Holes May
Vary by Model)
Figure 21 - Pilot Inlet Air Hole
Burner Tube
Pilot Assembly
Pilot Air
Inlet Hole
Ports/Slots
INSPECTING BURNERS
CLEANING AND MAINTENANCE
Cleaning Burner Injector Holder and Pilot Air Inlet Hole
Logs
4. Check the injector holder located at the end of the burner tube
again. Remove any large particles of dust, dirt, lint, or pet hair
with a soft cloth or vacuum cleaner nozzle.
5. Blow air into the primary air holes on the injector holder.
6. In case any large clumps of dust have now been pushed into
the burner repeat steps 3 and 4.
Clean the pilot assembly also. A yellow tip on the pilot flame
indicates dust and dirt in the pilot assembly. There is a small pilot
air inlet hole about two inches from where the pilot flame comes out
of the pilot assembly (see Figure 21). With the unit off, lightly blow
air through the air inlet hole. You may blow through a drinking straw
if compressed air is not available.
WARNING: Failure to keep the primary air
opening(s) of the burner(s) clear may result in soot-
ing and property damage.
LOGS
• If you remove logs for cleaning, refer to Installing Log Set, page
11, to properly replace logs.
• Replace log(s) if broken or chipped (dime-sized or larger).
MAIN BURNER
Periodically inspect all burner flame holes with the heater running. All
slotted burner flame holes should be open with yellow flame present.
All round burner flame holes should be open with a small blue flame
present. Some burner flame holes may become blocked by debris or
rust, with no flame present. If so, turn off heater and let cool. Remove
blockage. Blocked burner flame holes will create soot.
INSPECTING BURNERS
Continued

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
14
TROUBLESHOOTING
WARNING: Turn off heater
and let cool before servicing. Only
a qualified service person should
service and repair heater.
CAUTION: Never use a wire,
needle, or similar object to clean
ODS/pilot. This can damage ODS/
pilot unit.
POSSIBLE CAUSE
1. Ignitor electrode not connected to igni-
tor cable
2. Ignitor cable pinched or wet
3. Broken ignitor cable
4. Bad piezo ignitor
5. Ignitor electrode broken
6. Ignitor electrode positioned wrong
1. Gas supply turned off or equipment
shutoff valve closed
2. Control knob not in PILOT position
3. Control knob not pressed in while in
PILOT position
4. Air in gas lines when installed
5. ODS/pilot is clogged
6. Gas regulator setting is not correct
7. Depleted gas supply (propane/LP only)
1. Control knob not fully pressed in
2. Control knob not pressed in long enough
3. Equipment shutoff valve not fully open
4. Pilot flame not touching thermocouple,
which allows thermocouple to cool,
causing pilot flame to go out. This prob-
lem could be caused by one or both of
the following:
A) Low gas pressure
B) Dirty or partially clogged ODS/pilot
5. Thermocouple connection loose at con-
trol valve
6. Thermocouple damaged
7. Control valve damaged
REMEDY
1. Reconnect ignitor cable
2. Free ignitor cable if pinched by any
metal or tubing. Keep ignitor cable dry
3. Replace ignitor cable
4. Replace piezo ignitor
5. Replace pilot assembly
6. Replace pilot assembly
1. Turn on gas supply or open equipment
shutoff valve
2. Turn control knob to PILOT position
3. Press in control knob while in PILOT
position
4. Continue holding down control knob.
Repeat igniting operation until air is re-
moved
5. Clean ODS/pilot (see Cleaning and
Maintenance, page 13) or replace ODS/
pilot assembly
6. Replace gas control
7. Contact local propane/LP gas company
1. Press in control knob fully
2. After ODS/pilot lights, keep control
knob pressed in 30 seconds
3. Fully open equipment shutoff valve
4. A) Contact local natural or propane/LP
gas company
B) Clean ODS/pilot (see Cleaning and
Maintenance, page 13) or replace ODS/
pilot assembly
5. Hand tighten until snug, then tighten
1/4 turn more
6. Replace pilot assembly
7. Replace control valve
OBSERVED PROBLEM
When ignitor button is pressed, there is no
spark at ODS/pilot
When ignitor button is pressed, there is
spark at ODS/pilot but no ignition
ODS/pilot lights but flame goes out when
control knob is released
Note: For additional help, visit DESA
Heating Products’ Technical Service web
site at www.desatech.com.
Note: All troubleshooting items are listed in
order of operation.
TROUBLESHOOTING

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
15
15
OBSERVED PROBLEM
Burner does not light after ODS/pilot is lit
Delayed ignition burner
Burner backfiring during combustion
Slight smoke or odor during initial operation
Moisture/condensation noticed on windows
Heater produces a whistling noise when
burner is lit
Dark residue on logs or inside of fireplace
White powder residue forming within burner
box or on adjacent walls or furniture
REMEDY
1. Clean burner (see Cleaning and Main-
tenance, page 13) or replace burner
orifice
2. Contact local natural or propane/LP gas
company
1. Contact local natural or propane/LP gas
company
2. Clean burner (see Cleaning and Main-
tenance, page 13) or replace burner
orifice
1. Clean burner (see Cleaning and Mainte-
nance, page 13) or replace burner orifice
2. Replace damaged burner
3. Replace gas control
1. Check burner for dirt and debris. If
found, clean burner (see Cleaning and
Maintenance, page 13)
2. Replace gas control
3. Problem will stop after a few hours of
operation
1. Refer to Air for Combustion and Venti-
lation requirements (page 4)
1. Turn control knob to LO position and
let warm up for a minute
2. Operate burner until air is removed from
line. Have gas line checked by local
natural or propane/LP gas company
3. Observe minimum installation clear-
ances (see page 7)
4. Clean burner (see Cleaning and Main-
tenance, page 13) or replace burner
orifice
1. Properly locate logs (see Installing Log
Set, page 11)
2. Eliminate source of drafts around heater
3. Clean out air holes at burner inlet. Peri-
odically repeat as needed
4. Remove blockage
1. Turn heater off when using furniture
polish, wax, carpet cleaners, or similar
products
TROUBLESHOOTING
Continued
POSSIBLE CAUSE
1. Burner orifice clogged
2. Inlet gas pressure is too low
1. Manifold pressure is too low
2. Burner orifice clogged
1. Burner orifice is clogged or damaged
2. Damaged burner
3. Gas regulator defective
1. Not enough air
2. Gas regulator defective
3. Residues from manufacturing processes
and logs curing
1. Not enough combustion/ventilation air
1. Turning control knob to HI position
when burner is cold
2. Air in gas line
3. Air passageways on heater blocked
4. Dirty or partially clogged burner orifice
1. Improper log placement
2. Drafts or other air currents affecting
flame pattern
3. Air holes at burner inlet blocked
4. Burner flame holes blocked
1. When heated, vapors from furniture pol-
ish, wax, carpet cleaners, etc. may turn
into white powder residue
TROUBLESHOOTING

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
16
WARNING: If you smell gas
• Shut off gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in
your building.
• Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
POSSIBLE CAUSE
1. Metal expanding while heating or con-
tracting while cooling
1. Heater burning vapors from paint, hair
spray, glues, cleaners, chemicals, new
carpet, etc. (See IMPORTANT state-
ment above)
2. Gas leak. See Warning statement at
top of page
1. Not enough fresh air is available
2. Low line pressure
3. ODS/pilot is partially clogged
1. Gas leak. See Warning statement at
top of page
2. Control valve defective
1. Foreign matter between control valve
and burner
2. Gas leak. See Warning statement at
top of page
OBSERVED PROBLEM
Heater produces a clicking/ticking noise
just after burner is lit or shut off
Heater produces unwanted odors
Heater shuts off in use (ODS operates)
Gas odor even when control knob is in OFF
position
Gas odor during combustion
REMEDY
1. This is common with most heaters. If
noise is excessive, contact qualified ser-
vice person
1. Open window and ventilate room. Stop
using odor causing products while heater
is running
2. Locate and correct all leaks (see Check-
ing Gas Connections, page 9)
1. Open window and/or door for ventilation
2. Contact local natural or propane/LP gas
company
3. Clean ODS/pilot (see Cleaning and
Maintenance, page 13)
1. Locate and correct all leaks (see Check-
ing Gas Connections, page 9)
2. Replace control valve
1. Take apart gas tubing and remove for-
eign matter
2. Locate and correct all leaks (see Check-
ing Gas Connections, page 9)
IMPORTANT: Operating heater where impurities in air exist may create odors.
Cleaning supplies, paint, paint remover, cigarette smoke, cements and glues, new
carpet or textiles, etc., create fumes. These fumes may mix with combustion air
and create odors. These odors will disappear over time.
TROUBLESHOOTING
Continued
TROUBLESHOOTING

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
17
17
SERVICE HINTS
When Gas Pressure Is Too Low
• pilot will not stay lit
• burners will have delayed ignition
• heater will not produce specified heat
• propane/LP gas supply may be low
You may feel your gas pressure is too low. If so, contact your local
propane/LP gas supplier.
TECHNICAL SERVICE
You may have further questions about installation, operation, or
troubleshooting. If so, contact DESA Heating Products’ Technical
Service Department at 1-866-672-6040. When calling, please have
your model and serial numbers of your heater ready.
You can also visit DESA Heating Products’ technical service web
site at www.desatech.com.
ACCESSORIES
Purchase these heater accessories from your local dealer. If they
can not supply these accessories, call DESA Heating Products at
1-866-672-6040 for referral information. You can also write to the
address listed on the back page of this manual.
SPECIFICATIONS
REPLACEMENT PARTS
SERVICE HINTS
TECHNICAL SERVICE
ACCESSORIES
REPLACEMENT PARTS
Note: Use only original replacement parts. This will protect your
warranty coverage for parts replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product. If they can’t supply
original replacement part(s), call DESA Heating Products’ Techni-
cal Service Department at 1-866-672-6040.
When calling DESA Heating Products, have ready
• your name
• your address
• model and serial numbers of your heater
• how heater was malfunctioning
• type of gas used (propane/LP or natural gas)
• purchase date
Usually, we will ask you to return the part to the factory.
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product. If they can’t supply original
replacement part(s), either contact your nearest Parts Central (see page 22)
orcallDESAHeatingProductsat1-866-672-6040forreferralinformation.
When calling DESA Heating Products, have ready
• model number of your heater
• the replacement part number
SPECIFICATIONS
CSBPT, CSPBPT, CSPIPT
(Includes 111485-01 Burner Chassis)
Btu (Variable) 16,000/30,000
Type Gas Propane/LP Only
Ignition Piezo
Pressure Manifold 8" W.C.
Inlet Gas Pressure (in. of water)
Maximum 14"
Minimum* 11"
Shipping Weight 265 lbs.
* For input adjustment
CSBNT, CSPBNT, CSPINT
(Includes 111485-02 Burner Chassis)
Btu (Variable) 16,000/30,000
Type Gas Natural Gas Only
Ignition Piezo
Pressure Manifold 3.5" W.C.
Inlet Gas Pressure (in. of water)
Maximum 10.5"
Minimum* 5"
Shipping Weight 265 lbs.
* For input adjustment
EQUIPMENT SHUTOFF VALVE - GA5010
For all models. Equipment shutoff valve with 1/8" NPT tap. Fits 1/2"
NPT pipe.
CLEANING KIT - CCK
(Not Shown)
For all models. Your vent-free gas appliance requires regular
cleaning and maintenance to prevent performance problems. This
kit gives you the tools and instructions to make it easy to clean all
critical areas of your appliance.
INFORMATION VIDEO - 108917-01
For all models. A care and maintenance video is available by calling
1-866-672-6040. You may also email your request to
[email protected].

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
18
14
16
3
4
15
5
11
6
12
7
10
15
8
9
1
17 2
18
18
18
13

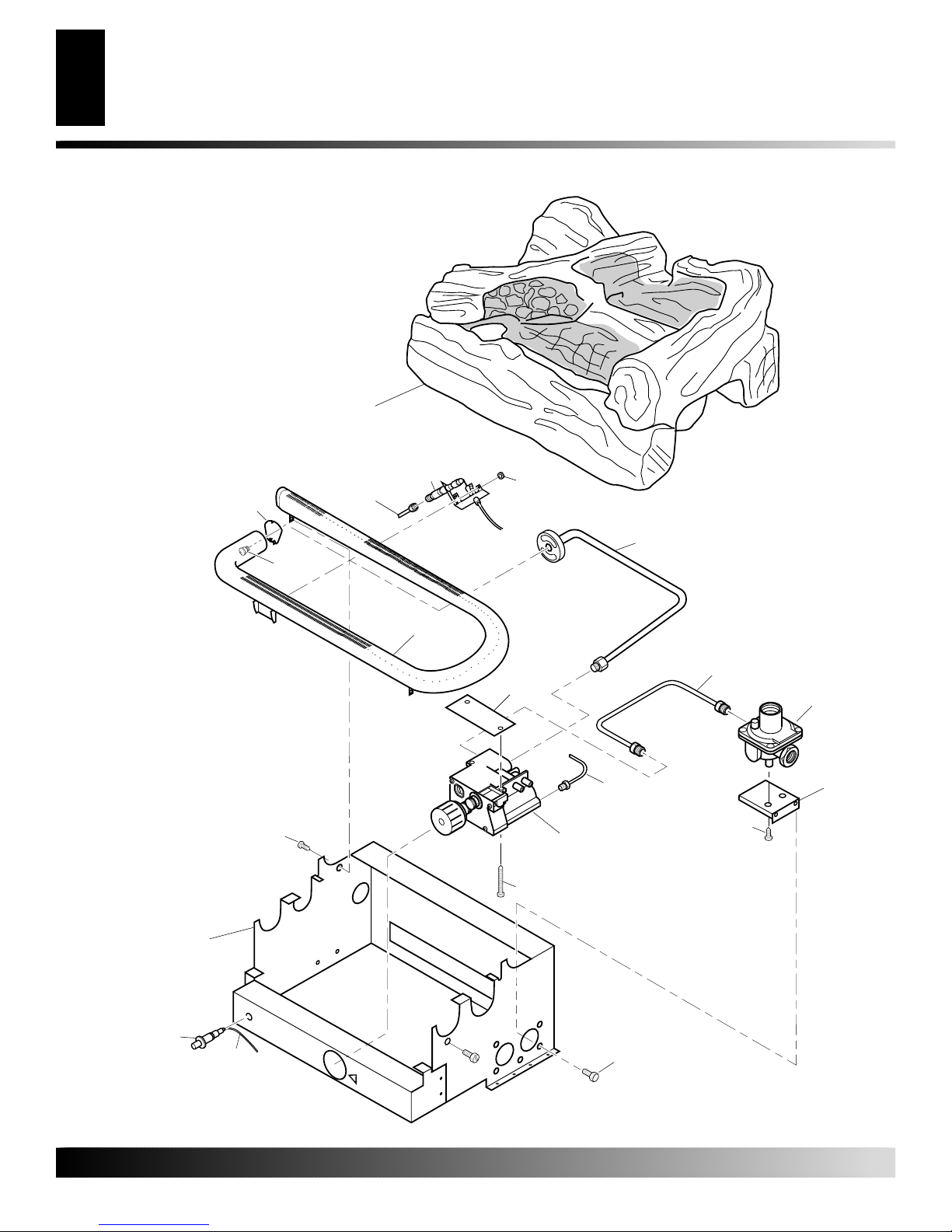

ILLUSTRATED PARTS
BREAKDOWN
MODELS
111485-01 AND 111485-02
ILLUSTRATED PARTS BREAKDOWN
Models 111485-01 and 111485-02

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
19
19
PARTS LIST
This list contains replaceable parts used in your stove. For replace-
ment parts see Replacement Parts on page 17 of this manual.
PARTS LIST
Models 111485-01 and 111485-02
KEY PART NUMBER
NO. 111485-01 111485-02 DESCRIPTION QTY.
1 104026-01 104026-01 Stove Log 1
2 098249-01 098249-01 Nut, M5 2
3 ** ** Painted Base Assembly 1
4 104454-01 104454-01 Bracket, Regulator 1
5 098867-10 098867-14 Gas Regulator 1
6 104425-01 104425-01 Inlet Tube 1
7 104424-03 104424-03 Outlet Burner Tube 1
8 099056-19 099056-26 Burner Orifice Injector 1
9 111124-01 111124-01 Burner Retainer Spring 1
10 102980-01 102980-01 Burner 1
11 101329-22 101329-21 Control Valve 1
12 104472-01 104472-01 Bracket 1
13 099211-01 099211-01 Screw 2
14 102445-01 102445-01 Piezo Ignitor 1
15 099387-09 099387-09 Pilot Tube 1
16 098271-10 098271-10 Ignitor Cable 1
17 104286-01 104285-01 ODS Pilot 1
18 M11084-38 M11084-38 Screw, Hex Head (#8-18 x .38) 7
PARTS AVAILABLE — NOT SHOWN
100563-01 100563-01 Warning Plate 1
101054-01 101054-01 Lighting Instructions Plate 1
100565-01 100565-01 Warning Plate Fastener 1
101137-04 101137-04 Hardware Kit 1
** Not a field replaceable part.

111487-01C
For more information, visit www.desatech.com
For more information, visit www.desatech.com
20
ILLUSTRATED PARTS
BREAKDOWN
STOVE BODY MODELS
CSB SERIES, CSPB SERIES,
AND CSPI SERIES
9
6
7
7
7
6
6
6
4
5
8
11
10
7
7
6
3
2
1
ILLUSTRATED PARTS BREAKDOWN
Models CSB Series, CSPB Series, and CSPI Series
