Comfort Glow CGFB32CA Circulating Louvered User manual
For more information, visit www.desatech.com
UNVENTED (VENT-FREE) UNIVERSAL FIREBOX
SAFETY INFORMATION AND INSTALLATION MANUAL
WARNING: If the information in this manual is not fol-
FOR USE ONLY WITH A LISTED GAS-FIRED UNVENTED
DECORATIVE ROOM HEATER NOT TO EXCEED 40,000
DO NOT INSTALL AN APPLIANCE IN THIS FIREBOX
UNLESS THIS FIREBOX MEETS THE MINIMUM DIMEN-
-
CGFB32CA CIRCULATING LOUVERED MODEL
www.desatech.com 107331-01J2
TABLE OF CONTENTS
Safety Information ............................................... 3
Local Codes......................................................... 4
Unpacking............................................................ 4
Product Features................................................. 4
Product Specications......................................... 4
Locating Firebox ................................................. 5
Air For Combustion and Ventilation ..................... 5
Installation ........................................................... 7
Replacement Parts.............................................11
Technical Service............................................... 12
Accessories ....................................................... 12
Parts Centrals.................................................... 13
Illustrated Parts Breakdown and Parts List........ 14
Warranty Information ...........................Back Cover
-
-
-
-
State of Massachusetts: The installation must be made by a licensed plumber or gas tter in the
Commonwealth of Massachusetts.
Sellers of unvented propane or natural gas-red supplemental room heaters shall provide to each
purchaser a copy of 527 CMR 30 upon sale of the unit.
Vent-free gas products are prohibited for bedroom and bathroom installation in the Common-
wealth of Massachusetts.
www.desatech.com
107331-01J 3
SAFETY INFORMATION
IMPORTANT: Read this owner’s
-
WARNING: Do not allow fans
-
-
remain hot for a time after shut-
-
dren when they are in the room
1. This rebox shall not be installed in a bedroom
or bathroom.
2. Never install the rebox
• in a recreational vehicle
• where curtains, furniture, clothing or other
ammable objects are less than 42" from the
front, top or sides of the rebox
• in high trafc areas
• in windy or drafty areas
3. Do not use this rebox as a wood-burning
replace. Use only decorative unvented room
heaters (log sets).
4. Do not add extra logs or ornaments such as pine
cones, vermiculite or rock wool. Using these
added items can cause sooting.
5. Vent-free gas log heaters installed in these re-
boxes require fresh air ventilation to run properly.
See Air for Combustion and Ventilation, page 5.
6. Do not run rebox
• where ammable liquids or vapors are used
or stored
• under dusty conditions
7. Do not use this rebox to cook food or burn paper
or other objects.
8. Turn rebox off and let cool before servicing.
Only a qualied service person should service
and repair rebox.
9. Operating vent-free log sets in a firebox
above elevations of 4,500 feet could cause
pilot outage.
10.
Do not use the rebox if it has been under water
due to the shock hazard that could result with
the blower accessary (if installed) in place.
11. Provide adequate clearances around air
openings.
www.desatech.com 107331-01J4
Figure 3 - Firebox Top View
*Note: 141/4" is total rebox cavity depth including
brick liner. 131/4" is depth of at oor including
brick liner.
12
1
/
2
"
9
3
/
4
"
4
5
/
8
"
2
1
/
2
"
6"
32
3
/
16
"
33
11
/
16
"
2
1
/
4
"
Electrical Access Hole Gas Line Access
Figure 2 - Firebox Side View
35
1
/
16
"
31
3
/
4
"
1
1
/
4
"
16
1
/
4
"
2
3
/
4
"
3
7
/
8
"
6
3
/
4
"
2
3
/
4
"
6
3
/
8
"
19
3
/
8
"
1
1
/
4
"
Built-in Nailing Flanges
Figure 1 - Firebox Front View
LOCAL CODES
Install and use replace with care. Follow all local
codes. In the absence of local codes, use the latest edi-
tion of The National Fuel Gas Code ANSI Z223.1/
NFPA 54*. Firebox must be electrically grounded
in accordance with the National Electrical Code,
ANSI/NFPA70 (latest edition).
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
UNPACKING
1.
With utility knife, cut the carton all the way
around above the staples on the bottom tray. Lift
the carton off the rebox. Remove packing.
2. Check carton contents for the following:
• Screen assembly
• Screen support rod
• Hardware and parts bag containing the fol-
lowing:
Owner’s Operation and Installation Manual
2 - Black #10 x 3/8" Phillips screws
3. If any items are missing, inform dealer where
you bought the rebox.
4. Check all items for any shipping damage. If
damaged, promptly inform dealer where you
bought rebox.
PRODUCT FEATURES
OPERATION
This firebox is designed to accept unvented
decorative gas logs. It requires no outside vent-
ing or chimney making installation easy and
inexpensive. When used without the blower the
rebox requires no electricity making it ideal for
emergency backup heat.
BLOWER ACCESSORY
The CGFB32CA rebox will accept the GA3750A
accessory. The variable blower allows you to select
the fan speed you desire. The blower circulates
heated air from the rebox into the room. Use of
blower is optional.
22 1/2"
16 11/16"
13
1/4"
*
14
1/4"
31 5/8"
34 3/8"
35 5/8"
19 1/4"
PRODUCT
SPECIFICATIONS
www.desatech.com
107331-01J 5
LOCATING FIREBOX
Plan where you will install the rebox. This will
save time and money later when you install the re-
box. Before installation, consider the following:
1. Where the rebox will be located. Allow for
wall and ceiling clearances (see Installation
Clearances, page 8).
2. Everything needed to complete installation.
3. This rebox CANNOT be installed in a bed-
room or bathroom.
4. Proper air for combustion and ventilation (see
Air For Combustion and Ventilation).
AIR FOR COMBUSTION
AND VENTILATION
-
-
Today’s homes are built more energy efcient
than ever. New materials, increased insulation and
new construction methods help reduce heat loss
in homes. Home owners weather strip and caulk
around windows and doors to keep the cold air out
and the warm air in. During heating months, home
owners want their homes as airtight as possible.
While it is good to make your home energy ef-
cient, your home needs to breathe. Fresh air must
enter your home.All fuel-burning appliances need
fresh air for proper combustion and ventilation.
Exhaust fans, reboxes, clothes dryers and fuel
burning appliances draw air from the house to
operate. You must provide adequate fresh air for
these appliances. This will insure proper venting
of vented fuel-burning appliances.
PROVIDING ADEQUATE
VENTILATION
The following are excerpts from National Fuel
Gas Code ANSI Z223.1/NFPA 54, Section 5.3, Air
for Combustion and Ventilation.
All spaces in homes fall into one of the three fol-
lowing ventilation classications:
1. Unusually Tight Construction
2. Unconned Space
3. Conned Space
The information on pages 5 through 7 will help
you classify your space and provide adequate
ventilation.
The air that leaks around doors and windows may
provide enough fresh air for combustion and ventila-
tion. However, in buildings of unusually tight con-
struction, you must provide additional fresh air.
construction where:
-
-112
and
and
If your home meets all of the three criteria
Ventilation Air From Outdoors,
If your home does not meet all of the
Determin-
ing Fresh-Air Flow For Firebox Location,
The National Fuel Gas Code ANSI Z223.1/NFPA
54 denes a conned space as a space whose
volume is less than 50 cubic feet per 1,000 Btu
per hour (4.8 m3per kw) of the aggregate input
rating of all appliances installed in that space and
an unconned space as a space whose volume is
not less than 50 cubic feet per 1,000 Btu per hour
(4.8 m3per kw) of the aggregate input rating of
all appliances installed in that space. Rooms com-
municating directly with the space in which the
appliances are installed*, through openings not
furnished with doors, are considered a part of the
unconned space.
* Adjoining rooms are communicating only if
there are doorless passageways or ventilation grills
between them.
www.desatech.com 107331-01J6
AIR FOR COMBUSTION
AND VENTILATION
Continued
DETERMINING FRESH-AIR FLOW
FOR HEATER LOCATION
Use this work sheet to determine if you have a
conned or unconned space.
Includes the room in which you will install
heater plus any adjoining rooms with doorless
passageways or ventilation grills between the
rooms.
1. Determine the volume of the space (length x
width x height).
Length x Width x Height =__________cu. ft.
(volume of space)
Example: Space size 20 ft. (length) x 16 ft.
(width) x 8 ft. (ceiling height) = 2560 cu. ft.
(volume of space)
If additional ventilation to adjoining room is
supplied with grills or openings, add the volume
of these rooms to the total volume of the space.
2. Multiply the space volume by 20 to determine
the maximum Btu/Hr the space can support.
__________ (volume of space) x 20 = (Maxi-
mum Btu/Hr the space can support)
Example: 2560 cu. ft. (volume of space) x 20 =
51,200 (maximum Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in
the space.
Vent-free heater ___________ Btu/Hr
Gas water heater* ___________ Btu/Hr
Gas furnace ___________ Btu/Hr
Vented gas heater ___________ Btu/Hr
Gas replace logs ___________ Btu/Hr
Other gas appliances* + __________ Btu/Hr
Total = __________ Btu/Hr
* Do not include direct-vent gas appliances. Di-
rect-vent draws combustion air from the outdoors
and vents to the outdoors.
Example:
Gas water heater __________ Btu/Hr
Vent-free replace + ________ Btu/Hr
Total = ________ Btu/Hr
4. Compare the maximum Btu/Hr the space can
support with the actual amount of Btu/Hr used.
_________
Btu/Hr (maximum the space can support)
_________
Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space
can support)
79,000 Btu/Hr (actual amount of
Btu/Hr used)
40,000
39,000
79,000
The space in the above example is a conned space
because the actual Btu/Hr used is more than the maxi-
mum Btu/Hr the space can support. You must provide
additional fresh air. Your options are as follows:
A.
Rework worksheet, adding the space of an
adjoining room. If the extra space provides an
unconfined space, remove door to adjoining
room or add ventilation grills between rooms. See
Ventilation Air From Inside Building below.
B. Vent room directly to the outdoors. See Ven-
tilation Air From Outdoors, page 7.
C. Install a lower Btu/Hr heater, if lower Btu/Hr
size makes room unconned.
If the actual Btu/Hr used is less than the maxi-
mum Btu/Hr the space can support, the space is
an unconned space. You will need no additional
fresh air ventilation.
WARNING: If the area in
in the National Fuel Gas Code,
ANSI Z223.1/NFPA54 Section 5.3
VENTILATION AIR
This fresh air would come from an adjoining un-
conned space. When ventilating to an adjoining
unconned space, you must provide two perma-
nent openings: one within 12" of the ceiling and
one within 12" of the oor on the wall connecting
the two spaces (see options 1 and 2, Figure 4,
page 7). You can also remove door into adjoining
room (see option 3, Figure 4, page 7). Follow the
National Fuel Gas Code ANSI Z223.1/NFPA 54,
Section 5.3, Air for Combustion and Ventilation for
required size of ventilation grills or ducts.
www.desatech.com
107331-01J 7
AIR FOR COMBUSTION
AND VENTILATION
Continued
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or
ducts. You must provide two permanent openings:
one within 12" of the ceiling and one within 12"
of the oor. Connect these items directly to the
outdoors or spaces open to the outdoors. These
spaces include attics and crawl spaces. Follow the
National Fuel Gas Code ANSI Z223.1/NFPA 54,
Section 5.3, Air for Combustion and Ventilation for
required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet
or outlet air into attic if attic has a thermostat-
controlled power vent. Heated air entering the attic
will activate the power vent.

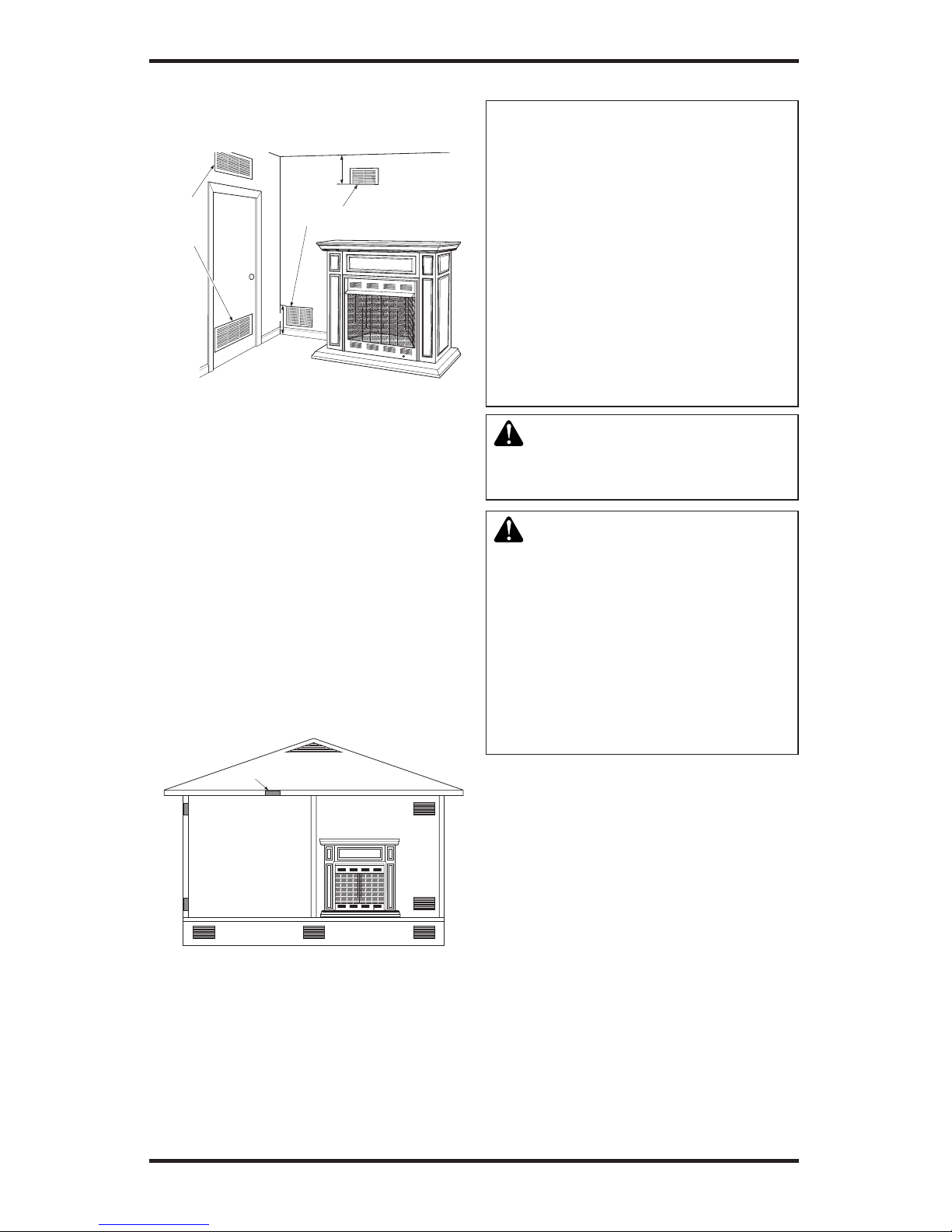

Figure 4 - Ventilation Air from Inside
Building
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills
Into Adjoining
Room,
Option 1
12"
12"
Figure 5 - Ventilation Air from Outdoors
Outlet
Air
Ventilated
Attic
Outlet
A
ir
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
INSTALLATION
NOTICE: This heater is intended
-
-
WARNING: Never install the
• in a recreational vehicle
• where curtains, furniture,
IMPORTANT: Vent-free gas log heaters add
moisture to the air. Although this is benecial,
installing firebox in rooms without enough
ventilation air may cause mildew to form from
too much moisture. See Air for Combustion and
Ventilation, page 5.
IMPORTANT: Make sure the rebox is level.
If firebox is not level, log set will not work
properly.
Note: Your Comfort Glow rebox is designed to
be used in zero clearance installations. Wall or
framing material can be placed directly against any
exterior surface on the rear, sides or top of your
rebox, except where standoff spacers are inte-
grally attached. If standoff spacers are attached to
your rebox, these spacers can be placed directly
against wall or framing materials.
www.desatech.com 107331-01J8
Use the dimensions shown for rough openings to
create the easiest installation (see Built-In Firebox
Installation, page 10).
INSTALLATION CLEARANCES
WARNING: Maintain the
Carefully follow the instructions below. This will
ensure safe installation.
Minimum Clearances For Side
A. Clearances from the side of the fireplace
cabinet to any combustible material and wall
should follow diagram in Figure 6.
Example: The face of a mantel, bookshelf,
etc. is made of combustible material and
protrudes 3 1/2" from the wall. This combus-
tible material must be 4" from the side of the
replace opening (see Figure 6).
B.
Clearances from the top of the replace opening
to the ceiling should not be less than 42".
*
Example
Figure 6 - Minimum Clearance for
Combustible to Wall
*Minimum 16" from Side Wall
Supplied
Firebox Hood
Must Be Used
at All Times
Wire-mesh
Screen
Firebox
Mantel Shelf
13" 16" 19" 21"
2
1/2
"
6"
8"
10"
For
CGFB32C
Series
circulating
louvered
models
only
Note:
A
ll vertical measurements
are from top of fireplace
opening to bottom of mantel
shelf. All measurements
are in inches.
Facing material (above
firebox) may be of
combustible material,
including decorative
mantel ornaments.
Mantel Clearances for Built-In
Installation
If placing custom mantel above built-in rebox,
you must meet the minimum allowable clearance
between mantel shelf and top of rebox opening
shown in Figure 7. These are the minimum allow-
able mantel clearances for a safe installation. Use
larger clearances wherever possible to minimize
the heating of objects and materials placed on
the mantel.
CAUTION: Close screens
If your installation does not meet the minimum
clearances in Figure 7, you must:
• raise the mantel to an acceptable height,
OR
• remove the mantel.

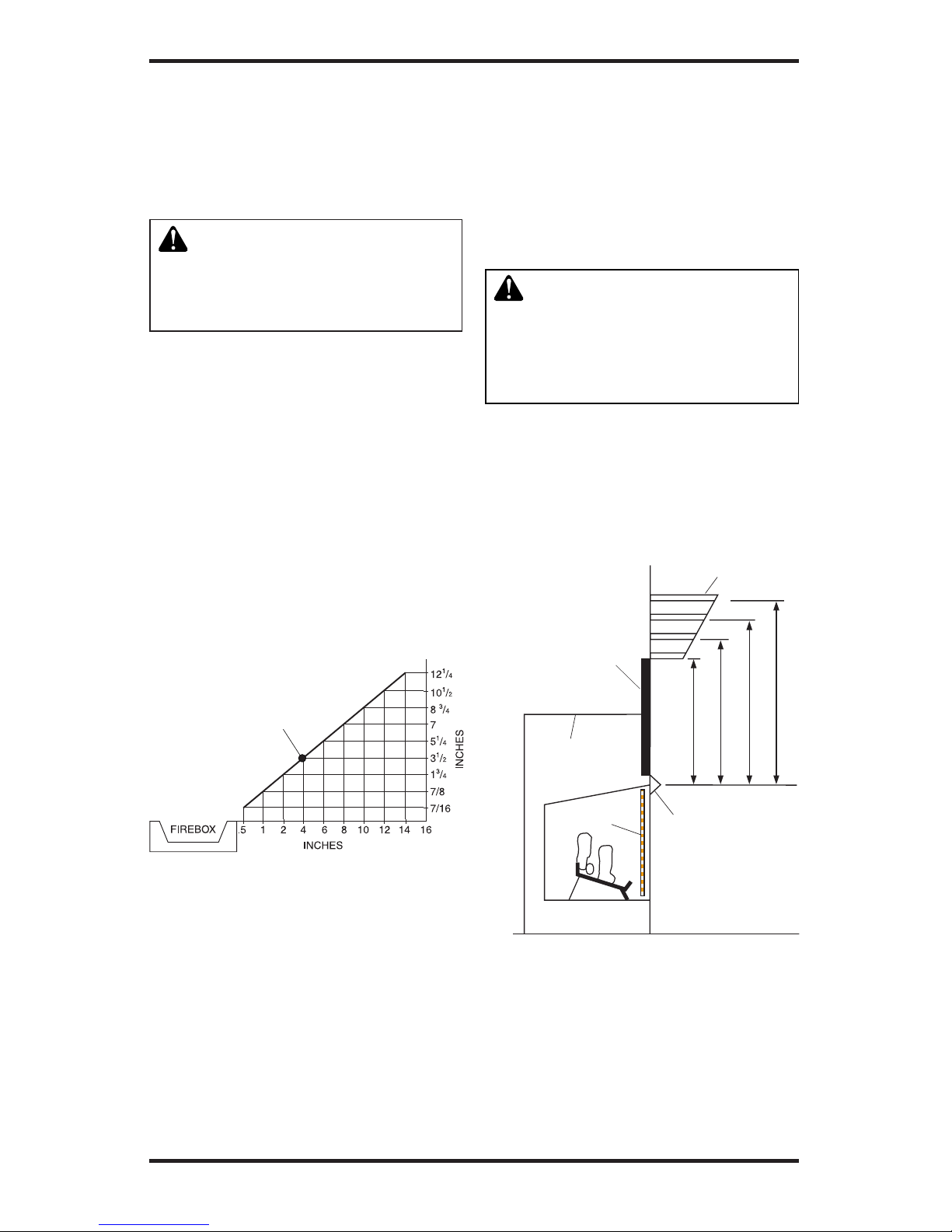

Figure 7 - Minimum Mantel Clearances
for Built-In Installation
INSTALLING BLOWER ACCESSORY
You may install blower accessory GA3750A with
conventional installation (below) or with built-in
installation (see Built-In Installation of Blower
Accessory, page 9). To install blower accessory,
see instruction sheet included with the kit.
INSTALLATION
Continued
www.desatech.com
107331-01J 9
INSTALLATION
Continued
Side
Opening
Support Bracket
Opening
Blower Power
Cord
Figure 8 - Routing Blower Accessory
Power Cord for Conventional Installation
Electrical
Outlet
Blower
Built-In Installation of Blower Accessory
1. Install blower assembly per instruction sheet
included.
2.
Before replacing bottom of rebox, remove screw
holding duplex outlet to the support bracket in
the bottom of rebox. Remove duplex outlet.
3. Clamp electrical cable into rebox through
smallest hole using strain relief provided.
4. Route wires from electrical box through hole
in side of heater and hole in support bracket
(see Figure 9).
Conventional Installation of Blower
Accessory
1. Install blower assembly per instruction sheet
included in blower accessory kit.
2. Before replacing bottom of firebox, route
blower power cord through hole in support
bracket in bottom of rebox and through hole
in side of rebox to grounded, three-prong
120 volt electrical outlet (see Figure 8). Plug
electrical cord into outlet.
3. Replace bottom of rebox.
-
National Electrical Code, ANSI/
NFPA 70 (Latest Edition)
Figure 9 - Routing Blower Accessory
Power Cord for Built-In Installation
Screw
Blower
Power Cord
Blower Support Bracket
Cables From
Electrical Source
Duplex
Outlet
Light your gas appliance with the blower off. After
about 15 minutes, turn the blower on to deliver
heated air at the top louvers. The blower features
a variable control which allows you to select the
speed you desire.
Note: Periodically check the louvers of the rebox
and remove any dust, dirt or other obstructions.
INSTALLING LOG HEATER IN
FIREBOX
CAUTION: Do not remove the
1. Remove four screws holding rebox bottom
in place.
5. Connect wires from the electrical box to
duplex outlet. Match wire colors to those
indicated on duplex outlet. Be sure to connect
ground wire.
6. Replace duplex outlet with screw.
7. Plug blower power cord into duplex outlet.
8. Replace bottom of rebox.
www.desatech.com 107331-01J10
2.
Lift and remove rebox bottom (see Figure 10).
3. If installing GA3750A blower accessory, see
Installing Blower Accessory, page 8.
4. Route exible gas line from equipment shutoff
valve into rebox through side.
is recommended to allow acces-
-
5. Attach gas log heater base to rebox bottom
with four screws included with base (see
Installing Heater Base Assembly in log set
owner’s manual).
6. Replace firebox bottom and secure with
screws.
INSTALLATION
Continued

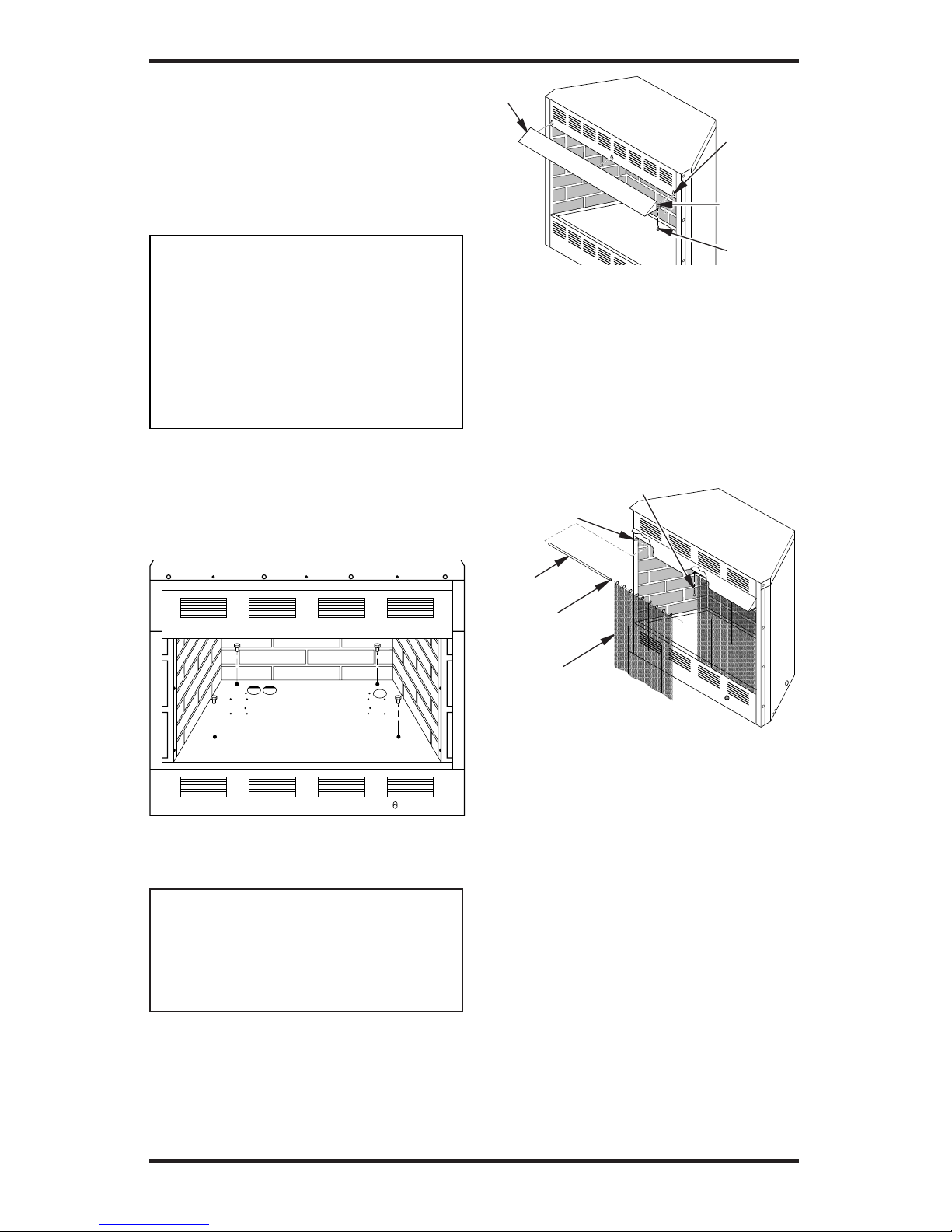

Figure 10 - Removing Firebox Bottom
Figure 11 - Installing Fireplace Hood
INSTALLING FIREPLACE HOOD
-
1. Attach three zinc-colored shoulder screws to
back of hood.
2. Insert hood into hood-mounting slots on
rebox.
3. Hold hood in place. Insert two black Phillips
screws through bottom of hood and tighten.
Hood Hood
Mounting
Slot
Screw
Shoulder
Screw
INSTALLING FIREPLACE SCREEN
1. Insert each rod through nine rings located at
top of screen (see Figure 12).
2. Insert rst rod into rear hole in left side of
rebox. Fasten rod to rear hole near center of
rebox using black shoulder screw.
3. Insert other rod into front hole on right side of
rebox and fasten using remaining shoulder
screw.
Ring
Figure 12 - Installing Fireplace Screen
Rod
Front and
Rear Hole
Screen
Screw
FIREBOX INSTALLATION USING
OPTIONAL ACCESSORY MANTELS
This rebox may be installed using the corner or
cabinet mantel with hearth base accessory against
a wall in your home. A trim kit is included with
each mantel accessory (see Accessories, page 12).
Follow the instructions included with mantels for
assembly and installation.
BUILT-IN FIREBOX INSTALLATION
Built-in installation of this rebox involves in-
stalling rebox into a framed-in enclosure. This
makes the front of rebox ush with wall. Optional
perimeter trim is available (see Accessories, page
12) This perimeter trim will extend past sides of
rebox approximately 1/2". This will cover rough
edges of the wall opening. If installing a mantel
above the rebox, you must follow the clearances
shown in Figure 7, page 8. Follow the instructions
below to install the rebox in this manner.
www.desatech.com
107331-01J 11
Actual
Height 32 3/16" 33"
Front Width 34 5/16" 35 1/2"
Depth 16 11/16" 17 3/4"
INSTALLATION
Continued

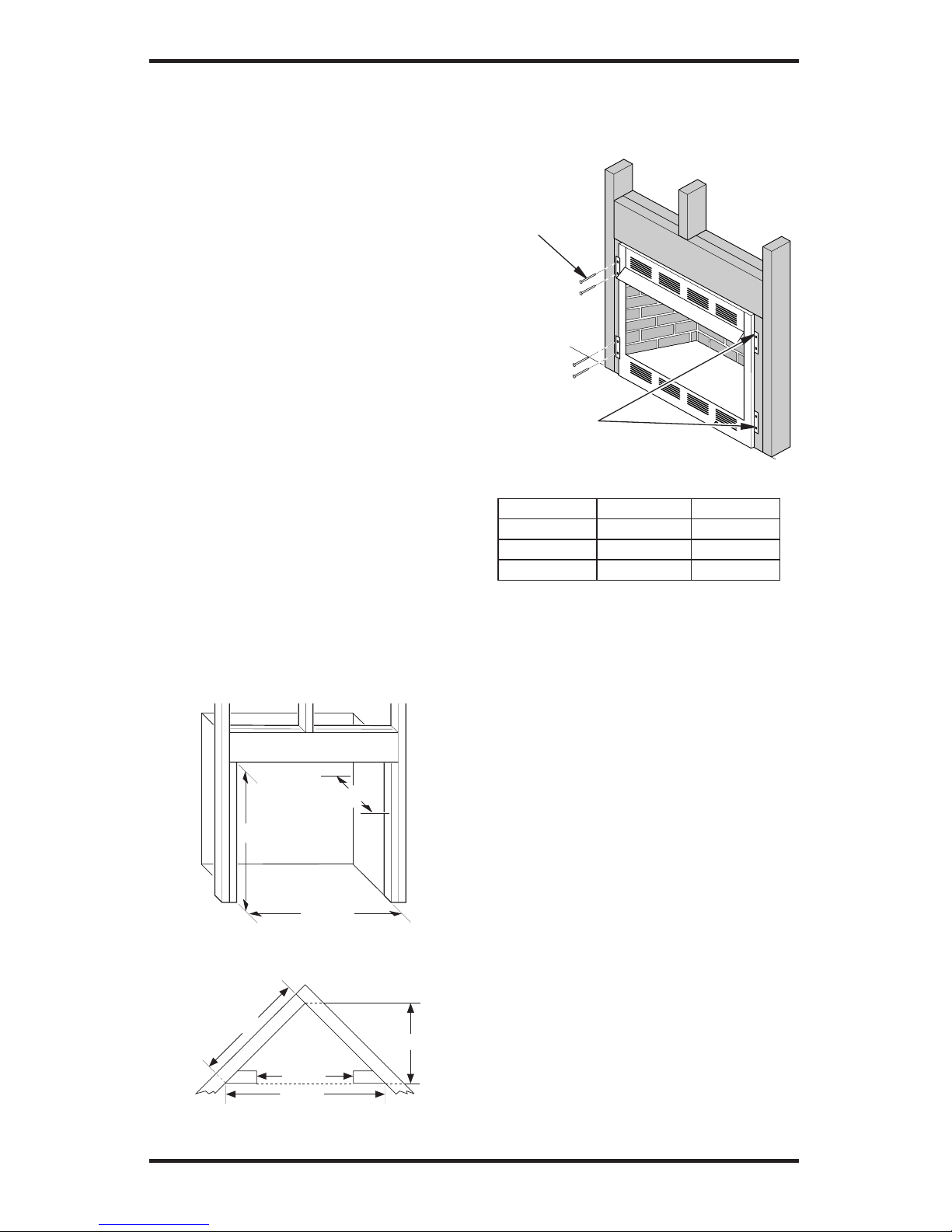

Figure 13 - Rough Opening for Installing
in Wall
Figure 14 - Rough Opening for Installing
in Corner
34
3
/
4
"
17
3
/
4
"
33"
1.
Frame in rough opening. Use dimensions shown
in Figure 13 for the rough opening. If installing
in a corner, use dimensions shown in Figure 18
for the rough opening. The height is 33", which
is the same as the wall opening in Figure 13.
2.
Install gas piping to rebox location. This instal-
lation includes an approved exible gas line (if al-
lowed by local codes) after the equipment shutoff
valve. The exible gas line must be the last item
installed on the gas piping. See Connecting to
Gas Supply in log set owner’s manual.
3. Carefully set rebox in front of rough open-
ing with back of rebox inside wall opening.
IMPORTANT: If installing perimeter trim,
see instructions included with perimeter
trim accessory. You must install shoulder
screws now.
4. If using GA3750A blower accessory, see Built-
In Installation of Blower Accessory, page 9.
5.
Attach exible gas line to log set. See Connect-
ing to Gas Supply in log set owner’s manual.
6. Carefully insert rebox into rough opening.
7. Attach rebox to wall studs using nails or
wood screws through holes in nailing ange
(see Figure 15).
8. Check all gas connections for leaks. See
Checking Gas Connections in log set owner’s
manual.
Figure 15 - Attaching Firebox to Wall Studs
Nailing
Flanges
Nails or
Wood
Screws
39 3/8"
27 7/8"
55 5/8"
34 3/4"
9. If using optional perimeter trim, install the
trim after nal nishing and/or painting of
wall. See instructions included with perimeter
trim accessory for attaching perimeter trim.
REPLACEMENT PARTS
Note: Use only original replacement parts. This
will protect your warranty coverage for parts
replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product or Parts
Central (see page 13). If they can’t supply original
replacement part(s), call DESA Heating Products’
Technical Service Department at 1-866-672-6040.
When calling DESA Heating Products, have ready
• your name
• your address
• model and serial numbers of your replace
• how replace was malfunctioning
• type of gas used (propane/LP or natural gas)
• purchase date
Usually, we will ask you to return the part to the
factory.
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product or Parts
Central (see page 13). If they can’t supply original
replacement part(s), call DESA Heating Products
at 1-866-672-6040 for referral information.
When calling DESA Heating Products, have ready
• model number of your replace
• the replacement part number
www.desatech.com 107331-01J12
TECHNICAL SERVICE
You may have further questions about installation,
operation or troubleshooting. If so, contact DESA
Heating Products’ Technical Service Department
at 1-866-672-6040. When calling please have your
model and serial numbers of your heater ready.
You can also visit DESAHeating Products’Techni-
cal Service web site at .
ACCESSORIES
NOTICE:
Purchase these replace accessories from your lo-
cal dealer. If they can not supply these accessories,
call DESA Heating Products’ Sales Department
at 1-866-672-6040 for information. You can also
write to the address listed on the back page of
this manual.
EQUIPMENT SHUTOFF VALVE
GA5010
For all models. Equipment shutoff valve with 1/8"
NPT tap. Fits 1/2" NPT pipe.
BLOWER ACCESSORY - GA3750A
The variable blower allows you to select the de-
sired speed. The blower circulates heated air from
the replace into the room.
PERIMETER TRIM (Not Shown
PT32 - Black PT32B - Brushed Brass
PT32P - Platinum
PT32PB - Polished Brass
Included and required with all mantel accesso-
ries. Optional with built-in installation. Provides a
nished appearance covering rough and/or unnished
mantel edges.
WALL CABINET MANTEL AND BASE
ACCESSORY WITH FIREPLACE
PERIMETER TRIM
W32AU - 32" Unnished, Traditional Design
W32AOS - 32" Light Oak Finish, Traditional
Design
CMA311W - 32" Painted White, Traditional
Design with Dentil Molding
32" Light Oak Finish,
Traditional Design with Dentil Molding
CMA312FB - 32" Dark Oak Finish, Classic
Design
W32KCSA - 32" Cherry Finish, Neo-Classical
Design
W32KPA - 32" Painted White, Neo-Classical
Design
CMA305UA - 32" Unnished, Georgian
Design with Columns
32" Light Oak Finish, Georgian
Design with Columns
W32DS - 32" Dark Oak Finish, Keystone
Design
W32GOSA - 32" Dark Oak Finish, Mission
Design
W32IP - 32" Painted White, Ultra/Click-n-
Brick Surround
For all models. 32" cabinet mantels with base and
perimeter trim kit.
CORNER CABINET MANTEL WITH
BASE AND PERIMETER TRIM
(Not Shown
C32AU - 32" Unnished, Traditional Design
C32AOS - Light Oak Finish, Traditional Design
C32HS - 32" Dark Oak Finish, Classic Design
For all models. 32" corner mantels with base and
perimeter trim kit.
www.desatech.com
107331-01J 13
PARTS CENTRALS
These Parts Centrals are privately-owned businesses. They have agreed to support our customer’s needs
by providing original replacement parts and accessories.
5 Manila Ave
Hamden, CT 06514-0322
1-800-397-7553
203-248-7553
342 N. County Rd. 400 East
Valparaiso, IN 46383-9704
219-462-7441
1-888-619-7060
www.portableheaterparts.com
FBD
1349 Adams Street
Bowling Green, KY 42103-3414
270-846-1199
1-800-654-8534
Fax: 1-800-846-0090
1251 Mound Ave. NW
Grand Rapids, MI 49504-2672
616-791-0505
1-800-446-1446
www.nbmc.com
1715 Main Street
Kansas City, MO 64108-2195
KS, MO, AR
816-842-3911
www.washerparts.com
10 East Route 36
W. Long Branch, NJ 07764
732-870-8809
1-800-755-8809
www.njplaza.com/ecep
21st Century
2950 Fretz Valley Road
Perkasie, PA 18944-4034
215-795-0400
800-325-4828
2444 N. 5th Street
Hartsville, SC 29550-7704
843-332-0191
Parts Department
Cans Unlimited
P.O. Box 645
Taylor, SC 29687-0013
803-879-3009
1-800-845-5301
www.desatech.com 107331-01J14
5
15
15
14
15
16
6
1
15
7
15
13
18
9
8
19
12
17
20
10
4
2
3
2
15
11
17
17

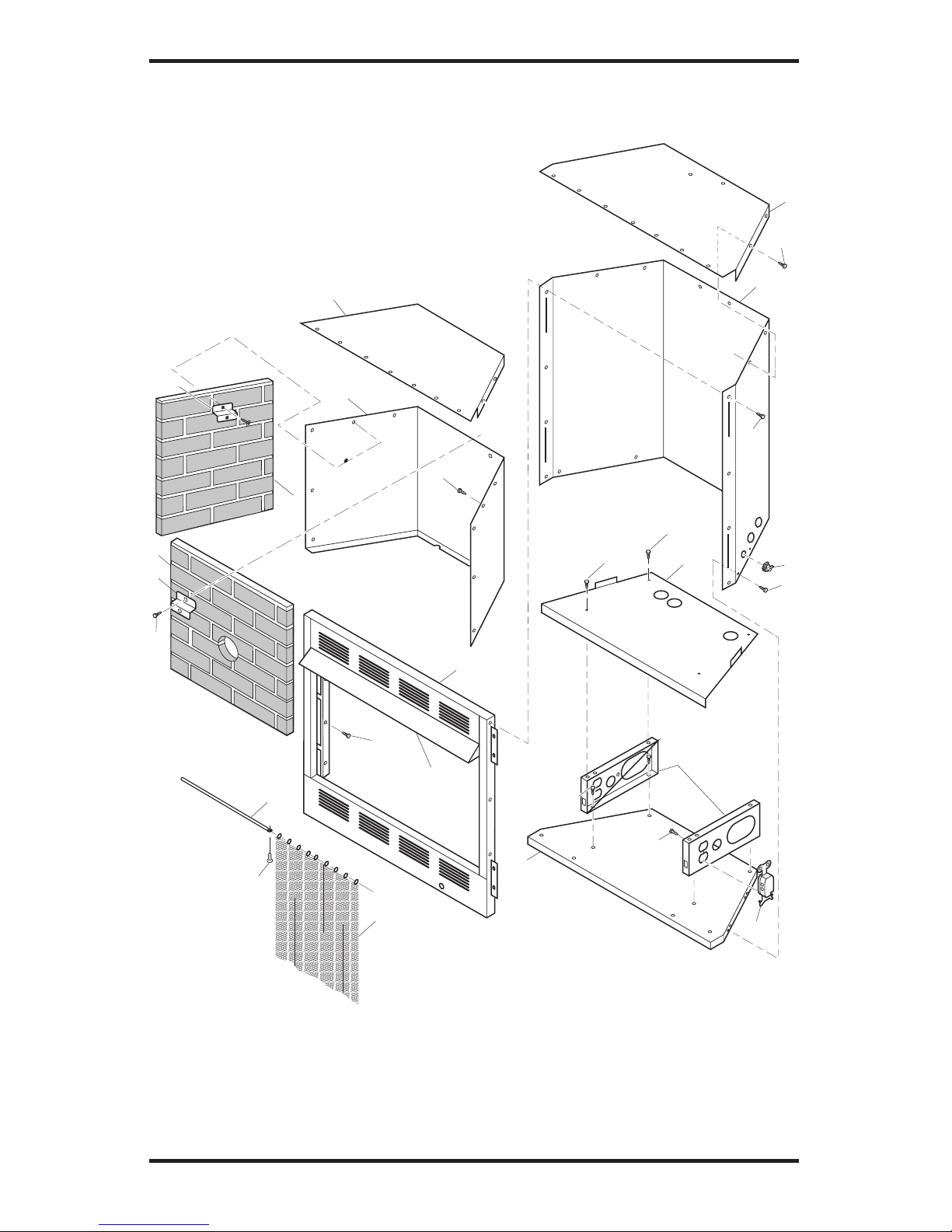

ILLUSTRATED PARTS BREAKDOWN
MODEL CGFB32CA
www.desatech.com
107331-01J 15
PARTS LIST
MODEL CGFB32CA
This list contains replaceable parts used in your rebox. When ordering parts, follow the instructions
listed under Replacement Parts on page 11 of this manual.
KEY
DESCRIPTION
1 101872-03 Firebox Top 1
2 101889-01 Firebrick Retainer 3
3 101929-04 Rear Firebrick 1
4 101932-04 Side Firebrick 2
5 103207-01 Outer Casing 1
6 103208-01 Outer Shell Base 1
7 *** Firebox Wrapper 1
8 103297-01 Assembly Screen 2
9 M12461-2 Screw, Outlet Mounting 1
10 103773-05CK Front Assembly 1
11 *** Firebox Bottom 1
12 103809-01 Screen Rod 2
13 101348-01 Firebox Support 2
14 101357-01 Outer Casing Top 1
15 M11084-26 Hex Head Screw, #10-16 49
16 103771-01 Strain Relief Fitting 1
17 098304-01 Phillips Pan Head Screw, #10 13
18 103769-01 Duplex Outlet 1
19 099230-02 Shoulder Screw 2
20 103217-01CK Hood 1
*** Not a eld replaceable part.
107331 01
WARRANTY INFORMATION
KEEP THIS WARRANTY
Model
Serial No.
Date Purchased
107331-01
Rev. J
02/06
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
www.desatech.com
LIMITED WARRANTY
COMFORT GLOW VENT-FREE UNIVERSAL FIREBOX
DESA Heating Products warrants this product to be free from defects in materials and components for two (2)
years from the date of rst purchase, provided that the product has been properly installed, operated and maintained
in accordance with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled
check must be presented.
This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to
restore this heater to proper operating condition and an allowance for labor when provided by a DESAAuthorized
Service Center. Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA
Heating Products who will provide original factory replacement parts. Failure to use original factory replacement
parts voids this warranty. The heater MUST be installed by a qualied installer in accordance with all local codes
and instructions furnished with the unit.
This warranty does not apply to parts that are not in original condition because of normal wear and tear or parts
that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by
improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to
repairing a defective heater will be the responsibility of the owner.
TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE
OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED
WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUD-
ING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO TWO
(2) YEARS ON ALL COMPONENTS FROM THE DATE OF FIRST PURCHASE; AND DESA HEATING
PRODUCTS’ LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND
DESA HEATING PRODUCTS SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER
INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of
incidental or consequential damages, so the above limitation on implied warranties or exclusion or limitation on
damages may not apply to you.
This warranty gives you specic legal rights and you may also have other rights that vary from state to state.
For information about this warranty write:
Always specify model and serial numbers when communicating with the factory.
We reserve the right to amend these specications at any time without notice. The only warranty applicable is our
standard written warranty. We make no other warranty, expressed or implied.
NOT A UPC
Other manuals for CGFB32CA Circulating Louvered
1
Table of contents
Other Comfort Glow Indoor Fireplace manuals
Comfort Glow
Comfort Glow FIRELOG MATE CGFLB18 Quick start guide
Comfort Glow
Comfort Glow CGF265NV Quick start guide
Comfort Glow
Comfort Glow ELCG 125 Mounting instructions
Comfort Glow
Comfort Glow CF26NR Quick start guide
Comfort Glow
Comfort Glow GLD2470R User manual
Comfort Glow
Comfort Glow CHDV37N Quick start guide
Comfort Glow
Comfort Glow GFD 2043 User manual
Comfort Glow
Comfort Glow Comfort Glow CHDV34NA Quick start guide
Comfort Glow
Comfort Glow EF5528RKD Assembly instructions
Comfort Glow
Comfort Glow C42EC2 User manual
Comfort Glow
Comfort Glow CGCFTP Quick start guide
Comfort Glow
Comfort Glow QF4570R User manual
Comfort Glow
Comfort Glow CDV37N/PA Quick start guide
Comfort Glow
Comfort Glow CGCFTN Quick start guide
Comfort Glow
Comfort Glow EF6021R Assembly instructions
Comfort Glow
Comfort Glow UNVENTED (VENT-FREE)PROPANE GAS FIREPLACE Quick start guide
Comfort Glow
Comfort Glow CGFB32CA Circulating Louvered Original instructions
Comfort Glow
Comfort Glow CHDV32NR Quick start guide
Comfort Glow
Comfort Glow CF26NR Quick start guide
Comfort Glow
Comfort Glow CVSA18M Quick start guide
Popular Indoor Fireplace manuals by other brands
Travis Industries
Travis Industries Flush Plus owner's manual
Arada
Arada Deck Open Chimeneas user guide
Dru
Dru CONCERTO CF Installation and operation manual
Napoleon
Napoleon EPA 1100 Installation and operating instructions
A-Fire Design
A-Fire Design Original AWO Series user manual
Muskoka
Muskoka 25-900-003 Use and care guide
Majestic
Majestic 24VFSC Installation & operating instructions
Muskoka
Muskoka MTVSC2513SBP Assembly instructions
ARTE
ARTE COSY Series Installation manual & users guide
bio chimenea
bio chimenea Pur Line ONIROS installation instructions
Napoleon
Napoleon GX70NTE Installation and operating instructions
Regency Fireplace Products
Regency Fireplace Products GOSFORD F300B Owners & installation manual
