Comfort Glow C42EC2 User manual

SAVE THIS BOOK
This book is valuable. In addition to instructing you
on how to install and maintain your appliance, it also
contains information that will enable you to obtain
replacement parts or optional accessory items when
needed. Keep it with your other important papers.
42" WOODBURNING FIREBOX
Model C42EC2 Circulating (Louvered)
INSTALLATION INSTRUCTIONS
DESA INTERNATIONAL, 2701 INDUSTRIAL DRIVE, P.O. BOX 90004, BOWLING GREEN, KY 42102-9004 55951
Rev. B
09/99
®
23 5/16"13 1/8"
13/16"
43 1/4"
38 7/16"
1 3/8"
12 3/4"
8 1/2"
22"
12 1/4"
44 9/16"
42"
7 3/8"
22 1/16"
37 3/8"
41 13/16"
17 1/2"
22"
ROUND TOP
TERMINATION
0 IN.TO
TOP SPACER
3/4" AIR SPACE
BACK AND SIDES
OUTSIDE AIR
(LEFT SIDE ONLY)
0 IN.TO
BOTTOM
12 IN.
EACH SIDE
HEARTH EXTENSION
66 IN. x 20 IN.
NOT LESS
THAN 24 IN.TO
PERPENDICULAR
SIDEWALL
NO COMBUSTIBLE
MATERIAL ON FACE
COMBUSTIBLE
WALL BOARD
2 IN. AIR SPACE
TO COMBUSTIBLE
MATERIALS
FIRESTOP
FLASHING
STORM COLLAR
GAS LINE
CONDUIT SLEEVE
(BOTH SIDES)
OPENING FOR
OUTSIDE
AIR KIT
Model ________________________________
Serial No. _____________________________
Date Purchased ________________________

2
55951
45 1/4"
43 1/2"
11 3/16"
23 5/8"

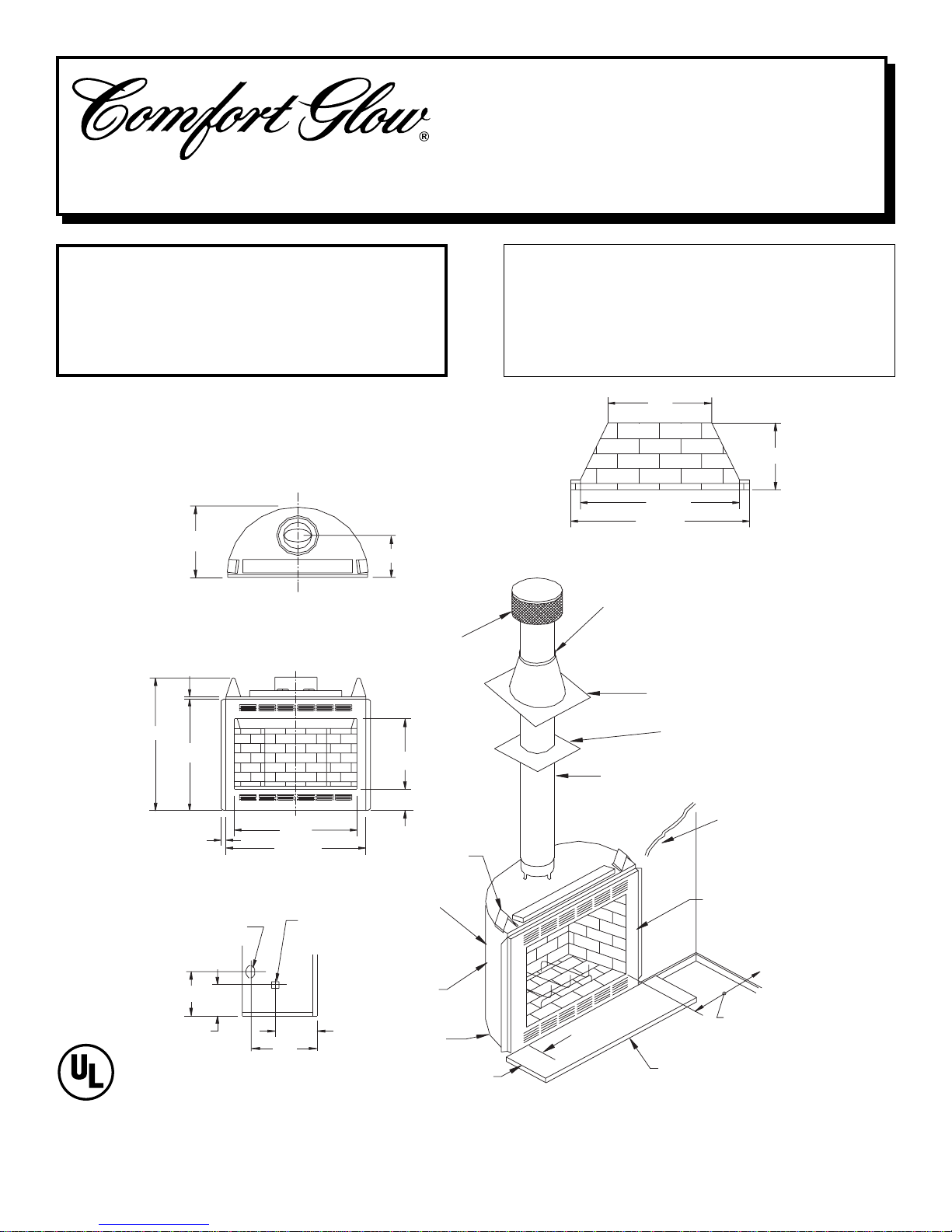

Figure 1 - Framing Dimensions
INSTALLATION
INSTRUCTIONS
INTRODUCTION
Beforebeginningtheinstallationofyourfirebox,readtheseinstruc-
tions through, completely.
These Comfort Glow components and fireboxes are safe when
installed according to this Installation Manual. Unless you use
ComfortGlowcomponentswhichhavebeendesignedandtestedfor
the firebox system, you may cause a fire hazard.
The DESA International warranty will be voided by, and DESA
International disclaims any responsibility for the following actions:
a) Modification of the firebox, components, doors, blower fans,
air inlet system and damper control.
b) Use of any component part not manufactured or approved by
DESA International, in writing, in combination with a DESA
International firebox system.
Refer to your Homeowners guide for warranty information.
HEIGHT: The minimum height of the chimney, measured from the
base of the firebox to the flue gas outlet, is 16 feet for a straight
chimney or with one elbow set. For systems with 2 elbow sets, the
minimumheightis30feet.Themaximumheightofanysystem is60
feet. This measurement includes the firebox, chimney sections and
the effective height of the termination assembly.
GENERAL
Read the Warranty and Operating guidelines supplied with this
firebox. Following these simple guidelines will ensure years of
trouble free and safe usage of your firebox. If the Warranty and
Operating instructions are not in your firebox, write to the address
listed on the front cover.
INSTALLING THE FIREBOX
STEP 1: Frame the opening for the firebox using the dimensions
shown in Figure 1 or Figure 2.
STEP2:Setthefireboxdirectlyinfront of this opening and slide the
unit back until the mounting flanges touch the side framing.
STEP 3: Check the level of the firebox and shim with sheet metal if
necessary.
STEP 4: When the firebox is installed upon a combustible floor a
galvanized steel ember protector (provided) must be installed be-
tween the firebox and the hearth extension as illustrated in Figures
12 and 13.
STEP 5: Secure the firebox to the framing through the flanges
located on the sides on the firebox with nails, or screws.
Note: The 3/4" clearance is not required at the nailing flange. (see
Figure 10)
WARNING:Neverusegasoline,gasoline-typelantern
fuel, kerosene, charcoal lighter fluid, or similar liq-
uidstostartor“freshenup”afireinthisfirebox.Keep
all such liquids well away from the firebox.
WARNING: Do not pack required air spaces with
insulation or other material.
WARNING: Do not install a fireplace insert in this
firebox unless the manufacturer’s instructions with
the insert specifically state this firebox has been
tested for use with the insert.
PROPER INSTALLATION is the most important step in ensuring
safe and continuous operation of this firebox. Consult the local
building codes as to particular requirements concerned with the
installation of all factory built fireboxes. Although grounding may
not be required by code it is recommended by the manufacturer.
FOR YOUR SAFETY
• Do not store or use gasoline or any other flam-
mable vapors or liguids in the vicinity of this or
any other appliance.
• Due to high temperatures, the appliance should
be located out of traffic and away from furniture
and draperies.
• Do not place clothing or other flammable mate-
rials on or near the appliance.
• NEVER leave children unattended when a fire is
burning in the fireplace.
WARNING: Improper installation, adjustment, alter-
ation,service,ormaintenancecancauseinjury,prop-
erty damage, or loss of life. Refer to this manual. For
assistance or additional information consult a quali-
fied installer or local distributor.
WARNING: This fireplace is intended for use with
wood, decorative gas appliance, and vent-free gas
logs which burn propane/LP or natural gas only.
CHECK LOCAL CODES PRIOR TO INSTALLATION
ThiswoodburningfireplacecomplieswithUL127asaFactory-
Built Fireplace and is listed and tested by Underwriters Labo-
ratory, Inc.
This model is not for use in mobile homes.
MINIMUM CLEARANCES TO COMBUSTIBLES
Framing and enclosures may safely make direct contact with the
spacers on the top of the firebox. The firebox may sit directly on
combustible flooring (see Step 4, below). The firebox opening must
notbelessthan24inchesfromcombustiblematerialsandthechimney
must be absolutely maintained. A 16 1/2inch inside chase dimension
is recommended as a minimum size. A 3/4 inch air space is required
around back and sides of firebox.
Keep all combustible furnishings a considerable distance from the
firebox.
This firebox is not intended to be used as a substitute for a
furnace to heat an entire home. Use for supplementary
heating only.

3
55951
Figure 3A
Figure 4
Figure 6
8 IN.
STAINLESS
INNER PIPE
HEMMED
END
LINEAL GAIN
PART GAIN
NO. DESCRIPTION (IN)
C42EC2 FIREBOX 42
C12-8DM PIPE SECTION 10
5
/ 8
C18-8DM PIPE SECTION 16
5
/
8
C36-8DM PIPE SECTION 34
5
/
8
C48-8DM PIPE SECTION 46
5
/ 8
CRTL-8DM ROUND
TERMINATION 6
46 5/8"
66"
15 3/8"
33"
12 5/8"

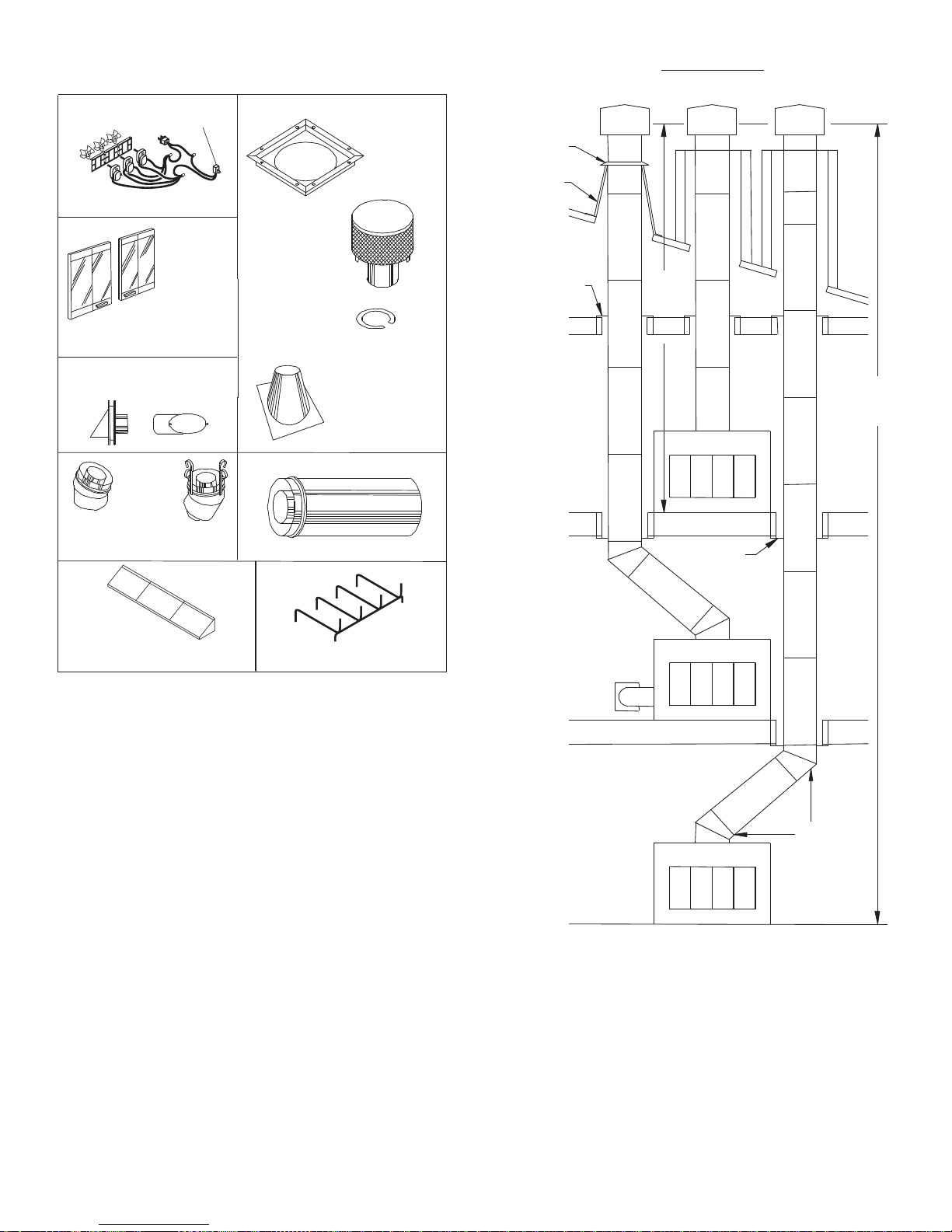

Figure 2 - Framing Dimensions
KEEP THIS
AREA OPEN
FIREPLACE
COLLAR
Figure 3B
Continue to assemble chimney sections as outlined above, making
sure that both inner and outer pipe sections are locked together.
Before installing double wall “snap lock” chimney together, it is
important to assure the joint between the chimney sections are
locked. Check by pulling chimney upward after locking. The chim-
ney will not come apart if properly locked. It is not necessary to add
screws to keep the chimney together.
SUPPORT SECTIONS
The chimney support section is a 4 strap 12” length of pipe. A
chimney support is required at the 30 foot level above the fireplace
after a straight on the fireplace and elbows when high chimneys are
installed.
WARNING: The opening in the collar around the
chimney at the top of the fireplace must not be
obstructed. Never use blown insulation to fill the
chimney enclosure (see Figure 3B).
Figure 5
Figure 7
BLOWER
SWITCH
GROUND SCREW
ELECTRICAL
COVER PLATE
STRAIN RELIEF
30 FT. 30 FT.
RETURN
ELBOW
V12S-8DM
SUPPORT
V12S-8DM
SUPPORT
LINEAL GAIN: THE ACTUAL
MEASURABLE LENGTH OF A
PART AFTER TWO OR MORE
PARTS ARE CONNECTED.
12 3/8GALVANIZED OUTER
PIPE
ASSEMBLING AND INSTALLING YOUR
DOUBLE-WALL CHIMNEY SYSTEM
Eachdoublewallchimneysectionconsistsofanouterpipe,fluepipeand
one wire spacer. The pipe sections are not unitized and must be
assembledindependentlyas the chimney is installed.Whenstartingthe
chimney directly on the firebox, the flue pipe section must be installed
first,withthelancedsideup.Theouterpipesectioncanthenbeinstalled
over the flue pipe section with the hemmed end up. (see Figure 3A).
Pressdownoneachpipesection until the lances securelyengagethe
hem on the firebox starter. The wire spacer will assure the proper
spacing between the inner and outer pipe sections.
FIRESTOP SPACERS
Firestop spacers are required at each point where the chimney
penetrates a floor or ceiling joist space. Their purpose is two fold,
they establish and maintain the required clearance between the
chimney and combustible materials, and provide complete separa-
tion from one floor space to another floor or attic space as required
by most codes. When penetrating a floor or ceiling at an angle,
firestop in pack should be used.
Whenthedoublewallpipepassesthroughaframedopeningintoanattic
space, the firestop must be placed into the attic floor as in Figure 4.
Whenthepipepassesthroughaframedopeningintoalivingspaceabove,
the firestop must be placed on to the ceiling from below as in Figure 5.
BLOWER ASSEMBLY (CBK3)
Ablowerassemblyisavailableforusewiththisfireplaceasanoption.
Itis designedtobeinstalledonDESAInternationalfactorypre-wired
fireplaces only. The blower assembly model CBK3 can be installed
prior to or after installation of the fireplace. Use of blowers or fans
other than manufactured by DESA International voids the warranty.
Theoptionalblowerisoperatedbyaswitch located on the lower face.
Flipping the switch turns the blowers on or off.
Note: Fireplacemustbewiredtothehouseelectricalsysteminorderfor
blowers to operate. See instructions provided with blower assembly.
Electrical connections are made through the cover on the side of the
fireplace illustrated in Figure 7. Use 14 AWG min. copper wire for
all connections. Be certain the fireplace is properly grounded.
C12S-8DM
SUPPORT C12S-8DM
SUPPORT

4
55951

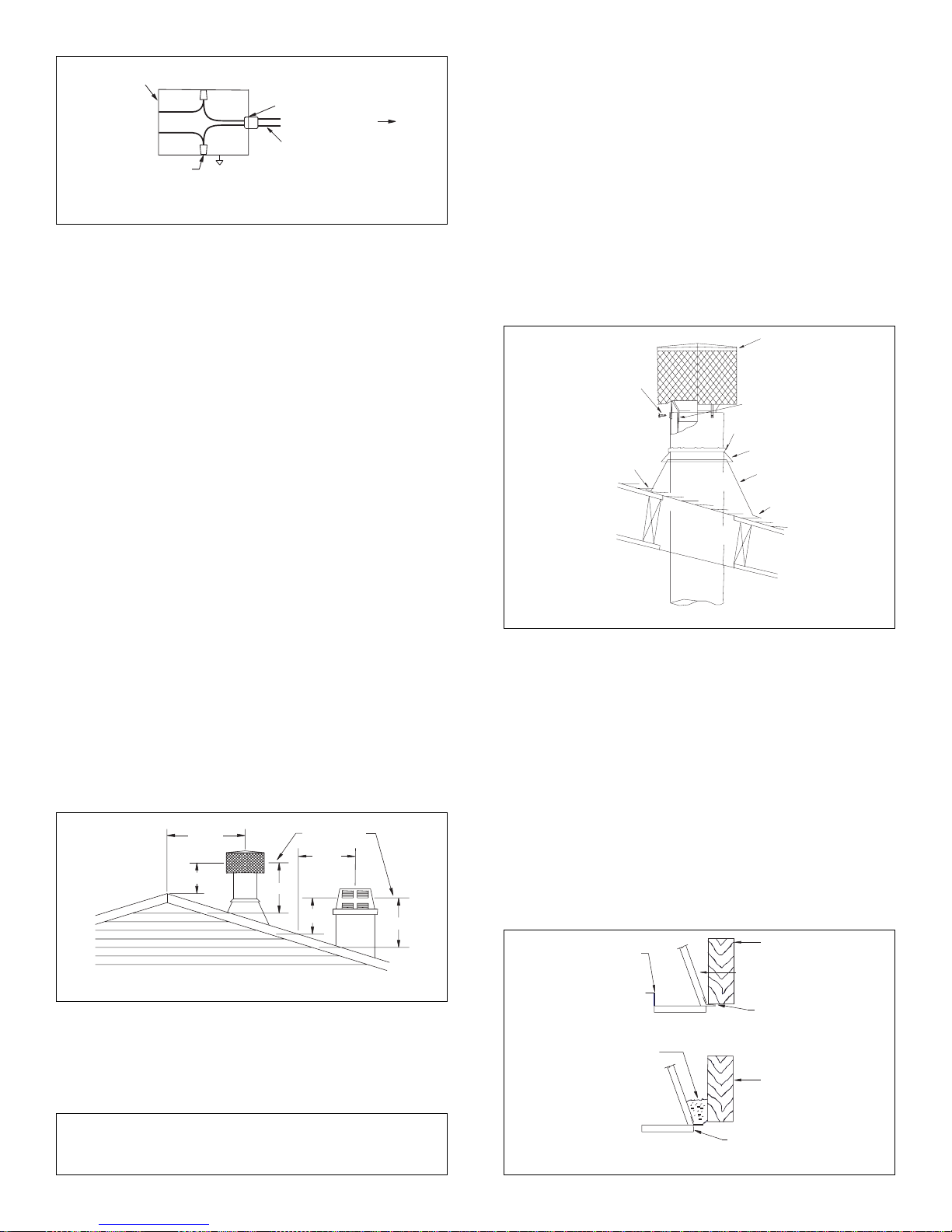

Figure 8
10 FOOT RULE
2' MIN.
2' MIN.
LEVEL OF FLUE
GAS OUTLET
10'
3' MIN.
3' MIN.
10'
OR LESS
ATTACH BRACKET
TABS TO OUTER
PIPE (3 PLACES)
SECURE WITH
SCREWS
OVERLAP
SHINGLES
TOPAND SIDES
CRTL-8DM
FLUE PIPE OF CRTL-8DM
INSIDE INNER PIPE OF
CHIMNEY
CAULK
COLLAR
FLASHING
UNDERLAP SHINGLES
BOTTOM ONLY
Figure 9
PENETRATING THE ROOF
To maintain a 2-inch clearance to the pipe on a roof with a pitch, a
rectangular opening must be cut.
STEP 1: Determine the center point through which the pipe will
penetrate the roof.
STEP2:Determinethepitchoftheroof.Pitchisthedistancetheroof
drops over a given span, usually 12 inches. A 6/12 pitch means that
the roof drops 6 inches for each 12 inches measured horizontally.
STEP 3: From the center point determined in STEP 1, measure an
opening 17 1/4inches wide (8 5/8inches to each side of the center
point). For a roof pitch between 0/12 (flat) and 6/12, measure an
opening 21 inches long (10 1/2inches above and below the center
point).
6/12 to 12/12 pitches: Measure 26 inches (13 above and below).
12/12to18/12pitches:Measure321/2inches(161/4aboveandbelow).
18/12 to 24/12 pitches: Measure 40 inches (20 above and below).
STEP 4: Remove the roofing around the opening measured and cut
out this section.
STEP 5: Add the next sections of pipe until the end penetrates the
roofline.Checktoseethatproperclearancesaremaintained.Extend
chimney by adding sections of double wall pipe until pipe is a
minimum of 30 inches above highest point of roof cutout. Termina-
tionandchimneymustextendaminimumof36inchesabovehighest
point where it passes through roof.
10 FOOT RULE
Allchimneyterminationsmustextend aminimumof3feetinheight
abovethehighest point whereitpasses through theroof and must be
atleast2feetabovethepeakoftheroofifwithinahorizontaldistance
of 10 feet from the peak (see Figure 8).
TERMINATIONS
Thefireplaceandchimneysystemmustbeventedtotheout-of-doors
and must be terminated with the listed round top or chase termina-
tions. If a chase termination is desired, refer to the instructions
supplied with the termination.
WARNING: Do not seal ventilation openings on the
rooftop flashing. Follow the installation instructions
provided with the termination being used.
FOR ROUND TOP TERMINATION ON ROOF
STEP1: Slide the flashing over the pipe (no firestopis needed at the
roof level). Tack the flashing down at the top two corners with
roofing nails. Lay roofing over the top and sides of the flashing and
secure them to the roof through the flashing with roof nails. Place
roofing under the lower edge and secure to the roof.
Cover all nail heads with mastic or roof cement.
STEP2:Installthestormcollarondoublewallchimney,pushcollar
down to flashing and seal (see Figure 9).
STEP 3: Place the CRTL-8DM on to the pipe end as illustrated and
secure with the screws provided.
IMPORTANT: If an exposed portion of chimney is greater than 5
feet above the roof line, use support wires to keep chimney secure.
The support wires may be attached to the outer pipe of the chimney
with screws, provided the screws are no longer than 3/4".
FIREPLACE ENCLOSURE: COLD CLIMATE
INSTALLATIONS
Before finishing the enclosure around the fireplace, inspect all joints
around the fireplace. Any gaps between the nailing flanges and the
framingshouldbesealedwithnoncombustibleinsulationorcaulking(see
Figure 10). Inspect the fireplace joints for possible gaps caused by
shippingor mishandling duringinstallation. These shouldbe sealed with
noncombustiblematerials.Ifthefireplaceismountedonaraisedplatform
insulate below the platform to prevent the entry of cold air through the
fireplace bottom by means of conduction. The above steps are import
especiallyifthefireplaceisinstalledincoldweatherclimate.Theopening
around the base of the chimney must remain open and free to circulate
outsideairforkeepingthechimneycoolasdesigned(seeFigure3B,page
3).The fireplace must be set on a continuous platformto prevent cold air
fromconductingthroughthe metal bottom. The platformbottommaybe
constructed of any wood product or other materials such as cement.
FIREPLACE
SIDE FRAME
FIREPLACE
SIDE FRAME
NORMAL FRAMING
PACK
INSULATION
HERE
WIDE FRAMING
SIDE
FRAMING
SIDE
FRAMING
3/4 CLEARANCE
NOT REQUIRED
AT THE FRAMING
CAULK HERE
Figure 10
10', 14 GA.W/GROUND
ROMEX ADDEDTO U.L.
LISTED (MM11306)
FIREPLACE AT THE
FACTORY
COVER PLATE WITH
STRAIN RELIEF
TO WALL SWITCH
EXISTING “J” BOX
IN FIREPLACE
WIRE NUT (TYP.)
Figure 8

5
55951
WARNING:Donotoperateanunventedgaslogsetin
this fireplace with the chimney removed.
WARNING: When using a decorative appliance, the
damper must be removed or permanently locked in
the fully open position.
GAS LINE
A gas line may be installed for the purpose of installing a decorative
gasapplianceavailablethroughyour localdistributor.Useonly1/2"
black iron pipe and appropriate fittings. When installing a gas line,
a shut-off valve designed for installation outside the firebox is
recommended.
To install, remove the gas line plug located in the side firebrick
approximately 2" above the bottom, The plug must be tapped out
fromthe finished side towards theunfinished side (see Figure 11A).
WARNING: All gas piping and connections must be
testedfor leaks after the installationiscompleted. Be
suregasvalveisturnedon.Applysoapsudssolution
toall connectionsand joints.If bubblesappear,leaks
mustbedetectedandcorrected.DONOTuseamatch
or open flame of any kind to test leaks. Never operate
any appliance with leaky connections.
WARNING:Hearthextensionistobe installedonlyas
illustrated.
OUTSIDE OF
FIREPLACE
GAS LINE
CONDUIT REMOVE
KNOCKOUT
SIDE FIREBRICK
FINISHED SIDE
REFRACTORY
KNOCKOUT PLUG
REMOVE BY TAPPING
LIGHTLY WITH A
1/2" DOWEL
AFTER REMOVING
GAS LINE COVER
PLATE, REPLACE
SCREWS
REMOVE
INSULATION
TEMPORARILY
(DO NOT
DISCARD)
REMOVE
GAS CONDUIT
COVER
Figure 11A
OUTSIDE OF
FIREPLACE
GAS LINE
CONDUIT
REPACK
INSULATION
INCOMING
1/2" BLACK
IRON PIPE PROVIDE ENOUGH
THREADED END
FOR FITTING
CONNECTION
SEAL OPENING
WITH REFRACTORY
CEMENT
SIDE FIREBRICK
FINISHED SIDE
Figure 11B
Insert the gas line parallel to the face. Fill any gap between the gas
line and the hole in the firebrick with refractory cement or commer-
cial furnace cement (see Figure 11B).
TEST FOR GAS LEAKS
Thegas pipe is intended forconnection to an unvented gaslog set or
to a decorative gas appliance.
If you will install an unvented gas log set, ONLY VENTED GAS LOG
SETS WHICH HAVE BEEN FOUND TO COMPLY WITH THE
STANDARDFORUNVENTEDROOMHEATERS,ANS/IAS/AGA
Z21.11.2, ARE TO BE INSTALLED IN THIS FIREPLACE.
Note: An appropriate Comfort Glow hood must be installed when
using an unvented gas log set.
STANDARD
HEARTH SEAL GAP
SEAL GAP
DO NOT BLOCK
INTAKE GRILL
EMBER PROTECTOR
EMBER PROTECTOR
ELEVATED
FIREPLACE
RAISED
HEARTH
NO
HEARTH
EXTENSIONS
Figure 12
HEARTH EXTENSION
A hearth extension projecting a minimum of 20" in front of and a
minimum of 12" beyond each side of the fireplace opening is
required to protect combustible floor construction in front of the
fireplace, Use a layer of noncombustible, inorganic material having
a thermal conductivity of K=0.64 BTU IN/FT. HR. F (or less) at 1"
thick. Example of determining hearth extension equivalent. If the
material selected has a K factor of 0.25, such as glass fiber, then the
following formula would apply: 0.25/0.64 X 1" = .39" thick. This
must be covered by a noncombustible material such as tile, slate,
brick, concrete, metal, glass, marble, stone, etc. Fasten the hearth
extensiontothefloortopreventshiftingandsealthegapbetweenthe
fireplaceframeandhearthextensionwithanoncombustiblematerial
(see Figure 12).
DAMPER OPERATION
Thedamperhandletoopenandclosethedamperbladeis locatedinside
thefirebox at the centertowardsthebackwall.Pushingthehandle back
into the keyway slot will free the damper blade to automatically open.
Toclose,reachinandpushthehandlebackintothekeyholeslotthenpull
down and forward to lock it in place (see Figure 13).
DAMPER
WEIGHT
TO CLOSE
DAMPER
TO OPEN
DAMPER
Figure 13
If you will install a decorative gas appliance, the decorative gas
appliance must comply with the Standard for Decorative Gas
Appliances for Installation in solid Fuel burning Fireplaces,
ANSZ21.60-1996andshall also be installedinaccordance with the
National Fuel Gas code, ANS Z223.1-1996.

6
55951
SHEET METAL SCREW
REMOVE KNOCKOUT
FIREPLACE
TAB IN NOTCH AIR INLET TUBE
Figure 15
12
1
/ 4 " REF
6"
REF 33 DEG
MINIMUM 12" 3"
NOM
9" MINIMUM 1
1
/ 2 "
MAX
TOP OF
LOUVERED
COMBUSTIBLE
MATERIAL
SAFE ZONE FOR
PROJECTION OF
COMBUSTIBLE
MATERIALS
NOTE: DRAWING NOT
TO SCALE
UPPER
SECTION OF
FIREPLACE
Figure 17A
MANTEL
A mantel may be installed if desired. See Figures 17A or 17B for
minimum heights above and beyond opening of the fireplace face.
Woodwork, such as wood trim and mantels, and other combustible
material, shall not be placed within 6 inches of a fireplace opening.
Combustiblematerialaboveandprojectingmorethan11/2inchesfrom
afireplaceopeningshallnotbeplacedlessthan12inchesfromthetop
of the fireplace opening. NFPA STANDARD 211 Section 7-3.3.3.
COMBUSTIBLE AIR KIT
An Air kit is available for use as an optional accessory. The outside
airventcanbeinstalledthrough anoutsidewallor aventilatedcrawl
space. Attachflextube (CLASS 1) to airventandairinlettube.Seal
with duct tape (see Figure 14). For air inlet tube installation (see
Figure 15).
WARNING: Air inlet ducts are not to terminate in attic
space or a garage.
AIR KIT OPERATION
The damper rod for the air kit is located inside the face opening,
abovethe upper left top of the rearfirebrick. Pushthe rod up to open
the air intake and down to close it (see Figure 16).
0" MIN.
SEAL WITH
DUCT TAPE
SEAL WITH
DUCT TAPE
AIR INLET
TUBE
AIR INLET
TUBE
0" MIN.
AIR VENT
AIR VENT
FLEX DUCT
OUTSIDE WALL
OUTSIDE WALL
FLEX TUBE
Figure 14
AIR KIT DAMPER ROD
OPEN POSITION
CLOSED POSITION
REAR FIREBRICK
Figure 16
CAUTION: Do not cover up the face louvers top and
bottom.
FINISHING YOUR FIREPLACE
Wall board (Gypsum board, sheet rock, drywall, etc.) may make
direct contact with sides and top of the fireplace face. It is important
that combustible materials do not overlap the face itself.
Brick, glass, tile or other noncombustible materials may overlap the
frontface,providedtheydonotobstructessentialopeningslikelouvered
slots or any other openings. When overlapping with noncombustible
facing material, use only noncombustible mortar or adhesive.
WARNING:Riskoffire;ReplacegrateonlywithDESA
International Model 42E GR grate only.
FUEL: Use seasoned hardwood or if a vent-free or decorative
gas appliance is installed, burn Propane or Natural Gas only.
ASH DISPOSAL
Ashes should be placed in a metal container with a tight-fitting lid.
Theclosedcontainer of ashes should beplacedonanoncombustible
floor or on the ground, well away from all combustible materials,
pending final disposal. If the ashes are disposed of by burial in soil
or otherwise locally dispersed, they should be retained in the closed
container until all cinders have thoroughly cooled.
OUTER SURROUND
COMBUSTIBLE
MATERIALS
33°
24" MIN.TO
ADJACENT WALL
2
1
/ 8 "
MIN.
1
3
/ 8 "
MAX.
SAFE
ZONE
TOP VIEW
Figure 17B
Avoid installing outside air eyebrow in areas where inlet opening
may be blocked by snow, bushes or other obstacles. Maximum
height of air inlet above platform of fireplace is within 3 feet below
the termination flue gas outlet.

7
55951
OFFSETS AND RISE
A B 48 36 18 12 A B 48 36 18 12 12S
4 3/816 3/8 41
1
/ 4 80
1
/ 4 111 1
9 3/425 1/21 45 86 3/421
12 3/430 3/41
46
3
/ 4 89
1
/ 2 1111
15 34 3/42
51 97 11 1
18 40 1 1
53
1
/ 4 101 21 1
21 1/446 1/41
56
1
/ 4 106
1
/ 4 21
23 3/449 1/412
59
1
/ 4 111
1
/ 2 111 1
27 3/456 3/41
61
3
/ 4 115
1
/ 2 211
30 60 3/411
64
3
/ 4 120
3
/ 4 211
33 66 1 1
68
1
/ 4 127 12 1
36 71 1 1
70 130 2111
38 1/475 2
74
1
/ 4 137
1
/ 2 12 11
76 3/4141 1/2121 1
79 3/4146 3/441
A
B

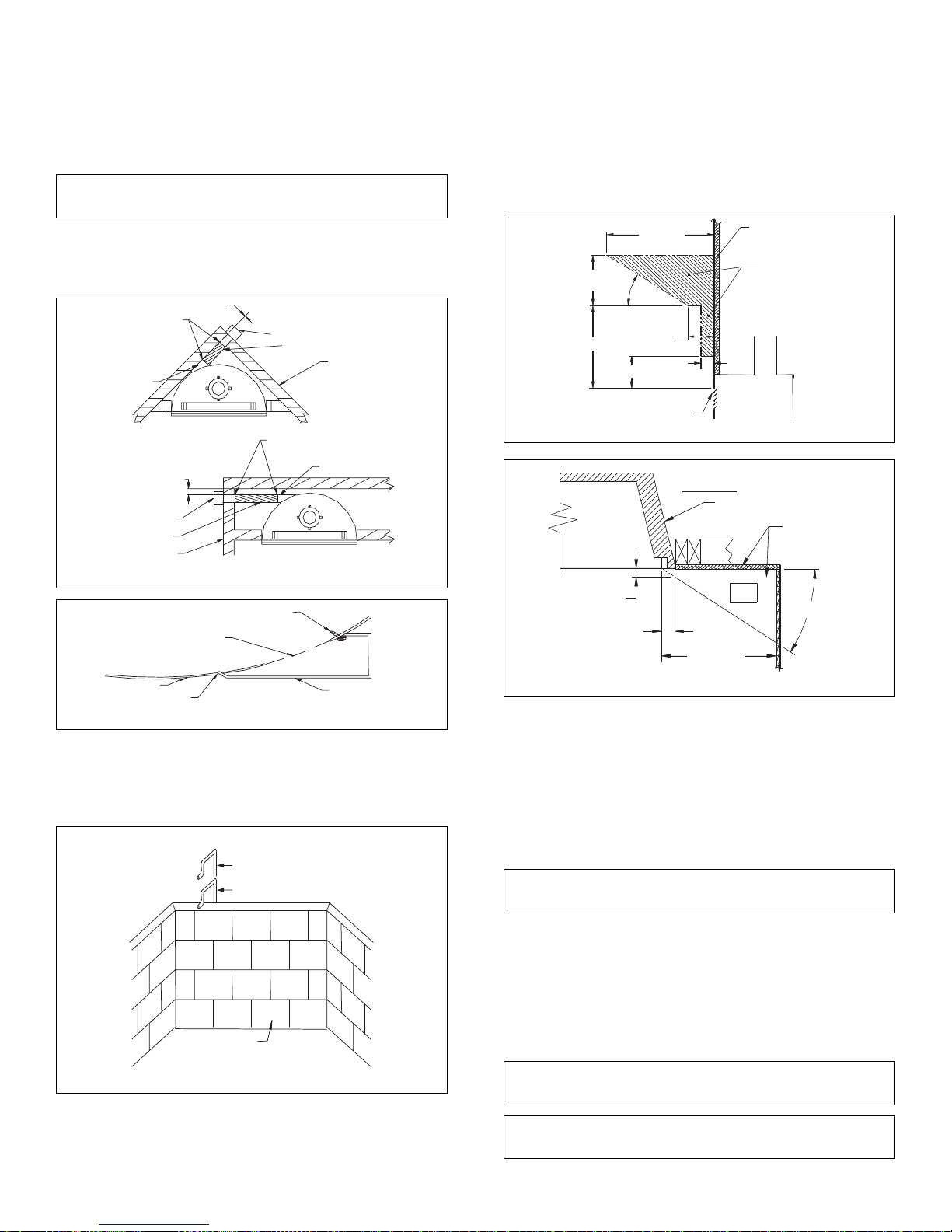

Figure 18
CEILING
SUPPORT
PIPE
C12S-8DM 2"
MINIMUM
ANGLE
FIRESTOP
DETAIL B SEE
DETAIL B
DETAIL A
SEE
DETAIL A
RETURN
ELBOW
Figure 19
OFFSET
ELBOW OFFSET
ELBOW
OFFSET
ELBOW
OFFSET
ELBOW
OFFSET
ELBOW
RETURN
ELBOW
RETURN
ELBOW RETURN
ELBOW
RETURN
ELBOW
CEILING
SUPPORT
PIPE
C12S-8DM
RETURN
ELBOW
6' MAX 6' MAX
6' MAX
6' MAX6' MAX
6' MAX
ABC
Figure 20
INSTRUCTIONS WHEN OFFSET OF CHIMNEY IS
NEEDED
To Install Elbows
1. To achieve desired offset, you may install combinations of 12",
18", 36", and 48" lengths of double wall pipe (see Offsets and
Rise chart and Figures 18 and 20).
2. Chimneyweight aboveoffsetrests on return elbow. Straps must
be securely nailed to rafters or joists (see Figure 19, Details A
and B).
3. Maximum length of pipe between supports (return elbow or
C12S-8DM) is 6’of angled run. Maximum of two (2) 6’angled
run sections per chimney system (see Figure 20).
NOTE: ANY OFFSET GREATER THAN 6 FEET MUST USE A
C12S-8DM,ALSO FOR STRAIGHT RUN OVER 30 FT. LEVEL.
All joints between offset shall be secured with two screws
only on the outer pipe and shall not penetrate the inner
stainless. See illustration above.

8
55951
REPLACEMENT PARTS
COMPONENT PARTS
CSC1-20-8DM
CRTL-8DM CRTL-8DM CRTL-8DM
C6F-8DM
CFS-8DM
CFS-8DM
C30E-8DM
MINIMUM
HEIGHT
16 FT.
MAXIMUM
HEIGHT
60 FT.
FIRESTOP
CFS-8DM
DELUXE BLOWER KIT CBK3
TOGGLE
SWITCH
DOUBLE WALL CHIMNEY
GRATE 42E GR (Provided)
DOUBLE
WALL 30°
ELBOW SET
C30E-8DM C12-8DM
STORM
COLLAR
CSC1-20-8DM
FLASHING
ROOF PITCH
C6F-8DM - 0 to 6/12
ROUND TOP
TERMINATION
CRTL-8DM
GLASS DOOR
KIT
CDG42E
OUTSIDE AIR KIT
CAK4E
CHIMNEY PACK
ADJUSTABLE
HOOD
GA6050 (Black)
GA6052 (Polished Brass)
GA6053 (Antique Brass)
