Comfort Glow CGFB32CA Circulating Louvered Original instructions

For more information, visit www.desatech.com
For more information, visit www.desatech.com
Save this manual for future reference.
Save this manual for future reference.
UNVENTED (VENT-FREE)
UNIVERSAL FIREBOX
SAFETY INFORMATION AND
INSTALLATION MANUAL
This appliance may be installed in an aftermarket*, permanently located, manufactured
(mobile) home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance
is not convertible for use with other gases.
*Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
Shown with optional cabinet
mantel, hearth base.
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result caus-
ing property damage, personal injury or loss of life.
WARNING: Improper installation,
adjustment, alteration, service, or
maintenance can cause injury or
property damage. Refer to this
manual for correct installation and
operational procedures. For assis-
tanceoradditionalinformationcon-
sult a qualified installer, service
agency, or the gas supplier.
WARNING:Foruseonlywithalisted
gas-firedunventeddecorativeroom
heater. Not to exceed 40,000 Btu/H.
Do not build a wood fire.
This firebox has been tested and approved by CSA
under ANSI Z21.91 for use with any ANSI Z21.11.2
approved gas logs.
CGFB32CA
Circulating
Louvered
Model
Carefully review the instructions supplied with the
decorative type unvented room heater for the mini-
mum fireplace size requirement.
Do not install an appliance in this firebox unless this
firebox meets the minimum dimensions required for
the installation.

107331-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
2
TABLE OF CONTENTS
SAFETY INFORMATION
SAFETY INFORMATION
IMPORTANT: Read this owner’s manual carefully and
completely before trying to assemble, operate, or
service this firebox. Improper use of this firebox can
cause serious injury or death from burns, fire, explo-
sion,electricalshock,orcarbonmonoxidepoisoning.
WARNINGS
WARNING: Any change to this firebox or its
controls can be dangerous.
1. This firebox shall not be installed in a bedroom or bathroom.
2. Never install the firebox
•in a recreational vehicle
•where curtains, furniture, clothing, or other flammable ob-
jects are less than 42 inches from the front, top, or sides of
the firebox
•in high traffic areas
•in windy or drafty areas
3. Do not use this firebox as a wood-burning fireplace. Use only
decorative unvented room heaters (log sets).
4. Do not add extra logs or ornaments such as pine cones, vermicu-
lite, or rock wool. Using these added items can cause sooting.
5. Vent-free gas log heaters installed in these fireboxes require
fresh air ventilation to run properly. See Air for Combustion
and Ventilation, pages 4 through 6.
6. Do not run firebox
•where flammable liquids or vapors are used or stored
•under dusty conditions
7. Do not use this firebox to cook food or burn paper or other objects.
8. Turn firebox off and let cool before servicing. Only a qualified
service person should service and repair firebox.
WARNING:Donotallowfanstoblowdirectlyintothe
firebox.Avoidanydraftsthatalterburnerflamepatterns.
Ceiling fans can create drafts that alter burner flame
patterns. Altered burner patterns can cause sooting.
WARNING:Donotuseablowerinsert,hood,heat
exchanger insert, or other accessory not approved
for use with this heater.
Due to high temperatures, the firebox should be
located out of traffic and away from furniture and
draperies.
Do not place clothing or other flammable material on
or near firebox. Never place any objects on the fire-
box or logs.
You must operate this fireplace with the provided
fireplace screen (closed), hood, and brick liner in
place. Make sure these parts are in place before
running firebox.
Firebox front and screen become very hot when
running firebox. Keep children and adults away from
hot surfaces to avoid burns or clothing ignition.
Firebox will remain hot for a time after shutdown.
Allow surfaces to cool before touching.
Carefully supervise young children when they are in
the room with firebox.
Keep the firebox area clear and free from combus-
tiblematerials,gasoline,andotherflammablevapors
and liquids.
TABLE OF CONTENTS
SAFETY INFORMATION ............................................................ 2
LOCAL CODES........................................................................... 3
UNPACKING ............................................................................... 3
PRODUCT SPECIFICATIONS.................................................... 3
PRODUCT FEATURES .............................................................. 4
LOCATING FIREBOX ................................................................. 4
AIR FOR COMBUSTION AND VENTILATION ........................... 4
INSTALLATION ........................................................................... 6
TECHNICAL SERVICE ..............................................................11
REPLACEMENT PARTS ...........................................................11
ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST ....... 12

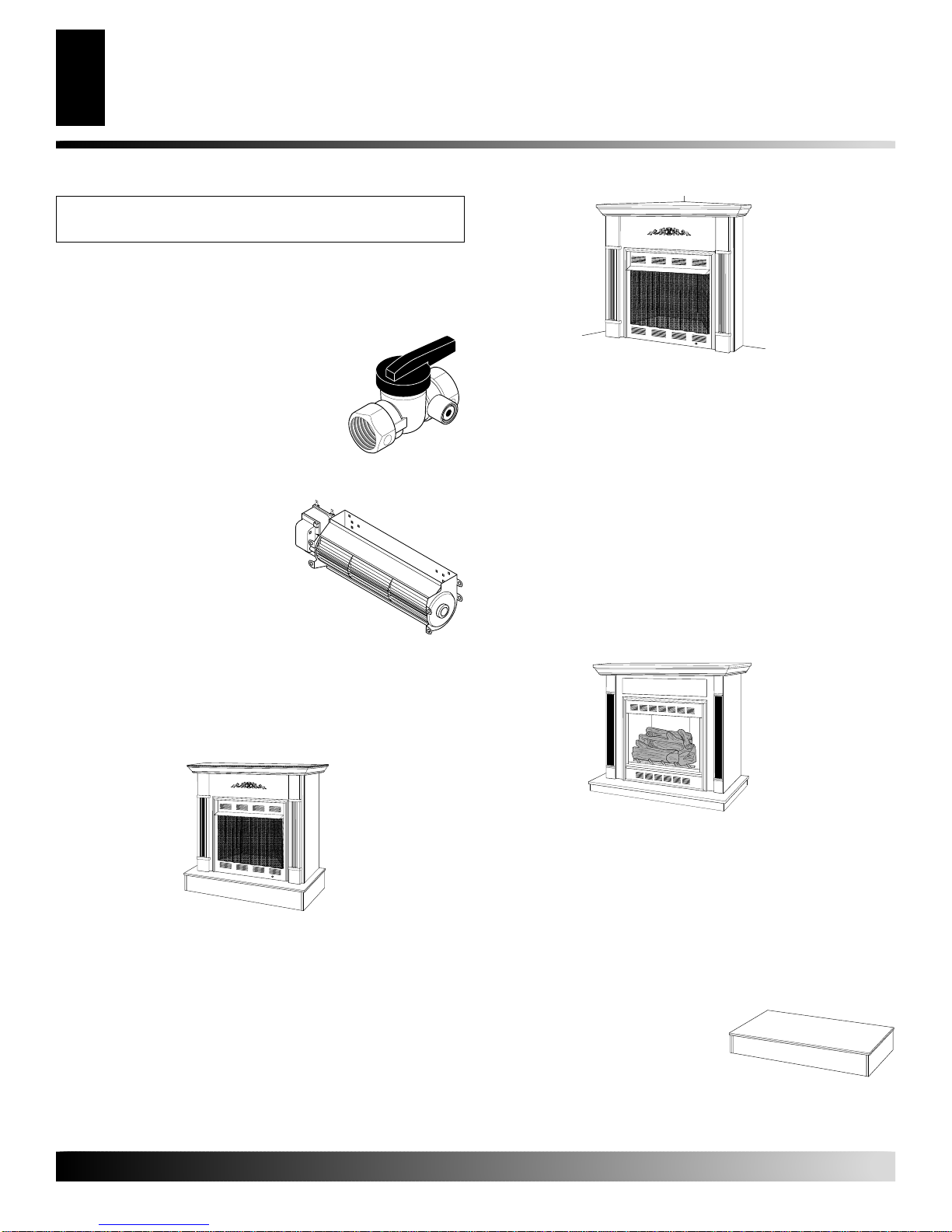

ACCESSORIES ........................................................................ 14
OWNER’S REGISTRATION FORM.......................................... 15
PARTS CENTRALS .................................................................. 17
WARRANTY INFORMATION....................................... Back Page

107331-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
3
3
SAFETY INFORMATION
LOCAL CODES
UNPACKING
PRODUCT IDENTIFICATION
LOCAL CODES
Installand usefireplace with care. Follow alllocal codes.In the absence
oflocalcodes,usethelatesteditionofTheNationalFuelGasCodeANSI
Z223.1/NFPA54*.Fireboxmustbeelectricallygroundedinaccordance
with the National Electrical Code, ANSI/NFPA70 (latest edition).
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
PRODUCT SPECIFICATIONS
9. Operating vent-free log sets in a firebox above elevations of
4,500 feet could cause pilot outage.
10. Do not use the firebox if it has been under water due to the
shock hazard that could result with the blower accessary (if
installed) in place.
11. Provide adequate clearances around air openings.
SAFETY INFORMATION
Continued
UNPACKING
1. With utility knife, cut the carton all the way around above the
staples on the bottom tray. Lift the carton off the firebox. Re-
move packing.
2. Check carton contents for the following:
•Screen assembly
•Screen support rod
•Hardware and parts bag containing the following:
- Owner’s Operation and Installation Manual
- 2 - Black #10 x 3/8" Phillips screws
3. If any items are missing, inform dealer where you bought the
firebox.
4. Check all itemsfor anyshipping damage. Ifdamaged, promptly
inform dealer where you bought firebox.
35 1/16"
31 3/4"
1 1/4"
16 1/4"
2 3/4"
3 7/8"
6 3/4"
2 3/4"
6 3/8"
19 3/8"
1 1/4"
Built-in
Nailing
Flanges

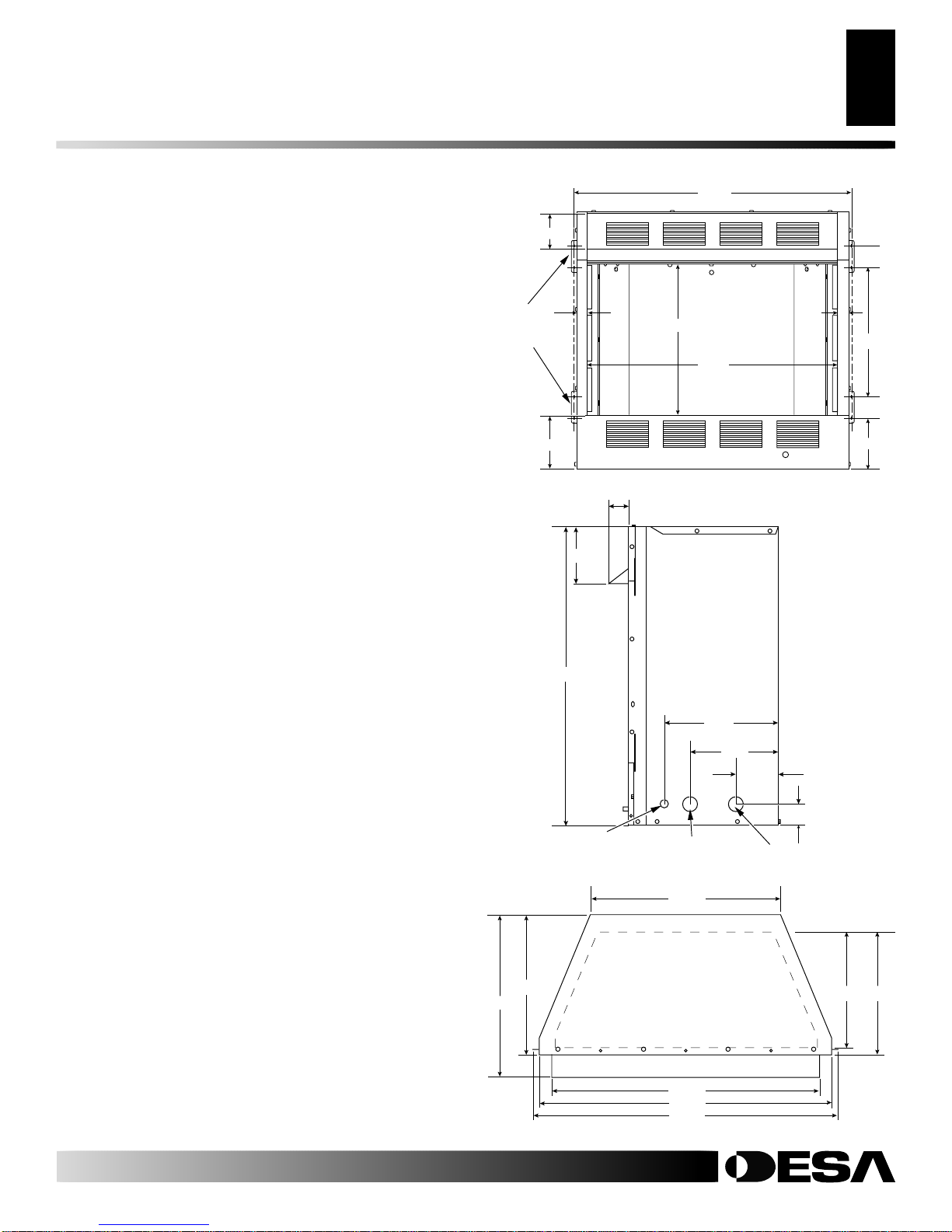

Figure 1 - Firebox Front View
12 1/2"
9 3/4"
4 5/8"
2 1/2"
6"
32 3/16"
33 11/16"
2 1/4"
Electrical Access Hole Electrical
Access Hole Gas Line Access
Figure 2 - Firebox Side View
22 1/2"
16 11/16"
13
1
/ 4 "*14
1
/ 4 "*
31 5/8"
34 3/8"
35 5/8"
19 1/4"
Figure 3 - Firebox Top View
* Note: 14 1/4" is total firebox
cavity depth including brick
liner. 13 1/4" is depth of flat
floor including brick liner.

107331-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
4
PRODUCT FEATURES
Operation
Blower Accessory
LOCATING FIREBOX
AIR FOR COMBUSTION AND VENTILATION
Providing Adequate Ventilation
LOCATING FIREBOX
Plan where you will install the firebox. This will save time and
money later when you install the firebox. Before installation,
consider the following:
1. Where the firebox will be located. Allow for wall and ceiling
clearances (see Installation Clearances, page 6).
2. Everything needed to complete installation.
3. Thesemodels CANNOT beinstalled in abedroomor bathroom.
4. Proper air for combustion and ventilation (see below).
Today’s homes are built more energy efficient than ever. New materi-
als, increased insulation, and new construction methods help reduce
heat loss in homes. Home owners weather strip and caulk around
windowsanddoorstokeepthecoldairoutandthe warm air in. During
heatingmonths,home owners wanttheirhomesas airtight aspossible.
While it is good to make your home energy efficient, your home
needs to breathe. Fresh air must enter your home. All fuel-burning
appliances need fresh air for proper combustion and ventilation.
Exhaustfans,fireboxes,clothesdryers,andfuelburningappliances
drawairfromthehousetooperate.Youmustprovideadequatefresh
air for these appliances. This will insure proper venting of vented
fuel-burning appliances.
AIR FOR COMBUSTION AND
VENTILATION
WARNING: This firebox shall not be installed in a
confined space or unusually tight construction un-
less provisions are provided for adequate combus-
tion and ventilation air. Read the following instruc-
tionstoinsureproperfreshairforthisandotherfuel-
burning appliances in your home.

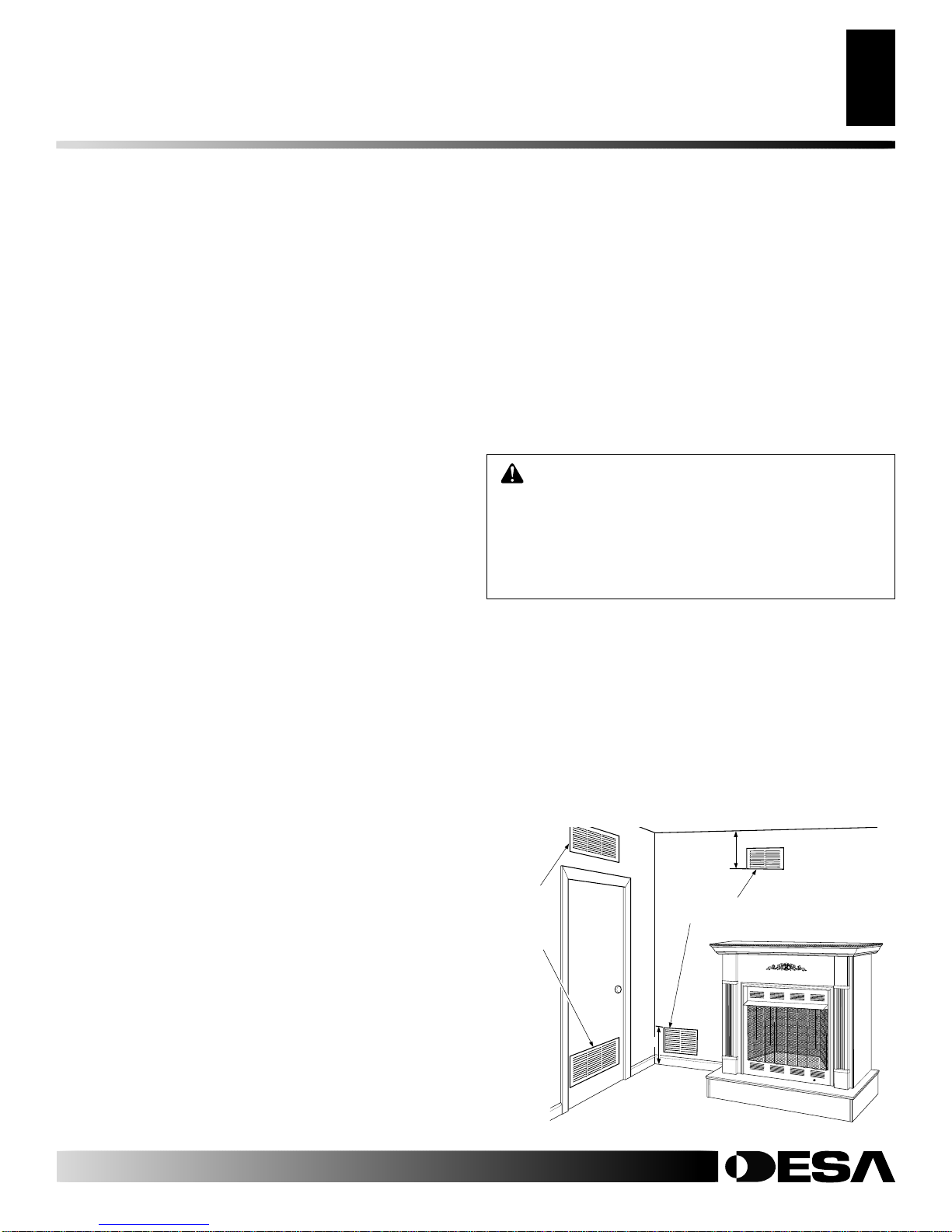

PROVIDING ADEQUATE VENTILATION
The following are excerpts from National Fuel Gas Code ANSI
Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation.
All spaces in homes fall into one of the three following ventilation
classifications:
1. Unusually Tight Construction
2. Unconfined Space
3. Confined Space
The information on pages 4 through 6 will help you classify your
space and provide adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough
fresh air for combustion and ventilation. However, in buildings of
unusually tight construction, you must provide additional fresh air.
Unusually tight construction is defined as construction
where:
a. walls and ceilings exposedto the outside atmosphere
have a continuous water vapor retarder with a rating
of one perm (6x10-11 kg per pa-sec-m2) or less with
openings gasketed or sealed and
b. weather stripping has been added on openable win-
dows and doors and
c. caulking or sealants are applied to areas such as
joints around window and door frames, between sole
platesandfloors,betweenwall-ceilingjoints,between
wall panels, at penetrations for plumbing, electrical,
and gas lines, and at other openings.
If your home meets all of the three criteria above, you
must provide additional fresh air. See Ventilation Air
From Outdoors, page 6.
If your home does not meet all of the three criteria above,
proceed to Determining Fresh-Air Flow For Firebox Loca-
tion , page 5.
Confined Space and Unconfined Space
The National Fuel Gas Code ANSI Z223.1/NFPA 54 defines a
confined space as a space whose volume is less than 50 cubic feet
per 1,000 Btu per hour (4.8 m3per kw) of the aggregate input rating
of all appliances installed in that space and an unconfined space as
aspacewhosevolumeisnotlessthan50cubicfeetper1,000Btuper
hour (4.8 m3per kw) of the aggregate input rating of all appliances
installed in that space. Rooms communicating directly with the
space in which the appliances are installed*, through openings not
furnishedwithdoors,areconsideredapartof the unconfined space.
* Adjoining rooms are communicating only if there are doorless
passageways or ventilation grills between them.
PRODUCT FEATURES
OPERATION
This firebox is designed to accept unvented decorative gas logs. It
requiresnooutsideventingorchimneymakinginstallationeasyand
inexpensive. When used without the blower the firebox requires no
electricity making it ideal for emergency backup heat.
BLOWER ACCESSORY
The CGFB32CA firebox will accept the GA3750 accessory. The
variable blower allows you to select the fan speed you desire. The
blower circulates heated air from the firebox into the room. Use of
blower is optional.

107331-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
5
5
AIR FOR COMBUSTION AND VENTILATION
Determining Fresh-Air Flow For Heater Location
Ventilation Air
AIR FOR COMBUSTION
AND VENTILATION
Continued
WARNING:Iftheareainwhichthefireboxandgas
log heater may be operated is smaller than that
definedasanunconfinedspaceorifthebuildingisof
unusuallytight construction,provideadequate com-
bustion and ventilation air by one of the methods
describedinthe NationalFuelGasCode,ANSIZ223.1/
NFPA 54 Section 5.3 or applicable local codes.
DETERMINING FRESH-AIR FLOW FOR
HEATER LOCATION
Determining if You Have a Confined or
Unconfined Space
Usethis worksheetto determineif youhavea confinedor unconfinedspace.
Space:Includestheroominwhichyouwillinstallheaterplusanyadjoining
rooms with doorless passageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = ___________ cu. ft. (volume of space)
Example: Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling
height) = 2560 cu. ft. (volume of space)
Ifadditional ventilationtoadjoiningroomis suppliedwith grillsoropen-
ings, add the volume of these rooms to the total volume of the space.
2. Multiply the space volume by 20 to determine the maximum Btu/Hr
the space can support.
__________ (volume of space) x 20 = (Maximum Btu/Hr the space
can support)
Example: 2560 cu. ft. (volume of space) x 20 = 51,200 (maximum
Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free heater _____________ Btu/Hr
Gas water heater* _____________ Btu/Hr
Gas furnace _____________ Btu/Hr
Vented gas heater _____________ Btu/Hr
Gas fireplace logs _____________ Btu/Hr
Other gas appliances* + _____________ Btu/Hr
Total = _____________ Btu/Hr
* Do not include direct-vent gas appliances. Direct-vent draws com-
bustion air from the outdoors and vents to the outdoors.
Example:
Gas water heater _____________ Btu/Hr
Vent-free heater + _____________ Btu/Hr
Total = _____________ Btu/Hr
4. Compare the maximum Btu/Hr the space can support with the actual
amount of Btu/Hr used.
__________________ Btu/Hr (maximum the space can support)
__________________ Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space can support)
79,000 Btu/Hr (actual amount of Btu/Hr used)
The space in the above example is a confined space because the actual Btu/Hr
used is more than the maximum Btu/Hr the space can support. You must
provide additional fresh air. Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the
extra space provides an unconfined space, remove door to adjoining
roomor addventilation grillsbetweenrooms. SeeVentila tion AirF rom
InsideBuilding below.
B. Vent room directly to the outdoors. See Ventila tion Air F rom Out-
doors, page 6.
C. InstallalowerBtu/Hrheater,if lower Btu/Hr size makes room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can
support, the space is an unconfined space. You will need no additional fresh
air ventilation.
40,000
39,000
79,000
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining unconfined space.
When ventilating to an adjoining unconfined space, you must
provide two permanent openings: one within 12" of the ceiling and
one within 12" of the floor on the wall connecting the two spaces
(see options 1 and 2, Figure 4). You can also remove door into
adjoining room (see option 3, Figure 4). Follow the National Fuel
Gas Code ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion
and Ventilation for required size of ventilation grills or ducts.
Figure 4 - Ventilation Air from Inside Building
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills
Into Adjoining
Room,
Option 1
12"
12"

107331-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
6
AIR FOR COMBUSTION AND
VENTILATION
Continued
INSTALLATION CLEARANCES
WARNING: Maintain the minimum clearances. If
you can, provide greater clearances from floor, ceil-
ing, and adjoining wall.
Carefully follow the instructions below. This will ensure safe
installation.
Minimum Clearances For Side Combustible
Material, Side Wall, and Ceiling
A. Clearances from the side of the fireplace cabinet to any combus-
tible material and wall should follow diagram in Figure 6, page 7.
Example: The face of a mantel, bookshelf, etc. is made of
combustible material and protrudes 3 1/2" from the wall. This
combustible material must be 4" from the side of the fireplace
opening (see Figure 6, page 7).
B. Clearances from the top of the fireplace opening to the ceiling
should not be less than 42 inches.
INSTALLATION
CAUTION: Log heaters installed in this firebox
create warm air currents. These currents move heat
towallsurfacesnexttofirebox.Installingfireboxnext
to vinyl or cloth wall coverings or operating firebox
whereimpurities(suchas,butnotlimitedto,tobacco
smoke,aromaticcandles,cleaningfluids, oilorkero-
sene lamps, etc.) in the air exist, may discolor walls
or cause odors.
IMPORTANT: Vent-free gas log heaters add moisture to the air.
Although this is beneficial, installing firebox in rooms without
enough ventilation air may cause mildew to form from too much
moisture.See AirforCombustionandVentilation,pages4through6.
IMPORTANT: Makesurethefireboxislevel.Iffireboxisnotlevel,
log set will not work properly.
Note :Your Comfort Glow firebox is designed to be used in zero
clearance installations. Wall or framing material can be placed
directlyagainstanyexteriorsurfaceontherear,sides,ortopofyour
firebox, except where standoff spacers are integrally attached. If
standoff spacers are attached to your firebox, these spacers can be
placed directly against wall or framing materials.
Use the dimensions shown for rough openings to create the easiest
installation (see Built-In Firebox Installation, page 10).
WARNING: A qualified service person must in-
stall firebox. Follow all local codes.
WARNING: Never install the firebox
•in a bedroom or bathroom
•in a recreational vehicle
•where curtains, furniture, clothing, or other flam-
mable objects are less than 42 inches from the
front, top, or sides of the firebox
•in high traffic areas
•in windy or drafty areas
NOTICE: This heater is intended for use as supple-
mental heat. Use this heater along with your primary
heating system. Do not install this heater as your
primary heat source. If you have a central heating
system, you may run system’s circulating blower
while using heater. This will help circulate the heat
throughoutthehouse.Intheeventofapoweroutage,
you can use this heater as your primary heat source.
AIR FOR COMBUSTION AND VENTILATION
Ventilation Air (Cont.)
INSTALLATION
Installation Clearances

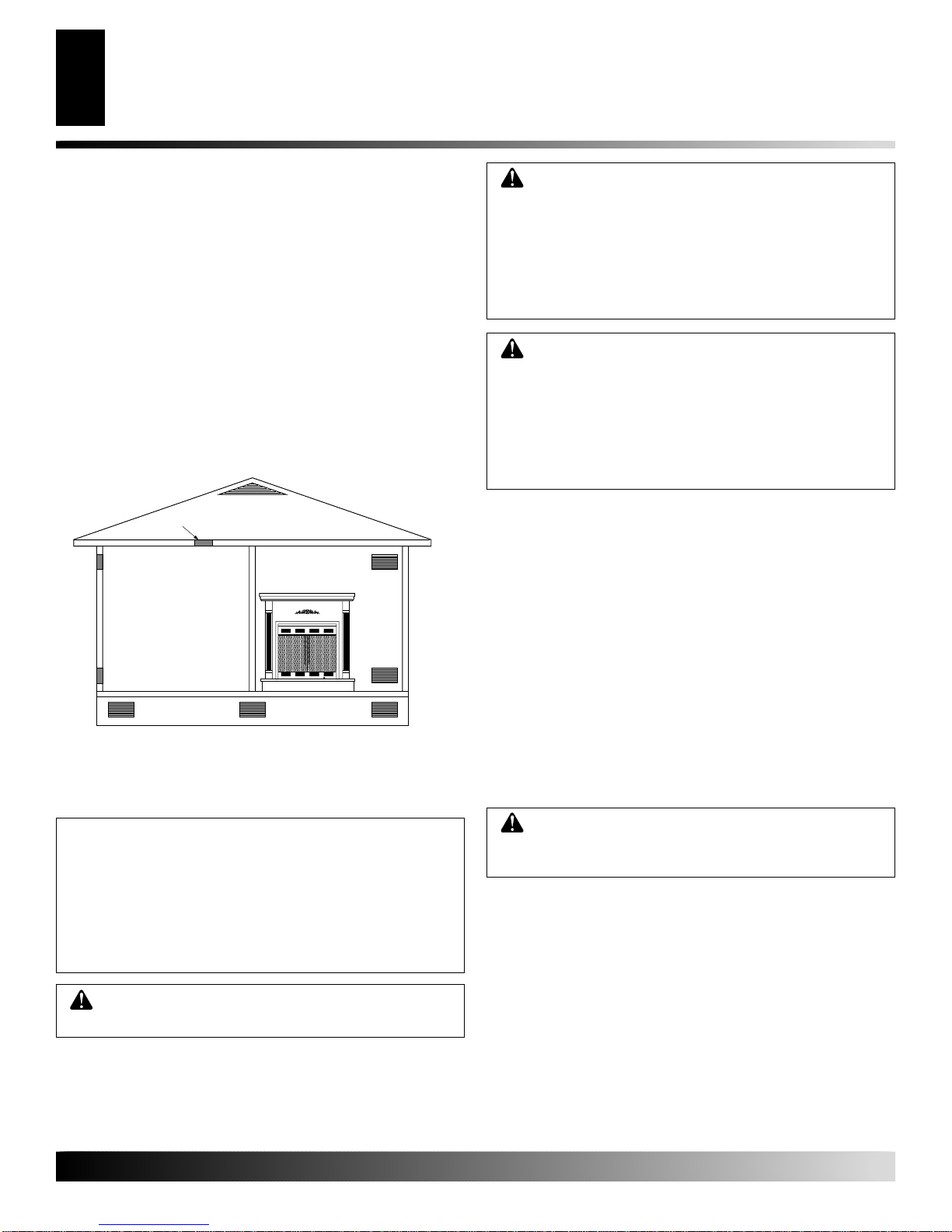

Figure 5 - Ventilation Air from Outdoors
Ventilation Air From Outdoors
Provideextrafresh airbyusingventilationgrillsor ducts.Youmust
provide two permanent openings: one within 12" of the ceiling and
one within 12" of the floor. Connect these items directly to the
outdoorsorspacesopentotheoutdoors.These spacesincludeattics
andcrawlspaces.FollowtheNationalFuelGasCodeANSIZ223.1/
NFPA 54, Section 5.3, Air for Combustion and Ventilation for
required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet or outlet air into
attic if attic has a thermostat-controlled power vent. Heated air
entering the attic will activate the power vent.
Outlet
Air Ventilated
Attic
Outlet
Air
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic

107331-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
7
7
Supplied
Firebox Hood
Must Be Used
at All Times
Wire-mesh
Screen
Firebox
Mantel Shelf
13" 16" 19" 21"
2
1/2
"
6"
8"
10"
For CGFB32C
Series circulatin
g
louvered models
only
Note :
All vertical measurements
are from top of fireplace
opening to bottom of mantel
shelf. All measurements
are in inches.
Facing material (above
firebox) may be of
combustible material,
including decorative
mantel ornaments.
Mantel Clearances for Built-In Installation
If placing custom mantel above built-in firebox, you must meet the
minimum allowable clearance between mantel shelf and top of
firebox opening shown in Figure 7. These are the minimum allow-
able mantel clearances for a safe installation. Use larger clearances
wherever possible to minimize the heating of objects and materials
placed on the mantel.
CAUTION: Close screens before operation of
vent-free gas log heater. Do not allow the heater to
touch or extend beyond the fireplace screen.
INSTALLATION
Installation Clearances (Cont.)
Installing Blower Accessory
INSTALLATION
Continued
Figure 7 - Minimum Mantel Clearances for Built-In Installation
If your installation does not meet the minimum clearances in
Figure 7, you must:
•raise the mantel to an acceptable height,
OR •remove the mantel.
Figure 6 - Minimum Clearance for Combustible to Wall
*Minimum 16 inches from Side Wall
*
Example
INSTALLING BLOWER ACCESSORY
You may install blower accessory GA3750 with conventional
installation(below) or withbuilt-ininstallation (see Built-InInstal-
lationofBlowerAccessory,page8).Toinstallbloweraccessory,see
instruction sheet included with the kit.

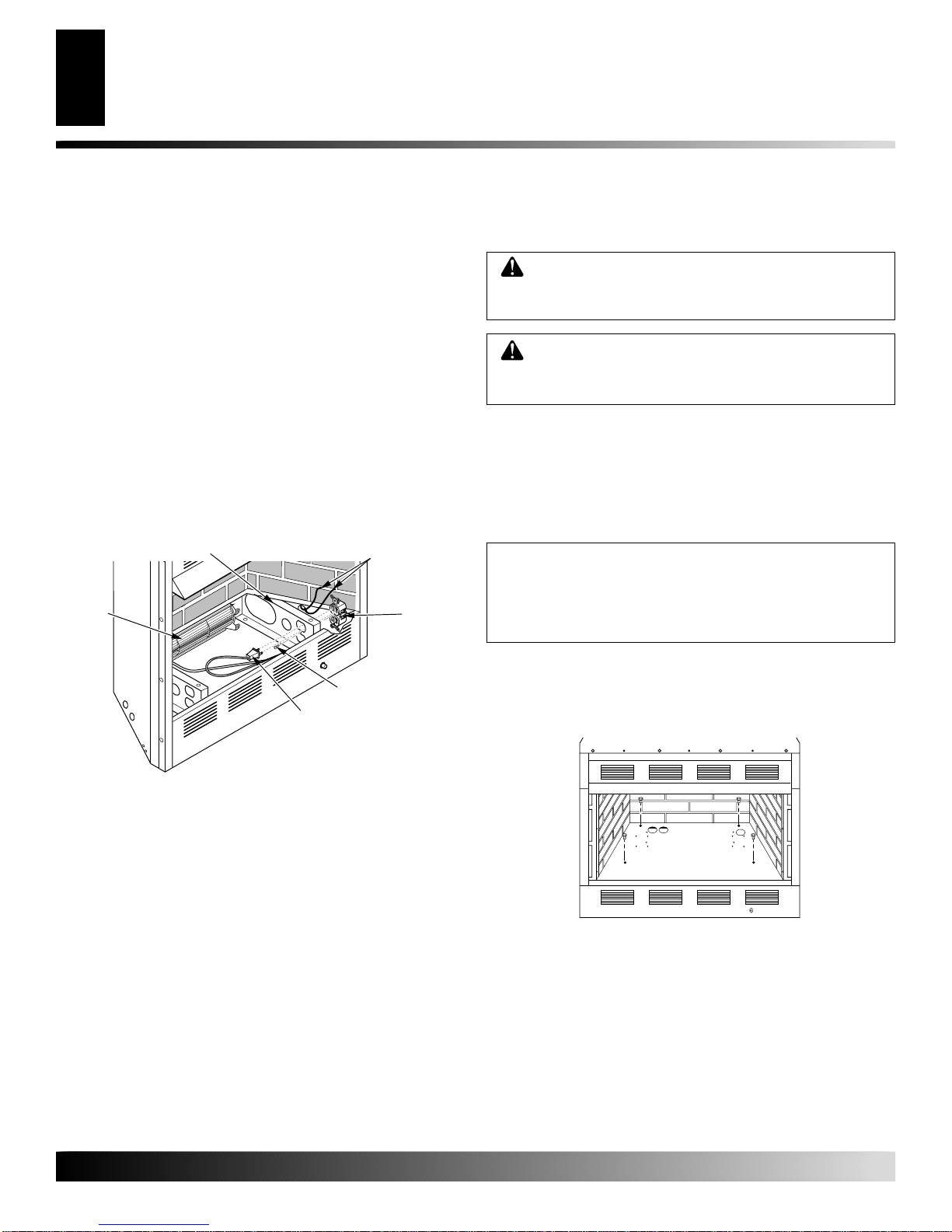

Conventional Installation of Blower Accessory
1. Install blower assemblyper instructionsheet included inblower
accessory kit.
2. Before replacing bottom of firebox, route blower power cord
throughhole in supportbracketin bottom offireboxand through
hole in side of firebox to grounded, three-prong 120 volt electri-
cal outlet (see Figure 8). Plug electrical cord into outlet.
3. Replace bottom of firebox.
NOTICE: A certified electrician must connect electri-
cal wiring to duplex outlet for built-in installation.
Follow all local codes. In absence of local codes,
follow the National Electrical Code, ANSI/NFPA 70
(Latest Edition) .
Side
Opening
Support Bracket
Opening
Blower Power Cord
Figure 8 - Routing Blower Accessory Power Cord for
Conventional Installation
Electrical
Outlet
Blower

107331-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
8
INSTALLATION
Continued
INSTALLATION
Installing Blower Accessory (Cont.)
Installing Log Heater In Firebox
Figure 9 - Routing Blower Accessory Power Cord for Built-In
Installation
Built-In Installation of Blower Accessory
1. Install blower assembly per instruction sheet included.
2. Before replacing bottom of firebox, remove screw holding
duplex outlet to the support bracket in the bottom of firebox.
Remove duplex outlet.
3. Clamp electrical cable into firebox through smallest hole us-
ing strain relief provided.
4. Route wires from electrical box through hole in side of heater
and hole in support bracket (see Figure 9).
5. Connect wires from the electrical box to duplex outlet. Match
wire colors to those indicated on duplex outlet. Be sure to con-
nect ground wire.
6. Replace duplex outlet with screw.
7. Plug blower power cord into duplex outlet.
8. Replace bottom of firebox.
Screw
Blower Power Cord
Blower
Support Bracket Cables From
Electrical
Source
Duplex
Outlet
INSTALLING LOG HEATER IN FIREBOX
CAUTION: Do not pick up log base assembly by
burners. This could damage burners. Only handle
base by grates.
CAUTION:Donotremovethedataplatesattached
to the heater base assembly. The data plates contain
important warranty and safety information.
1. Remove four screws holding firebox bottom in place.
2. Lift and remove firebox bottom (see Figure 10).
3. If installing GA3750 blower accessory, see Installing Blower
Accessory, page 7.
4. Route flexible gas line from equipment shutoff valve into fire-
box through side.
NOTICE: Most building codes do not permit con-
cealed gas connections. A flexible gas line is recom-
mended to allow accessibility from the firebox. The
flexible gas supply line connection to the equipment
shutoff valve should be accessible.
5. Attach gas log heater base to firebox bottom with four screws
included with base (see Installing Heater Base Assembly in
log set owner’s manual).
6. Replace firebox bottom and secure with screws.
Figure 10 - Removing Firebox Bottom
Operating the Blower
Light your gas appliance with the blower off. After about 15
minutes, turn the blower on to deliver heated air at the top louvers.
Theblowerfeaturesavariablecontrolwhichallowsyoutoselectthe
speed you desire.
Note: Periodicallycheck the louversofthe firebox andremoveany
dust, dirt, or other obstructions.

107331-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
9
9
INSTALLATION
Continued
INSTALLATION

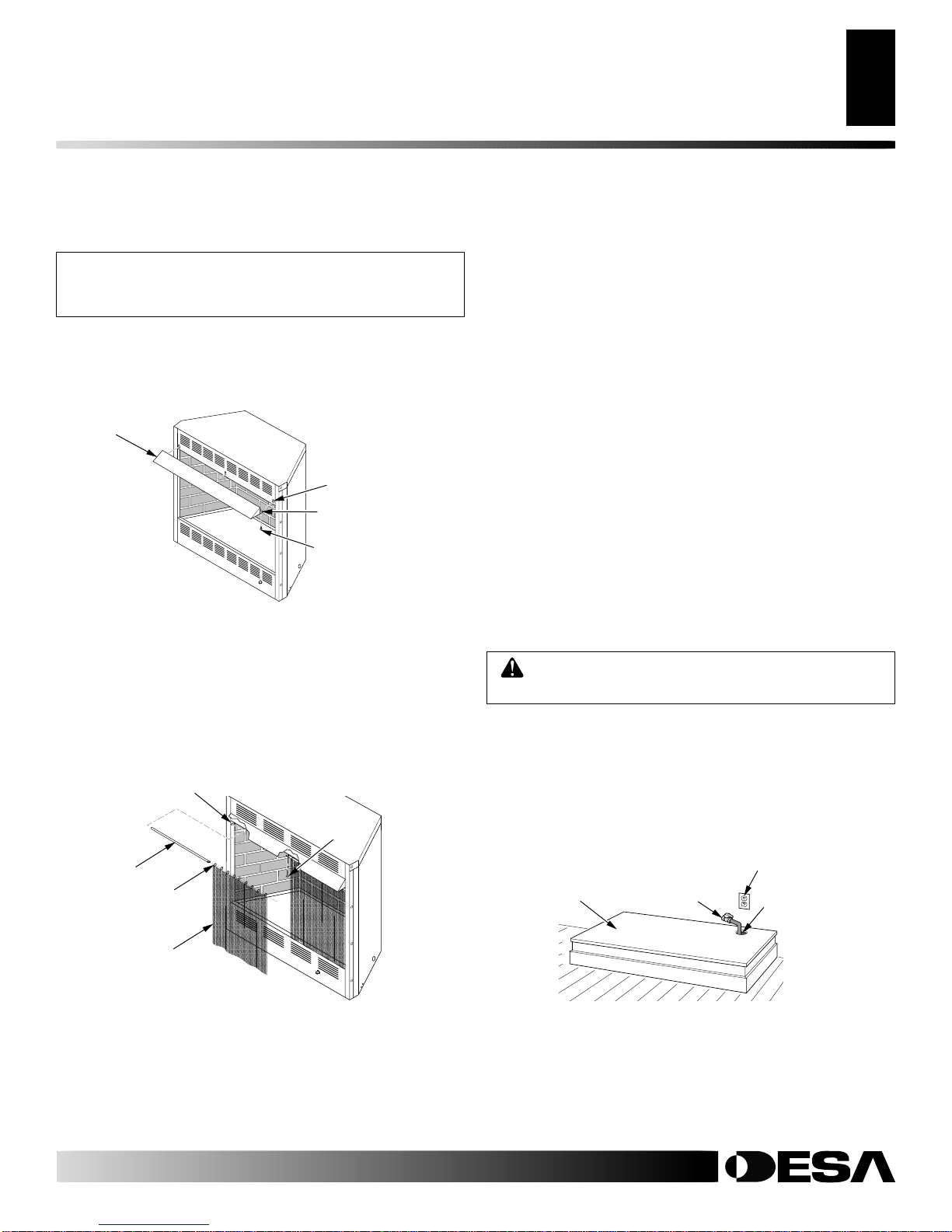

Installing Fireplace Hood
Installing Fireplace Screen
Firebox Installation Using Optional Accessory Mantels
INSTALLING FIREPLACE SCREEN
1. Insert each rod through nine rings located at top of screen (see
Figure 12).
2. Insert first rod into rear hole in left side of firebox. Fasten rod
to rear hole near center of firebox using black shoulder screw.
3. Insert other rod into front hole on right side of firebox and
fasten using remaining shoulder screw.
Ring
Figure 12 - Installing Fireplace Screen
Rod
Front and
Rear Hole
Screen
Screw
Figure 11 - Installing Fireplace Hood
INSTALLING FIREPLACE HOOD
Hood
Hood Mounting Slot
Screw
Shoulder Screw
FIREBOX INSTALLATION USING OPTIONAL
ACCESSORY MANTELS
This firebox may be installed using the cabinet mantel and hearth
base accessories against a wall in your home. Follow the instruc-
tions below to install the firebox in this manner.
Note: The instructions below show installation using GMC11F/
GMC12U/GMC13F series cabinet mantels and the GC3333F/
GC3334U/GC3335F series hearth base accessories. The hearth
base accessory shown is optional for this installation. You can
install firebox and cabinet mantel directly on the floor.
1. Assemble cabinet mantel, hearth base, and perimeter trim (In-
cluded with mantel). Assembly instructions are included with
each accessory.
2. If using an optional GA3750 blower, install a properly
grounded, 120 volt three-prong electrical outlet at firebox lo-
cation if an outlet is not there. If possible, locate outlet so cabi-
net mantel will cover it when installed (see Figure 14).
3. Install gas piping to firebox location. This installation includes
an approved flexible gas line (if allowed by local codes) and a
equipment shutoff valve.The flexible gas line must be the last
item installed on the gas piping. See Connecting to Gas Sup-
ply in your log set owner’s manual.
WARNING: A qualified service person must con-
nect firebox to gas supply. Follow all local codes.
4. Place hearth base accessory against wall at installation loca-
tion. Cut an access hole in hearth top to run flexible gas line to
firebox (see Figure 13). Make sure to locate access hole so
cabinet mantel will cover it when installed. Note: You can
secure base to floor using wood screws. Countersink screw
heads and putty over.
5. Route flexible gas line through access hole in hearth base.
Figure 13 - Placing Hearth Base Accessory Against Wall
Electrical Outlet
Hearth
Base Gas Line
Access Hole
Rigid Pipe
and Gas
Shutoff Valve
NOTICE: The firebox canopy (hood) must not be
modified or replaced with a canopy (hood) that may
beprovidedwiththeunventeddecorativeroomheater.
1. Attach three zinc-colored shoulder screws to back of hood.
2. Insert hood into hood-mounting slots on firebox.
3. Hold hood in place. Insert two black Phillips screws through
bottom of hood and tighten.

107331-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
10
INSTALLATION
Continued
INSTALLATION
Firebox Installation Using Optional Accessory Mantels (Cont.)
Built-In Firebox Installation
Figure 15 - Location of Nailing Flanges
Nailing
Flanges
Figure 16 - Inserting Firebox Into Cabinet Mantel
6. Center cabinet mantel on hearth base (see Figure 14). Make
sure mantel is flush against wall.
7. Break off nailing flanges (see Figure 15) with hammer or pliers.
8. Place cardboard or other protective material on top of hearth
base. Carefully set firebox on protective material, with back
of firebox inside mantel opening.
BUILT-IN FIREBOX INSTALLATION
Built-ininstallationof this fireboxinvolvesinstalling firebox intoa
framed-inenclosure.Thismakesthefrontoffireboxflushwithwall.
Optional brass trim (GA7090) is available (see Accessories, page
11) This brass trim will extend past sides of firebox approximately
1/2 inch. This will cover rough edges of the wall opening. If
installing a mantel above the firebox, you must follow the clear-
ances shown in Figure 7, page 7. Follow the instructions below to
install the firebox in this manner.
1. Frame in roughopening. Use dimensionsshown in Figure17 for
theroughopening.Ifinstallinginacorner,usedimensions shown
in Figure 18 for the rough opening. The height is 33", which is
the same as the wall opening in Figure 17.
2. Install gas piping to firebox location. This installation includes
an approved flexible gas line (if allowed by local codes) after the
equipment shutoff valve. The flexible gas line must be the last
iteminstalled on thegaspiping. See Connecting toGasSupply in
log set owner’s manual.
3. Carefully set firebox in front of rough opening with back of
firebox inside wall opening. IMPORTANT: If installing Brass
Trim Kit GA7090, see instructions included with brass trim ac-
cessory. You must install shoulder screws now.
4. If using GA3750 blower accessory, see Built-In Installation of
Blower Accessory, page 8.
5. Attach flexible gas line to log set. See Connecting to Gas Sup-
ply in log set owner’s manual.
Figure17 - RoughOpeningfor
Installing in Wall
39
3
/ 8 "27
7
/ 8 "
55
5
/ 8 "
34
3
/ 4 "
Figure 18 - Rough Opening for
Installing in Corner
34
3
/ 4 "
17
3
/ 4 "
33" (CGFB32C)
34
1
/ 4 " (CGFB32NC)
Figure 14 - Installing Cabinet Mantel
Cabinet
Mantel

107331-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
11
11
INSTALLATION
Built-In Firebox Installation (Cont.)
TECHNICAL SERVICE
REPLACEMENT PARTS
6. Carefully insert firebox into rough opening.
7. Attach firebox to wall studs using nails or wood screws through
holes in nailing flange (see Figure 19).
8. Check all gas connections for leaks. See Checking Gas Connec-
tions in log set owner’s manual.
9. If using optional GA7090 brass trim kit, install the trim after
final finishing and/or painting of wall. See instructions included
with brass trim accessory for attaching brass trim.
Figure 19 - Attaching Firebox to Wall Studs
Nailing
Flanges
Nails or Wood
Screws
Height Front Width Depth
Model # Actual Framing Actual Framing Actual Framing
CGFB32C 323/16" 33" 345/16"34
3/4"16 11/16"17 3/4"
TECHNICAL SERVICE
You may have further questions about installation, operation, or
troubleshooting. If so, contact DESA International’s Technical Ser-
viceDepartmentat1-866-672-6040.When calling please have your
model and serial numbers of your heater ready.
YoucanalsovisitDESAInternational’sTechnicalServicewebsite
at www.desatech.com.
REPLACEMENT PARTS
Note: Use only original replacement parts. This will protect your
warranty coverage for parts replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product or Parts Central (see page
13). If they can’t supply original replacement part(s), call DESA
International’s Technical Service Department at 1-866-672-6040.
When calling DESA International, have ready
•your name
•your address
•model and serial numbers of your fireplace
•how fireplace was malfunctioning
•type of gas used (propane/LP or natural gas)
•purchase date
Usually, we will ask you to return the part to the factory.
PARTS NOT UNDER WARRANTY
ContactauthorizeddealersofthisproductorPartsCentral(seepage
13). If they can’t supply original replacement part(s), call DESA
International at 1-866-672-6040 for referral information.
When calling DESA International, have ready
•model number of your fireplace
•the replacement part number

107331-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
12
5
15
15
14
15
16
6
1
15
7
15
13
18
9
8
19
12 17
20
10
4
2
3
2
15
11
17
17
ILLUSTRATED PARTS
BREAKDOWN
CGFB32CA
ILLUSTRATED PARTS BREAKDOWN
CGFB32CA

107331-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
13
13
PARTS LIST
CGFB32CA
PARTS LIST
This list contains replaceable parts used in your
firebox. When ordering parts, follow the instruc-
tionslistedunderReplacementPartsonpage11of
this manual.
KEY PART NUMBER
NO. CGFB32CA DESCRIPTION QTY.
1 101872-03 Firebox Top 1
2 101889-01 Firebrick Retainer 3
3 101929-04 Rear Firebrick 1
4 101932-04 Side Firebrick 2
5 103207-01 Outer Casing 1
6 103208-01 Outer Shell Base 1
7 *** Firebox Wrapper 1
8 103297-01 Assembly Screen 2
9 M12461-2 Screw, Outlet Mounting 1
10 103773-05CK Front Assembly
11 *** Firebox Bottom 1
12 103809-01 Screen Rod 2
13 101348-01 Firebox Support 2
14 101357-01 Outer Casing Top 1
15 M11084-26 Hex Head Screw, #10-16 49
16 103771-01 Strain Relief Fitting 1
17 098304-01 Phillips Pan Head Screw, #10 13
18 103769-01 Duplex Outlet 1
19 099230-02 Shoulder Screw 2
20 103217-01CK Hood 1
* Not Available as an Assembly
*** Not available for field replacement

107331-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
14
Purchase these fireplace accessories from your local dealer. If they
can not supply these accessories, call DESA International’s Sales
Departmentat 1-866-672-6040for information. Youcan also write
to the address listed on the back page of this manual.
BLOWER ACCESSORY
GA3750
Forallmodels.Thevariableblower
allowsyoutoselectthedesiredspeed.
Theblowercirculatesheatedairfrom
the fireplace into the room.
BRASS TRIM ACCESSORY GA7090 (Not Shown)
Required with all mantel accessories. Optional with built-in instal-
lation.Providesafinishedappearancecoveringroughand/orunfin-
ished mantel edges.
EQUIPMENT SHUTOFF VALVE
GA5010
For all models. Equipment shutoff valve
with 1/8" NPT tap. Fits 1/2" NPT pipe.
CABINET MANTEL WITH PERIMETER BRASS TRIM
GMC11F Series - Walnut Finished
GMC13F Series - Oak Finished
GMC12U Series - Unfinished
Mantel features moldings, fluted sides and medallion. Available in
walnut finished or unfinished hardwood, ready to stain or paint.
Shown with optional base accessory.
Approximate Dimensions (HxWxD): 44" x 57 3/4" x 22 7/8"
CORNER MANTEL WITH PERIMETER BRASS TRIM
GMC36F Series - Walnut Finished
GMC37U Series - Unfinished
GM202F Series - Oak Finished
Ideal for space saving installations. Approximate Dimensions
(WxHxD):60 7/8" x 48 3/4" x 34 5/8"
HARDWOOD CORNER HEARTH BASE
(Not Shown)
G3000F Series - Walnut Finished
G3009U Series - Unfinished
G3010F Series - Oak Finished
The corner hearth base creates a handsome riser for the firebox
(cannot be used with cabinet mantel or face mantel).
Dimensions (WxHxD): 52 1/2" x 6 1/2" x 26"
ACCESSORIES
Notice: All accessories may not be available for all
fireplace models.
ACCESSORIES
CABINET MANTEL AND BASE ACCESSORY
WITH FIREPLACE PERIMETER TRIM
GMC8CU Series - Unfinished Birch Veneer, Ready
to Stain or Paint
GMC10CF Series - Stained Oak Veneer
Mantel and base feature moldings, fluted sides, and medallion.
Mantel Dimensions (H xW xD): 44 3/4" x 53" x 20 3/4"
Base Dimensions (H xW xD): 3 3/4" x 48 1/4" x 23 3/4"
HEARTH BASE - Use with
Cabinet Mantel
GC3333F- Walnut Finished
GC3335F Series - Oak Finished
GC3334U - Unfinished
Thehearthbase createsahandsomeriserforthe fireplace.Approxi-
mate Dimensions (HxWxD): 6 1/2" x 58" x 28 9/16"

107331-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
15
15
1. Where will the product be used?
❍ Living/Family Room ❍ Office/Warehouse ❍ Utility Shed/Outbuilding ❍ Garage ❍ Bedroom ❍ Bathroom ❍ Other
2. If you bought this product yourself, did you plan to purchase this type of product before going into the store? ❍ Yes ❍ No
3. Who selected the product? ❍Male ❍Female ❍Both
4. What is the population of your area? ❍ Under 10,000 ❍ 10,000 to 25,000 ❍25,000 to 50,000 ❍ 50,000 to 100,000
❍ 100,000 to 250,000 ❍ Over 250,000
5. What is your primary source of heat? ❍ Propane (LP Gas) ❍ Fuel Oil ❍ Wood ❍ Natural Gas ❍ Electric ❍ Other
6. How was the product installed? ❍ Professional Installer ❍ Self ❍ Other
7. Cost of product excluding sales tax? $___________________
8. Cost to install product? $____________________
9. Type of store where product was purchased? ❍ Hardware ❍ Propane Dealer ❍ Natural Gas/Utility Co. ❍ Home Center/Builder’s Suppl
y
❍ Fireplace or Hearth Shop ❍ Farm Store ❍ Other
10. What motivated you to buy this product? ❍ Sudden Cold Weather ❍ Replace Older Model ❍ D.I.Y. Home Project
❍ Emergency Back-Up Heat ❍ Heater was on Sale ❍ Energy Savings/High Efficiency ❍ Construction Project ❍ Other
11. How did you learn about this product brand? ❍ Advertising ❍ Relative or Friend ❍ Store Display ❍ Other ________________________
12. Level of Education of Purchaser: ❍ Some High School ❍ Completed High School ❍ Completed College ❍ Completed Graduate School
13. Age of Purchaser: ❍ Under 20 ❍ 20 - 29 ❍ 30 - 39 ❍ 40 - 49 ❍ 50 - 59 ❍ 60 or Over
14. Buyer’s total annual household income: ❍ Under $15,000 ❍ $15,000 to $19,999 ❍ $20,000 to $34,999 ❍ $35,000 to $49,999
❍ $50,000 to $74,999 ❍ $75,000 to $99,999 ❍ $100,000 and Over
15. Store where product was purchased:
Name: ______________________________________
City: _______________________ State: __________
16. In choosing this product, how important were the following:
Availability
Price
Brand Name
Overall Quality
Heat Output
Made in USA
Warranty
Local Service
Value for Price
Prior Brand Experience
Controls Location
Thermostat, Remote, or Manual Operation
Ease of Operation
Special Features
Salesperson’s Recommendation
Friend/Relative’s Recommendation
Portability
Quiet Operation
OWNER'S REGISTRATION FORM
Please answer the following questions to register your product with DESA International:
In order to provide better customer service for this and future purchases, we recommend that you register your product with us.
You can register online at www.desatech.com. If access to our website is not available to you, please complete this Owner’s
Registration Form and mail to the address on the back of this owner’s manual. Please provide the following product information:
Not Important Somewhat Important Very Important
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
Brand: (Comfort Glow, Vanguard, etc.)
Model: (EFP33PR, VTGH33NR, etc.)
Date Purchased: Note: Keep receipt for warranty verification.
Serial Number: 7 or 9 digit number located on product or identification tag.
First Name: Last Name:
Address:
City: State: Zip: Country:
Home Phone: ( ) -
E-Mail:

107331-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
16
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
Postage
Required
TM
TAPE
TAPE

107331-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
17
17
Baltimore Electric
1348 Dixwell Avenue
Hamden, CT 06514-0322
1-800-397-7553
203-248-7553
Parts Department
Portable Heater Parts
342 N. County Rd. 400 E.
Valparaiso, IN 46383-9704
All States
219-462-7441
1-888-619-7060
[email protected]
[email protected]
FBD
1349 Adams St.
Bowling Green, KY 42103-3414
270-846-1199
1-800-654-8534
Fax: [phone]
[email protected]
Master Parts Distributor
1251 Mound Ave. NW
Grand Rapids , MI 49504-2672
616-791-0505
1-800-446-1446
Fax: [phone]
www.nbmc.com
Washer Equipment Co.
1715 Main Street
Kansas City, MO 64108-2195
KS, MO, AR
816-842-3911
www.washerparts.com
East Coast Energy Products
707 Broadway
W. Long Branch, NJ 07764-1542
732-870-8809
1-800-755-8809
www.njplaza.com/ecep
Dayton Hardware
P.O. Box 275
North Dayton Station
Dayton, OH 45404-0275
All States
937-258-3721
OH 1-800-762-3426
Halco Enterprises
208 Carter Drive, Unit 21
West Chester, PA 19382-4500
610-430-7717
1-800-368-0803
www.halcoenterprises.com
Laportes Parts & Service
2444 N. 5th Street
Hartsville, SC 29550-7704
843-332-0191
Parts Department
Cans Unlimited, Inc.
P.O. Box 645
Taylor, SC 29687-0013
All States
803-879-3009
1-800-845-5301
[email protected]
PARTS CENTRALS
These Parts Centrals are privately-owned businesses. They have
agreed to support our customer’s needs by providing original
replacement parts and accessories.
PARTS CENTRALS

107331-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
18
KEEP THIS WARRANTY
WARRANTY INFORMATION
107331-01
Rev. E
06/02
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
www.desatech.com
LIMITED WARRANTY
COMFORT GLOW VENT-FREE RESIDENTIAL GAS HEATERS
DESA International warrants this product to be free from defects in materials and components for two (2) years from the date of first purchase,
providedthat theproducthas beenproperly installed,operatedand maintainedinaccordancewithall applicableinstructions.To makea claimunder
this warranty the Bill of Sale or cancelled check must be presented.
This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this heater to proper
operating condition and an allowance for labor when provided by a DESA Authorized Service Center. Warranty part(s) MUST be obtained through
authorized dealers of this product and/or DESA International who will provide original factory replacement parts. Failure to use original factory
replacement parts voids this warranty. The heater MUST be installed by a qualified installer in accordance with all local codes and instructions
furnished with the unit.
This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become damaged as a
result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost, labor, transportation and
any and all such other costs related to repairing a defective heater will be the responsibility of the owner.
TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT; THIS
EXPRESSWARRANTYEXCLUDESANYAND ALLOTHEREXPRESSEDWARRANTIESAND LIMITSTHEDURATIONOFANY AND
ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
TO TWO (2) YEARS ON ALL COMPONENTS FROM THE DATE OF FIRST PURCHASE; AND DESA INTERNATIONAL’S LIABILITY
ISHEREBYLIMITEDTOTHEPURCHASEPRICEOFTHEPRODUCTANDDESAINTERNATIONALSHALLNOTBELIABLEFORANY
OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages,
so the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
For information about this warranty write:
Model _______________________________
Serial No. ____________________________
Date Purchased _______________________
NOT A UPC
Always specify model and serial numbers when communicating with the factory.
We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We
make no other warranty, expressed or implied.
107331 01
TM
