CL55 Massage Chair

02
04
05
06
14
Thanks for purchasing this product. Please read this manual instruction carefully
in order to know how to use this product correctly before operation. Please pay
more attention to some important safety warning and keep this manual book
properly for future use.
Note: Our Company reserves the right to revise the design and description of this
product without any further notice. Please refer to the actual color of this product.
01
CONTENTS
Safety and maintenance
Name and functionof components
Function
Method of usage
Product specification

0302
1.Important Safety Warning.
Don t allow children to touch moveable part of this product.
Please use well-grounding power supply suited to this product.
Please pull out the plug after use or before cleaning to avoid injury or
Damage to the product.
Please operate this product according to this manual instruction.
Don t use accessories which are not recommended.
Don t use this product outdoors.
Please read this manual instruction carefully before operation.
Any other usage that is not listed in this manual instruction is forbidden.
20 minutes of usage each time is recommended.
Please don t use it if the leather is broken or damaged.
Please don t use it if the cover or leather is damaged.
Please don t use it if the radiator hole is covered or blocked.
Please don t drop anything into this product.
Please don t fall asleep while using this product.
Please don t use it if drunk or feel unwell.
Please don t use it within one hour after having meal.
Please don t make the massage function too strong for avoiding Injury.
2. Environment for usage.
Please don t use it under high temperature and moist environment such as
bathroom.
Please don t use it immediately while the environmental temperature
changes sharply.
Please don t use it under heavy-dusty or caustic environment.
Please don t use it where there is not enough space or not good ventilation.
3. People who are not suitable to use this product.
People who are suffering from osteoporosis are not suitable to use this product.
People who are suffering from heart disease or carrying electronic medical
equipment such as heart pacemaker are not suitable to use this product.
People who are suffering from fever are not suitable to use this product.
Pregnant women or women that are in menses period are not suitable to use this
product.
People who got injured or skin disease are not suitable to use this product.
Children under 14-year old or people mentally unbalanced without being
Supervised are not allowed to use this machine.
People who are told by doctor to have rest or people who feel unwell are not
suitable to use this product.
People whose bodies are wet are forbidden to use this product.
The appliance has a heated surface.persons insensitive to Heat must be careful
when using the appliance.
4. Safety.
Check the voltage if it is suitable to the specification of this product.
Don t use wet hand to pull the plug.
Don t make water go inside this product to avoid electric shock or cause
damage to this product.
Don t damage the wires or change the circuit of this product.
Don t use wet cloth to clean the electric parts such as switch and plug.
Be away from this product under power cut state to avoid injury if the power
comeback suddenly.
Stop using this product while it works abnormal, and please consult local agent
immediately.
Stop using this product if you feel unwell, and please consult health care doctor.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its Service
agent or similarly qualified persons in order to avoid a hazard.
5. Maintenance.
This product should be maintained by certain appointed agents, users are
prohibited to disassemble or maintain by themselves.
Please don t forget to cut the power after usage.
Don t use this product if the socket looses.
If this product will be left unused for long, please curl up the wires and reserve this
product in dry and dustless environment.
Don t reserve this product under high temperature or near fire and avoid longtime
direct sunshine.
Please clean this product by dry cloth. Don t use thinner, benzene or alcohol.
The mechanical components of this product are specially designed and made, it is
not necessary to be specially maintained.
Don t use edged res to thrust this product.
Don t roll or pull this product above uneven ground, it should be lifted before
moving.
Please use it intermittently; don t make this product work continuously for long.
6. Solution of ordinary malfunctions.
It is nature movement voice if the motor sounds while in usage.
If the controller can t work normally, please check the plug and socket if they are
connected strongly and make sure the switch is turned on.
If the rated working time is over, the product will automatically activate the power-
off button; If this product works continuously for long, the temperature protector will
make the product autom
If the detachable cord / supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to avoid a
Hazard.
Safety and maintenance Safety and maintenance

04 05
1
2
3
4
8
7
5
18
9
19 20 21
10
6
11
14
13
16
15
17
12
Name and function of components Function
1.Pillow pad
2.Arms airbags assembly
3.Seat cushion
4.Leg frame
5.Foot frame
6.Front shrouding
7.Back cushion
8.LED colorful light
9.Decorating strip
10.Armrest
11.Slide side plate
12.Chassis back cover
13.Caster
14.hand controller
15.the chassis cover
16.The movable pulley
17.Power cord and plug
18.Power cord socket
19.Fuse box
20.Power switch
21.Manual controller wire socket
Function :
Designed with a set of vertically movable, four wheel driven muted intelligent
massage hands.
Designed with emulation massage methods of shiatsu, kneading, tapping,
Knocking, simultaneous kneading and tapping.
Designed with five automatic massage function: comfort, relax, decompress, neck
and shoulder, back and waist.
Designed with three massage memory function : M1, M2 and M3.
Manual massage for the upper body with five options : partial, fixed, overall, neck
and shoulder, back and waist massage. Each massage method with three levels
of speed adjustable. In the state of fixed massage, the massage hands can be
moved up and down; In the state of tapping, shiatsu and knocking, the width
between the two kneading balls is adjustable with three levels: wide, medium and
narrow.
Air pressure massage function: three modes for choice, full body air pressure,
arms (8pcs airbags), footrest (20pcs airbags), with three intensity optional.
Back heating function, use carbon fiber as infrared heating source.
With led blue light artistic effect on armrest.
The calfrest is extendable to suite your height.
Featuring the advanced forward-sliding recline technology. Enable full
reclination for space-saving optimisation.
The backrest lie down with the slide rail moving, seat part rise up, formed state of
Zero gravity gradually.
The calf rest and backrest can be reclined together and automatic lie-down mode
adjustment function.

0706
Shoulder
adjust

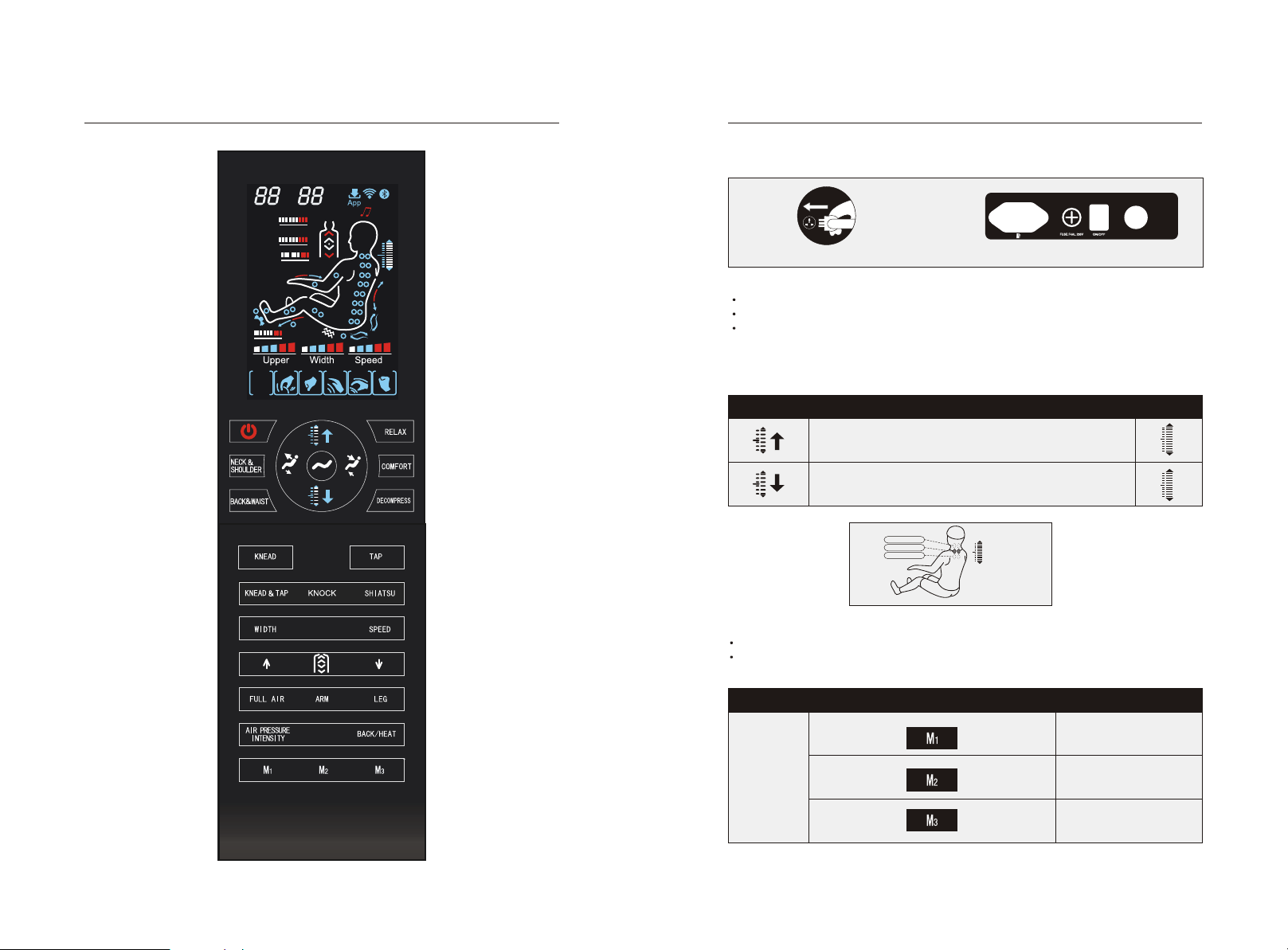

Method of usage Method of usage
Note: The specific displays referto
the actual object of this product!
Figure: plug in
Figure: position of the power switch
1.Switch power supply on
2.Start to massage
Press the power button to start massage
Detecting shoulder position and massage points, please wait till detection finished
If the detecting position has deviation on actual shoulder position, adjust the
position by the up and down buttons to get a suitable position. The shoulder
position has 10 grades. If without adjusting within 10s, enter into massage
automatically.
Buttons Description Display
Move the massage balls upward to a suitable position
Move the massage balls downward to a suitable position
High shoulder position
suitable shoulder position
Low shoulder position
Choose massage function to start massage
Memory massage
Choose any of M1, M2, M3, it will back to the stored massage models to massage.
Buttons Description Display
Memory
massage
Display the stored
massage models
Display the stored
massage models
Display the stored
massage models
Arm
Feet
Back
Buttocks
Min Auto
App
3D
1212
34
12 12 12 12
Memory

0908
Characterization of automatic massage
Air massage
Auto F1
Auto F2
Auto F3
Auto F4
Auto F5
Other manual functions
H0
H1
H2
H3
H4
Method of usage Method of usage

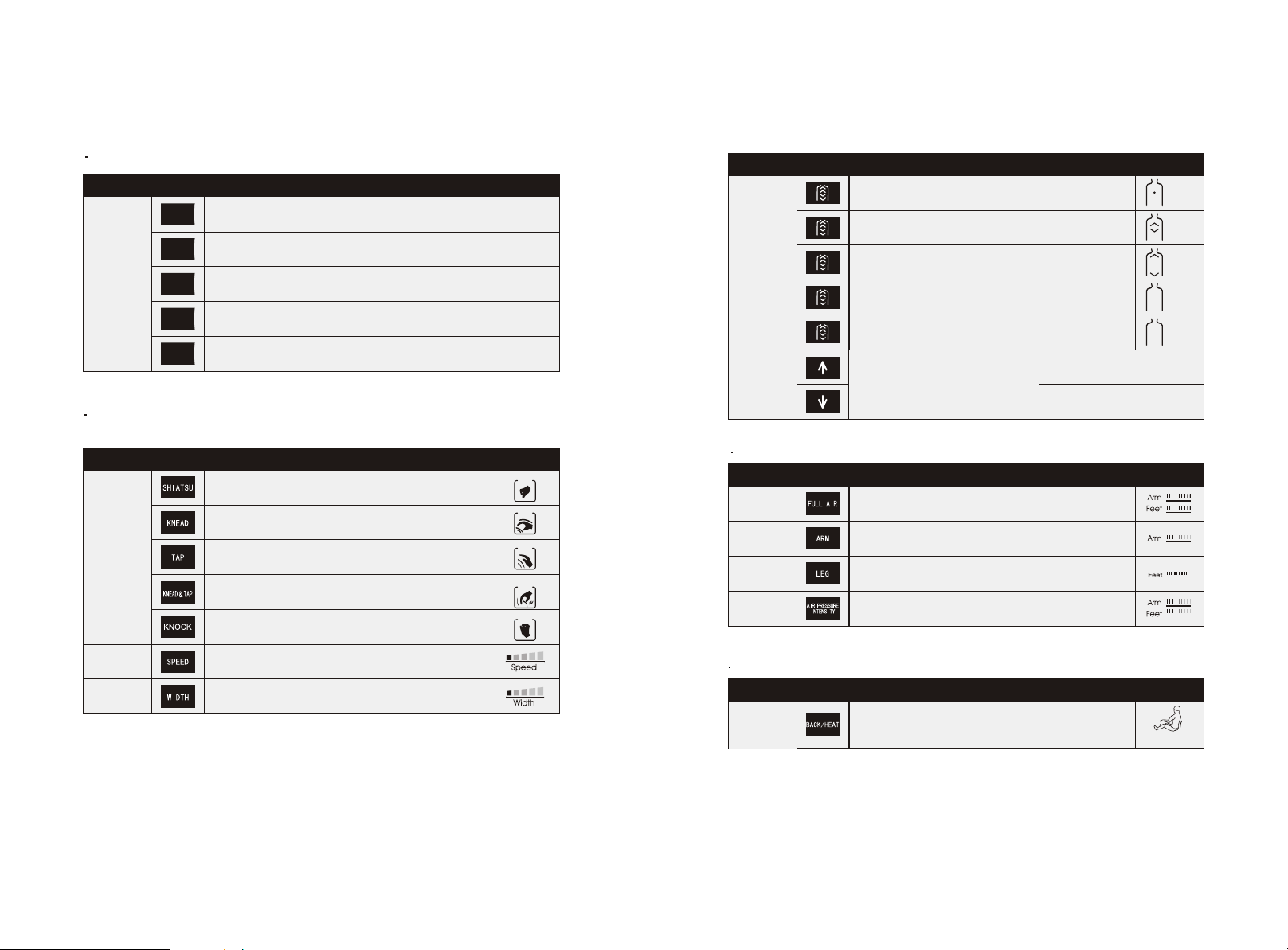

Function Button Massage characterization Display
Characterization of
automatic massage
RELAX
COMFORT
Decompress
Neck &
shoulder
Back &
waist
Depth massage on acupressure point, relax ache
area
Relax body muscles and bones
Promote blood circulation
Massage focus on neck and shoulder
Massage focus on back and waist
Upper body manual operation, lower body manual operation
1)Upper body manual operation
Function Button Display
Adjusting of massage balls
Operation
speed
width
Speed, width
Speed
Speed, width
Speed
Speed, width
3 speed adjustable
3 width adjustable
Function Button Display
Description
Back stretch
Massage hand move up
Fixed position massage
Back and forth massage on small area (partial)
Back and forth massage on upper body (overall)
Back and forth massage on upper body (neck
and shoulder)
Back and forth massage on upper body (back
and waist)
massage hand move down
Massage position adjusting (in
fixed point, partial modes, the
massage position is adjustable)
Function Button Display
Description
Full air
Arms
Legs
Intensity
Air massage on arms, legs, footrest
Air massage on arms
Air massage on legs, footrest
3 levels adjustable
Function Button Display
Description
Heating Back far infrared heating function, has warm
feeling after 3mins

11
10
SA 1 Memory
SA 2 Memory
SA 3 Memory
Method of usage Method of usage
Other manual functions
Function Button Description
Rise up
button
Lie-down
button
Auto lie-
down mode
Press this button, backrest goes up slowly, and calf rest goes
down, stop when release it. If up to top, stop rising, sounds
with di-di-di alarming.
Press this button, backrest goes down slowly, and calf rest
goes up, stop when release it. If down to bottom, stop down,
sounds with di-di-di alarming.
The modes will change accordingly with each press, total
with 3 modes
3.Turn off power, stop massage
In massage process, press red button, all the massage function will stop, and you
can store the massage modes, the back rest and calf rest will restore
automatically. If up to the setting time, all the massage function will stop, but the
back rest and calf rest will not restore.
Memory function: manual controller screen will glitter with memory , you can
choose M1, M2 or M3 as you need to store it, and the screen will display
corresponding icons. Or press power button again, stop the machine, the
massage hands, backrest, footrest will restore, or wait for 10s, it will stop
automatically, massage hands, backrest, footrest will restore
Function Button Display
Memory
massage
Cut off the power of the whole machine.
Figure (Switch power off)

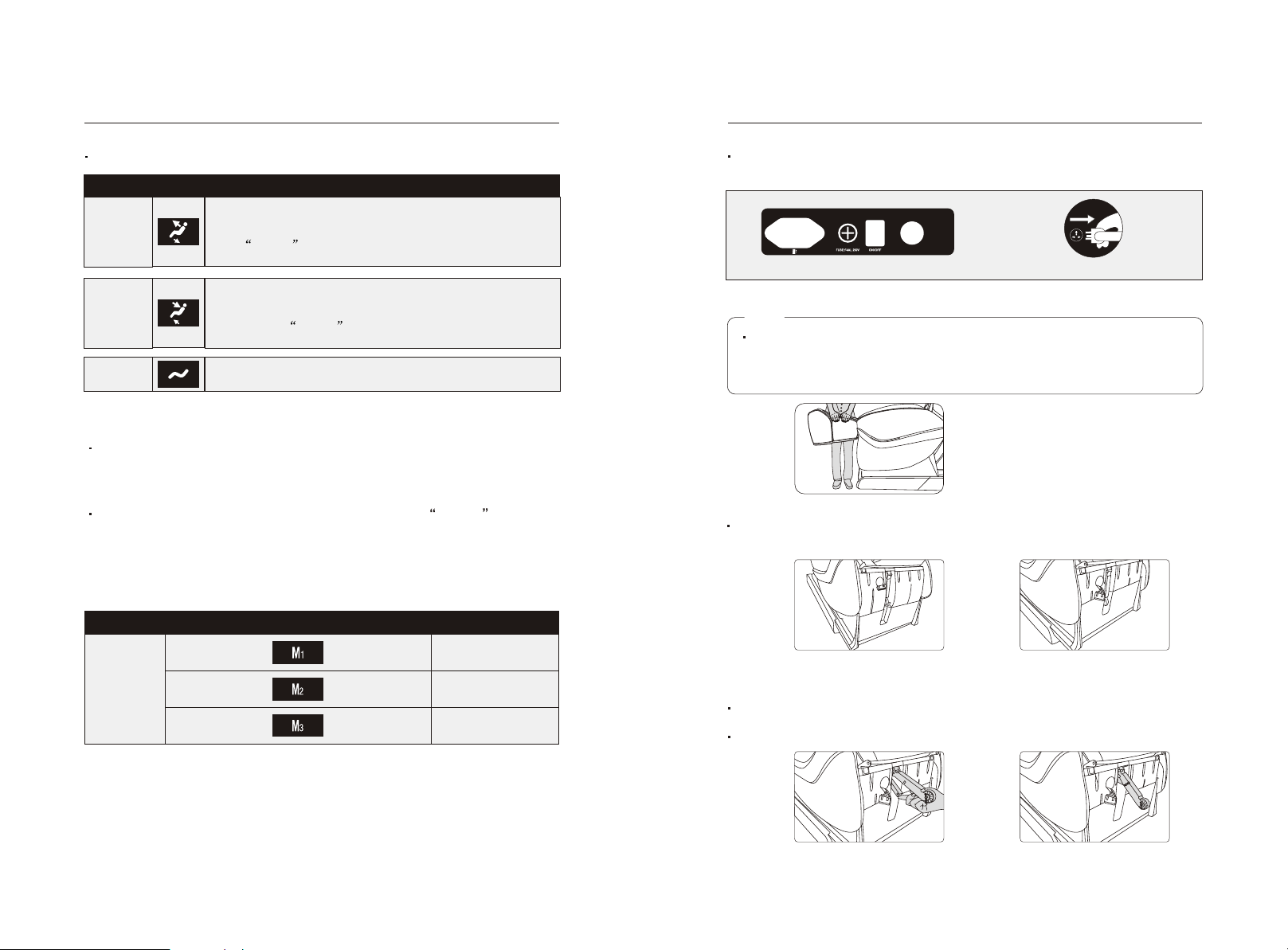

Diagram of the switch position of power supply Power switch method map
When the machine under the working state, with lying and calf rest lifting, you
could not apply gravity on the calf, to prevent the massage chair does harm to
peoplebefore dumping.
Note

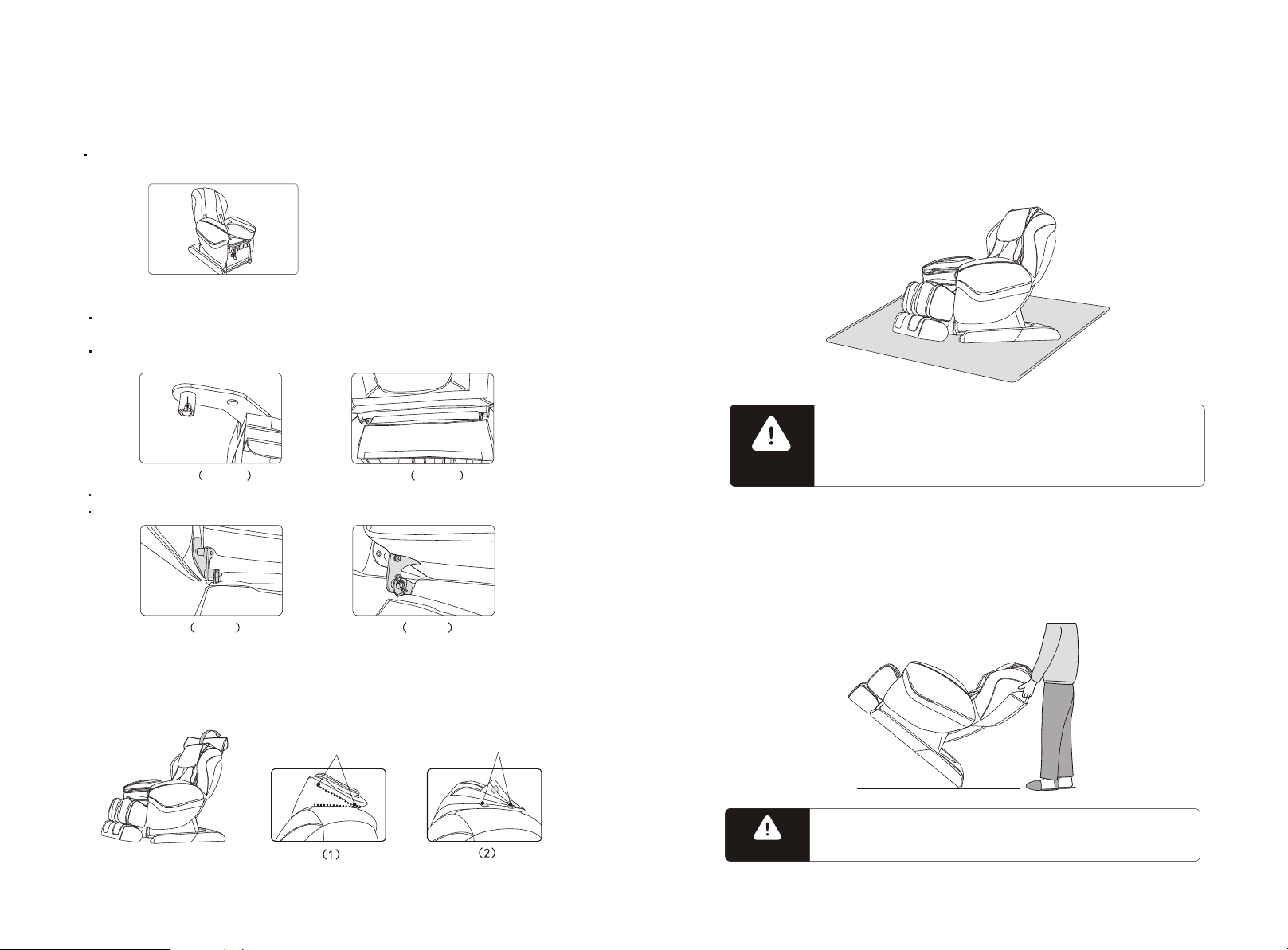

4.Calf rest linkage pole installation
Open the packing(figure 1), switch on, move the massage chair through manual
controller to the position as (figure 2)
figure 1 figure 2
Take off the linkage pole from the seat inside, align at the hole, insert in the pin
roll.(Figure3)
The installation finished. (Figure 4)
figure 3 figure 4

12 13
figure 5
Method of usage Method of usage
After the linkage pole installed, through the manual controller to restore the backrest,
(figure 5), then install the calf rest.
6.Pillow and backrest pad's dismounting and use manual
Using pillows can reduce the kneading massage intensity on shoulder
andneck,according to your needs to decide whether the pillow pad is
needed(recommend headcushions). Backrest cushion and backrest connected
byzipper (1), head cushion and backrest pad connected by thread gluing (2)
Zipper Thread gluing
7.Floor Protection
Put the heavy massage chairs on the wood floor for a longtime may damage thefloor,
so please place a carpet or other object to avoid this damage.
Do not move the chairs with its wheels on wood floor, rough ground
or in anarrow space. Two people are required to lift the chair.During
the lifting period, the windscreen and backrest cover grooves as the
focal point(Please do not lift armrest directly)
NOTED
8.Method of movement
Make sure that all wires are far above the ground, tilt the backrest backward to acertain
degree (with the gravity center resting on the wheels), push the chair forwardor
backward with your hands and finally resume the chair to the normal position in aslow
and gentle manner.
NOTED
During movementyou must turn off the power switch firstand then
unplug the power line and hand controller connecting line
5.Calf installation
Install the rotating shaft incalf fixed axis first, noticed the hole should be aligned, so
that the R shape pin assembly (chart 1)
After calf is connected with the fixed axis aligned, then insert (chart 2)
chart 1 chart 2
Plug R pin, then moved to the other side of the calf, and the plug R pin (chart 3)
Finished (chart 4)
chart3 chart4

14
Product specification
Model:
Name: Massage Chair
Rated voltage: 110-120V~ 60Hz
220-240V~ 50Hz/60Hz
Rated power input:150W
Rated time: 20Min
Safety structure: Class I
TR55
Material introduction: PVC, PA, steel parts and electric &ele
-ctron parts
MATERIAL PU LEATHER CLOTH WOOD
