FIREPLACE INSTALLATION
Figure 26 - Blower Model BK
Magnetic
Strips
Exhaust
Port
Screw
Green
Ground
Wire
Spade
Terminals
Side View
Lower Firebox
Cavity
Blower
Location
CHECK GAS TYPE
Use proper gas type for fireplace unit you are
installing. If your gas supply is not correct, do
not install fireplace. See retailer where you
purchased fireplace for proper fireplace ac-
cording to your gas type or to purchase gas
conversion kit (see Accessories, page 37).
I
NSTALLING OPTIONAL BLOWER
ACCESSORY
NOTICE: If installing blower in
an existing fireplace with gas
connections, shut off gas sup-
ply and disconnect heater from
gas supply. Contact a qualified
service person to do this.
WARNING: If there is a duplex
electrical outlet installed in the
right side of the bottom of the
fireplace base area,be sure that
theelectricalpower totheoutlet is
turned off before proceeding with
blower installation. Failure to do
this may resultin seriousinjury.
Model BK Installation
Follow all instructions provided in blower
accessory kit.
1. Attach power cord to blower motor by
firmly pushing two female terminals at end
of power cord onto two spade terminals
on blower motor (see Figure 26).
2. Attach green ground wire from power cord
to blower housing using screw provided
(see Figure 26). Tighten screws securely.
3. Place blower against lower rear wall of
firebox outer wrapper with exhaust port
directed upward. Blower will fit inside back
opening and be held in position against
back wall by magnets (see Figure 26).

4. Be certain that all wire terminals are
securely attached to terminals on blower
motor and that screw retaining green
ground wire is tight.
5. Mount speed control box to switch bracket
by placing plastic control shaft forward
through opening in switch bracket (see
Figure 27).
6. While supporting speed control, secure
control shaft with lock nut by pushing
and turning lock nut with pliers clockwise
until it is tight against front panel. Place
provided control knob on shaft.
7. Turn on power to duplex outlet if previ-
ously turned off per warning in column 2,
page 17.
8. Plug in blower power cord.
a. If your firebox is installed as a free-
standing unit with an accessory man-
tel, determine whether power cord will
exit left side or right side of firebox.
Route power cord through exit hole
and plug power cord into a wall recep-
tacle near firebox.
b. If your firebox installation is recessed
and/or prewired, plug power cord into
duplex outlet provided. Refer to your
firebox owner’s manual for instructions
on wiring duplex outlet.
CAUTION: Never touch blow-
er wheel while in operation.
FIREPLACE INSTALLATION
Continued

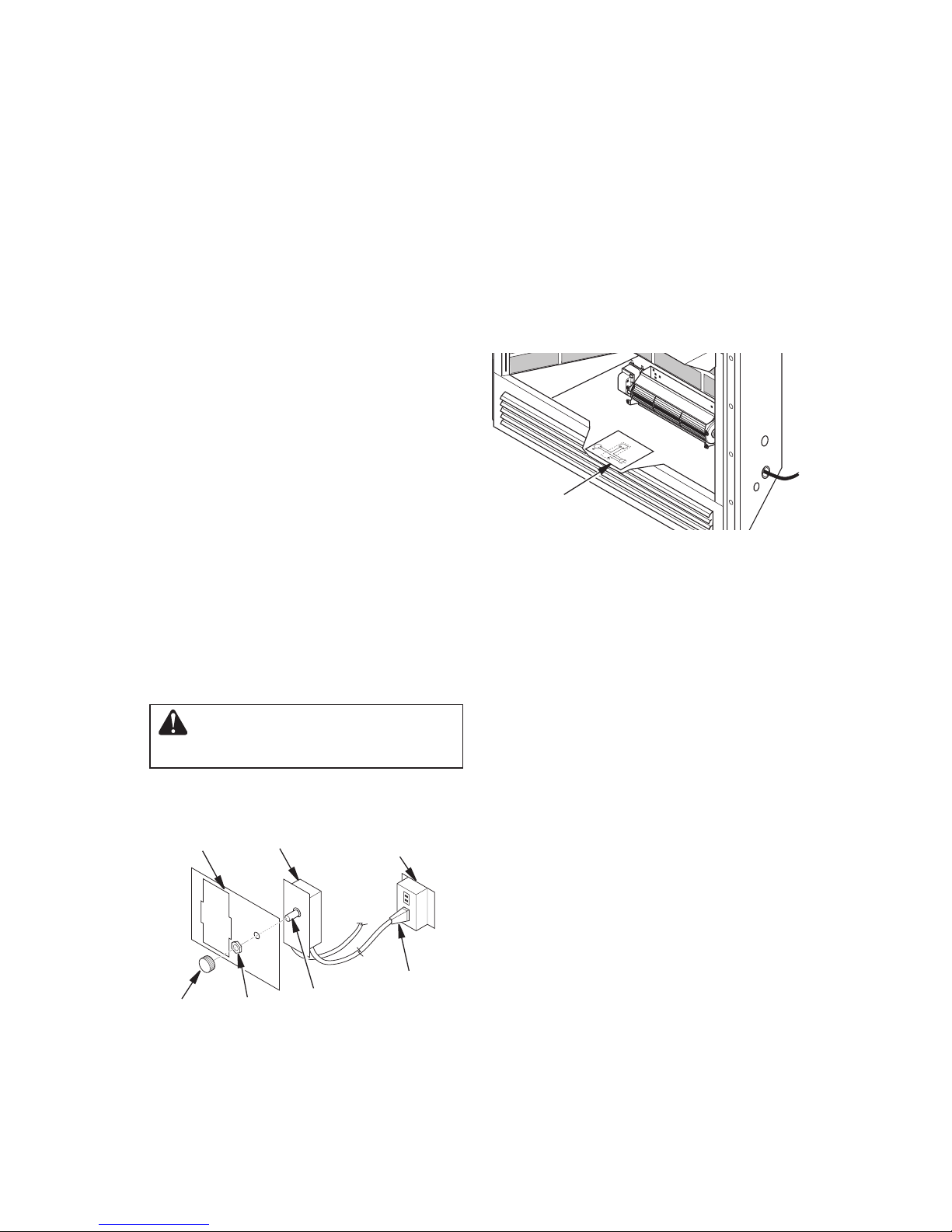

Figure 27 - Attaching Speed Control to
Firebox
Figure 28 - Location of Wiring Diagram
Decal (Model May Vary From Illustration)
Wiring Diagram
Decal 12" in Front
of Blower
Speed
Control
Control
Shaft
Locknut
Control
Knob
Switch
Bracket
Blower
Plug-In
Duplex Outlet
(Located underneath
firebox floor against
lower right outside wall)
Model BKT Installation
Note: When installing BKT thermostati-
cally controlled blower, you must first secure
thermal switch bracket to blower if it has not
already been factory installed.
1. Place green ground wire with ring ter-
minal between bottom hole on thermal
switch bracket and top ear hole on blower
assembly. Insert Phillips screw into all
three pieces and tighten securely (see
Figure 29, page 19).
2. Connect wire harness and power cord ter-
minals. Connect blue jumper wire to blower
motor terminal and right side terminal of
thermal switch. Connect black wire to left
side of thermal switch and white wire to
other remaining blower motor terminal.
Note: The power cord outer insulation sleeve
may have to be stripped slightly to allow
enough wire length to reach and make all
connections. DO NOT trim excessive length
away. Enable just enough to make all con-
nections securely.
9. Check to make sure that power cord is
completely clear of blower wheel and
that there are no other foreign objects in
blower wheel. Turn blower on and check
for operation. Turn blower off by turning
knob fully counterclockwise before con-
tinuing.
10. Peel off backing paper and stick supplied
wiring diagram decal on firebox bottom
approximately 12" in front of blower (see
Figure 28).

3. Place blower against lower rear wall of
firebox outer wrapper with exhaust port di-
rected upward and thermodisc positioned
up near fireplace bottom. Thermodisc
must be oriented near fireplace bottom
as shown in Figure 29, in order to sense
temperature and properly operate. Blower
will be held in position against back wall
by magnets incorporated onto blower
housing (see Figure 29).
4. Be certain that all wire terminals are
securely attached to terminals on blower
motor and thermal switch and that screw
for thermodisc bracket and green ground
wire is tight.
5. Mount speed control boxagainst mount-
ing plate provided in lower fireplace
cavity by placing plastic control shaft
forward through round hole (see Figure
27, page 18).
6. While supporting speed control, secure
control shaft with lock nut by pushing and
turning lock nut with pliers clockwise until
it is tight against mounting plate. Place
control knob provided on shaft (see Figure
27, page 18).
FIREPLACE INSTALLATION
Continued
Thermodisc
Figure 29 - Blower Model BKT
Air Flow
Direction
Route BKT Blower
Through This Area
Magnets
Blower
Location
Side View Firebox Bottom
Black
Wire
Phillips
Screw
Blue
Wire
Ring
Terminal on
Green Wire
White
Wire
Thermal
Switch
Thermal
Switch
Bracket
Power Cord
Air Flow
Direction
Magnetic
Strips
Figure 30 - Blower Wiring Diagram for
Thermostat-Controlled Models
Blower Wiring Diagram
CAUTION: Label all wires
prior to disconnection when
servicing controls. Wiring errors
can cause improper and dan-
gerous operation. Verify proper
operation after servicing.
Blue
Variable
Fan Switch Fan Switch
(N.O.)
Green
White
On
110/115
V.A.C.
Blower
Motor
Black
Off
1
2
Black
7. Check to make sure that power cord is
completely clear of blower wheel and
that there are no other foreign objects in
blower wheel. Also double check all wire
leads and make sure wire routing is not
pinched or in a precarious position. Cor-
rect accordingly.
8. Turn on power to duplex outlet if previ-
ously turned off per warning in column 2,
page 17.
9. Plug in blower power cord to duplex
outlet.
10. Blower will only run when speed control
knob is in the ON position and thermal
switch senses temperature after fireplace
begins to heat up. Blower speed can be
adjusted by rotating control knob. To turn
off, turn knob fully counterclockwise until
it clicks off. If blower is ON and has been
running with fireplace operating, blower
will continue to run for a short time after
fireplace has been turned off. As thermal
switch cools down, blower shuts down
automatically.
11. Peel off the backing paper and stick the
supplied wiring diagram decal on the
firebox bottom approximately 12" in front
of the blower (see Figure 28, page 18).

INSTALLING GAS PIPING TO
FIREPLACE LOCATION
WARNING: A qualified
service person must connect
fireplace to gas supply. Follow
all local codes.
CAUTION: For propane/LP
units, never connect fireplace di-
rectly to the propane/LP supply.
This heater requires an external
regulator (not supplied). Install
the external regulator between
the fireplace and propane/LP
supply.
WARNING: For natural
gas, never connect heater to
private (non-utility) gas wells.
This gas is commonly known
as wellhead gas.
Installation Items Needed
Before installing fireplace, make sure you
have the items listed below.
•external regulator (supplied by installer)
•piping (check local codes)
•sealant (resistant to propane/LP gas)
•equipment shutoff valve *
•test gauge connection *
•sediment trap
•tee joint
•pipe wrench
•approved flexible gas line with gas connec-
tor (if allowed by local codes)
* A CSA design-certified equipment shutoff
valve with 1/8" NPT tap is an acceptable al-
ternative to test gauge connection. Purchase
the CSA design-certified equipment shutoff
valve from your retailer.
For propane/LP connection only, the installer
must supply an external regulator. The ex-
ternal regulator will reduce incoming gas
pressure. You must reduce incoming gas
pressure to between 11" and 14" of water. If
you do not reduce incoming gas pressure,

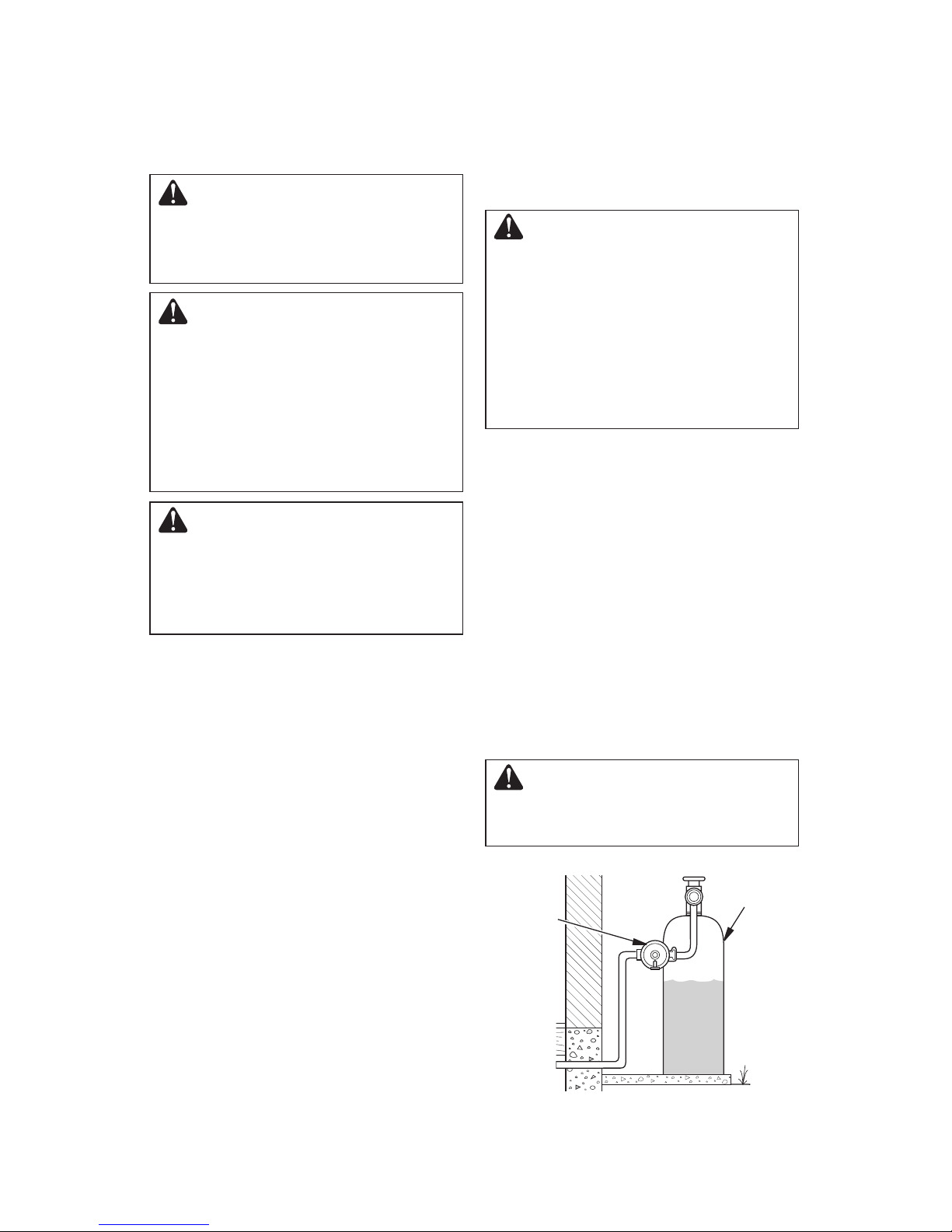

Figure 31 - External Regulator with Vent
Pointing Down (Propane/LP Only)
Propane/LP
Supply Tank
External
Regulator
with Vent
Pointing
Down
fireplace regulator damage could occur. Install
external regulator with the vent pointing down
as shown in Figure 31. Pointing the vent down
protects it from freezing rain or sleet.
CAUTION: Use only new,
black iron or steel pipe. Inter-
nally-tinned copper tubing may
be used in certain areas. Check
your local codes. Use pipe of
1/2" inside diameter or greater to
allow proper gas volume to fire-
place. If pipe is too small, undue
loss of volume will occur.
Installation must include an equipment shutoff
valve, union and plugged 1/8" NPT tap. Locate
NPT tap within reach for test gauge hook up.
NPT tap must be upstream from fireplace (see
Figure 32, page 21).
IMPORTANT: Install main gas valve (equip-
ment shutoff valve) in an accessible location.
The main gas valve is for turning on or shutting
off the gas to the appliance.
Check your building codes for any special
requirements for locating equipment shutoff
valve to fireplaces.
Apply pipe joint sealant lightly to male NPT
threads. This will prevent excess sealant from
going into pipe. Excess sealant in pipe could
result in clogged fireplace valves.
WARNING: Use pipe joint
sealant that is resistant to liquid
petroleum (LP) gas.
FIREPLACE INSTALLATION
Continued

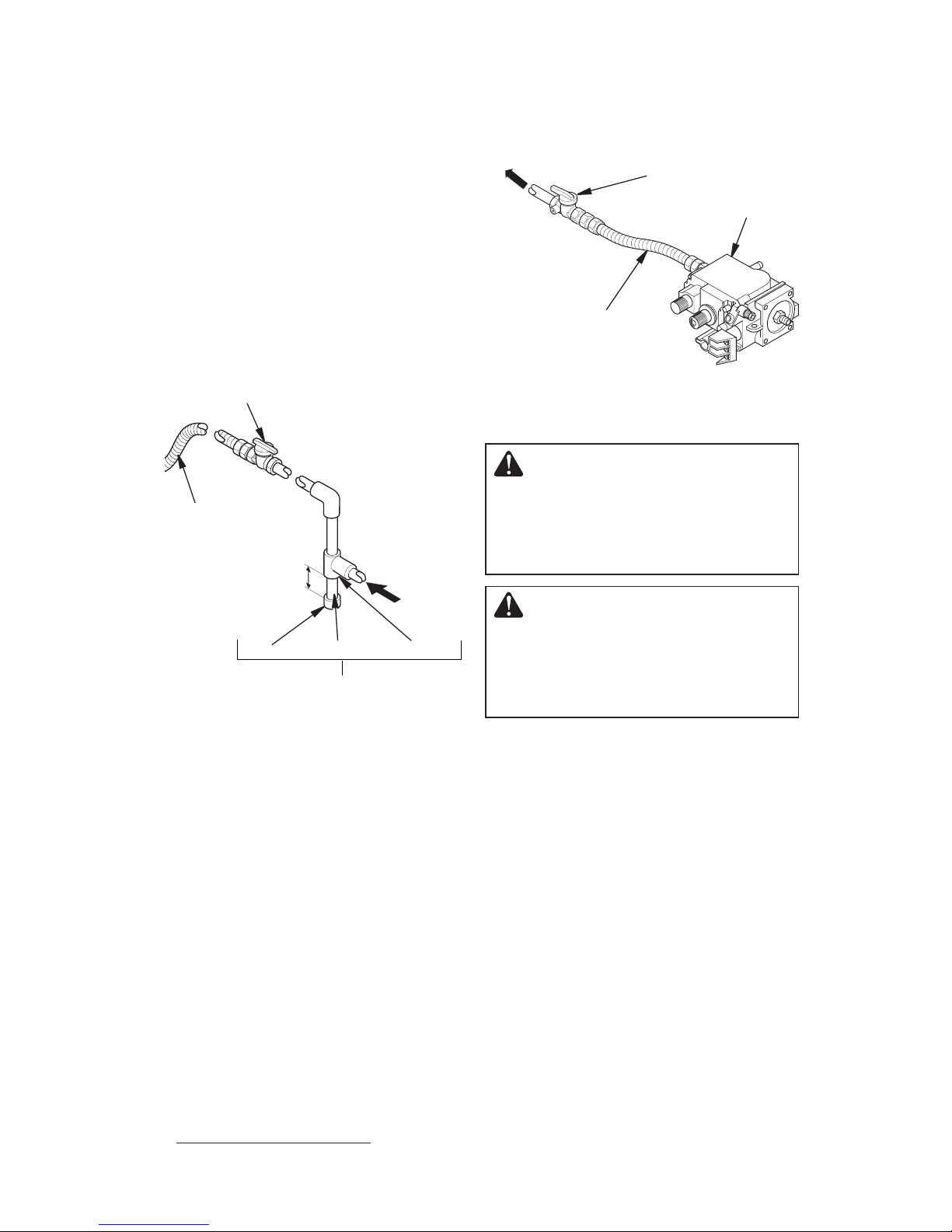

Figure 32 - Gas Connection
CSA Design-Certified
Equipment Shutoff Valve with
1/8" NPT Tap*
3" Minimum
Approved
Flexible Gas
Line
Cap Pipe Nipple Tee Joint
Sediment Trap/Drip Leg
Natural - From
Gas Meter (5.5"
W.C. to 10.5"
W.C. Pressure)
Propane/LP
From External
Regulator (11"
W.C. to 14"
W.C. Pressure)
* The CSA design-certified equipment shutoff
valve may be supplied with the appliance or
you can purchase it from your retailer.
We recommend that you install a sediment
trap/drip leg in supply line as shown in Figure
32. Locate sediment trap/drip leg where it is
within reach for cleaning. Install in piping sys-
tem between fuel supply and fireplace. Locate
sediment trap/drip leg where trapped matter
is not likely to freeze. A sediment trap traps
moisture and contaminants. This keeps them
from going into fireplace gas controls. If sedi-
ment trap/drip leg is not installedor is installed
wrong, fireplace may not run properly.
FIREPLACE INSTALLATION
Continued
Figure 33 - Connecting Flexible Gas Line
to Millivolt Valve
CHECKING GAS CONNECTIONS
WARNING:Test all gas piping
and connections, internal and
external to unit, for leaks after
installing or servicing. Correct
all leaks at once.
WARNING:Never use an open
flame to check for a leak. Apply
noncorrosive leak detection fluid
toall joints.Bubbles formingshow
aleak. Correct all leaks at once.
PRESSURE TESTING GAS SUPPLY
PIPING SYSTEM
Test Pressures In Excess Of 1/2 PSIG
(3.5 kPa)
1.
Disconnect fireplace and its individual equip-
ment shutoff valve from gas supply piping
system. Pressures in excess of 1/2 psig (3.5
kPa) will damage fireplace gas regulator.
2. Cap off open end of gas pipe where equip-
ment shutoff valve was connected.
3.
Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas fireplace or opening main gas
valve located on or near gas meter for natural
gas fireplace or using compressed air.
4. Check all joints of gas supply piping sys-
tem. Apply noncorrosive leak detection
fluid to all joints. Bubbles forming show a
leak. Correct all leaks at once.
5. Reconnect fireplace and equipment
shutoff valve to gas supply. Check recon-
nected fittings for leaks.
Flexible Gas Line
Do NOT Kink
Equipment
Shutoff
Valve
To Gas Supply
(Natural)
To External
Regulator
(Propane/LP)
Control Valve
CONNECTING FIREPLACE TO GAS
SUPPLY
Installation Items Needed
•5/16" hex socket wrench or nut-driver
•sealant (resistant to propane/LP gas, not
provided)
1. Open lower louver door panel by gently
pulling forward.
2. Route flexible gas line (provided by in-
staller) from equipment shutoff valve to
fireplace. Route flexible gas supply line
through one of the access holes on side
of fireplace.
3. Attach flexible gas line from gas supply to
control valve (see Figure 33).
4. Check all gas connections for leaks. See
Checking Gas Connections.

Test Pressures Equal To or Less Than
1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve (see Fig-
ure 34).
2.
Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas fireplace or opening main gas
valve located on or near gas meter for natural
gas fireplace or using compressed air.
3. Check all joints from propane/LP supply
tank for propane/LP or gas meter for
natural gas to equipment shutoff valve
(see Figure 35 or Figure 36). Apply non-
corrosive leak detection fluid to all joints.
Bubbles forming show a leak. Correct all
leaks at once.
Open
Closed
Equipment
Shutoff Valve
Figure 34 - Equipment Shutoff Valve
PRESSURE TESTING FIREPLACE GAS
CONNECTIONS
1. Open equipment shutoff valve (see Fig-
ure 34).
2. Open main gas valve located on or near
gas meter for natural gas or open supply
tank valve for propane/LP gas.
3. Make sure control knob of fireplace is in
the OFF position.
4. Check all joints from equipment shutoff
valve to gas valve (see Figure 35 or Figure
36). Apply noncorrosive leak detection
fluid to all joints. Bubbles forming show a
leak. Correct all leaks at once.
5. Light fireplace (see Operation, page 26).
Check all other internal joints for leaks.
6. Turn off fireplace (see To Turn Off Gas to
Appliance, page 27).
INSTALLING OPTIONAL WALL
MOUNT SWITCH - GWMS2
1. Connect one terminal of 25 ft. wire for
wall switch to TPTH terminal on valve.
Connect remaining wire terminal to TH
terminal on valve. Make sure that wire ter-
minals are in positions on unit as pictured
in Figure 37. If wires are not connected as
shown the switch will not work.
2. Route 25 ft. wire through openings pro-
vided on sides of burner system to a con-
venient location to mount your switch.
3. Connect one bare wire end to each of the
terminals of the GWMS2 wall switch.
4. Install wall switch and cover in wall.
Figure 35 - Checking Gas Joints for
Propane/LP Gas Fireplace
Propane/LP
Supply Tank
Gas Va ve
Equipment Shutoff Valve
Figure 36 - Checking Gas Joints for
Natural Gas Fireplace
Gas
Meter
Gas Valve
Equipment Shutoff Valve
Figure 37 - Connecting Wall Switch to
Control Valve
To Wall
Switch
Accessory
FIREPLACE INSTALLATION
Continued

FIREPLACE
INSTALLATION
Continued
INSTALLING OPTIONAL WIRELESS
HAND-HELD REMOTE CONTROL
HRC100 AND HRC200 SERIES
NOTICE: Use only alkaline bat-
teries (not included).
Installing Remote Receiver
1. Open bottom louver and locate switch
bracket on the left.
2. Unscrew switch bracket. Lean bracket
forward so you are able to access the
back of remote receiver.
3. Locate battery clip mounted on back of
receiver. Slide a 9-volt alkaline battery (not
included) through the clip (see Figure 38).
4. Attach terminal wires to battery.
5. Connect wires from receiver to TH and
TPTH to control valve (see Figure 39).
6. Replace switch bracket.
Figure 38 - Attaching Alkaline Battery to
Receiver
Figure 39 - Control Valve Terminals
To Optional
Remote
Accessory
9-Volt
Alkaline
Battery
Receiver
Terminal
Wires
Battery Clip
o
Th rm
Installing 9-Volt Alkaline Battery in Hand-
Held Remote Control Unit
1. Remove battery cover on back of remote
control unit (see Figure 40).
2. Attach terminal wires to battery. Place
battery into battery housing.
3. Replace battery cover onto remote control
unit.
Figure 40 - Installing Battery in Hand-
Held Remote Control Unit
9-Volt
Battery
Battery
Housing
Battery Cover
Terminal
Wires
Remote Control Unit
REMOVING/REPLACING GLASS
DOOR
CAUTION: Do not operate
this fireplace with a broken glass
door panel or without the glass
door panel securely in place. For
replacementpart information see
Replacement Parts, page 36.
CAUTION: Wear gloves and
safety glasses while handling or
removing brokenglass.Donotre-
moveifglassishot.Keepchildren
and pets away from glass.
WARNING: If fireplace has
been running, turn off and un-
plug fireplace. Let cool before re-
moving glass door or louvers.
Removing Louver Panels
Remove top and bottom louver panels by
simultaneously pulling both top end spring
latches towards center of appliance until
they are disengaged from locating holes
(see Figure 41). Repeat for bottom spring
latches and pull louvers outward. To install
or replace items removed, simply reverse
procedures above.
Figure 41 - Removing Louver Panel
Louver Panel
Spring Latch

Removing Glass Door
If replacement of glass is necessary, the
entire assembly, glass and frame, must be
replaced. If glass is broken, wear gloves and
tape remaining fragments onto frame.
1. Remove screen/rod assembly from fire-
box, push rod either left or right and then
down and forward. Set assembly aside.
2. Lift up on latches to unlock. There are
two on top of firebox and two below
firebox that hold glass door in place (see
Figure 42).
3. While holding glass door to prevent it from
falling and causing injury, remove the five
screws from hinge located on left side of
door frame assembly (see Figure 42).
4. Remount new frame at hinge with five
new screws before closing door. This will
ensure seating of gasket.
5. Close glass door frame. Lock latches by
placing bar under tab on door and pushing
down and back on latch (see Figure 42).
6. Replace screen/rod assembly by revers-
ing step 1.
7. Replace louvers by reversing procedure
under Removing Louver Panels, page 23.
FIREPLACE INSTALLATION
Continued

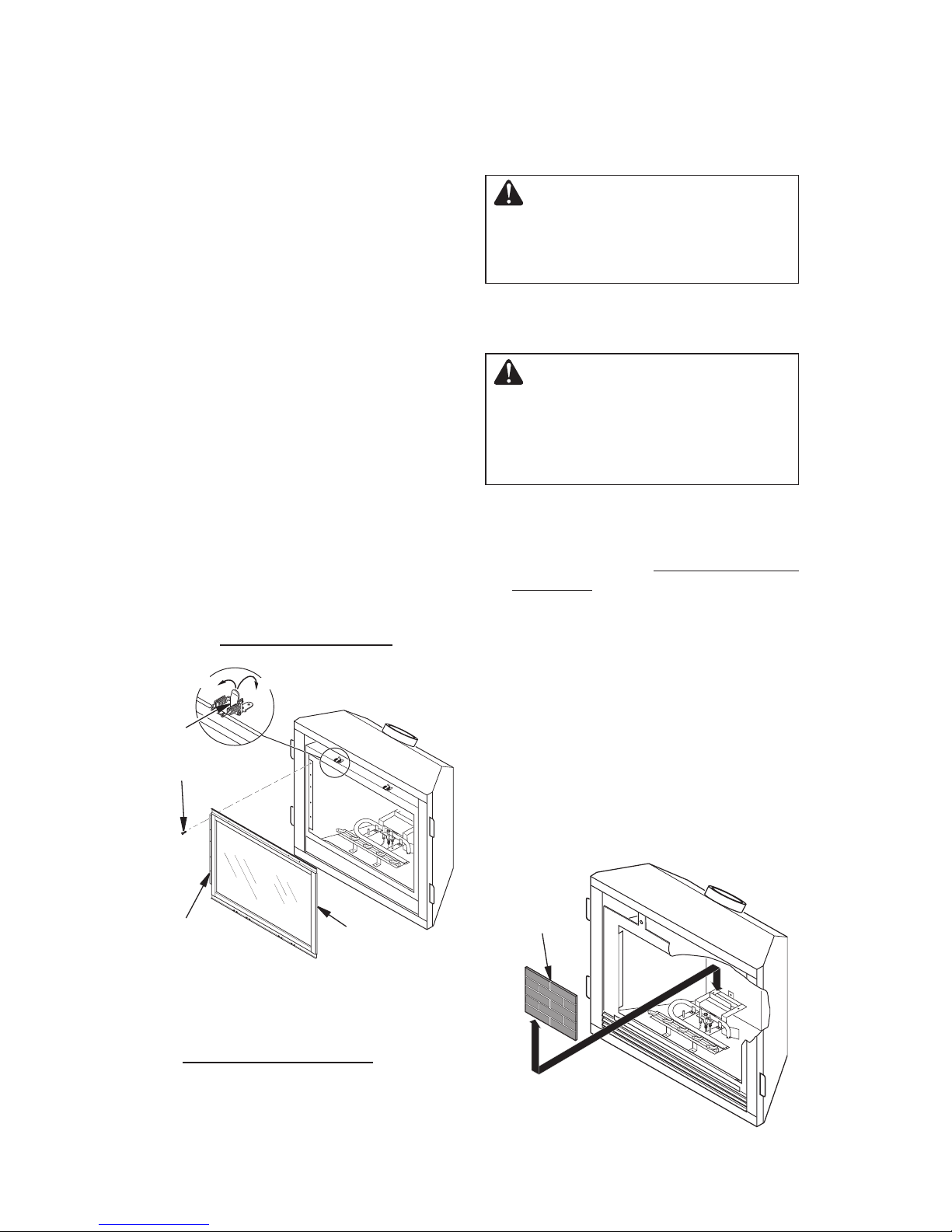

Figure 42 - Removing/Replacing Glass
Door
Lock
Unlock
Glass Frame
Assembly
Screw
Hinge
Latch
INSTALLING OPTIONAL BRICK
LINER MODEL BL32D
WARNING: If fireplace has
been running, turn off and un-
plug fireplace. Let cool before
installing brick liner.
This brick liner kit is optional. You may pur-
chase brick liner from your local retailer or
see page 37.
CAUTION: Always handle
brick panels with two hands.
Do not force brick panels into
place.Excessive force will break
brick panels.
1. Remove top and bottom louvers to allow
access to door latches.
2. Unlock door latches and open glass door.
See steps 1 and 2 of Removing/Replacing
Glass Door, page 23.
3. If installing brick liner in new fireplace,
go to step 4. If installing brick liner in an
existing fireplace, carefully remove logs,
lava rock and ember material.
4. Remove three screws from deflector
shield on the inside top of firebox. Set
shield and screws aside.
5. Install rear brick panel first. Rest bottom
edge of panel on back edge of grate (see
Figure 43).
6. Install left side brick panel by sliding it
between grate and side of firebox (see
Figure 43).
Figure 43 - Installing Rear Brick Panel
Rear Brick
Panel
Cleaning Glass Door
See Cleaning and Maintenance on page 31.

7. Install right brick panel using the same
method described in step 5 for left brick
panel.
8. Replace deflector shield using screws
removed in step 4.
9. Follow instructions below to install logs,
lava rock and ember material.
10. Close glass door, lock latches on top and
bottom of door and replace screen (see
steps 5 and 6 of Removing Glass Door,
page 24).
11. Close top and bottom louvers.

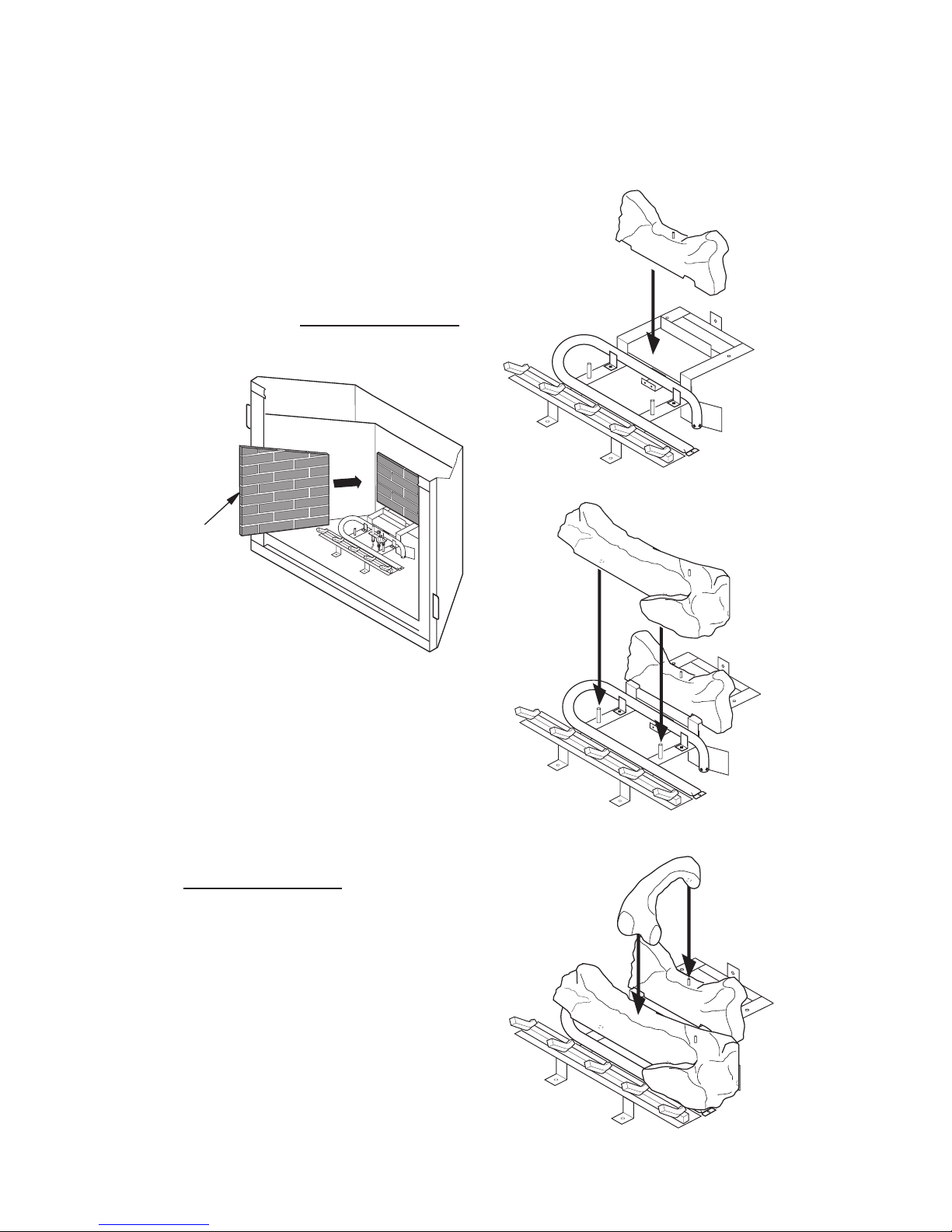

Figure 44 - Installing Side Brick Panels
Left Side
Brick Panel
FIREPLACE INSTALLATION
Continued
INSTALLING LOGS, LAVA ROCK
AND GLOWING EMBERS
Each log is marked with a number. These
numbers will help you identify the log when
installing. It is very important to install these
logs exactly as instructed. Do not modify logs.
Only use logs supplied with fireplace.
Open louvers, remove screen, unlock door
latches and open glass door. See steps 1 and
2 of Removing Glass Door, page 24. Install
logs according to instructions for fireplace
model numbers.
1. Place log #1 (rear log) on top of grate.
Make sure notches in bottom of log fit
over grate (see Figure 45).
2. Rest log #2 (large front log) on pins on
front part of grate (see Figure 46).
3. Place log #3 (crossover log) onto rear and
front logs. Make sure it is seated properly
on smooth surface on front log and on pin
on back log as shown in Figure 47.
4. Place log #4 (right log) on pin on right side of
front log as shown in Figure 48, page 26.
1
Figure 45 - Installing Log No. 1
2
Figure 46 - Installing Log No. 2
3
Figure 47 - Installing Log No. 3
5. Place log #5 (base log) onto front left part of
grate making sure notches fit over prongs
of grate). See Figure 49, page 26.

5
6
Figure 49 - Installing Logs No. 5 and No. 6
FIREPLACE INSTALLATION
Continued
6. Place log #6 (left log) onto two pins
on left side of back and front log. See
Figure 49.
7. Place lava rock along sides and front of
firebox bottom in areas that are visible
only. It is not necessary to use all of the
lava rock provided.
8. Pull ember material apart into pieces no
larger than a dime. Place these pieces
loosely and sparingly directly onto ex-
posed section of front burner and along
space between burner and grate prongs
(see Figure 50). This will create the
glowing ember appearance as the flame
touches the ember material. Do not block
air slots by using too much ember material
Ember Material
Figure 50 - Placing Ember Material on
Burner
OPERATION
4
Figure 48 - Installing Log No. 4
in one area. Do not block pilot ports with
embers. It is not necessary to use all of
the ember material provided.
9. Close glass door, lock door latches,
replace screen and close louvers (see
steps 5 and 7 of Removing Glass Door,
page 24).
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not fol-
low these instructions exactly,
a fire or explosion may result
causing property damage, per-
sonal injury or loss of life.
A. This appliance is equipped with an
ignition device which automatically
lights the pilot. Do not try to light the
pilot by hand.
B. BEFORE LIGHTING smell all around
the appliance area for gas. Be sure to
smell next to the floor because some
gas is heavier than air and will settle
on the floor.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electric switch.
•
Do notuse any phonein yourbuilding.
•Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
•If you cannot reach your gas sup-
plier, call the fire department.
C. Use only your hand to push in or turn
the gas control knob. Never use tools.
If the knob will not push in or turn by
hand, don't try to repair it, call a qualified
service technician. Force or attempted
repair may resultin a fire or explosion.
D. Do not use this appliance if any part
has been under water. Immediately call
a qualified service technician to inspect
the appliance and to replace any part of
the control system and any gas control
which has been under water.
