Comfortflame Columbus Series Owner's manual

P900481-00
INSTALLATION AND OPERATION
INSTRUCTIONS
Comfort Flame®Columbus Series
Wood-burning Fireplaces
MODELS
P/N 900481-00 Rev. B 05/2017 REPORT NO. 10-078
PFS
®
US
C
Columbus42RWS Columbus42LWS
WEL
COME HOME TO WARMTH
®
SAVE THIS BOOK
This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also
contains information that will enable you to obtain replacement parts or accessory items when needed. Keep
it with your other important papers.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Installateur : Laissez cette notice avec l’appareil.
Consommateur : Conservez cette notice pour consultation ultérieure.
This wood burning fireplace complies with UL127
CAN/ULC-S610-M87 standard as a FACTORY
BUILT FIREPLACE.
Ce foyer au bois est conforme aux UL 127 CAN/ULC-
S610-M87 norme comme une USINE CONSTRUITE
CHEMINÉE.
This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log approved to
ANSI Z21.60 or Z21.84 standards or for use with a vent-free gas log heater approved to ANSI Z21.11.2 standard .
An IHP hood must be installed when using a vent-free log heater (see Accessories, page 19).
FOR CANADA: The authority having jurisdiction
(such as the municipal building department, fire
department, etc.) should be contacted before
installation to determine the need to obtain a permit.
POUR LE CANADA: L’autorité compétente (comme le
service municipal du bâtiment, les pompiers, etc.) doit
être contacté avant l’installation afin de déterminer la
nécessité d’obtenir un permis.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or
mobile home, where not prohibited by local codes.
This installation manual will enable you to obtain a safe, efficient and dependable installation of your fireplace
system. Please read and understand these instructions before beginning your installation.
Do not alter or modify the fireplace or its components under any circumstances. Any modification or alteration of
the fireplace system, including but not limited to the fireplace, chimney components and accessories, may void the
warranty, listings and approvals of this system and could result in an unsafe and potentially dangerous installation.
IMPORTANT! TO ASSURE PROPER ALIGNMENT OF GLASS DOORS: INSTALL THIS FIREPLACE IN A SQUARE
AND PLUMB CONDITION, USING SHIMS AS NECESSARY AT SIDES AND/OR BOTTOM.
Ce manuel est disponible en francais, simplement
en faire la demande. Numéro de la pièce 900481-01.
NOTE: DIAGRAMS AND ILLUSTRATIONS THROUGHOUT THE MANUAL ARE NOT TO SCALE.

Comfortflame.us.com 900481-00_B
2
Safety.............................................................................................2
Specifications.................................................................................4
Fireplace Installation ......................................................................5
Venting Installation ........................................................................7
Optional Gas Line Installation ......................................................13
Operation and Maintenance .........................................................14
Technical Service .........................................................................15
Replacement Parts.......................................................................15

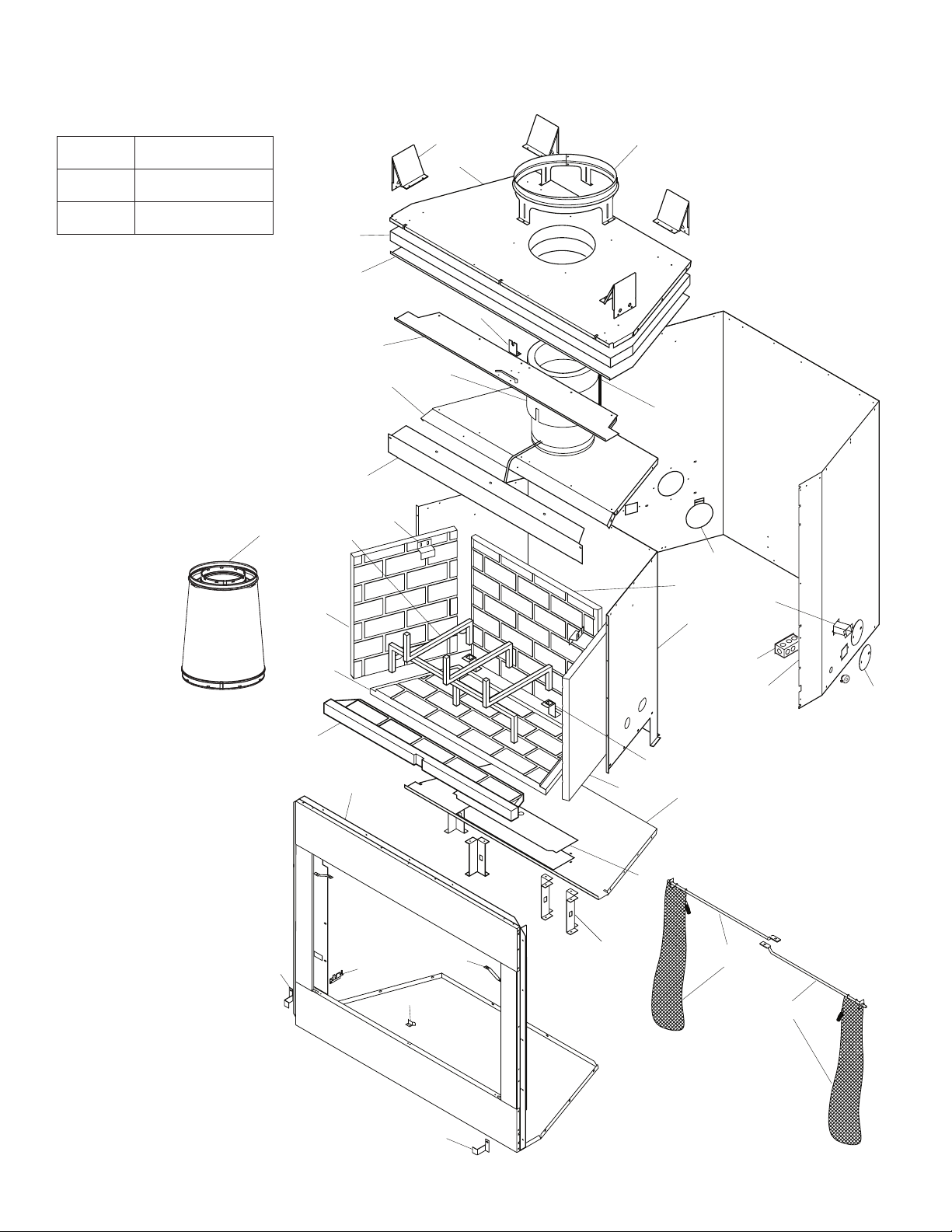

Parts ............................................................................................16
Accessories..................................................................................18
Important Notices - Canada .........................................................20
Draft Smoke Guidelines - Appendix A .........................................21
Warranty ......................................................................................23
Thank you for your purchase. We appreciate your
business!
Please carefully read and follow all instructions in this manual. Pay
special attention to all warnings and safety information.
Following these safety, care, and operation instructions will help
ensure many years of dependable and enjoyable service from your
fireplace.
Please read and understand these instructions before installing
or operating.
SAFETY
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury,
property damage or loss of life. Refer to this manual
for assistance or additional information. Consult a
qualified installer or local distributor.
IMPORTANT: Check local codes before installing this
fireplace.
Before beginning installation of this fireplace, read these instructions
through completely.
• This INNOVATIVE HEARTH PRODUCTS, LLC (IHP) fireplace and
its components are safe when installed according to this installa-
tion manual. Unless you use IHP components, which have been
designed and tested for the fireplace system, you may cause a fire
hazard.
• The IHP warranty will be voided by and IHP disclaims any respon-
sibility for the following actions.
a. Modification of the fireplace, components, doors, air inlet
system and damper control.
b. Use of any component part not manufactured or approved by
IHP in combination with an IHP fireplace system.
Proper installation is the most important step in ensuring safe and
continuous operation of the fireplace. Consult the local building codes
as to the particular requirements concerned with the installation of
all factory built fireplaces.
WARNING: Do not install a fireplace insert in this
fireplace unless the manufacturer's instructions with
the insert specifically state this fireplace has been
tested for use with this insert.
TABLE OF CONTENTS
FOR YOUR SAFETY
• Do not store or use gasoline or any other flammable
vapors or liquids in the vicinity of this or any other
appliance.
• Due to high temperatures, the appliance should be
located out of traffic and away from furniture and
draperies.
• Do not place clothing or other flammable materials
on or near the appliance.
• Never leave children unattended when a fire is
burning in the fireplace.
WARNING: Use solid wood or processed solid
fuel fire logs only. Do not poke or stir the logs while
they are burning. Use only firelogs that have been
evaluated for the application in fireplace and refer to
firelog warnings and caution markings on packaging
prior to use.
This fireplace is not intended to be used as a sub-
stitute for a furnace to heat an entire home. Use for
supplemental heat only.
Overfiring of a fireplace is a condition where exces-
sive temperatures are reached, beyond the design
capabilitiesoftheappliance.Thedamagethatoccurs
fromoverfiringisnotcoveredunderthemanufacturer’s
limited warranty.

Comfortflame.us.com
900481-00_B 3
SAFETY Continued
WARNING: CONTINUED OVERFIRING CAN PER-
MANENTLY DAMAGE YOUR FIREPLACE SYSTEM.
SOME EXAMPLES OF CONDITIONS THAT COULD
CAUSE OVERFIRING ARE:
• BURNINGQUANTITIESOFSCRAPLUMBER,PINE
BRANCHES, PAPER OR CARDBOARD BOXES
WHICH EXCEED THE VOLUME OF THE NORMAL
LOG FIRE.
• BURNING TRASH, CHEMICALS OR CHEMICALLY
TREATED COMBUSTIBLES.
Disposal of Ashes
Ashes should be placed in a metal container with a
tight-fitting lid. The closed container of ashes should
be placed on a noncombustible floor or on the ground,
well away from all combustible materials, pending
final disposal. If the ashes are disposed of by burial
in soil or otherwise locally dispersed, they should be
retained in the closed container until all cinders have
thoroughly cooled.
WHEN USING THE DECORATIVE APPLIANCE, THE
FIREPLACE DAMPER MUST BE SET IN THE FULLY
OPEN POSITION.
Never use gasoline, gasoline-type lantern fuel, kero-
sene, charcoal lighter fluid, or similar liquids to start
or ’freshen up’ a fire in this fireplace. Keep all such
liquids well away from the fireplace while it is in use.
Use SOLID WOOD only for fuel. It is best to use dry
and well seasoned hardwood. Softwoods tend to burn
veryquickly.DONOTusetreatedwood,charcoal,coal,
trash,driftwoodorwoodsthathavebeendippedintar,
pitch, pine tar, creosote, etc. Wood products made
with synthetic binders, such as plywood, produce ab-
normally high temperatures and sputtering, smoking
fires. When burning artificial logs, please read and
follow the instructions provided by the manufacturer.
Never burn treated construction lumber or scraps.
These woods burn excessively hot and may contain
chemicals used to treat insects and fungus. When
burned,thesechemicalscanposeasignificanthazard.
IMPORTANT: See appendix A, page 21 for additional
information regarding draft requirements, smoking
causes and troubleshooting.
WARNING: BURNING IMPROPER FUEL (I.E.
CHARCOAL) CAN RESULT IN CARBON MONOXIDE
POISONING, WHICH MAY LEAD TO DEATH!
Carbon Monoxide Poisoning – Early signs of carbon
monoxidepoisoningresemblethefluwithheadaches,
dizziness, or nausea. If you have these signs, get
fresh air at once! Have the appliance inspected by a
qualified service technician. Some people are more
affected by carbon monoxide than others. These
include pregnant women, people with heart or lung
disease or anemia, those under the influence of al-
cohol, and those at high altitudes.
Ventilation Requirements - Provide adequate air for
combustion. The fresh air requirements of this ap-
pliance must be met within the space where it will
be installed.
Smoke Detectors - Since there are always several
potential sources of fire in any home, we recommend
installing smoke detectors. If possible, install the
smoke detector in a hallway adjacent to the room (to
reduce the possibility of occasional false activation
fromtheheatproducedbytheappliance). Ifyourlocal
coderequiresasmokedetectorbeinstalledwithinthe
same room, you must follow the requirements of your
localcode. Checkwithyour localbuildingdepartment
for requirements in your area.
Creosote – Formation and Need for Removal
Whenwood is burnedslowly, itproducestar and other
organicvapors,whichcombinewithexpelledmoisture
to form creosote. The creosote vapors condense in
the relatively cool chimney flue of a slow-burning
fire. As a result, creosote residue accumulates on
the flue lining. When ignited this creosote makes an
extremely hot fire.
The chimney shall be inspected at least twice a
year during the heating season to determine when a
creosote buildup has occurred. When creosote has
accumulated(1/8"[3mm]ormore)itshallberemoved
to reduce the risk of a chimney fire.

Comfortflame.us.com 900481-00_B
4
SPECIFICATIONS
8DM
PIPE 1" (26 mm) AIRSPACE
TO COMBUSTIBLE
MATERIAL
0" (0 mm) TO TOP
SPACERS
STARTER
SECTION
0" (0 mm)
TO BOTTOM 12" (305 mm)
EACH SIDE
NO COMBUSTIBLE
MATERIALS BELOW
TOP SPACERS
NO COMBUSTIBLE
MATERIAL ON FACE
HEARTH EXTENSION
66" X 20" (1677 mm X 508 mm)
COMBUSTIBLE
WALL BOARD
NOT LESS THAN
12" (305 mm) TO
PERPENDICULAR
SIDEWALL
OUTSIDE AIR
(LEFT SIDE ONLY)
11 3/4"
(299 mm)
1 1/2" (39 mm)
46 3/4"
(1188 mm)
22 1/2"
(572 mm)
INNER DIA.
12 3/8" (315 mm)
5/8"
(16 mm)
36" (915 mm)
48" (1220 mm)
OUTER DIA.
15" (381 mm)
24"
(610 mm)
8"
(204 mm)
42" (1067 mm)
41"
(1042 mm)
48" (1067 mm)
3/4" (19 mm)
AIR SPACE
BACK AND
SIDES
GAS LINE
KNOCK OUTS
GAS LINE
KNOCK OUTS
ELECTRICAL
OUTLET
RIGHT SIDE
LEFT SIDE
AIR KIT
KNOCK OUT
6 3/4" (172 mm)
10 5/8" (270 mm)
12 5/8"
(321 mm)
10 5/8"
(270 mm)
14 1/4"
(362 mm)
16 1/4"
(413 mm)
12" (305 mm)
8 1/8"
(207 mm)
2 1/2"
(64 mm)
29 1/2"
(750 mm)
39"
(991 mm)
2 1/2"
(64 mm)
ROUND TOP TERMINATION
SQUARE CHASE-TOP TERMINATION

Comfortflame.us.com
900481-00_B 5
FIREPLACE INSTALLATION
SELECTING LOCATION
To determine safest and most efficient location for fireplace, you
must take into consideration the following guidelines:
1. Location must allow for proper clearances (see Figures 1 and 2).
2. Consider a location where fireplace will not be affected by drafts,
air conditioning ducts, windows or doors.
3. A location that avoids cutting of joists or roof rafters will make
installation easier.
4. An outside air kit is available with this fireplace (see Optional
Outside Air Kit on page 7).
MINIMUM CLEARANCE TO COMBUSTIBLES
Back and sides of fireplace 3/4" minimum*
Floor** 0" minimum
Perpendicular wall to opening 12" minimum
Top spacers 0" minimum
Mantel clearances see Mantels, page 6
Chimney outer pipe surface 1" minimum
** See step 2 of Framing
WARNING: DO NOT PACK REQUIRED AIR SPACES
WITH INSULATION OR OTHER MATERIALS.
Minimum/Maximum Chimney Height
Minimum height of chimney, measured from base of fireplace to
flue gas outlet of termination, is 14.5 feet for straight flue or a flue
with one elbow set. Maximum distance between elbows is 6 feet. For
systems with two elbow sets, minimum height is 22 feet. Maximum
height of any system is 50 feet. This measurement includes fireplace,
chimney sections and height of termination assembly at level of flue
gas outlet (see Figure 21, page 13).
FRAMING
1. Frame opening for fireplace using dimensions shown in Figures
1 and 2.
Note: When the fireplace is framed, the header has to be turned
on the vertical edge to maintain proper clearance.
2. If fireplace is to be installed directly on carpeting, tile or any
combustible material other than wood flooring, fireplace must
be installed upon a metal or wood panel extending full width and
depth of fireplace.
3. Set fireplace directly in front of this opening and slide unit back
until nailing flanges touch side framing.
4. Check level of fireplace and shim with sheet metal if necessary.
5. Before securing fireplace to prepared framing, ember protector
must be placed between hearth extension (not included) and
under bottom front edge of fireplace to protect against glowing
embers falling through. If fireplace is to be installed on a raised
platform, a Z-type ember protector (not included) must be fabri-
cated to fit your required platform height. Ember protector should
extend under fireplace a minimum of 1 1/2". Ember protector
should be made of galvanized sheet metal (28 gauge minimum)
to prevent corrosion.
6. Using screws or nails, secure fireplace to framing through flanges
located on sides of fireplace.
Figure 1 - Framing Dimensions
Figure 2 - Corner Installation
HEARTH EXTENSION
A hearth extension projecting a minimum of 20" in front of and a
minimum of 12" beyond each side of fireplace opening is required
to protect combustible floor construction in front of fireplace. Fab-
ricate a hearth extension using a material which meets the following
specifications: a layer of noncombustible, inorganic material having
a thermal conductivity of k = .84 BTU IN/FT2HR °F (or less) at 1"
thick. For example, if material selected has a k factor of 0.25, such
as glass fiber, the following formula would apply:
0.25 x 1.0" = 0.30" thickness required
0.84
Thermal conductivity "k" of materials can be obtained from manu-
facturer or supplier of noncombustible material. If hearth extension
is to be covered, use noncombustible material such as tile, slate,
brick, concrete, metal, glass, marble, stone, etc. Provide a means to
prevent hearth extension from shifting and seal gap between fireplace
frame and hearth extension with a non-combustible material such
as sand-cement grout (see Figure 3, page 6).
49 3/4"
(1264 mm)
47 1/4"
(1201 mm)
23 1/2"
(597 mm)
19 1/2" (496 mm)
28"
(712 mm)
59 3/8"
(1509 mm)
83 7/8" (2131 mm)
Maintain 3/4"
Clearance at
Sides and Bac
k
of Fireplace
2 x 4 Header
Turned on
the Vertical
Edge

Comfortflame.us.com 900481-00_B
6
FIREPLACE INSTALLATION Continued

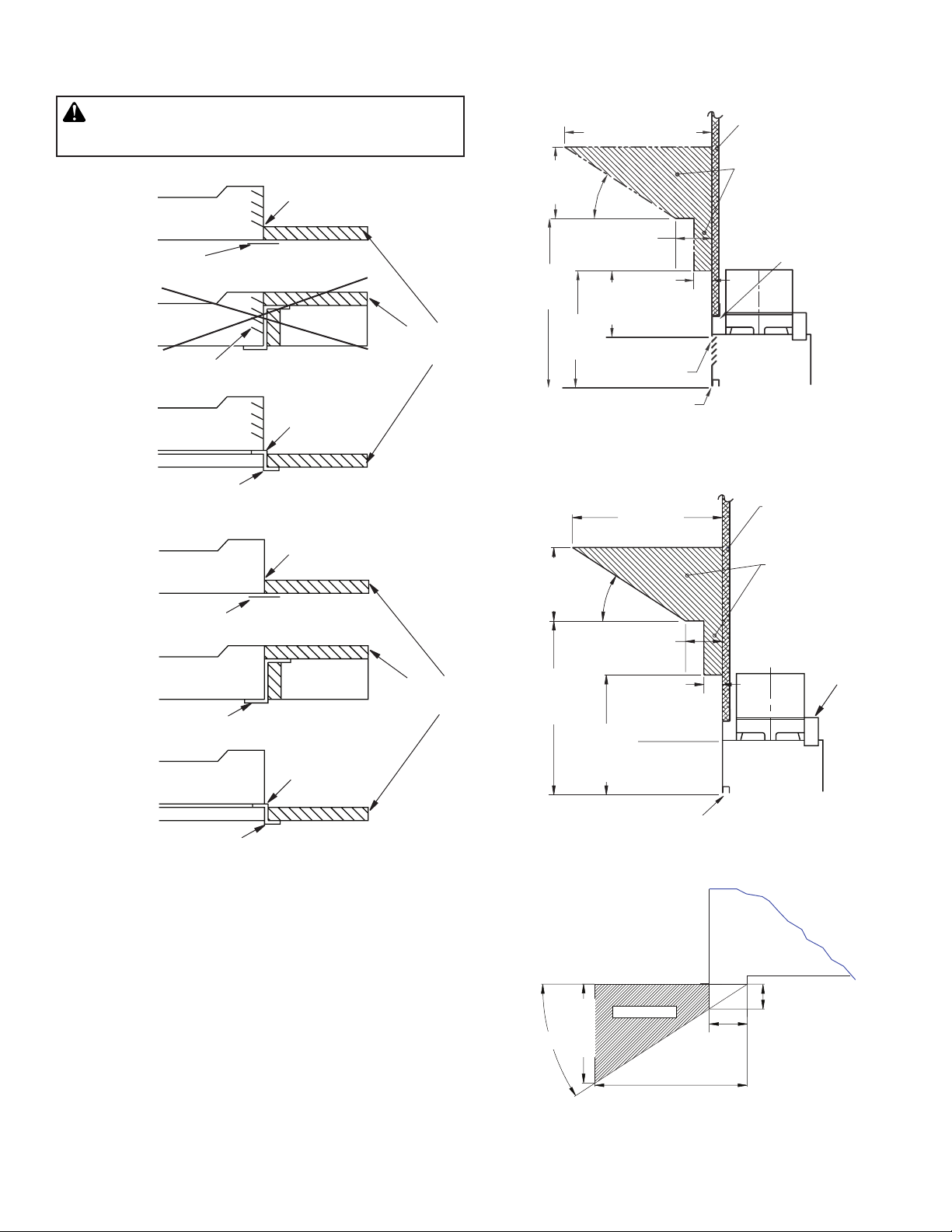

Figure 3 - Hearth Extension
WARNING: Hearth extension is to be installed
only as shown in Figure 3.
Figure 6 - Side Mantel Clearance
MANTELS
A mantel may be installed if desired (see Figures 4 and 5). Woodwork
such as wood trims, mantels or any other combustible material
projecting from front face, must not be placed within 12" of fireplace
opening and within 9" of top louver opening. Combustible materials
above 12" and projecting more than 1 1/2" from fireplace must not
be placed less than 12" from top opening of fireplace (NFPA 211,
Section - Clearance from Combustible Material).
Mantels or any other combustible material may come up to side edge
of black metal face of fireplace if projection from front face falls within
limits shown in Figure 6.
Figure 4 - Mantel Clearances to Combustible Material (with
Louver)
Figure 5 - Mantel Clearances to Combustible Material (without
Louver)
Upper Section
of Circulating
Fireplace
33°
*Note: Drawing Not To Scale
Safe Zone For
Projection of
Combustible
Materials
Combustible
Material
Non Combustible
Materials Below
Top Spacer
Fireplace Opening
Top of
Louvered
Opening
9"
(229 mm)
Min.
3" (77 mm) Nom.
6"
(153 mm)
Ref.
12"
(305 mm)
Min.
15"
(381 mm)
Min.
1 1/2"
(38 mm)
Max.
12 1/4" (312 mm) Ref.
Fireplace Front
Fireplace Front Raised Hearth
Fireplace Front Elevated
Seal Gap
Seal Gap
Seal Gap
Seal Gap
Fireplace Front
Ember Protector
Fireplace Front Elevated
Do Not Block Louver
Ember Protector
Ember Protector
Ember Protector
Ember Protector
Hearth
Extension
Hearth
Extension
Hearth Extension, Circulating Models
Hearth Extension, Noncirculating Models
NO
FIREBOX
SAFE ZONE
Top View of Fireplace
33°
33°
Combustible
Material
Safe Zone for
Projection of
Combustible
Materials
Fireplace Opening
Top
Spacer
Upper
Section of
Fireplace
12 1/4"
(312 mm)
Ref.
15"
(381 mm)
Min.
12"
(305 mm)
Min.
6"
(153 mm)
Ref.
11/2"
(38 mm)
Max.
3" (77 mm)
Nom.
Min. 12" from
Perpendicular Side Wall
3"
(77 mm)
2" (51 mm)
Max.
8"
(204
mm)

Comfortflame.us.com
900481-00_B 7
FAN/BLOWER KIT ASSEMBLY (FOR CIRCULATING MODELS ONLY)
Fan or blower kit is optional with this fireplace (for circulating mod-
els only). Use of blowers or fans other than those manufactured
by IHP voids warranty. Blower is operated by turning control knob
(not shown).
Fan/blower kit electrical connections are made through electrical
cover plate on side of fireplace a shown in Figure 7.
FIREPLACE INSTALLATION Continued
Wiring Instructions
1. Remove electrical cover plate with bushing from fireplace by
removing 2 sheet metal screws as shown in Figure 7.
2. Slide power source wiring through electrical bushing opening
and electrical cover plate and make all necessary connections.
3. Slide all wiring connections in electrical housing as shown in
Figure 7.
4. Secure electrical cover plate with screws previously removed.
Note: Electrical housing and cover plate have sharp edges. Wear
protective gloves.
Figure 7 - Fan Switch-Electrical Bushing
Figure 8 - Outside Air Kit
VENTING INSTALLATION
OPTIONAL OUTSIDE AIR KIT (MODEL AK4/AK4F)
Installation of outside air kit should be performed during rough fram-
ing of fireplace due to the nature of it's location. Outside combustion
air is accessed through a vented crawl space (AK4F) or through a
sidewall (AK4). See page 15 for instructions of operating air kit.
CAUTION: Combustion air inlet ducts shall not
terminate in attic or garage space.
The maximum height for the air vent can not exceed
3 feet below the flue gas outlet of the termination.
CHIMNEY PIPE
WARNING: Label part number 900599-01 must
be applied by the installer to all chimney pipe
sections but is not required on sections that will
be visible after the installation is complete. Label
must wrap around the circumference of the pipe.
See accessories, page 19 for Kit F2659.
An IHP chimney system consists of 12", 18", 24", 36" and 48" snap-
lock, double-wall pipe segments, planned for maximum adaptability
to individual site requirements. Actual lengths gained after fitting
overlaps must be taken into consideration (lineal gain) and are given
in lineal gain chart (see Figure 9, page 8).
Lineal gain is actual measurable length of a part after two or more
parts are connected.
Electrical
Bushing
Electrical
Cover Plate
Electrical
Housing
Wire Nut (3x)
(Not Supplied)
Outer Wrapper
of Fireplace
Electrical Cover
Plate and Electrical
Bushing
Fireplace
Chassis Ground
To Power
Source
Receptacle
(Supplied)
Power Source Wiring
(Not Supplied)
Prewired Receptacle
and Ground
Sheet
Metal
Screws
Secure to Collars with Metal Tape, Screws
or Straps (Min. of 1/4" x 20" in size)
Air Inlet
Location
Must Allow
For Bushes
or Snow
Vent Hood
Required
for Wall
Installation
Air Inlet
Eyebrow
Vented Crawl Space (Check
Local Codes Before Installing
in a Vented Crawl Space)

Comfortflame.us.com 900481-00_B
8
Figure 9 - Lineal Gain
WARNING: The opening in collar around chimney
at top of fireplace must not be obstructed. Never use
blown insulation to fill chimney enclosure.
LINEAL GAIN
CAT. NO. PART NO. DESCRIPTION GAIN
42" Fireplace 45"
F1907 SS-8DM Starter Section 19''
F0895
F0881
12-8DM
12-8HT Pipe Section 10 5/8"
F0896
F0882
18-8DM
18-8HT Pipe Section 16 5/8"
F0897
F0883
24-8DM
24-8HT Pipe Section 23 5/8"
F0898
F0884
36-8DM
36-8HT Pipe Section 34 5/8"
F0899
F0885
48-8DM
48-8HT Pipe Section 46 5/8"
F0916 RT-8DM Round Termination 6 7/8"*
RTL-8DM Round Termination 7 3/4"*
F0918 RLT-8DM Round Termination 7 1/2"*
F0917 RTT-8DM Round Termination with Slip
Section
6 7/8" to
23 1/8"*
RTTL-8DM Round Termination with Slip
Section
8 1/2" to
21 1/2"*
F0919 RLTT-8DM Round Termination with Slip
Section
7 1/2" to
21 1/4"*
F0920 ET-8DM Square Chase-Top 12"*
F0922 ETO-8DM Square Chase-Top with
Mesh 12"*
F0921 ETL-8DM Square Chase-Top with Slip
Section 7" to 15"*
F0923 ETLO-8DM Square Chase-Top with
Mesh & Slip Section
12" to
25 1/2"*
* The lineal gain for the terminations is measured to the
ue gas outlet height.
VENTING INSTALLATION Continued
ASSEMBLY AND INSTALLATION OF DOUBLE WALL CHIMNEY
SYSTEM
SS-8DM starter section must be installed first.
Each double wall chimney section consists of a galvanized outer
pipe, a stainless steel inner flue pipe and a wire spacer. Pipe sections
must be assembled independently as chimney is installed. When
connecting chimney directly to fireplace, inner flue pipe section
must be installed first with lanced side up. Outer pipe section can
then be installed over flue pipe section with hemmed end up. Press
down on each pipe section until lances securely engage hem on
fireplace starter. Wire will assure proper spacing between inner
and outer pipe sections.
Note: For Canada, use chimney parts designated HT.
Opening in collar around chimney at top of
fireplace must not be obstructed. Never use blown
insulation to fill chimney enclosure.
Continue to assemble chimney sections as outlined, making sure
that both inner and outer pipe sections are locked together. When
installing double wall snap-lock chimney together, it is important to
assure joint between chimney sections is locked. Check by pulling
chimney upward after locking. Chimney will not come apart if properly
locked. It is not necessary to add screws to keep chimney together
(exception - see Figure 12, page 10).
The height of a vertical chimney pipe supported ONLY by the fireplace,
must not exceed 20 feet. Chimney heights above 20 feet must be
supported.
USING ELBOW OFFSET 30E-12DMO-8DMR
To clear overhead obstructions, you may offset your chimney system
using 30E-12DMO-8DMR 30° Offset/return elbow.
A section or sections of chimney may be used between offsets and
return elbow. Starter section must be used after elbow offset is at-
tached.
1. To achieve desired offset, you may install combinations of 12",
18", 24", 36" and 48" length of double wall pipe (see offset chart,
page 10).
Note: For systems with 2 elbow sets, minimum height is 22 feet.
Maximum height for any system is 50 feet.
2. Chimney weight above offset rests on return elbow. Straps must
be securely nailed to rafters or joists (see Figure 11, details A and
B, page 9).
3. Maximum length of pipe between supports (return elbow or 12S-
8DM) is 6' of angle run. Maximum of two 6' angle run sections
per chimney system (see Figure 10, page 9).
4. All pipe connections between offset and return must be secured
with two screws on outer pipe only (see Figure 12, page 10). Do
not penetrate inner stainless.
Hemmed
End
8" Stainless
Inner Pipe
12 3/8"
Galvanized
Outer Pipe

Comfortflame.us.com
900481-00_B 9
Figure 10 - Typical Offset Installation
Figure 11 - Ceiling Support Pipe 12S-8DM
VENTING INSTALLATION Continued
2" Min.
Straps Straps Straps
Straps
Detail A Return
Elbow
Detail BAngle
Firestop
See Detail A
See Detail B
Ceiling Support
Pipe 12S-8DM
30E-8DM
Return Elbow 30E-8DM
Return Elbow
30E-8DM
Offset Elbow 30E-8DM
Offset Elbow
30E-12DMO-8DMR
Offset Elbow
30E-12DMO-8DMR
Offset Elbow
30E-12DMO-
8DMR Offset
Elbow
30E-12DMO-8DMR
Return Elbow 30E-12DMO-8DMR
Return Elbow
30E-12DMO-
8DMR Return
Elbow
Starter Section Starter Section Starter Section
8 DM Pipe
8 DM Pipe
Ceiling
Support Pipe
12S-8DM
A B C
6' Max. (1.83 m)
6' Max. (1.83 m)
6' Max. (1.83 m)
6' Max. (1.83 m)
6' Max. (1.83 m)
6' Max. (1.83 m)

Comfortflame.us.com 900481-00_B
10
VENTING INSTALLATION Continued
Figure 12 - Elbow Offset
B
A
Screws
OFFSET CHART WITH TRANSITION PIPE
FIRESTOP SPACERS (3600FS-8DM-1)
Figure 13 - Firestop Spacer with Living Space Above Ceiling
If area above is a living space, install firestop
below framed hole.
OFFSET RISE OFFSET/
RETURN
ELBOW
TRANSITION
PIPE
CHIMNEY LENGTH
A B 12" 18" 36" 48"
13 3/4" 32 1/2" 1 1
19" 41" 1 1 1 1
22" 46 3/4" 1 1 1
24 1/2" 50 3/4" 1 1 2
27 1/2" 56 1 1 1 1
30 1/4" 61 1 1 2
31 62 1/2" 1 1 1
32 1/2" 65" 1 1 2 1
35 1/2" 70 1/4" 1 1 1 2
36 1/4" 71 1/2" 1 1 1 1
37 72 3/4" 1 1 1
38 1/2" 75 1/2" 1 1 3
39 1/4" 76 3/4" 1 1 1 1
41 1/2" 80 1/2" 1 1 2 1
42 1/4" 81 3/4" 1 1 1 1
44 1/2" 85 3/4" 1 1 1 1 1
45 1/4" 87" 1 1 1 1
47 1/2" 91" 1 1 2 1
48 1/4" 92 1/4" 1 1 2
49 3/4" 94 3/4" 1 1 2 1 1
52" 98 3/4" 1 1 1 4
53 1/2" 101 1/4" 1 1 1 2
54 1/4" 102 3/4" 1 1 1 1
55 3/4" 105 1/4" 1 1 3 1
56 1/2" 1061/2" 1 1 1 2
58 3/4" 110 1/2" 1 1 2 2
59 1/2"111 3/4" 1 1 1 1 1
60 1/4" 113" 1 1 2
61 3/4" 115 3/4" 1 1 1 1 2
64 3/4" 120 3/4" 1 1 2 2
65 1/2" 122 1/4" 1 1 1 2
67" 124 3/4" 1 1 2 1 2
Firestop spacers are required at each point where chimney penetrates
a floor space. Their purpose is to establish and maintain required
clearance between chimney and combustible materials. When pipe
passes through a framed opening into a living space above, firestop
must be placed onto ceiling from below as shown in Figure 13.
They also provide complete separation from one floor space to an-
other or attic space as required by most codes. When double wall
pipe passes through a framed opening into an attic space, firestop
must be placed into an attic floor as shown in Figure 14, page 11.

Comfortflame.us.com
900481-00_B 11
VENTING INSTALLATION Continued
Pitch Slope Opening
"A" Max.
Used Flashing
Model No.
Flat 0° 15" V6F-8DM
0-6/12 26.6° 16 1/8" V6F-8DM
6/12- 12/12 45.0° 20 3/8" V12F-8DM
Figure 15 - Roof Opening Measurements
FLASHING INSTALLATION (V6F-8DM OR V12F-8DM)
Determine flashing to be used with roof opening chart. Slide flashing
over pipe until base is flat against roof. Replace as many shingles as
needed to cover exposed area and flashing base. Secure in position
by nailing through shingles (see Figure 16). DO NOT NAIL THROUGH
FLASHING CONE.
Installing Flashing on a Metal Roof
When installing flashing on a metal roof, it is required that putty tape
be used between flashing and roof. Flashing must be secured to roof
using #8 x 3/4" screws and then sealed with roof coating to prevent
leakage through screw holes. A roof coating must also be applied
around perimeter of flashing to provide a proper seal.
Figure 16 - Flashing Installation
Figure 14 - Firestop Spacer with Attic Space Above Ceiling
Figure 14a - Firestop Thimble
If area above is an attic or insulated area,
install firestop above framed hole.
PENETRATING ROOF
To maintain a 1" clearance to pipe on a roof with a pitch, a rectangular
opening must be cut.
1. Determine center point where pipe will penetrate the roof.
2. Determine center point of the roof. Pitch is the distance the roof
drops over a given span, usually 12". A 6/12 pitch means that the
roof drops 6" for each 12" measure horizontally down from roof
rafters.
3. Use roof opening chart (Figure 15) to determine correct opening
length and flashing required.
4. Remove shingles around opening measured. Cut out this section.
5. Add next sections of pipe until end penetrates roof line. Check to see
that proper clearances are maintained. Extend chimney by adding
sections of double wall pipe until pipe is minimum of 30" above
highest point of roof cutout. Termination and chimney must extend
a minimum of 36" above highest point where it passes through
roof.
30"
(76.2 cm)
Minimum Measurements
Opening "A"
14 3/8"
(48.3 cm)
1"
(2.54
cm)
1"
(2.54
cm)
1"
(2.54 cm)
IMPORTANT NOTICE
When penetrating a ceiling into an attic, a firestop
thimble (38FST or FST30) is required to avoid intru-
sion by insulation and recommended to negotiate a
joist (see Figure 14a).
Thimble
38FST or
FST30
Firestop
Nail Only Outer
Perimeter of
Flashing
Storm Collar
Underlap Shingles
at Bottom
Flashing
Cone
Overlap
Shingles Top
and Sides
Only

Comfortflame.us.com 900481-00_B
12
VENTING INSTALLATION Continued
CHASE INSTALLATIONS
Instructions for chase installations are included with chase style ter-
mination chosen. In a multiple chase installation, be sure to provide
adequate distance between terminations to prevent smoke spillage
from one termination to another. We suggest that terminations be
separated at least 24", center to center and stacked at a vertical height
difference of 18" (see Figure 19).
Note: If a decorative shroud is to be installed, contact manufacturer
for specifications.
Figure 19 - Multiple Chase Installation
Figure 20 - 10 Foot Rule
10 FOOT RULE
All flue gas outlet chimney terminations must extend a minimum of
3 feet in height above highest point where it passes through roof and
must be at least 2 feet above highest point of the roof that is within
a horizontal distance of 10 feet (see Figure 20).
FINISHING FIREPLACE
Combustible materials, such as wallboard, sheet rock, drywall, ply-
wood, etc., may make direct contact with sides and top around fire-
place face. It is important that combustible materials do not overlap
face itself. Brick, glass, tile or other noncombustible materials may
overlap front face provided they do not obstruct essential openings
such as louvered slots. When overlapping with a noncombustible
facing material, use only noncombustible mortar or adhesive.
Storm Collar Installation (SC1)
Place storm collar over pipe and slide down until it is snug against
open edge of flashing (see Figure 17). Use SC1 for all round termina-
tions. Apply waterproof caulk around perimeter of collar to provide
a proper seal.
Figure 17 - Storm Collar
Terminations/Spark Arrestor
Fireplace system must be terminated with listed round top or chase
terminations. In any case, refer to installation instructions supplied
with termination. Terminations approved for this fireplace are RT-8DM
and RLT-8DM that can be used for flashing or chase and ET-8DM,
ETO-8DM, ETL-8DM and ETLO-8DM for chase style termination only.
Figure 18 shows an RLT-8DM round top termination.
CAUTION: Do not seal openings on the rooftop
flashing.Follow theinstallation instructionsprovided
with the termination being used.
Terminations with 16" slip pipe sections are available. RTT-8DM and
RLTT-8DM are approved for flashing installations. When needed,
these adjustable terminations may be used in combination with pipe
assembly to achieve correct chimney height.
Note: In the rare instance there is a problem with side driven rain or
wind or chimney is not drafting properly, an ADS-8DM (Anti-Draft
Shield) can be used with round terminations.
Figure 18 - Termination
Chimney
Pipe
Waterproof
Caulk
Storm
Collar Flashing
Attach Bracket
Tabs to Outer Pipe
(3 Places) Secure
with Screws
RLT-8DM Level of Flue
Gas Outlet
Caulk
Collar
Flashing
Underlap
Shingles
Bottom Only
Overlap Shingles
Top and Sides
Flue Pipe of RLT-
8DM Inside Inner
Pipe of Chimney
24" (610 mm)
18" (458 mm)
Min. Typ.
24" (610 mm)
10'
(3.05 m)
10'
(3.05 m)
2'(0.61 m) Min.
2'(0.61 m)
Min.
3'
(0.91 m)
Min
3'
(0.91 m)
Min
Level of Flue
Gas Outlet

Comfortflame.us.com
900481-00_B 13
A gas line or gas log lighter may be installed for the purpose of
installing a vented or vent-free decorative gas appliance incorporat-
ing an automatic shutoff device and complying with the Standard
for Decorative Gas Appliances for Installation in Vented Fireplaces,
ANSI Z21.60 or American Gas Association draft requirements for
Gas Fired Log Lighters for Wood Burning Fireplaces, Draft NO. 4
dated August, 1993.
If you wish to install an unvented (vent-free) gas log set, only
unvented gas log sets which have been found to comply with the
standard for unvented room heaters, ANSI Z21.11.2 are to be installed
in this fireplace.
Gas line hook up should be done by your supplier or a qualified
service person.
Note: Before you proceed, make sure your gas supply is turned off.
Use only a 1/2" black iron pipe and appropriate fittings.
1. Remove knockout indentation on refractory or firebrick wall
located above refractory hearth floor. Knockout indentation must
be firmly tapped with any solid object, such as a 1/2" dowel, until
it is released. Remove fragmented portions of refractory (see
Figure 22, page 14).
2. Remove gas line cover plate located on either side of fireplace and
pull out insulation from gas line conduit sleeve. Save insulation
for reuse.
3. Run a 1/2" black iron gas line into fireplace through rear at
gas line conduit sleeve (if using a raised platform, add height).
OPTIONAL GAS LINE INSTALLATION
VENTING INSTALLATION Continued
Figure 21 - Typical Residential Installations
Provide sufficient gas line into fireplace chamber for fitting
connection (see Figure 23, page 14).
Note: Secure incoming gas line to wood framing to provide rigidity
for threaded end.
4. Repack insulation around gas line and into sleeve opening. Seal
any gaps between gas line and refractory knockout hole with
refractory cement or commercial furnace cement. Install gas
appliance or cap off gas line if desired.
CAUTION: All gas piping and connections must be
tested for leaks after installation is completed. After
ensuring that gas valve is on, apply soap and water
solutiontoallconnectionsandjoints.Bubblesforming
show a leak. Correct all leaks at once. DO NOT USE
AN OPEN FLAME FOR LEAK TESTING AND DO NOT
OPERATE ANY APPLIANCE IF A LEAK IS DETECTED.
LEAK TESTING SHOULD BE DONE BY A QUALIFIED
SERVICE PERSON.
Note: An IHP hood must be installed when using an unvented gas
log set (see Accessories on page 19).
WARNING: Do not operate an unvented gas log
set in this fireplace with chimney removed.
30E-12DMO-8DMR
30E-12DMO-8DMR
30E-12DMO-8DMR
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
14 1/2FT.
(4.42 M)
MINIMUM
HEIGHT
14 1/2FT.
(4.42 M)
MINIMUM
HEIGHT
MAX. HEIGHT
50 FT. (15.24 M)
ANY SYSTEM
MIN. HEIGHT OF
22 FT. (6.71 M)
WITH 2
ELBOW SETS
MAX. HEIGHT OF
50 FT. (15.24 M)
UP TO
6FT.
(1.83 M)
MAX.
UP TO
6FT.
(1.83 M)
MAX.
STARTER
SECTION
STARTER
SECTION
STARTER
SECTION

Comfortflame.us.com 900481-00_B
14
Figure 24 - Glass Doors
OPERATION AND MAINTENANCE
GLASS DOORS
Glass doors are optional with this fireplace. When fireplace is in
operation, doors must be fully opened or fully closed position only
or a fire hazard may be created (see Figure 24).
A fireplace equipped with glass doors operates much differently than
a fireplace with an open front. A fireplace with glass doors has a
limited amount of air for combustion. Excessive heat within fireplace
can result if too large a fire is built or if combustion air gate is not
completely open.
The following tips should be used to assure that both fireplace and
glass door retain their beauty and function properly. Both the flue
damper and glass doors must be fully opened before starting a
fire. This will provide sufficient combustion air and maintain safe
temperatures in firebox.
IMPORTANT: The glass must be allowed to warm slowly and evenly.
Tempered glass will withstand a gradual temperature rise to 550°
F, which is more than a normal fire will generate. Such materials as
pitch/wax laden logs, very dry mill end lumber and large amounts
of paper or cardboard boxes can create an excessively hot fire and
should not be burned in this fireplace. Always keep fire back from
doors and never allow flames to contact glass.
WARNING:FIREPLACES EQUIPPED WITHDOORS
SHOULD BE OPERATED ONLY WITH DOORS FULLY
OPENORDOORSFULLYCLOSED.IFDOORSARELEFT
PARTLYOPEN,GAS ANDFLAME MAYBE DRAWN OUT
OF THE FIREPLACE OPENING, CREATING RISKS OF
BOTH FIRE AND SMOKE.
WARNING: Discontinue use of the appliance imme-
diately if doors are damaged and contact a qualified
installer for repair. Only doors certified with the
appliance shall be used.
WARNING: Do not slam or strike doors. Damage
can result in a hazardous condition.
OPTIONAL GAS LINE INSTALLATION Continued
Figure 23 - Gas Line Installation
Figure 22 - Gas Line Knockout
If you install a decorative gas appliance (vented gas log), decorative
gas appliance must comply with the Standard for Decorative Gas
Appliance for Installation in Solid Fuel Burning Fireplaces, ANSI
Z21.60/CSA 2.26 or Z21.84 and shall also be installed in accordance
with ANSI Z223.1/NFPA 54 National Fuel Gas Codes (USA) and CAN/
CGA-B149.1 National Gas And Propane Installation Code (Canada).
WARNING: To avoid the risk of damaging fireplace
materials and increasing the risk of spreading a fire,
do not use fireplace to cook or warm food.
WARNING: If the fireplace has been used for wood
burning,fireboxandchimneymustbecleanedofsoot,
creosote and ashes be a qualified chimney cleaner.
Creosote will ignite if heavily heated.
WARNING: When using a decorative vented gas
log, damper must be removed or permanently locked
in fully open position and glass doors must be in fully
open position.
Side Firebrick
Finished Side
Refractory
Knockout Plug
Outside of Fireplace
Gas Line Conduit
Insulation
Gas Conduit
Cover
1/2" Dowel
Seal Opening
with
Refractory
Cement
Outside of
Fireplace
Gas Line
Conduit
Repack
Insulation
Incoming
1/2" Black
Iron Pipe
Side
Firebrick
Finished
Side
Provide Enough
Threaded End for
Fitting Connection
Doors Fully Closed
Fireplace Front
Doors Fully Opened
Fireplace Front

Comfortflame.us.com
900481-00_B 15
Figure 25 - Damper and Air Kit Handle
Cleaning Glass
Clean glass with any commercial glass cleaner or soap and water.
Do not use any abrasive material to clean the glass. Do not clean
glass with any cool water if glass is still hot from fire and smoke.
OUTSIDE AIR AND DAMPER HANDLE OPERATION
The damper handle, which opens and closes the damper blade, is
located in upper front face of fireplace. Pushing handle into the left
of keyway slot will free damper blade to automatically open. Pushing
handle into the right will lock damper blade closed (see Figure 25).
Outside air kit handle is located at left hand side of fireplace (see
Figure 25). Pulling handle out will free outside air door to open.
Pushing handle in will lock door closed.
WARNING: Risk of fire! Replace grate with IHP
model109911-01only.Thisgratehasbeendesignedto
keepthe operation of yourfireplacesafe and efficient.
Figure 26 - Locating Access Cover Plate
Access Panel
LOCATING ACCESS COVER PLATE
Sheet metal cover plates located underneath front hearth refractory may
have shifted or moved out of place while fireplace was in transit. These
cover plates must be kept in the proper location prior to using the fireplace
(See Figure 26).
For further operating guidelines, instructions and warranty informa-
tion, please refer to your homeowner's guide or contact your dealer.
OPERATION AND MAINTENANCE Continued TECHNICAL SERVICE
You may have further questions about installation, operation, or
troubleshooting. Please contact your IHP dealer for any questions
or concerns. When contacting your dealer please have your model
and serial numbers of your fireplace ready. You can also visit our
web site at Comfortflame.us.com
REPLACEMENT PARTS
See Pages 16 to 17 for a complete replacement parts list. Use only
parts supplied from the manufacturer.
Normally, all parts should be ordered through your IHP distributor
or dealer. Parts will be shipped at prevailing prices at time of order.
When ordering repair parts, always give the following information:
1. The model number of the fireplace.
2. The serial number of the fireplace.
3. The part number.
4. The description of the part.
5. The quantity required.
6. The installation date of the fireplace.
If you encounter any problems or have any questions concerning the
installation or application of this fireplace, please contact your dealer.
IHP
1508 Elm Hill Pike, Suite 108
Nashville, TN 37210
Visit us at Comfortflame.us.com
OPEN CLOSE
Damper Handle
Outside Air
Kit Handle
Keyway Slot
Handle Retainer

Comfortflame.us.com 900481-00_B
16
PARTS
WOOD BURNING FIREPLACE MODELS:
9
12
25
20
28
17
8
1
5
21
2
32
18
11
14
3
35
13
22
10 6
29
7
36
34
33
26
27
15
16
16
4
30
31
19
23
24
CAT NO. MODEL
F2543 Columbus42RWS
F2544 Columbus42LWS

Comfortflame.us.com
900481-00_B 17
PARTS
WOOD BURNING FIREPLACE MODELS
This list contains replaceable parts used in your fireplace.
WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not approved
by IHP. Use of non-approved parts can result in poor performance and safety hazards.
KEY NO. CATALOG NO. DESCRIPTION
Columbus42RWS
(F2543)
Columbus42LWS
(F2544) QTY.
1 ** Insulation Pan • • 1
2 ** Fireplace Top • • 1
3 ** Fireplace Surround • • 1
4 J3946 Air Rod Retainer • • 1
5 J3947 Damper Rod Retainer • • 1
6 ** Firebox Bottom • • 1
7 ** Firebox Surround • • 1
8 ** Air Separator • • 1
9 J4061 Left Refractory, white • • 1
10 J4066 Right Refractory, white • • 1
11 J4071 Rear Refractory, white • • 1
12 J4076 Bottom Rear Refractory, white • • 1
13 J4078 Bottom Front Refractory, white • • 1
14 ** Firebox Support Leg • • 4
15 ** Damper Can Collar • • 1
16 J8008 Screen Assembly Kit • • 1
17 ** Firebox Top Assembly • • 1
18 ** Air Kit Door Assembly • • 1
19 ** Face Weldment • • 1
20 J4080 Smoke Deflector • • 1
21 ** Fireplace Top Insulation • • 1
22 ** Access Panel • • 1
23 J4087 Right Refractory Bracket • • 1
24 J4088 Left Refractory Bracket • • 1
25 J4382 Grate • • 1
26 ** Collar Insulation • • 1
27 J8014 Chimney Starter Collar • • 1
28 J6895 Refractory Retainer • • 2
29 J6901 Grate Retainer • • 2
30 ** Door Stop • • 1
31 J6905 Spring Clip • • 2
32 J6918 Top Standoff • • 4
33 J6934 Conduit Plate Cover • • 4
34 J7035 Gas Conduit • • 2
35 J4387 Electrical Duct Assembly • • 1
36 F1907 SS-8DM - Starter Section 12" to 8" DM C-42 • • 1
PARTS AVAILABLE NOT SHOWN
RP126588-02 Louver Assembly 42 (Circulating Models only) • 2
J6906 Ember Protector • • 2
** Not a field replaceable part

Comfortflame.us.com 900481-00_B
18
ACCESSORIES
CAT NO. MODEL DESCRIPTION
BI-FOLD GLASS DOORS
F0984 BD42 42" Standard Bi-Fold Glass Door - Black finish
F0985 BD42B 42" Standard Bi-Fold Glass Door - Brushed Brass finish
F0986 BD42P 42" Standard Bi-Fold Glass Door - Platinum finish
DOUBLE WALL PIPE
F0895 12-8DM 12" Section Double Wall Pipe Snap Lock
F0896 18-8DM 18" Section Double Wall Pipe Snap Lock
F0897 24-8DM 24" Section Double Wall Pipe Snap Lock
F0898 36-8DM 36" Section Double Wall Pipe Snap Lock
F0899 48-8DM 48" Section Double Wall Pipe Snap Lock
F0881 12-8HT 12" Section Hi-Temp Double Wall Pipe Snap Lock
F0882 18-8HT 18" Section Hi-Temp Double Wall Pipe Snap Lock
F0883 24-8HT 24" Section Hi-Temp Double Wall Pipe Snap Lock
F0884 36-8HT 36" Section Hi-Temp Double Wall Pipe Snap Lock
F0885 48-8HT 48" Section Hi-Temp Double Wall Pipe Snap Lock
30° OFFSET AND RETURN
F0900 30E-8DM 30 Degree Offset and Return
F0886 30E-8HT 30 Degree Hi-Temp Offset and Return
F1908 30E-12DMO-8DMR 30 Elbow Set 12" TO 8" Craftsman 42
F2199 30E-12HTO-8HTR 30 Elbow Set 12" Offset 8" Return High Temp
OPTIONAL OUTSIDE AIR KIT FOR FLOOR INSTALLATION
F1091 AK4 Complete Outside Air Kit w/Collars Hood & 3' Flex
OPTIONAL OUTSIDE AIR KIT FOR SIDEWALL INSTALLATION
F1093 AK4F Outside Air Kit Collar, Hood & 3' Flex for Floor Venting
STORM COLLAR (FOR RT-8DM AND RTL-8DM)
F0915 SC1-1 Storm Collar
FIRESTOP SPACER
F0907 3600FS-8DM-1 1" Clearance Firestop Spacer ( 1ea.)
ROOF FLASHING
F0909 V6F-8DM Roof Flashing 0 to 6/12 Pitch (30" Base)
F0910 V12F-8DM Roof Flashing 6/12 to 12/12 Pitch

Comfortflame.us.com
900481-00_B 19
ACCESSORIES Continued
ANTI-DRAFT SHIELD
(Round Top Termination Only)
F0927 ADS-8DM Anti-Draft Shield for Round Top Only
MESH ROUND TOP TERMINATIONS
F0916 RT-8DM Round Top with Mesh Screen
F0888 RT-8HT Hi-Temp Round Top with Mesh Screen
MESH ROUND TOP TERMINATIONS WITH SLIP SECTION
F0917 RTT-8DM Round Top with Slip Section & Mesh
F0889 RTT-8HT Hi-Temp Round Top w/Mesh Screen and Slip Section
ROUND TOP TERMINATIONS WITH LOUVERS
F0918 RLT-8DM Round Top with Louvered Screen
F0890 RLT-8HT Hi-Temp Round Top with Louvered Screen
ROUND TOP TERMINATIONS WITH LOUVERS W/SLIP SECTION
F0919 RLTT-8DM Round Top with Slip Section & Louvers
F0891 RLTT-8HT Hi-Temp Round Top w/Lvrd. Screen and Slip Section
SQUARE TOP TERMINATION WITH LOUVERS
F0920 ET-8DM Square Top
F0892 ET-8HT Hi-Temp Pyramid Top with Slip Section
SQUARE TOP TERMINATION WITH LOUVERS AND SLIP SECTION
F0921 ETL-8DM Square Top with Slip Section
F0893 ETL-8HT Hi-Temp Large Pyramid Top with Slip Section
MESH SQUARE TOP TERMINATION
F0922 ETO-8DM Square Top with Mesh
MESH SQUARE TOP TERMINATION WITH SLIP SECTION
F0923 ETLO-8DM Square Top with Mesh and Slip Section
ADJUSTABLE HOOD
Required when installing a vent-free gas log in this fireplace.
F1764 GA6050 Black Fireplace Hood
BLOWER KIT
F1081 BK Manual Fan, Variable Speed all Units With Louvers Only
FIRESTOP THIMBLE
F0911 38FST Firestop Thimble ( Use when penetrating a joist)
F0912 FST30 Firestop Thimble ( Use when offsetting through a joist)
LABEL-UL127-50PK WARNING
HOT
• Fire Risk
• Insulation and combustibles must not touch
pipe
• Consult manual for clearance requirements
• Ensure proper connection
WARNING
HOT
• Fire Risk
• Insulation and combustibles must not touch
pipe
• Consult manual for clearance requirements
• Ensure proper connection
WARNING
HOT
• Fire Risk
• Insulation and combustibles must not touch
pipe
• Consult manual for clearance requirements
• Ensure proper connection
900599-01
F2659 LABEL-UL127-
50PK UL127 Venting Label - 50 PK

Comfortflame.us.com 900481-00_B
20
Canadian code CAN/ULC-S610-M87 and other pertinent codes require stainless
steel chimney for the installation of this fireplace. A Cold Air Climate Kit is also
required in Canada and is recommended for cooler regions in the United States.
Below, find a list of approved stainless steel parts.
Chimney Parts List for Canada
Catalog
No. Model No. 8" Hi-Temp Wood burning Chimney
F0881 12-8HT 12" Section Hi-Temp Double Wall Pipe Snap Lock
F0882 18-8HT 18" Section Hi-Temp Double Wall Pipe Snap Lock
F0883 24-8HT 24" Section Hi-Temp Double Wall Pipe Snap Lock
F0884 36-8HT 36" Section Hi-Temp Double Wall Pipe Snap Lock
F0885 48-8HT 48" Section Hi-Temp Double Wall Pipe Snap Lock
F0886 30E-8HT 30 Degree Hi-Temp Offset and Return
F0887 12S-8HT Hi-Temp Chimney Support (For Use With Chimney
Heights In Excess of 30')
F0888 RT-8HT Hi-Temp Round Top with Mesh Screen
F0889 RTT-8HT Hi-Temp Round Top with Mesh Screen and Slip Sec-
tion
F0890 RLT-8HT Hi-Temp Round Top with Louvered Screen
F0891 RLTT-8HT Hi-Temp Round Top with Louvered Screen and Slip
Section
F0892 ET-8HT Hi-Temp Pyramid Top with Slip Section
F0893 ETL-8HT Hi-Temp Large Pyramid Top with Slip Section (use
with all 8" systems)
F0894 AP-8HT Hi-Temp Anchor Plate/Collar Assembly (for masonry
fireplaces)
F0929 CAK-8 Cold Air Collar Kit - 8" Chimney
*When ordered alone, this part cannot ship via parcel delivery services.
ACCESSORIES Continued
IMPORTANT NOTICES - CANADA
IMPORTANT NOTICE
A manufactured shroud which has been approved by a
national testing agency for use with this fireplace may
be used if installed in accordance with the instructions
by its manufacturer. A locally fabricated shroud may be
used with IHP Shroud Leg Spacer Kit (SLK) in accor-
dance with instructions provided with the shroud.
NOTICE: The firebox canopy (hood) must not be modified
or replaced with a canopy that may be provided with the
unvented decorative room heater.
CAUTION: THE STRUCTURAL INTEGRITY OF THE MANU-
FACTURED HOME FLOOR, WALL, AND CEILING/ROOF
MUST BE MAINTAINED.
WARNING: DO NOT INSTALL IN SLEEPING ROOM OF
MOBILE HOMES.
REFRACTORY STAIN KITS
Use the refractory stain kits to give white refractory panels a new look.
Kit includes foam roller handle, paint tray, and one can of stain. Available stain colors
are creamer (ivory), Rust (terra cotta), and Cappuccino (rosy taupe). CappuccinoRustCreamer
CAT NO. MODEL DESCRIPTION
H8176 BSK-CR Stain Kit (Rfry) 1 Qt. Creamer
H8177 BSK-RT Stain Kit (Rfry) 1 Qt. Rust
H8178 BSK-CP Stain Kit (Rfry) 1 Qt. Cappuccino
