Commax CDL-3PBR User manual

DDL 영문 사용설명서.indd 1 2016. 5. 2. 오후 3:43

Overview
Robust Door Lock Body
KS & KC authentication give guaranted Quality and
insured Product Satisfaction.
Auto Lock/ Re Lock/Double Lock Function
User Friendly Function give Safety and easy usage.
Dummy Number Functions give high level safety.
Dummy Number & Real number combination give high level password.
Multi-level volume control / mute optional Function
User can easily select 7level Volumne Control.
Light Button indicate in the dark space
You can easy to use the device using light keypad buttons.
Emergency Power Function (9V square battery)
Emergency power working even if the batteries run out completely.
Anti high-voltage / anti fireproof / anti-hacking system
It is very safe for using anti high-voltage and anti-hacking system. Also
if the temperature is higher than certain temperature, the door will be
open automatically with warning sounds under the fire.
Digital Door Lock COMMAX
Multi-registrations for pin-number & electronic key
It is easy to register the pin-number(up to 4) and
you can also register the electronic key(up to 30 ea).
it available to Traffice card/credit Card,too.
Metalic Diecasting Design
Metal body is durable to fire and shock from outer side hazard
and damage.
Safety Cautions
Don’t install, repair or
disassemble the device
randomly.
Don’t push or insert
the button with drill
or pin.
Do not insert the
batteries reversely.
it will be cause some
burst or leakage from
batteries .
When you clean the
device, please use
the dry towel.
Change the pin-number
regularly for the safety.
Don’t put water into
the device.
Do not use any other
purpose for Door lock.
when change battery,
please use all
new alkaline battery.
Don't heavy damage
on door lock.
This device is suitable
for home safety level,
other condition will
not be guarante quality.
Please read operation
manual Carefully.
User Manual
www.commax.com
DDL 영문 사용설명서.indd 2 2016. 5. 2. 오후 3:43

Overview
Robust Door Lock Body
KS & KC authentication give guaranted Quality and
insured Product Satisfaction.
Auto Lock/ Re Lock/Double Lock Function
User Friendly Function give Safety and easy usage.
Dummy Number Functions give high level safety.
Dummy Number & Real number combination give high level password.
Multi-level volume control / mute optional Function
User can easily select 7level Volumne Control.
Light Button indicate in the dark space
You can easy to use the device using light keypad buttons.
Emergency Power Function (9V square battery)
Emergency power working even if the batteries run out completely.
Anti high-voltage / anti fireproof / anti-hacking system
It is very safe for using anti high-voltage and anti-hacking system. Also
if the temperature is higher than certain temperature, the door will be
open automatically with warning sounds under the fire.
Digital Door Lock COMMAX
Multi-registrations for pin-number & electronic key
It is easy to register the pin-number(up to 4) and
you can also register the electronic key(up to 30 ea).
it available to Traffice card/credit Card,too.
Metalic Diecasting Design
Metal body is durable to fire and shock from outer side hazard
and damage.
Safety Cautions
Don’t install, repair or
disassemble the device
randomly.
Don’t push or insert
the button with drill
or pin.
Do not insert the
batteries reversely.
it will be cause some
burst or leakage from
batteries .
When you clean the
device, please use
the dry towel.
Change the pin-number
regularly for the safety.
Don’t put water into
the device.
Do not use any other
purpose for Door lock.
when change battery,
please use all
new alkaline battery.
Don't heavy damage
on door lock.
This device is suitable
for home safety level,
other condition will
not be guarante quality.
Please read operation
manual Carefully.
User Manual
www.commax.com
DDL 영문 사용설명서.indd 3 2016. 5. 2. 오후 3:43

CONTENTS
Specification
Parts Nmae
How to use
Easy Function
(option)
Emergency Alarm
Function
Breakdown Cause and Solution
Consumer Protection Rules
Product Warranty
Setting Pin Number
Setting Smart Key
Setting BLE(Smartphone)
Delete setting Smartkey
Delete setting BLE
Open the gate(Keypad)
Lock the gate(Outside)
Open the gate(Inside)
Lock the gate(inside)
Force Lock Status
Autolock Setting
Manual Setting
Sound Pause Function
Volume Control Function
Dual Authentication &Registration on/off
Built in Remocon Setting
Heat Warning
Intruder Alarm
Warning Mischef and 1min stop function
Deadbolt(mortise) Error Alarm
Battery Replacement Warning
Emergency Power
Emergency Key(key type)
Digital Door Lock COMMAX
Specifications
Product Standard
RF Standard
Features
Item
RFID
Wireless Devices
Outside Body
Battery 4pcs Warning Sticker Screw Hole Paper Smartkey 2pcs Outdoor shaft
Emergency 2keys
(key type only)
Inside Body Mortise Striker Screws
User manual
(Warranty)
Frequency
13.56Mhz
447.275Mhz
Channel
1ch
1ch
Modulation
ASK Under 93.5dBuV/m@10m
Under 10mWFSK
Antenna power (field strength)
Division Features
Install Condition Normal Fire Door Door thickness 40mm ~ 50mm
Usage and Pre installation
4~12 digit number combination(Up to 4 pin number)
Up to 30 keys
Option
Option
LR6 1.5V AA Size Alkaline Battery, 4 pcs
Alkaline battery(Optional)
Al, Zn, ABS
Al, Zn, ABS
72Ⳅ± 5Ⳅ(Lab Conditions)
62Ⳅ± 5Ⳅ(Normal Conditions)
Pin Number
Smart key
Smarphone
Remocon
DC 6V
DC 9V
Temperature Sensor
External Enclosure
Internal Enclosure
Fireproof type, Temperature sensor type, Key type, Master key door lock(D-NF-T-K-M)
Access Methods
Rated Voltage
Emergency Power
Product Type
Temperature Alarm
Material
www.commax.com
DDL 영문 사용설명서.indd 4 2016. 5. 2. 오후 3:43

Dual Authentication &Registration on/off
Warning Mischef and 1min stop function
Specifications
Product Standard
RF Standard
Features
Item
RFID
Wireless Devices
Outside Body
Battery 4pcs Screw Hole Paper Smartkey 2pcs Outdoor shaft
Inside Body Mortise Striker Screws
User manual
(Warranty)
Frequency
13.56Mhz
447.275Mhz
Channel
1ch
1ch
Modulation
ASK Under 93.5dBuV/m@10m
Under 10mWFSK
Antenna power (field strength)
Division Features
Install Condition Normal Fire Door Door thickness 40mm ~ 50mm
Usage and Pre installation
4~12 digit number combination(Up to 4 pin number)
Up to 30 keys
Option
Option
LR6 1.5V AA Size Alkaline Battery, 4 pcs
Alkaline battery(Optional)
Al, Zn, ABS
Al, Zn, ABS
72 ±5 (Lab Conditions)
62 ±5 (Normal Conditions)
Pin Number
Smart key
Smarphone
Remocon
DC 6V
DC 9V
Temperature Sensor
External Enclosure
Internal Enclosure
Fireproof type, Temperature sensor type, Key type, Master key door lock(D-NF-T-K-M)
Access Methods
Rated Voltage
Emergency Power
Product Type
Temperature Alarm
Material
www.commax.com
DDL 영문 사용설명서.indd 5 2016. 5. 2. 오후 3:43

Parts Name
Outside Body Name & Function
9V Emergency Battery
(Sold Seperately)
No Name
Key Buttons Register or change the pin number.
Open the door with registered pin number.
Smartkey access point for open gate. By Contracting smartkey
open the door or register smart key.
When battery fully discharged, contact 9V battery and
power on emergency power working.
Open/register the electronic key.
handle can open or close the door.
Battery Alarm
Outside Handle
Smartkey
Access Point
Emergency Power
Supply Terminal
Features
Digital Door Lock COMMAX
No
DDL 영문 사용설명서.indd 6 2016. 5. 2. 오후 3:44

Parts Name
Outside Body Name & Function
9V Emergency Battery
(Sold Seperately)
No Name
Key Buttons Register or change the pin number.
Open the door with registered pin number.
Smartkey access point for open gate. By Contracting smartkey
open the door or register smart key.
When battery fully discharged, contact 9V battery and
power on emergency power working.
Open/register the electronic key.
Key Type only
handle can open or close the door.
Battery Alarm
Emergency Key hole
Outside Handle
Smartkey
Access Point
Emergency Power
Supply Terminal
Features
Digital Door Lock COMMAX
Usage
Inside Body Name & Function
No Name
Battery Cover
Cover for battery and buttons for registration of pin number & electronic key.
Receiver (CDL-447RM, option)
Use registration or change the pin number or electronic key
Lock or close the door for installing side of door.
Lock the door to door frame.
Prevent to shake the door.
Check for Door open or Close.
Battery for main power
Lock the door under manual mode
Open or close the door from inside.
Link Pack
Register Button
Mortise
Dead Bolts
Wrench Bolts
Sub Wrench Bolts
Alkaline AA Battery
Inner Handle
Manual Lock
Button
Features
www.commax.com
DDL 영문 사용설명서.indd 7 2016. 5. 2. 오후 3:44

Add the other pin-number, you repeat , until turn off the lights
on keypad.(Pin number can be registered up to 4 pin numbers.
The registration will be canceled when you do not push any numbers for
10 seconds after push the registration button. If you register new pinnumbers,
old one will be deleted automatically.
How to use
Setting the Pin-number
Open the inside [battery cover],push
the[Register]Button and hear "Beep"
sound shortly.
Check outside light on [Keypad]
push the button NO .
Set the pin number 4 to 12 digits.
Push the [ ] button
make "Beep" Sound and succeed registration
One more push the [ ] button
and completed registration.
Please set the pin number while you
open the door.
Caution
Outside
Outside
Outside
Note
Caution
Digital Door Lock COMMAX
Caution
Setting Smart Key
Newly registered smart key or re-registred, please register
at a same time. other card not possible except provided card.
Caution
Open the battery cover,
Push the registration button once
then you can hear “Beep” sound.
[Smart key]close up on [smart key input]
when succeed registration, sound beeping
Push the [Register]button,
it completed Registration.
Check outside light on [Keypad]
push the on the Keypad, direction Dimming
Outside
Outside
Inside
Note if you want to add smartkey, it available max 30keys. if you want more add up
smartkey please repeat no process before turn off [Keypad]light.
it canceled [Register]button if smartkey not attach smartkey input.
if new smartkey register (Process , , , ), previous register smart key
will be automatically deleted.
www.commax.com
Usage
DDL 영문 사용설명서.indd 8 2016. 5. 2. 오후 3:44

Add the other pin-number, you repeat , until turn off the lights
on keypad.(Pin number can be registered up to 4 pin numbers.
The registration will be canceled when you do not push any numbers for
10 seconds after push the registration button. If you register new pinnumbers,
old one will be deleted automatically.
How to use
Setting the Pin-number
Open the inside [battery cover],push
the[Register]Button and hear "Beep"
sound shortly.
Check outside light on [Keypad]
push the button NO .
Set the pin number 4 to 12 digits.
Push the [ ] button
make "Beep" Sound and succeed registration
One more push the [ ] button
and completed registration.
Please set the pin number while you
open the door.
Caution
Outside
Outside
Outside
Note
Caution
Digital Door Lock COMMAX
Caution
Setting Smart Key
Newly registered smart key or re-registred, please register
at a same time. other card not possible except provided card.
Caution
Open the battery cover,
Push the registration button once
then you can hear “Beep” sound.
[Smart key]close up on [smart key input]
when succeed registration, sound beeping
Push the [Register]button,
it completed Registration.
Check outside light on [Keypad]
push the on the Keypad, direction Dimming
Outside
Outside
Inside
Note if you want to add smartkey, it available max 30keys. if you want more add up
smartkey please repeat no process before turn off [Keypad]light.
it canceled [Register]button if smartkey not attach smartkey input.
if new smartkey register (Process , , , ), previous register smart key
will be automatically deleted.
www.commax.com
Usage
DDL 영문 사용설명서.indd 9 2016. 5. 2. 오후 3:44

Delete setting Smartkey
Open the inside [Battery cover]
push the[Register] Button
and hear "beep" sound shortly.
Push the [ ]during 5sec.
it makes 'Beep"sound and delete
entire smartkey information.
Chekc outside [Keypad] lightning on,
Push the Button, light on [ ]Button.
5sec
Usage
Outside
Outside
www.commax.com
DDL 영문 사용설명서.indd 10 2016. 5. 2. 오후 3:44

Delete setting Smartkey
Open the inside [Battery cover]
push the[Register] Button
and hear "beep" sound shortly.
Push the [ ]during 5sec.
it makes 'Beep"sound and delete
entire smartkey information.
Chekc outside [Keypad] lightning on,
Push the Button, light on [ ]Button.
5sec
Usage
Outside
Outside
www.commax.com
DDL 영문 사용설명서.indd 11 2016. 5. 2. 오후 3:44

Check outside light on [Keypad] push the button No
press No Button and LED Light on [ ]
Press button 5sec [ ]
Beep sound and delete whole BLE Regitstered key.
Dummy number function will be add up head or tail to original password.
dummy No+original password original password+dummy No
(for preventing from other person cheating password)
How to use
Delete Setting BLE
Method1
open the gate (Keypad)
(CDL - 3PBR Model Case)
Open the inside [Battery cover] push
the [Register] Button and hear
"Beep" sound shortly.
Key pad openning
Touch [Keypad],
input [Password].
Push the [ ]button and belling
beep sound Door will be released.
OutSide
OutSide
5sec
Note
Digital Door Lock COMMAX
Open the gate (Smart Key)
Usage
Method 2
Method 3
Method 4
Smartkey Opening
BLE(smartphone)Opening (CDL - 3PBR Model type)
Registered [Smart Key]close to
[Smart key] access point.
Beep sound and open the Gate.
Shake on [BLE (Smartphone)]
on the access point.
Remocon opening (option)
Push the [OP/CL]button on the Remocon
and open the gate.
Beep sound and open the oate.
Note In case of Credit card/Traffic card, touch key first and then light on
[Keypad] and close to access point, it will be open the gate.
www.commax.com
DDL 영문 사용설명서.indd 12 2016. 5. 2. 오후 3:44

Check outside light on [Keypad] push the button No
press No Button and LED Light on [ ]
Press button 5sec [ ]
Beep sound and delete whole BLE Regitstered key.
Dummy number function will be add up head or tail to original password.
dummy No+original password original password+dummy No
(for preventing from other person cheating password)
How to use
Delete Setting BLE
Method1
open the gate (Keypad)
(CDL - 3PBR Model Case)
Open the inside [Battery cover] push
the [Register] Button and hear
"Beep" sound shortly.
Key pad openning
Touch [Keypad],
input [Password].
Push the [ ]button and belling
beep sound Door will be released.
OutSide
OutSide
5sec
Note
Digital Door Lock COMMAX
Open the gate (Smart Key)
Usage
Method 2
Method 3
Method 4
Smartkey Opening
BLE(smartphone)Opening (CDL - 3PBR Model type)
Registered [Smart Key]close to
[Smart key] access point.
Beep sound and open the Gate.
Shake on [BLE (Smartphone)]
on the access point.
Remocon opening (option)
Push the [OP/CL]button on the Remocon
and open the gate.
Beep sound and open the oate.
Note In case of Credit card/Traffic card, touch key first and then light on
[Keypad] and close to access point, it will be open the gate.
www.commax.com
DDL 영문 사용설명서.indd 13 2016. 5. 2. 오후 3:44

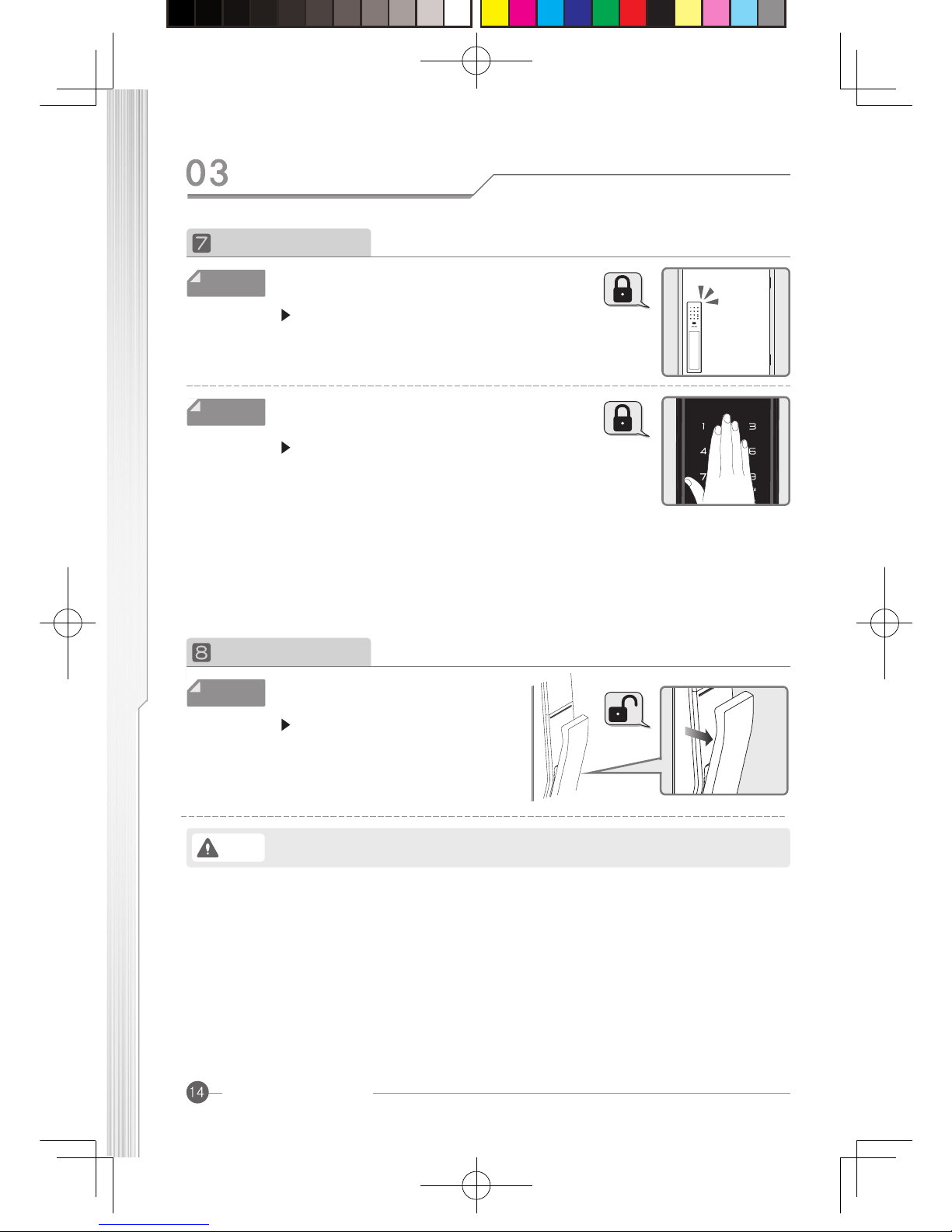

How to use
Lock the gate (Outside)
Open the gate
Method 1
Method 1
Method 2
Auto Locking
Manual Locking
Pull the inside handle
Closing the door and lock the door
after 2second automatically.
Touch the [Keypad], door will be lock.
Just pull the handle,
open the door easily.
2sec
Cautio n Do not use or install outside dragging type door.
Digital Door Lock COMMAX
Method
Method
Releasing
Force Locking - Impossible by password, Smarphone, Smartkey from outside.
Push the handle from inside, Force Locking will be
released.
Enther Lock Status
Push the [Double Lock] 3sec, beep souding
and enter Force Locking.
Method
DDL 영문 사용설명서.indd 14 2016. 5. 2. 오후 3:44

Usage
Lock the gate (inside)
Force Lock Status
Method 1
Method 2
Releasing
Auto Locking
Closing the door and lock the door after
2 second automatically.
Manual Locking
Force Locking - Impossible by password, Smarphone, Smartkey from outside.
Pull the handle from inside, Force Locking will be
released.
Enther Lock Status
Push the [Double Lock] 3sec, beep souding
and enter Force Locking.
Push the inside
[double lock] button,
door will be manual locking.
2sec
3sec
Note Manual locking push the [double locking],gone to Locking status "beep"
noise and entered Double locking status.
www.commax.com
Method
DDL 영문 사용설명서.indd 15 2016. 5. 2. 오후 3:44

Easy Function (option)
Autolock Setting
Manual Setting
This function is Autolock setting
This function is Manual Lock setting
Open the door status
Open the door status
Please check
beside mortise
Pop up.
Please check
beside mortise
Pop up.
Touch the ouside
[Keypad]
Input password
and push the[ ]
button twice.
Push the No[7] and
complete Beeping
and setting
Autolocking.
Touch the ouside
[Keypad]
Push the No[4] and
complete Beeping
and setting
Autolocking.
Input password
and push the[ ]
button twice.
Autolock Setting
Manual Lock setting
Note
Factory default is Auto lock setting.
Digital Door Lock COMMAX
push the keypad of No[3] button volume up.
No[6] button volume down.
when enter Stop volume function keypad Blink
Sound Pause Function
Volume Control Function
This function for 1time mute for preventing beeping.
This function for Volume Level control function. (closing door status available)
Touch outside [keypad]and push the [ ]
Volume coltrol by 7 level.
Password: input password and push the [ ]button
Card: Card access the sensor
BLE(Smartphone) : BLE access and open the gate.
Method
Method
Usage
Note
Note
This function is just 1time, next time back again beep sound status
Please check
beside mortise
Pop up.
Touch the ouside
[Keypad]
Push the No[3] or
No[6] button on
the [Keypad]
Input password
and push the [ ]
button twice.
www.commax.comwww.commax.com
DDL 영문 사용설명서.indd 16 2016. 5. 2. 오후 3:44

Easy Function (option)
Autolock Setting
Manual Setting
This function is Autolock setting
This function is Manual Lock setting
Open the door status
Open the door status
Please check
beside mortise
Pop up.
Please check
beside mortise
Pop up.
Touch the ouside
[Keypad]
Input password
and push the[ ]
button twice.
Push the No[7] and
complete Beeping
and setting
Autolocking.
Touch the ouside
[Keypad]
Push the No[4] and
complete Beeping
and setting
Autolocking.
Input password
and push the[ ]
button twice.
Autolock Setting
Manual Lock setting
Note
Factory default is Auto lock setting.
Digital Door Lock COMMAX
push the keypad of No[3] button volume up.
No[6] button volume down.
when enter Stop volume function keypad Blink
Sound Pause Function
Volume Control Function
This function for 1time mute for preventing beeping.
This function for Volume Level control function. (closing door status available)
Touch outside [keypad]and push the [ ]
Volume coltrol by 7 level.
Password: input password and push the [ ]button
Card: Card access the sensor
BLE(Smartphone) : BLE access and open the gate.
Method
Method
Usage
Note
Note
This function is just 1time, next time back again beep sound status
Please check
beside mortise
Pop up.
Touch the ouside
[Keypad]
Push the No[3] or
No[6] button on
the [Keypad]
Input password
and push the [ ]
button twice.
www.commax.comwww.commax.com
DDL 영문 사용설명서.indd 17 2016. 5. 2. 오후 3:44

Easy Function (option)
Autolock Setting
This function is Dual authentication and registration on / off
Dual Authentication on/off
Registration on / off
Touch the ouside
[Keypad]
Touch the ouside
[Keypad]
Input password Push the No[8] and
complete Beeping
and setting
Autolocking.
Push the[ ]
button twice.
Input password Push the[ ]
button twice.
Push the No[1] and
complete Beeping
and setting
Autolocking.
Note
Dual authenfication mode can open Smart key and password together.
Regstration mode can open previouse password input.
each process will be off by same process (sound : bee~leek)
Factory default is Dual Authentication and Registrtion off status.
Digital Door Lock COMMAX
Usage
Built in Remocon Setting
This function is Built in remocon setting. (for only Built remocon included model)
Remocon on
Remocon off
Open the inside
[Battery cover] push
the[Register] Button
and hear "Beep"
sound shortly.
Open the inside
[Battery cover] push
the[Register] Button
and hear "Beep"
sound shortly.
Push the No[8] button Push the [#] button
5sec, "beep"sound
and remocon will be
off status.
Push the No[3]
button and
indicate Antenna
icon LED.
Push the [OP/CL]
button on the
Remocon.
Push the inside
[Register]button,
it completed
Remocon setting
Note
Caution
Add more remocon, please repeat no 2 process before light blink off
(max 5 remocon available)
Push the [Register]button and not link with Remocon, it will be canceled
remocon setting.
New remocon Setting before Remocon will be deleted.
www.commax.com
DDL 영문 사용설명서.indd 18 2016. 5. 2. 오후 3:44

Easy Function (option)
Autolock Setting
This function is Dual authentication and registration on / off
Dual Authentication on/off
Registration on / off
Touch the ouside
[Keypad]
Touch the ouside
[Keypad]
Input password Push the No[8] and
complete Beeping
and setting
Autolocking.
Push the[ ]
button twice.
Input password Push the[ ]
button twice.
Push the No[1] and
complete Beeping
and setting
Autolocking.
Note
Dual authenfication mode can open Smart key and password together.
Regstration mode can open previouse password input.
each process will be off by same process (sound : bee~leek)
Factory default is Dual Authentication and Registrtion off status.
Digital Door Lock COMMAX
Usage
Built in Remocon Setting
This function is Built in remocon setting. (for only Built remocon included model)
Remocon on
Remocon off
Open the inside
[Battery cover] push
the[Register] Button
and hear "Beep"
sound shortly.
Open the inside
[Battery cover] push
the[Register] Button
and hear "Beep"
sound shortly.
Push the No[8] button Push the [#] button
5sec, "beep"sound
and remocon will be
off status.
Push the No[3]
button and
indicate Antenna
icon LED.
Push the [OP/CL]
button on the
Remocon.
Push the inside
[Register]button,
it completed
Remocon setting
Note
Caution
Add more remocon, please repeat no 2 process before light blink off
(max 5 remocon available)
Push the [Register]button and not link with Remocon, it will be canceled
remocon setting.
New remocon Setting before Remocon will be deleted.
www.commax.com
DDL 영문 사용설명서.indd 19 2016. 5. 2. 오후 3:44

Emergency Alarm Function
Heat Warning
When a fire is detected, a high temperature of
about suspected (62Ⳅ± 5Ⳅ), automatically
releases the locked state with strong beeps for
safety.
Heat Warning
Warning mischief and 1 minute stop function
Abnormally in the door is locked
(For example: forcely open the gate) occurs when
the door open condition is detected
Beep noise makes 80 db (db) beeper.
If input not registered [password] or [Smart Key repeatedly entered
five times l stop operating 1 minutes with alarm.
Remove battery or input [password] or attach [smart key] , it will be turn off warning and alarm.
When high temperrature status, it will be not turn off status. please cool down temperature.
In case of inside body recieve sunlight, it will be warning and alarm.
so, dual authentication will be turn off automatically
Turn off alarm
Mistake input
5 times??
Turn off heat warning & Intruder alarm
Caution
Digital Door Lock COMMAX
Usage
Deadbolt(mortise)error alarm
Battery Replacement Warning
Opened or locked, when the dead
bolt (square clamp) of the indoor
unit body is normally taken out, or
do not enter "beep, beep beep,
beep" warning sound occurs three
times.
Battery icon light on the Keypad or make sound "bleek bleek
bleek", please change battery. all battery change required.
Deadbolt
(Mortise) “BBBB”
“Bleek
Bleek
Bleek.”
Caution
Caution
Caution
If sound alarm countinuos or not workging properly. it required reallocation door lock
position, please contact installer or door lock professional company.
Do not use mixed with used battery and New battery , Please change all battery
to new ones.
Wireless module use battery consumption, Battery recycle will be more
shorthen.
www.commax.com
DDL 영문 사용설명서.indd 20 2016. 5. 2. 오후 3:44
