Commell FS-A72 User manual

FS-A72
PICMG1.3 Full-size CPU Card
User’s Manual
Edition: 1.2
2014/05/14

FS-A72User’sManual
2
Copyright
Copyright 2009. All rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT.

FS-A72User’sManual
3
Packing List
Please check package component before you use our products.
Hardware:
FS-A72 PICMG1.3 Full-size CPU Card motherboard x 1
Cable Kit:
PS/2 Keyboard & Mouse Cable x 1
(OALPS2/MKN)/ (1040551)
Floppy flat Cable x 1
(OALFD)/ (1040095)
SATA-L Cable x 2
(OALSATA-L)/ (1040142) 4-pin to 3-pin ATX cable x 1
(OAL-ATX-C)/ (1040184)
DB25 & DB9 cable x 1
(OAL1S1P)/ (140041)
COM Port Cable x 1 (FS-A70G2-Only)
(OAL2SIP)/ (1040191)
Audio Port Cable x 1
(OALPJ-HD)/ (1040120) USB Cable x 2
(OALUSBA-1)/ (1040172)
Other Accessories:
Divers CD (including User’s Manual) x 1

FS-A72User’sManual
4
Index
Chapter1 <Introduction>............................................................7
1.1 <Product Overview> ......................................................................7
1.2 <Product Specification>.................................................................8
1.3 <Block Diagram>.........................................................................10
1.4 <Mechanical Drawing >...............................................................11
Chapter 2 <Hardware Setup>.................................................12
2.1 <Connector Location>..................................................................12
2.2 <Jumper Reference>.....................................................................13
2.3 <Connector Reference>................................................................14
2.3.1 <Internal Connectors> ..............................................................14
2.3.2 <External Connectors> .............................................................14
2.4 <CPU and Memory Setup>..........................................................15
2.4.1 <CPU installation>...................................................................15
2.4.2 <Memory installation>..............................................................16
2.5 <CMOS Setup>............................................................................18
2.6 <Serial ATA installation> .............................................................19
2.7 <Floppy Installation>...................................................................20
2.8 <LAN installation>.......................................................................20
2.9 <Onboard Display Interface>.......................................................21
2.9.1 <Analog Display>....................................................................21
2.10 <Audio Installation>...................................................................22
2.11 <GPIO and SMBUS interface>..................................................24
2.12 <USB Installation>.....................................................................25
2.13 <Power and Fan Installation>.....................................................26
2.14 <Serial Port>...............................................................................28
2.15 <Switch and Indicator>..............................................................31
Chapter 3 <System Configuration>.......................................33
3.1 <SATA configuration>..................................................................33

FS-A72User’sManual
5
3.2 <SATA RAID Configuration>......................................................34
3.3 <Audio Configuration>................................................................38
3.4 <Video Memory Setup>...............................................................39
Chapter 4 <BIOS Setup>.........................................................41
Appendix A <I/O Port Pin Assignment>................................43
A.1 <Serial ATA Port>........................................................................43
A.2<Floppy Port>...............................................................................43
A.3 <IrDA Port>.................................................................................44
A.4 <Serial Port>................................................................................44
A.5 <VGA Port>.................................................................................45
A.6 <LAN Port>.................................................................................45
A.7 <Parallel Port>.............................................................................46
Appedix B <System Resources>...........................................47
B.1 <I/O Port Address Map>..............................................................47
B.2 <Memory Address Map>.............................................................49
B.3 <System IRQ Resources>............................................................50
Appedix C <Flash BIOS>.........................................................51
C.1 <BIOS Auto Flash Tool>.............................................................51
C.2 <Flash Method>...........................................................................51
Appendix D <Programming GPIO’s>....................................52
Appendix E <Watch Dog timer Setting >..............................53
Contact Information...................................................................54

FS-A72User’sManual
6
(This Page is Left for Blank)

FS-A72User’sManual
7
Chapter1 <Introduction>
1.1 <Product Overview>
FS-A72 is the Full-size single board computer with last Intel desktop technology with
PICMG1.3 form factor. Based on Intel®Q45 and ICH10DO, the board integrates a new
Core 2 Quad / Core 2 Duo / Celeron processor 775-pin socket, DDR3 memory slot, Intel®
Graphic Media Accelerator 4500 technology, Serial ATA II with RAID function for a powerful
desktop system.
Intel®LGA775 processor
The Intel® Core 2 Quad / Core 2 Duo / Celeron processor now comes with a new form
factor with 775-pin PLGA package, for 800/1066/1333MHz front-side-bus, 12MB L2 cache,
for 65nm and 45nm manufacturing technology, the PLGA processor without pin header on
solder side can make user installing the processor on the socket easier.
Intel®Q45 and ICH10DO chipset
The Intel Q45 integrates DDR3 800/1066MHz for memory, and Graphic Media Accelerator
(GMA) 4500 technology for new graphic engine. It can provide up to 1024MB of frame
buffer when you install over 1GB of system memory. The ICH10DO integrates with up to 8
USB2.0 interfaces, and serial ATA II interface with RAID function.

FS-A72User’sManual
8
1.2 <Product Specification>
General Specification
Form Factor PICMG1.3 Full-size CPU Card motherboard
CPU Intel® Core™ 2 Quad / Core™ 2 Duo / Celeron® processor
With LGA775 socket
Package type: PLGA 775
Front side bus: 800/1066/1333MHZ (200/266/333MHz x 4)
Memory 2 x 240-pin DDR3 800/1066MHz SDRAM up to 4GB
Unbufferred, none-ECC memory supported only
Chipset Intel® Q45 (Northbridge) and ICH10DO (Southbridge)
BIOS Phoenix-Award v6.00PG 8Mb SPI flash BIOS
Green Function Power saving mode includes doze, standby and suspend modes.
ACPI version 1.0 and APM version 1.2 compliant
Watchdog Timer System reset programmable watchdog timer with 1 ~ 255 sec./min.
of timeout value
Real Time Clock Intel® ICH10DO built-in RTC with lithium battery
Serial ATAII Intel® ICH10DO integrates 6 Serial ATA II interface
RAID 0, 1,5,10 Intel Matrix Storage Technology supported
Multi-I/O Port
Chipset Intel® 82801HDO( ICH10DO) with Winbond® W83627DHG
Controller
Serial Port Five RS-232 and one RS232/422/485 serial ports
USB Port Eight Hi-Speed USB 2.0 ports with 480Mbps of transfer rate
Floppy Port One Floppy port
IrDA Port One IrDA compliant Infrared interface supports SIR
K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel
GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O
Interface
Smart Fan One CPU fan connectors for fan speed controllable
VGA Display Interface
Chipset Intel® Q45 GMA4500 (Graphic Memory Controller Hub)
Frame Buffer Up to 1024MB shared with system memory
Display Type CRT, LCD monitor with analog display
Connector External DB15 female connector on rear I/O panel

FS-A72User’sManual
9
Ethernet Interface
Controller Two Intel 82574L Gigabit Ethernet controller
Type Triple speed 10/100/1000Base-T
Auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector Two External RJ45 connectors with LED on rear I/O panel
Audio Interface
Chipset Intel® ICH10DO with Realtek ALC888HD Audio
Intel High Definition Audio compliance
Interface 2 channels sound output
Connector Internal 10-pin header for line-out, MIC-in, 4-pin header for CD-IN
Expansive Interface
PCI-Express One X16 and one X4 or four X1 on PICMG 1.3 Interface
PCI Four PCI bus master on PICMG 1.3 Interface
Power and Environment
Power
Requirement +5V, +12 DC input & 5VSB Requirement
Dimension 338 (L) x 126 (H) mm
Temperature Operating within 0 ~ 60P
O
p
C (32 ~ 140P
O
p
F)
Storage within –20 ~ 85P
O
p
C (-4 ~ 185P
O
p
F)
Ordering Code
FS-A72G Intel® Core™ 2 Quad, DDRIII, VGA, USB2.0, Mini-PCI, PCI,
COM Port, FDD, HD Audio, SATA, IrDA, 1 x Gigabit LAN
Support Four X1 & One X16 PCI Express interface
FS-A72G2 Same as above with secondary Gigabit LAN
FS-A72FG Intel® Core™ 2 Quad, DDRIII, VGA, USB2.0, Mini-PCI, PCI,
COM Port, FDD, HD Audio, SATA, IrDA, 1 x Gigabit LAN
Support One X4 & One X16 PCI Express interface
FS-A72FG2 Same as above with secondary Gigabit LAN
OHS-1U775S 1U CPU Cooler for LGA 775 with Backplane
The specifications may be different as the actual production.
For further product information please visit the website at TUhttp://www.commell.com.twUT

FS-A72User’sManual
10
1.3 <Block Diagram>
Intel®Core™ 2 Quad / Core™ 2 Due/ Celeron®processor
Intel Q45 2 x 240-pin DDR3
800/1066MHz up
to 4GB
PCI bus
2 x Serial ports
1 x Floppy port
8-bit GPIO
8 x USB2.0 ports
4 x PCI Slot
HD Audio ICH10DO
6 x Serial ATAII ports
Intel 82574L
2 x GLAN
IrDA
BIOS
SPI
COM3/4/5/6
CRT
4 PCI-Express x1
PCI-Express x16

FS-A72User’sManual
11
1.4 <Mechanical Drawing >
Unit: inch

FS-A72User’sManual
12
Chapter 2 <Hardware Setup>

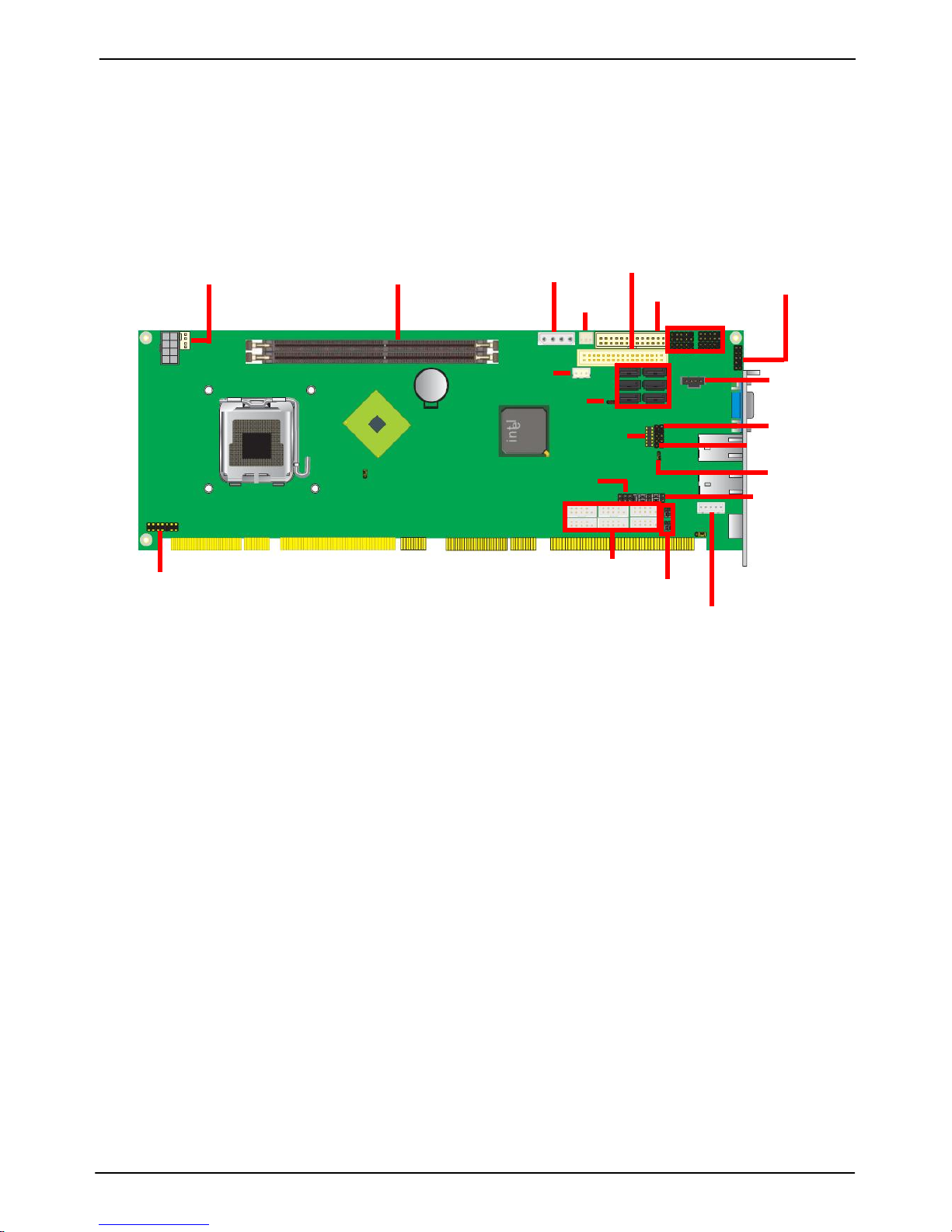

2.1 <Connector Location>
CN_12V
CPUFAN
CN_COM1/2/3/4/5/6
CN_DIO
FDD
SYSFAN
JFRNT
DC_IN CN_AUDIO
CDIN
CN_IR
DDRIIIA/B
S_ATA1~6
CN_USB1~4
JAT
JCSEL2
JCSEL1
JP1/JP2
CN_SMBUS
CN_LPT
CN_PS
CN_ATKB
JRCT
CN_SDVO

FS-A72User’sManual
13
2.2 <Jumper Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JP1 COM1 signal mode switch (For Pin-1 & Pin-9)
JP2 COM2 signal mode switch (For Pin-1 & Pin-9)
JAT Power mode select
JCSEL1 CN_COM2 RS-232 RS422 RS485 Setting
JCSEL2 CN_IR IrDA Setting
Jumper: JAT
Type: Onboard 3-pin jumper
JAT Mode
1-2 AT Power mode
2-3 ATX Power mode
Default setting
JAT1
3

FS-A72User’sManual
14
2.3 <Connector Reference>
2.3.1 <Internal Connectors>
Connector Function Remark
CPU LGA775 CPU socket
DDRIII1/2 240 –pin DDR3 SDRAM DIMM socket
FDD 34-pin floppy connector
S_ATAII1/2/3/4/5/6 7-pin Serial ATA II connector
CN_12V 8-pin +12V additional power supply connector
CN_AUDIO 5 x 2-pin audio connector
CDIN 4-pin CD-ROM audio input connector
CN_DIO 6 x 2-pin digital I/O connector
CN_USB1/2/3/4 10-pin USB connector
CPUFAN 4-pin CPU cooler fan connector
SYSFAN 3-pin system cooler fan connector
CN_IR 5-pin IrDA connector
CN_SMBUS 5-pin SMBUS connector
CN_COM1/2/3/4/5/6 5 x 2-pin com connector
CN_ATKB 5-pin AT keyboard connector
JFRNT 14-pin front panel switch/indicator connector
CN_LPT 13 x 2-pin LPT connector
DC_IN 4-pin power supply connector
CN_PS 3-pin ATX function connector
2.3.2 <External Connectors>
Connector Function Remark
CRT DB15 VGA connector
RJ45_1/2 One RJ45 LAN connector
PS2 PS/2 keyboard and mouse connector

FS-A72User’sManual
15
2.4 <CPU and Memory Setup>
2.4.1 <CPU installation>
FS-A72 has a LGA775 CPU socket onboard; please check following steps to install the
processor properly.
Attention If FS-A72 need RMA please Keep CPU socket cover on the CPU Socket.
Warning If CPU Socket internal Pin damage We could not provide warranty.
Intel®Quad Core™ 2 Quad / Core™ 2
Duo/ Celeron®processor
Package type: 775 pin PLGA
FSB: 800/1066/1333MHz
Manufacturing: 65nm / 45nm
Intel Hyper Threading Technology and
Core™ 2 Quad / Duo supported
1. Lift this bar
2. Uncover this plate
Checked point
3. Place the CPU on the top of
the
p
ins
3. Cover this plate
4. Lock this bar
Notice: Please place the CPU on the pins tenderl
y
to avoid bendin
g
the pins

FS-A72User’sManual
16
2.4.2 <Memory installation>
FS-A72 has two 240-pin DDR3 DIMM support up to 4GB of memory capacity. The memory
frequency supports 800/1066 MHz. Only Non-ECC memory is supported.
96-pin
144-pin
Please check the pin number to match the socket side well
before installing memory module.
DDRIIIA/B

FS-A72User’sManual
17

FS-A72User’sManual
CMOS Setup18
2.5 <CMOS Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.

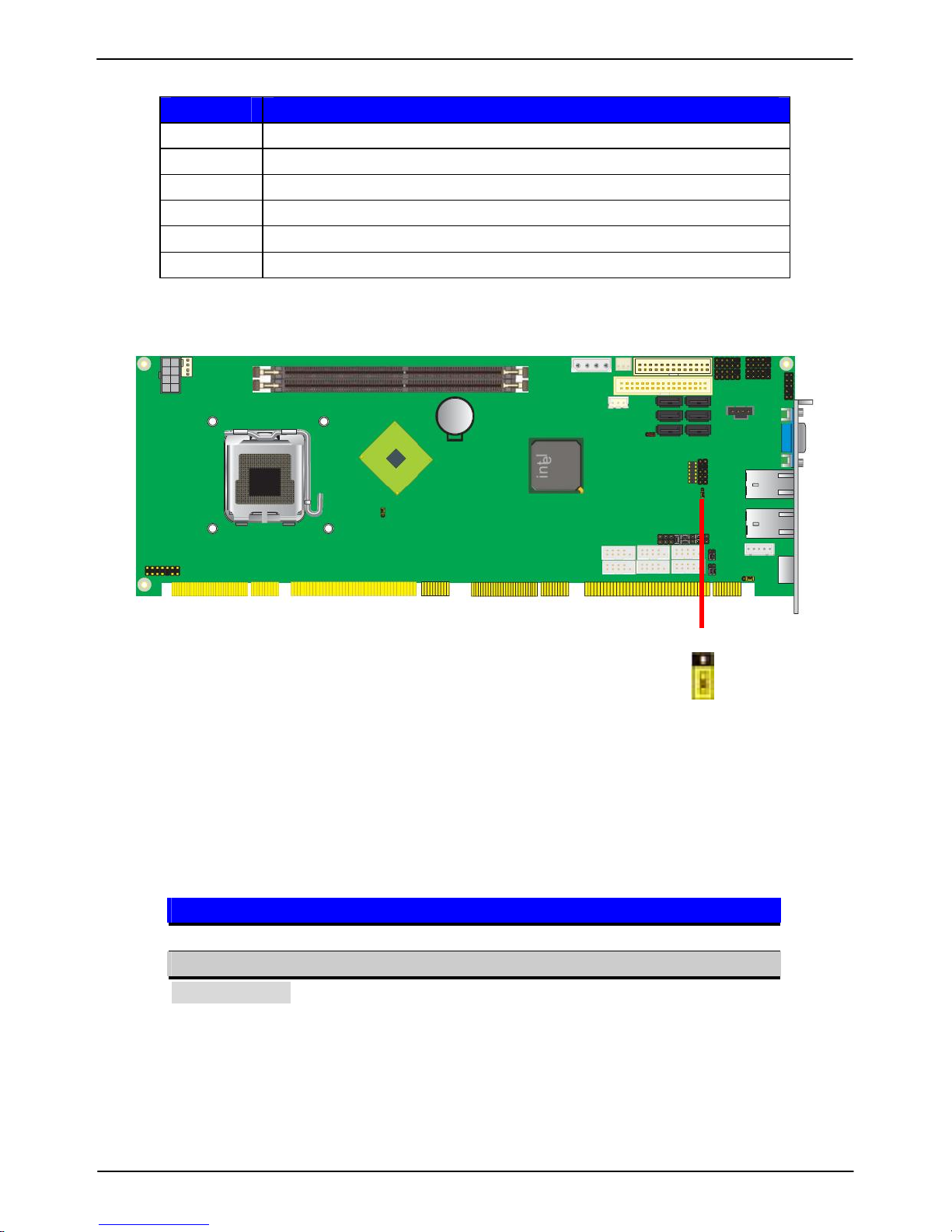

Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting
JRTC
1 3

FS-A72User’sManual
Serial ATA installation 19
2.6 <Serial ATA installation>
FS-A72 has Six Serial ATA II interfaces with RAID function, the transfer rate of the Serial
ATA II can be up to 300MB/s. Please go to http://www.serialata.org/ for more about Serial
ATA technology information. Based on Intel®ICH10DO, it supports Intel®Matrix Storage
Technology with combination of RAID 0,1,5 and 10. The main features of RAID on
ICH10DO are listed below:
1. Supports for up to RAID volumes on a single, two-hard drive RAID array.
2. Supports for two, two-hard drive RAID arrays on any of six Serial ATA ports.
3. Supports for Serial ATAATAPI devices.
4. Supports for RAID spares and automatic rebuild.
5. Supports on RAID arrays, including NCQ and native hot plug.
For more information please visit Intel’s official website.
For more about the system setup for Serial ATA, please check the chapter of SATA
configuration.
S_ATA1~6

FS-A72User’sManual
20
2.7 <Floppy Installation>
FS-A72 has one 34-pin floppy interface
2.8 <LAN installation>
The board integrates with two Intel 82574L Gigabit Ethernet controllers, as the PCI Express
bus. The Intel 82574L supports triple speed of 10/100/1000Base-T, with IEEE802.3
compliance and Wake-On-LAN supported
FDD
LAN
