Commell LV-67PNX User manual

LV-67P
Mini-ITX Motherboard
User’s Manual
Edition 1.0
2016/06/13

LV-67P User’s Manual
-1-
Copyright
Copyright 2015, all rights reserved. This document is copyrighted and all rights are reserved.
The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT

LV-67P User’s Manual
-2-
1 x VGA Cable
(OALVGA-SNB-7) / (1040557)
LV-67PNT & LV-67PET ONLY
Packing List:
Please check the package content before you starting using the board.
Optional:
Printed Matters:
Driver CD x 1 (Including User’s Manual)
1 x USB2.0 cable
(OALUSBA-3) / (1040173)
1 x Dual COM cable
(OALES-BKU2NB) / (1040090)
1 x LV-67P Motherboard
2 x SATA Cable
(OALSATA3-L) / (1040529)
)
1 x DC Power Cable
(OALDC-A) / (1040433)
1 x PS/2 Keyboard & Mouse cable
(OALPS2/KMB) / (1040610)
1 x I/O Shield
(OPLATE-CDILAT) / (1270067)
(OPLATE-CDILA) / (1270068)
(OPLATE-CDILAT for LV-67PNT & LV-67PET)
1 x Power Cable
(OALATX-P3S2 / 1040058)

LV-67P User’s Manual
-3-
Index
Chapter 1 <Introduction> ..................................................................................... 4
1.1 <Product Overview>................................................................................. 4
1.2 <Product Specification> ........................................................................... 5
1.3 <Block Diagram>...................................................................................... 6
Chapter 2 <Hardware setup> ............................................................................... 7
2.1 <Connector Location and Reference> ..................................................... 7
2.1.1 <Internal connectors list> ............................................................. 8
2.1.2 <External connectors list> ............................................................ 8
2.2 <Jumper Location and Reference>.......................................................... 9
2.2.1 <Jumper list> ................................................................................ 9
2.2.2 <Clear CMOS and Power on type selection> ............................ 10
2.3 <Installing the Memory> ......................................................................... 10
2.4 <I/O interface>........................................................................................ 11
2.4.1 <Serial ATA interface> ................................................................ 11
2.4.2 <Ethernet interface> ................................................................... 11
2.4.3 <Display interface>..................................................................... 12
2.4.4 <Serial Port interface>................................................................ 14
2.4.5 <USB interface> ......................................................................... 16
2.4.6 <Audio interface> ....................................................................... 17
2.4.7 <Expansion slot> ........................................................................ 18
2.4.8 <Front panel switch and indicator> ............................................ 18
2.4.9 <Other interface>........................................................................ 19
2.5 <Power supply>...................................................................................... 21
2.5.1 <Power input> ............................................................................ 21
Appendix A <Flash BIOS>.................................................................................. 22
A.1 BIOS Auto Flash Tool............................................................................. 22
A.2 Flash Method ......................................................................................... 22
Appendix B <LCD Panel Type select> .............................................................. 24
Appendix C <Programmable Watch Dog Timer>............................................. 25
Contact information............................................................................................ 26

LV-67P User’s Manual
-4-
Chapter 1 <Introduction>
1.1 <Product Overview>
LV-67P is mini-ITX Motherboard which is design based on Intel® Pentium® Processor
N3000 Series Processor(Braswell SoC), delivering outstanding compute, graphical, and
media performance while operating in an extended range of thermal conditions. The SoC
bases on the Silvermont microarchitecture, utilizing Intel’s industry-leading 14nm process
technology with 3-D Tri-Gate transistors, which deliver significant improvements in
computational performance and energy efficiency.
New features for Intel® Pentium® N3000 Series Processor
The Intel® Pentium® N3000 Series Processor has a lower TDP 6W, it provides new HD
Graphics to support triple display, 4K resolution, maximum memory size is up to 8GB of
DDR3L, and more enhanced security that is suitable for a variety of intelligent systems the
ideal choice.
All in One multimedia solution
The board provides high performance onboard graphics, 18/24-bit single/dual channel
LVDS interface, DisplayPort, HDMI, and High Definition Audio, to meet the very requirement
of the multimedia application.
Flexible Expansion Interface
The board provides one MiniPCIe and one mSATA.
Braswell remove EHCI
When you install WIN7 with USB device(CDROM, Keyboard, Mouse...), Windows7 can not
identify your usb device. You can use SATA CD-ROM and PS/2 to install Windows7.

LV-67P User’s Manual
-5-
1.2 <Product Specification>
System
Processor
Intel® Braswell Series Processor N3710/X5-E8000,
FCBGA1170 package
Chipset
Braswell SoC
Memory
2 x DDR3L DIMM 1600 MHz up to 8GB, Support Non-ECC,
unbuffered memory only
(If you only use one DDR3L SO-DIMM, install memory on SO-DIMM1)
(if you use two DDR3L SO-DIMM, need same memory)
(Same memory means same capacity, same topology same raw card type.)
Watchdog Timer
Generates a system reset with internal timer for 1min/s ~ 255min/s
Real Time Clock
Chipset integrated RTC with onboard lithium battery
Expansion
1 x MiniPCIe, 1 x PCIE X16 slot, 1 x Sim slot
1 x mSATA (same signal with SATA3-2)
Graphics
Chipset
Intel® HD Graphics
Display Interface
1 x DVI, 1 x HDMI, 1 x LVDS/CRT/DisplayPort(Optional)
LAN
Chip
2 x Intel® I210-AT Gigabit LAN
I/O
Serial ATA
2 x SATA3
(SATA3-2 cannot use when JMSATA ‘s jumper cap on pin1 and pin2)
Audio
Realtek ALC262 HD Audio
Internal I/O
2 x SATA3, 4 x RS232, 2 x USB2.0, 1 x LPC 1 x GPIO ,1 x PS/2,
1 x SMBUS, 1 x LVDS(Optional), 1 x CRT(Optional),
1 x LCD inverter, 1 x Audio.
Rear I/O
4 x USB3.0, 2 x LAN, 1 x HDMI, 1 x DisplayPort(Optional) , 1 x RS232,
1 x RS232/422/485
Mechanical & Environmental
Power Requirement
Standard 24-pin ATX power supply or 4-pin 6~30V
Size & Thickness
170mm x 170mm (L x W)
Temperature
Operating within 0°C~60°C (32°F~140°F)
Storage within -20°C~80°C (-4°F~176°F)
Relative Humidity
10%~90%, non-condensing

LV-67P User’s Manual
-6-

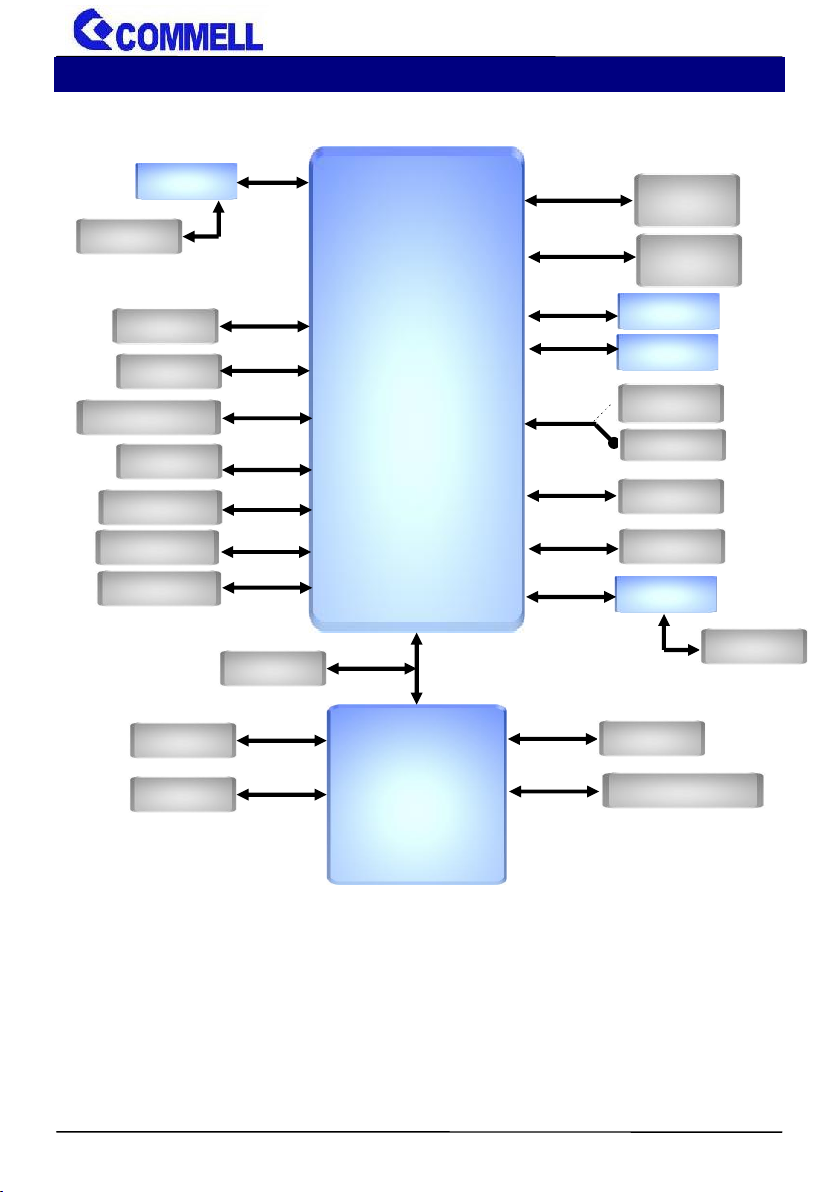

1.3 <Block Diagram>
CPU
Braswell
SoC
DDR3L
SO-DIMM
1 x DVI
1 x HDMI
PTN3460
1 x LVDS
SIO
NCT6106D
DDI
Channel A
eDP
DDI
1 x SATA3
SATA3
4 x USB3.0
2 x USB2.0
USB3.0
USB2.0
SPI Flash
SPI
PCIe x1
I210-AT
HDA
HD Audio
LPC
1 x LPC
ALC262
5 x RS232
1 x SMBUS
SATA3
mSATA
1 x PS/2
SMBus
PCIe x1
I210-AT
1 x RS232/422/485
1 x SATA3
PCIe x1
MiniPCIe
1 x GPIO
Channel B
DDR3L
SO-DIMM
PCIe x1
1 x PCI_E16x

LV-67P User’s Manual
-7-
Chapter 2 <Hardware setup>

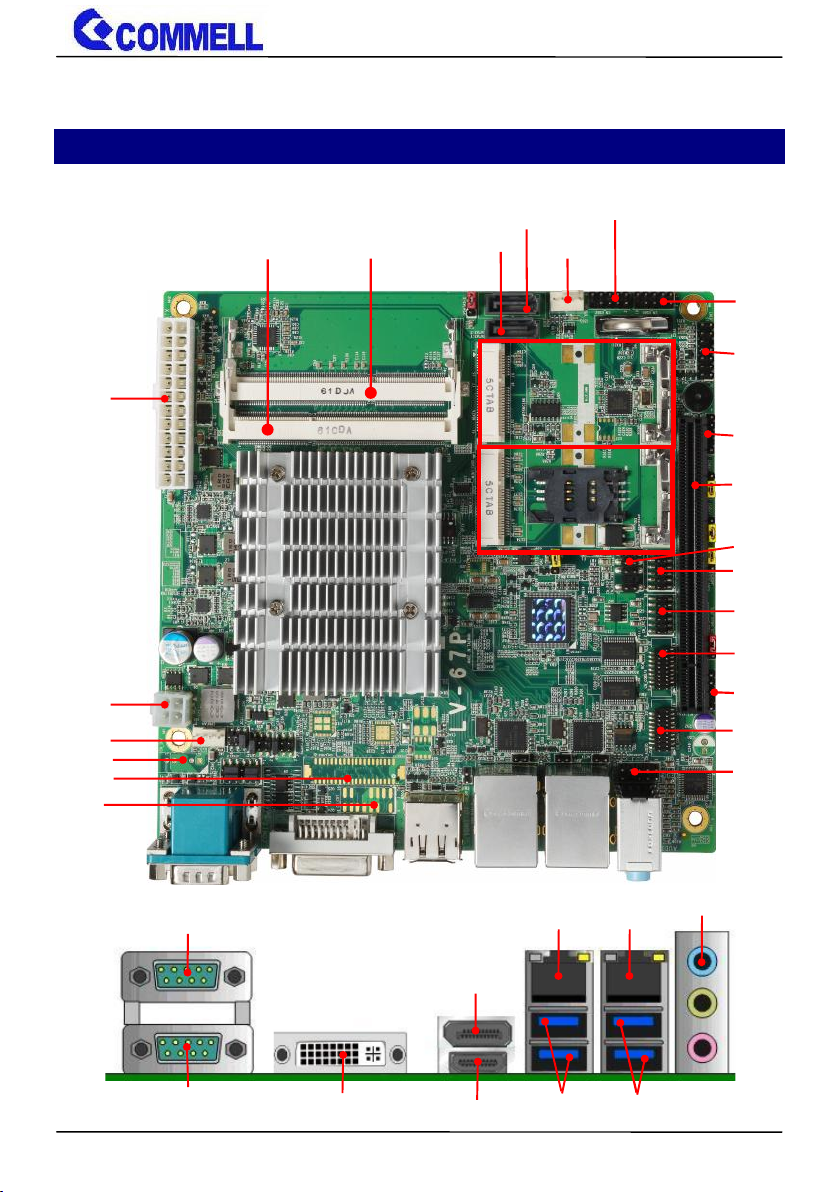

2.1 <Connector Location and Reference>
CN_LPC
I210-AT
COM1
CN_DIO
CN_COM5/6
CN_COM3/4
CN_AUDIO
DC_IN
ATX
CN_SMBUS
SO-DIMM1
JFRNT
SYSFAN
CPUFAN
CN_PS2
CN_SATA3-2
MINI_CARD
MSATA
CN_SATA3-1
CN_USB1
CN_USB2
SO-DIMM2
PCI_E16X
CN_I2C
CN_LVDS
CN_CRT
USB3.0
USB3.0
COM2
I210-AT
HDMI
DISPLAY PORT
DVI-I
AUDIO
CN_INV

LV-67P User’s Manual
-8-
2.1.1 <Internal connectors list>
Connector
Function
SO-DIMM1/2
204-pin DDR3L SO-DIMM slot
CN_SATA3-1/2
10-pin Serial ATA3 connector
CN_AUDIO
5 x 2-pin audio pin header
CN_LPC
6 x 2-pin LPC pin header
CN_DIO
6 x 2-pin digital I/O connector
CN_LVDS
20 x 2-pin LVDS connector
CN_INV
5-pin LCD inverter connector
CN_SMBUS
5-pin SMBus connector
CN_I2C
5-pin I2C connector
CN_COM 3/4 5/6
19-pin RS232 connector
CN_USB1/2
5 x 2-pin USB2.0 pin header
CN_PS2
5 x 2-pin PS/2 pin header
CPUFAN
4-pin CPU fan connector
SYSFAN
4-pin system fan connector
JFRNT
5 x 2-pin front panel switch/indicator pin header
MINI_CARD
52-pin MiniPCIe card slot
MSATA
52-pin MSATA card slot
SIMM
6-pin socket
ATX
24-pin power supply connector
DC_IN
4-pin power input Terminal Block
2.1.2 <External connectors list>
Connector
Function
DisplayPort
DisplayPort connector
DVI-I
DVI connector
HDMI
HDMI connector
USB3.0
4 x USB3.0 connector
LAN
2 x RJ45 LAN connector
AUDIO
Audio connector
COM1/2
DB9 Serial port connector

LV-67P User’s Manual
-9-

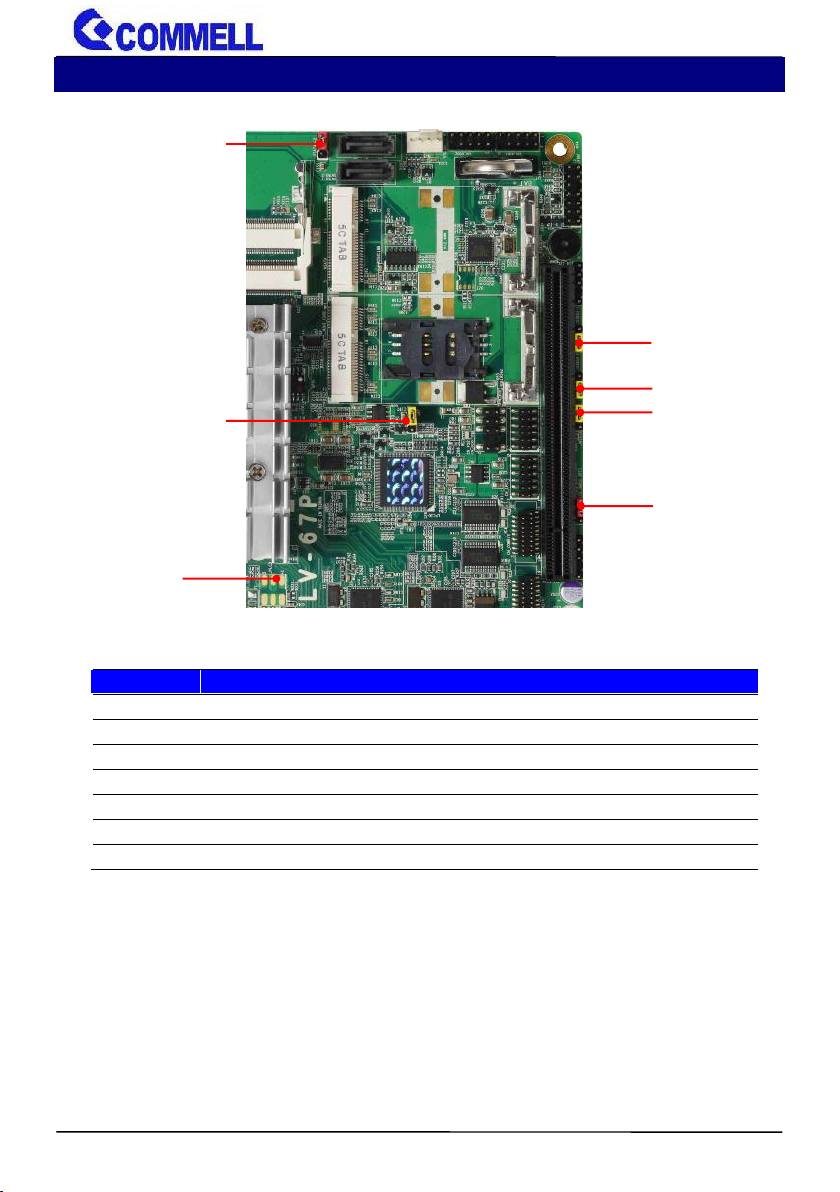

2.2 <Jumper Location and Reference>
2.2.1 <Jumper list>
Jumper
Function
JAT
Power mode select
JRTC
CMOS Normal/Clear Setting
JVLCD
Panel Voltage Setting
JMSATA
MiniCard Msata Setting
JVSATA3-2
Set 5V to SATA3-2 pin 7 (For SATADOM)
JUSBS2-1
Set USB signal to minicard
JUSBS2-2
Set USB signal to MSATA
JAT
JRTC
JMSATA
JUSBS2-2
JUSBS2-1
JVSATA3-2
JVLCD

LV-67P User’s Manual
-10-

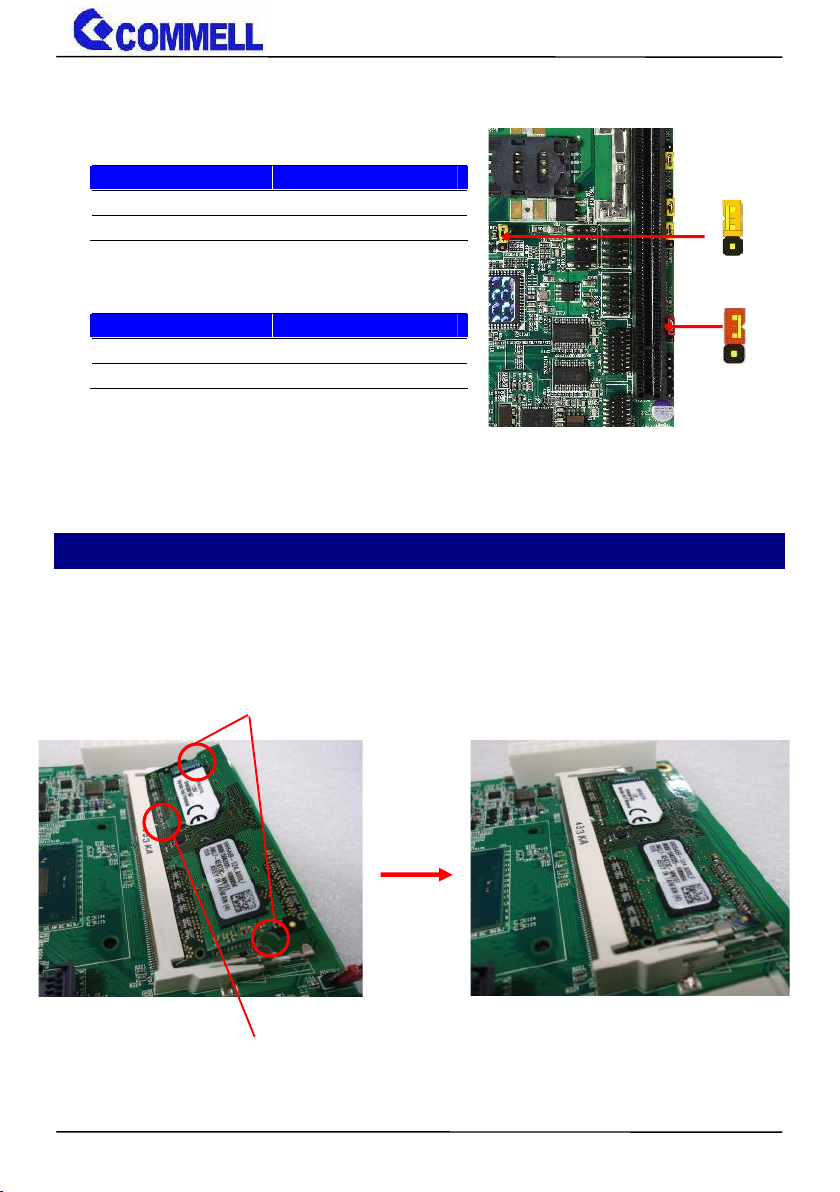

2.2.2 <Clear CMOS and Power on type selection>
JRTC: Clear CMOS data jumper
Jumper settings
Function
1-2
Clear CMOS
2-3
Normal (Default)
JAT: AT/ATX mode select jumper
Jumper settings
Function
1-2
AT mode
2-3
ATX mode (Default)
2.3 <Installing the Memory>
In the process, the board must be powered off.
1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key.
2. Then press down till lock into the mounting notch.
JRTC
1
3
Key
Mounting notch
Press down
JAT
1
3

LV-67P User’s Manual
-11-

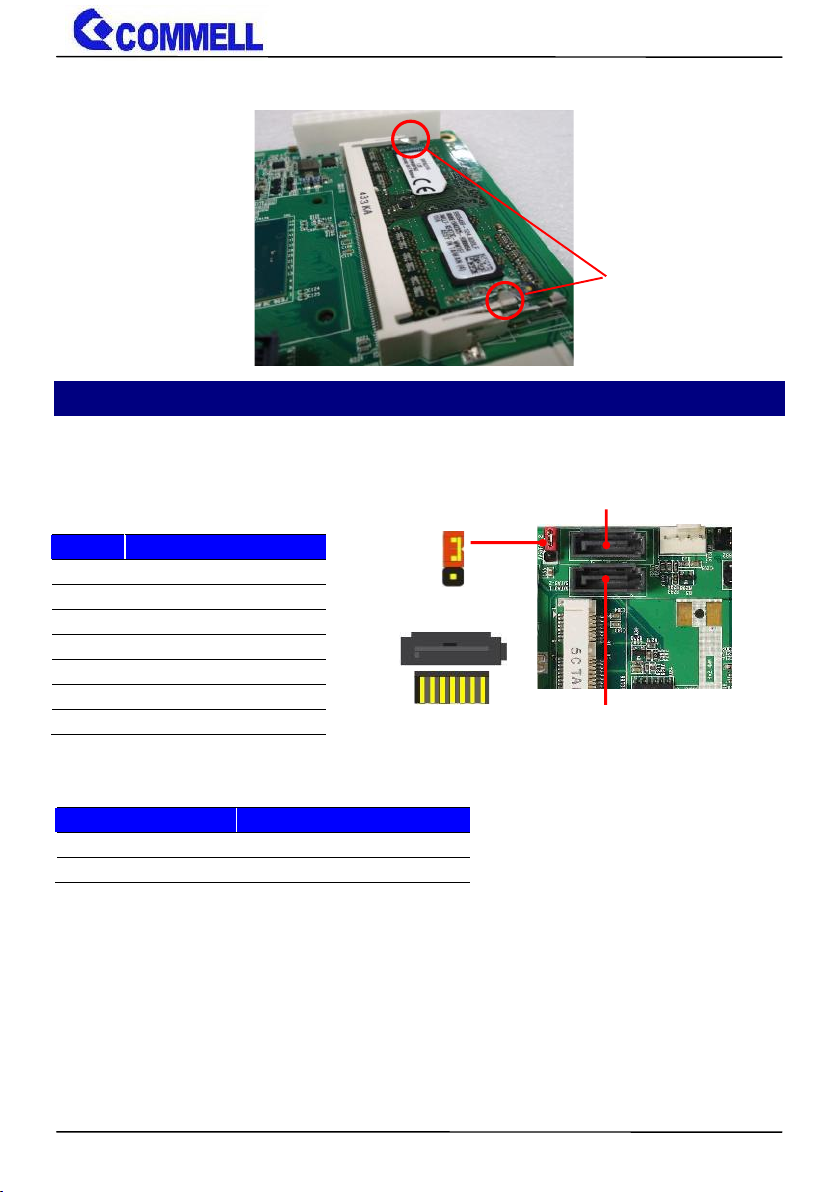

3. To remove the memory, push outward on both sides of the latch.
2.4 <I/O interface>
2.4.1 <Serial ATA interface>
SATA3-1/2: SATA3 7-pin connector
JVSATA3-2: SATA3/SATADOM mode select jumper (change pin7 to 5V)
Jumper settings
Function
1-2
SATA3-2 SATADOM
2-3
SATA3-2 SATA3 (Default)
2.4.2 <Ethernet interface>
The board provide I210-AT Gigabit Ethernet which supports WOL rear I/O.
Find the setting from
Advanced-----> Power Management-- Wake on LAN Enable [Disable] (default)
Pin
Signal
1
GND
2
TX+
3
TX-
4
GND
5
RX-
6
RX+
7
GND
Latch
SATA3-1
SATA3-2
7
1
3
1
JVSATA3-2

LV-67P User’s Manual
-12-
2.4.3 <Display interface>
Based on the Braswell SoC with built-in HD Graphics, the DVI up to
1920x1080@60Hz, the DisplayPort up to 3840x2160 @ 30Hz, the HDMI
resolution up to 3840x2160 @ 30Hz and LVDS (PTN3460) up to 1920x1200 @
60Hz support 18/24-bit color depth and single/dual channel. About select LCD
Panel Type in BIOS, please refer Appendix B.The built-in HD Graphics support
triple display function with clone mode and extended mode.
CN_LVDS
40
9
1
39
2
CN_INV
5
1
JVLCD
5
1
6
2
I210-AT
I210-AT
2
1
16
15
CN_CRT
HDMI
DISPLAY PORT
DVI-I

LV-67P User’s Manual
-13-
JVLCD: LVDS panel power select jumper
Jumper settings
Function
1-2
3.3V (Default)
2-3
5V
5-6
12V
CN_LVDS: LVDS 40-pin connector (Model: HIROSE DF13-40DP-1.25V compatible)
Pin
Signal
Pin
Signal
2
Set by JVLCD
1
Set by JVLCD
4
Detect (Active low)
3
GND
6
A_LVDS_0-
5
B_LVDS_0-
8
A_LVDS_0+
7
B_LVDS_0+
10
GND
9
GND
12
A_LVDS_1-
11
B_LVDS_1-
14
A_LVDS_1+
13
B_LVDS_1+
16
GND
15
GND
18
A_LVDS_2-
17
B_LVDS_2-
20
A_LVDS_2+
19
B_LVDS_2+
22
GND
21
GND
24
A_LVDS_CLK-
23
B_LVDS_3-
26
A_LVDS_CLK+
25
B_LVDS_3+
28
GND
27
GND
30
A_LVDS_3-
29
B_LVDS_CLK-
32
A_LVDS_3+
31
B_LVDS_CLK+
34
GND
33
GND
36
LVDS_DDCSCL
35
NC
38
LVDS_DDCSDA
37
NC
40
NC
39
NC
Note: Pin4 only need to be connected to GND
CN_INV: LVDS 5-pin Backlight power connector
Pin
Signal
1
12V
2
Backlight Control
3
GND`
4
GND
5
Enable Backlight

LV-67P User’s Manual
-14-
CN_CRT: CRT 16-pin connector (Pitch 2.00 mm)
Pin
Signal
Pin
Signal
1
BR
2
BG
3
BB
4
NC
5
IOGND1
6
IOGND1
7
IOGND1
8
IOGND1
9
NC
10
IOGND1
11
NC
12
5VCDA
13
5HSYNC
14
5VSYNC
15
5VCLK
16
NC
2.4.4 <Serial Port interface>
COM1: RS232 DB9 connector
Pin
Signal
Pin
Signal
1
DCD
2
RXD
3
TXD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
Set by JP2
10
Key
1
2
19
20
CN_COM5/6
JP1
6
1
5
2
12
1
11
2
JCSEL2
JCSEL1
6
1
5
2
JP2
6
1
5
2
1
2
19
20
CN_COM3/4

LV-67P User’s Manual
-15-
COM2: RS232/422/485 DB9 connector
Pin
Signal
Pin
Signal
1
DCD/ 422TX-/ 485-
2
RXD/ 422TX+/ 485+
3
TXD/ 422RX+
4
DTR/ 422RX-
5
GND
6
DSR
7
RTS
8
CTS
9
Set by JP1
Note: Use JCSEL1 and JCSEL2 to select communication mode
CN_COM3/4,5/6: RS232 20-pin header (Pitch 1.27mm x 2.54mm)
Pin
Signal
Pin
Signal
1
DCD1
2
RXD1
3
TXD1
4
DTR1
5
GND
6
DSR1
7
RTS1
8
CTS1
9
RI1
10
NC
11
DCD2
12
RXD2
13
TXD2
14
DTR2
15
GND
16
DSR2
17
RTS2
18
CTS2
19
RI2
20
Key
JP1, JP2: COM1, COM2 pin-9 setting
Jumper settings
Function
1-2
5V
3-4
12V
5-6
RI (Default)
Effective patterns of connection: 1-2 / 3-4 / 5-6
Other may cause damage

LV-67P User’s Manual
-16-

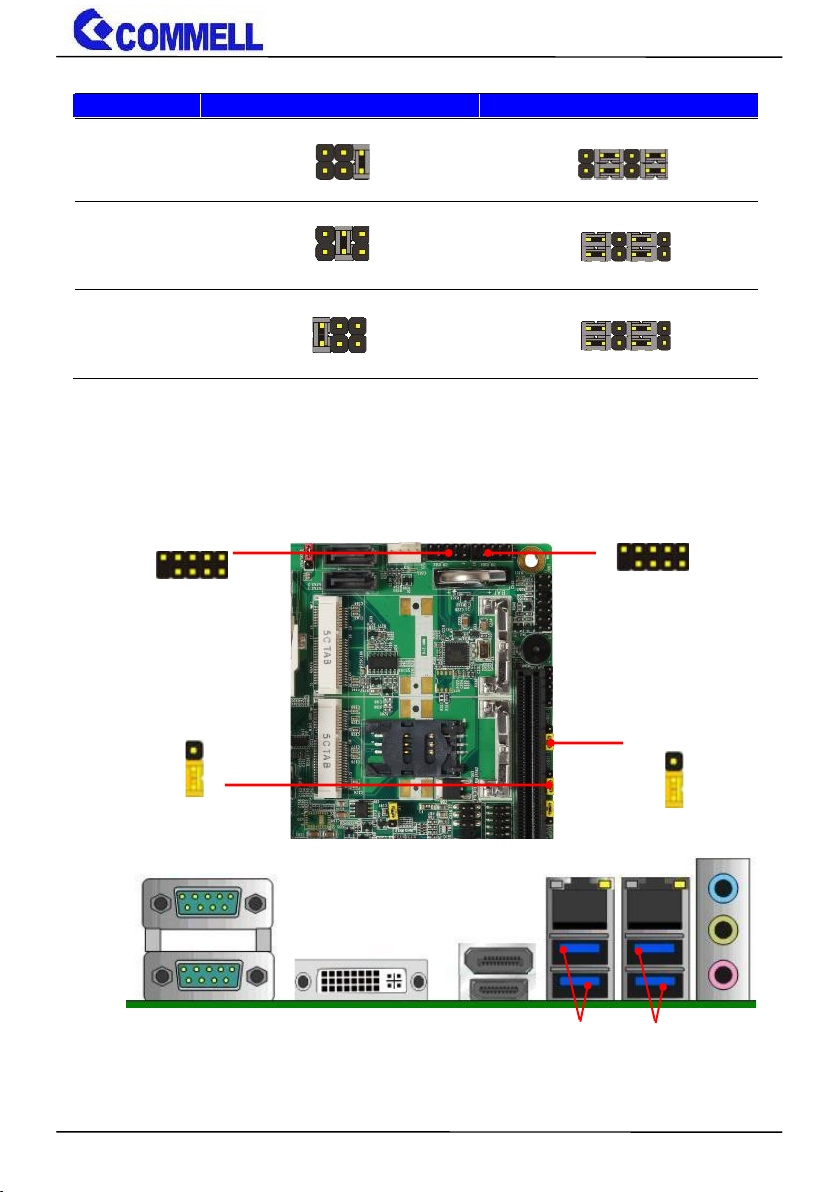

JCSEL1, JCSEL2: For configure COM2 communication mode
Function
JCSEL1
JCSEL2
RS232
RS485
RS422
2.4.5 <USB interface>
5
1
6
2
12
1
11
2
12
1
11
2
5
6
2
1
12
1
11
2
5
1
6
2
CN_USB2
2
10
9
1
2
10
9
1
CN_USB1
USB3.0
USB3.0
1
3
JUSBS2-1
1
CN_COM3/4
JUSBS2-2

LV-67P User’s Manual
-17-
CN_USB: Front panel USB2.0 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
5VSB
2
5VSB
3
DATA0-
4
DATA1-
5
DATA0+
6
DATA1+
7
GND
8
GND
9
GND
10
Key
JUSBS2-1: Minicard usb singal setting
Jumper settings
Function
1-2
CN_USB1 can work (Default)
2-3
Change USB signal to minicard (PIN36 &38)
JUSBS2-2: MSATA usb singal setting
Jumper settings
Function
1-2
CN_USB1 can work (Default)
2-3
Change USB signal to MSATA (PIN36 &38)
2.4.6 <Audio interface>
CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
MIC_L
2
GND
3
MIC_R
4
NC
5
FP_OUT_R
6
MIC_DETECT
7
SENSE
8
Key
9
FP_OUT_L
10
FP_OUT_DETECT
CN_AUDIO
2
9
10
1
Line in
Line out
Mic in
Rear Audio Jack

LV-67P User’s Manual
-18-

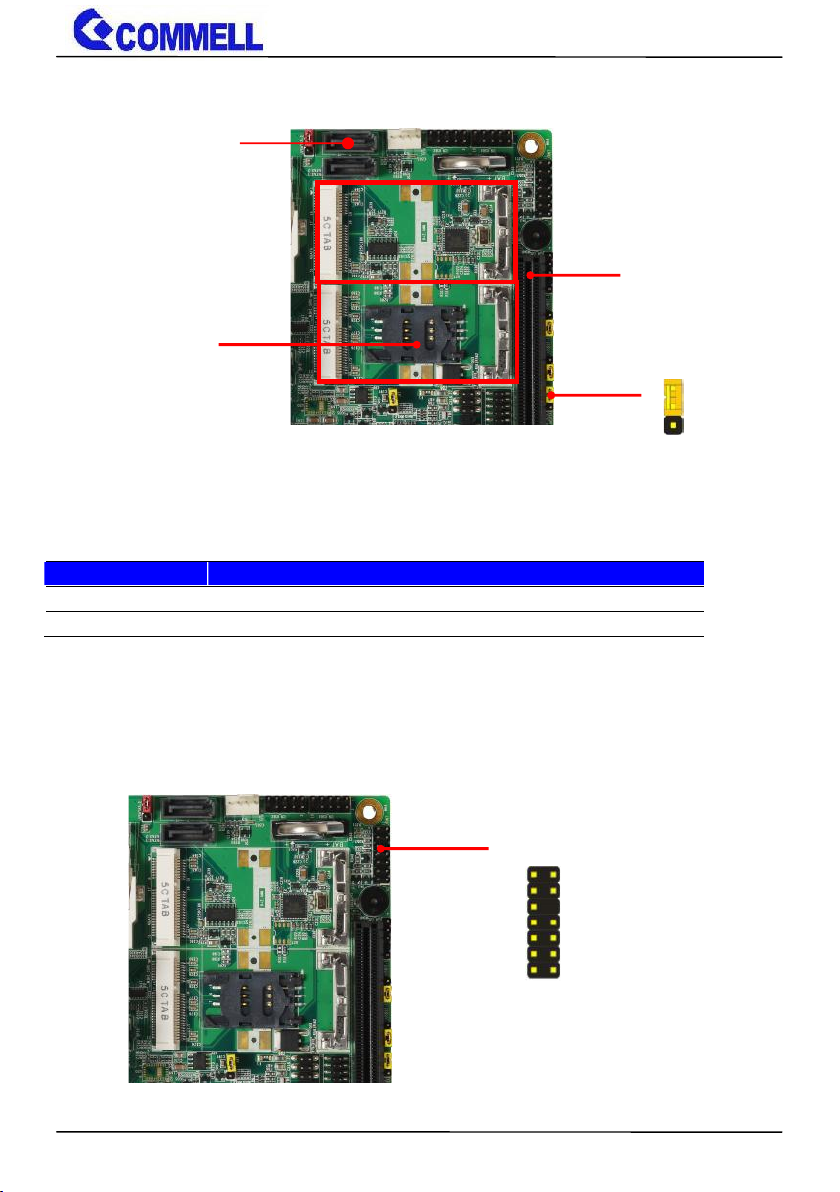

2.4.7 <Expansion slot>
MINI_CARD connect SIM card with 3G module.
JMSATA: Setting MSATA to support mSATA
Jumper settings
Function
1-2
Support mSATA, and SATA3-2 cannot work
2-3
SATA3-2 can work, and MSATA cannot work(Default)
PCI_E16X slot: 16-lane (×16) links, but run 1x speed
2.4.8 <Front panel switch and indicator>
1
3
JMSATA
SATA3-2
PCI_E16X slot
JFRNT
14
1
13
2
MINI_CARD
MSATA
SIMM

LV-67P User’s Manual
-19-
JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
HDD_LED+
2
Power_LED+
3
HDD_LED-
4
NC
5
Reset+
6
Power_LED-
7
Reset-
8
Speaker+
9
Key
10
NC
11
Power_ON+
12
NC
13
Power_ON-
14
Speaker-
2.4.9 <Other interface>
CN_LPC
1
12
2
11
SYSFAN
1
4
CPUFAN
1
4
CN_DIO
1
12
2
11
1
5
CN_SMBUS
1
5
CN_I2C
