Commell FS-97D User manual

FS-97D
User’s Manual
Edition: 1.1
2009/03/16

FS-97DUser’sManual
2
Copyright
Copyright 2008. All rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT.

FS-97DUser’sManual
3
Packing List
Please check package component before you use our products.
Hardware:
FS-97D Full-Size CPU card x 1
Cable Kit:
4-pin to 3-pin ATX cable x 1
PS/2 Keyboard & Mouse Cable x 1
SATA Cable x 2
Floppy flat cable x 1
Audio Port Cable x 1
DVI module with bracket x 1
(FS-97DDG Only)
COM Port Cable x 1
(FS-97DDG2/XG2 Only)
Printer Port Cable x 1
(FS-97DDG2/XG2 Only)
USB Cable x 2
DVI module with bracket x 1
(FS-97DDG2/D2G2 Only)

FS-97DUser’sManual
4
Other Accessories:
Divers CD (including User’s Manual) x 1
RAID drivers Disc for Windows 2000, Windows XP and Windows Server 2003
Comport Printer Cable x 1
(FS-97DXG & FS-97DG Only)
Comport Cable x 1
(FS-97DDG2 FS-97DXG2 FS-97DD2G2 Only)

FS-97DUser’sManual
5
Index
Chapter1 <Introduction>............................................................8
1.1 <Product Overview> ......................................................................8
1.2 <Product Specification>.................................................................9
1.3 <Block Diagram>.........................................................................11
1.4 <Mechanical Drawing >...............................................................12
Chapter 2 <Hardware Setup>.................................................13
2.1 <Connector Location>..................................................................13
2.2 <Jumper Reference>.....................................................................14
2.3 <Connector Reference>................................................................15
2.3.1 <Internal Connectors> ..............................................................15
2.3.2 <External Connectors> .............................................................15
2.4 <CPU and Memory Setup>..........................................................16
2.4.1 <CPU installation>...................................................................16
2.4.2 <Memory installation>..............................................................17
2.5 <CMOS Setup>............................................................................18
2.6 <Serial ATA installation> .............................................................19
2.7 <LAN Interface>..........................................................................20
2.8 <Onboard Display Interface>.......................................................21
2.8.1 <Analog Display>....................................................................21
2.8.2 <LVDS Display FS-97DXG＆XG2 Only >...................................22
2.8.3 <DVI Display FS-97DDG/ DG2 Only >.......................................26
2.9 <Audio Installation>.....................................................................27
2.11 <GPIO interface> .......................................................................29
2.12 <USB2.0 Interface>....................................................................30
2.13 <Power and Fan Installation>.....................................................31
2.14 <Serial Port>...............................................................................33
2.15 <Switch and Indicator>..............................................................35

FS-97DUser’sManual
6
Chapter 3 <System Configuration>.......................................37
3.1 <SATA configuration>..................................................................37
3.2 <SATARAID Configuration>......................................................38
3.3 <Audio Configuration>................................................................43
3.4 <Video Memory Setup>...............................................................44
3.5 <Display Properties Setting>........................................................46
Chapter 4 <BIOS Setup>.........................................................48
Appendix A <I/O Port Pin Assignment>................................50
A.1 <Serial ATA Port>........................................................................50
A.2 <IrDA Port>.................................................................................50
A.3 <VGA Port>.................................................................................50
A.4 <LAN Port>.................................................................................51
A.5 <Floppy Port>..............................................................................51
A.6 <Parallel Port>.............................................................................52
Appedix B <System Resources>...........................................53
Appedix C <Flash BIOS>.........................................................56
C.1 <BIOS Auto Flash Tool>.............................................................56
C.2 <Flash Method>...........................................................................56
Appendix D <Programming GPIO’s>....................................57
Appendix E <Watch Dog timer Setting >..............................58
Contact Information...................................................................59

FS-97DUser’sManual
7

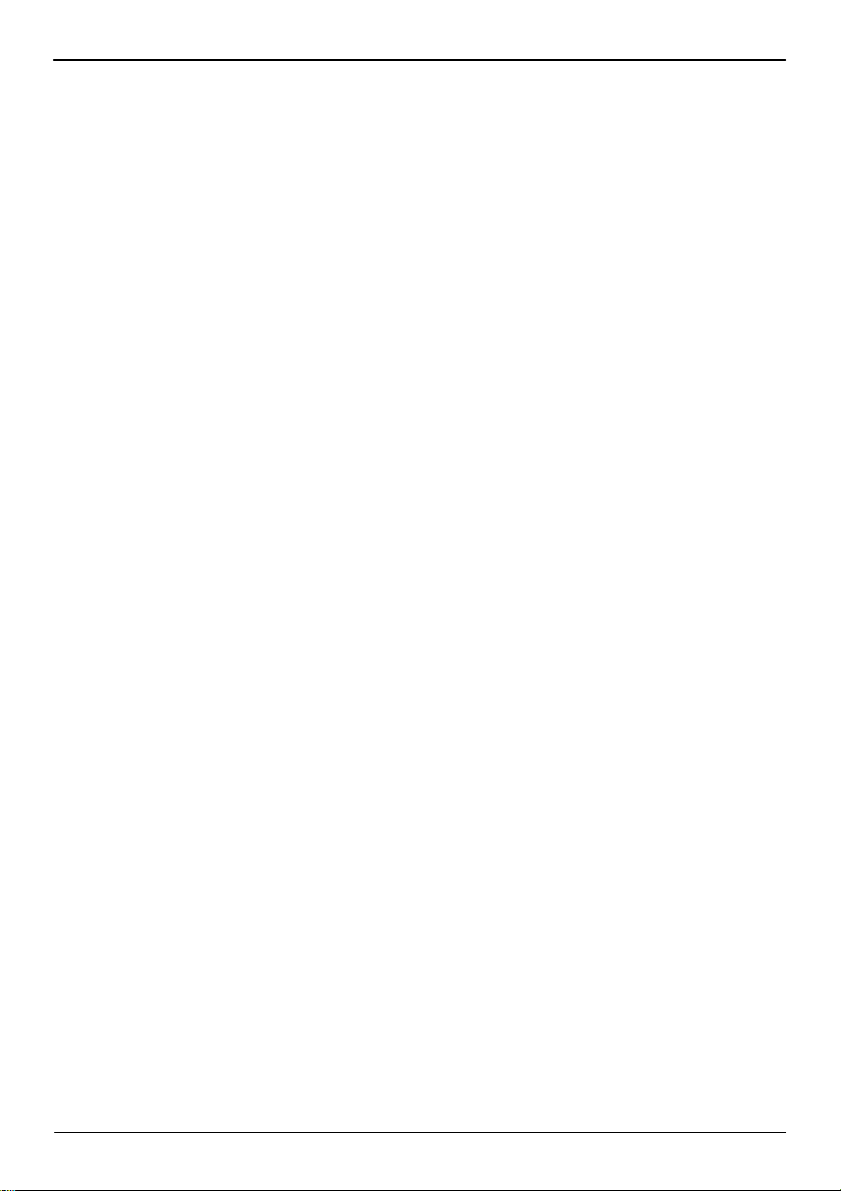

(This Page is Left for Blank)

FS-97D User’s Manual Introduction
Product Specification8
Chapter1 <Introduction>
1.1 <Product Overview>
FS-97D is the Full-size single board computer with last Intel desktop technology with
PICMG form factor. Based on Intel®Q35 and ICH9DO, the board integrates a new Core 2
Quad/Duo/Celeron processor 775-pin socket, DDR2 memory socket, Intel®Graphic Media
Accelerator 3100 technology, Serial ATA II with RAID function for a powerful desktop
system.
Intel®LGA775 processor
The Intel®Core 2 Quad/Duo processor now comes with a new form factor with 775-pin LGA
package, for 800/1066/1333MHz front-side-bus, 12MB L2 cache, and for 65nm, 45nm
manufacturing technology, the LGA processor without pin header on solder side can make
user installing the processor on the socket easier.
Intel®Q35 and ICH9DO chipset
The Intel Q35 integrates DDR2 667/800MHz for memory, and Graphic Media Accelerator
(GMA) 3100 technology for new graphic engine. It can provide up to 384MB of frame buffer
when you install over 1GB of system memory. The ICH9DO integrates with up to 8 USB2.0
interfaces, and serial ATA II interface with RAID function.
Flexible Extension Interface
The board provides one mini-PCI socket.

FS-97D User’s Manual Introduction
Product Overview 9
1.2 <Product Specification>
General Specification
Form Factor Full-size PICMG 1.0 CPU card
CPU Intel® Core 2 Quad/Duo Celeron processor with LGA775 socket
Package type: LGA 775
Front side bus: 800/1066/1333MHz
Support Intel®Hyper-Threading Technology and Quad/Dual core
Memory 2 x 240-pin DDR2 667/800MHz SDRAM up to 4GB
Unbufferred, none-ECC memory supported only
Chipset Intel® Q35 (Northbridge) and ICH9DO (Southbridge)
BIOS Phoenix-Award v6.00PG 8Mb SPI flash BIOS
Green
Function Power saving mode includes doze, standby and suspend modes. ACPI version 1.0 and APM version 1.2 compliant
Watchdog
Timer System reset programmable watchdog timer with 1 ~ 255sec./min. of timeout value
Real Time
Clock Intel® ICH9DO built-in RTC with lithium battery
Serial ATAII Intel® ICH9DO integrates 6 Serial ATA II interface
RAID 0, 1,5,10 Intel Matrix Storage Technology supported
Multi-I/O Port
Chipset Intel® 82801IO ( ICH9DO) with Winbond® W83627DHG controller
Serial Port One RS-232 and one RS232/422/485 serial ports
USB Port Eight Hi-Speed USB 2.0 ports with 480Mbps of transfer rate
Parallel Port One internal bi-direction parallel port with SPP/ECP/EPP mode
Floppy Port One internal Floppy port
IrDA Port One IrDA compliant Infrared interface supports SIR
K/B & Mouse External PS/2 keyboard and mouse port on bracket
GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O
interface
Smart Fan One CPU fan connector for fan speed controllable
VGA Display Interface
Chipset Intel® Q35 GMA3100 (Graphic Memory Controller Hub)
Frame Buffer Up to 384MB shared with system memory
Display Type CRT, LCD monitor with analog display
Onboard 18/24-bit dual channel LVDS interface (FS-97DXG/ XG2
Only)
Onboard DVI interface (FS-97DDG / DG2 Only)
Connector External DB15 female connector on bracket
Onboard 40-pin LVDS connector(FS-97DXG/ XG2 Only)
Onboard 26-pin DVI Connector (FS-97DDG / DG2 Only)

FS-97D User’s Manual Introduction
Product Specification10
Ethernet Interface
Controller One or two Intel 82573L Gigabit Ethernet controller
Type Triple speed 10/100/1000Base-T
Auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector Two External LAN connectors with LED on bracket
Audio Interface
Chipset Intel® ICH9DO with Realtek ALC888 HD Audio
Intel High Definition Audio compliance
Interface 2 channels sound output
Connector Internal 10-pin header for line-in/-out, MIC-in, 4-pin header for CD-IN
Expansive Interface
Mini PCI One Mini-PCI socket TYPE III A (32-bit, 33MHz)
Power supply: +3.3V, +5V, 3VSB
Power and Environment
Power
Requirement +5V, +12 DC input & 5VSB Requirement
Dimension 338 (L) x 122 (H) mm
Temperature Operating within 0 ~ 60℃(32 ~ 140℉)
Storage within -20 ~ 85℃(-4 ~ 185℉)
Ordering Code
FS-97DDG Onboard VGA, Mini-PCI, 6 x SATA, HD Audio, 1 X IrDA 8 x USB,
Serial port, LPT, GPIO, FDD, DVI, Gigabit LAN
FS-97DXG Onboard VGA, Mini-PCI, 6 x SATA, HD Audio, 1 X IrDA, 8 x USB,
Serial port, LPT, GPIO, FDD, LVDS, Gigabit LAN
FS-97DDG2 Onboard VGA, Mini-PCI, 6 x SATA, HD Audio, 1 X IrDA,, 8 x USB, 2
x Serial port, LPT, GPIO, FDD DVI, 2 x Gigabit LAN
FS-97DXG2 Onboard VGA,, Mini-PCI, 6 x SATA, HD Audio, 1 X IrDA, , 8 x USB, 2
x Serial port, LPT, GPIO, FDD, LVDS , 2 x Gigabit LAN
The specifications may be different as the actual production.
For further product information please visit the website at TUhttp://www.commell.com.twUT

FS-97D User’s Manual Introduction
Block Diagram 11

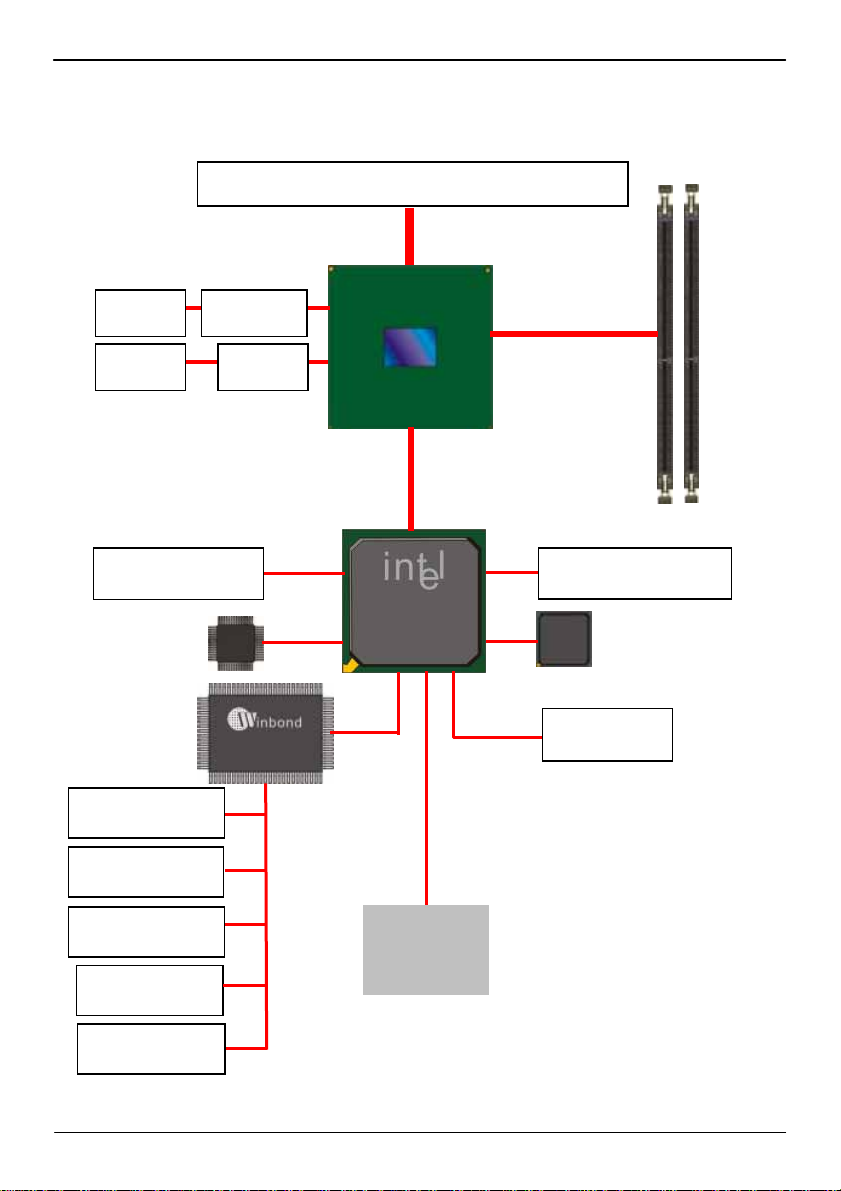

1.3 <Block Diagram>
Intel Core 2 Quad with 775
p
in LGA
p
rocesso
r
Intel Q35 2 x 240-pin DDR2
667/800MHz up to
4GB
Mini-PCI slot
8 x USB2.0 ports
HD Audio ICH9DO
6 x Serial ATAII ports
Intel 82573L
2 x GLAN
BIOS
SPI
W83627THG
2 x Serial ports
8-bit GPIO
1 x Parallel port
1 x Floppy port
1 x IrDA
CH7307B
CH7308
LVDS
DVI

FS-97DUser’sManual HardwareSetup
Connector Location12

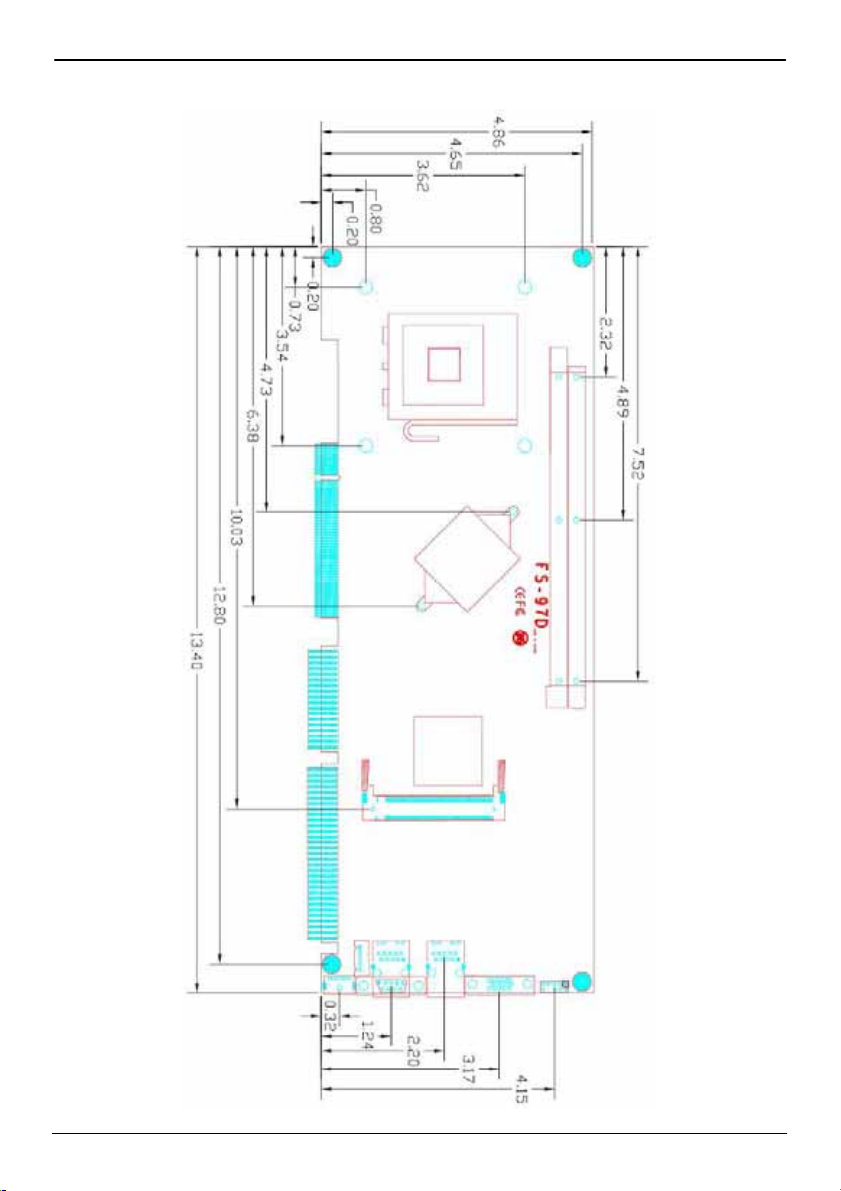

1.4 <Mechanical Drawing >
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘
‘‘‘

FS-97DUser’sManual HardwareSetup
Jumper Reference 13
PS2 RJ45_2 RJ45_1 CRT
PS2 COM1 RJ45_1 CRT
Chapter 2 <Hardware Setup>

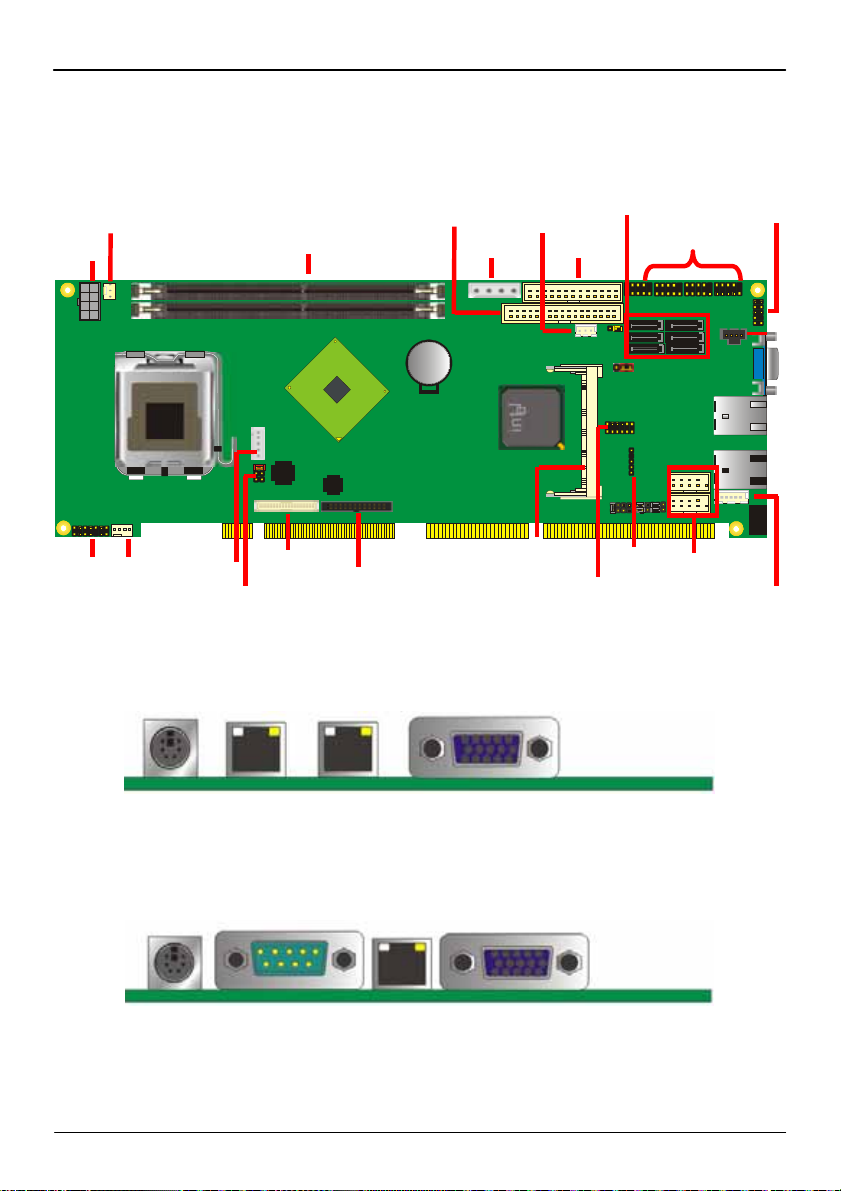

2.1 <Connector Location>
CN_12
V
S_ATA1~6
CN_IR
FDD
CN_DIO
CDIN
CN_AUDIO
JFRNT
CN_PS
DC_IN
CN_LVDS CN_COM1/2CPUFAN
CN_USB1~4
CN_DVI
SYSFAN
MINIPCI
CN_INV
CN_ATKB
CN_LPTDDRII_1/2
CN_JVLCD
FS-97DXG2 / FS-97DDG2 / FS-97DD2G2
FS-97DXG / FS-97DDG

FS-97DUser’sManual HardwareSetup
Connector Location14
JRTC
2.2 <Jumper Reference>
Jumper Function
JAT Power mode select
JRTC CMOS Operating/Clear Setting
JVLCD Panel Voltage Setting (FS-97BXG & XG2 Only)
JCSEL1 COM2 Function select
JCSEL2 RS232/422/485
JAT
JVLCD

FS-97DUser’sManual HardwareSetup
Connector Reference 15
2.3 <Connector Reference>
2.3.1 <Internal Connectors>
Connector Function Remark
CPU LGA775 CPU socket
DDRII1/2 240 -pin DDR2 SDRAM DIMM socket
FDD 34-pin floppy connector
CN_LPT 13 x 2-pin LPT connector
S_ATAI1/2/3/4/5/6 7-pin Serial ATA II connector
CN_12V 8-pin +12V additional power supply connector
CN_AUDIO 5 x 2-pin audio connector
CDIN 4-pin CD-ROM audio input connector
CN_PS 3-pin ATX function connector
DC_IN 4-pin power supply connector
CN_DIO 6 x 2-pin digital I/O connector
CN_USB1/2/3/4 10-pin USB connector
CPUFAN 4-pin CPU cooler fan connector
SYSFAN 3-pin system cooler fan connector
CN_IR 5-pin IrDA connector
CN_ATKB 5-pin AT keyboard connector
CN_INV 5-pin LCD inverter connector FS-97DXG
CN_LVDS 20 x 2-pin LVDS connector FS-97DXG
JFRNT 14-pin front panel switch/indicator connector
Mini-PCI 1 x 124-pin Mini-PCI socket
CN_DVI 26-Pin connector FS-97DDG
CN_COM1/2 5 x 2-pin com connector
2.3.2 <External Connectors>
Connector Function Remark
CRT VGA connector
RJ45_1/2 One/Two RJ45 LAN connector
PS2 PS/2 keyboard and mouse connector

FS-97DUser’sManual HardwareSetup
CPU Installation16
2.4 <CPU and Memory Setup>

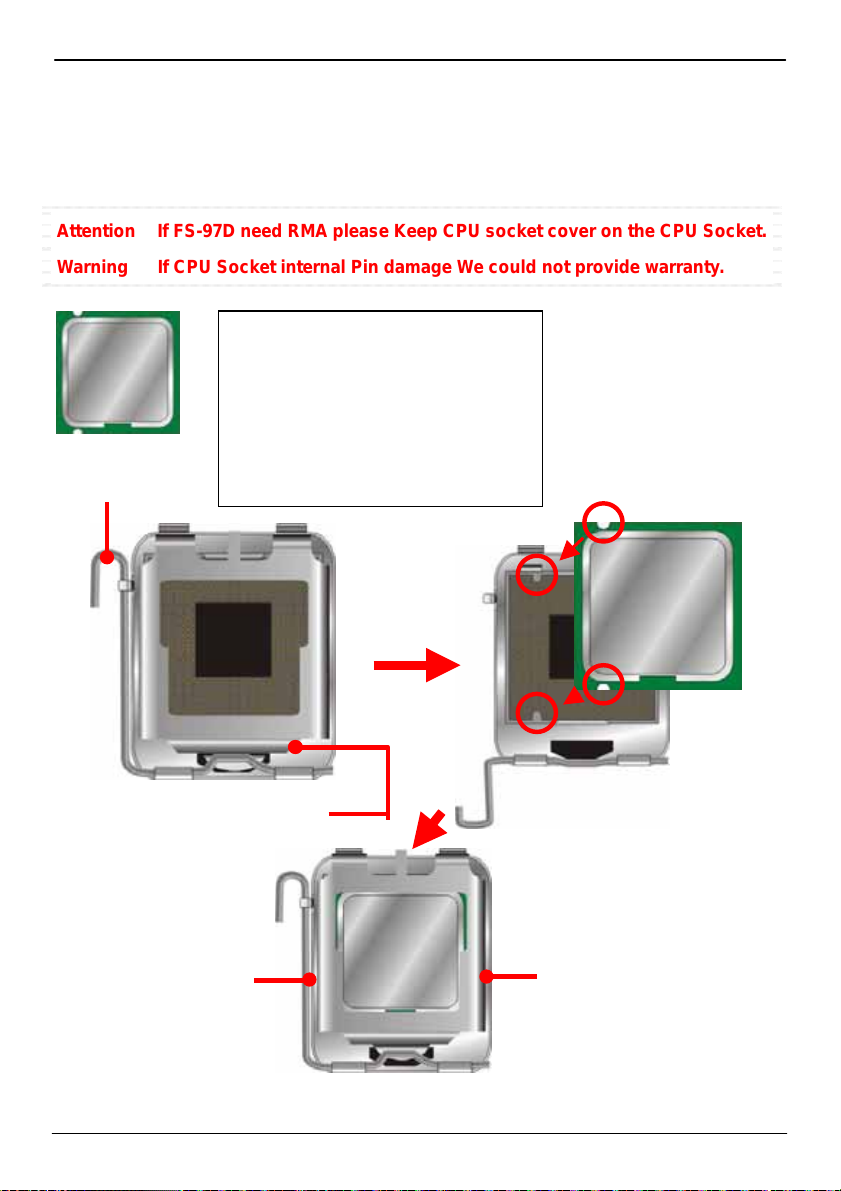

2.4.1 <CPU installation>
FS-97D has a LGA775 CPU socket onboard; please check following steps to install the
processor properly.
Attention If FS-97D need RMA please Keep CPU socket cover on the CPU Socket.
Warning If CPU Socket internal Pin damage We could not provide warranty.
Intel®Core 2 Quad/Duo processor
Package type: 775 pin LGA
L2 Cache: 12MB
FSB: 800/1066/1333MHz (333MHz x 4)
Manufacturing: 65nm, 90nm
Intel Hyper Threading Technology and
Core 2 Quad/Duo supported
1. Lift this bar
2. Uncover this plate
Check point
3. Place the CPU on the top o
f
the
p
ins
3. Cover this plate
4. Lock this bar
Notice: Please place the CPU on the pins tenderl
y
to avoid bendin
g
the pins

FS-97DUser’sManual HardwareSetup
Memory Installation 17

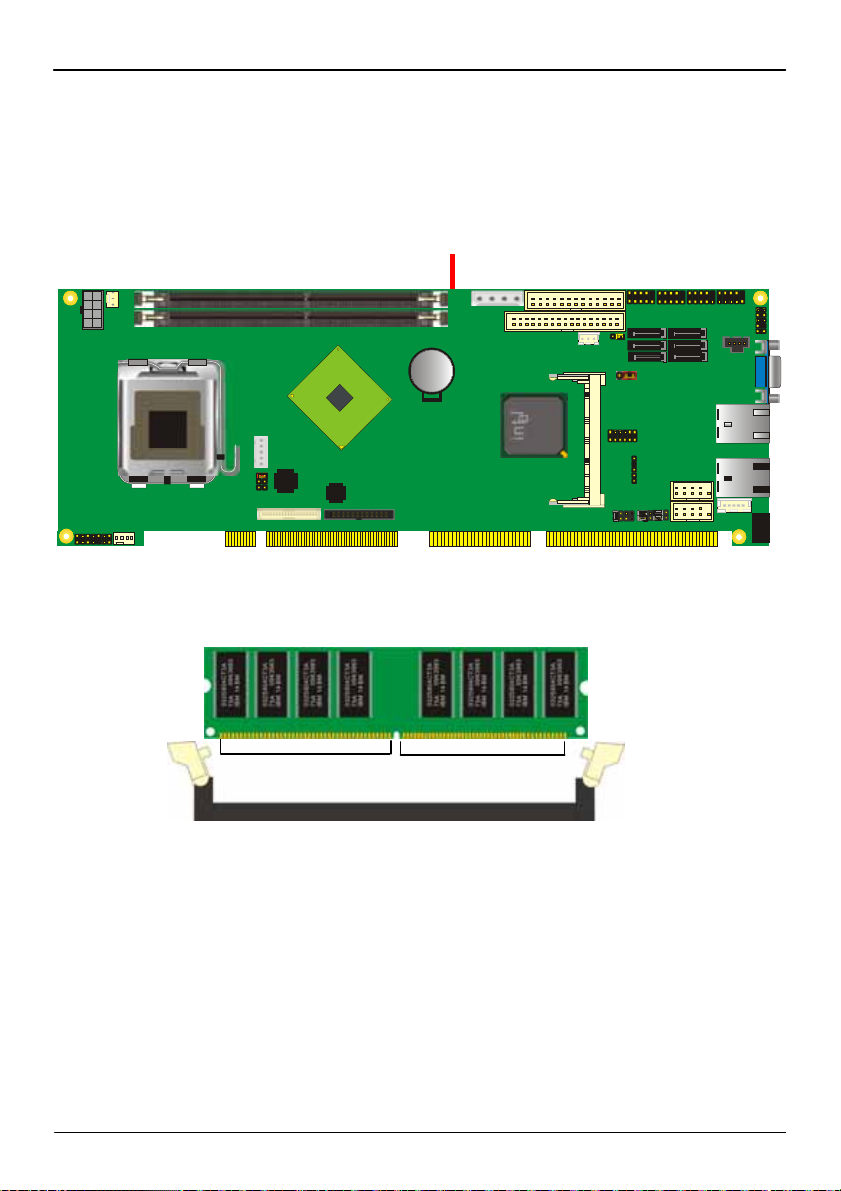

2.4.2 <Memory installation>
FS-97D has two 240-pin DDR2 DIMM support up to 4GB of memory capacity. The memory
frequency supports 667/800MHz . Only Non-ECC memory is supported.
DDRII1/2
112-pin128-pin
Please check the pin number to match the socket side well
before installing memory module.

FS-97DUser’sManual HardwareSetup
CMOS Setup18
2.5 <CMOS Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting 2-3
JRTC
1 3

FS-97DUser’sManual HardwareSetup
Serial ATA installation 19
2.6 <Serial ATA installation>
FS-97D has six Serial ATA II interfaces with RAID function, the transfer rate of the Serial
ATA II can be up to 300MB/s. Please go to http://www.serialata.org/ for more about Serial
ATA technology information. Based on Intel®ICH9DO, it supports Intel®Matrix Storage
Technology with combination of RAID 0,1,5 and 10. The main features of RAID on
ICH9DO are listed below:
1. Supports for up to RAID volumes on a single, two-hard drive RAID array.
2. Supports for two, two-hard drive RAID arrays on any of six SerialATA ports.
3. Supports for Serial ATAATAPI devices.
4. Supports for RAID spares and automatic rebuild.
5. Supports on RAID arrays, including NCQ and native hot plug.
For more information please visit Intel’s official website.
For more about the system setup for Serial ATA, please check the chapter of SATA
configuration.
S_ATA1~6
SATA 1~6

FS-97DUser’sManual HardwareSetup
Serial ATA Interface20
2.7 <LAN Interface>
The Intel 82573L supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance
and Wake-On-LAN supported.
LAN1/2
LAN
