Commell LE-362 User manual

LE-362
User Manual
Edition 1.1
Copyright
Copyright©2003 - 2004. All rights reserved. This document is copyrighted and
all rights are reserved. The information in this document is subject to change
without prior notice to make improvements to the products.
This document contains proprietary information and protected by copyright.
No part of this document may be reproduced, copied, or translated in any
form or any means without prior written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are
property of their respective owners.
Disclaimer
Taiwan Commate Computer Inc. shall not be liable for any incidental or
consequential damages resulting from the performance or use of this product.
Taiwan Commate Computer Inc. does not issue a warranty of any kind,
express or implied, including without limitation implied warranties of
merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the
specifications of the product described within it at any time without notice and
without obligation to notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at http://www.commell.com.tw.
LE-362 User’s Manual 1

Packing List
Hardware
LE-362 Single Board Computer .................................. X 1
Cable Kit
Audio Cable ................................................................ X 1
IDE Flat Cable (UltraDMA/100, 40-pin)....................... X 1
IDE Flat Cable (UltraDMA/66, 44-pin)......................... X 1
26-pin slime-type FDD Cable...................................... X 1
COM Port DB9............................................................ X 1
LPT Port DB25 .......................................................... X 1
PS/2 Keyboard and Mouse Cable............................... X 1
TV-out cable................................................................ X 1
USB Cable ................................................................ X 1
LAN Cable ................................................................. X 1
VGA Port DB15 ......................................................... X 1
Printed Matter and Software
LE-362 User Manual................................................... X 1
Driver CD....................................................................X 1
LE-362 User’s Manual
2

Table of Content
Chapter 1. Introduction..................................................................................5
1.1 Product Overview........................................................................5
1.2 Specifications ..............................................................................6
1.3 Component Placement................................................................9
Chapter 2. Hardware Setup..........................................................................11
2.1 Jumpers and Connectors Location............................................ 11
2.1.1 Jumpers Reference.....................................................12
2.1.2 Connectors Reference................................................13
2.2 CPU and DRAM Setting............................................................14
2.3 CMOS Setting ...........................................................................14
2.4 Watchdog Timer Setting ............................................................15
2.5 Embedded Flash Disk ...............................................................16
2.6 Power and Fan Connectors.......................................................17
2.7 VGA Interface............................................................................18
2.7.1 Standard Analog VGA Interface...................................18
2.7.2 TV-out Interface...........................................................19
2.7.3 Digital VGA Interface...................................................20
2.8 Ethernet Interface......................................................................22
2.9 Audio Interface..........................................................................23
2.10 Multiple I/O Port Configuration ..................................................24
2.10.1 COM1 VCC Mode Selection .......................................24
2.11 Expansive Bus Interfaces..........................................................25
2.11.1 PC/104-plus Interface .................................................25
2.12 Switches and Indicators ............................................................26
Chapter 3. BIOS Setup .................................................................................27
3.1 Flat Panel Type Setting .............................................................28
3.1.1 Advanced Chipset Features Screen............................28
3.1.2 Panel Type..................................................................29
LE-362 User’s Manual 3

Chapter 4. Driver Installation ...................................................................... 31
4.1 Install Board’s Software ............................................................ 31
4.2 Install Ultra ATA IDE Driver........................................................ 31
4.3 Install VGA Driver...................................................................... 31
4.4 Install LAN Driver...................................................................... 31
4.5 Install Audio Driver.................................................................... 31
4.6 Link to < Website > Homepage................................................. 31
4.7 Browse this CD......................................................................... 31
Appendix A. I/O Port Pin Assignment ........................................................ 33
A.1 IDE Port .................................................................................... 33
A.2 FDD Port................................................................................... 35
A.3 Serial and Parallel Port ............................................................. 36
A.4 USB Port................................................................................... 37
A.5 IrDA Port ................................................................................... 37
A.6 PS/2 Keyboard and Mouse Port................................................ 37
Appendix B. Flash the BIOS.......................................................... 39
B.1 BIOS Auto Flash Tool................................................................ 39
B.2 Flash Method............................................................................ 39
Appendix C. System Resources ................................................................. 41
C.1 I/O Port Address Map................................................................ 41
C.2 Memory Address Map............................................................... 42
C.3 System IRQ and DMA Resource............................................... 43
C.3.1 IRQ.................................................................................... 43
C.3.2 DMA................................................................................... 44
Contact Information........................................................................................ 45
LE-362 User’s Manual
4

Chapter 1. Introduction
1.1 Product Overview
The LE-362 Single Board Computer is an all-in-one industrial 3.5” drive-size
little-board computer based on VIA EBGA Eden/C3 embedded / low power
686-level processor. The onboard VIA EBGA Eden CPU offers 667/533/400
MHz of speed at the low voltage to provide the low power embedded
computing platform for low power, an free, mobile and related applied /
embedded computing applications.
LE-362 integrates VIA CLE266 chipset with MPEG II/I decoder, onboard 128
MB PC133 SDRAM, 24-bit TTL flat panel SVGA, TV-out, 10/100BASE-Tx
Fast Ethernet, AC97 3D audio, CompactFlash solid state disk, UltraATA/100
PCI enhanced IDE interfaces, and multiple I/O ports including 1 RS232, 1 LPT
and 1 USB ports. These features make LE-362 be the ideal solution of
multimedia platform, node terminal, transaction station, POS, Kiosk, panel PC,
ATM and embedded application.
Compact Low Profile Board Size
3.5” drive size meets the industrial standard EBX form factor. The onboard
CPU and SDRAM also make LE-362 be the low profile solution for embedded
compact applications.
Advanced Embedded Computing Platform
VIA Eden embedded CPU supports up to 700 MHz at 133 MHz FSB with
onboard 128 MB PC133 SDRAM of system memory for high-end industrial
embedded computing platform with high CPU and memory loading.
Flat Panel SVGA Interface
Integrated VIA/S3 ProSavage flat panel SVGA controller with 24-bit TTL flat
panel interface offers the high 3D performance for LCD-based applications.
Multiple I/O Port Interface
Integrated 1 COM, 1 parallel, 1 USB ports for industrial applications like POS,
Kiosk, Panel PC, ATM and transaction workstation.
LE-362 User’s Manual 5

1.2 Specifications
General Specification
Form Factor 3.5” drive-size EBX compliant littleboard computer
CPU VIA Eden 667 MHz CPU at 133 MHz FSB
Low power / fan free x86 computing platform
Optional Eden 533/400 or C3 800 MHz CPU for OEM
Chipset VIA CLE266 with VT8623 and VT8235
MPEG II/I decoder integrated
DRAM Onboard 128 MB PC133 SDRAM
1 x 144-pin SO-DIMM slot supports 512 MB PC133
SDRAM
Total memory capacity up to 640 MB PC133 SDRAM
BIOS Phoenix-Award 2Mb PnP flash BIOS
Enhanced IDE PCI enhanced IDE interface supports dual ports up to 4
ATAPI devices with UltraATA/100 supported
One 40-pin box header connector
One 44-pin box header connector
Green Function Power saving mode supported in BIOS with DOZE,
STANDBY and SUSPEND modes. ACPI version 1.0 and
APM version 1.2 compliant
Watchdog Timer 256-level system reset programmable watchdog timer
Real Time Clock VIA VT8235 built-in RTC with lithium battery
Multi-I/O Ports
Chipset Winbond W83697HF for COM1, FFD and LPT Ports
Serial Port one RS-232 serial port COM1
with 16C550 compatible UART and 16 bytes FIFO
+5V/+12V power output for RS232 peripherals
USB Port two USB ports with USB version 2.0 compliant
Parallel Port one bi-direction parallel port with SPP/ECP/EPP mode
FDD One FPC connector to support slime type floppy
IrDA Port 1 x IrDA compliant Infrared interface supports SIR
K/B & Mouse PS/2 keyboard and mouse ports
LE-362 User’s Manual
6

Solid State Disk Interface
Flash Type CompactFlash Type-II for CFC (Compact Flash Card)
or IBM MicroDrive
Capacity Up to 1 GB flash memory
Display Interface
Chipset VIA CLE266 chipset with integrated S3
ProSavage™ 8X AGP 3D SVGA controller
Video Memory 8/16/32/64MB of video memory shared with system
memory, selectable in BIOS
Display Type 24-bit TTL flat panel / CRT and LCD monitor at VGA, SVGA,
XGA, SXGA, UXGA
TV-out Interface
chipset Integrated VT1622M to support NTSC or PAL TV
display
type One 2x5-pin header to support S-video & Composite
output
Ethernet Interface
Chipset One 10/100BASE-Tx Fast Ethernet LAN interfaces with
VIA VT6103 PHY controller
Type 10Base-T / 100Base-TX, auto-switching Fast Ethernet,
full duplex, IEEE802.3U compliant
Audio Interface
Chipset VIA VT8235 integrated AC97 3D audio controller with
onboard Realtek ALC201A codec
Interface Line-in, line-out, CD-in, Mic-out
Connector Onboard 10-pin header connector for line-in, line-out
and Mic-out
LE-362 User’s Manual 7

Expansive Interface
PC/104-plus One PC/104-plus interface with 32-bit PCI-based
Power and Environment
Power Req. +5V, +12V DC input on standard 4-pin AT connector
ATX Function One 3-pin ATX interface with 5V standby
Dimension 146 x 101 mm (L x W), standard EBX size
Temperature Operating within 0 ~ 60oC (32 ~ 140oF)
Storage within -20 ~ 85oC (-4 ~ 185oF)
Ordering Code
LE-362VL-P With Eden 667 MHz CPU ,SVGA, Audio, LAN, Compact
Flash, PC/104+ Interface and 1 COM Ports, 1 LPT and 1
USB
LE-362VL-128 Same as LE-362VL-P but with 128MB SDRAM
onboard
Online product information detail and updates are available on http://www,commell.com.tw
LE-362 User’s Manual
8

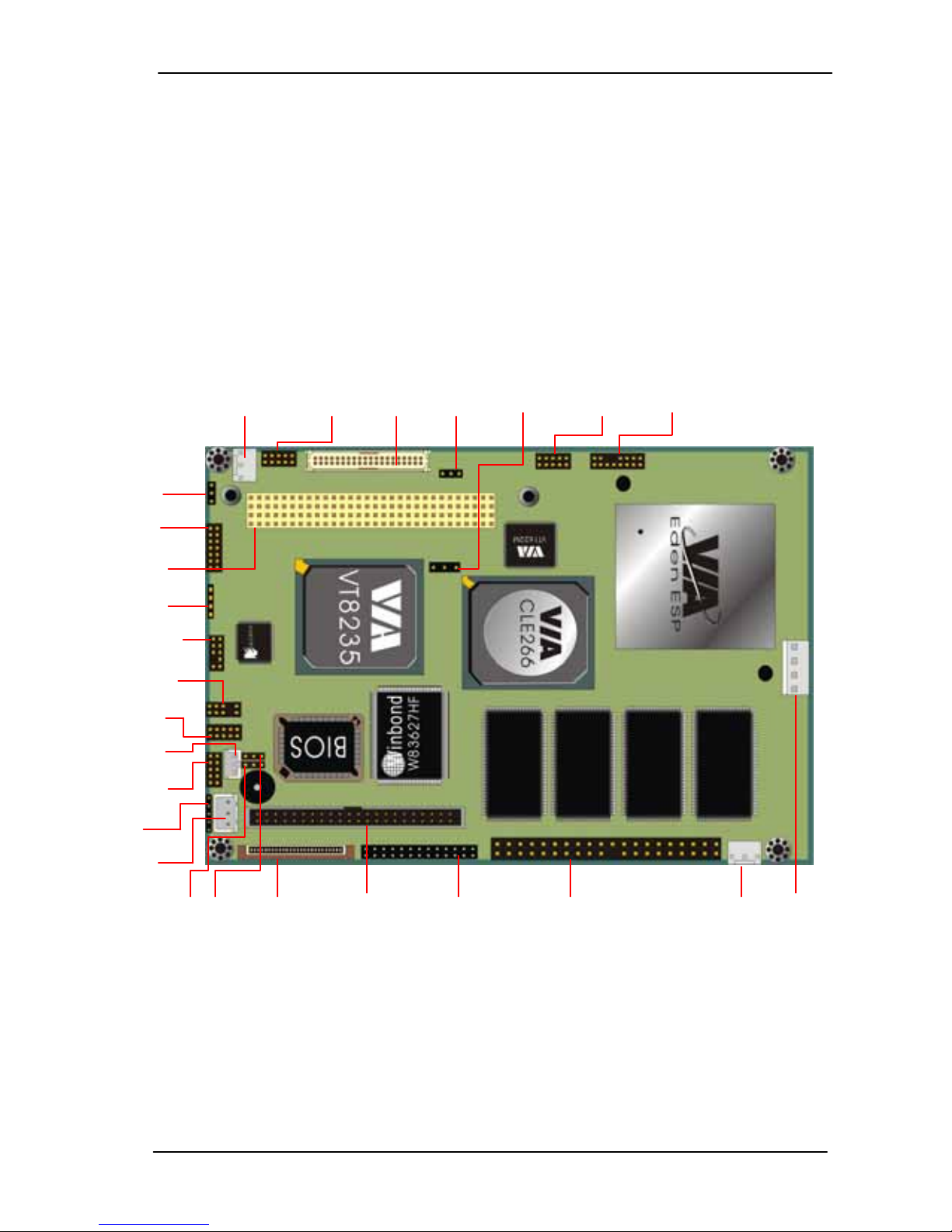

1.3 Component Placement
System Memory
Onboard 128 MB
VIA CLE266
VT8623 and VT8235
TTL Flat Panel
CompactFlash SSD
Type-II Socket
CFC / MicroDrive
144-pin
SO-DIMM
SOCKET
PC/104+ Interface VIA Eden CPU
667 MHz @ 133 FSB
LE-362 User’s Manual 9

Notes (This page left blank intentionally)
LE-362 User’s Manual
10

Chapter 2. Hardware Setup
This chapter contains the information for installation of hardware. The install
procedure includes jumper settings, CPU and memory installation, fan, I/O
and panel connections.
2.1 Jumpers and Connectors Location
CHASFAN USB1 LCD1 JLCD JRTC TVOUT1 VGA1
VIO1
LAN1
CON2
CDIN
JAUDIO
KBMS1
COM1
JWOL
JFRNT
JIR
ATX1
J2J3 NBFDD IDE2 PRINTER IDE1 CPUFAN CON3
LE-362 User’s Manual 11

2.1.1 Jumpers Reference
Jumper Function Section
JRTC COMS Setting 2.3
J2 COM1 pin-1 Voltage setting 2.10
J3 COM1 pin-9 Voltage setting 2.10
VIO PC/104+ Voltage setting for V/IO 2.11
JLCD Flat Panel’s Voltage Setting 2.7.2
LE-362 User’s Manual
12

2.1.2 Connectors Reference
Connector Function Remark
DIMM1 144-pin SO-DIMM Slot Standard
IDE1 40-pin Primary IDE Port Standard
IDE2 44-pin Secondary IDE Port Standard
NB FDD 26-pin slime-type FDD Port Standard
USB1 10-pin 1st / 2nd USB Port Standard
CFD1 Compact Flash Socket Standard
KBMS1 10-pin PS/2 Keyboard / Mouse Connector Standard
JIR 5-pin SIR IrDA Port Standard
CON3 4-pin AT Power Connector Standard
ATX1 3-pin ATX Signal Connector Standard
JFRNT 10-pin Switch and Indicator Connector Standard
CPUFAN 3-pin CPU Fan Connector Standard
CHASFAN 3-pin System Fan Connector Standard
VGA1 16-pin Internal VGA Port Standard
LCD1 40-pin TTL Flat Panel Interface Standard
JAUDIO 10-pin Audio Port Standard
CDIN 4-pin CD-in Interface Standard
LAN1 10-pin Primary LAN Port Connector Standard
CN2 104-pin PC/104+ Connector Standard
TVOUT1 10-pin TV-out Connector Standard
LE-362 User’s Manual 13

2.2 CPU and DRAM Setting
The board is integrated with VIA embedded EBGA Eden 667 MHz CPU at
133 MHz FSB.
System memory including onboard 128 MB PC133 SDRAM and one
144-pin SO-DIMM slot up to 512 MB SDRAM. Total memory capacity up to
640 MB PC133 SDRAM.

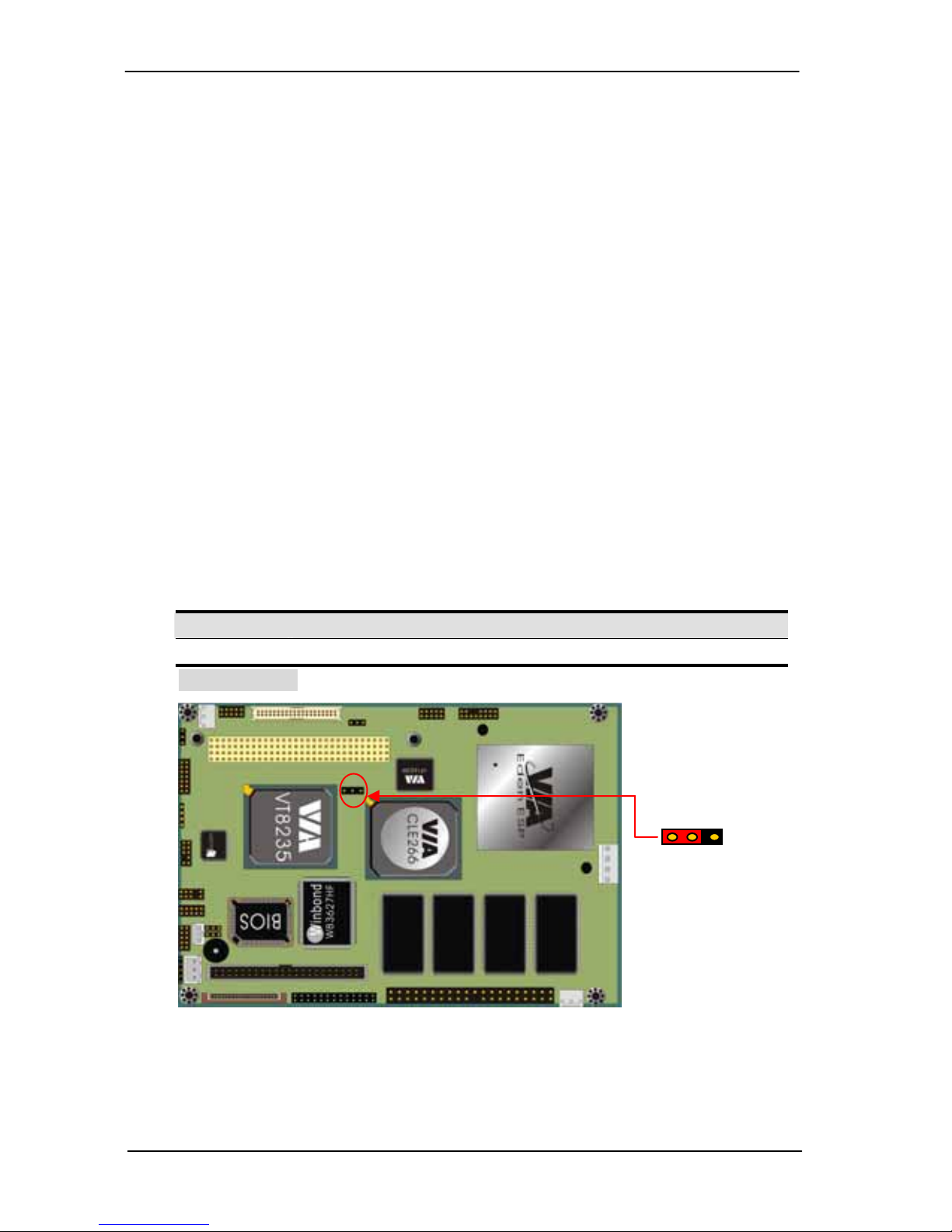

2.3 CMOS Setting
The board’s data of CMOS can be setting in BIOS. If the board refuses to
boot due to inappropriate CMOS settings, here is how to proceed to clear
(reset) the CMOS to its default values.
Jumper: JRTC
Type: onboard 3-pin header
JRTC Mode
1-2 Normal Operation
2-3 Clear CMOS
Default setting
JRTC
3 1
LE-362 User’s Manual
14

2.4 Watchdog Timer Setting
The watchdog timer makes the systems auto-reset while it stop to work for
a period.
Program Sample
Watchdog timer setup as system reset with 5 second of timeout
4E, 87
4E, 87
4E, 07 Select Logical Device 8
4F, 08
4E, 30 Set Watchdog Active
4F, 01
4E, F3 Set Count as Second*
4F, 00
4E, F4 Set as 5 Second
4F, 05
* Minute: bit 3 = 1; Second: bit 3 = 0
LE-362 User’s Manual 15

2.5 Embedded Flash Disk
The board supports both IDE-based DiskOnModule and CompactFlash
embedded Solid State Disk (SSD).
Please note that this board doesn’t provide VCC on IDE1, please use external
power Connector with DiskOnModule.
CompactFlash SSD
Type-II Socket
CFC / MicroDrive
LE-362 User’s Manual
16

2.6 Power and Fan Connectors
ATX1 1
3
123
CPUFAN
CHASFAN
1
CN3
3
1
4
Connector: CN3
Type: 4-pin AT Power Connector
Pin Description Cable Color Reference
1 +12V Yellow
2 Ground Black
3 Ground Black
4 +5V Red
Connector: ATX1
Type: 3-pin ATX Function Connector
Pin Description Pin Description Pin Description
1 5V Standby 2 Ground 3 Power On
Connector: SYSFAN, CPUFAN
Type: 3-pin Fan Power Wafer Connector
Pin Description Pin Description Pin Description
1 Ground 2 +12V 3 Fan Control
LE-362 User’s Manual 17

2.7 VGA Interface
2.7.1 Standard Analog VGA Interface
The board is integrated with VIA CLE266 chipset’s built-in 8xAGP S3
ProSavage™ VGA accelerator with 3D/2D engine and 64 MB of video
memory shared with system memory.
VGA1
1
16
Connector: VGA1
Type: 16-pin header
Pin Description Pin Description
1 Red 2 Green
3 Blue 4 N/C
5 Ground 6 Ground
7 Ground 8 Ground
9 N/C / Vcc 10 Ground
11 N/C 12 Data
13 HSYNC 14 VSYNC
15 Clock 16 N/C
LE-362 User’s Manual
18

2.7.2 TV-out Interface
The board integrates with VIA VT1622M TV codec, supports NTSC/PAL TV
format with S-Video and RCA output.
Connector: TVOUT1
Connector type: onboard 2 x 5 pin header, pitch = 2.54mm
Pin Description Pin Description
1 Ground 2 DAC_A
3 Ground 4 Y_E
5 Ground 6 C_E
7 Ground 8 CVBS_E
9 Ground 10 CSO
1TVOUT1
10
LE-362 User’s Manual 19

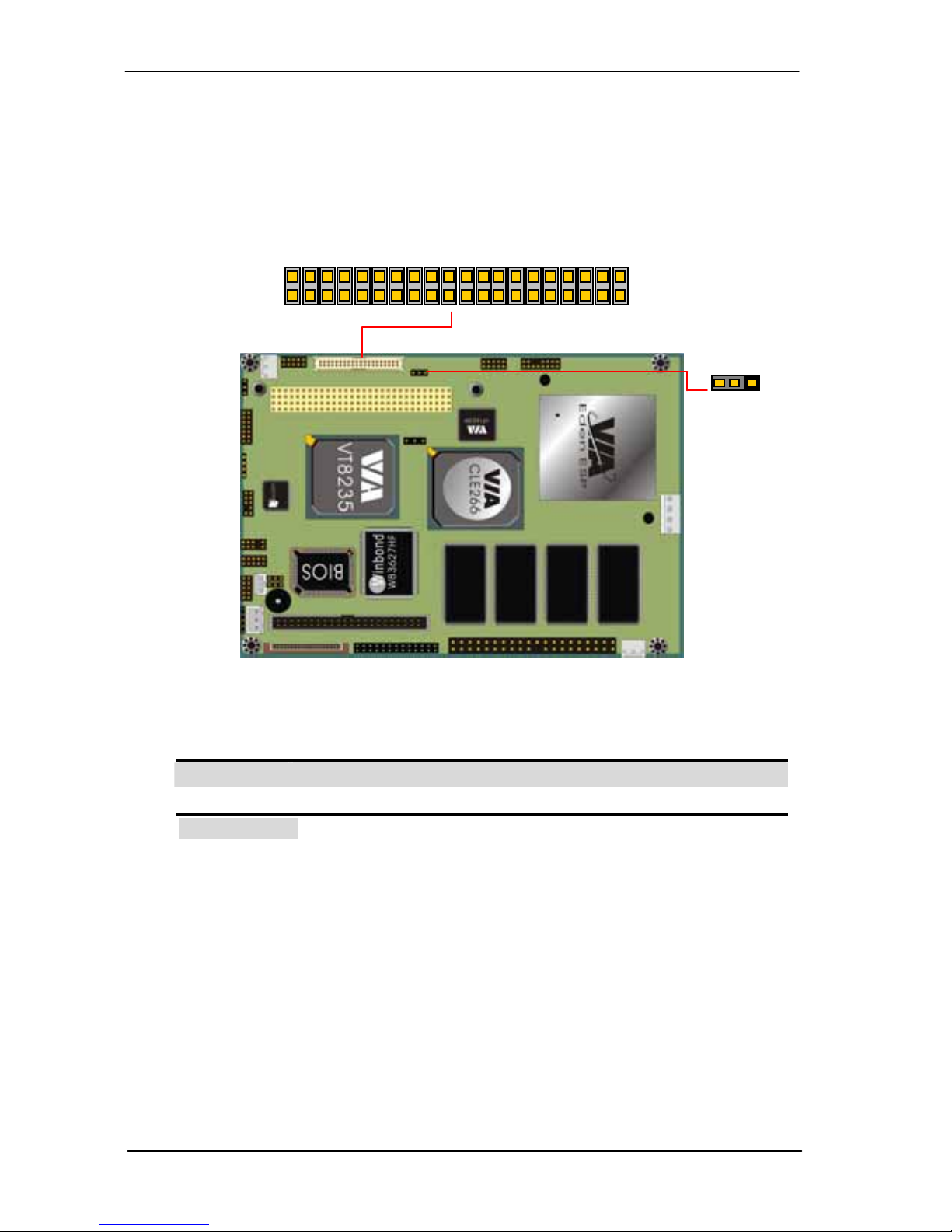

2.7.3 Digital VGA Interface
The board’s digital video interface provides 24-bit TTL interface of flat
panel. The digital video interfaces used BIOS selectable 8/16/32/64 MB of
video memory shared with system memory.
1
40LCD1
1
3
JLCD
Jumper: JLCD
Type: onboard 3-pin (1 x 3) header
JLCD LCD Voltage Setting
1-2 +3.3V
2-3 +5V
Default setting
LE-362 User’s Manual
20
