Commell LE-5Q0 series User manual

Qseven Carrier Board
User's Manual
Edition 1.0
2015/08/11

-1-
Please check the package content before you starting using the board.
LE-5Q0G2XD Qseven Carrier Board x 1
SATA CABLE x 1
OALSATA3-L (1040529)
COM PORT CABLE x 1
OALES-BKU1NB (1040086)
Dual COM PORT Cable x 1
OALES-BKU2NB (1040090)
(Optional)
USB2.0 Cable x 1
OALUSBA-3/ (1040173)
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner
Copyright
Copyright 2014, all rights reserved. This document is copyrighted and all rights are reserved. The information
in this document is subject to change without prior notice to make improvements to the products.This document
contains proprietary information and protected by copyright. No part of this document may be reproduced,
copied, or translated in any form or any means without prior written permission of the manufacturer.All
trademarks and/or registered trademarks contains in this document are property of their respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from the performance
or use of this product.The company does not issue a warranty of any kind, express or implied, including
without limitation implied warranties of merchantability or tness for a particular purpose.The company has
the right to revise the manual or include changes in the specications of the product described within it at any
time without notice and without obligation to notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at http://www.commell.com.tw
Packing List:
Hardware:
Cable Kit:

-2-
Audio Cable x 1
OALPJ-HD-NB (1040121)
PS/2 Keyboard & Mouse Cable x 1
(OALPS2/KM)/ (1040131)
Power Cable x 1
OALATX-P3S2 (1040058)
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner

-3-
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner
INDEX
Chapter 1 <Introduction>............................................................................................5
1.1<Product Specication>......................................................................................5
1.2 <Mechanical Drawing> .....................................................................................7
1.3 <Block Diagram> ...............................................................................................8
Chapter 2 <Hardware Setup> .....................................................................................9
2.1 <Connector Location> .......................................................................................9
2.2 <Jumper Location & Reference> .....................................................................10
2.3 <Connector Reference> .....................................................................................11
2.3.1 <Internal Connectors>...............................................................................11
2.3.2 < External Connectors>.............................................................................11
2.4 <CMOS & ATX Setup> .....................................................................................12
2.5 <Ethernet Interface> .........................................................................................13
2.6 <Onboard Display Interface> ...........................................................................13
2.6.1 <Display> ....................................................................................................13
2.6.2 <LVDS>.......................................................................................................14
2.7 <Integrated Audio Interface> ...........................................................................18
2.8 <USB Interface>.................................................................................................19
2.9 <Serial Port>.......................................................................................................21
2.10 <PCIE Mini Card and SIM Interface>..........................................................24
2.10.1 <SIM Setup>.............................................................................................26
2.11 <GPIO and SMBUS Interface> ......................................................................27
2.12 <CANBus and I2C Interface>.........................................................................29
2.12.1 <CANBus> ................................................................................................29
2.12.2 < I2C>........................................................................................................29

-4-
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner
2.13<Power Supply and Fan Interface >............................................................... 30
2.13.1 <Power Input>......................................................................................... 30
2.13.2 <Fan connector>...................................................................................... 31
2.14 <Switch and Indicator> .................................................................................. 33
Appendix A <I/O Port Pin Assignment>.................................................................... 34
A.1 <Serial ATA Port> ............................................................................................ 34
A.2 <LAN Port> ...................................................................................................... 34
A.3 <LPC Port>....................................................................................................... 34
A.4 < SDIO / MMC socket > .................................................................................. 35
Contact Information ............................................................................................... 36

-5-
Form Factor 5.25" Qseven Carrier Board
Audio Features Realtek ALC262 High Denition Audio Codec
QSEVEN Base on Qseven Spezication Rev. 2.0
SPI Support 1.8V / 3.3V (Default 1.8V)
Serial ATA Feature Two Serial ATA ports
(SATA2 port and mSATA can’t be enabled simultaneously)
Expansion Slots One SDIO / MMC socket (optional)
Two Mini PCIE socket
-Support full/half (optional) size Mini PCIE card
-Mini_card1
-Mini_card2 or mSATA
(RJ45-4 and Minicard1 can’t be enabled simultaneously)
(RJ45-5 and Minicard2 can’t be enabled simultaneously)
Minicard1 and RJ45-4 use PCIE2 signal
Minicard2 and RJ45-5 use PCIE3 signal
One SIM socket
DVI Interface One onboard DVI connector
Display port Interface Three onboard Display port connector
LVDS Interface Two onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V
(LVDS1 and Display port2 can’t be enabled simultaneously)
(LVDS2 and Display port3 can’t be enabled simultaneously)
Display port2 and LVDS1 use LVDS_A signal
Display port3 and LVDS2 use LVDS_B signal
eDP to LVDS by PTN3460
LAN Interface One Gigabit Ethernet Lan port (RJ45-1)
Use GBE signal
Four Intel® I210 Gigabit LAN (RJ45-2,3,4,5)
(RJ45-4 and Minicard1 can’t be enabled simultaneously)
(RJ45-5 and Minicard2 can’t be enabled simultaneously)
RJ45-2 use PCIE0 signal
RJ45-3 use PCIE1 signal
RJ45-4 and Minicard1 use PCIE2 signal
RJ45-5 and Minicard2 use PCIE3 signal
External I/O port One RS232 serial port (COM1)
Five RJ45 LAN port
Two USB 3.0 port
One DVI port
Three Display port
Chapter 1 <Introduction>
1.1 <Product Specication>
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner

-6-
Internal I/Oconnector Two connectors for four USB 2.0 ports
(USB2.0 use USB_P2 signal and transfer to 4-Port Hub by usb4604)
One connector for an RS232/422/485 serial port (CN_COM2)
Two connector for four RS232 serial port (CN_COM3/4 CN_COM5/6)
One LPC connector
One SMBus connector
One I2C connector (QE-E70 can’t use)
One Digital I/O connector
One Audio connector
Two LVDS LCD panel connector - 18/24-bit single channel and LCD/inverter
power connector
Two Serial ATA connectors
One CPU fan connector and one System fan connector
One PS/2 Keyboard/Mouse connector
Power Requirement Standard 24-pin ATX power supply or 6~27V full range DC Input
Dimension 203mm x 146mm. (L x W)
Temperature Operating within 0°C~60°C (32°F~140°F)
Storage within -20°C~80°C (-4°F~176°F)
Relative Humidity 10%~90%, non-condensing
Ordering Code
LE-5Q0G2XD DVI/Display
portx 1
LVDSx 1 USB3.0x 2 USB2.0x 4 RJ45 LANx 2
SATAx2 SDCARD CN_DIO SPI CN_LPC
Minicard1x 1 Minicard2/
MSATAx 1
CN_I2C CN_PS2 CN_AUDIO
SMBUS RS232x 5 RS232/RS422/RS485x 1
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner

-7-
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner

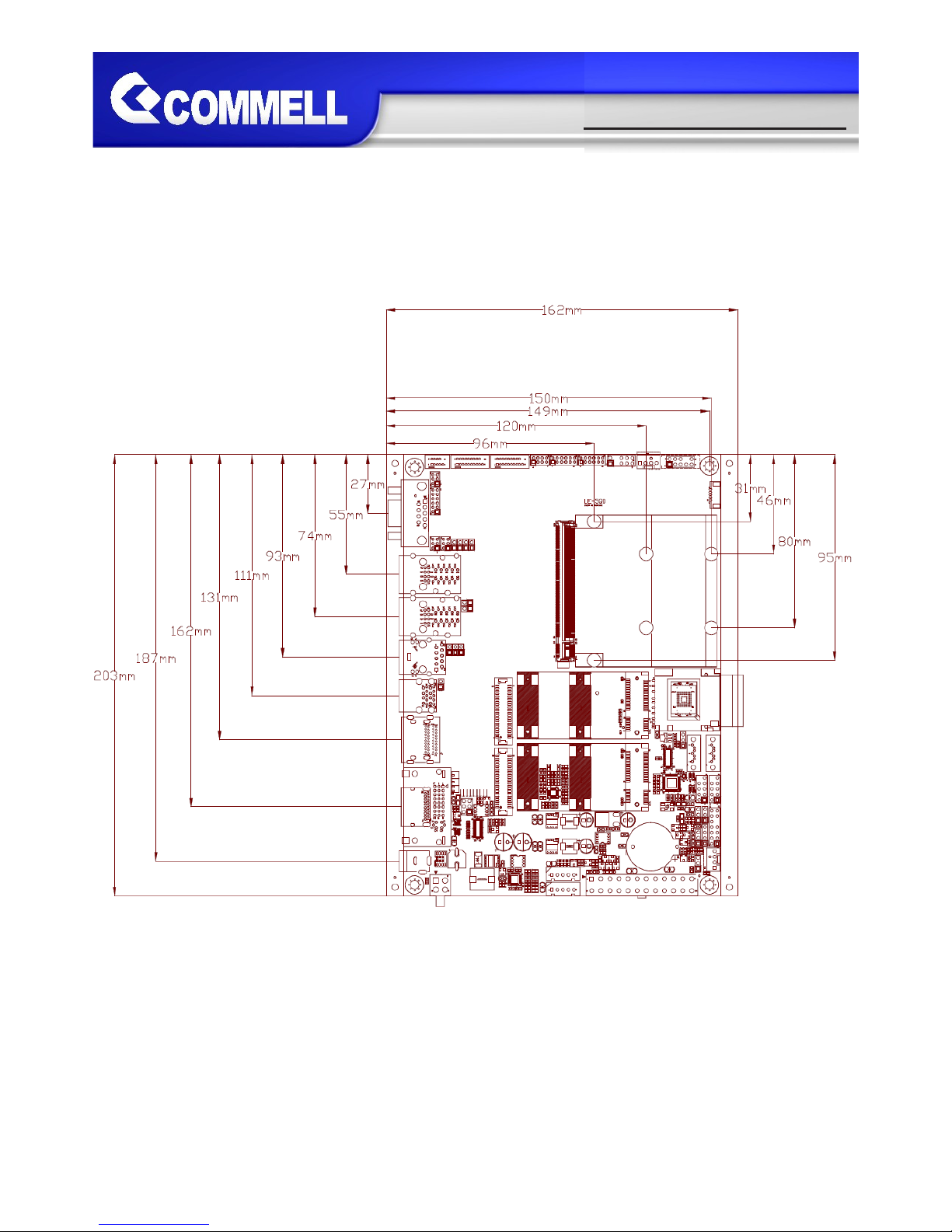

1.2 <Mechanical Drawing>

-8-
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner

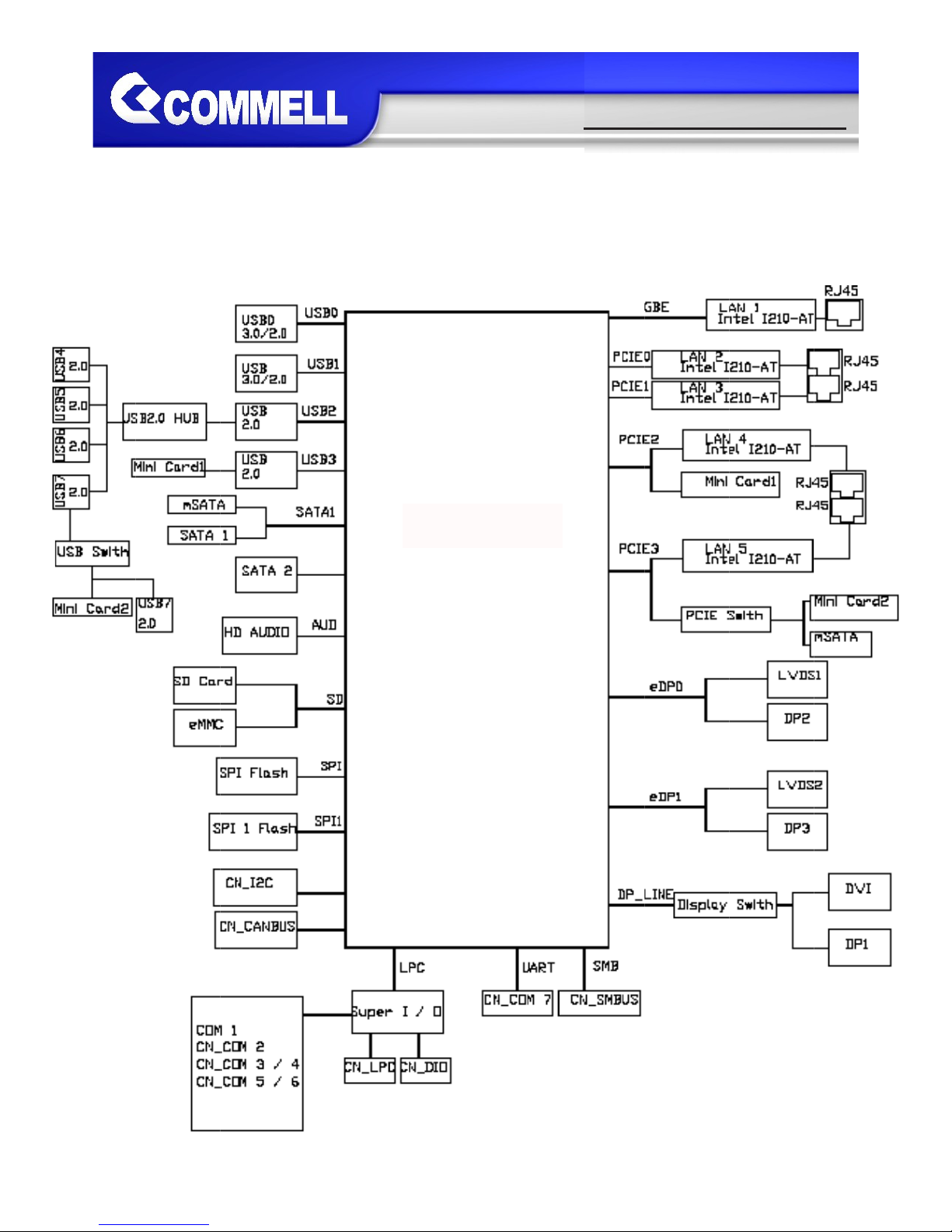

1.3 <Block Diagram>
LE-5Q0

-9-
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner
Chapter 2 <Hardware Setup>
2.1 <Connector Location>
DVI

-10-
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner

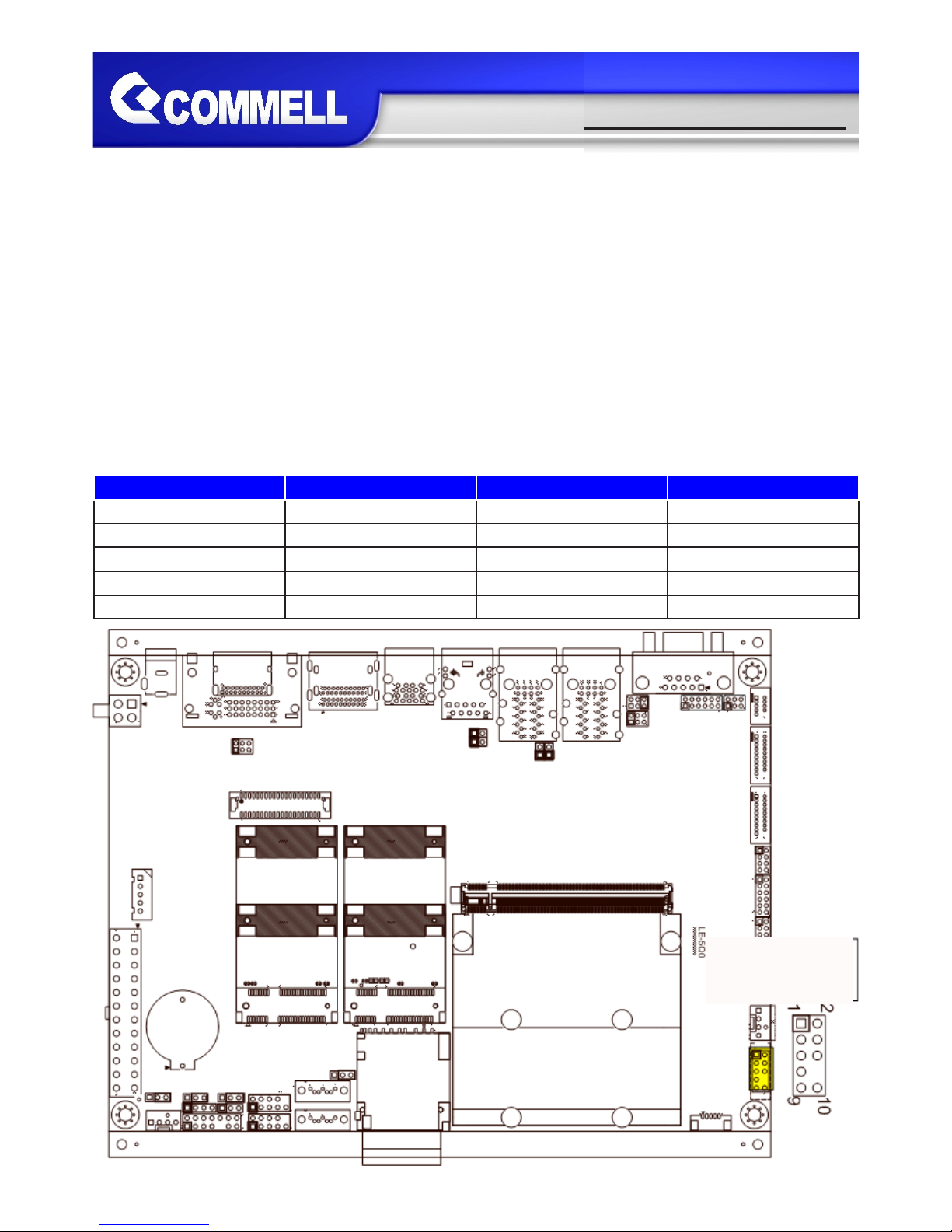

2.2 <Jumper Location & Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JVLCD Panel1,2 Voltage Setting
JAT Power mode select
JP1 Com2 Voltage Setting (For Pin 9)
JP2 Com1 Voltage Setting (For Pin 9)
JCSEL1 / JCSEL2 COM2 RS-232 RS422 RS485 Setting
JMSATA Mini Card2 mSATA Setting
JUSBS Mini Card2 USB Setting (Note)
Note:
Mini Card2 USB and CN_USB2 (USB7) can’t be enabled simultaneously
Mini_card2 and RJ45-5 LAN port can’t be enabled simultaneously

-11-
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner
2.3 <Connector Reference>
2.3.1 <Internal Connectors>
Connector Function Remark
Board to board connector 230-pin MXM connector
DC_IN DC 6~27V input connector
DC_2P DC 6~27V input connector
ATX 24-pin power supply connector
CN_LVDS 1/2 20 x 2-pin LVDS connector
CN_INV 1/2 5-pin LCD inverter connector
JFRNT 14-pin front panel switch/indicator connector
CN_USB 1/2 10-pin USB connector
CPUFAN 4-pin CPU cooler fan connector
SYSFAN 4-pin system cooler fan connector
SATA 1/2 7-pin Serial ATAII connector
CN_CANBus 4-pin CANBUS connector
Mini-PCIE 1/2 52-pin Mini-PCIE socket
SDCard 13-pin SDIO / 30-pin MMC socket
CN_SMBus 5-pin SMBUS connector
CN_AUDIO 5 x 2-pin audio connector
CN_PS2 5 x 2-pin PS2 connector
CN_LPC 5 x 2-pin LPC connector
CN_DIO 6 x 2-pin digital I/O connector
CN_I2C 4 x 2-pin I2C connector
CN_COM2/3/4/5/6 9-pin COM2-RS232/442/485 COM3/4/5/6-RS232
SIM 6-pin socket
JSPD 1/2/3/4/5 LAN Speed LED connector
JACT 1/2/3/4/5 LAN Activity LED connector
SPI2 8-pin BIOS connector
SPI2X 8-pin BIOS connector
2.3.2 < External Connectors>
Connector Function Remark
COM1 Serial port connector
USB_RJ45 1/2/3/4/5 5 x RJ45 LAN connector
USB 2 x USB 3.0 connector
DVI 24 pin DVI connector
DisplayPort 3 x 20-pin DisplayPort connector

-12-
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner

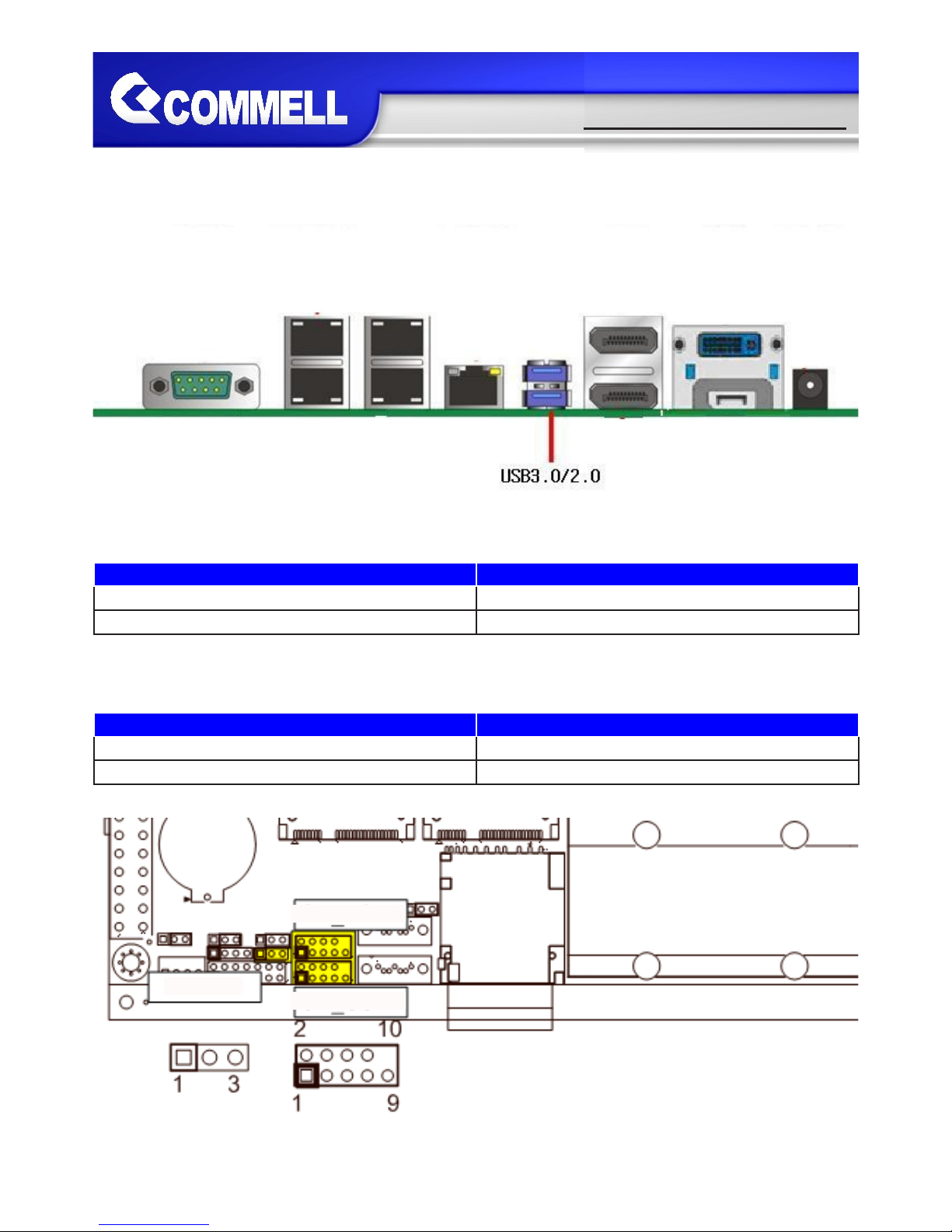

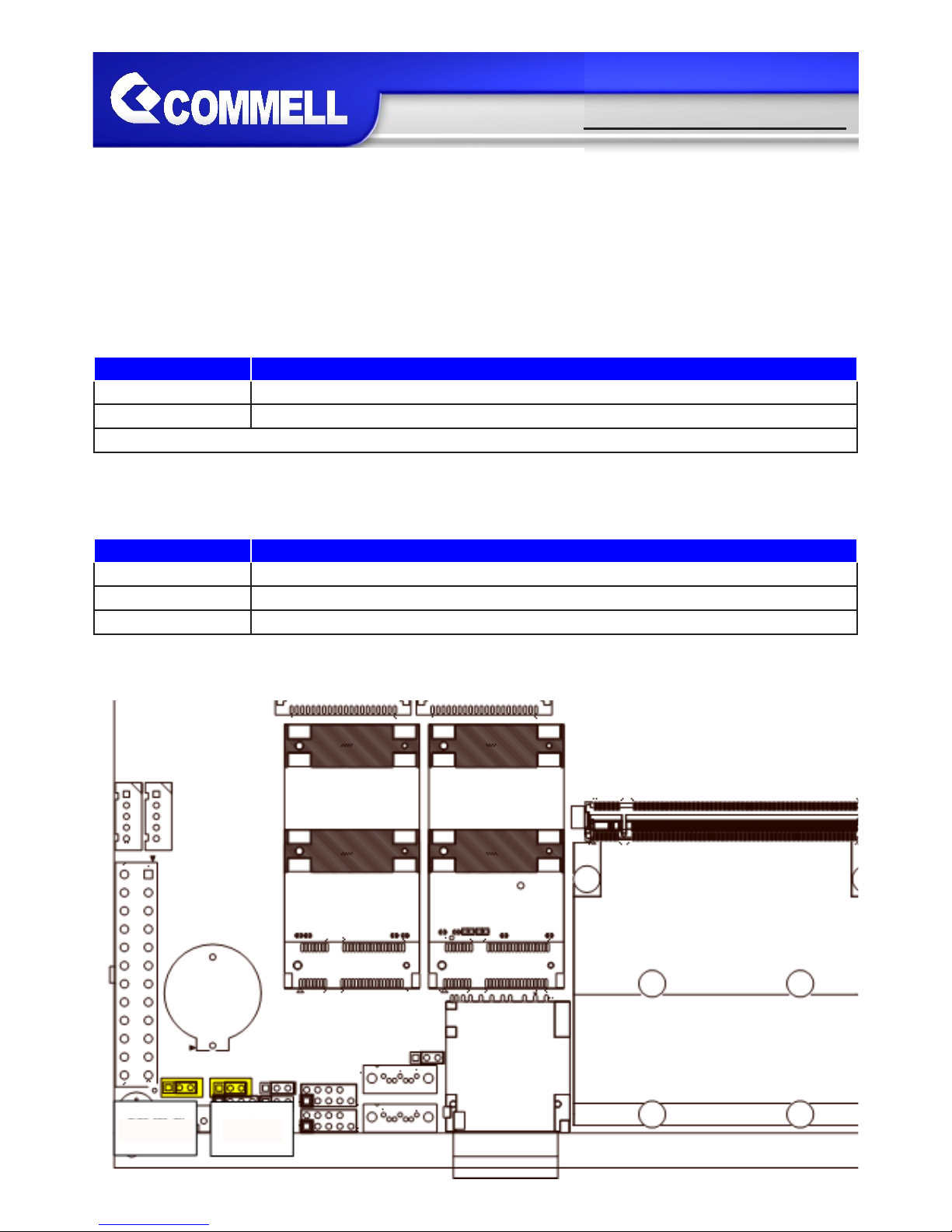

2.4 <CMOS & ATX Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate
CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting:2-3
Jumper: JAT
Type: onboard 3-pin jumper
JAT Mode
1-2 AT Mode
2-3 ATX Mode
Default setting:2-3
JRTC JAT

-13-
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner

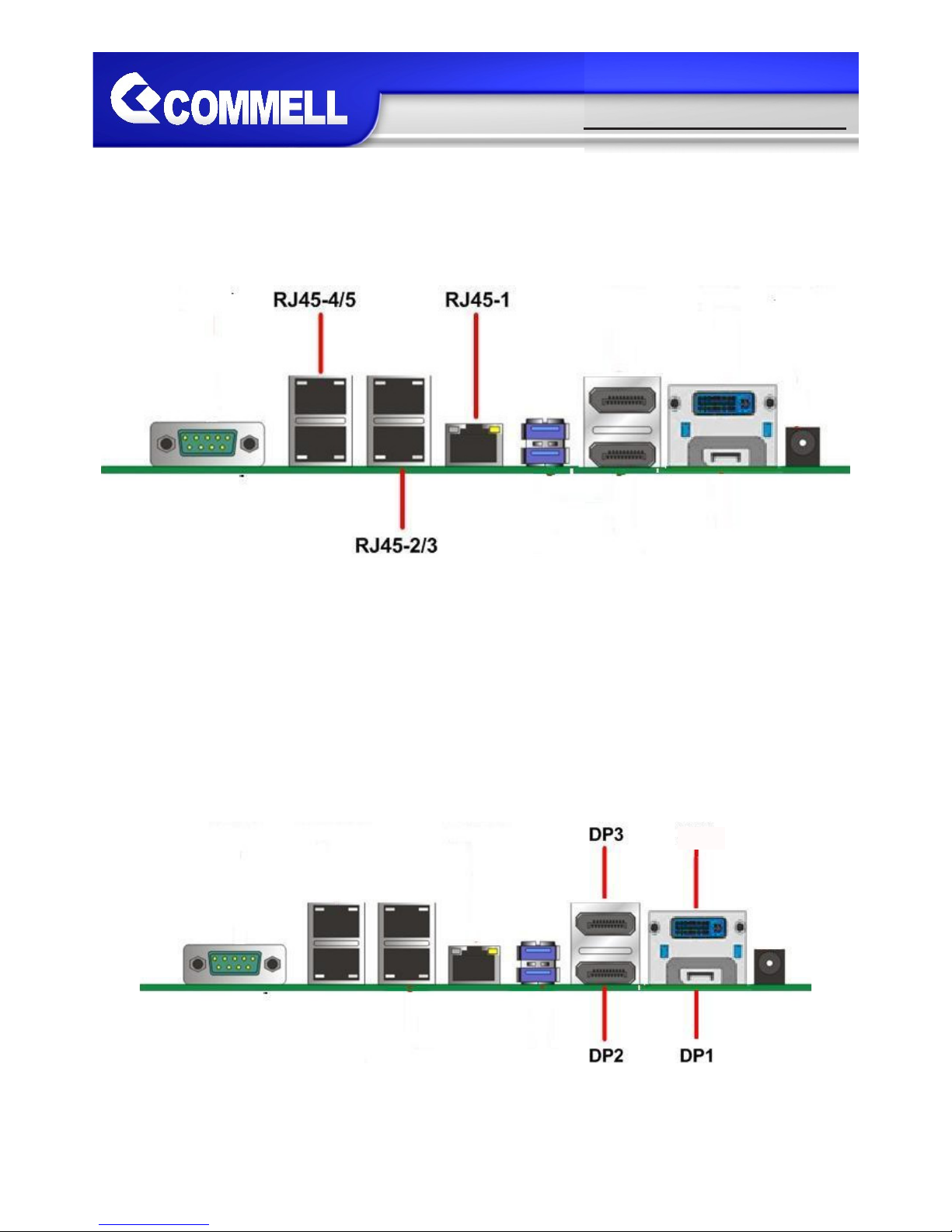

2.5 <Ethernet Interface>
The board integrates RJ45-2/3/4/5 with Intel I210 Gigabit Ethernet and RJ45-1 with Qseven
CPU Module provided , RJ45-2/3/4/5 as the PCI Express bus. The Intel I210 supports triple speed of
10/100/1000 Base-T, with IEEE802.3 compliance and Wake-On-LAN supported.
Note: Mini_card1 and RJ45-4 LAN port can’t be enabled simultaneously
Mini_card2 and RJ45-5 LAN port can’t be enabled simultaneously
2.6 <Onboard Display Interface>
The board provides one DVI/Display port connector & two Display port on real external I/O port,
two 40-pin LVDS interface with 5-pin LCD backlight inverter connector.
2.6.1 <Display>
Please connect your DVI / Display port or LCD monitor with male connector to the onboard
female connector on rear I/O port .
DVI

-14-
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner

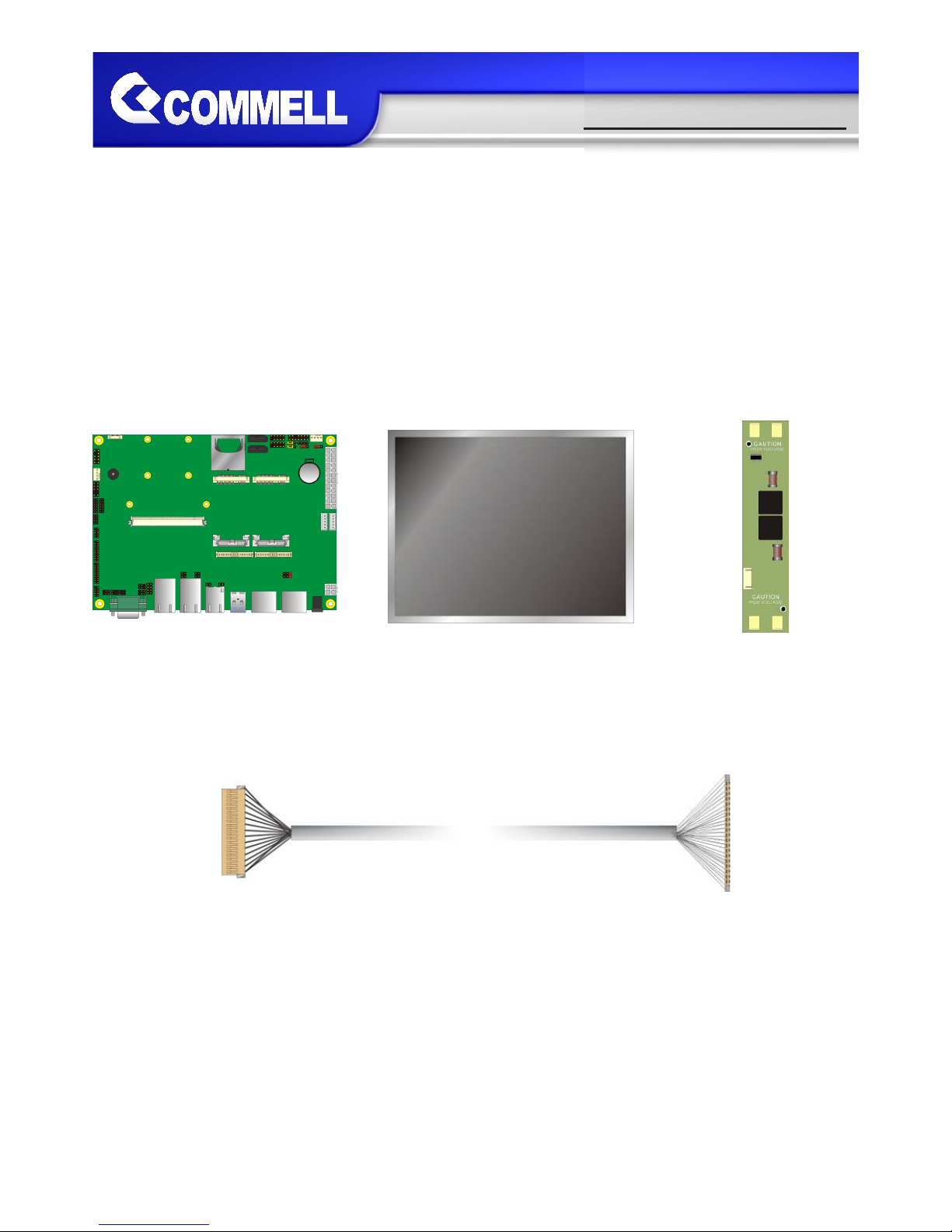

2.6.2 <LVDS>
The board provides two 40-pin LVDS connector, with two LCD backlight inverter connector and
one jumper for panel voltage setting. Please install LVDS cable before boot up.
Effective patterns of connection: 1-2 / 3-4 / 5-6
Warning: others cause damage
JVLCD
JVLCD
CN_INV1
CN_LVDS1

-15-
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner
Type: 5-pin LVDS Power Header
Pin Description
1 +12V
2 PWM
3 GND
4 GND
5 ENABKL
Connector: JVLCD
Type: 6-pin Power select Header
Connector: CN_LVDS1 and CN_LVDS2
Type: onboard 40-pin connector for LVDS connector
Connector model: HIROSE DF13-40DP-1.25V or compatible
Pin Signal Pin Signal
2 LCDVCC 1 LCDVCC
4 LVDS Detect(NOTE) 3 GND
6 ATX0- 5 BTX0-
8 ATX0+ 7 BTX0+
10 GND 9 GND
12 ATX1- 11 BTX1-
14 ATX1+ 13 BTX1+
16 GND 15 GND
18 ATX2- 17 BTX2-
20 ATX2+ 19 BTX2+
22 GND 21 GND
24 ACLK- 23 BTX3-
26 ACLK+ 25 BTX3+
28 GND 27 GND
30 ATX3- 29 BCLK-
32 ATX3+ 31 BCLK+
34 GND 33 GND
36 DDCPCLK 35 SMBCKL
38 DDCPDATA 37 SMBDATA
40 N/C 39 SPDIFO
Pin Description
1-2 LCDVCC (3.3V)
3-4 LCDVCC (5V)
5-6 LCDVCC (12V)
Default: 1-2

-16-
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner
To setup the LCD, you need the component below:
1. A panel with LVDS interfaces.
2. An inverter for panel’s backlight power.
3. A LCD cable and an inverter cable.
For the cables, please follow the pin assignment of the connector to make a cable, because every panel has
its own pin assignment, so we do not provide a standard cable; please nd a local cable manufacture to make
cables.
LCD Installation Guide:
1. Preparing the LE-5Q0, LCD panel and the backlight inverter.
2. Please check the datasheet of the panel to see the voltage of the panel, and set
the jumper JVLCD to +12V or +5V or +3.3V.
3. You would need a LVDS type cable.
Board side
Panel side
For sample illustrator only

-17-
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner
4. To connect all of the devices well.
After setup the devices well, you need to select the LCD panel type in the BIOS.
Note:
LVDS1 and DP2 can’t be enabled simultaneously
LVDS2 and DP3 can’t be enabled simultaneously
DP1 and DVI can’t be enabled simultaneously

-18-
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner
2.7 <Integrated Audio Interface>
The board integrates onboard audio interface with REALTEK ALC262 code, with Intel next
generation of audio standard as High Denition Audio, it offers more vivid sound and other advantages
than former HD audio compliance.
The main specications of ALC262 are:
High-performance DACs with 100dB S/N ratio
2 DAC channels support 16/20/24-bit PCM format for 2 audio solution
Compatible with HD
Meets Microsoft WHQL/WLP 2.0 audio requirements
Connector: CN_AUDIO
Type: 10-pin (2 x 5) header (pitch = 2.54mm)
Pin Description Pin Description
1 MIC_L 2 Ground
3 MIC_R 4 N/C
5 Speaker_R 6 MIC Detect
7 SENSE 8 N/C
9 Speaker_L 10 Speaker Detect
CN_AUDIO

-19-
LE-5Q0 Series User’s Manual
www.commell.com.tw
....Your Industrial Computer Partner
2.8 <USB Interface>
LE-5Q0 integrates 2 x USB3.0 / 2.0, The specications of USB3.0 are listed below:
Interface USB3.0
Transfer Rate Up to 5Gb/s
Voltage 5V
The specications of USB2.0 are list:
Interface USB2.0
Transfer Rate Up to 480Mb/s
Voltage 5V
CN_USB1
CN_USB2
JUSBS
