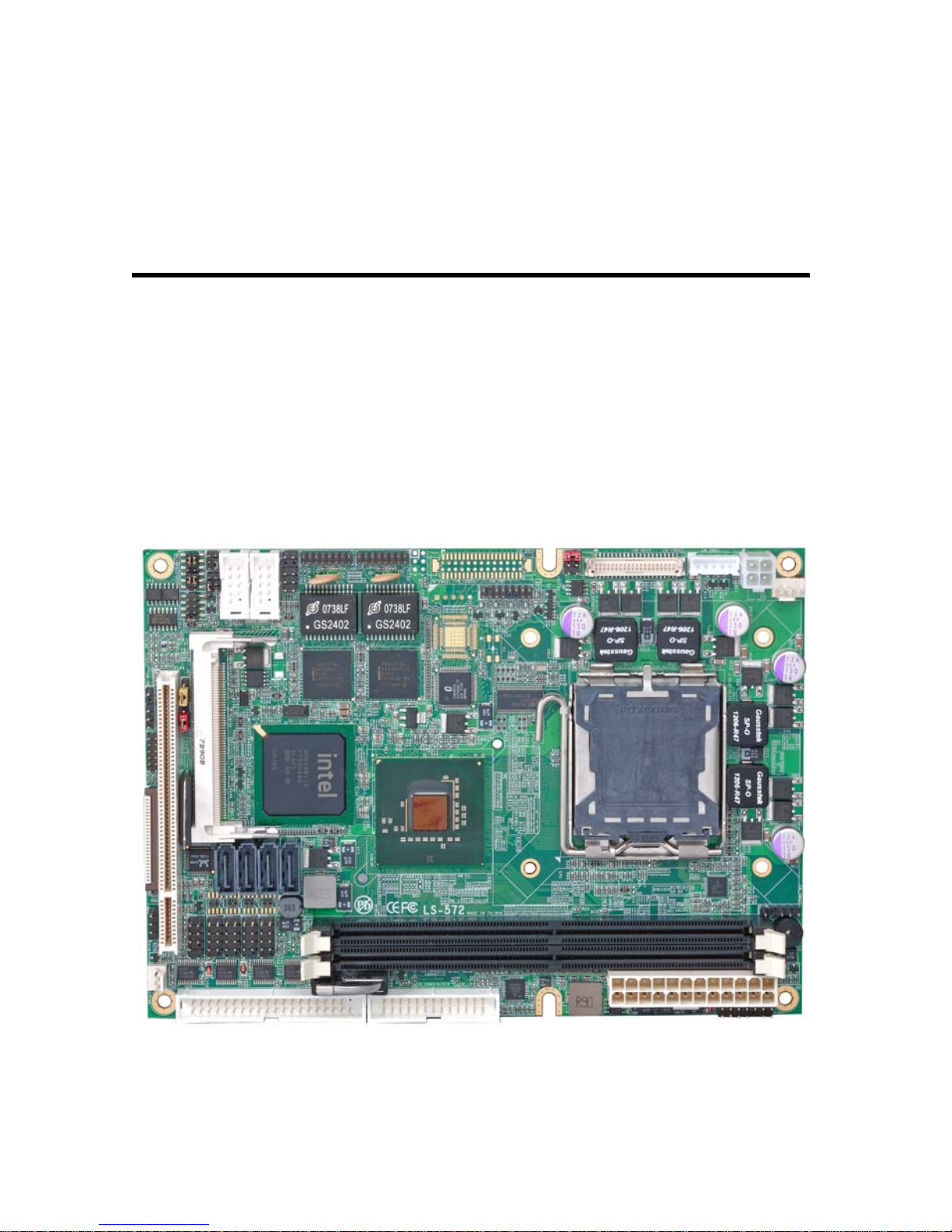

Commell LS-572 User manual

LS-572
5.25” Embedded Miniboard
User’s Manual
Edition: 1.3
2014/02/07

LS-572 User’s Manual
-1-
Copyright
Copyright 2008. All rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT.

LS-572 User’s Manual
-2-

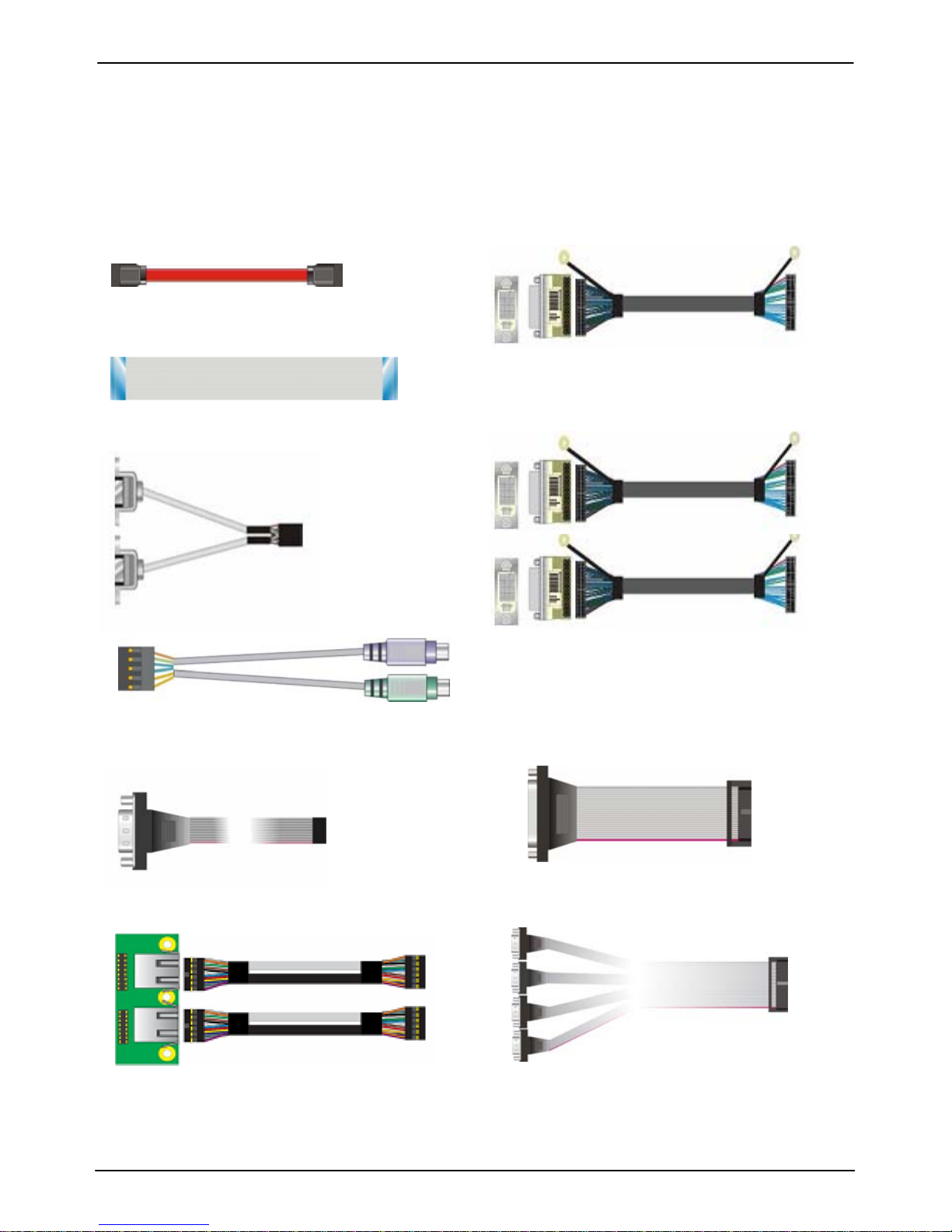

Packing List
Please check package component before you use our products.
Hardware:
LS-572 Embedded Miniboard
Cable Kit:
Quad COM ports DB9 male Cable x 1
(OAL4S-B)
SATA Cable x 2
(OALSATA)
26-pin Slim Type Floppy Cable x 1
(OALFD/NB)
DVI module with DVI Cable x 2
(LS-572D2 Only)
(ADPDVI + OALDVI-P)
DVI module with DVI Cable x 1
(LS-572D Only)
(ADPDVI + OALDVI-P)
USB Cable x 2
(OALUSBA-3)
COM Port Cable x 2
(
OAL1SNB
)
Printer Port Cable x 1
(OAL1P-B)
Keyboard & Mouse cable x 1
(OALPS2/KM)
LAN Connector x1 & LAN Cable x 2
(ADPGLAND2NB + OALGLAN)

LS-572 User’s Manual
-3-

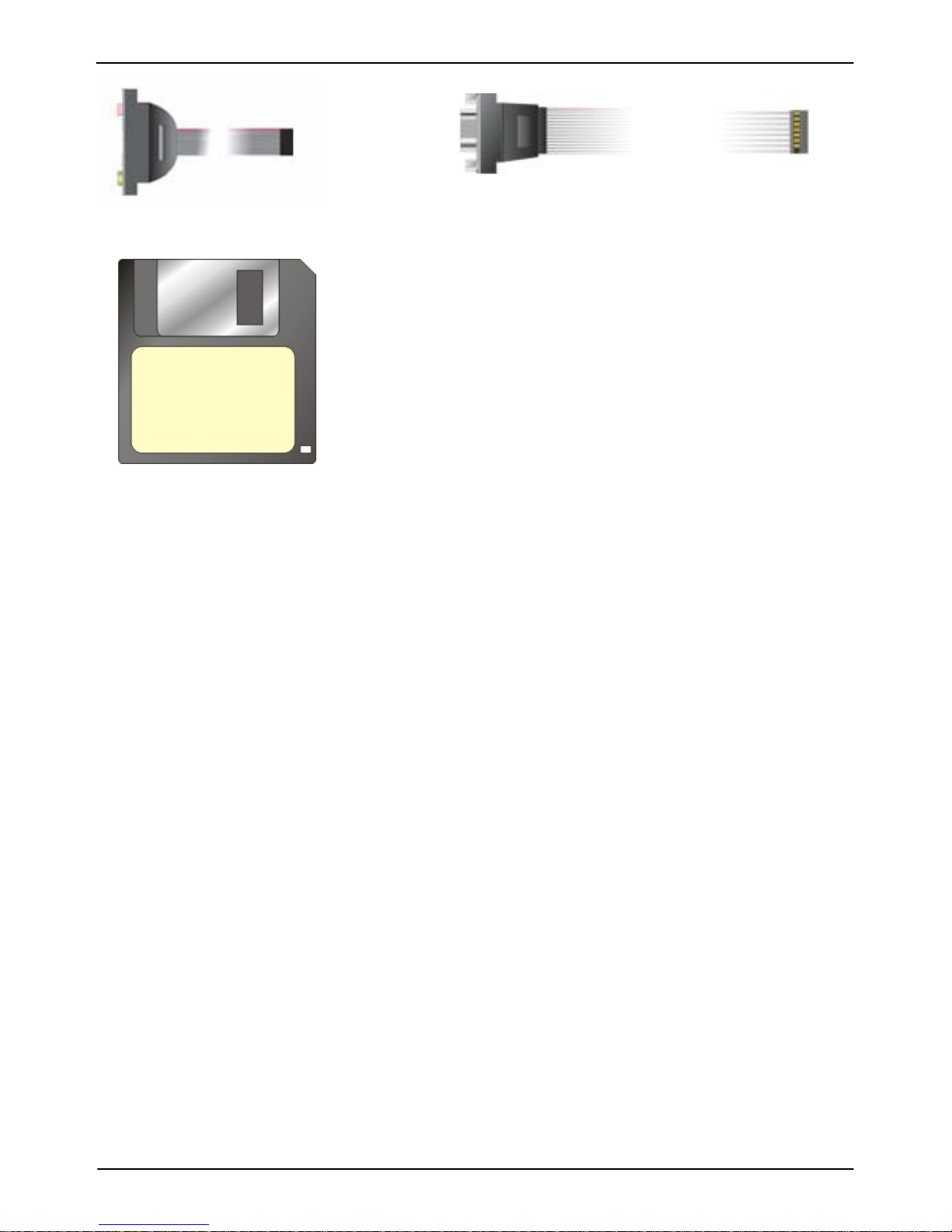

VGA cable x 1
(OALVGA-S)
Audio Port Cable x 1
(OALPJ-HD-NB)
Other Accessories:
Divers CD (including User’s Manual) x 1
RAID drivers Disc for Windows 2000,
Windows XP and Windows Server 2003

LS-572 User’s Manual
-4-
Index
Chapter1 <Introduction>............................................................7
1.1 <Product Overview> .............................................................................................7
1.2 <Product Specification>........................................................................................8
1.3 <Block Diagram> ................................................................................................10
1.4 <Mechanical Drawing >............................................................11
1.5 <Motherboard Dimension >......................................................11
1.5 <Motherboard Dimension >......................................................12
Chapter 2 <Hardware Setup>.................................................13
2.1 <Connector Location>.........................................................................................13
2.2 <Jumper Reference>..........................................................................................14
2.3 <Connector Reference>......................................................................................16
2.3.1 <Internal Connectors> ..............................................................16
2.4 <CPU and Memory Setup>.................................................................................17
2.4.1 <CPU installation>...................................................................17

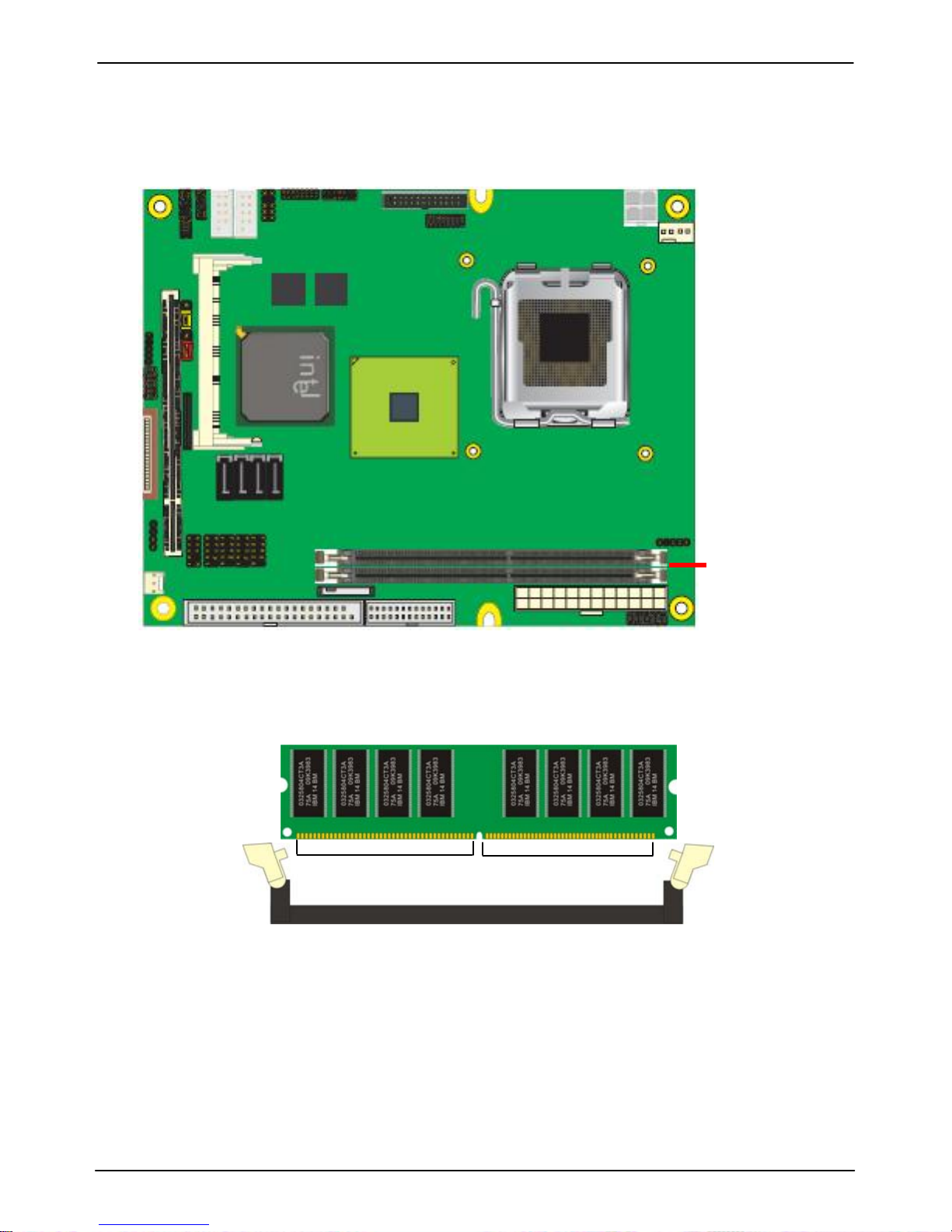

2.4.2 <Memory installation>..............................................................18
2.5 <CMOS Setup>...................................................................................................19
2.6 <Serial ATA installation>......................................................................................20
2.7 <Floppy Installation>...........................................................................................21
2.8 <LAN installation>...............................................................................................22
2.9 <Onboard Display Interface>..............................................................................23
2.9.1 <Analog Display>....................................................................23
2.9.2 <LVDS Display LS-572X Only >................................................23
2.9.3 <DVI Display LS-572D Only >..................................................27
2.10 <Audio Installation> ..........................................................................................28
2.11 <GPIO interface> ..............................................................................................29
2.12 < USB Installation> ...........................................................................................30
2.13 <Power and Fan Installation> ...........................................................................31

LS-572 User’s Manual
-5-
2.14 <Serial Port>.....................................................................................................33
2.15 <Switch and Indicator> .....................................................................................34
Chapter 3 <System Configuration>.......................................36
3.1 <SATA configuration>..........................................................................................36
3.2 <SATA RAID Configuration>...............................................................................37
3.3 <Audio Configuration> ........................................................................................41
3.4 <Video Memory Setup> ......................................................................................42
3.5 <Display Properties Setting>...............................................................................44
Chapter 4 <BIOS Setup>.........................................................46
Appendix A <I/O Port Pin Assignment>................................48
A.1 <Serial ATA Port>................................................................................................48
A.2<Floppy Port>......................................................................................................48
A.3 <IrDA Port>.........................................................................................................49
A.4 <VGA Port> ........................................................................................................49
A.5 <LAN Port>.........................................................................................................49
A.6 <SMBUS Port>...................................................................................................50
A.7 <Serial Port 1>....................................................................................................50
A.8 <Serial Port 2>....................................................................................................51
A.9 <Parallel Port>....................................................................................................51
A.10 <COM 3/4/5/6Port> ..........................................................................................52
A.11<Keyboard / Mouse Port>..................................................................................52
Appedix B <System Resources>...........................................53
Appedix C <Flash BIOS>.........................................................59
C.1 BIOS Auto Flash Tool..............................................................................59
C.2 Flash Method ...........................................................................................59
Appendix D <Programming GPIO’s>....................................60
Appendix E <Watch Dog timer Setting >..............................61
Contact Information...................................................................62

LS-572 User’s Manual
-6-
(This Page is Left for Blank)

LS-572 User’s Manual
-7-
Chapter1 <Introduction>
1.1 <Product Overview>
LS-572 is the motherboard with last Intel desktop technology with 5.25 Embedded form
factor. Based on Intel®Q35 and ICH9DO, the board integrates a new Core 2 Quad/ Core2
Duo/ Celeron processor 775-pin socket, DDR2 memory socket, Intel®Graphic Media
Accelerator 3000 technology, Serial ATA II with RAID function for a powerful desktop
system.
Intel®LGA775 processor
The Intel®Core 2 Quad/ Core 2 Duo/Celeron processor now comes with a new form factor
with 775-pin LGA package, for 800/1066/1333MHz front-side-bus, 4MB L2 cache, and for
65nm manufacturing technology, the LGA processor without pin header on solder side can
make user installing the processor on the socket easier.
Intel®Q35 and ICH9DO chipset
The Intel Q35 integrates DDR2 667/800MHz for memory, and Graphic Media Accelerator
(GMA) 3000 technology for new graphic engine. It can provide up to 384MB of frame buffer
when you install over 1GB of system memory. The ICH9DO integrates with up to 6 USB2.0
interfaces , and serial ATA II interface with RAID function.
Flexible Extension Interface
The board provides one PCI-slot for graphics card, it also can support PCI-slot for LAN card
or other devices. The board also provides mini-PCI socket.

LS-572 User’s Manual
-8-
1.2 <Product Specification>
General Specification
Form Factor 5.25 inch Embedded Miniboard
CPU Intel® Core 2 Quad/ Core 2 Duo/ Celeron processor with LGA775
socket, Package type: LGA 775
Front side bus: 800/1066/1333MHz (133/200/266MHz x 4)
Memory 2 x 240-pin DDR2 667/800 MHz DIMM up to 4GB
Chipset Intel® Q35 (Northbridge) and ICH9DO (Southbridge)
BIOS Phoenix-Award v6.00PG 8Mb SPI flash BIOS
Green Function Power saving mode includes doze, standby and suspend modes.
ACPI version 1.0 and APM version 1.2 compliant
Watchdog Timer System reset programmable watchdog timer with 1 ~ 255 sec./min.
of timeout value
Real Time Clock Intel® ICH9DO built-in RTC with lithium battery
Serial ATAII Intel® ICH9DO integrates 4 Serial ATA II interface up to 300MB/s
RAID 0, 1,5,10 Intel Matrix Storage Technology supported
Multi-I/O Port
Chipset Intel® 82801IO (ICH9DO) with Winbond® W83627DHG controller
Serial Port Five internal RS-232 and one internal RS232/422/485 serial ports
USB Port Eight Hi-Speed USB 2.0 ports with 480Mbps of transfer rate
Floppy Port One slim type Floppy port
IrDA Port One IrDA compliant Infrared interface support SIR
K/B & Mouse Internal PS/2 keyboard and mouse ports
GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O
interface
Smart Fan One CPU fan connectors for fan speed controllable
VGA Display Interface
Chipset Intel® Q35 GMA3100 (Graphic Memory Controller Hub)
Frame Buffer Up to 384MB shared with system memory
Display Type CRT, LCD monitor with analog display
Onboard 18/24-bit dual channel LVDS interface (LS-572X Only)
Onboard DVI interface (LS-572D Only)
Connector Internal DB15 female connector
Onboard 40-pin LVDS connector (LS-572X Only)
Onboard 26-pin DVI Connector (LS-572D Only)
Ethernet Interface
Controller Two Intel 82573L Gigabit Ethernet controller
Type Triple speed 10/100/1000Base-T
Auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector Two internal RJ45 connectors

LS-572 User’s Manual
-9-
Audio Interface
Chipset Intel® ICH9DO with Realtek ALC888HD Audio
Intel High Definition Audio compliance
Interface 2 channels sound output
Connector Internal 10-pin header for line-out, MIC-in, 4-pin header for CD-IN
Expansive Interface
Mini PCI One Mini-PCI socket TYPE III A (32-bit, 33MHz)
Power supply: +3.3V, +5V
Power and Environment
Power
Requirement Standard ATX 24-pin (20-pin is compatible) power supply Additional +12V 4-pin power connector
Dimension 203 (L) x 146 (H) mm
Temperature Operating within 0 ~ 60P
o
PC (32 ~ 140P
o
PF)
Storage within -20 ~ 85P
o
PC (-4 ~ 185P
o
PF)
Ordering Code
LS-572D Onboard VGA, 2 x Intel Gigabit LAN, 8 x USB2.0, Mini-PCI, PCI, 6 x Serial
Port, 1 x slim FDD, Realtek ALC888 HD 2.1 Channel Audio, 4 x SATA, 1x
IrDA, 1 x LPT and 1 x DVI
LS-572D2 Same as the LS-572D but with two DVI interface
LS-572X Onboard VGA, 2 x Intel Gigabit LAN, 8 x USB2.0, Mini-PCI, PCI, 6 x Serial
Port, 1 x slim FDD, Realtek ALC888 HD 2.1 Channel Audio, 4 x SATA, 1 x
IrDA, 1 x LPT and 1 x LVDS
MP-6421 Mini PCI with one 44-pin Ultra DMA 33 IDE interface support up to 2 ATAPI
devices 1 x Compact Flash Type II and 2 x serial ATA interface
The specifications may be different as the actual production.
For further product information please visit the website at TUhttp://www.commell.com.twUT

LS-572 User’s Manual
-10-
1.3 <Block Diagram>
DVI
7308A
2 x DDRII 667/800 MHz DIMM up to 4GB
2 x Intel 82573L Gigabit LAN
1 x Mini PCI socket
1 x PCI slot
Realtek ALC888 HD Audio
8M SPI W25X80
W83627DHG
7307C
Analog CRT
F81216DG
COM3~
COM6
4
X
SATA
8
X
USB
1 X slim FDD
1 X LPT
1 X IrDA
1 X GPIO
1 X COM
1 X RS232
/422
/485
KB & MS
LVDS

LS-572 User’s Manual
-11-

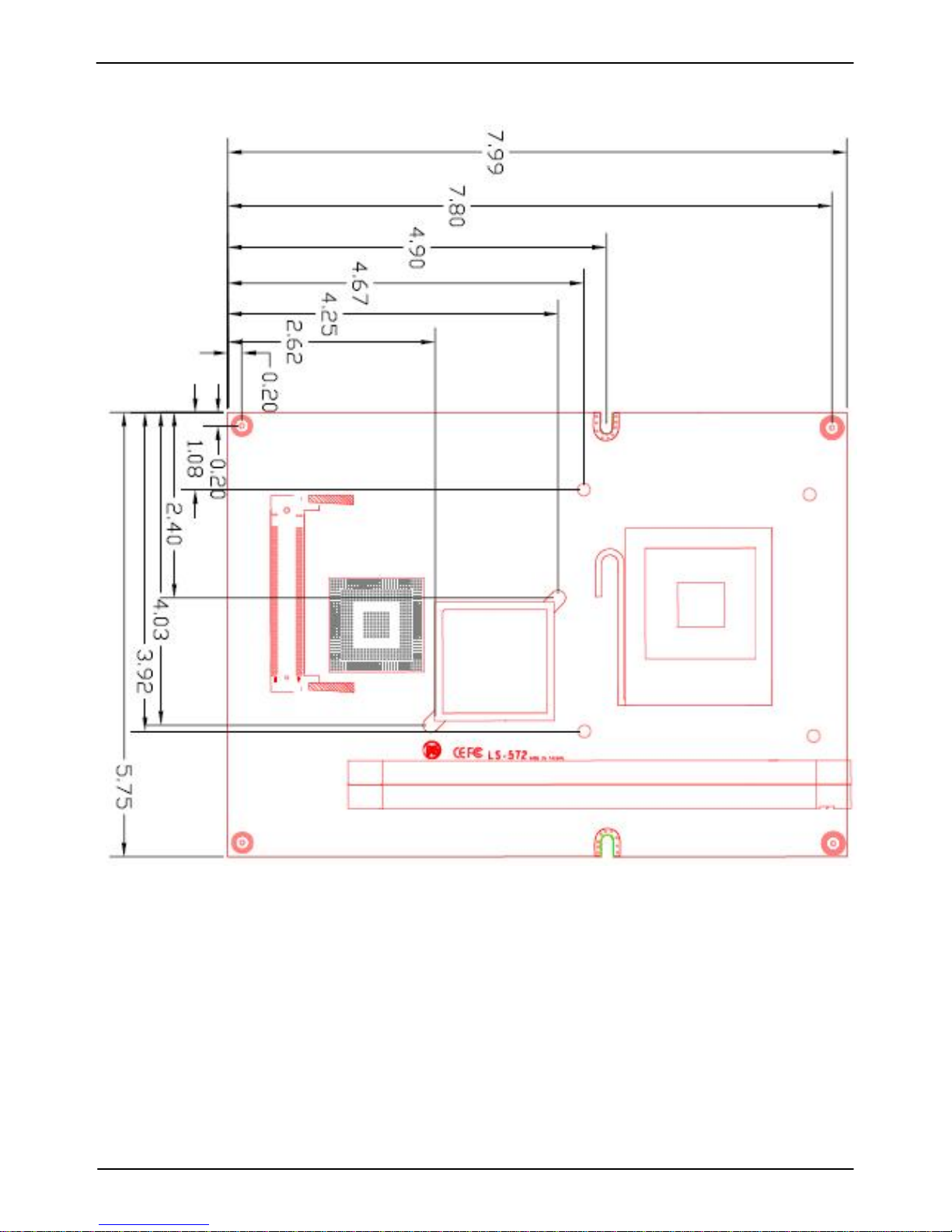

1.4 <Mechanical Drawing >
’
’
’
’
’
’
’
’
’
’
’
’
’

LS-572 User’s Manual
-12-

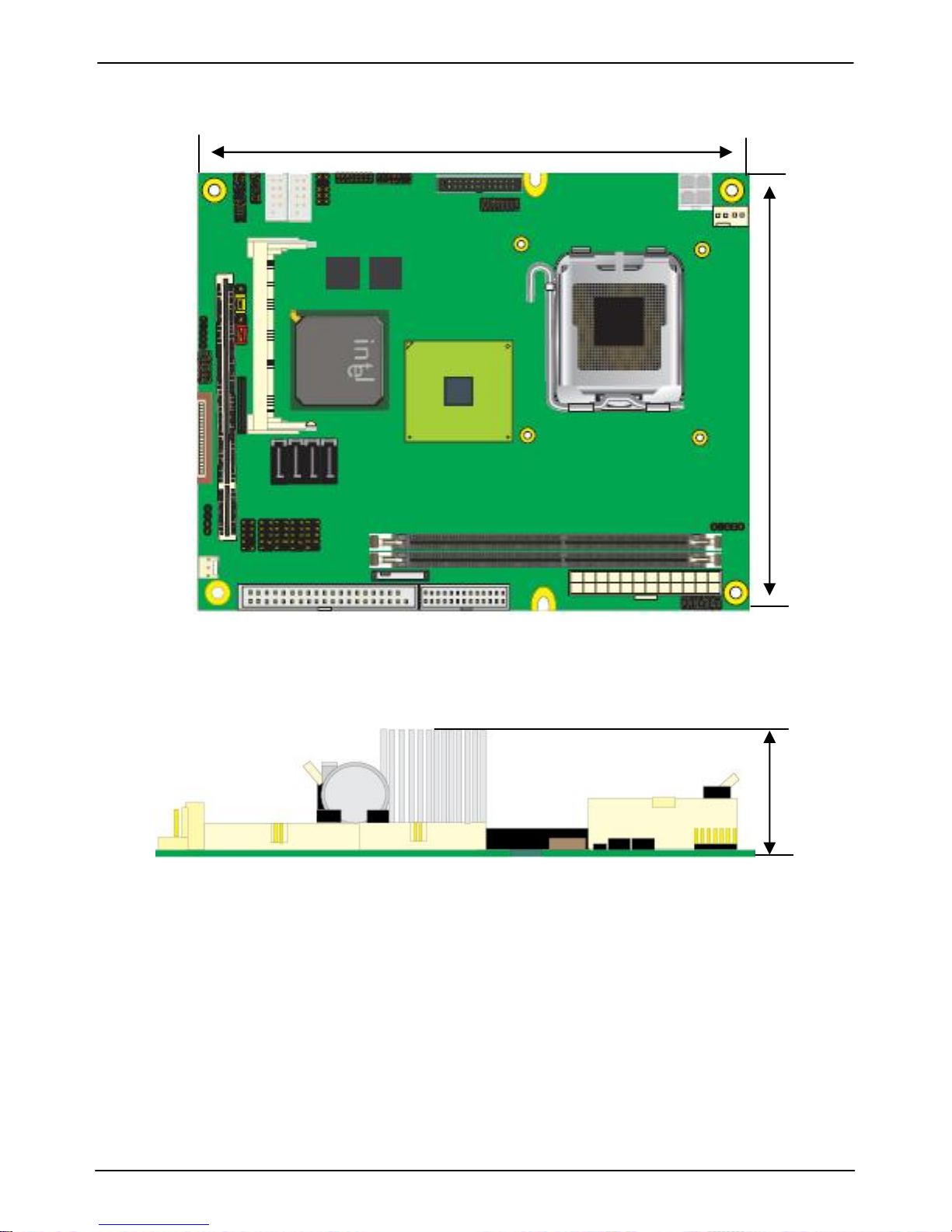

1.5 <Motherboard Dimension >
220 mm
146 mm
28.8 mm

LS-572 User’s Manual
-13-
Chapter 2 <Hardware Setup>
2.1 <Connector Location>
CN_12VCN_DVI
CPUFAN
CN_SMBUS
FDD
SYSFAN
JFRNT
CDIN
CN_LPT
ATX
DDRII1/2
SATA1~4
PCI
Mini-PCI
CN_LAN1/2
CN_PS2
CN_COM1/2
CN_IR
CN_CRT
CN_USB 1~4
CN_COM 3/4/5/6
CN_AUDIO
CN_DIO
CN_LVDS CN_INV

LS-572 User’s Manual
-14-

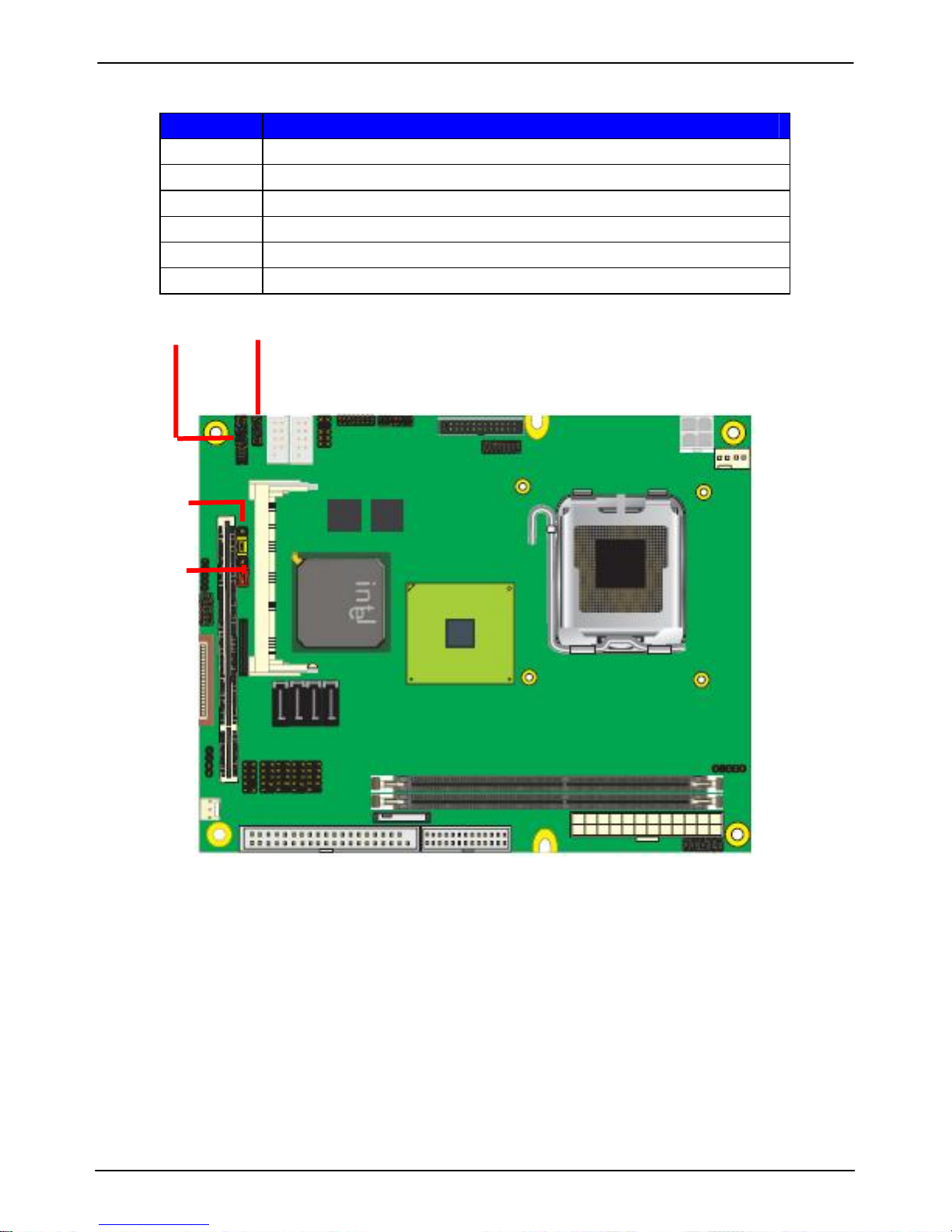

2.2 <Jumper Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JVLCD Panel Voltage Setting (LS-572X Only)
JP1 COM1 Power mode
JP2 COM2 Power mode
JCSEL1 COM2 Function select
JCSEL2 RS232/422/485
JAT
JRTC
JCSEL1/2 JP1/JP2

LS-572 User’s Manual
-15-
Jumper: JAT
Type: onboard 3-pin header
Power Mode JAT
AT Mode 1-2
ATX Mode 2-3
Default setting: ATX Mode
Jumper: JP1 (COM 1)
Type: onboard 3 x 2-pin header
Power Mode JP1
Pin1 with 5V signal 1-3,4-6
Pin9 with 12V signal 2-4,3-5
Default setting: 3-5, 4-6
Jumper: JP2 (COM 2)
Type: onboard 3 x 2-pin header
Power Mode JP2
Pin1 with 5V signal 1-3,4-6
Pin9 with 12V signal 2-4,3-5
Default setting: 3-5, 4-6
1
3
1 2
5 6
1 2
5 6

LS-572 User’s Manual
-16-
2.3 <Connector Reference>
2.3.1 <Internal Connectors>
Connector Function Remark
CPU LGA775 CPU socket
DDRII1/2 240 -pin DDR2 SDRAM DIMM socket
FDD 26-pin slim type floppy connector
SATAII1/2/3/4 7-pin Serial ATA II connector
ATX 24-pin power supply connector
CN_12V 4-pin +12V additional power supply connector
CN_AUDIO 5 x 2-pin audio connector
CDIN 4-pin CD-ROM audio input connector
CN_DIO 6 x 2-pin digital I/O connector
CN_USB 10-pin USB connector
CPUFAN 4-pin CPU cooler fan connector
SYSFAN 3-pin system cooler fan connector
CN_IR 5-pin IrDA connector
CN_INV 5-pin LCD inverter connector LS-572X
CN_LVDS 20 x 2-pin LVDS connector LS-572X
JFRNT 14-pin front panel switch/indicator connector
PCI 120-Pin PCI socket
Mini-PCI Mini-PCI socket
CN_DVI 26-Pin connector LS-572D
CN_COM1/2 5 x 2-pin com connector
CN_COM3/4/5/6 2 x 20-pin com connector

LS-572 User’s Manual
-17-
2.4 <CPU and Memory Setup>
2.4.1 <CPU installation>
LS-572 has a LGA775 CPU socket onboard; please check following steps to install the
processor properly.
Attention If LS-572 need RMA please Keep CPU socket cover on the CPU Socket.
Warring Warranty void if CPU socket internal pin damage.
Intel®Core 2 Quad /Core 2 Duo/Celeron
processor
Package type: 775 pin LGA
L2 Cache: 4 MB
FSB: 800/1066/1333MHz (266MHz x 4)
Manufacturing: 65 & 45 nm
1. Lift this bar
2. Uncover this plate
Check point
3. Place the CPU on the top of
the
p
ins
3. Cover this plate
4. Lock this bar
Notice: Please place the CPU on the pins tenderl
y
to avoid bendin
g
the pins

LS-572 User’s Manual
-18-
2.4.2 <Memory installation>
LS-572 has two 240-pin DDR2 DIMM support up to 4GB of memory capacity. The memory
frequency supports 667/800MHz.
DDRII1/2
112-pin128-pin
Please check the pin number to match the socket side well
before installing memory module.
