Commell LV-66A User manual

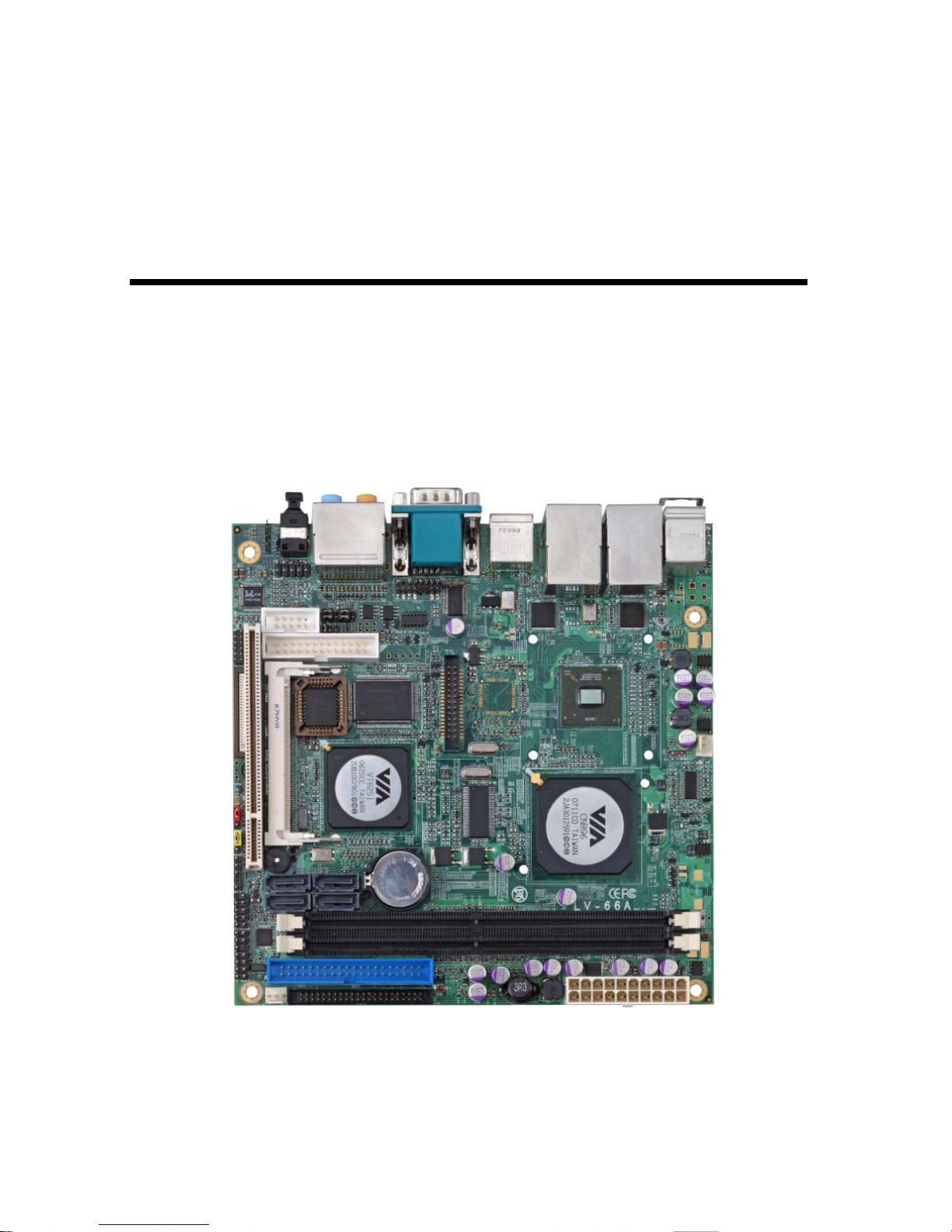

LV-66A
Mini-ITX Motherboard
User’s Manual
Edition 1.02
2009/02/17

LV-66AUser’sManual
2
Copyright
Copyright 2008. All rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT

LV-66A User’s Manual
3
Packing List
Please check the package before you starting setup the system
Hardware:
LV-66A series motherboard x 1
Cable Kit:
Printed Matters:
Driver CD x 1 (Including User’s Manual)

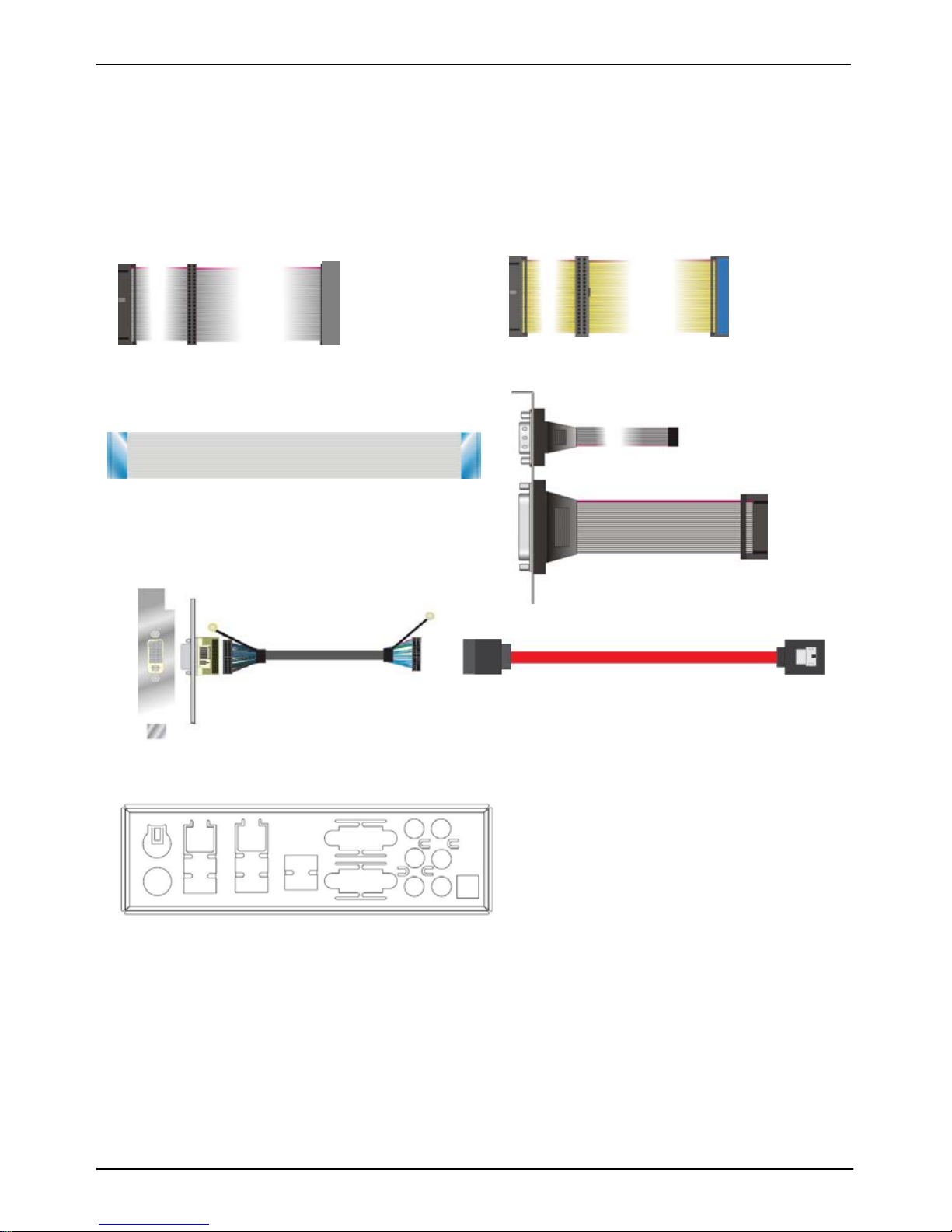

44-pin ATA33 IDE Cable x 1 40-pin ATA100 IDE Cable x 1
26-pin Slim Type Floppy Cable x 1
Printer Port Cable & COM Port Cable x 1
DVI module with DVI Cable x 1
(LV-66AD series only)
SATA Cable x 2
I/O Shield x 1

LV-66AUser’sManual
4
Index
Chapter 1 <Introduction>....................................................................7
1.1 <Product Overview>.................................................................................7
1.2 <Product Specification>...........................................................................8
1.3 <Mechanical Drawing>...........................................................................10
1.4 <Block Diagram>....................................................................................11
Chapter 2 <Hardware Setup>.........................................................12
2.1 <Connector Location>............................................................................12
2.2 <Jumper Reference> .............................................................................14
2.3 <Connector Reference>.........................................................................15
2.3.1 <Internal Connector>..................................................................15
2.3.2 <External Connector>.................................................................15
2.4 <CPU and Memory Setup>....................................................................16
2.4.1<CPU>.........................................................................................16
2.4.2 <Memory> ..................................................................................16
2.5 <CMOS & AT/ATX Setup>.....................................................................17
2.6 <Solid State Disk Interface>...................................................................18
2.7 <Serial ATA Interface>...........................................................................19
2.8 <Floppy Port>.........................................................................................20
2.9 <LAN Interface>.....................................................................................21
2.10 <Onboard Display Interface>...............................................................22
2.10.1 <Analog VGA Interface> ..........................................................22
2.10.2 <Digital Display>.......................................................................23
2.10.2.1 <LVDS Display> .............................................................23
2.10.2.2 <DVI Display> ................................................................27
2.11 <Onboard Audio Interface>..................................................................28
2.12 <USB2.0 Interface>..............................................................................29
2.13 <GPIO Interface>.................................................................................31

LV-66A User’s Manual
5
2.14 <Serial Port Jumper Setting >..............................................................32
2.15 <Fan Connector>.................................................................................34
2.16 <Indicator and Switch>.........................................................................35
2.17 <Power Supply>...................................................................................36
2.17.1 <DC_IN Input>..........................................................................36
2.17.2 <ATX Input> .............................................................................37
Chapter 3 <System Configuration>...........................................39
3.1 <SATA RAID Configuration>..................................................................39
3.2 <Audio Configuration> ...........................................................................42
3.3 <Display Configuration>.........................................................................43
Chapter 4 <BIOS Setup>....................................................................47
Appendix A <I/O Port Pin Assignment>.................................49
A.1 <IDE Port>.............................................................................................49
A.2 <Floppy Port> ........................................................................................51
A.3 <Serial ATA Port>..................................................................................51
A.4 < CRT Port >..........................................................................................52
A.5 <Serial Port>..........................................................................................52
A.6 <LAN Port>............................................................................................52
Appendix B <Flash BIOS>................................................................53
B.1 BIOS Auto Flash Tool .....................................................................53
B.2 Flash Method...................................................................................53
Appendix C <System Resources>.............................................54
C1.<I/O Port Address Map>................................................................54
C2.<Memory Address Map>................................................................56
C3.<System IRQ Resources>.............................................................58
Appendix D <Programming GPIO’s>.......................................59
Appendix E <Watch Dog timer Setting >...............................61
Contact Information..............................................................................63

LV-66AUser’sManual
6
(The Page is Left For Blank)

LV-66A User’s Manual Introduction
7
Chapter 1 <Introduction>
1.1 <Product Overview>
LV-66A is the Mini-ITX motherboard based on VIA chipset. It integrates VIA embedded
chipset for CN896 with VT8251, two DDR2 400/533/667 SDRAM 64-bit single channel, and
serial ATA II supporting 1.5 Gbit/s and 3 Gbit/s transfer rate with RAID 0/1/0+1/5 and JBOD
array Technology supported to provide the economical embedded platform.
VIA CN896 & VT8251 Chipset
The board comes with the VIA embedded chipset of CN896, supports two DDR2
400/533/667 SDRAM, Chrome9™ HC Integrated Graphics with 2D / 3D / Video Controllers,
The VT8251 provides the board to support Ultra V-Link interface with 1 GB/sec maximum
bandwidth, four serial ATA II ports with RAID array function, 8 x USB2.0 ports and 7.1
channels HD audio.
Multimedia solution
Based on VIA CN896 chipset, the board provides single/dual 18/24-bit LVDS or DVI
interface, which supports dual independent display with CRT.
Onboard HD codec provides the high quality of sound including 7.1-channel stereo DACs.
Two LAN Interface
LV-66A also comes with two Giga LAN interface, support boot-on-LAN and wake-on-LAN
function.
High Speed Hot-plug Interface
Based on VIA VT8251 the board provides 8 USB2.0 interfaces with up to 480Mbps of
transferring rate.

LV-66A User’s Manual Introduction
8
1.2 <Product Specification>
General Specification
Form Factor Mini-ITX motherboard
CPU VIA C7 1.5GHz processor
L1/L2 Cache: 64 KB/128KB
Front side bus: 400MHz
Memory 2 x 240-pin DDR2 400/533/667 SDRAM up to 4GB Advanced 64-bit
single channel,
Unbufferred, non-ECC memory supported only
Chipset VIA CN896 and VT8251
BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS
Green Function Power saving mode includes doze, standby and suspend modes. ACPI
version 1.0 and APM version 1.2 compliant
Watchdog Timer System reset programmable watchdog timer with 1 ~ 255 sec./min. of
timeout value
Real Time Clock VIA VT8251 built-in RTC with lithium battery
Enhanced IDE Enhanced IDE interface supports dual channels and up to 4 ATAPI
devices
One 40-pin and one 44-pin IDE port onboard
Solid State Disk One Compact Flash Type II (Optional)
Serial ATA VIA VT8251 integrates 4 Serial ATA II interface supporting 1.5 Gbit/s and 3
Gbit/s transfer rate
RAID 0/1/0+1/5 and JBOD array Technology supported
Multi-I/O Port
Chipset VIA VT8251 with Winbond W83697HG controller
Serial Port One RS-232 external & one internal RS-232/ RS-422/ RS-485 serial ports
USB Port Six external & two internal Hi-Speed USB 2.0 ports with 480Mbps of
transfer rate
Parallel Port One 26-pin internal parallel port
Floppy Port One slim type Floppy port
K/B & Mouse PS/2 keyboard and mouse
GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O interface
Hardware Monitor Fan speed, CPU temperature and voltage monitoring
VGA Display Interface
Chipset VIA CN896 Integrated Chrome9™ HC IGP & Video Controller
Core Frequency 250MHz
Memory BIOS selectable 64/128/256MB shard with system memory
Display Type CRT, LCD monitor with analog display
onboard 18/24-bit single/dual LVDS or DVI

LV-66AUser’sManual HardwareSetup
9
Connector External DB15 female VGA connector on rear I/O panel
Onboard 40-Pin LVDS connector(LV-66AX series only)
Onboard 26-Pin DVI connector(LV-66AD series only)
Ethernet Interface
Chipset REALTEK RTL8111C
Type Integrated 10/100/1000 transceiver
auto-switching Fast Ethernet
Full Duplex flow control (IEEE 802.3x), Fully compliant with IEEE 802.3,
IEEE 802.3u, IEEE 802.3ab
Connector Two External RJ45 connectors with LED on rear I/O panel
Audio Interface
Chipset REALTEK ALC888
Interface 7.1 channel surround audio with Line-out and MIC-in
Connector Onboard audio connector with pin header and phone jack
Onboard CD-IN connector
Expansive Interface
PCI 1 x PCI slot supports up to two PCI devices through riser card
Mini PCI 1 x Mini PCI socket support Mini PCI type II
Power and Environment
Power
Requirement Standard 20-Pin ATX power supply 12V DC Input (Optional)
Dimension 170 (L) x 170 (H) mm
Temperature Operating within 0 ~ 60℃(32 ~ 140℉)
Storage within -20 ~ 85℃(-4 ~ 185℉)
Ordering Code
LV-66A VIA C7 1.5G with Onboard VGA, AUDIO, 1XGiga LAN, USB2.0, COM,
FDD, LPT, GPIO, Mini PCI, SATA and SPDIF
LV-66AD VIA C7 1.5G with Onboard VGA, AUDIO, 2X Giga LAN, USB2.0, COM,
FDD, LPT, GPIO, Mini PCI, SATA, SPDIF and DVI
LV-66AX VIA C7 1.5G with Onboard VGA, AUDIO, 2X Giga LAN, USB2.0, COM,
FDD, LPT, GPIO, Mini PCI, SATA, SPDIF and LVDS
The specifications may be different as the actual production.
For further product information please visit the website at TUhttp://www.commell.com.twUT

LV-66A User’s Manual Introduction
10
1.3 <Mechanical Drawing>

LV-66AUser’sManual HardwareSetup
11

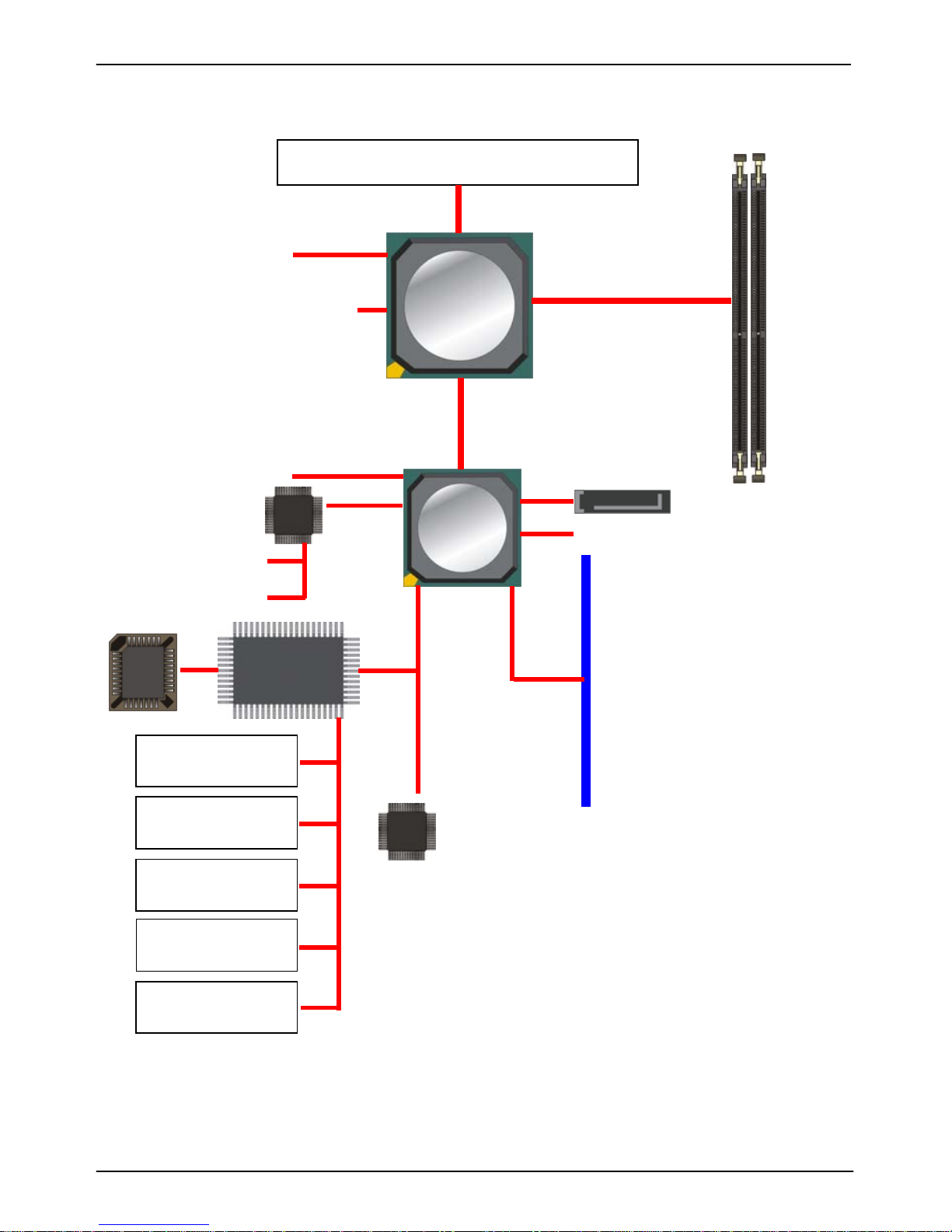

1.4 <Block Diagram>
C7VIAnanoBGA2
2 x 240-pin DDR2
400/533/667
U
p
to 4GB
CRT/LCD Monitor
VT1636 LVDS/VT1632A DVI CN896
VT8251
Ultra V-Link
533MB/s
8 x USB2.0 Ports
PCI
Mini PCI
2 x 8111C LAN
4 x SATA
HD ALC888
2 x Serial ports
1 x Floppy port
8-bit GPIO
BIOS
40-Pin 44-Pin IDE
1 x Parallel port
W83697HG
1 x IrDA
CDIN
SPDIF

LV-66AUser’sManual HardwareSetup
12
Chapter 2 <Hardware Setup>

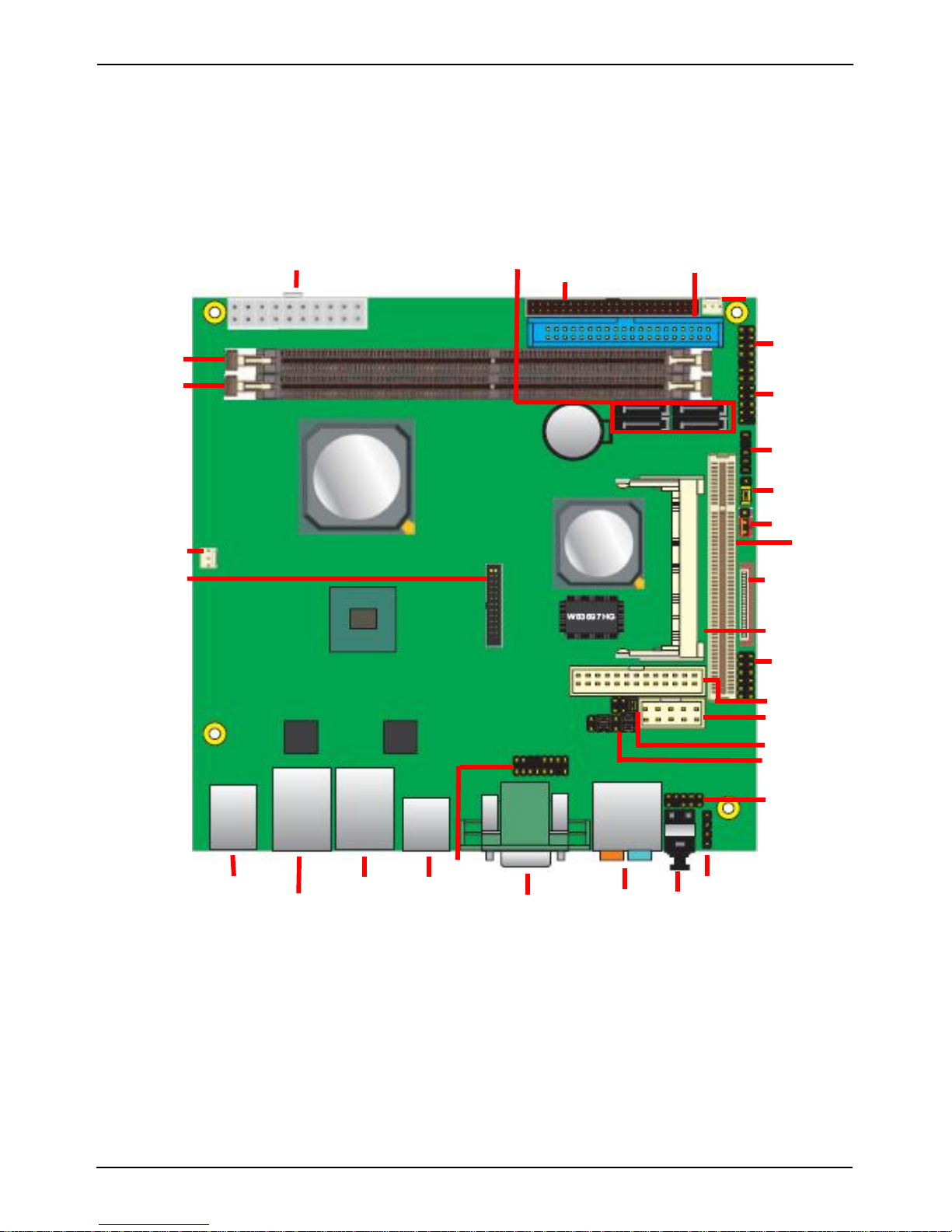

2.1 <Connector Location>
CN_DIO
ATX
CPUFAN
CN_CRT
IDE2
PCI
MINIPCI
CN_IR
SYSFAN
JFRNT
SPDIF
AUDIO CDIN
IDE1
CN_FUSB
JAT
JRTC
FDD
CN_LPT
CN_COM2
CRT+COM
USB
USB-RJ45_2
USB-RJ45_1
PS2
CN_DVI/
CN_LVDS

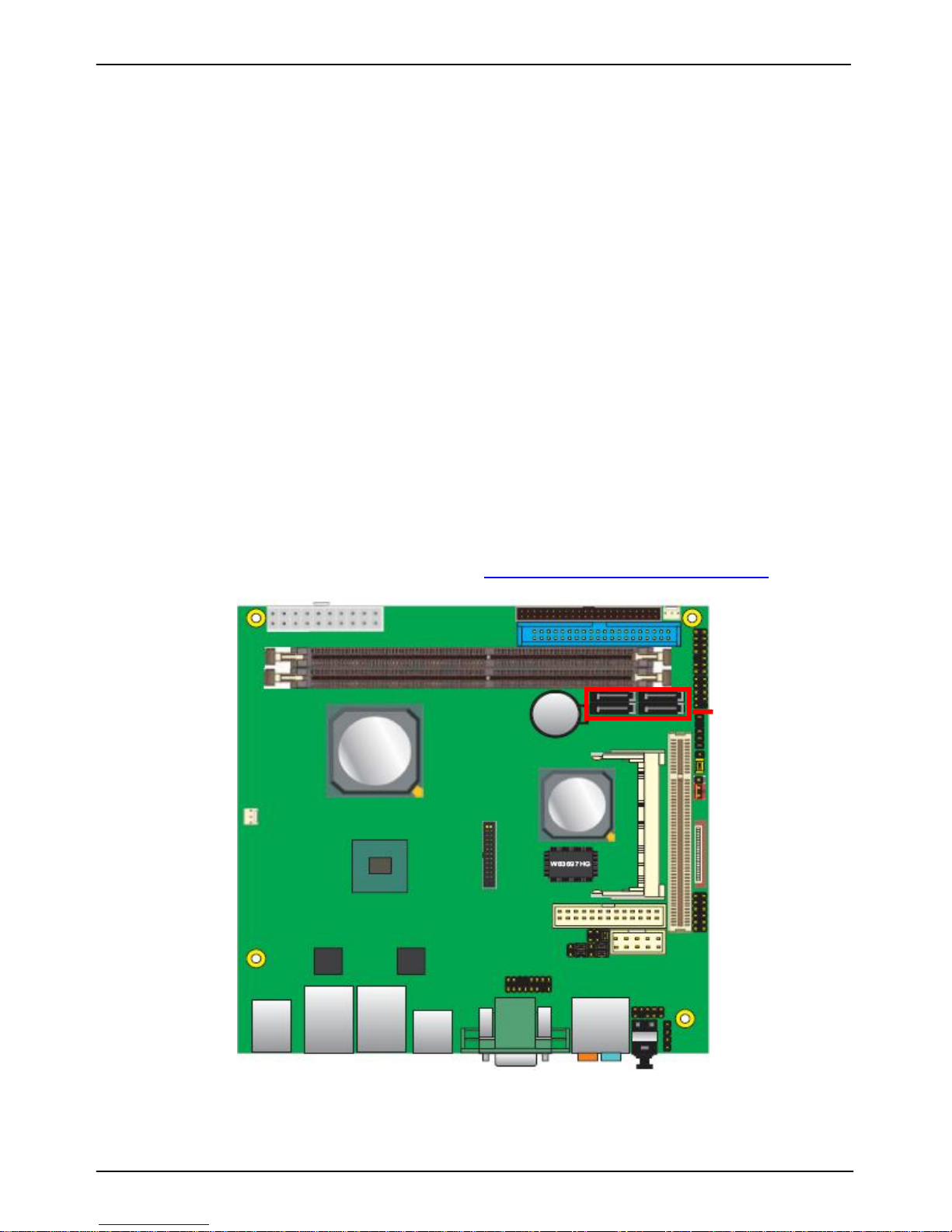

SATA2/4
SATA1/3
JCSEL2
JCSEL1
DDRIIB
DDRIIA
CN_FAUDIO

LV-66AUser’sManual HardwareSetup
13
PS2 USB CRT+COM
USB_RJ45_1/2 AUDIO SPDIF CDIN
170mm
170mm
14.25’

LV-66AUser’sManual HardwareSetup
14
2.2 <Jumper Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JVLCD LCD Panel Voltage Setting (LV-66AX series only)
JAT AT/ATX mode setting
JCSEL1/2 CN_COM2 RS232/422/485 mode setting
JRTC
JVLCD
JAT
JCSEL2
JCSEL1

LV-66AUser’sManual HardwareSetup
15
2.3 <Connector Reference>
2.3.1 <Internal Connector>
Connector Function Remark
DDRIIA&DDRIIB 240-pin DDR2 SDRAM DIMM Standard
IDE1 40-pin primary IDE connector Standard
IDE2 44-pin secondary IDE connector Slim
FDD 26-pin slim type floppy connector Slim
SATA1/2/3/4 7-pin Serial ATA connector Standard
CN_FAUDIO 5 x 2-pin audio connector Standard
CDIN 4-pin CD-ROM audio input connector Standard
CN_DIO 6 x 2-pin digital I/O connector Standard
CN_FUSB 5 x 2-pin USB connector Standard
CPUFAN 3-pin CPU cooler fan connector Standard
SYSFAN 3-pin system cooler fan connector Standard
CN_COM2 5 x 2-pin RS232 serial port Standard
CN_LVDS 20 x 2-pin LVDS LCD interface(LV-66AX
series only) Standard
CN_INV 5-pin LCD inverter connector (LV-66AX series
only) Standard
JVLCD 3 x 2-pin LCD connector(LV-66AX series only) Standard
PCI Slim 32bit PCI slot Slim
MINIPCI Mini-PCI socket Standard
CN_LPT 13 x 2-pin printer connector Standard
CN_DVI 26-Pin connector(LV-66AD series only) Standard
JFRNT 14-pin switch/indicator connector Standard
CN_IR 5 x 1-pin IR connector Standard
2.3.2 <External Connector>
Connector Function Remark
CRT+COM DB15 VGA connector+ DB9 Serial port connector Standard
USB_RJ45_1&2 6 x USB and 2 x RJ45 LAN connector Standard
PS/2 PS/2 keyboard and mouse connector Standard
AUDIO 7.1 channel surround audio Standard
SPDIF SPDIF connector Standard

LV-66AUser’sManual HardwareSetup
16
2.4 <CPU and Memory Setup>
2.4.1<CPU>
The board supports VIA C7 processor, default ratio is C7 1.5G 12W with cooler.
2.4.2 <Memory>
The board supports two 240-pin DDR2 400/533/667 SDRAM and up to 4GB Advanced
64-bit single channel, of capacity, only non-ECC, unbuffered memory is supported.
112-pin128-pin
Please check the pin number to match the socket side well
before installing memory module.

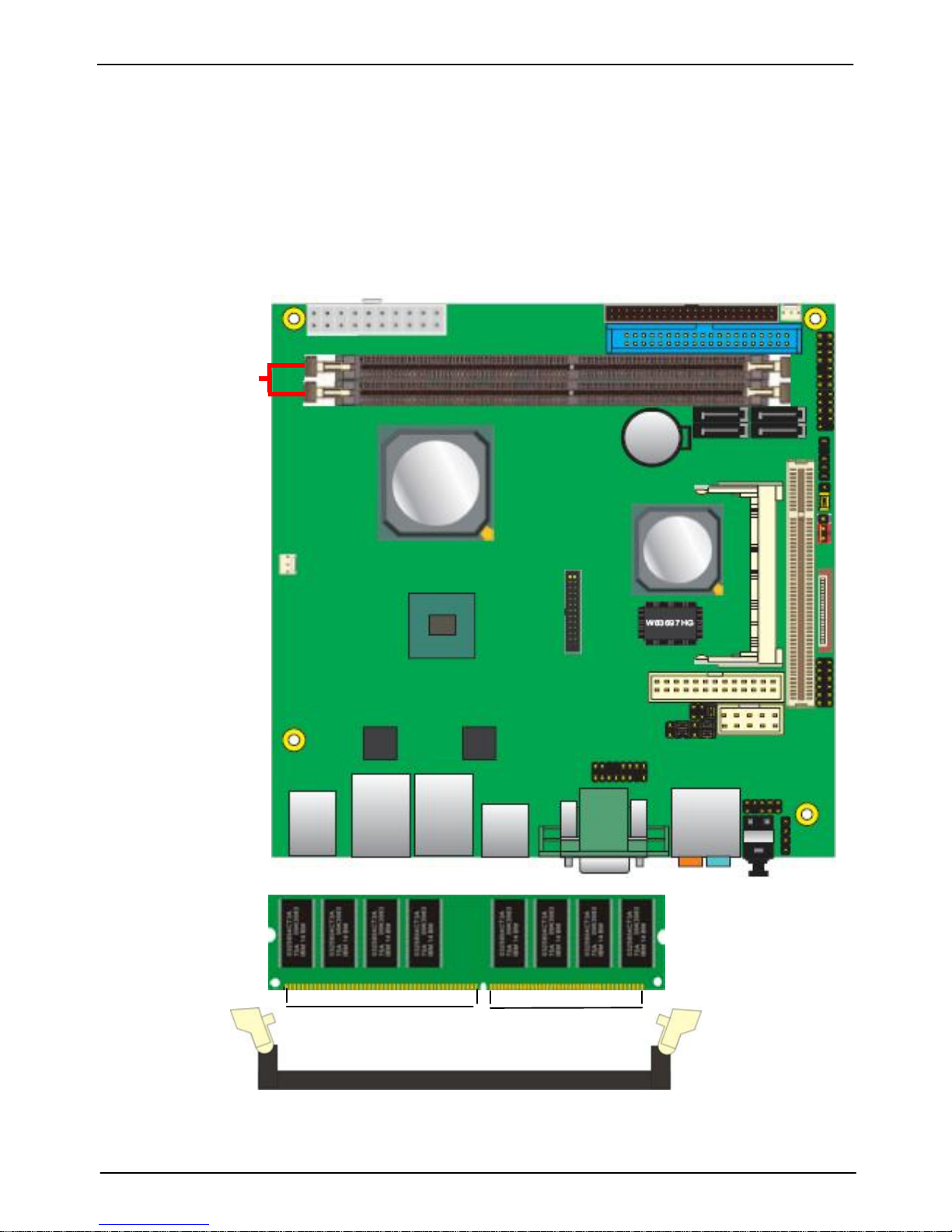

DDRIIA&DDRIIB

LV-66AUser’sManual HardwareSetup
17
2.5 <CMOS & AT/ATX Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting
Jumper: JAT
Type: Onboard 3-pin jumper
JAT Mode
1-2 AT mode
2-3 ATX mode
Default setting
JRTC
1
3
J
A
T
1
3

LV-66AUser’sManual HardwareSetup
18
2.6 <Solid State Disk Interface>
The board has one Compact Flash Type II socket on the solder side, with jumper JCFSEL
for CF master/slave mode selection. (Optional)
Jumper: JCFSEL
Type: Onboard 3-pin jumper
JCFSEL Mode
1-2 Master mode
2-3 Slave mode
Default setting
JCFSEL
1
3
CF

LV-66AUser’sManual HardwareSetup
19
2.7 <Serial ATA Interface>
Based on VIA VT8251 Southbridge, the board supports four Serial ATA interfaces with
RAID array function. The following is the list of the specification of the Serial ATA.
1. Complies with Serial ATA Specification Revision 1.0
2. Complies with Serial ATA II Specification.
3. Supports up to 4 S-ATA devices: 4 SATA II AHCI Bus Masters or 2 SATA I Bus
Masters.
4. Integrated S-ATA PHY supporting 1.5 Gbit/s and 3 Gbit/s transfer rate.
5. Supports up to 32 entries command queue for each device.
6. Supports port multiplier.
7. Supports multiple RAID configurations - including RAID Level 0, RAID Level 1, RAID
Level 0+1, RAID Level 5 and JBOD.
For more information please visit VIA website (http://www.via.com.tw/en/index.jsp)
SATA2/4
SATA1/3

LV-66AUser’sManual HardwareSetup
20
2.8 <Floppy Port>
The board provides a slim type floppy port; please use the 26-pin ribbon cable in the
package to connect the floppy device.

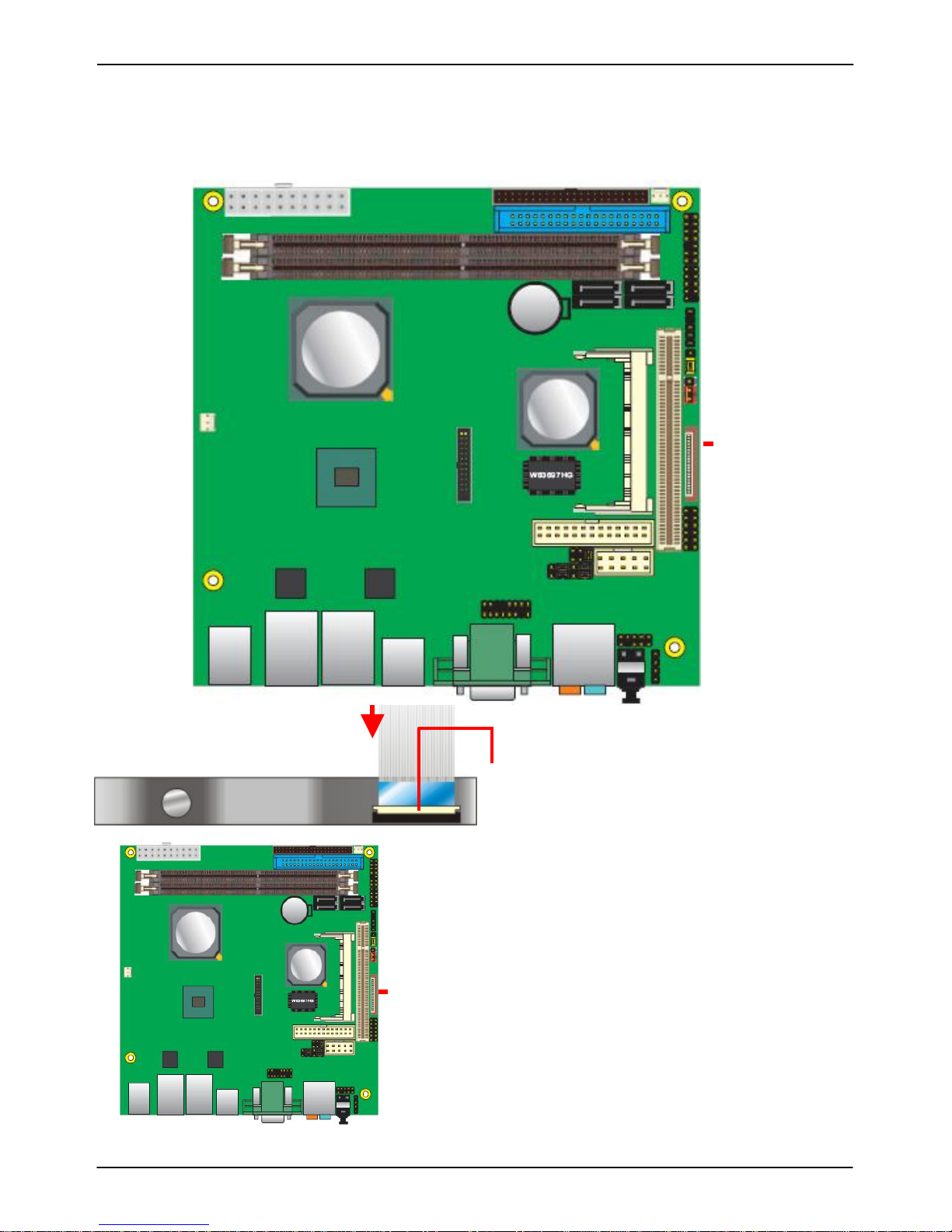

FDD
4. Lift up this plastic bar
5. Slot the cable in (Blue paste for outside)
6. Press back the plastic bar
Floppy rear side
1. Lift up the brown plastic bar
2. Slot the cable in (Blue paste for
brown bar side)
3. Press back the plastic bar
