Commell LV-6715 User manual

LV-6715
Mini-ITX Mobile Motherboard
User’s Manual
Edition 1.1
2022/10/11

LV-6715 User’s Manual
-1-
Copyright
Copyright 2022, all rights reserved. This document is copyrighted and all rights are reserved.
The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TU http://www.commell.com.twUT

LV-6715 User’s Manual
-2-
Packing List:

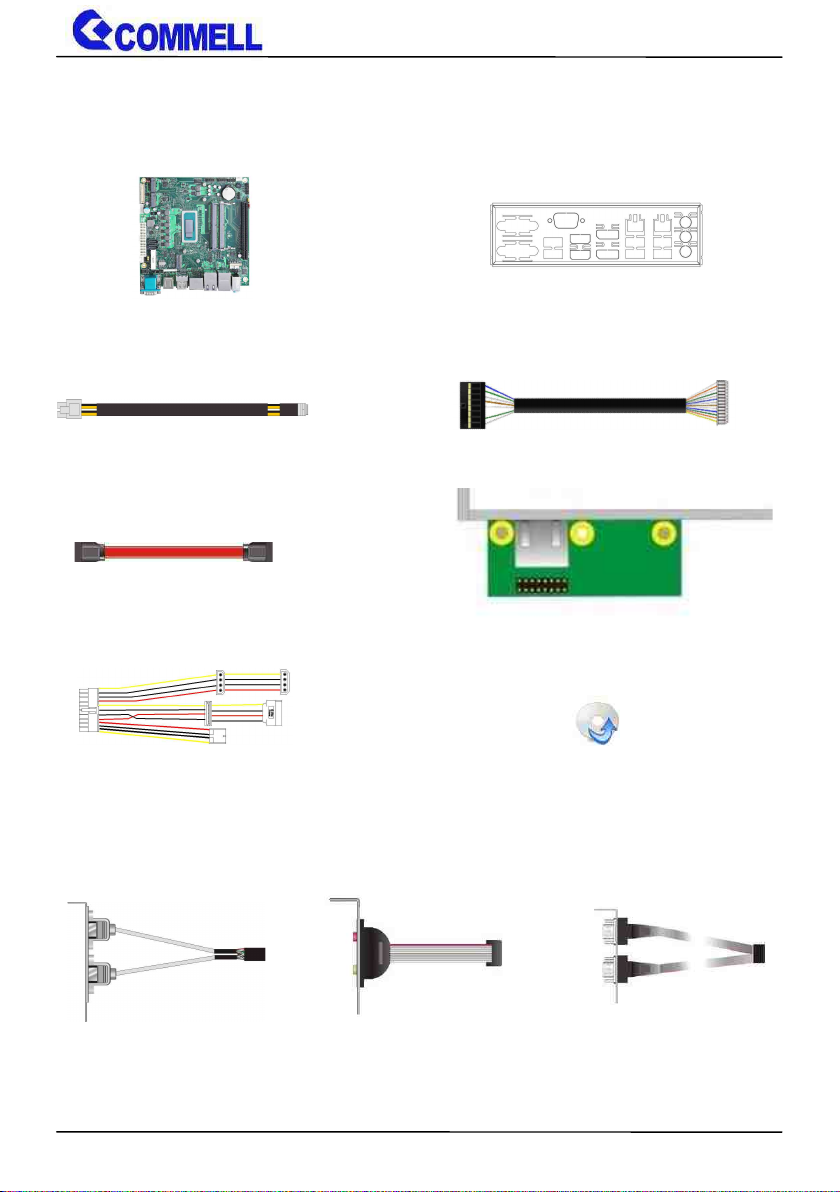

Please check the package content before you starting using the board.
OPTIONAL:
1 x LV-6715 Mini-ITX Motherboard
(include Cooler Fan)
1 x I/O Shield
(OPLATE-CUHDLAT) / (1270077)
1 x Power Cable
(OALATX-P3S2 / 1040058)
2 x SATA Cable
(OALSATA3-L) / (1040529)
1 x DC Power Cable
(OALDC-A) / (1040433)
1 x Audio cable
(OALPJ-HD) / (1040120)
1 x Dual COM PORT Cable
(OALES-BKU2) / (1040087)
1 x USB 2.0 Cable
(OALUSBA-1) / (1040172)
1 x Driver CD
(Including User’s Manual)
1 x Adapter LAN Cable
(OALGLAN-A-20 / 1040617)
1 x LAN Adapter
(BADPGLAND_A / 4120007011)

LV-6715 User’s Manual
-3-
Index
Chapter 1 <Introduction>...............................................................4
1.1 <Product Overview>............................................................4
1.2 <Product Specification> ......................................................5
1.3 <Block Diagram>.................................................................6
Chapter 2 <Hardware setup>.........................................................7
2.1 <Connector Location and Reference> ................................7
2.1.1 <Internal connectors list>..........................................8
2.1.2 <External connectors list>.........................................8
2.2 <Memory Setup>.................................................................9
2.3 <Jumper Location and Reference>...................................10
2.3.1 <Jumper list> ..........................................................10
2.3.2 <Clear CMOS and Power on type selection>..........11
2.4 <I/O interface> ..................................................................11
2.4.1 <Serial ATA interface>.............................................11
2.4.2 <Ethernet interface>................................................12
2.4.3 <Display interface> .................................................13
2.4.4 <Serial Port interface> ............................................15
2.4.5 <USB interface>......................................................17
2.4.6 <Audio interface>....................................................18
2.4.7 <Expansion slot>.....................................................19
2.4.8 <Front panel switch and indicator> .........................20
2.4.9 <GPIO and Other interface>...................................21
2.5 <Power supply> ................................................................23
2.5.1 <Power input>.........................................................23
2.5.2 <Power Output>......................................................24
Appendix A <Flash BIOS> ...........................................................25
Appendix B <LCD Panel Type select>........................................26
Appendix C <Programmable Watch Dog Timer>.......................27
Appendix D <Hardware Monitor>................................................29
Appendix E <Programmable GPIO> ...........................................30
Appendix F <RAID Setting>.........................................................31
Contact information.....................................................................32

LV-6715 User’s Manual
-4-
Chapter 1 <Introduction>
1.1 <Product Overview>
LV-6715 is a Mini-ITX Motherboard which supports Alder Lake/12th Gen Processors,
integrated DDR5 memory, Realtek High Definition Audio, Intel Gigabit LAN, USB3.2 Gen2,
SATA3 with AHCI function for a system.
New feature for Alder Lake
Alder Lake/12th Gen Processors are based on the 7nm SuperFin process, and offer
long-life availability. i7-12800HE have Intel® Iris® Xe Graphics up to 96 EUs.
All in One multimedia solution
The board provides one MiniPCIe slot (support mSATA), one M.2 2230 slot, two M.2 2280
slot (PCIe Gen4), and one PCIe x16 slot (PCIe Gen4 X8).
Alder Lake support Windows10 version 21H2 64bit and Linux 5.18
Intel recommends using Windows 10 version 21H2 64bit. It may lose some drivers if you
use other Windows version.

LV-6715 User’s Manual
-5-
1.2 <Product Specification>
System
Processor
Intel®Alder Lake H Processor
FCBGA1744 package
Memory
2 x DDR5 SO-DIMM 4800 MHz up to 64GB,
Support Non-ECC, unbuffered memory
Watchdog Timer
Generates a system reset with internal timer for 1min/s ~ 255min/s
Real Time Clock
Chipset integrated RTC with onboard lithium battery
Expansion
1 x MiniPCIe (support mSATA) (Note1)
2 x M.2 (Key M 2280) support PCIe Gen4 for NVMe
1 x M.2 2230 Key E for Wi-Fi and Bluetooth
1 x PCIe x16 Slot (support Gen4 X8)
Graphics
Chipset
Intel® Iris® Xe Graphics (i7, i5)
Intel® UHD Graphics (i3)
Display Interface
1 x LVDS (Note2) , 2 x HDMI, 2 x DisplayPort (Note3)
1 x HDMI / DVI
LAN
Chip
1 x Intel® I219-LM Gigabit PHY LAN (Support iAMT 15.0)
2 x Intel® I226-LM Gigabit LAN (up to 2.5GbE)
I/O
Serial ATA
2 x SATA3 (Note1)
Audio
RealtekALC888S HD Audio
Internal I/O
2 x SATA3, 4 x RS232, 2 x USB2.0, 1 x GPIO ,1 x SMBus, 1 x Audio,
1 x LAN, 1 x HDMI/DVI Connector, 1 x LVDS (Note2), 1 x LCD inverter
Rear I/O
4 x USB3.2 Gen2 , 2 x USB2.0, 2 x LAN, 2 x RS232/422/485, 1 xAudio
2 x HDMI, 2 x DisplayPort (Note3)
Mechanical & Environmental
Power Requirement
Standard 24-pinATX power supply, or DC input 9~35V
Size
170mm x 170mm (L x W)
Temperature
Operating within 0°C~60°C (32°F~140°F)
Storage within -20°C~80°C (-4°F~176°F)
Relative Humidity
10%~90%, non-condensing
Note1: mSATAand SATA2 can’t use at the same time
Note2: Onboard 18/24-bit single/dual channel +3.3V/ +5V/ +12V LVDS
Note3: AddADP-3355 supports VGAor AddADP-3460 supports 2nd LVDS, please contact with our
sales for OEM version
Note4: Intel Iris Xe Graphics has to install two memory cards.

LV-6715 User’s Manual
-6-
1.3 <Block Diagram>
DP
PTN3460
LVDS
HDMI
I219-LM
I226-LM
4 x USB3.2 Gen2
4 x USB2.0
DDR5 SODIMM 4800
DDR5 SODIMM 4800
2 x SATA
1 x PCIe / mSATA
1 x M.2 2230
2 x M.2 KEY M 2280
1 xALC888S
1 x SYSFAN
1 x CPUFAN
1 x GPIO
2 x RS232/422/485
4 x RS232
Alder Lake H
Processor
Super I/O
NCT6126D
DP
HDMI
1 x PCIe X16 Slot
Gen4 8x
DVI / HDMI
I226-LM

LV-6715 User’s Manual
-7-
Chapter 2 <Hardware setup>

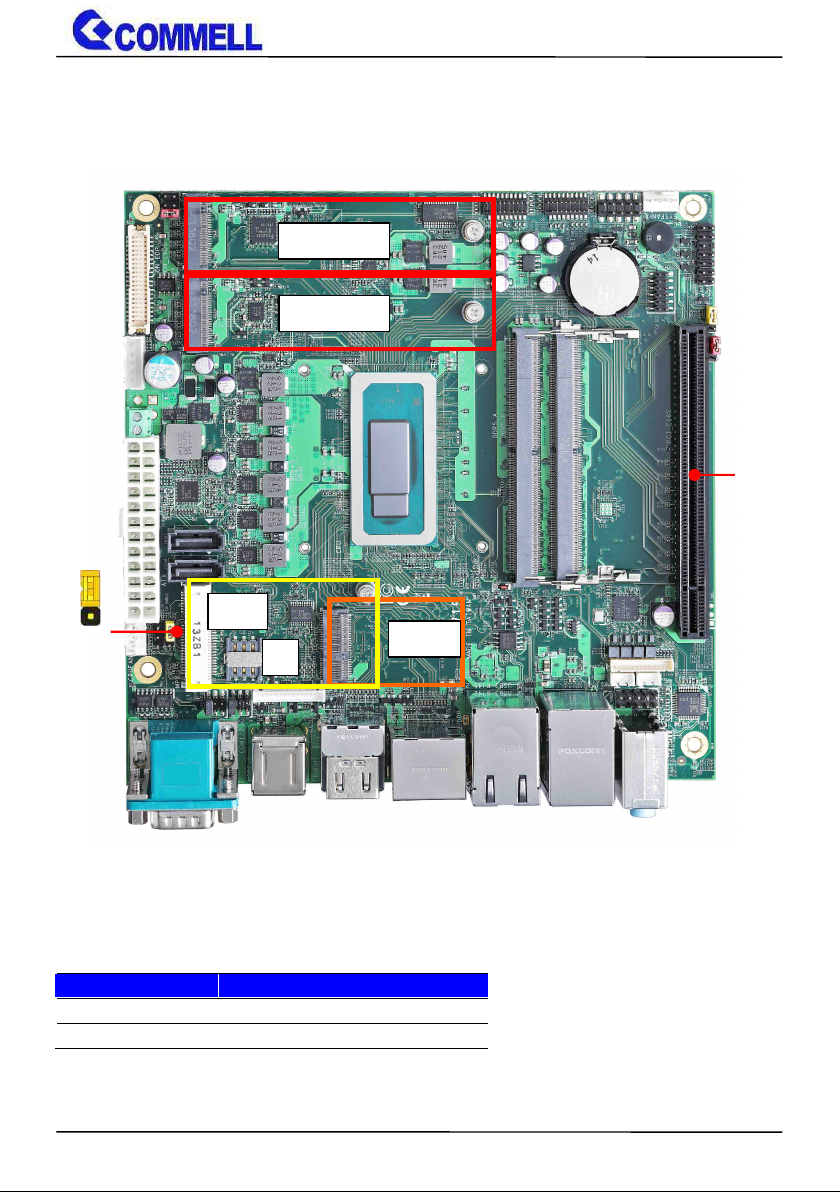

2.1 <Connector Location and Reference>
COM2 i226-LM i219-LM
M.2 HE
M.2 HM
MPX-H
MINI_C
ARD
COM1 USB2.0 HDMI DP USB3.2 Gen2 Audio
CN_COM3/4 CN_COM5/6
CN_USB
SIM
M.2 HM1
CN_LVDS
CN_INV
DC_IN
ATX
SATA1
SATA2
CN_SMBUS
CPUFAN
CN_DVI/HDMI
SYSFAN
CN_DIO
\
PCI_E16X
CN_LAN3
JLANLED1
CN_ AUDIO
JLANLED2
DDR5_A
DDR5_B

LV-6715 User’s Manual
-8-
2.1.1 <Internal connectors list>
Connector
Function
DDR5_A/B
262-pin DDR5 SO-DIMM slot
SATA1/2
7-pin SATA3 connector
CN_AUDIO
5 x 2-pin audio pin header
CN_LVDS
20 x 2-pin LVDS connector
CN_INV
5-pin LCD inverter connector
CN_SMBUS
3-pin SMBus connector
CN_COM 3/4/5/6
20-pin RS232 connector
CN_USB
5 x 2-pin USB2.0 pin header
CN_DIO
6 x 2-pin digital I/O connector
CPUFAN
4-pin CPU fan connector
SYSFAN
4-pin system fan connector
JFRNT
14-pin front panel switch/indicator connector
PCI_E16X
164-pin x16 PCIE slot (Supoort PCIe Gen4 8x)
MPX-H
52-pin MiniPCIe card slot
M2_HE
75-pin M.2 Key E slot
M2_HM/HM1
75-pin M.2 Key M slot (Supoort PCIe Gen4)
CN_DVI/HDMI
15-pin DVI / HDMI connector
CN_LAN3
13-pin i226-LM connector
JLANLED 1/2
4-pin RJ45 LED connector
ATX
24-pin power supply connector
DC_IN
2-pin power input Terminal Block
2.1.2 <External connectors list>
Connector
Function
DDP
Dual DisplayPort connector
DHDMI
Dual HDMI connector
USB_RJ45_1
USB3.2 Gen2 and RJ45 connector (i219-LM)
USB_RJ45_2
USB3.2 Gen2 and RJ45 connector (i226-LM)
USB2.0
USB2.0 connector
AUDIO
Audio connector
COM12
DB9 Serial port connector

LV-6715 User’s Manual
-9-
2.2 <Memory Setup>
In the process, the board must be powered off.
1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key.
2. Then press down till lock into the mounting notch.
3. To remove the memory, push outward on both sides of the latch.
Key
Seated the RAM in the slot
Latch

LV-6715 User’s Manual
-10-
2.3 <Jumper Location and Reference>
2.3.1 <Jumper list>
Jumper
Function
JAT
Power mode select
JRTC
CMOS Normal/Clear Setting
JVLCD
Panel Voltage Setting
JMSATA
MiniCard mSATA Setting
JP1

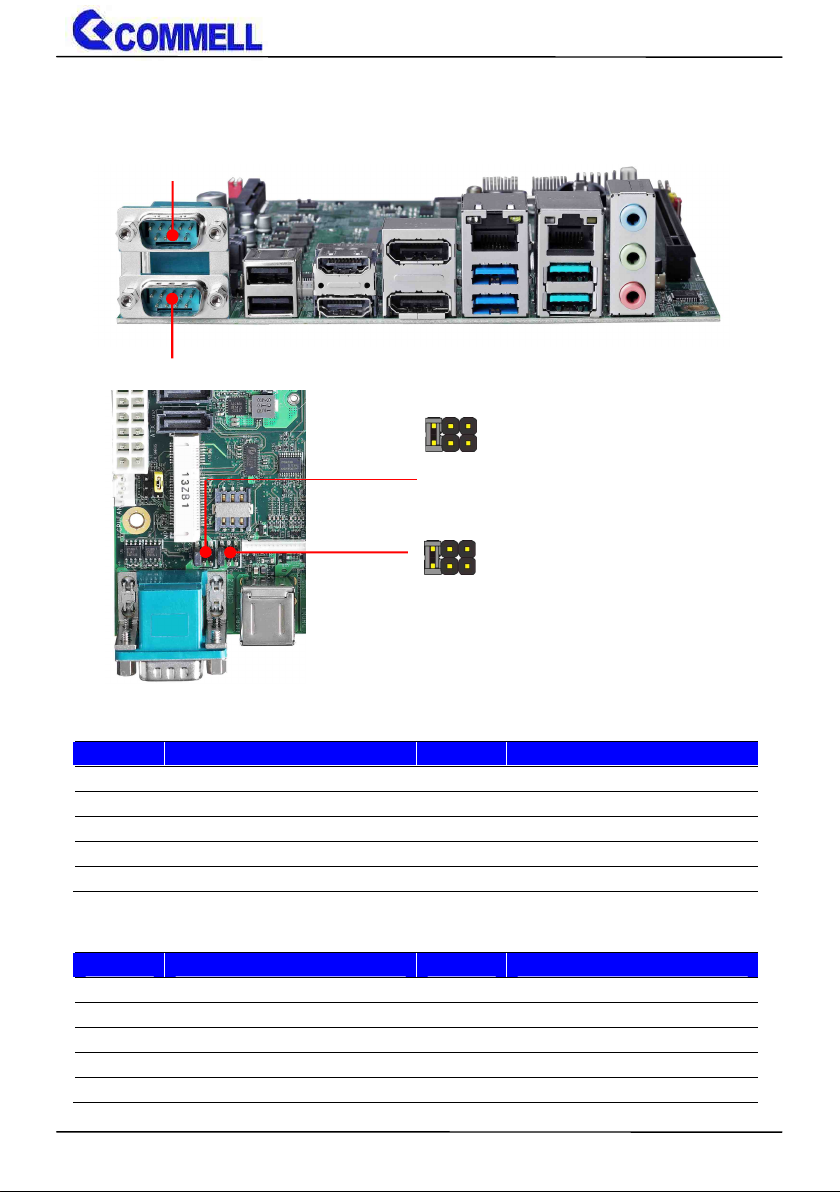

COM1 Voltage Setting (For Pin 9)
JP2
COM2 Voltage Setting (For Pin 9)
JAT
JRTC
JVLCD
JP1
JP2

LV-6715 User’s Manual
-11-
2.3.2 <Clear CMOS and Power on type selection>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
JAT: AT/ATX mode select jumper
Jumper settings
Function
1-2
AT mode
2-3
ATX mode (Default)
JRTC: Clear CMOS data jumper
2.4 <I/O interface>
2.4.1 <Serial ATA interface>
SATA 1/2: SATA3 7-pin connector
Jumper settings
Function
1-2
Clear CMOS
2-3
Normal (Default)
Pin
Signal
1
GND
2
TX+
3
TX-
4
GND
5
RX-
6
RX+
7
GND
7 1
JAT
3
1
JRTC
SATA1
SATA2
3
1

LV-6715 User’s Manual
-12-
2.4.2 <Ethernet interface>
The board provides I219-LM Gigabit Ethernet which supports WOL on rear I/O. It
supports Intel® AMT 16.0 feature on I219-LM.
(Note that the CPU must support vPro technology.)
CN_LAN3: 13-pin i226-LM connector JLANLED1: 4-pin RJ45 LED connector
JLANLED2: 4-pin RJ45 LED connector
Pin
Description
1
RTD00+
2
RTD00-
3
RTD01+
4
RTD01-
5
RTD02+
6
RTD02-
7
RTD03+
8
RTD03-
9
GND
10
RLINK2.5G0-
11
RLINK1G0-
12
RLINK0-
13
RACTLED0-
Pin
Description
1
I219 SPEED LED+ (1G)
/ I219 SPEED LED- (10/100M)
2
I219 SPEED LED- (1G)
/ I219 SPEED LED+ (10/100M)
3
I219 ACT LED-
4
I219 ACT LED+
Pin
Description
1
I226 SPEED LED+ (2.5G)
/ I226 SPEED LED- (1G)
2
I226 SPEED LED- (2.5G)
/ I226 SPEED LED+ (1G)
3
I226 ACT LED-
4
I226 ACT LED+
I226-LM I219-LM
CN_LAN3
JLANLED2 (I226)
JLANLED1 (I219)
CN_LAN3
1 13
1 4
1 4

LV-6715 User’s Manual
-13-
2.4.3 <Display interface>
Based on the 12th Gen CPU with built-in Intel® Iris® Xe Graphics, the DisplayPort
resolution up to 3840x2160 @ 60Hz or 4096x2304 @ 60Hz, the HDMI up to
4096x2304 @ 24Hz and LVDS up to 1920x1200 @ 60Hz supports single bus or
dual bus LVDS signaling with color depths of 18 bits or 24 bits. About select LCD
Panel Type in BIOS, please refer Appendix B.The built-in Iris® Xe Graphics
support Quad display function with clone mode and extended mode.
40
2
39
1
5
JVLCD
6
2
1
5
HDMI DP
1
CN_LVDS
CN_INV

LV-6715 User’s Manual
-14-
CN_LVDS: LVDS 40-pin connector (Model: HIROSE DF13-40DP-1.25V compatible)
Pin
Signal
Pin
Signal
2
Set by JVLCD
1
Set by JVLCD
4
Detect (Active low)
3
GND
6
A_LVDS_0-
5
B_LVDS_0-
8
A_LVDS_0+
7
B_LVDS_0+
10
GND
9
GND
12
A_LVDS_1-
11
B_LVDS_1-
14
A_LVDS_1+
13
B_LVDS_1+
16
GND
15
GND
18
A_LVDS_2-
17
B_LVDS_2-
20
A_LVDS_2+
19
B_LVDS_2+
22
GND
21
GND
24
A_LVDS_CLK-
23
B_LVDS_3-
26
A_LVDS_CLK+
25
B_LVDS_3+
28
GND
27
GND
30
A_LVDS_3-
29
B_LVDS_CLK-
32
A_LVDS_3+
31
B_LVDS_CLK+
34
GND
33
GND
36
LVDS_DDCSCL
35
NC
38
LVDS_DDCSDA
37
NC
40
NC
39
NC
Pin4 only need to be connected to GND
CN_INV: LVDS 5-pin Backlight power connector
Pin
Signal
1
12V
2
Backlight Control
3
GND
4
GND
5
Enable Backlight
JVLCD: LVDS panel power select jumper
Jumper settings
Function
1-2
3.3V (Default)
3-4
5V
5-6
12V

LV-6715 User’s Manual
-15-
2.4.4 <Serial Port interface>
`
COM1: RS232/422/485 DB9 connector
Pin
Signal
Pin
Signal
1
DCD/ 422TX-/ 485-
2
RXD/ 422TX+/ 485+
3
TXD
4
DTR
5
GND
6
DSR/ 422RX+
7
RTS
8
CTS/ 422RX-
9
Set by JP1
COM2: RS232/422/485 DB9 connector
Pin
Signal
Pin
Signal
1
DCD/ 422TX-/ 485-
2
RXD/ 422TX+/ 485+
3
TXD
4
DTR
5
GND
6
DSR/ 422RX+
7
RTS
8
CTS/ 422RX-
9
Set by JP2
COM2
COM1
JP1
6
1
5
2
6
1
5
2
JP2

LV-6715 User’s Manual
-16-
COM1 & COM2
RS-232/422/485 can set by BIOS.
You can find the setting from
Advanced-> Motherboard Advanced menu-> Super IO configuration->
Serial Port configuration->Interface
If you want to use RS485, please follow below step before connection. .
COM1 RTX- Data- : short Pin1& Pin8
COM1 RTX+ Data+ : short Pin2& Pin6
COM2 RTX- Data-: short Pin1& Pin8
COM2 RTX+ Data+: short Pin2& Pin6
JP1, JP2: COM1, COM2 pin-9 setting
Jumper settings
Function
1-2
5V
3-4
12V
5-6
RI (Default)
COM3/4,COM5/6: COM 20-pin header (Pitch 2.54 x 1.27mm)
Pin
Signal
Pin
Signal
1
DCD1
2
RXD1
3
TXD1
4
DTR1
5
GND
6
DSR1
7
RTS1
8
CTS1
9
RI1
10
NC
11
DCD2
12
RXD2
13
TXD2
14
DTR2
15
GND
16
DSR2
17
RTS2
18
CTS2
19
RI2
20
Key
CN_COM5/6
CN_COM3/4
Effective patterns of connection:
1-2 / 3-4 / 5-6
Other may cause damage
2
19
1
2
19
1

LV-6715 User’s Manual
-17-
2.4.5 <USB interface>
CN_USB: USB2.0 10-pin header (Pitch 2.54 mm)
Pin
Signal
Pin
Signal
1
5VSB
2
5VSB
3
DATA0-
4
DATA1-
5
DATA0+
6
DATA1+
7
GND
8
GND
9
GND
10
Key
USB2 USB3.2 Gen2
CN_USB
2
9
1

LV-6715 User’s Manual
-18-
2.4.6 <Audio interface>
CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm)
Pin
Signal
Pin
Signal
1
MIC_L
2
GND
3
MIC_R
4
NC
5
FP_OUT_R
6
MIC_DETECT
7
SENSE
8
Key
9
FP_OUT_L
10
FP_OUT_DETECT
CN_AUDIO
10
1
9
2
Line in
Line out
Mic in
Rear Audio Jack

LV-6715 User’s Manual
-19-
2.4.7 <Expansion slot>
JMSATA: Setting MINI_CARD to support PCIe/MSATA
MINI_CARD support mSATA by JMSATA, and connect SIM card
M.2 HE with 2 x PCI Express x1 support WI-FI and Bluetooth Module
M2 (Key M) with 4 x PCIe Gen4 support NVMe SSD
Jumper settings
Function
1-2
Support mSATA
2-3
Normal operation (Default)
PCIE_16X: 164-pin PCIE slot (PCIe Gen4 X8)
Use ATX power when you install a graphics card.
3
1
JMSATA
PCIE_16X
M.2 HE
M.2 HM
MPX-H
MINI_C
ARD
SIM
M.2 HM1
