Commell P4ELA User manual

P4ELA

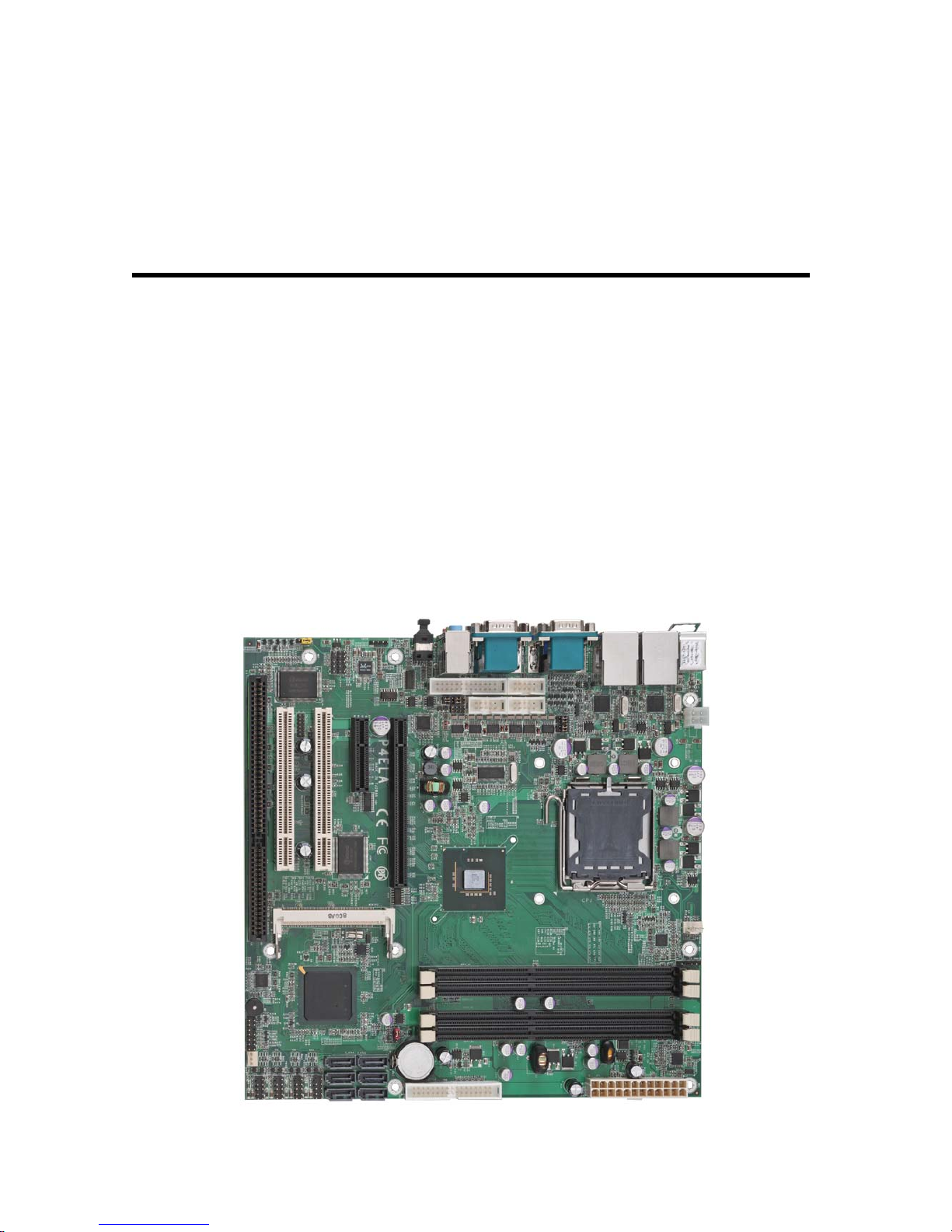

Micro ATX motherboard
User’s Manual
Edition: 1.0
2009/07/28

P4ELAUser’sManual
2
Copyright
Copyright 2009. All rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT.

P4ELAUser’sManual
3
Packing List
Please check package component before you use our products.
Hardware:
P4ELA Micro ATX motherboard x 1
Cable Kit:
Other Accessories:
Divers CD (including User’s Manual) x 1
RAID drivers Disc for Windows XP
SATA Cable x 2
I/O Shield x 1
Floppy flat cable x 1
DB25 & DB9 cable x 1

P4ELAUser’sManual
4
Index
Chapter1 <Introduction>............................................................7
1.1 <Product Overview> .............................................................................................7
1.2 <Product Specification>........................................................................................8
1.3 <Block Diagram> ................................................................................................10
1.4 <Mechanical Drawing > ......................................................................................11
Chapter 2 <Hardware Setup>.................................................12
2.1 <Connector Location>.........................................................................................12
2.2 <Component Placement> ...................................................................................13
2.3 <Jumper Reference>..........................................................................................14
2.4 <Connector Reference>......................................................................................15
2.4.1 <Internal Connectors> ..............................................................15
2.4.2 <External Connectors> .............................................................15
2.5 <CPU and Memory Setup>.................................................................................16
2.5.1 <CPU installation>...................................................................16
2.5.2 <Memory installation>..............................................................17
2.6 <CMOS Setup>...................................................................................................19
2.7 <Serial ATA installation>......................................................................................20
2.8 <Floppy Installation>...........................................................................................21
2.9 <LAN installation>...............................................................................................22
2.10 <Onboard Display Interface>............................................................................23
2.10.1 <Analog Display>..................................................................23
2.11 <Audio Installation>...........................................................................................24
2.12 <GPIO and SMBUS interface> .........................................................................26
2.13 <USB Installation> ............................................................................................27
2.14 <Power and Fan Installation> ...........................................................................29
2.15 <Serial Port>.....................................................................................................31
2.16 <Switch and Indicator> .....................................................................................34

P4ELAUser’sManual
5
Chapter 3 <System Configuration>.......................................36
3.1 <SATA configuration>..........................................................................................36
3.2 <SATA RAID Configuration>...............................................................................37
3.3 <Audio Configuration> ........................................................................................41
3.4 <Video Memory Setup> ......................................................................................42
3.5 <Display Properties Setting>...............................................................................44
Chapter 4 <BIOS Setup>.........................................................46
Appendix A <I/O Port Pin Assignment>................................48
A.1 <Serial ATA Port>................................................................................................48
A.2<Floppy Port>......................................................................................................48
A.3 <IrDA Port>.........................................................................................................49
A.5 <VGA Port> ........................................................................................................50
A.6 <LAN Port>.........................................................................................................50
Appedix B <System Resources>...........................................51
B.1 <I/O Port Address Map>.....................................................................................51
B.2 <Memory Address Map> ....................................................................................53
B.3 <System IRQ Resources>..................................................................................54
Appedix C <Flash BIOS>.........................................................55
C.1 <BIOS Auto Flash Tool>................................................................................55
C.2 <Flash Method>..............................................................................................55
Appendix D <Programming GPIO’s>....................................56
Appendix E <Watch Dog timer Setting >..............................57
Contact Information...................................................................58

P4ELAUser’sManual
6
(This Page is Left for Blank)

P4ELAUser’sManual
7
Chapter1 <Introduction>
1.1 <Product Overview>
P4ELA is the motherboard with last Intel desktop technology with Micro ATX form factor.
Based on Intel®Q45 and ICH10DO, the board integrates a new Core 2 Quad / Core 2 Duo
Celeron processor 775-pin socket, DDR3 memory socket, Intel®Graphic Media Accelerator
4500 technology, Serial ATAII with RAID function for a powerful desktop system.
Intel®LGA775 processor
The Intel® Core 2 Quad / Core 2 Duo / Celeron processor now comes with a new form
factor with 775-pin PLGA package, for 800/1066/1333MHz front-side-bus, 12MB L2 cache,
for 65nm and 45nm manufacturing technology, the PLGA processor without pin header on
solder side can make user installing the processor on the socket easier.
Intel®Q45 and ICH10DO chipset
The Intel Q45 integrates DDR3 800/1066MHz for memory, and Graphic Media Accelerator
(GMA) 4500 technology for new graphic engine. It can provide up to 1024MB of frame
buffer when you install over 1GB of system memory. The ICH10DO integrates with up to 12
USB2.0 interfaces, and serial ATA II interface with RAID function.
PCI-Express interface
P4ELA integrates one x16 and one x4 PCI-Express interface, it can provide up to 8GB/s of
bandwidth.
Flexible Extension Interface
The board provides Two PCI-slot for graphics card, it also can support PCI-slot for LAN card
or other devices. The board also provides mini-PCI socket and ISA slot.

P4ELAUser’sManual
8
1.2 <Product Specification>
General Specification
Form Factor Micro ATX motherboard
CPU Intel® Core 2 Quad / Core 2 Duo / Celeron processor
With LGA775 socket
Package type: LGA 775
Front side bus: 800/1066/1333MHZ (200/266/333MHz x 4)
Memory 2 x 240-pin DDR3 800/1066MHz SDRAM up to 4GB
Unbufferred, none-ECC memory supported only
Chipset Intel® Q45 (Northbridge) and ICH10DO (Southbridge)
BIOS Phoenix-Award v6.00PG 8Mb SPI flash BIOS
Green Function Power saving mode includes doze, standby and suspend modes.
ACPI version 1.0 and APM version 1.2 compliant
Watchdog Timer System reset programmable watchdog timer with 1 ~ 255 sec./min.
of timeout value
Real Time Clock Intel® ICH10DO built-in RTC with lithium battery
Serial ATAII Intel® ICH10DO integrates 6 Serial ATA II interface
RAID 0, 1,5,10 Intel Matrix Storage Technology supported
Multi-I/O Port
Chipset Intel® 82801JDO ( ICH10DO) with Winbond® W83627DHG
Controller
Serial Port Five RS-232 and one RS232/422/485 serial ports
USB Port Twelve Hi-Speed USB 2.0 ports with 480Mbps of transfer rate
Floppy Port One Floppy port
IrDA Port One IrDA compliant Infrared interface supports SIR
K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel
GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O
Interface
Smart Fan One CPU fan connectors for fan speed controllable
VGA Display Interface
Chipset Intel® Q45 GMA4500 (Graphic Memory Controller Hub)
Frame Buffer Up to 1024MB shared with system memory
Display Type CRT, LCD monitor with analog display
Connector External DB15 female connector on rear I/O panel
Ethernet Interface
Controller Two Intel 82574L Gigabit Ethernet controller
Type Triple speed 10/100/1000Base-T
Auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector Two External RJ45 connectors with LED on rear I/O panel

P4ELAUser’sManual
9
Audio Interface
Chipset Intel® ICH10DO with Realtek ALC888HD Audio
Intel High Definition Audio compliance
Interface 2 channels sound output
Connector External 3 phone jack for 2 channel audio on rear I/O panel
External SPDIF connector on rear I/O panel
Internal 10-pin header for line-out, MIC-in, 4-pin header for CD-IN
Expansive Interface
PCI-Express One 16x PCI-Express slot (compatible with x1 slot)
(16x PCI-Express slot no supply 1x PCI-Express RAID Card)
One 4x PCI-Express slot (compatible with x 1 slot)
Up to 8GB/s of transfer bandwidth
Power supply: +3.3V, +12V
PCI Two-PCI slot (32-bit, 33MHz)
Power supply: +3.3V, +5V, +12V, -12V
Mini PCI One Mini-PCI socket TYPE III A (32-bit, 33MHz)
Power supply: +3.3V, +5V
ISA One ISA slots (without DMA supported)
Power and Environment
Power
Requirement Standard ATX 24-pin (20-pin is compatible) power supply Additional +12V 4-pin power connector
Dimension 244 (L) x 244 (H) mm
Temperature Operating within 0 ~ 60P
O
p
C (32 ~ 140P
O
p
F)
Storage within –20 ~ 85P
O
p
C (-4 ~ 185P
O
p
F)
Ordering Code
P4ELA Support Intel Core 2 Quad LGA775 with DDRIII, Onboard VGA,
Dual Intel Gigabit LAN, 12 x USB2.0, HD Audio, 6 x COM , GPIO,
SATA and ISA .
MP-6421 Mini PCI with one 44-pin Ultra DMA 33 IDE interface supports up to
2 ATAPI devices
1 x Compact Flash Type II and 2 x serial ATA interface
MP-323 Mini-PCI card support 3 x IEEE 1394 interface
MP-6100 Mini-PCI H.264 video capture card support 4-ch Video & Audio
inputs with SDK provide
PCIE-SDVOD PCI-Express module support 1 x DVI interface
PCIE-SDVOX PCI-Express module Support 18/24-bit , Dual channel LVDS
interface

P4ELAUser’sManual
10
1.3 <Block Diagram>
Intel Core 2 Quad / Core Due with 775 Pin PLGA
Intel Q45 4 x 240-pin DDR3
800/1066MHz up
to 8GB
PCI bus
Mini-PCI slot
2 x Serial ports
1 x Floppy port
8-bit GPIO
12 x USB2.0 ports
2 x PCI Slot
HD Audio ICH10DO
6 x Serial ATAII ports
Intel 82574L
2 x GLAN
IrDA
PCIE 16x Slot
BIOS
SPI
COM3~6
VGA
W83628 + W83629
ISA Slot

P4ELAUser’sManual
11
Unit: inch
1.4 <Mechanical Drawing >

P4ELAUser’sManual
12
Chapter 2 <Hardware Setup>
2.1 <Connector Location>
JFRNT
CN_LPT
CN_12V
SYSFAN
Mini-PCI
CN_DIO
CN_AUDIO CN_COM5/6
CN_IR
CPUFAN
CN_SMBUS
CDIN
FDD ATX
USB 1/2/3/4 SATA 1/2/3/4/5/6
CN_COM4

P4ELAUser’sManual
13

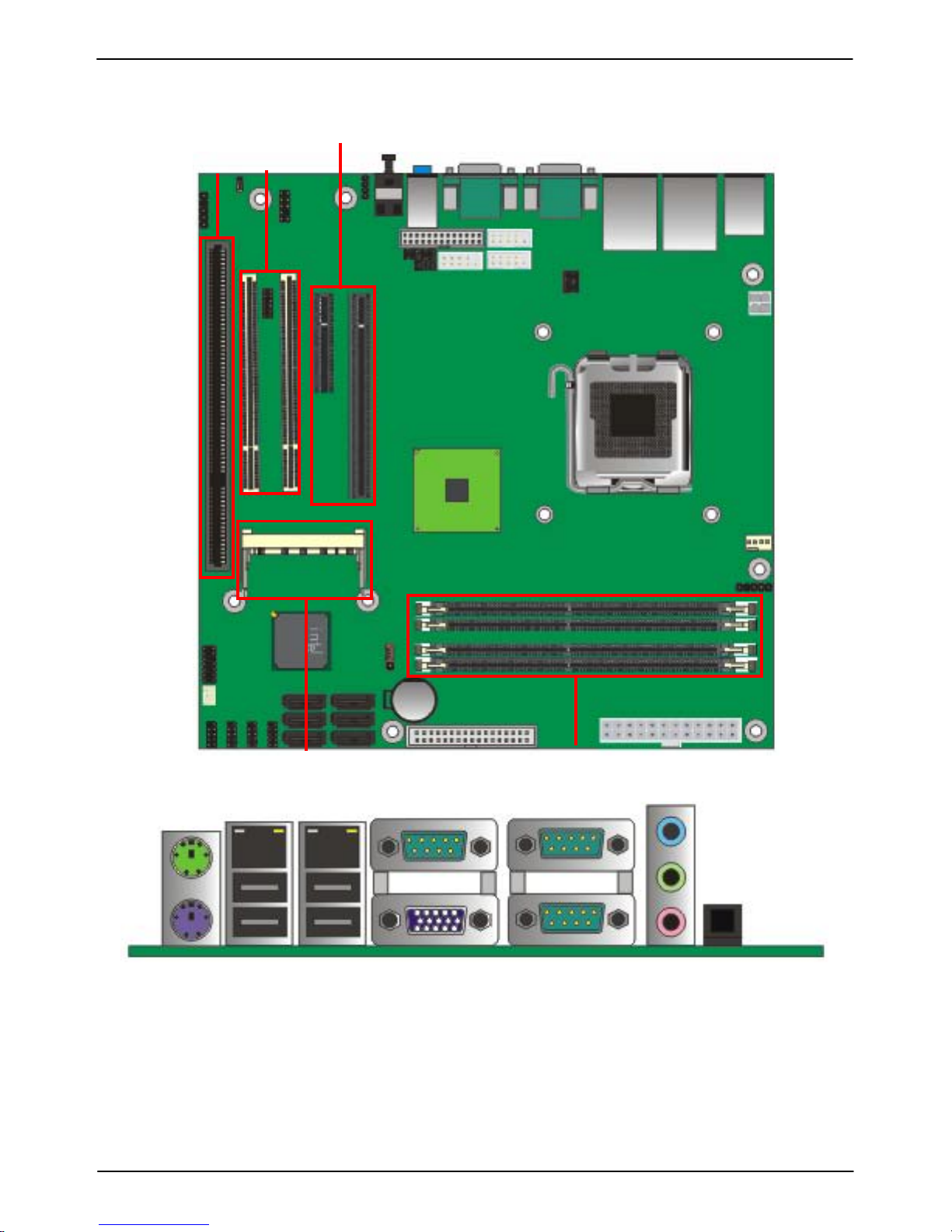

2.2 <Component Placement>
SPDIF
COM1 + CRTUSB_RJ45_1/2 Audio
PS2 COM2+COM3
DIM
Mini-PCI
PCI
PCI-Express
ISA

P4ELAUser’sManual
14
2.3 <Jumper Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting (Page 18)
JP1 COM1 signal mode switch (For Pin-1 & Pin-9) (Page 32)
JP2 COM2 signal mode switch (For Pin-1 & Pin-9) (Page 32)
JAT Power mode select
JCSEL1
JCSEL2 CN_COM2 RS-232 RS422 RS485 Setting (Page 32) CN_IR IrDA Setting (Page 32)
Jumper: JAT
Type: Onboard 3-pin jumper
JAT Mode
1-2 AT Power mode
2-3 ATX Power mode
Default setting
JAT
1
3

P4ELAUser’sManual
15
2.4 <Connector Reference>
2.4.1 <Internal Connectors>
Connector Function Remark
CPU LGA775 CPU socket
DDR3_A1/A2/B1/B2 240 –pin DDR2 SDRAM DIMM socket
FDD 34-pin slim type floppy connector
S_ATAII1/2/3/4/5/6 7-pin Serial ATA II connector
ATX 24-pin power supply connector
CN_12V 4-pin +12V additional power supply connector
CN_AUDIO 5 x 2-pin audio connector
CDIN 4-pin CD-ROM audio input connector
CN_DIO 6 x 2-pin digital I/O connector
CN_USB1/2/3/4 10-pin USB connector
CPUFAN 4-pin CPU cooler fan connector
SYSFAN 3-pin system cooler fan connector
NBFAN 3-pin Northbridge cooler fan connector
CN_IR 5-pin IrDA connector
CN_SMBUS 5-pin SMBUS connector
JFRNT 14-pin front panel switch/indicator connector
PCI1/2 120-Pin PCI socket
CN_COM3/4/5 5 x 2-pin com connector
2.4.2 <External Connectors>
Connector Function Remark
PS2 PS/2 Keyboard/Mouse connector
CRT+COM1 DB15 VGA + Serial port connector
USB_RJ45_1/2 Dual USB and one RJ45 LAN Port
COM 2/3 Serial port connector
AUDIO Audio connectors
SPDIF SPDIF digital audio output connector

P4ELAUser’sManual
CPU Installation16
2.5 <CPU and Memory Setup>
2.5.1 <CPU installation>

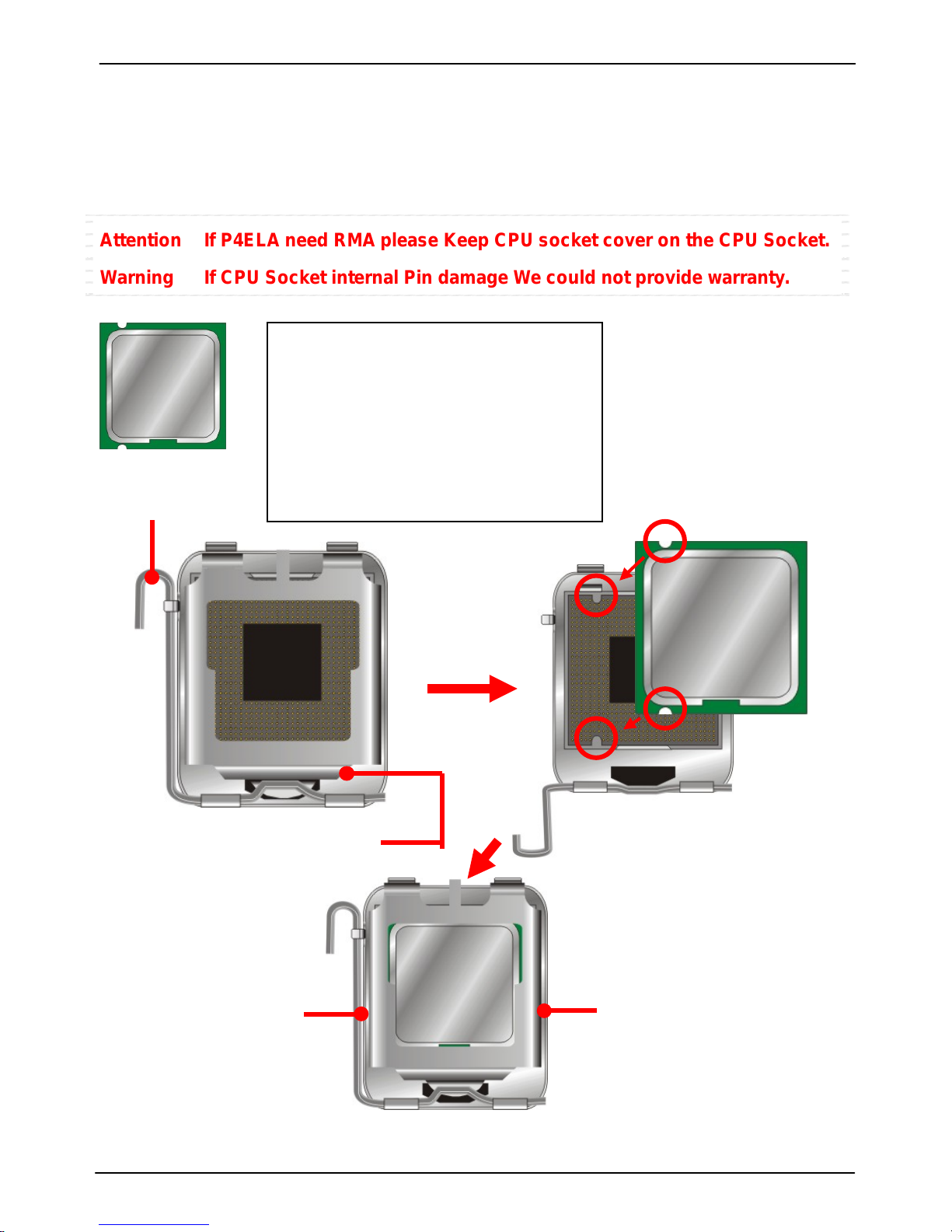

P4ELA has a LGA775 CPU socket onboard; please check following steps to install the
processor properly.
Attention If P4ELA need RMA please Keep CPU socket cover on the CPU Socket.
Warning If CPU Socket internal Pin damage We could not provide warranty.
Intel®Quad Core 2 Quad / Core 2 Duo
Cleron processor
Package type: 775 pin PLGA
FSB:/800/1066/1333MHz
Manufacturing: 65nm / 45nm
Intel Hyper Threading Technology and
Core 2 Duo Quad / Duo supported
1. Lift this bar
2. Uncover this plate
Checked point
3. Place the CPU on the top of
the
p
ins
3. Cover this plate
4. Lock this bar
Notice: Please place the CPU on the pins tenderl
y
to avoid bendin
g
the pins

P4ELAUser’sManual
17
2.5.2 <Memory installation>

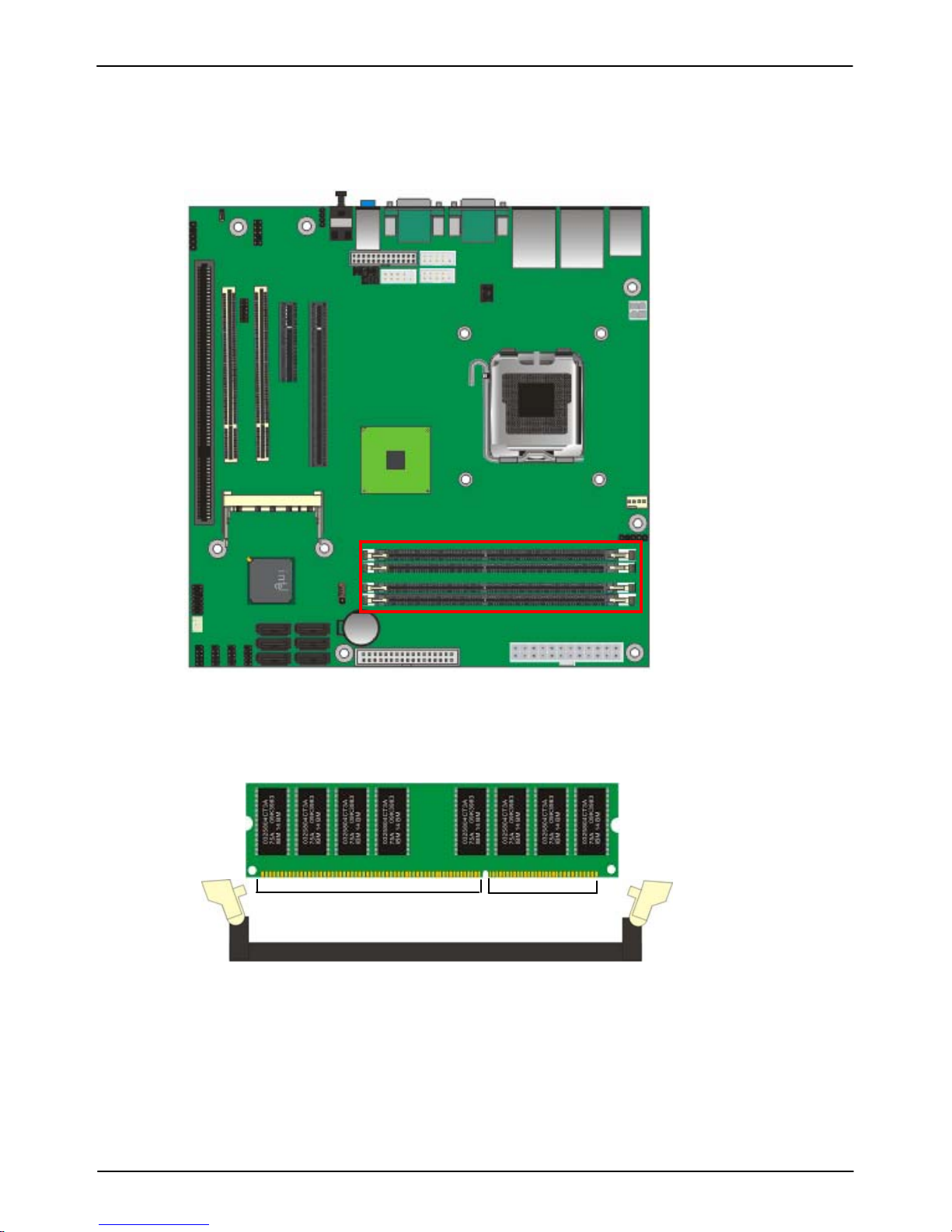

P4ELA has four 240-pin DDR3 DIMM support up to 8GB of memory capacity. The memory
frequency supports 800/1066 MHz. Only Non-ECC memory is supported.
96-pin
144-pin
Please check the pin number to match the socket side well
before installing memory module.
DDRIII A1/A2/B1/B2

P4ELAUser’sManual

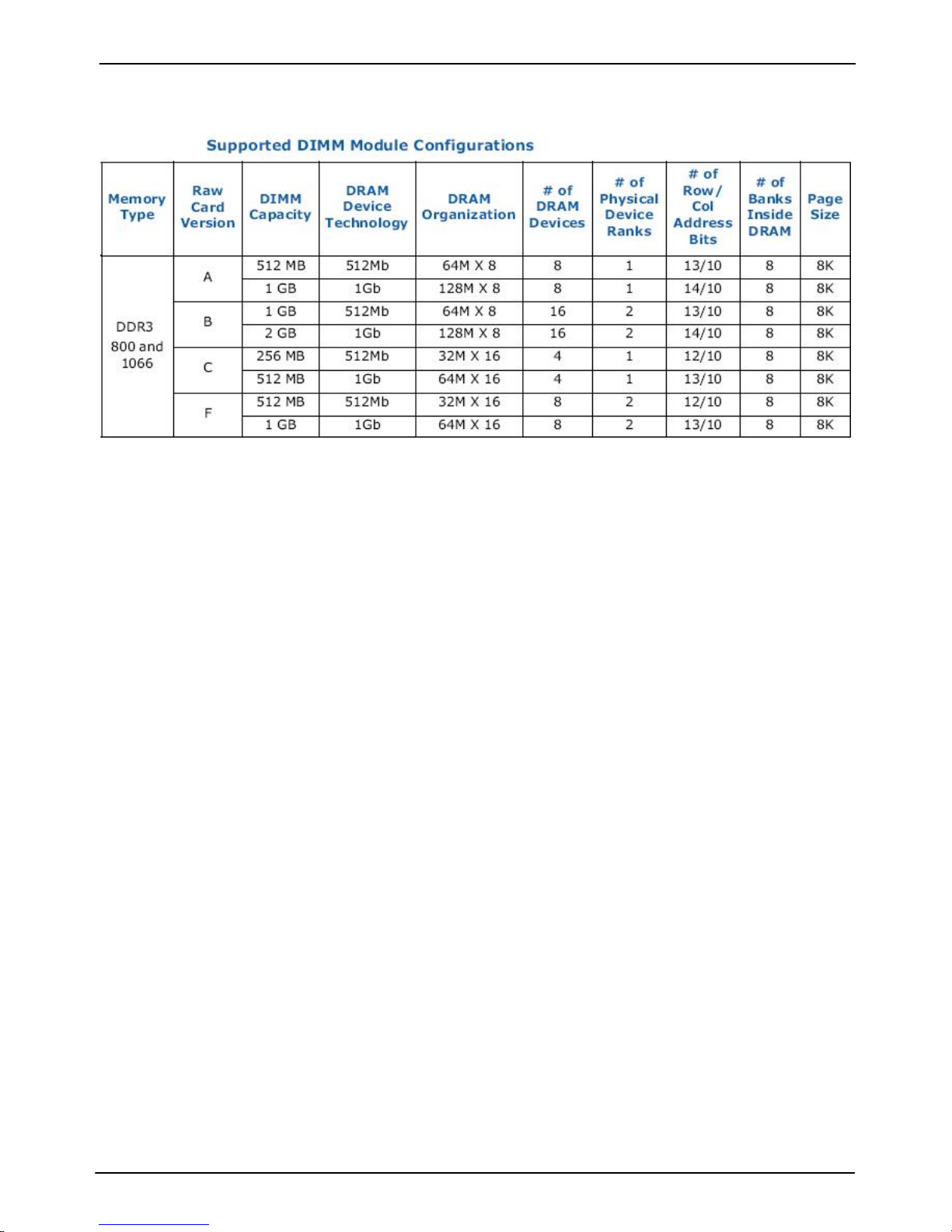

CMOS Setup18

P4ELAUser’sManual
19
2.6 <CMOS Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting
JRTC
13

P4ELAUser’sManual
20
2.7 <Serial ATA installation>
P4ELA has six Serial ATA II interfaces with RAID function, the transfer rate of the SerialATA
II can be up to 300MB/s. Please go to http://www.serialata.org/ for more about Serial ATA
technology information. Based on Intel®ICH10DO, it supports Intel®Matrix Storage
Technology with combination of RAID 0,1,5 and 10. The main features of RAID on
ICH10DO are listed below:
1. Supports for up to RAID volumes on a single, two-hard drive RAID array.
2. Supports for two, two-hard drive RAID arrays on any of six Serial ATA ports.
3. Supports for Serial ATAATAPI devices.
4. Supports for RAID spares and automatic rebuild.
5. Supports on RAID arrays, including NCQ and native hot plug.
For more information please visit Intel’s official website.
For more about the system setup for Serial ATA, please check the chapter of SATA
configuration.
SATA1/2/3/4/5/6
